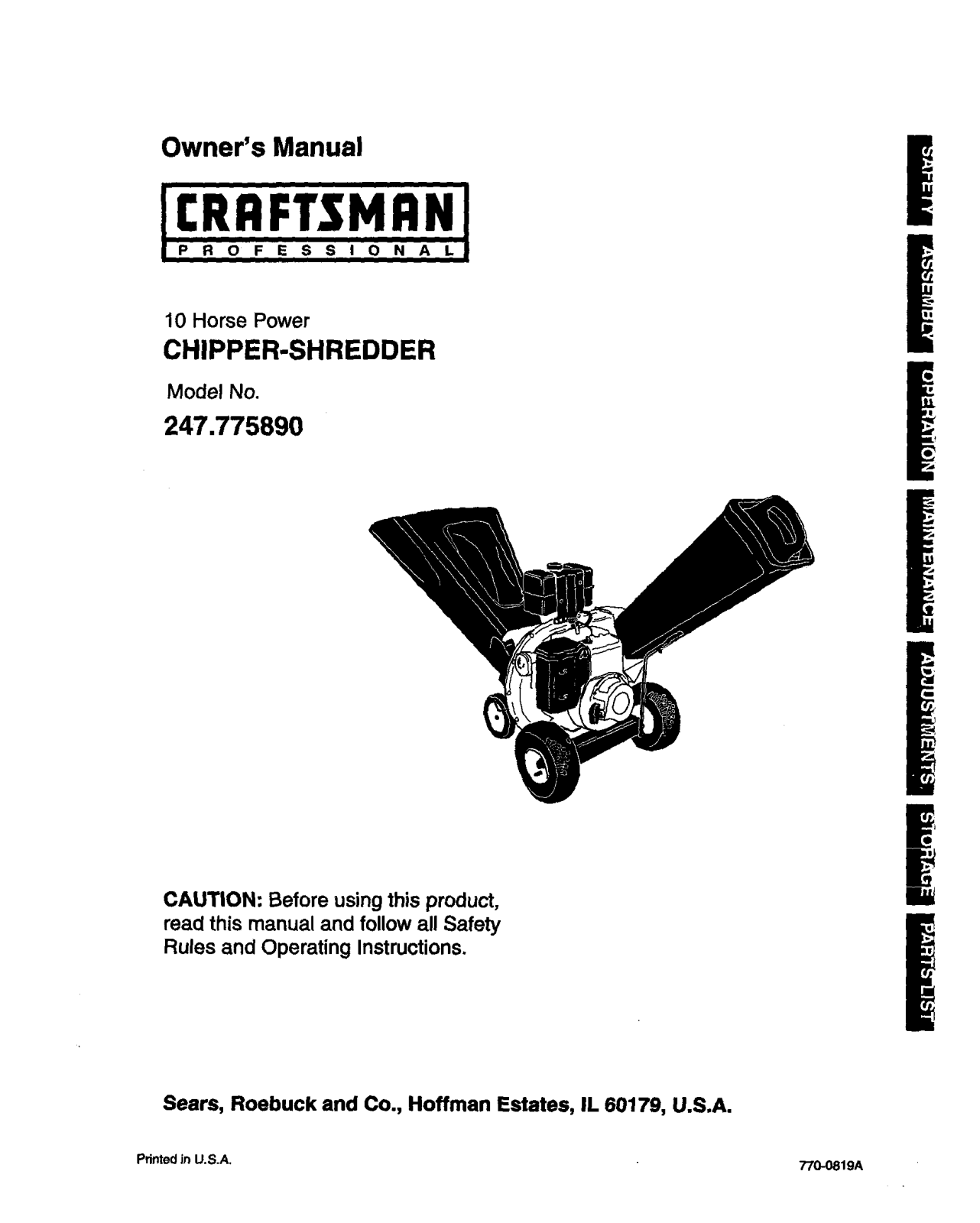

Craftsman 77589 User Manual

Owner's Manual

I

10 Horse Power

CHIPPER-SHREDDER

Model No.

247.775890

I

E

CAUTION: Before using this product,
read this manual and follow all Safety

Rules and Operating Instructions.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Printed in U.S.A. 770-081gA

Content Page Content Page

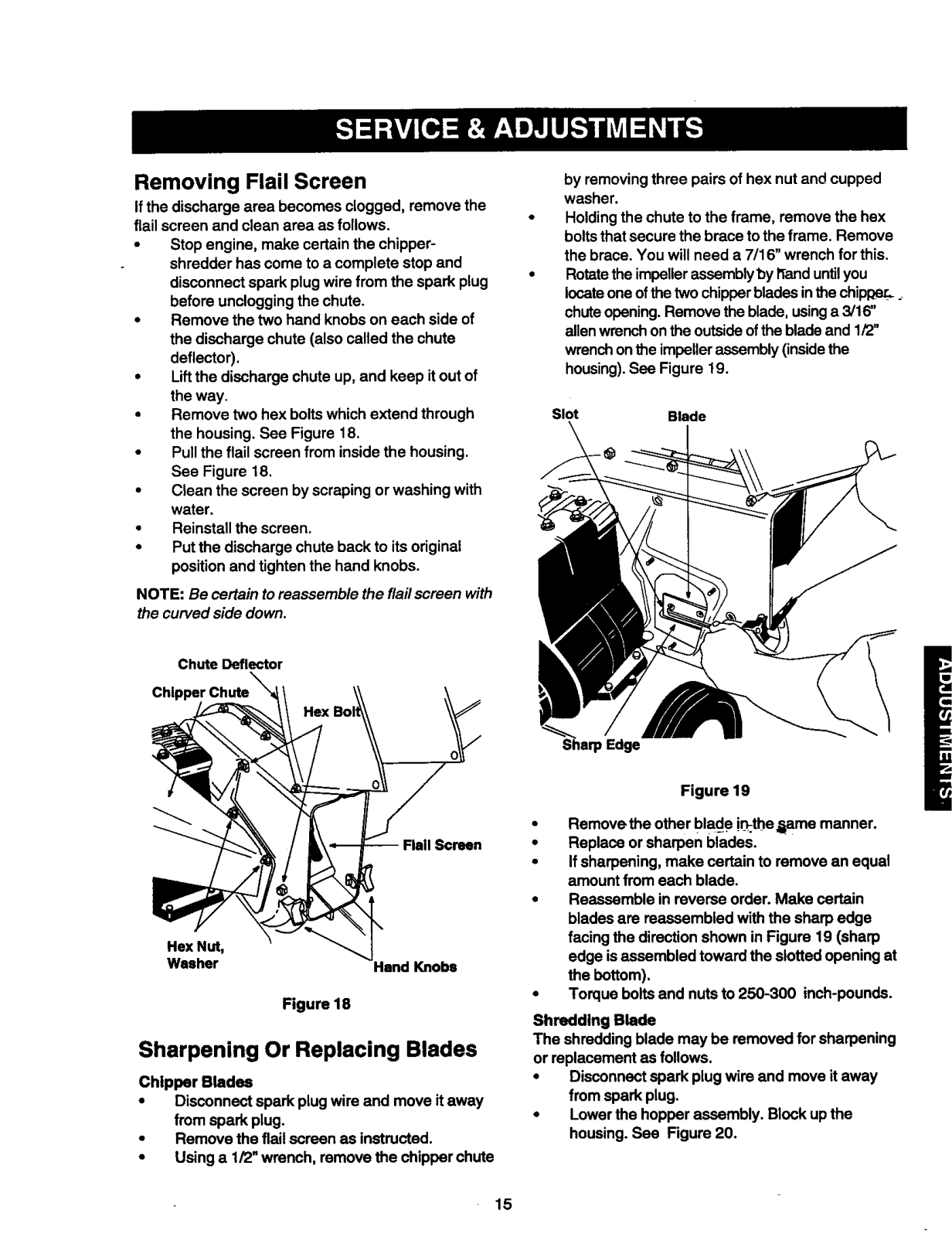

Warranty information 2 Service & Adjustment 15

Safe Operation Practices 3 Off-Season Storage 18

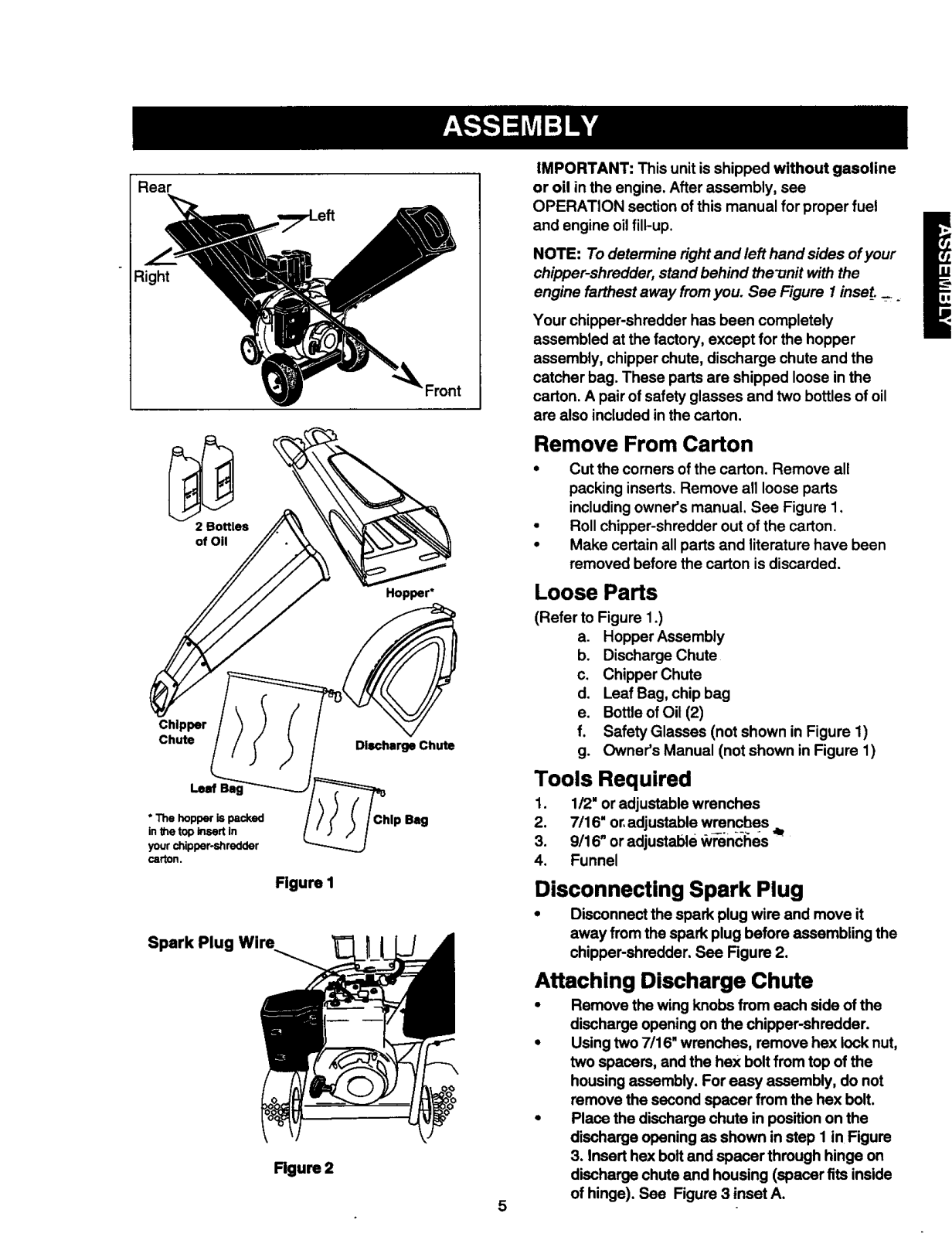

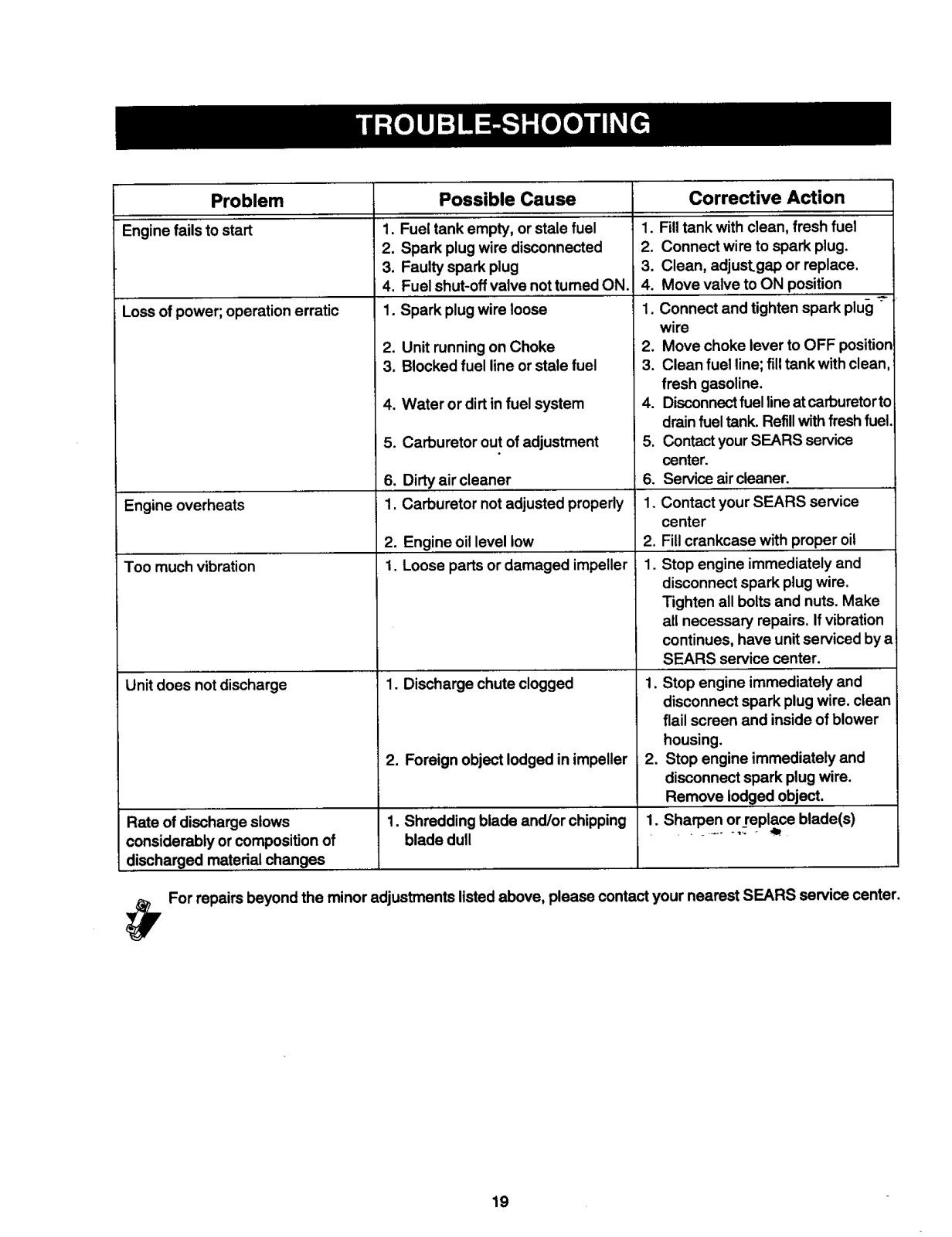

Assembly 5 Trouble-Shooting 19

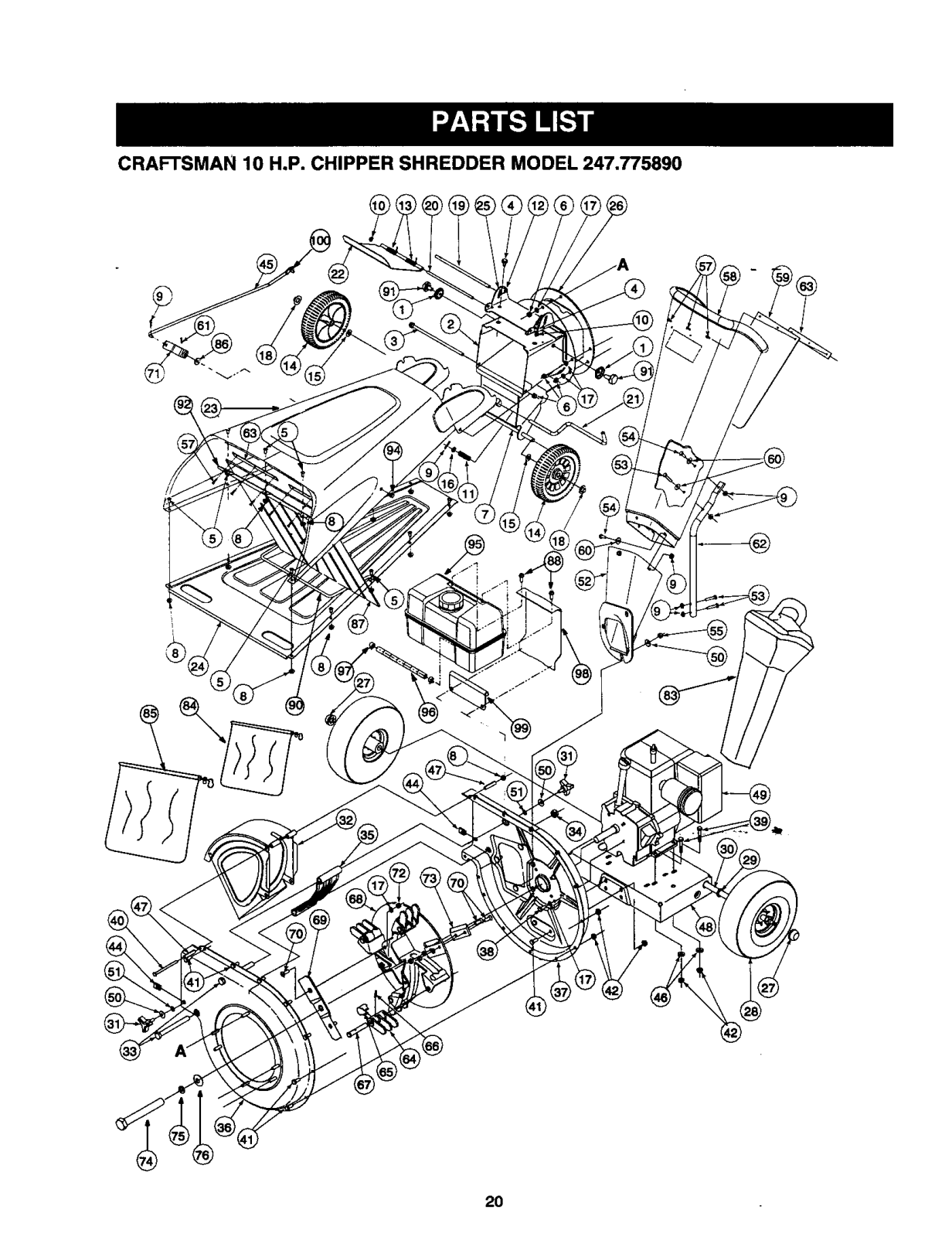

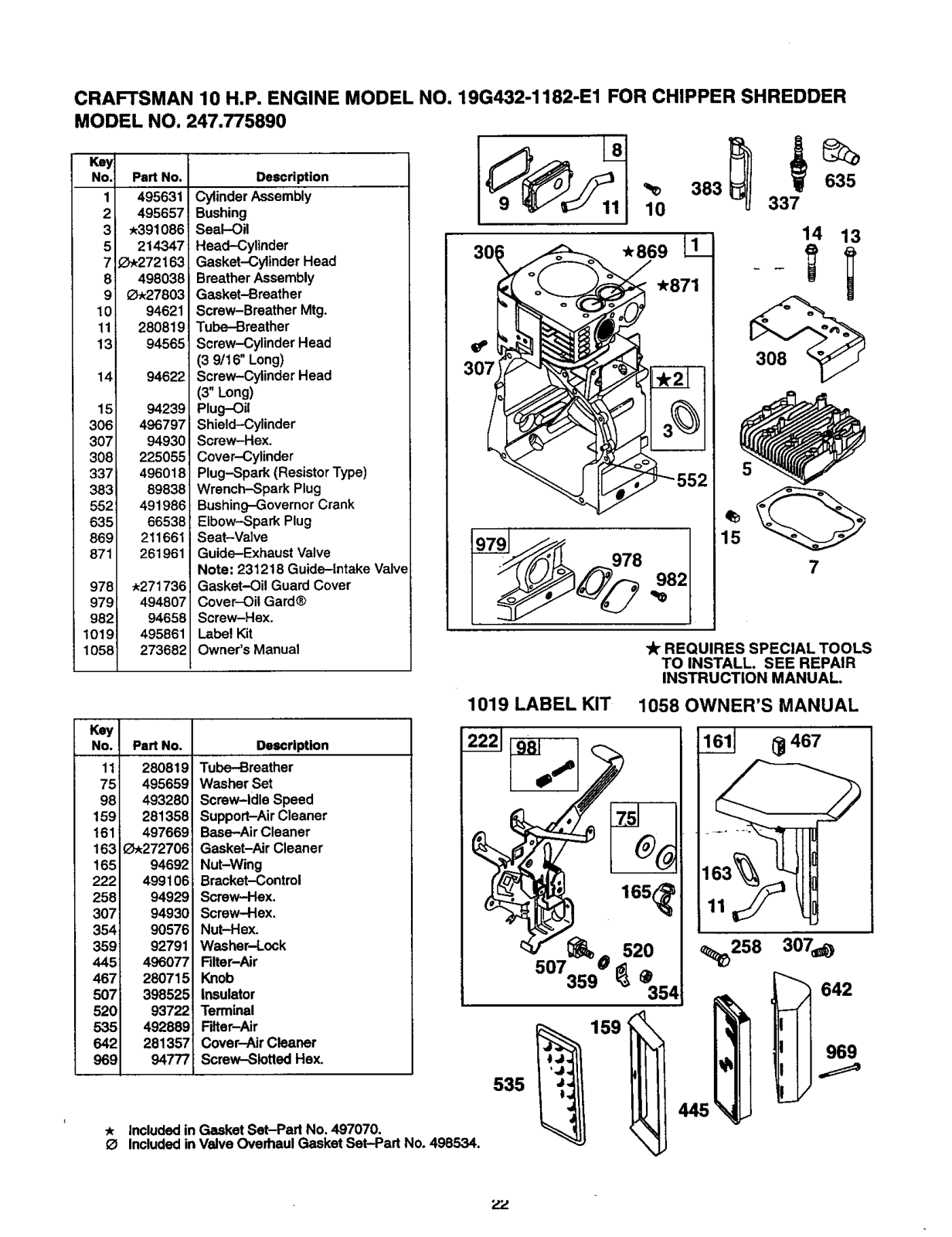

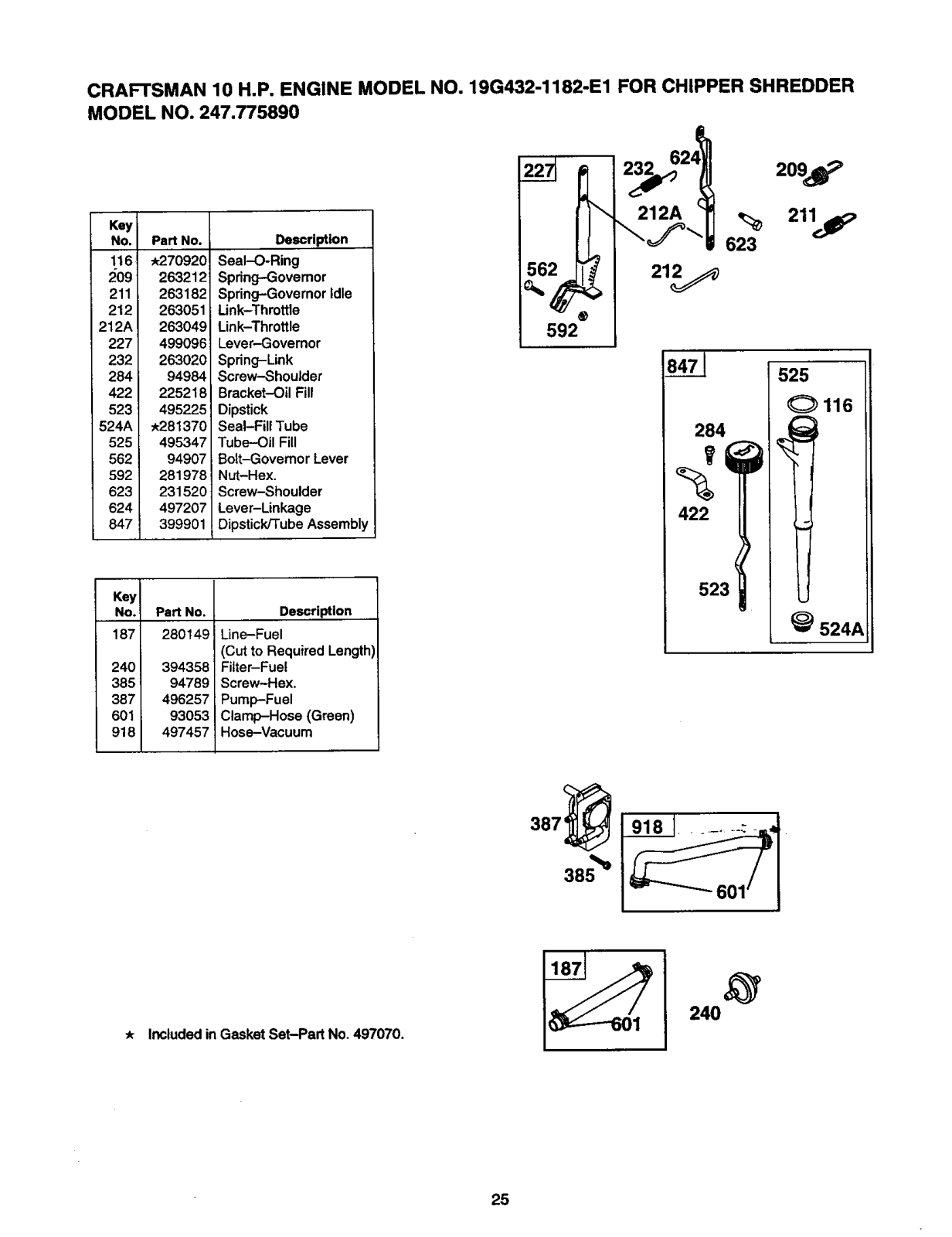

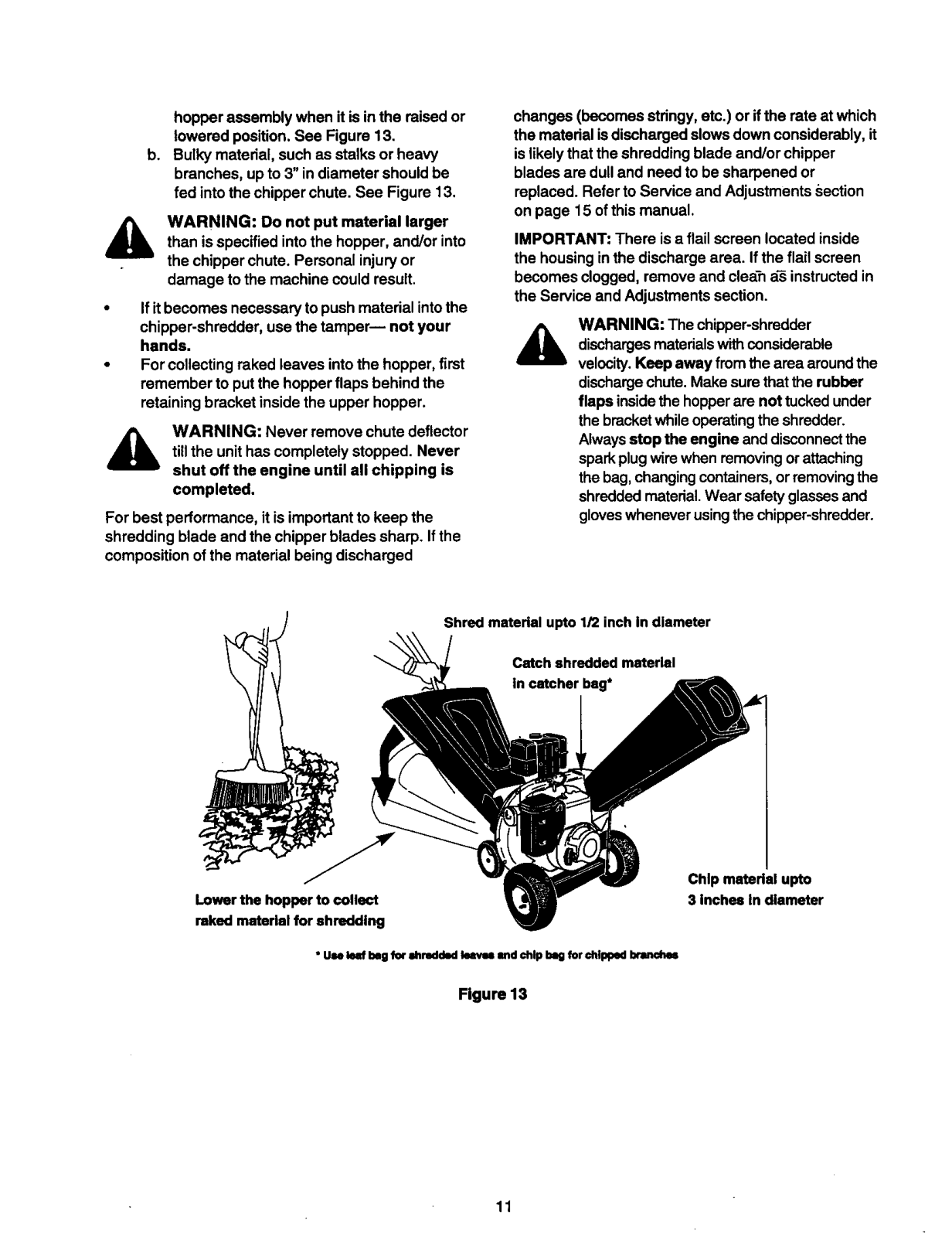

Operation 8 Parts List 20

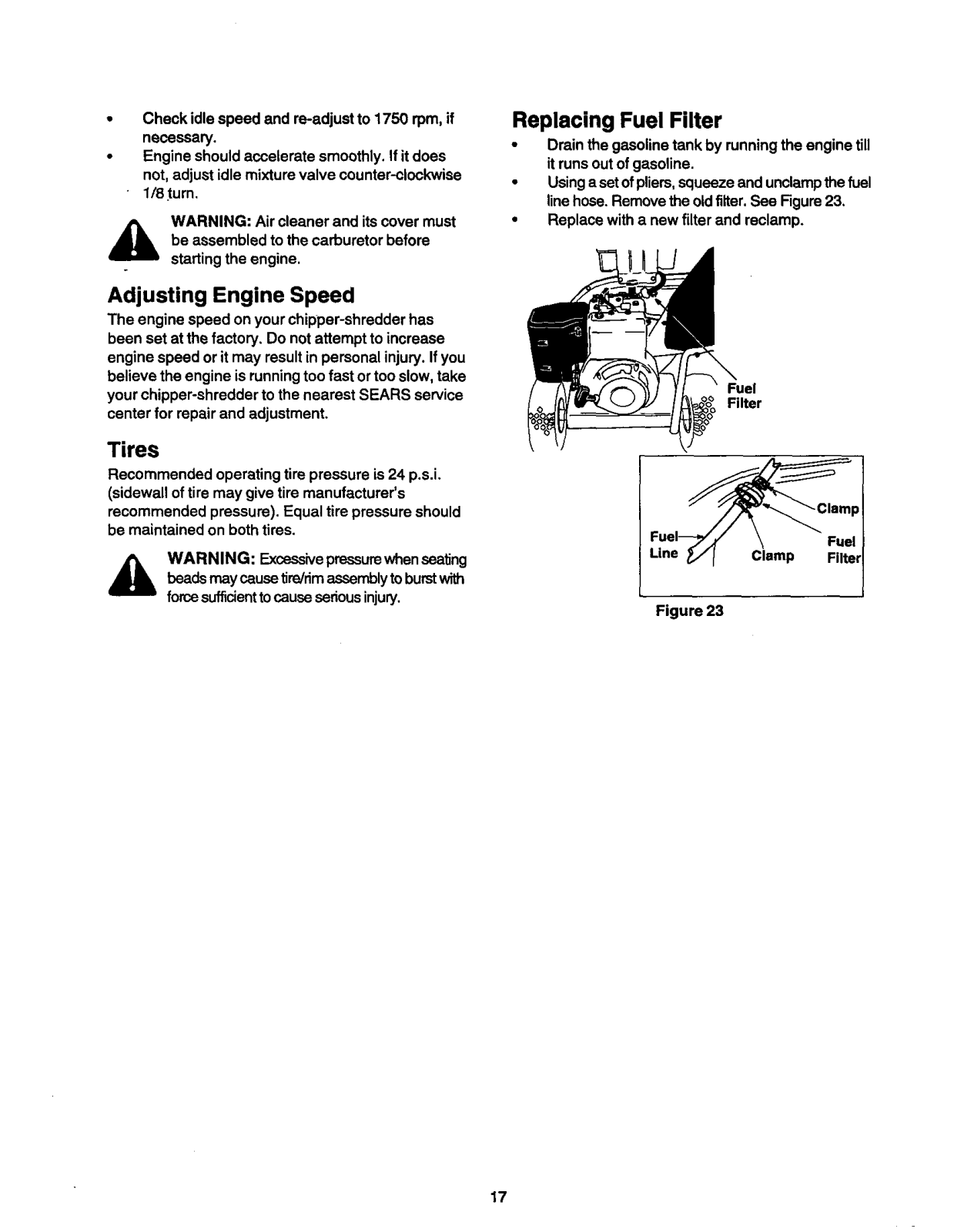

Maintenance 12

One-Year Warranty on Craftsman Chipper-Shredder
For one year from the date ofpurchase, when this Craftsman chipper-shredder ismaintained, lubricated, and

tuned upaccording tothe operating and maintenance instructionsinthe operator's manual, Sears willrepair, free

ofcharge, any defect in material orworkmanship.

This warranty excludes the blades, chipper blades, flails,air cleaners, spark plugs, catcher bags andtires which

are expendable parts and become worn during normal use.

Ifthis chipper-shredder isused for commercial or rental purposes, this warranty applies for only30 days from the
date ofpurchase.

WARRANTY SERVICE iS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED
STATES.

This warranty givesyou specificlegal rights and you may also have other rightswhich vary from state to,state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL60179

Theseaccessorieswere
availablewhenthechipper-

shredderwaspurchesed.They
arealso availableatmost

Searsretailoutlets,andservice
centers.MostSeamstorescan

orderrepairpartsfor youwhen
youprovidethe modelnumber

ofyourchipper-shredder.

Spark Air Engine Gas Stabilizer
Plug Filter Oil Can

Tow HitchKit

PRODUCT SPECIFICATION

Horsepower:. 10H.R
CrankcaseCapacity: 40 oz. SAE 30 ENGINE OIL
FuelTankCapacity:. 4 Quart (UNLEADED)
SparkPlugType ChampionRC14YC
SparkPlugGap .030"

Tire Pressure 24 PSI

Model Number.......... 24,,.7',,.,.'_',.58,9,0,........................

Serial Number...........................................................

Date of Pumhasa......................................................

Record both sedal number anddate ofpurchase and
keep ina safe place forfuture reference.

2

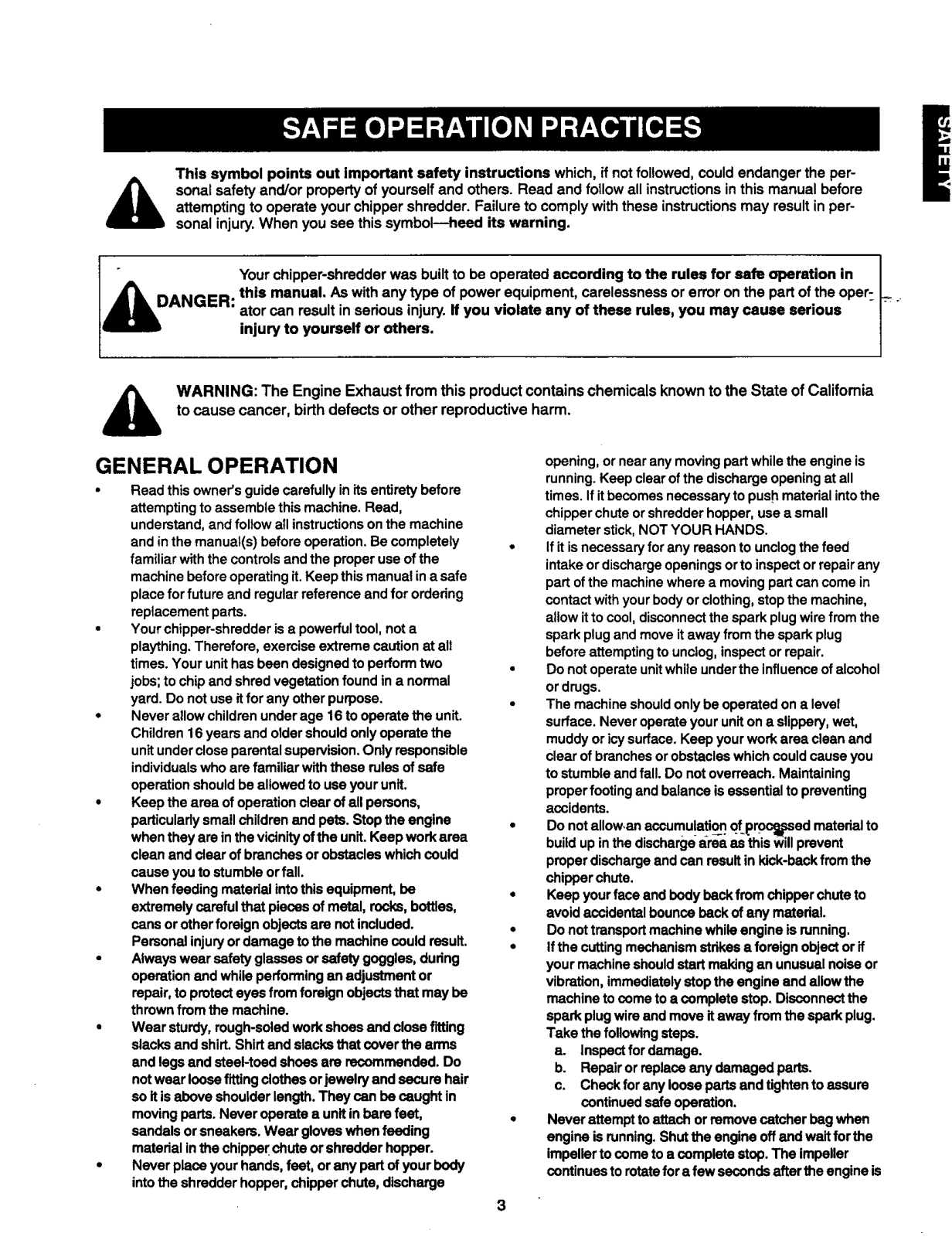

Thissymbolpointsoutimportantsafetyinstructionswhich,ifnotfollowed,couldendangertheper-
sonalsafetyand/or propertyof yourselfand others.Read andfollow all instructionsinthis manual before

attemptingto operate yourchippershredder. Failureto complywiththese instructionsmay resultin per-
sonal injury.When yousee this symbol--heed its warning.

Yourchipper-shredderwas built tobe operated according to the rules for safe operation in

DANGER: this manual. Aswith anytype of power equipment,carelessnessor erroron the partof theoper-

ator can result inserious injury.If you violate any of these rules, you may cause serious

injury to yourself or others.

I

,_ WARNING: The Engine Exhaust from this product containschemicals knownto the State of Califomia

GENERALOPERATION

• Never allow children under age 16 to operate the unit.

• Keep the area of operation clear ofall persons,

• When feeding matedal intothis equipment, be

• Wear sturdy, rough-soled work shoes and close fitting

• Never place your hands, feet, or any part of your body

to cause cancer, birth defects or other reproductive harm.

Read this owner's guide carefully in itsentirety before
attempting toassemble this machine. Read,

understand, and follow all instructionson the machine
and in the manual(s) before operation. Be completely

familiar with the controls and the proper use of the

machine before operating it. Keep thismanual in a safe
place for future and regular reference and for ordering
replacement pads.
Your chipper-shredder is a powerful tool, not a
plaything. Therefore, exercise extreme caution at air
times. Your unit has been designed to perform two

jobs; to chip and shred vegetation found in a normal

yard. Do notuse it for any other purpose.

Children 16 years and older should only operate the
unit under close parental supervision.Only responsible

individuals who are familiar withthese rules ofsafe
operation shouldbe allowed to use your unit,

particularly small children and pets. Stop the engine
when they are inthe vicinityofthe unit.Keep work area

clean and clear of branches or obstacles which could
cause you tostumble or fall.

extremely careful that pieces of metal, rocks, bottles,
cans or other foreign objectsare not included.

Personal injuryor damage to the machine could result.

Always wear safety glasses or s_oty goggles, dudng
operation and while performing =anadjustment or

repair,to protect eyes fromforeign objectsthat may be

thrown from the machine.

slacks and shirt.Shirt and slacks that cover the arms
and legs and steel-toed shoes are recommended. Do

notwear loosefitting clothes or jewelry and secure hair

so it isabove shoulder length. They can be caught in

moving parts. Never operate a unit in bars feet,

sandals or sneakers. Wear gloves when feeding

material inthe ohippel_chute or shredder hopper.

intothe shredder hopper, chipper chute, discharge

opening, or near any moving part while the engine is
running. Keep clear of the discharge opening at all

times. If itbecomes necessary topush material intothe

chipper chute or shredder hopper, use a small
diameter stick,NOT YOUR HANDS.

• If it is necessary for any reason to unclog thefeed

intake or discharge openings orto inspect or repair any
part of the machine where a moving part can come in
contact with yourbody or clothing, stop the machine,

allow itto cool, disconnect thespark plug wire fromthe
spark plug and move it away fromthe spark plug

before attempting to unclog, inspect or repair.
Do not operate unit whileunder the influence ofalcohol
or drugs.

The machine should only be operated on a level
surface. Never operate your unit on a slippery, wet,
muddy or icy surface. Keep your work area clean and

clear ofbranches or obstacles which could cause you
to stumble and fall. Do notoverreach. Maintaining

preper footing and balance isessential topreventing
accidents.

• Do not allow.an accumu!a_on of prpc_,sed matedal to
build up in the discharge ares. as this willprevent

proper discharge and can result inkick-beck from the
chipper chute.

• Keep your faceand body pack from chipper chute to
avoid accidental bounce pack of any mstadel.

• Do not transportmachine while engine is running.

• If the cutting mechanism strikee aforeign object orif

your machine should start making an unusual noise or
vibration, immediately stop the engine and allow the
machine to come to a complete stop. Disconnectthe
spark plug wire and move itaway fromthe spark plug.
Take the followingsteps.

a. Inspact for damage.
b. Repair or replace any damaged parts.
c. Check for any loose parts and tighten to assure

continued safe operation.

• Never attempt to attach or remove catcher bagwhen

engine is running. Shut the engine offand wait for the

impeller tocome to acomplete stop. The impeller

continues torotatefor a few seconds after the engine is

3

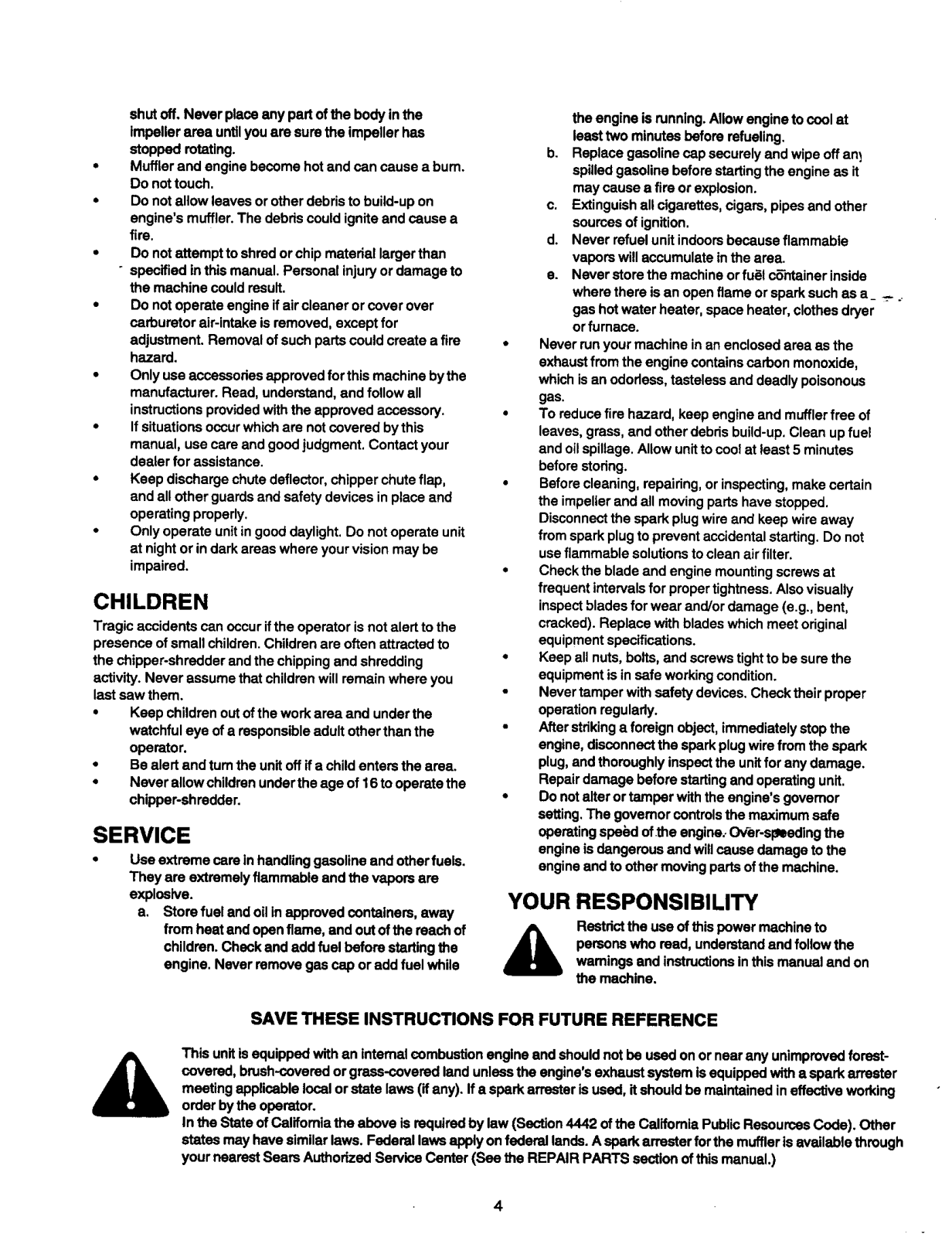

shutoff.Neverplaceanypartofthebodyinthe

impeller area untilyou are sure the impeller has

stopped rotating.

• Muffler and engine become hot and can cause a bum.

Do nottouch.

• Do not allow leaves or other debris to build-up on

engine's muffler. The debds could ignite andcause a

fire.

• Do not attempt to shred or chip material larger than

° specified inthis manual. Personal injuryor damage to

the machine could result.

• Do not operate engine if air cleaner or cover over
carburetor air-intake is removed, except for

adjustment. Removal of such parts could create a tim

hazard.

• Only use acoessodes approved forthis machine by the

manufacturer. Read, understand, and follow all
instructions provided withthe approved accessory.

• If situations occurwhich are notcovered by this

manual, use care and good judgment. Contact your

dealer for assistance.

• Keep discharge chute deflector, chipper chute flap,

and all other guards and safety devices in place and

operating properly.

• Only operate unitin good daylight. Do not operate unit
at night orin dark areas where yourvision may be

impaired.

CHILDREN

Tragic accidents can occur ifthe operator is not alertto the
presence of small children. Children are often attracted to

the chipper-shredder and the chipping and shredding
activity. Never assume that children will remain where you

last saw them.

• Keep children outofthe work area and under the
watchful eye of a responsible adult otherthan the

operator.

• Be alert and tum the unitoff if a child enters the aree.

• Never allow children under the age of 16 to operate the

chipper-shredder.

SERVICE

Use extreme cam in handling gasoline and other fuels.
They are extremely flammable and the vapors are

explosive.

a. Store fuel and oilin approved containers, away

from heat and open flame, and out of the reach of
children. Check and add fuel before starting the
engine. Never remove gas cap or add fuel while

the engine is running. Allow engine to cool at

least two minutes before refueling.

b. Replace gasoline cap securely and wipe off anl

spilled gasoline before starting the engine as it
may cause a fire or explosion.

c. Extinguish all cigarettes, cigars, pipes and other

soumes of ignition.

d. Never refuel unit indoorsbecause flammable

vapors will accumulate inthe area.

e. Never store the machine orfu_l cS"ntalnerinside

where there isan open flame or spark such as a_ -....

gas hot water heater, space heater, clothes dryer
or furnace.

• Never run your machine in an enclosed area as the
exhaust from the engine contains carbon monoxide,

which is an odorless, tasteless and deadly poisonous

gas.

• To reduce fire hazard, keep engine and muffler free of
leaves, grass, and other debds build-up. Clean up fuel

and oil spillage. Allow unit to cool at least 5 minutes
before storing.

• Before cleaning, repaidng, or inspecting, make certain

the impeller and all moving parts have stopped.

Disconnect the spark plug wire and keep wire away

from spark plug to prevent accidental starting. Do not

useflammable solutionsto clean air filter.

• Check the blade and engine mounting screws at
frequent intervals for proper tightness. Also visually

inspectblades for wear and/or damage (e.g., bent,

cracked). Replace with blades which meet original
equipment specifications.

• Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe workingcondition.

Never tamper with safety devices. Check their proper

operation regulady.
After strikinga foreign object, immediately stop the

engine, disconnect the spark plugwire from the spark
plug, and thoroughly inspect the unitforany damage.

Repair damage before starting and operating unit.

• Do not alter or tamper with the engine's governor
setting.The governor controls the maximum safe
operating speed ofthe engine.. Ov_r-spmedingthe
engine isdangerous and willcause damage to the
engine and to other moving parts ofthe machine.

YOUR RESPONSIBILITY

Rastdct the use of this power machine to
persons who road, understand and follow the
warnings and instructions In this manual and on

the machine.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush.covered or grass-covered land unless the engine's exhaust system is equipped with a spark arreeter
meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working

order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other

states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is evallable through
your nearest Sears Authorized Service Center (See the REPAIR PARTS section of this manual.)

I Rear

2 Bottles
of OII

IMPORTANT: This unitis shipped without gasoline

or oil in the engine. After assembly, see
OPERATION section ofthis manual for proper fuel

and engine oil fill-up.
NOTE: To determine rightand left hand sides of your

chipper-shredder, stand behind the-onit with the
engine farthest away fromyou. See Figure I inset. _

Your chipper-shredder has been completely
assembled at the factory, except for the hopper
assembly, chipper chute, discharge chute and the
catcher bag. These parts are shipped loose in the
carton. A pair of safetyglasses and two bottles of oil

are also included inthe carton.

Remove From Carton

• Cut the comers of the carton. Remove all
packing inserts. Remove all loose parts

includingowner's manual. See Figure 1,

• Roll chipper-shredder out of the carton.

• Make certain all parts and literature have been
removed before the carton is discarded.

Chipper
Chute

* The hopperis packed
in_e topInsertIn

yourchipper-shredder
carton.

Spark Plug Wire

Figure I

Figure 2

Hopper"

Discharge Chute

:hlp Bag

Loose Parts

(Refer to Figure 1.)

a. HopperAssembly
b. Discharge Chute
c. Chipper Chute
d. Leaf Bag, chip bag
e. Bottleof Oil (2)
f. Safety Glasses (not shown in Figure 1)
g. Owner's Manual (not shown in Figure 1)

Tools Required

1. 1/2" oradjustable wrenches

2. 7/16" or,adjustable wrencbes

3. 9/16_ oradjustable _ncl_es "_

4. Funnel

Disconnecting Spark Plug

• Disconnectthe spark plug wire and move it
away from thespark plug before assembling the
chippar-shredder. See Figure 2.

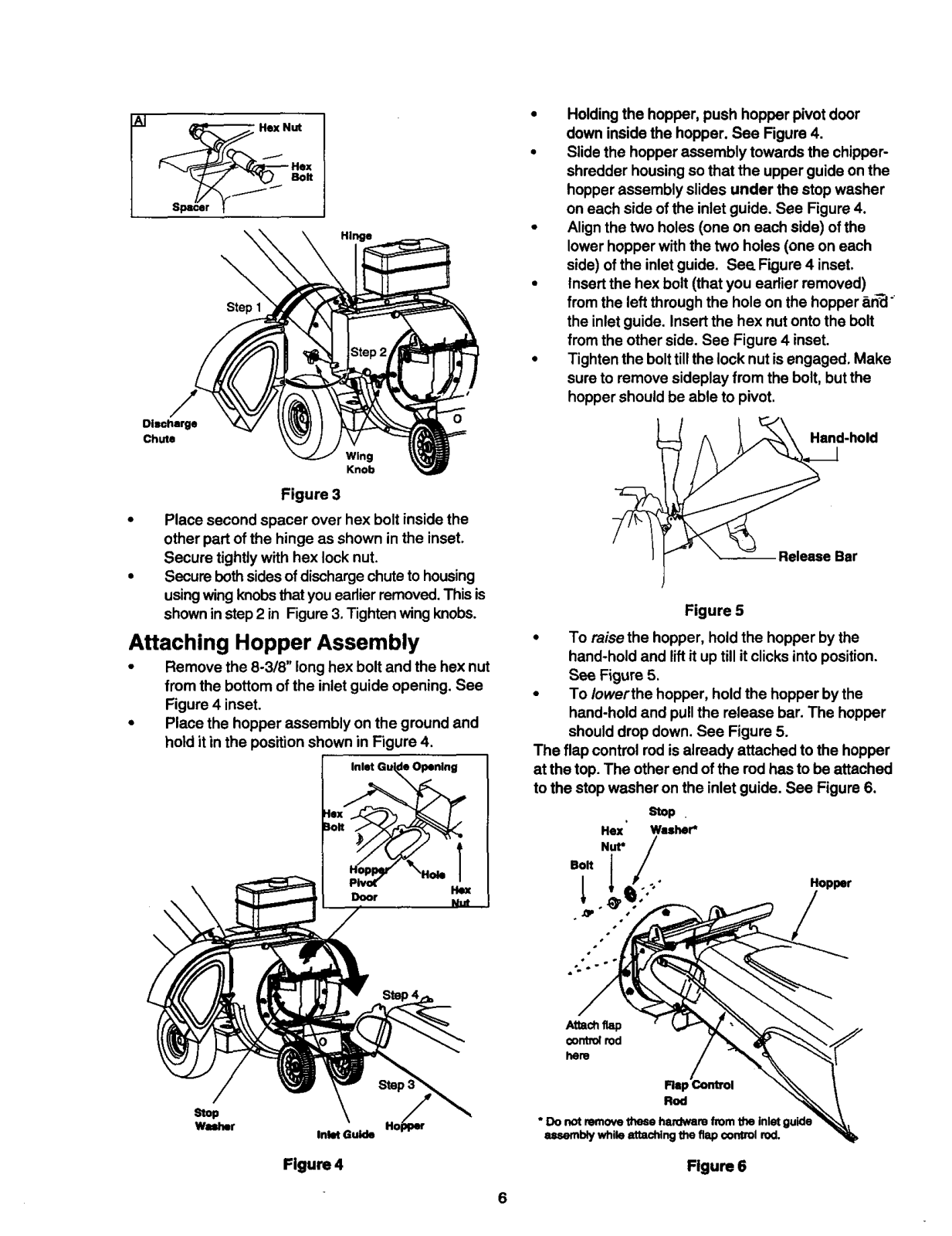

Attaching Discharge Chute

• Remove thewing knobs from each side ofthe

discharge opening on the chipper-shredder.

• Using two 7/16" wrenches, remove hex lock nut,
two spacers, and the he](bolt from top of the

housingassembly. For easy assembly, do not
remove the second spacer from the hex bolt.

• Place the discharge chute in positionon the

discharge opening as shown in step I in Figure

3. Insert hex boltand spacer through hinge on

discharge chute and housing (spacer fits inside

of hinge). See Figure 3 inset A.

I Hex Nut

J

\

Hinge

\

Step 1

Discharge

Chute

Wing
Knob

Figure 3

• Place second spacer over hex bolt insidethe
other part of the hinge as shown in the inset,
Secure tightly with hex lock nut.

• Secure bothsidesofdischargechuteto housing
usingwingknobsthat youearlierremoved.This is

showninstep2 in Figure 3.Tightenwing knobs.

Attaching Hopper Assembly

• Remove the 8-3/8" longhex bolt and the hex nut
from the bottom ofthe inlet guide opening. See

Figure 4 inset.

• Place the hopper assembly on the ground and

hold it inthe position shownin Figure 4.

Inlet Gu de Opening

|0 ,

• Holding the hopper, push hopper pivot door

down inside the hopper. See Figure 4.

• Slidethe hopper assembly towards the chipper-
shredder housing sothat the upper guide on the

hopperassembly slides under the stop washer

on each side of the inlet guide. See Figure 4.

• Align the two holes (one on each side) of the
lower hopper withthe two holes (one on each
side) of the inletguide. See. Figure4 inset.

• Insertthe hex bolt (that you eadier removed)
fromthe leftthrough the hole on the hopper _n_ °

the inletguide. Insertthe hex nutonto the bolt
from the other side. See Figure 4 inset.

• Tighten the bolttillthe lock nut isengaged. Make
sure to remove sideplay from the bolt, butthe

hoppershould be able to pivot.

Figure 5

• To raise the hopper, holdthe hopper by the

hand-hold and liftit uptill it clicksintoposition.
See Figure 5.

• To Iowerthe hopper, hold the hopper by the
hand-hold and pullthe release bar. The hopper
shoulddrop down. See Figure 5.

The flap controlrod isalready attached to the hopper
at the top. The other end ofthe rodhas to be attached
to the stop washer on the inlet guide. See Figure 6.

Stop .

He](' Washer*
Nut*

Bolt l

Hopper

Stop

Washer

Inlet Guide

Figure 4

Attachflap
control rod
hem

Fist
Rod

• Do not remove these hardware from the inletguide
mmernblywhile attaching the flap control rod.

Flgure6

• Raise the hopper tillit clicksinto position.

• Unscrew the shoulder boltfrom the stop washer

on the inlet guide. See Figure 6.

• Align the loose end of the flap control rod with

the stop washer on the inlet guide.

• Slide the shoulder bolt throughthe opening in

the flap control rod. Secure tightly.See Figure 6.

WARNING: This flap control rod isa safety

&

device to holdthe flap in place inside the
hopper while shredding branches. Do not
operate the chipper-shredder without

properly attaching thisflap control rodto the
unit

• Secure with the three pairs of cupped washers

and hex nuts thatyou eadier removed. Do not
tighten the nutsat this time. Make sure toplace
the cupped side ofthe washer against the
chipper chute.

• Align the holestowards the frontopening of the

chute with the holes on the brace. See Figure 7.

• Insert one each ofthe hex bolts, lock nuts, and
flat washers (that you eadier removed) through

each holein the chute and the brace. See

Figure 7 for the correct order. Tighten bolts.- --"_

• Tighten bolts securingthe brace tothe frame.

• Tighten the three nuts on the weld studs.

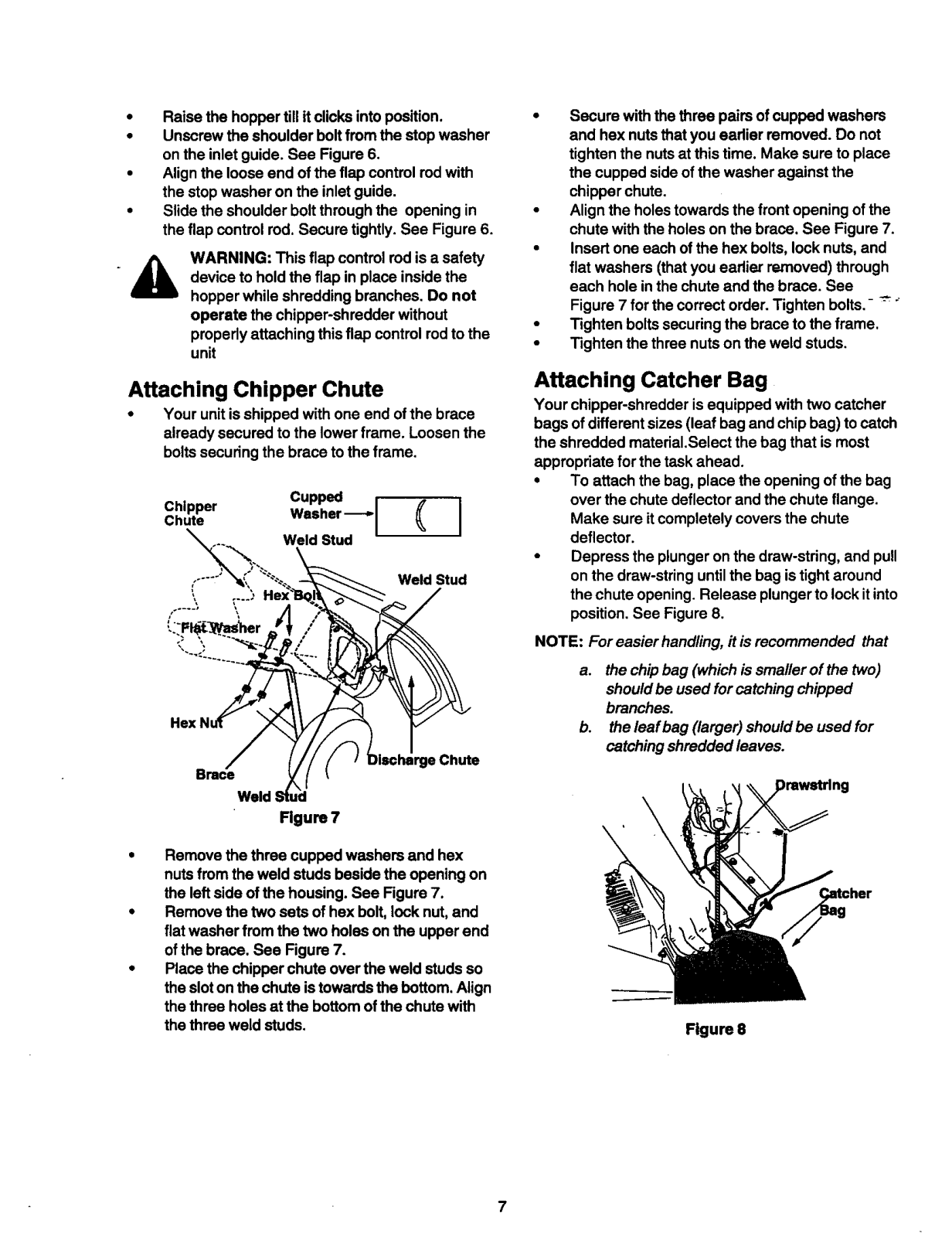

Attaching Chipper Chute

• Your unitis shipped with one end of the brace

already secured to the lower frame. Loosen the
boltssecuring the brace to the frame.

Cupped r

Chipper Washer--[ ( ]

Weld Stud

,----" Weld Stud

f'-'-* \

_Chute

Brace

Weld

Figure 7

• Remove the three cupped washers and hex

nuts fromthe weld studs beside the opening on
the left side of the housing. See Figure 7.

• Remove the two sets of hex bolt, lock nut,and
fiatwasher from the two holes on the upper end

of the brace. See Figure 7.

• Place the chipper chute over the weld studs so
the sloton the chute istowards the bottom. Align

the three holes at the bottomof the chute with
the three weld studs.

Attaching Catcher Bag

Your chipper-shredder is equipped with two catcher
bags of differentsizes (leaf bag and chip bag) to catch

the shredded material,Select the bag that ismost
appropriate for the task ahead.

• To attach the bag, place the opening of the bag

over the chute deflector and the chute flange.

Make sure itcompletely covers the chute

deflector.

• Depress the plunger onthe draw-string, and pull

on the draw-stringuntil the bag is tightaround

the chute opening. Release plunger tolock itinto

position.See Figure 8.

NOTE: For easier handling, it is recommended that

a. the chipbag (which is smaller of the two)

shouldbe used for catchingchipped
branches.

b. the leaf bag (larger) should be used for

catching shredded leaves.

\

Figure 8

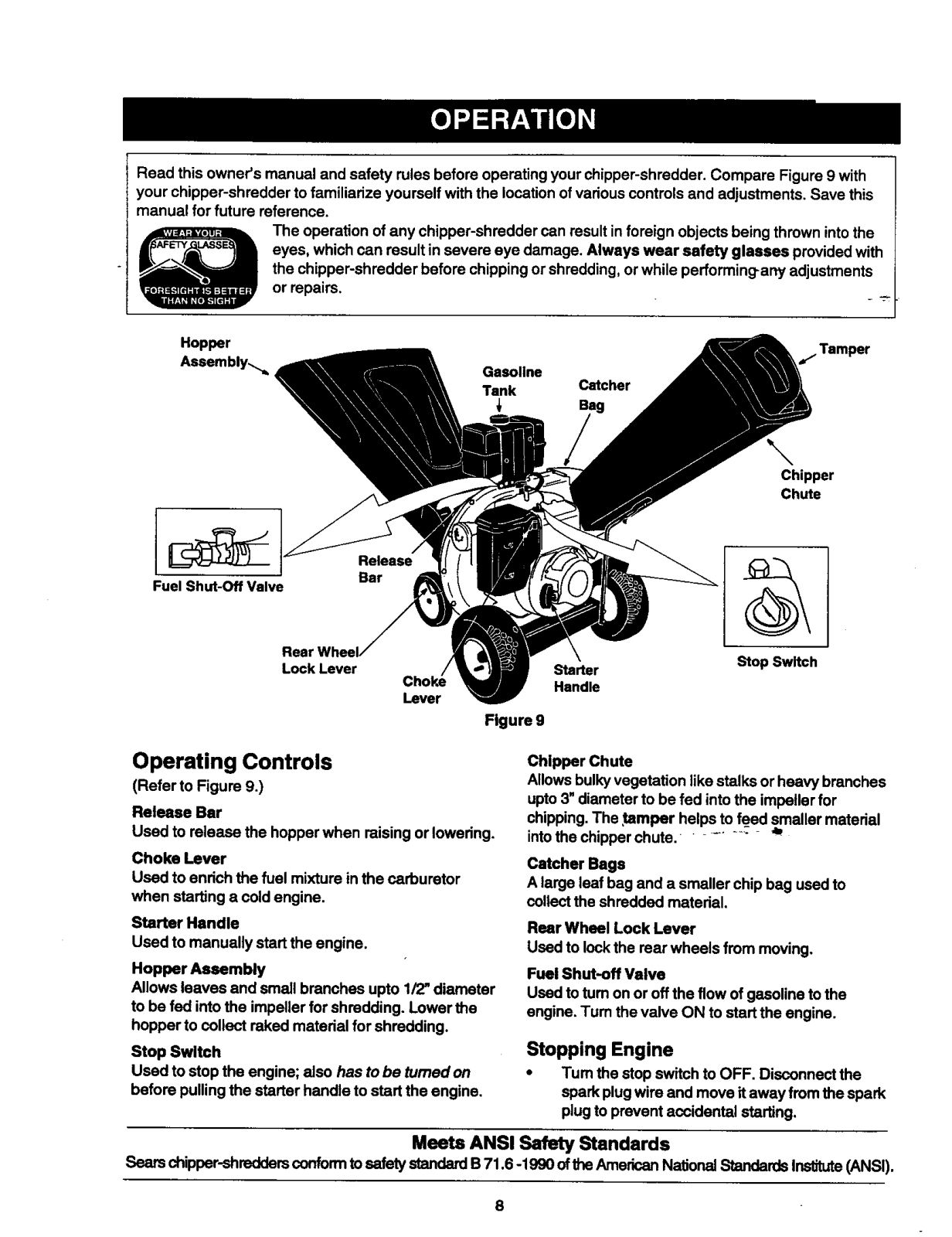

Readthisowner'smanualandsafetyrulesbeforeoperatingyourchipper-shredder.CompareFigure9with

yourchipper-shreddertofamiliarizeyourselfwiththelocationofvariouscontrolsand adjustments. Save this

manual for future reference.

The operation ofany chipper-shredder can resultin foreign objects being thrown intothe
eyes, which can result in severe eye damage. Always wear safety glasses providedwith

the chipper-shredder before chipping or shredding,orwhile performing-any adjustments
or repairs.

Hopper .Tamper

Assembly,.,_ Gasoline

Tank Catcher

Chipper
Chute

Fuel Shut-Off Valve

Lock Lever

Lever

Operating Controls

(Refer to Figure g.)
Release Bar

Used to release the hopper when raising or lowering.

Choke Lever

Used to enrich the fuel mixture in the carburetor

when starting a cold engine.
Starter Handle

Used to manually startthe engine.
Hopper Assembly

Allows leaves and small branches upto 1/2"diameter
to be fed into the impeller for shredding. Lower the
hopper to collect raked material for shredding.

Stop Switch
Used to stop the engine; also has to be turned on

before pulling the starter handle tostart the engine,

Starter
Handle

Figure9

Chipper Chute
Allowsbulkyvegetation like stalks or heavy branches

upto3" diameter to be fed intothe impeller for
chipping.The tamper helps to feed smaller material

intothe chipper chute. ....... _"

Catcher Bags
A large leaf bag and a smaller chip bag used to

collectthe shredded material.
Rear Wheel Lock Lever

Used to lockthe rear wheels from moving.
Fuel Shut-off Valve

Used to tum onor off the flow of gasoline tothe
engine. Tum the valve ON to start the engine.

Stopping Engine

• Tum the stop switch to OFF, Disconnectthe
spark plugwire and move it away from the spark

plug toprevent accidental starting.

Stop Switch

Meets ANSI Safety Standards

Sears chipper-shredders conformtosafety standardB71,6 -1990 ofthe AmericanNationalStandardsInstitute(ANSI).

8

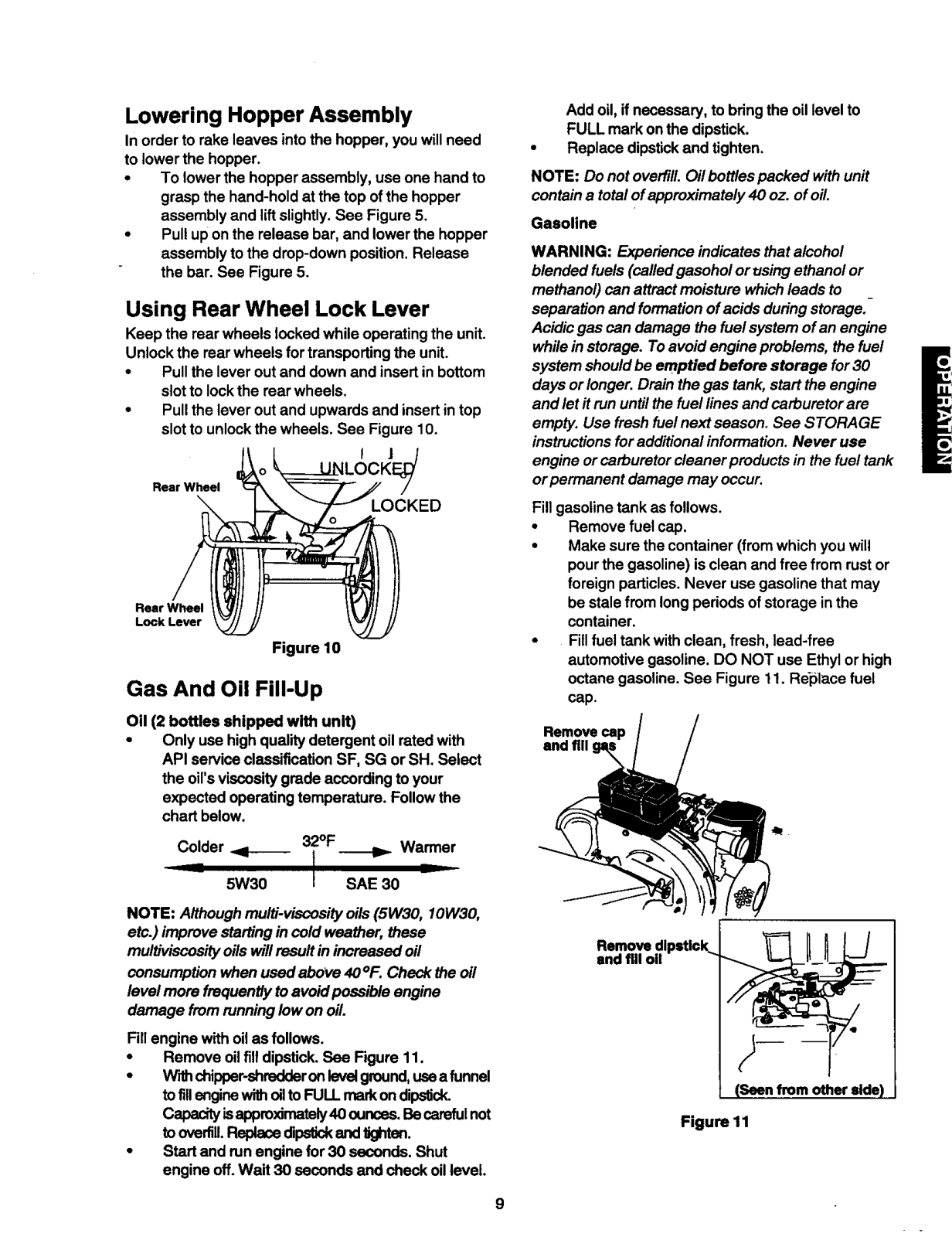

Lowering Hopper Assembly

In order to rake leaves intothe hopper, you will need
to lower the hopper.

• To lower the hopper assembly, use one hand to

grasp the hand-hold at the top ofthe hopper
assembly and liftslightly. See Figure 5.

• Pul!up onthe release bar, and lower the hopper

assembly to the drop-down position. Release
the bar. See Figure 5.

Using Rear Wheel Lock Lever

Keep the rear wheels locked while operating the unit.
Unlock the rear wheels for transportingthe unit.

• Pullthe lever outand down and insert in bottom

slot to lockthe rear wheels.

• Pull the lever out and upwards and insert intop

slot to unlockthe wheels. See Figure 10.

I J

Rear Wheel

Rear Wheel
Lock Lever

Figure 10

Gas And Oil Fill-Up

Oil (2 bottles shipped with unit)

• Only use high quality detergent oil rated with

API service classification SF, SG or SH. Select
the oil'sviscositygrade according to your
expected operating temperature. Follow the

chart below.

Add oil, ifnecessary, to bring the oil levelto
FULL mark onthe dipstick.

Replace dipstickand tighten.

NOTE: Do not overfill. Oil bottlespacked with unit

contain a total ofapproximately 40 oz. ofoil.

Gasoline
WARNING: Experience indicates thatalcohol

blended fuels (calledgasohol or using ethanol or
methanol) can attract moisture whichleads to
separation and formationof acids during storage.-

Acidicgas can damage the fuel system of an engine

whilein storage. Toavoid engine problems, the fuel
system should be emptied before storage for 30
days orlonger. Drain the gas tank, start the engine

and let it run untilthe fuellines and carburetor are
empty. Use fresh fuelnext season. See STORAGE

instructionsfor additionalinformation. Never use
engine orcarburetor cleaner products in the fuel tank

or permanent damage may occur.

Fill gasoline tank asfollows.

• Remove fuel cap.

• Make sure the container (fromwhich you will

pour the gasoline) is clean and free from rustor
foreign particles. Never use gasoline that may

be stale from long periods of storage inthe
container.

• Fillfuel tank with clean, fresh, lead-free

automotive gasoline. DO NOT use Ethyl orhigh
octane gasoline. See Figure 1t. Re'placefuel

cap.

end fill

L

Colder _1-- 32°F Warmer

- 5W30 I SAE 30 -

NOTE: Although multi-viocosity oils(5W30, 10W30,
etc.) improve starting in cold weather, these
multiviscosityoilswillresult in increased oil

consumption when used above 40°F. Check the oil
level more froquentiyto avoidpossible engine

damage from running low on oil.

Fill engine with oilas follows.

• Remove oil filldipstick.See Figure 11.

• W'rthchipper-shredderonlevelground,usea funnel
tofillenginewithoilto FULL markondip_ck.

Capacityisapproximately40 ounces.Becarefulnot

toover u, dipsUckondUghton.

• Start and runengine for 30 seconds. Shut

engine off. Wait 30 seconds and check oil level.

and fill ©

Figure 11

9

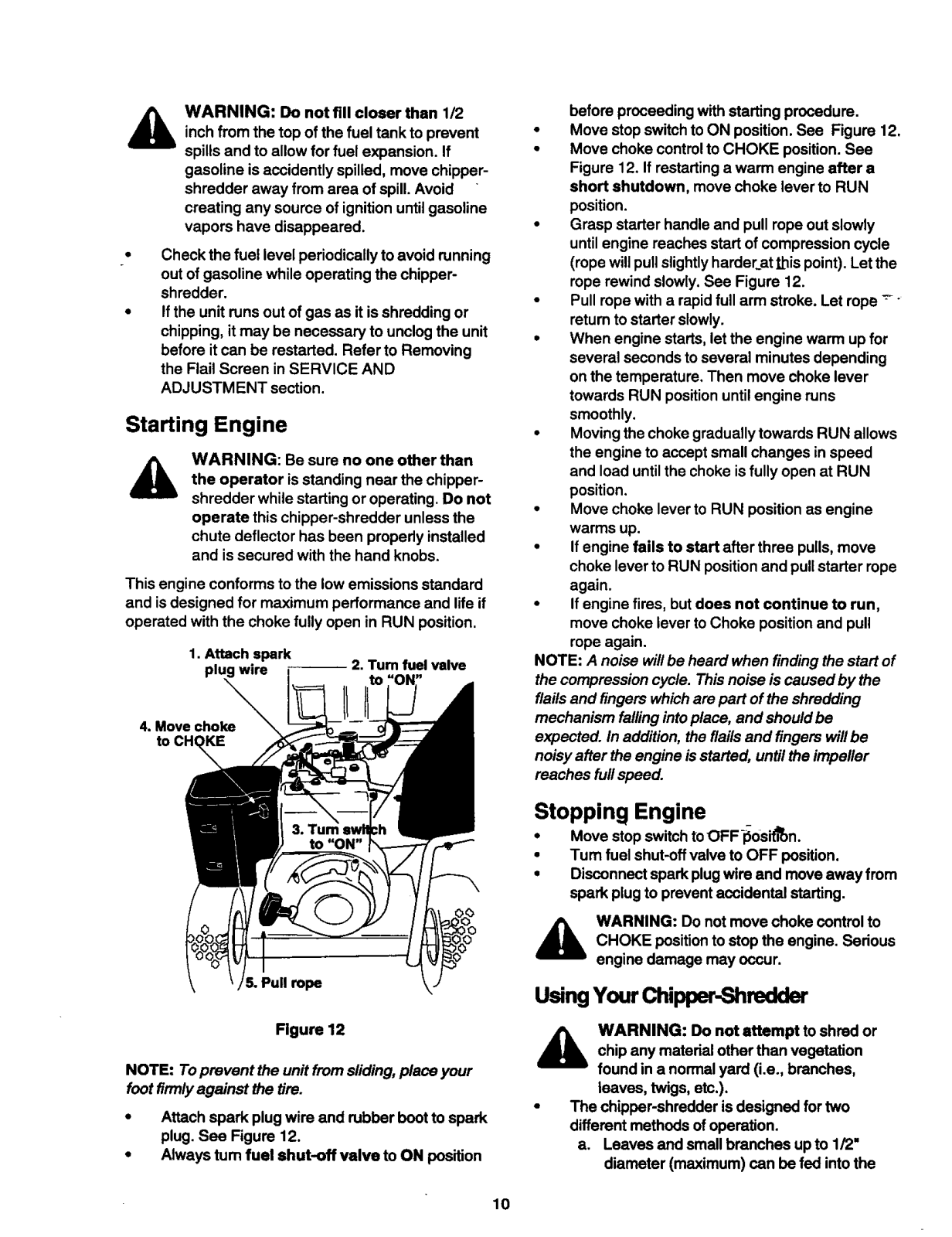

WARNING: Do not fill closer than 1/2

A

°

inchfrom the top of the fuel tank to prevent

spills and to allow for fuel expansion. If
gasoline isaccidently spilled, move chipper-
shredder away from area of spill.Avoid
creating any source of ignitionuntilgasoline
vapors have disappeared.

Check the fuel level periodically toavoid running
out of gasoline while operating the chipper-

shredder.

Ifthe unitruns out of gas as it is shredding or

chipping, it may be necessary to unclogthe unit
before it can be restarted. Refer to Removing

the Flail Screen inSERVICE AND
ADJUSTMENT section.

Starting Engine

WARNING: Be sure no one other than

the operator is standing near the chipper-

shredder while startingor operating. Do not
operate this chipper-shredder unless the
chute deflector has been propedy installed

and is secured with the hand knobs.

This engine conforms tothe low emissions standard
and isdesigned for maximum performance and life if

operated with the choke fully open in RUN position.

1. Attach spark
plug wire

4. Move choke

2. Turn fuel valve

before proceeding with startingprocedure.

• Move stopswitch to ON position. See Figure 12.

• Move choke controlto CHOKE position.See
Figure 12. If restartinga warm engine after a

short shutdown, move choke lever to RUN
position.

• Grasp starter handleand pull rope out slowly
until engine reaches start of compression cycle
(rope willpullslightlyharder_atthispoint). Let the
rope rewind slowly.See Figure 12.

• Pullrope with a rapid full arm stroke. Let rope --'"
return to starterslowly.

• When engine starts,let the engine warm upfor
several seconds to several minutes depending

on the temperature. Then move choke lever
towards RUN positionuntilengine runs
smoothly.

• Moving the choke graduallytowards RUN allows
the engine to accept small changes inspeed
and load untilthe choke is fully open at RUN
position.

• Move choke lever to RUN position as engine
warms up.

• If engine fails to start after three pulls,move
choke lever to RUN positionand pull starter rope
again.

• If engine fires, but does not continue to run,
move choke lever to Choke positionand pull
rope again.

NOTE: A noise willbe heard when finding thestart of

the compression cycle. Thisnoise iscaused by the
flailsand fingers whichare part of the shredding

mechanism falling intoplace, and should be
expected. In addition,the flails and fingers willbe
noisyafter theengine isstarted, until the impeller
reaches fullspeed.

5. Pull rope

Flgure 12

NOTE: Toprevent the unit fromsliding,place your

foot firmlyagainst the tire.

• Attach spark plug wire and robber bootto spark
plug. See Figure 12.

• Always tum fuel shut.off valve to ON position

Stopping Engine

• Move stop switchtoOFF-_osit'_n.

• Turn fuel shut-offvalve to OFF position.

• Disconnectspark plug wireand move away from

spark plugto prevent accidental starting.

,_ WARNING: Do not move choke controlto

Using Your Chipper-Shredder

_lb ARNING: Do not attempt to shred or

• The chipper-shredder isdesigned for two

10

CHOKE position to stop the engine. Sedous
engine damage may occur.

chip any material other than vegetation
found ina normal yard (i.e., branches,
leaves, twigs,etc.).

different methods of operation.

a. Leaves and small branches up to 1/2"

diameter (maximum) can be fed intothe

hopper assembly when itis in the raised or
lowered position.See Figure 13.

h,

Bulky material, such as stalks or heavy

branches, up to 3"in diameter should be

fed intothe chipper chute. See Figure 13.

WARNING: Do not put material larger

A

• If it becomes necessary to push material intothe

• For collecting raked leaves intothe hopper, first

For best performance, it is importantto keep the
shredding blade and the chipper blades sharp. If the
composition of the material being discharged

than is specified intothe hopper, and/or into
the chipper chute. Personal injury or

damage to the machine could result.

chipper-shradder, use the tamper-- not your
hands.

remember to put the hopper flaps behind the

retaining bracket inside the upper hopper.

WARNING: Never remove chute deflector
tillthe unithas completely stopped. Never

shut off the engine until all chipping is
completed.

changes (becomes stringy, etc.) or ifthe rate at which
the material isdischarged slows down considerably, it

islikely that the shredding blade and/or chipper
blades are dulland need to be sharpened or
replaced. Refer to Service and Adjustments section
on page 15 of this manual.

IMPORTANT: There isa flail screen located inside
the housing inthe discharge area. Ifthe flail screen

becomes clogged, remove and clean a_ instructed in
the Service and Adjustments section.

WARNING: The chipper-shredder

A

dischargesmaterialswithconsiderable
velocity.Keep away from the area aroundthe

dischargechute. Make surethat the rubber

flaps insidethe hopperare not tuckedunder
the bracketwhile operatingtheshredder.

Alwaysatop the engine and disconnectthe
sparkplugwirewhen removingorattaching

thebag, changingcontainers,or removingthe
shreddedmaterial.Wear safety glassesand

gloveswhenever usingthe chipper-shredder.

Lowerthe hopper to collect
raked materielfor shredding

• Use leaf beg for_ltrodded klws and chip beg forchipped branches

Shred matedal upto 1/2 inch In diameter

Catch shredded materiel
In catcher beg*

Chip matedel upto
3 Inches In diameter

Figure 13

11

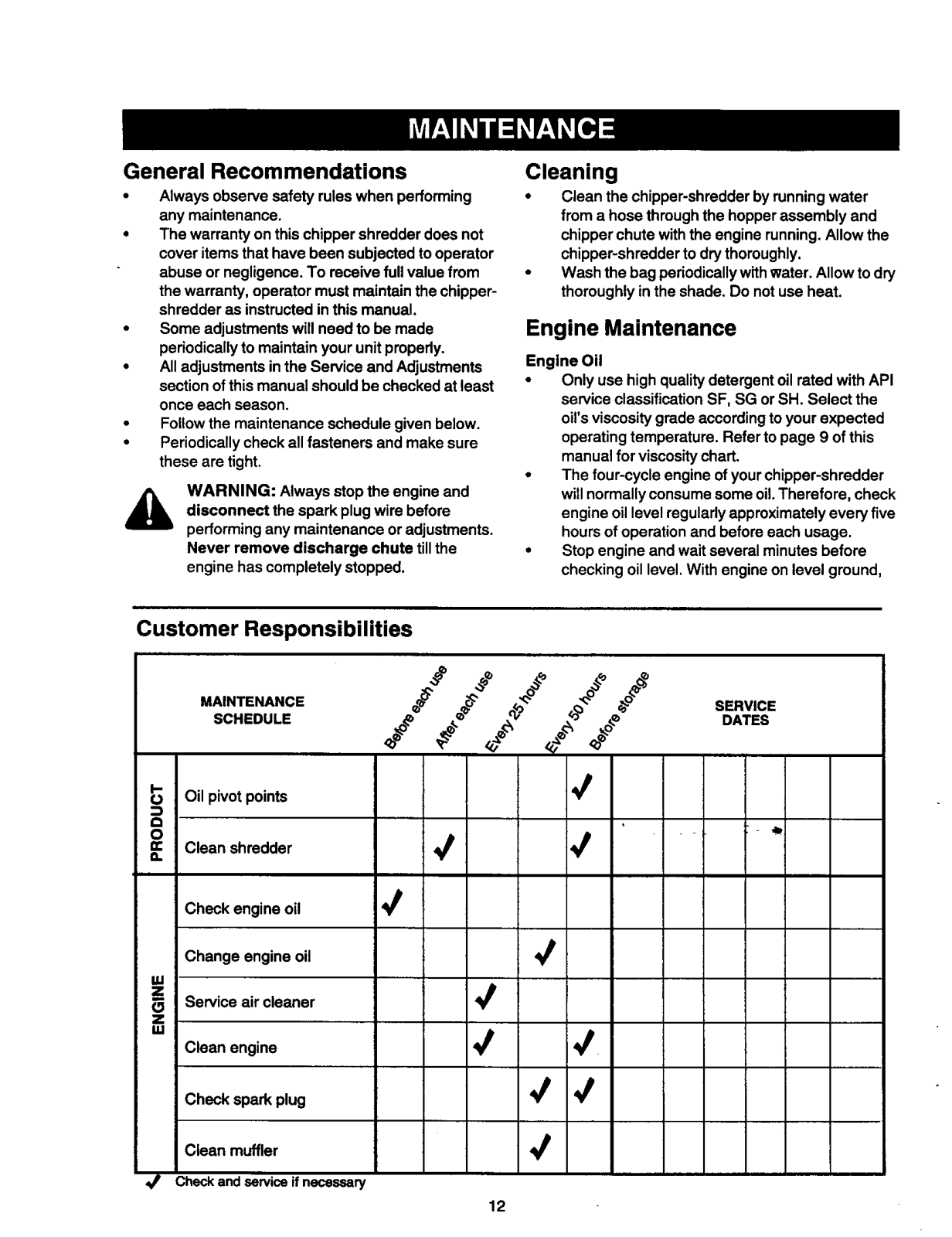

General Recommendations

• Always observe safety rules when performing
any maintenance,

• The warranty on this chipper shredder does not
cover items that have been subjected tooperator
abuse or negligence. To receive fullvalue from
the warranty, operator must maintain the chipper-

shredder as instructedin this manual,

• Some adjustments will need to be made
periodically to maintain your unitpropedy.

• All adjustments inthe Service and Adjustments
section ofthis manual should be checked at least

once each season.

• Followthe maintenance schedule given below.

• Periodically check all fasteners and make sure

these are tight.

WARNING: Always stop the engine and

disconnect the spark plugwire before

performingany maintenance or adjustments.
Never remove discharge chute tillthe
engine has completely stopped.

Cleaning

• Clean the chipper-shredder by running water
from a hose throughthe hopper assembly and

chipper chute withthe engine running.Allow the

chipper-shredder to dry thoroughly.

• Wash the bag periodicallywithwater. Allow todry

thoroughly inthe shade. Do not use heat.

Engine Maintenance

Engine Oil

• Only use high qualitydetergent oil rated with API

service classification SF, SG or SH. Select the
oil'sviscositygrade according to your expected

operating temperature. Refer to page 9 of this

manual for viscosity chart.

• The four-cycle engine of yourchipper-shredder

willnormally consume some oil. Therefore, check
engine oil level regularlyapproximately every five

hours of operation and before each usage.

• Stop engine and wait several minutes before

checking oil level. With engine on level ground,

Customer Responsibilities

.A,HTE...CE oO SE.V,C0

SCHEDULE _o_e _e_ =_ __ _ DATES

._ Oil pivot points 4

mO Clean shredder _ 4 _ "

O.

Check engine oil

Change engine oil

uJ

z

Service air cleaner _'

m

IM

Clean engine 4 4

Check spark plug _ 4

Clean muffler

Checkandserviceif necessary

12

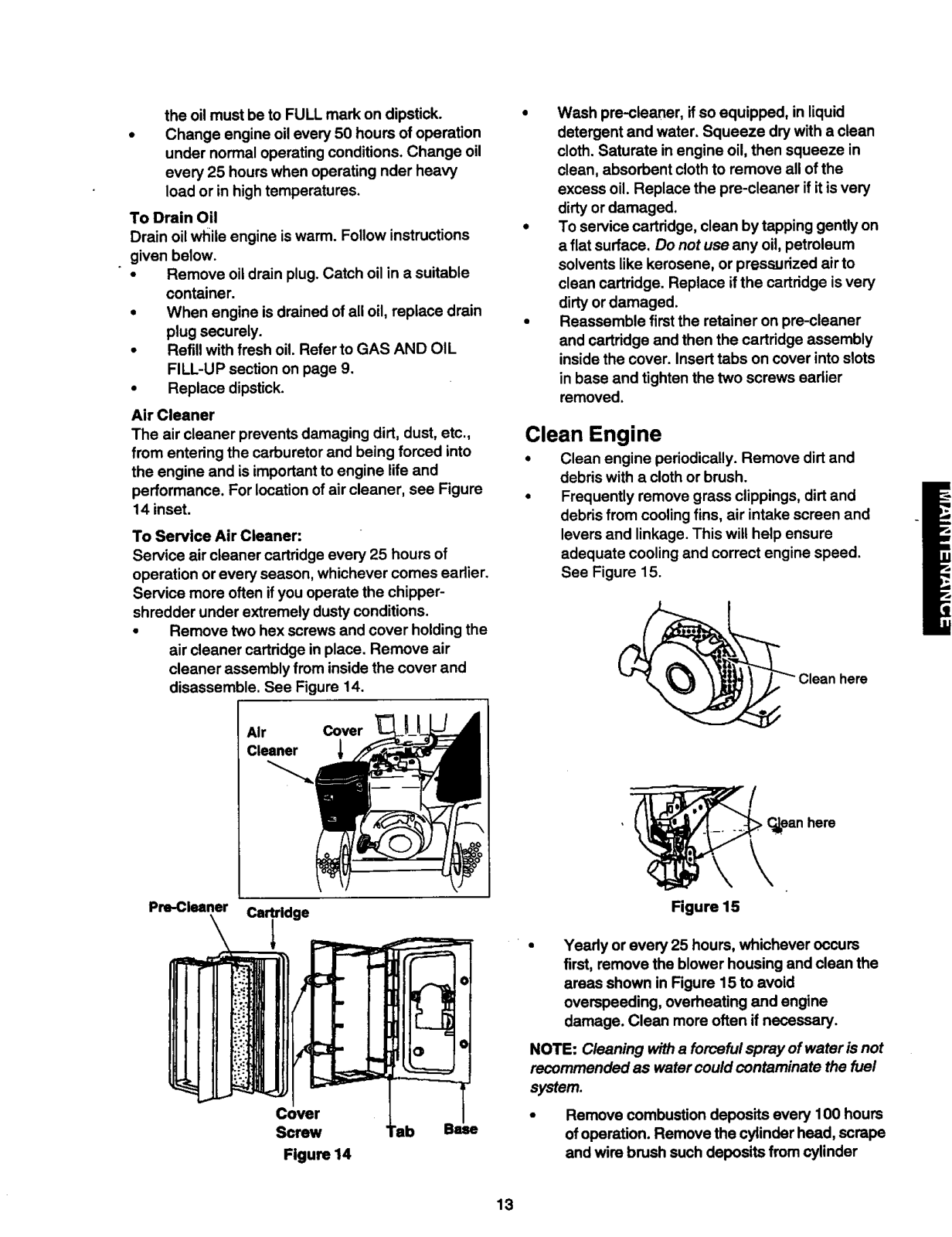

theoilmustbetoFULLmarkondipstick.

Changeengineoilevery50hoursofoperation
undernormaloperatingconditions.Changeoil

every25hourswhenoperatingnderheavy
loadorinhightemperatures.

ToDrainOil

Drainoilwhileengineiswarm.Followinstructions

. givenbelow.

• Removeoildrainplug.Catchoilina suitable

container.

• When engine is drained ofall oil, replace drain
plug securely.

• Refill with fresh oil. Refer to GAS AND OIL
FILL-UP section on page 9.

• Replace dipstick.

Air Cleaner
The air cleaner prevents damaging dirt, dust, etc.,

from entering the carburetor and being forced into
the engine and is importantto engine life and

performance. For locationof air cleaner, see Figure
14 inset.

To Service Air Cleaner:
Service air cleaner cartridgeevery 25 hours of

operation or every season, whichever comes earlier.
Service more often ifyou operate the chipper-
shredder under extremely dusty conditions.

• Remove two hex screws and cover holding the
air cleaner cartddge in place. Remove air

cleaner assembly from inside the cover and

disassemble. See Figure 14.

• Wash pre-cleaner, ifso equipped, in liquid

detergent and water. Squeeze dry with aclean
cloth. Saturate in engine oil, then squeeze in

clean, absorbent cloth to remove all of the
excess oil. Replace the pre-cleaner ifit isvery

dirty or damaged.

• To service cartridge, clean by tapping gentlyon

a flat surface. Do not use any oil, petroleum
solvents like kerosene, or pressurized air to
clean cartridge. Replace ifthe cartridge isvery
dirtyor damaged.

• Reassemble first the retainer on pre-cleaner

and cartridge end then the cartridge assembly

insidethe cover. Insert tabs on cover intoslots
in base and tighten the two screws eadier

removed.

Clean Engine

• Clean engine periodically. Remove dirtand

debris witha clothor brush.

• Frequently remove grass clippings, dirt and
debris from cooling fins, air intake screen and

levers and linkage. This will help ensure
adequate cooling and correct engine speed.

See Figure 15.

_ Clean here

Pre-Cleaner

Air Cover

Cleaner

Cartridge

Cover
Screw

Figure 14

"ab Base

, _ C_ean here

Figure 15

Yeady or every 25 hours, whichever occurs
first, remove the blower housing and clean the
areas shown in Figure 15 to avoid
overspeeding, overheating and engine

damage. Clean more often if necessary.

NOTE: Cleaning witha forceful spray of water is not

recommended as water could contaminate the fuel
system.

• Remove combustion deposits every 100 hours

ofoperation. Remove the cylinder head, scrape
and wire brush such depositsfrom cylinder

13

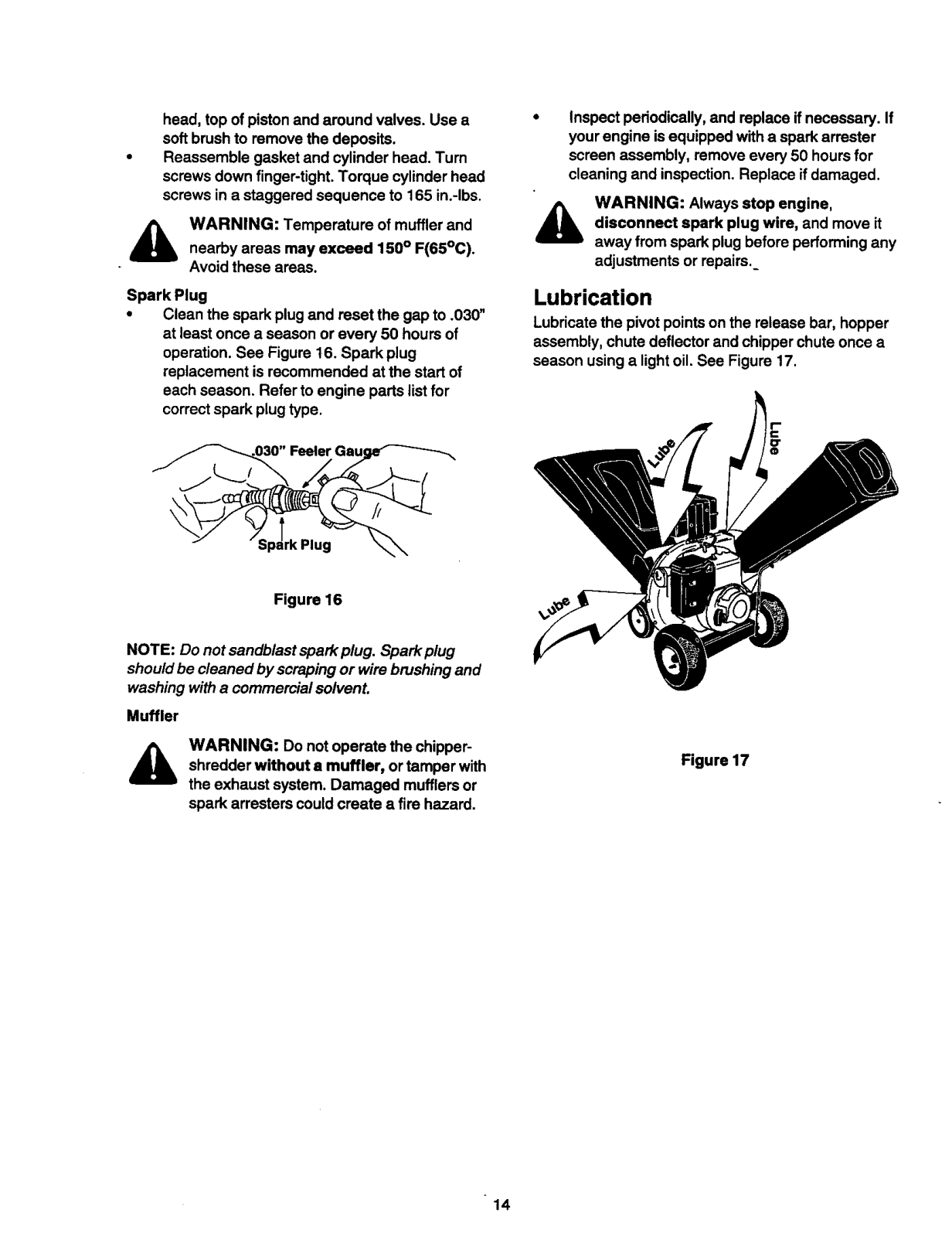

head, top of pistonand around valves. Use a

soft brush to remove the deposits.

Reassemble gasket and cylinder head. Turn
screws down finger-tight.Torque cylinder head
screws in a staggered sequence to 165 in.-Ibs.

• Inspect periodically, and replace if necessary. If
your engine isequipped with a spark arrester
screen assembly, remove every 50 hours for
cleaning and inspection. Replace ifdamaged•

,_ WARNING: Temperature of muffler and

Spark Plug

• Clean the spark plugand reset the gap to .030"

NOTE: Do not sandblast spark plug. Spark plug

shouldbe cleaned by scraping or wire brushing and
washing witha commercial solvent.

Muffler

nearby areas may exceed 150° F(65°C).
Avoid these areas.

at least once a season or every 50 hours of

operation. See Figure 16. Spark plug
replacement is recommended at the start of

each season. Refer to engine parts listfor

correct spark plugtype.

Figure 16

_lb WARNING: Always stop engine,

disconnect spark plug wire, and move it
away from spark plug before performing any
adjustments or repairs.

Lubrication

Lubricatethe pivot pointson the release bar, hopper
assembly, chute deflector and chipper chute once a
season using a light oil. See Figure 17.

WARNING: Do not operate the chipper-
shredder without a muffler, or tamper with
the exhaust system. Damaged mufflersor
spark arresters could create s fire hazard.

Figure 17

14

Removing Flail Screen

ifthe discharge area becomes clogged, remove the

flailscreen and clean area as follows.

• Stop engine, make certain the chipper-

shredder has come to a complete stop and
disconnect spark plugwire from the spark plug

before unclogging the chute.

• Remove the two hand knobs on each side of

the discharge chute (also called the chute
deflector).

• Liftthe discharge chute up,and keep itout of
the way.

• Remove two hex boltswhich extend through
the housing. See Figure 18.

• Pull the flailscreen from inside the housing.

See Figure 18.

• Clean the screen byscraping or washing with

water.

• Reinstall the screen.

• Put the discharge chute back to its original

position andtighten the hand knobs.

NOTE: Be certain to reassemble the flailscreen with

the curved side down.

by removingthroe pairs ofhex nut and cupped
washer.

Holdingthe chute to the frame, remove the hex

boltsthat secure the brace to the frame. Remove

the brace. You will need a 7/16" wrench for this.

Rotatetheimpellerassemblyby _and untilyou

locateone of the two chipperblades inthe chip_er_
chuteopening.Remove theblade, usinga 3/16"

allenwrench onthe outsideofthe bladeand 1/2"
wrenchonthe impellerassembly(insidethe

housing).See Figure 19.

Slot Blade

Chute Deflector

Flail Screen

Hex Nut,
Washer

Figure 18

Hand Knobs

Sharpening Or Replacing Blades

Chipper Blades

• Disconnect spark plug wire and move it away

from spark plug.

• Remove the flailscreen as instructed.

• Using a 1/2" wrench, remove the chipper chute

Figure 19

• Remove the other blade i_the _ame manner.

• Replace or sharpen blades.

• If sharpening, make certain to remove an equal

amount from each blade.

• Reassemble in reverse order. Make certain

blades are reassembled with the sharp edge
facing the direction shown in Figure 19 (sharp
edge is assembled toward the slotted opening at
the bottom).

• Torque bolts and nutsto 250-300 inch-pounds.

Shredding Blade

The shredding blade may be removed for sharpening

or replacement as follows.

• Disconnect spark plug wire and move it away
from spark plug.

• Lower the hopper assembly. Block up the

housing. See Figure 20.

15

Weld Bolt

Allen
Screw

When reassembling the blade, tighten center
boltto between 550-700 inch-pounds and the
two outer bolts to 250-300 inch-pounds, or
lacking torquewrench, tighten securely.

1. Insertscrew driver through hole

"-,,.p

Pipe

Torque Wrench

Figure 20

• Remove the six hex lock nuts and lock washers

from the housingweld bolts using a 112"wrench.
Separate the chipper-shredder into two halves.

• Remove the back-up plate,
NOTE: When reassembling, make certain the

embossed tab faces inward towards the impeller, and
opening on the back-up plate is toward the bottom of

the unit.

• Remove the two hand knobs and cupped

washers which securethe chute deflector. Raise
the chute deflector,

• Insert a 112"or 314"diameter pipe through the
flail screen intothe impeller to keep itfrom

turning,or remove the flailscreen and inserta
piece of wood (2 x 4) intothe chute opening.

• Remove the two outside screws on the blade,
using a 3116"allen wrench and a 1/2" wrench,

• Remove the blade by removing the center bolt,
lock washer and flat washer.

2. Bladeshould be parallel to ground
Sc

D:d_e_ Blade

I I-

Ground

Figure 21

Adjusting Carburetor

WARNING: If anyadjustmentsare made to
the engine whiletheengine isrunning(e.g.
carburetor),keep clear of all moving parts.

Becareful of heated surfaces and muffler.

Differences in fuel, temperature, altitude or load may
require minor adjustments to the carburetor. This
carburetor is equipped with an idle mixturevalve with
a limiter and an idle speed adjustment screw.

• Start engine and let it run for about 5 minutes.

• Rotate carburetor throttle lever against the idle

speed screw and hold it.Turn idle speed screw

to obtain 1750 rpm. See Figure 22.

Carburetor Idle Speed Screw

Thro_ Lever

the blade to avoid contacting the weld bolts

WARNING: Use caution when removing
on the housing.

When sharpening the blade, follow the odginal
angle of grindas a guide. It is extremely

importantthat each cutting edge receives an
equal amount of grindingto prevent an

unbalanced blade.
An unbalanced blade will cause excessive

vibration when rotating at high speeds and may

cause damage tothe unit.The blade can be tested

for balance by balancingiton a round shaft

screwdriverornail. Remove metal from the heavy
side untilitisbalanced evenly. See Figure21.

@

Figure 22

Rotate idle mixturevalve full travel clockwise

and then counter-clockwise. Finally position idle
mixture valve in middle oftreveL See Figure 22.

16

Checkidlespeedand re-adjust to 1750 rpm, if

necessary.
Engine should accelerate smoothly, If itdoes

not, adjust idle mixturevalve counter-elcckwise
1/8 turn.

_lb ARNING: Air cleaner and its cover must

be assembled tothe carburetor before
starting the engine.

Adjusting Engine Speed

The engine speed on your chipper-shredder has
been set at the factory. Do not attempt to increase
engine speed or itmay resultin personal injury. If you

believe the engine is running toofast ortoo slow,take
yourchipper-shredder to the nearest SEARS service

center for repair and adjustment.

Tires

Recommended operating tire pressure is 24 p.s.i.
(sidewall of tire may give tire manufacturer's
recommended pressure). Equal tire pressure should

be maintained on both tires.

_lb ARNING: Excessivepressurewhenseating

beadsmaycausetire/rimassemblyto burstwith

force sufficienttocauseserious injury,

Replacing Fuel Filter

• Drain the gasoline tank by runningthe engine till

itruns out ofgasoline.

• Usingaset ofpliers,squeezeand unclampthe fuel
linehose. Removethe oldfilter, See Figure23,

• Replace with a new filterand reclamp.

Filter

Clamp

Figure 23

17

Prepareyourchipper-shredderfor storage at the end

ofthe season or if the unitwillnot be used for 30 days

or more.

WARNING: Never store machine with fuel

inthe fuel tank inside of buildingwhere

fumes may reach an open flame or spark,

or where ignitionsources are present such
as hot water and space heaters, furnaces,
clothes dryers, stoves, electric motors, etc.

A yearly check-up by your local Sears service center
isa good way to make certain your chipper-shredder

willprovide maximum performance for the next
season,

Chipper-Shredder

• Clean the chipper-shredder thoroughly.

• Wipe unit withan oiled rag to prevent rust (use a

light oil orsilicone).

Engine

IMPORTANT: Itis important to prevent gum deposits
from forming in essential fuel system parts such as

carburetor, fuel filter, fuel hose, or tank during
storage. Also, experience indicatesthat alcohol
blended fuels (called gasohol or usingethanol or
methanol) can attract moisture which leads to
separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run untilthe fuel lines

and carburetor are empty.

• Drain carburetor.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent damage

may occur.
Use fresh fuel next season.

NOTE: Fuel stabilizer isan acceptable alternative in

minimizing the formation offuel gum deposits during
storage.

• Add stabilizer to gasoline infuel tank or storage

container.

• Always follow the mix ratiofound on stabilizer "

container.

• Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the
carburetor.

• Do not drainthe gas tank and carburetor if using

fuel stabilizer. Drain all the oil fromthe

crankcase (this shouldbe done after the engine
has been operated and is stillwarm) and refill

the crankcase with fresh oil.

• If you have drained the fuel tank, protect the
insideof the engine as follows.

• Remove spark plug, pour approximately 1/2
ounce(approximately one tablespoon) of engine
oilinto cylinder and crank slowlyto distribute oil.

• Replace spark plug.

Other

Do not store gasoline from one season to
another,

Replace your gasoline can if your can startsto

rust. Rust and/or dirtin your gasoline willcause
problems. Store unit ina clean, dry area. Do not

stere next to corrosive materials, such as
fertilizer.

NOTE: If storinginan unventilated or metal storage

shed, be certain torus_roof the equipment by coating

with a light oilof silicone.

18

h

Problem Corrective Action

Possible Cause

Engine failsto start

1. Fuel tank empty, or stale fuel

2. Spark plug wire disconnected

3. Faulty spark plug

4. Fuel shut-offvalve notturned ON.

Loss ofpower; operation erratic

1. Spark plugwire loose

2. Unit runningon Choke

3. Blocked fuel line or stale fuel

4. Water or dirt infuel system

5. Carburetor out ofadjustment

6. Didy air cleaner

Engine overheats

1. Carburetor not adjusted properly

2. Engine oil level low

Too much vibration

Unit does not discharge

1. Loose parts or damaged impeller

1. Discharge chute clogged

2. Foreign object lodged in impeller

Rate of discharge slows 1. Shredding blade and/or chipping

considerably or composition of blade dull
discharged material changes

1. Fill tank with clean, fresh fuel

2. Connect wire to spark plug.

3. Clean, adjust.gap or replace.

4. Move valve to ON position

1. Connect and tighten spark plug
wire

2. Move choke lever to OFF position

3. Clean fuel line;filltank with clean

fresh gasoline.

4. Disconnectfuellineat carburetorto

drainfuel tank. Refillwith fresh fuel.

5. ContactyourSEARS service

center.

6. Serviseair cleaner.

1. Contact your SEARS service
center

2. Fillcrankcase with proper oil

1. Stop engine immediately and

disconnect spark plug wire.
Tighten all boltsand nuts. Make

all necessary repairs. Ifvibration
continues, have unit serviced bya

SEARS service center.

1. Stop engine immediately and
disconnect spark plug wire. clean

flail screen and inside of blower

housing.

2. Stop engine immediately and

disconnect spark plugwire.
Remove lodged object.

1. Sharpen or_replaceblade(s)

. _. =,o lip

_y For repairs beyond the minor adjustments listed above, please contact your nearest SEARS service center.

19

CRAFTSMAN 10 H.P. CHIPPER SHREDDER MODEL 247,775890

2O

CRAFTSMAN 10 H.P. CHIPPER SHREDDER MODEL 247.775890

Key

No.

I

2
3
4

5
6"

7
8
9
10

11
12

13
14
15
16

17
18
19
2O

21
22
23

24

25

26

27

28
29

30
31
32

33
34
35
36

37

38
39

4O

41
42

44

Part No.

r70-0819A

11480

681-0118
710-0542

_10-0607

710-3256

712-0429
711-1304

i 712-3027

_14-0104

726-0106
732-0306
732-0546

732-0629
734-1797
736-0160
736-0117

736-0119

726-0299
747-0531A
747-0747

747-0982

781-0492A

781-0754-
0689

781-0755-
0689

781-0698

781-0715
726-0214

734.1845

736-0366

738-0813
681-0048

681-0094-
0689
710-0382
712-0384
781-0457

681-0004A-
0689
681-0117-

0689
710-0157

1710-3180

710-0825
710-3008
712-3004A

726-0211

Description

Owner's Manual
Stop Washer

Inlet Guide Assembly
Hex Washer Hd. Screw 5/16-18 x 8,38"

TL Hex Screw 5/16-18 x 0.5"
Button Head Screw

Hex Lock Nut 5/16-18
Axle Shaft

Hex Lock Flanged Nut 114-20

Internal Cotter Pin

Cap Nut
Compression Spring

Torsion Spring

Hopper Door Spring
Complete Wheel: Grey

Fiat Washer
Flat Washer

Lock Washer
Push Cap

Rod: 5/16 Dia.
Hopper Door Rod

Lock Rod

Hopper Door Pivot
Upper Hopper: Polo Green

Lower Hopper: Polo Green

Hopper Lock Bracket
Shredder Plate

Push Cap
Complete Wheel Grey

Flat Washer:,5/8 I.D.

Shredder Axle

KnobAssembly
Discharge Chute Assembly: PoloGreen

Hex Bolt 1/2-13 X5" Gr. 5
Hex Center Lock Nut 1/2-13
Shredder Screen

Outer Flail Housing Assembly

Inner Flail Housing Assembly

Hex Bolt 5/16-24 X 0.75" Gr. 5
Hax Bolt 5/16-18 X 1.75" Gr. 5

Hex Screw 1/4-20 X 3.75"
Hex Bolt 5/16-18 X 0.75"

Hex Lock Flange Nut 5/16-18 Gr. 5
U Nut 5/16-18

Key

No. Pa_ No.
45 747-1124
46 736-0170

!47 750-0793

48 781-0459B
49 194G432-

1182-E1
50 736-0242
51 726-0201
52 381-0068

53 710-0106
54 710-0751
55 712-3010
57 728-0175
58 731-1899
59 735-0249
60 736-0173

61 715-0129
62 749-1024
63 781-0633

64 719-0329
65 781-0735
66 715-0166

67 711-0833B
68 681-0146

69 742-0571
70 710-1054
71 681-0144
72 712-0411
73 742-0653

74 710-1254
75 736-0217
76 736-0247

83 731-1617

84 764-0501
85 764-0502
86 735-0127
87 735-0651

88 751B094095
90 747-1125
91 738-0946 '
92 781-0752
94 726-0135

95 751B493342
96 751-0535

97 726-0205
98, 781-0497

99 781-0498
100 736-0137A

Description

Flap Control Rod
BellWasher

Hinge Spacer: Chute
Shredder Frame

Engine

BellevilleWasher - -
Speed Nut

Chipper Chute Assembly: Weldment - "_
Hex Bolt 1/4-20 x 1.25" Gr. 5

Hex Bolt 1/4-20 x .625

Hex Nut 5/16-18
Rivet

Chipper Chute

Chute Flap
Flat Washer

Spiral Pin
Chute Support

Chute Flap Strip
Flail Blade

Retaining Clip
Spring Roll Pin
Clevis Pin

Impeller Assembly

;hredder Blade

Flat Hd. Scr. 5/16-24 x .75"

\rm Bracket Assembly

Hex Top Lock Nut
Chipper Blade

Hex Patch Bolt 3/8-24 X 2.25" Gr. 8
LockWasher

Flat Washer
Tamper Plug

Chip Bag

Leaf Bag
Rubber Washer

Rubber Flap
Screw (included in #95 assembly)
Flap Retaining Bail

Shoulder _ScrJew_- ,b
Hopper Flap Mounting Bracket

Speed Cap Nut
Fuel tank

Fuel Line Hose
Hose Clamp
Mounting Bracket
Support Bracket

Shoulder Screw

21

CRAFTSMAN 10 H.P. ENGINE MODEL NO. 19G432-1182-E1 FOR CHIPPER SHREDDER
MODEL NO. 247.775890

Key

No. Part No.

1 495631

2 495657
3 .391086

5 214347
7 _.272163

8 498038
9 _27803

10 94621

11 280819

13 94565

14

15

306
307

306

337
383

552
635
869

871

978
979

982
1019
1058

Key

No.

159

161

163
165
222
258

307
354

359
445
467
5O7

520
535
642

969

94622

94239

496797

94930

225055
496018

69838

491986

66538

211661

261961

*271736

494807

495861

273682

Part NO. Description

280819 Tube-Breather

11

75

495659 Washer Set

98

493280 ScrevP-Idle Speed
281358 Support-Air Cleaner

497669 Base-Air Cleaner

_272706 Gasket-Air Cleaner

499106 Bracket-Control

496077 Filter-Air
280715 Knob

398525 Insulator

492889 Filter-Air
281357 Cover-Air Cleaner

Cylinder Assembly
Bushing

Seal-Oil
Head-Cylinder

Gasket-Cylinder Head

Breather Assembly

Gasket-Breather
Screw-Breather Mtg.

Tube-Breather

Screw-Cylinder Head
(3 9/16" Long)

Screw-Cylinder Head
(3" Long)

Plug-Oil

Shield-Cylinder
Screw-Hex.

Cover-Cylinder

Plug-Spark (Resistor Type)

Wrench-Spark Plug

Bushing-Governor Crank
Elbow-Spark Plug

I Seat-Valve

Guide-Exhaust Valve
Note: 231218 Guide-Intake Valve

Gasket-Oil Guard Cover
Cover-Oil Gard®

94658

94692 Nut-Wing

Screw-Hex.
Label Kit

Owner's Manual

94929 Screw-Hex.
94930 Screw-Hex.
90576 Nut-Hex.

92791 Washer-Lock

93722 Terminal

94777 Screw-Slotted Hey,.

8

Description

_0 383 337

1 14 13

.871 - - =

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

1019 LABEL KIT 1058 OWNER'S MANUAL

_ 467

I

165_

_1_258 307_

642

* Included in Gasket Set-Pad No. 497070.

O Includedin Valve Overhaul Gasket Set-Part No. 498534.

zz

CRAFTSMAN 10 H,P. ENGINE MODEL NO. 19G432-1182-E1 FOR CHIPPER SHREDDER
MODEL NO, 247.775890

Key

No. Part No. Description

*271701

12

*27876

*27877

15A

16

20
21

146
219

220
230
244
411

524
614

616

741

868

91488

495866

77

29530

496981

18
19

295964

*391086

281658

22

24

25

26

27
28

93585
94690

222698

499907
499908
499909

499910
499721
299743

391670

391671
391672 _

263181

499911

499920

29

390401
390773

30

222113

32
33

263017

34

261056

35

40

221596

45

260933

46

214786

497037
221551

230318

281370

496818
263625

497656

* Included in Gasket Set-Part No. 497070.

Gasket-Crankcase (.015" Thick, Std.)
Gasket--Crankcase (.005" Thick)

Gasket-Crankcase (.009" Thick)
Plug-Oil

Crankshaft

Bearing-Ball

Cover-Crankcase

Bushing
Seal-Oil

Cap-Oil Fill
Screw-Hex.

Screw-Hex. (in Position #1)
Key-Flywheel

Piston Assy. (Standard)
Piston Assy. (.010" O.S.)

Piston Assy. (.920" O.S.)

i Piston Aasy. (.030" O.S,)

Ring Set (Standard)
Ring Set (Std. Chrome)

Ring Set (.010" O.S.)
Ring Set (.020" O.S.)

Ring Set (.030" O.S.)
Leck-Piston Pin

Pin-Piston (Std.)
Pin-Piston (.005" O.S,)
Rod-Connecting (Standard)

Rod-Connecting (.020" U.S.)
Dipper-Connecting Rod

94670

65906

94388

94927

94802

93306

Screw-Connecting Rod
Valve-Exhaust

Valve-Intake
Spring-Valve

Retainer-Spring
Tappet-Valve

Gear-Cam
Key-Timing

Gear-Governor
Washer-Thrust
Washer-Gov. Crank

Connector-Hose
Plug

Seal-Fill Plug
Pin-Cotter

Crank-Govemor

Gear-Timing
Seal-Valve

614_

616 230

21 _ 12

15A_

220 219

244

tit REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

302

No. Part No. Delmdptlon
300 496127 Muffler-Exhaust

302 261409 Locknut-Muffler
333 398811 Armature-Magneto

334 94731 Screw-Hex.
356 491391 Wire-Gmund
851 493880 Terminal-Ignition Cable

300

334

23

CRAFTSMAN 10 H.P. ENGINE MODEL NO. 19G432*1182-E1 FOR CHIPPER SHREDDER
MODEL NO. 247.775890

Kay

No. Part No.

50

214170

51

_D,272707

51A

•_?72708

53

93

" 94

95

98A

104
105

106

108
123
125

127
130

131
133

137
138
141
142

147

186
634
950
965
975
987

1091

94778

A281346

498836

&94098

495800

tL231789

A231935

_231856

224666

94913

499029

&

224539
497846

494381

t _?.81!65

t t_281164

497160

4498716

499032
232086
493496

A494455

94642
94010

495933

&251166

281364

Manifold-Intake
Gasket]ntake
Gasket-Intake

Stud-Carb. Mounting
Bushing-Throttle Shaft
Valve-Idle Adjust

Screw-Round Head
Screw-Idle Speed

Pin-Float Hinge
Valve-Needle

Seat-inlet
Valve-Choke
Screw-Torx®Hex.
Carburetor

Plug-Welch (Sold in Kit Only)
Valve-Throttle

Shaft-Throttle
Float-Carburetor

Gasket-F]oat Bowl
Washer
Shatt-Choke

Nozzle-Carburetoi_.(Std.)

Nozzle-Carburetor (High AIt.)
Jet-Pilot

Connector-Hose
Seal-Spring Assembly

Screw-Bowl Mounting

Nut-Hex.
Bowl Assembly-Carburetor

Seal-Throttle Shaft
Ca.c-Limiter

Description

_12sJ

131

130 _r-

95 987

93

51A

142

lO5 186

REQUIRES SPECIAL TOOLS/;_
TO INSTALL. SEE REPAIR,fYJ_
INSTRUCTION MANUAL ((,.f_l /_

Key

No.

Pad No.

55

393576

56

295871

57

490179

58

59
60
63
64

65
66
67
68

70
71

373

6O8
655

1016

* Included inGasket Sat-Part No. 497070.

O Included in Valve Overhaul Gasket Set-Part

• Included inCarburetor Gasket Set-Part No. 497069.

,_, Included in Carburetor Kit-Part No. 497849.

66894

490653

490652
26O414
281204

94904
399671
394897

63770
298799

394506

94908
390391

222598
490817

Housing-Rewind Starter
Pulley-Starter
Spring-Rewind Starter
Rope-Starter
(63" Long)

Insert-Grip

Grip-Starter Rope
Spring-Ratchet
Adapter-Spring

Screw-Hex.
Clutch-Starter
Housing-Clutch

Bali-Clutch
Ratchet-Clutch
Cover-Ratchet
Nut-Hex.

Starter Assy.--RewirK:l
Anchor-Rewind Spring
Spacer-Rewind

Descdptlon

_64 6551

I- .L

59

24

CRAFTSMAN 10 H.P. ENGINE MODEL NO. 19G432-1182-E1 FOR CHIPPER SHREDDER

MODEL NO. 247.775890

Key

No.

Part No. Description

116

*270920 Seal-O-Ring

209
211

212

212A

227
232

284
422

523

524A

525
562

592

623

624

847

263212 Spring-Governor
263182 Spring-Governor Idle

263051 Link-Throttle
263049 Link-Throttle

499096 Lever.-Govemor
263020 Spring-Link

94984 Screw---Shoulder

225218 Bracket-Oil Fill
495225 Dipstick

*281370 Seal-Fill Tube

495347 Tube-Oil Fill

94907 Bolt-Governor Lever

281978 Nut-Hex.
231520 Screw-Shoulder

497207 Lever-Linkage
399901 Dipstick/Tube Assembly

592

8471 525

Ol16

284 _!

422

Key

No.

Part No. Description

187

240

3851

387
601

918

280149 Line-Fuel

(Cut to Required Length

394358 Fitter-Fuel

94789 Screw-Hex.

496257 Pump-Fuel

93053 Clamp-Hose (Green)

497457 Hose-Vacuum

* Included in Gasket Set-Part No. 497070.

523

_ 524_

240

25

CRAFTSMAN 10 H.P. ENGINE MODEL NO. 19G432-1182-E1 FOR CHIPPER SHREDDER

MODEL NO. 247.775890

215

Key

No,

Part No. Description

23

298260 Flywheel

24

222698 Key-Flywheel

37

222475 Guard-Flywheel

38

73

74
75

215
304

305

363
575

1036

Key

No. Part No.

51A *272708

104 A231789
105 A231935

106 A231856

116 *270920

121 497849
127 4
137 4+281165

138 A+281164
142 4498716
163 _-*272706

358 497070

524A *281370

634 4494455
977 497069

978 *271736

1095 498534

.94811 Screw-Hex.

224874 Screen-Rotating

94680 Screw-Hex.

225136 Washer-Flywheel
221760 Guide-Air

491596 Housing-Blower

94786 Screw-Hex.

19069 Puller-Flywheel

396691 Switch-Rotary
499354 Label Kit-Emission

3 *391086
7!_,272163

9 _27803

12 *271701

*27876

*27877

20 *391086
51 _272707

93 1_281346
95 A94098

Seal-Oil
Gasket-Cylinder Head

Gasket-Valve Cover
Gasket-Crankcase (.015" Thick, Std.)

Gasket-Crankcase (,005" Thick)
Gasket-Crankcase (.009" Thick)

Seal-Oil
Gasket-Intake

Gasket-Intake
Bushing-Throttle Shaft

Screw-Round Head

Pin-Float Hinge

Valve-Needle
Seat-Inlet

Seal--O-Ring

Carburetor Kit

Plug-Welch (Sold in Kit Only)
Gasket-Bowl (Sold in Kit

Washer

Nozzle-Carburetor (Std.)
Gasket-Air Cleaner

Gasket Set
Seal-Fill Tube

Seal-Spring Assembly
Gasket Set-Carburetor
Gasket-Oil Guard Cover

Gasket Set-Valve Overhaul

Description

358 GASKET SET

121 CARBURETOR Kl't"

104_ 105 _ 127_

138

0 142 106_

93 51

137 A_ 634_

977 CARBURETOR

GASKET SET

Q 138_)

137 51A_

95e -_._j 9871_

* Included in Gasket Set-Part No. 497070.

O Includedin Valve Overhaul Gasket Set-Part No. 498534.

• IncludedinCarburetorGasketSet-Part No.497069.

A Includedin CarburetorKit-PartNo.497849.

1095 VALVE OVERHAUL

GASKET SET

26

Forthe repairor replacementpartsyouneed

delivereddirectlyto yourhome

Call7 am - 7 pm, 7 daysaweek

1-800-366-PART

(1-800-366-7278)

Forin-homemajorbrandrepairservice

Call24 hours a day,7 daysa week

1-8OO-4-REPAIR

(1-800-473-7247)

Forthelocationofa

SearsPartsandRepairCenterinyourarea

Call24 hoursa day,7 daysaweek _

1-800-488-1222

l'--"

Forinformationonpurchasinga Sears

aboutan existingAgreement

MaintenanceAgreementorto inquire ___

call 9am-5 pm, Monday-Saturday __,_l

1-800-827-6655

SEARS

mmmmmm

mmmmmm

America'sRepairSpeciatists
