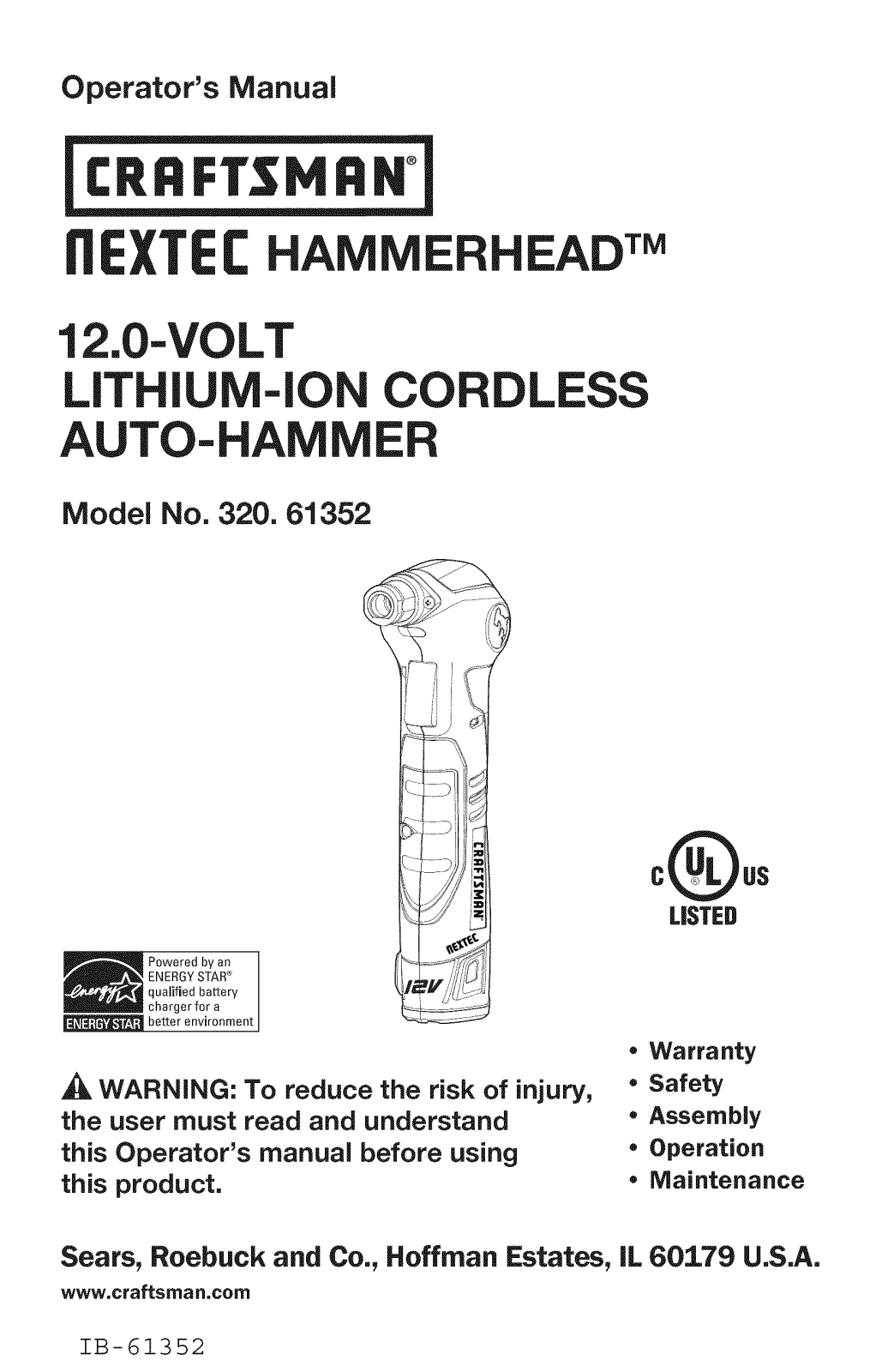

Craftsman 320. 61352 User Manual

Operator's Manual

n T HAMMERHEAD TM

12.0-VOLT

LITHIUM-ION CORDLESS

AUTO-HAMMER

Model No. 320. 61352

quaJified battery charger for a

better environment

* Warranty

WARNING: To reduce the risk of injury,

the user must read and understand this Operator's manual before using

this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www,craftsman,com

IB-61352

* Safety * Assembly

* Operation * Maintenance

Warranty Page 2

Safety Symbols Page 3 Safety Instructions Pages 5-10 Description Pages 11-12

Assembly Page 12

Operation Pages 13-16 Maintenance Page 17

Troubleshooting Page 17

Exploded View and Parts List Pages 18-19 Sears Repair Parts Phone Number Back Cover

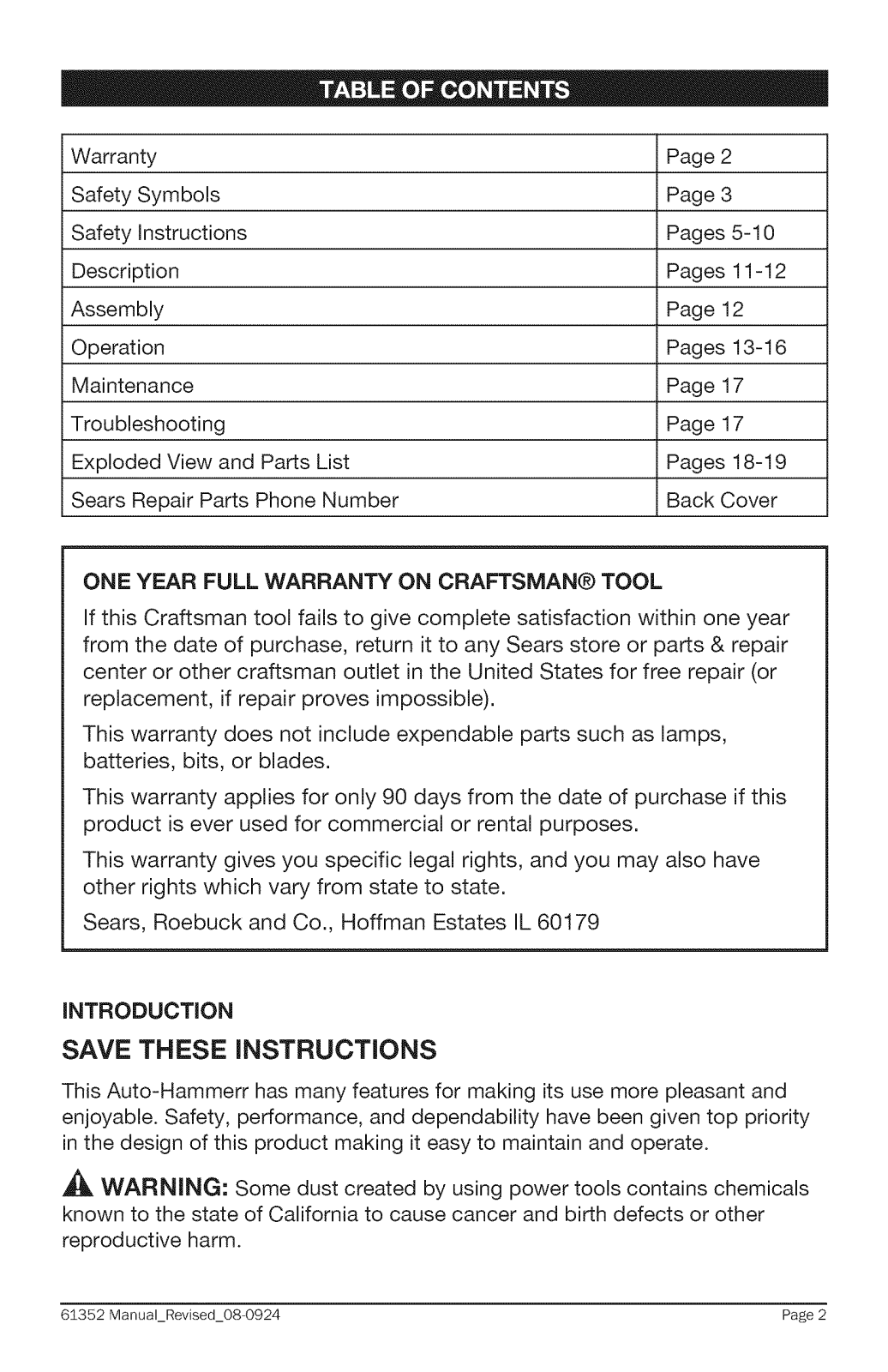

ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL If this Craftsman tool fails to give complete satisfaction within one year

from the date of purchase, return it to any Sears store or parts & repair center or other craftsman outlet in the United States for free repair (or replacement, if repair proves impossible).

This warranty does not include expendable parts such as lamps,

batteries, bits, or blades.

This warranty applies for only 90 days from the date of purchase if this

product is ever used for commercial or rental purposes.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state. Sears, Roebuck and Co., Hoffman Estates IL 60179

iNTRODUCTiON

SAVE THESE iNSTRUCTiONS

This Auto-Hammerr has many features for making its use more pleasant and

enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

,_ WARNING: Some dust created by using power tools contains chemicals

known to the state of California to cause cancer and birth defects or other reproductive harm.

63_352 Manual_Revised_08 0924 Page 2

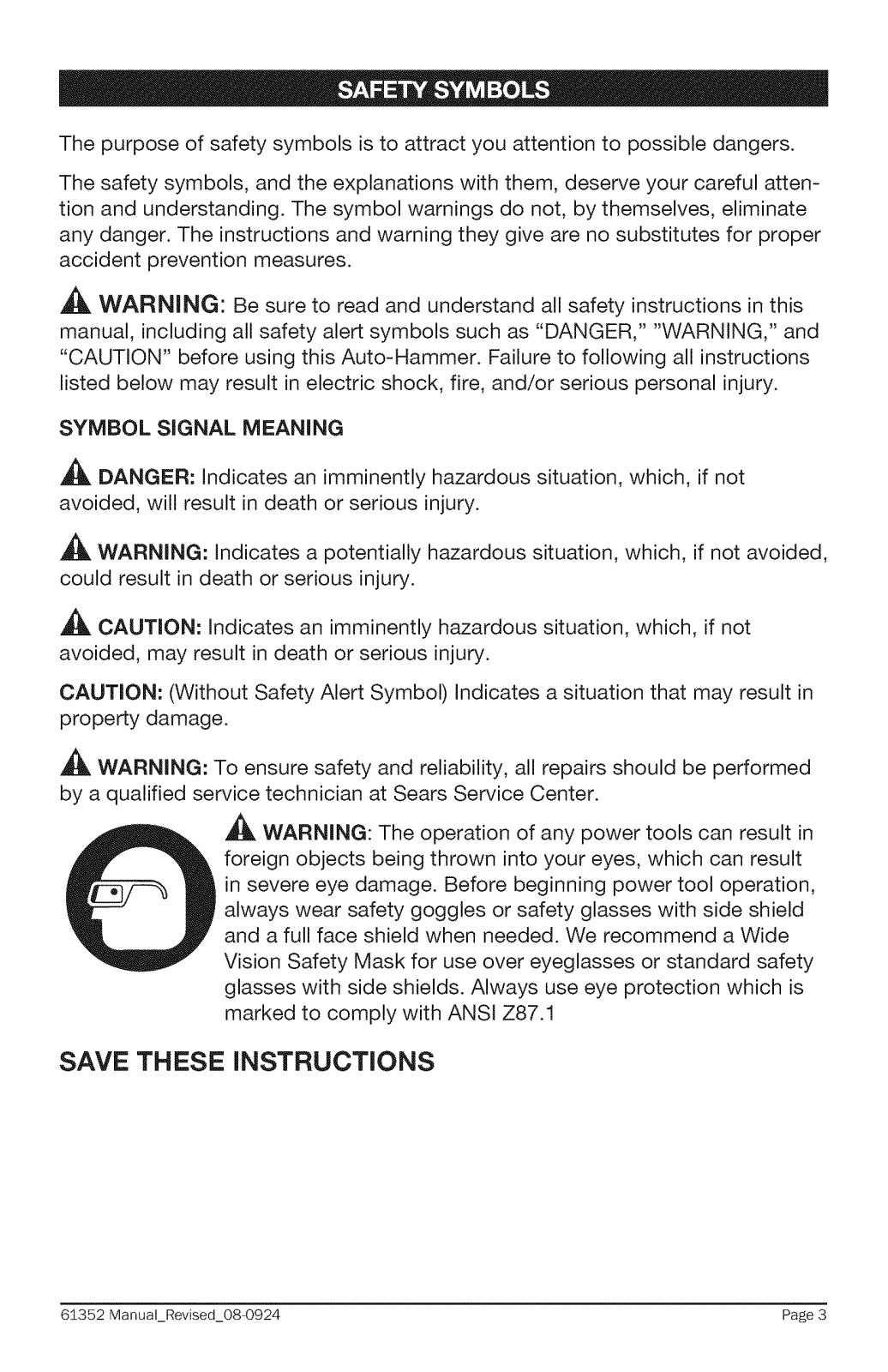

The purpose of safety symbols is to attract you attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful atten-

tion and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warning they give are no substitutes for proper

accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this

manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this Auto-Hammer. Failure to following all instructions

listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL SIGNAL MEANING

_. DANGER: Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

CAUTION: Indicates an imminently hazardous situation, which, if not

avoided, may result in death or serious injury. CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in

property damage.

WARNING: To ensure safety and reliability, all repairs should be performed

by a qualified service technician at Sears Service Center.

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shield and a full face shield when needed. We recommend a Wide

Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is

marked to comply with ANSI Z87.1

SAVE THESE INSTRUCTIONS

61352 Manual_Revised_08 0924 Page 3

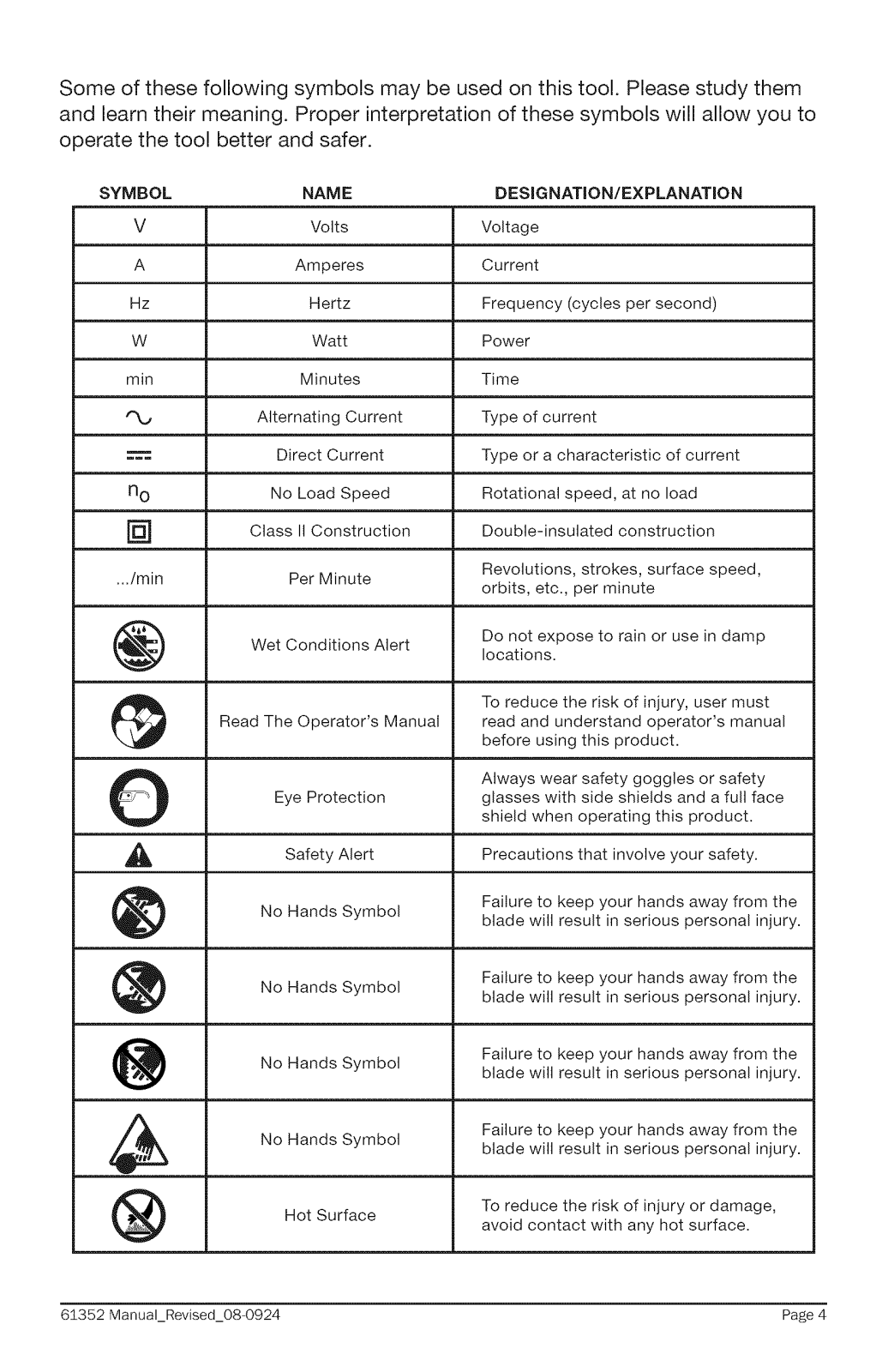

Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to

operate the tool better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watt Power

min Minutes Time

Alternating Current Type of current

Direct Current Type or a characteristic of current

n o No Load Speed Rotational speed, at no load

] Class II Construction Double-insulated construction

.../min Per Minute Revolutions, strokes, surface speed,

Wet Conditions Alert Do not expose to rain or use in damplocations.

Read The Operator's Manual read and understand operator's manual

Eye Protection glasses with side shields and a full face

Safety your safety.

Alert Precautions that involve

No Hands Symbol blade will result in serious personal injury.

No Hands Failure to keep your hands away from the

No Hands Symbol blade will result in serious personal injury.

Symbol

Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.

orbits, etc., per minute

To reduce the risk of injury, user must before using this product.

Always wear safety goggles or safety shield when operating this product.

Failure to keep your hands away from the

blade will result in serious personal injury.

Failure to keep your hands away from the

61352 Manual_Revised_08 0924 Page 4

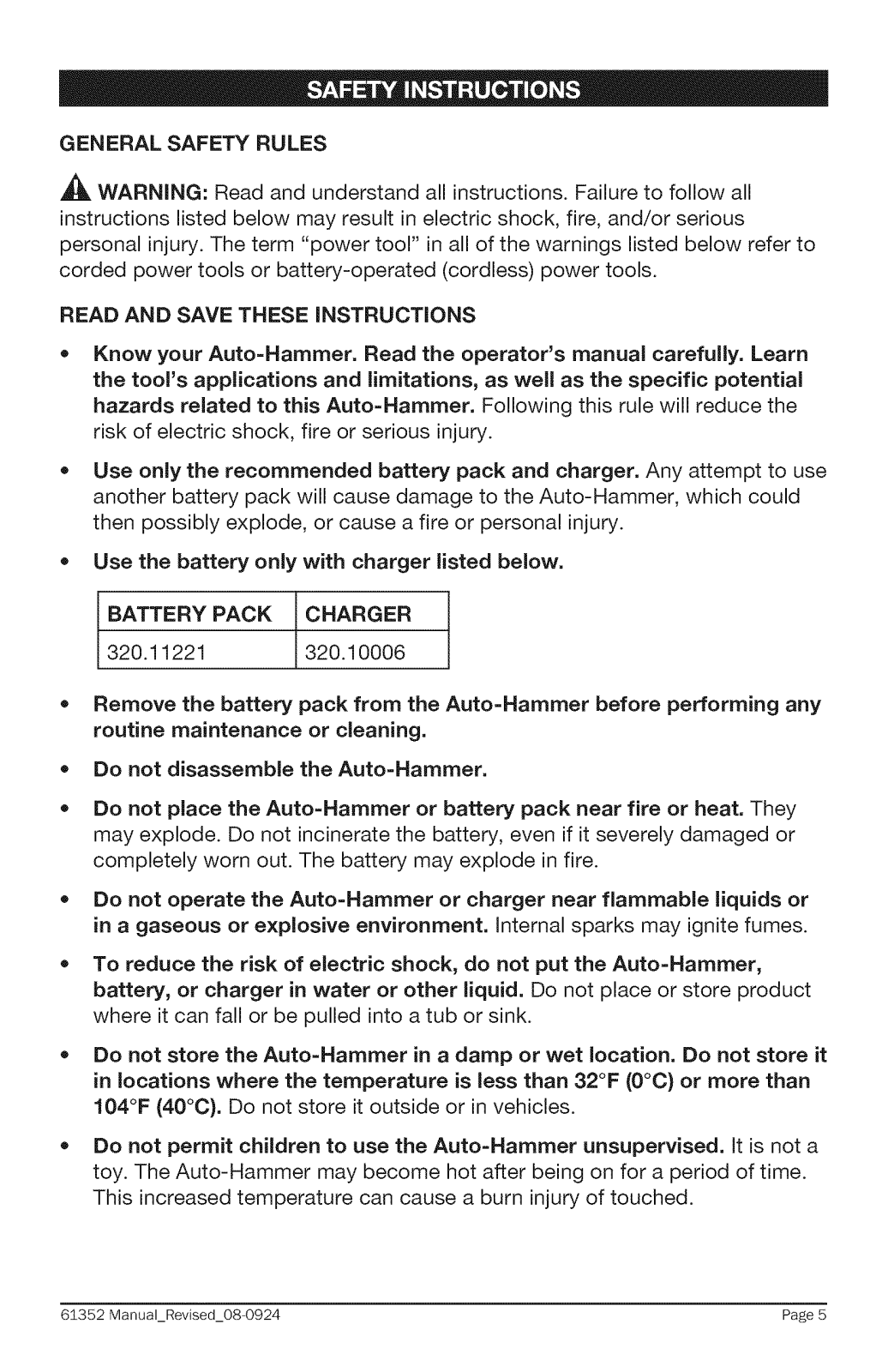

GENERAL SAFETY RULES

WARNING: Read and understand all instructions. Failure to follow all

instructions listed below may result in electric shock, fire, and/or serious personal injury. The term "power tool" in all of the warnings listed below refer to

corded power tools or battery-operated (cordless) power tools.

READ AND SAVE THESE INSTRUCTIONS

Know your Auto=Hammer. Read the operator's manual carefully. Learn

the tool's applications and limitations, as well as the specific potential

hazards related to this Auto=Hammer. Following this rule will reduce the risk of electric shock, fire or serious injury.

Use only the recommended battery pack and charger. Any attempt to use

another battery pack will cause damage to the Auto-Hammer, which could then possibly explode, or cause a fire or personal injury.

Use the battery only with charger listed below.

BATTERY PACK CHARGER

320.11221 320.10006

Remove the battery pack from the Auto-Hammer before performing any routine maintenance or cleaning.

Do not disassemble the Auto-Hammer.

Do not place the Auto=Hammer or battery pack near fire or heat. They may explode. Do not incinerate the battery, even if it severely damaged or

completely worn out. The battery may explode in fire.

Do not operate the Auto-Hammer or charger near flammable liquids or

in a gaseous or explosive environment. Internal sparks may ignite fumes.

To reduce the risk of electric shock, do not put the Auto-Hammer,

battery, or charger in water or other liquid. Do not place or store product

where it can fall or be pulled into a tub or sink.

Do not store the Auto=Hammer in a damp or wet location. Do not store it in locations where the temperature is less than 32°F (0°C) or more than

104°F (40°C). Do not store it outside or in vehicles.

Do not permit children to use the Auto-Hammer unsupervised. It is not a toy. The Auto-Hammer may become hot after being on for a period of time. This increased temperature can cause a burn injury of touched.

6:$352 Manual_Revised_08 0924 Page 5

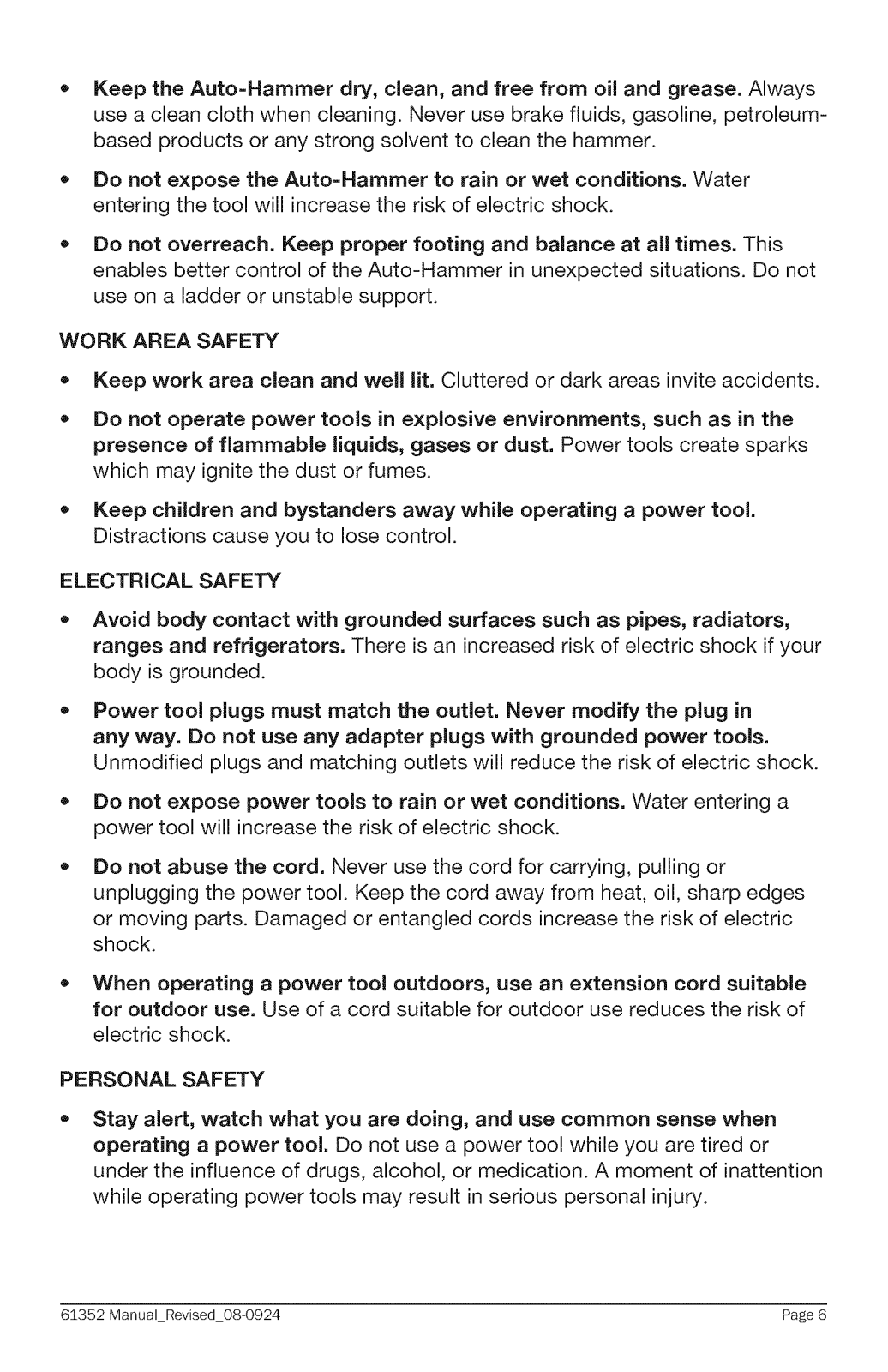

Keep the Auto-Hammer dry, clean, and free from oil and grease. Always

use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-

based products or any strong solvent to clean the hammer.

Do not expose the Auto=Hammer to rain or wet conditions. Water

entering the tool will increase the risk of electric shock.

Do not overreach. Keep proper footing and balance at all times. This

enables better control of the Auto-Hammer in unexpected situations. Do not

use on a ladder or unstable support.

WORK AREA SAFETY

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive environments, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool.

Distractions cause you to lose control.

ELECTRICAL SAFETY

Avoid body contact with grounded surfaces such as pipes, radiators,

ranges and refrigerators. There is an increased risk of electric shock if your

body is grounded.

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools.

Unmodified plugs and matching outlets will reduce the risk of electric shock.

Do not expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or

unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric

shock.

= When operating a power tool outdoors, use an extension cord suitable

for outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

PERSONAL SAFETY

Stay alert, watch what you are doing, and use common sense when

operating a power tool. Do not use a power tool while you are tired or

under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

6:$352 Manual_Revised_08 0924 Page 6
