Trellis
™
DIMENSIONS
A-(2”DR)-10
A-6”DR)-14
(DR-Down Rod)
2” and 6” down rods.
3/4”
3/4”
Shipped with
WARRANTY
Lifetime Warranty

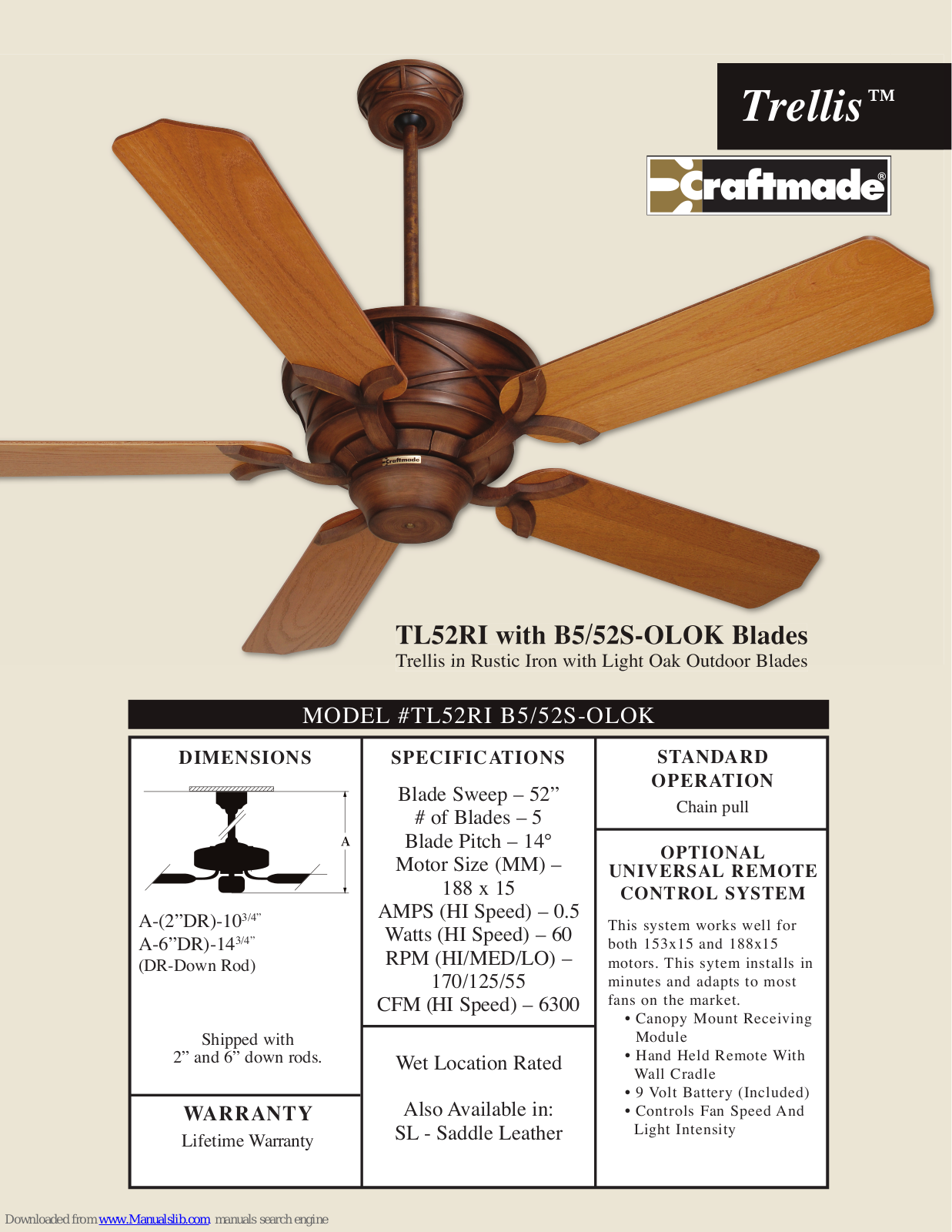

TL52RI with B5/52S-OLOK Blades
Trellis in Rustic Iron with Light Oak Outdoor Blades
MODEL #TL52RI B5/52S-OLOK
SPECIFICATIONS
Blade Sweep – 52”
# of Blades – 5
Blade Pitch – 14°
Motor Size (MM) –
UNIVERSAL REMOTE
188 x 15
AMPS (HI Speed) – 0.5
Watts (HI Speed) – 60
RPM (HI/MED/LO) –
170/125/55
CFM (HI Speed) – 6300
This system works well for
both 153x15 and 188x15
motors. This sytem installs in
minutes and adapts to most
fans on the market.
Wet Location Rated
Also Available in:
SL - Saddle Leather
STANDARD
OPERATION
Chain pull
OPTIONAL
CONTROL SYSTEM
• Canopy Mount Receiving
Module
• Hand Held Remote With
Wall Cradle
• 9 Volt Battery (Included)
• Controls Fan Speed And
Light Intensity
