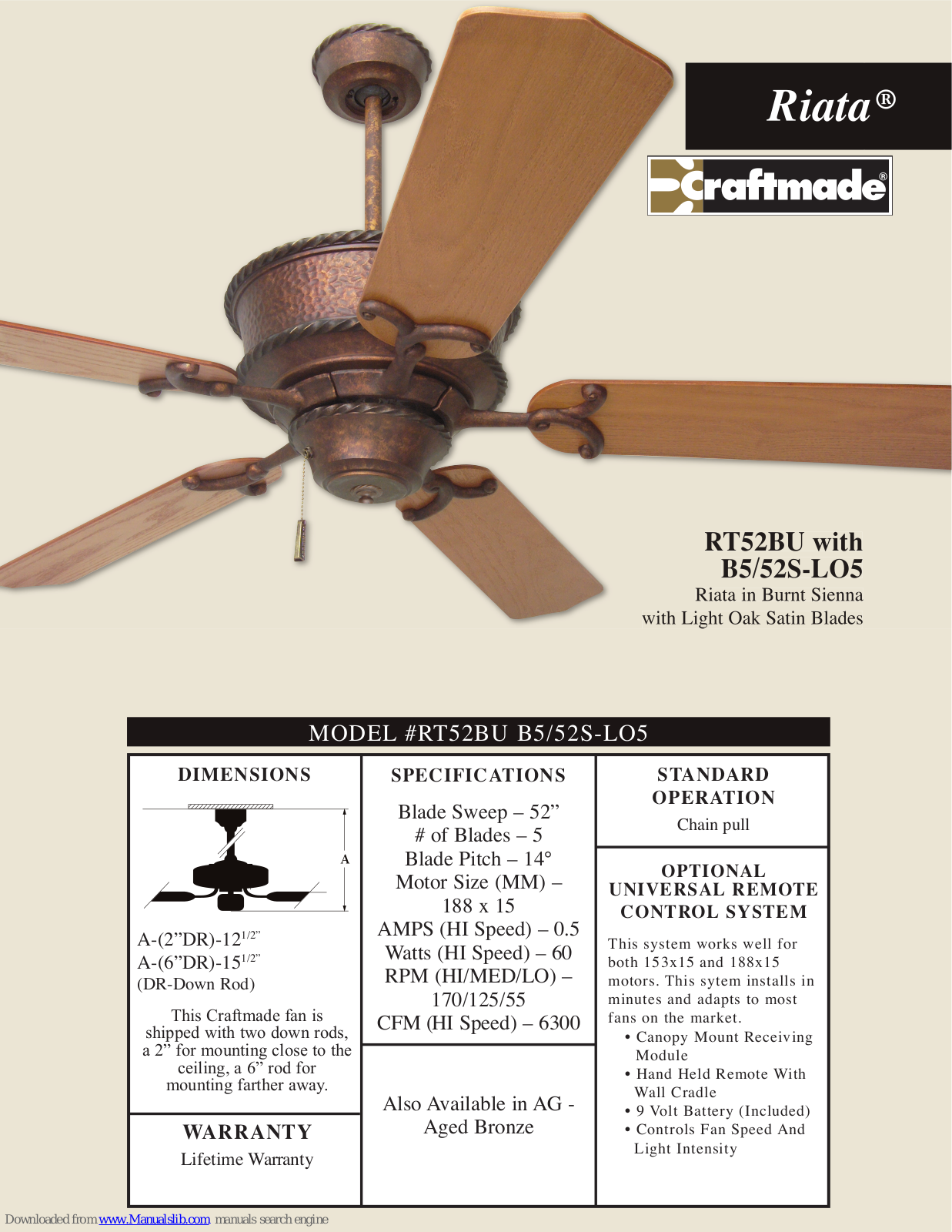

Page 1
Riata
RT52BU with
®
MODEL #RT52BU B5/52S-LO5
DIMENSIONS
A-(2”DR)-12
A-(6”DR)-15
(DR-Down Rod)
This Craftmade fan is
shipped with two down rods,
a 2” for mounting close to the
ceiling, a 6” rod for
mounting farther away.
WARRANTY
Lifetime Warranty
1/2”
1/2”
SPECIFICATIONS
Blade Sweep – 52”
# of Blades – 5
Blade Pitch – 14°
Motor Size (MM) –
188 x 15
AMPS (HI Speed) – 0.5
Watts (HI Speed) – 60
RPM (HI/MED/LO) –
170/125/55
CFM (HI Speed) – 6300
Also Available in AG -
Aged Bronze
B5/52S-LO5
Riata in Burnt Sienna
with Light Oak Satin Blades
STANDARD
OPERATION
Chain pull
OPTIONAL
UNIVERSAL REMOTE
CONTROL SYSTEM
This system works well for
both 153x15 and 188x15
motors. This sytem installs in
minutes and adapts to most
fans on the market.
• Canopy Mount Receiving
Module
• Hand Held Remote With
Wall Cradle
• 9 Volt Battery (Included)
• Controls Fan Speed And
Light Intensity
