Page 1
DIMENSIONS
SPECIFICATIONS
STANDARD
OPERATION
OPXL52
A (2” DR) – 11
1
⁄2
A (6” DR) – 151⁄2
B (2” DR) – 93⁄4
B (6” DR) – 133⁄4
C – 111⁄2
D – 51⁄8
E – 41⁄2
OP42
A (2” DR) – 10
1
⁄4
A (6” DR) – 141⁄4
B (2” DR) – 8
B (6” DR) – 12
C – 9
D – 5
1
⁄8
E – 31⁄4
OPXL52
Blade Sweep – 52”
# of Blades – 5
Blade Pitch – 14°
Motor Size – 188 x 15
AMPS (HI Speed) – .70
Watts (HI Speed) – 80
RPM (HI⁄MED⁄LO) – 210/120/78
CFM (HI Speed) – 7680
OP42
Blade Sweep – 42”
# of Blades – 5
Blade Pitch – 14°
Motor Size – 153 x 8
AMPS (HI Speed) – .40
Watts (HI Speed) – 46
RPM (HI⁄MED⁄LO) – 200/125/55
CFM (HI Speed) – 5100
Antique White, Bronze,
Brownstone, Flat Black,
Galvinized, Painted Nickel, Rust*,
Rustic Iron, Verde Green, White*
*Also available in 42” models
FINISHES
The Outdoor Patio fan is shipped with two
down rods, a 2” for mounting close to the
ceiling, a 6” rod for mounting farther away.

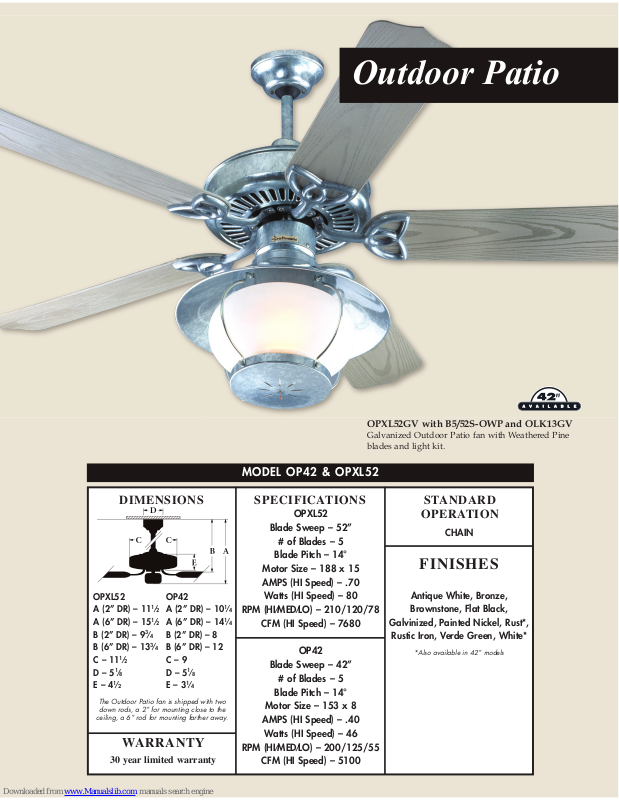

OPXL52GV with B5/52S-OWP and OLK13GV
Galvanized Outdoor Patio fan with Weathered Pine
blades and light kit.
MODEL OP42 & OPXL52
30 year limited warranty
WARRANTY
CHAIN
Outdoor Patio
