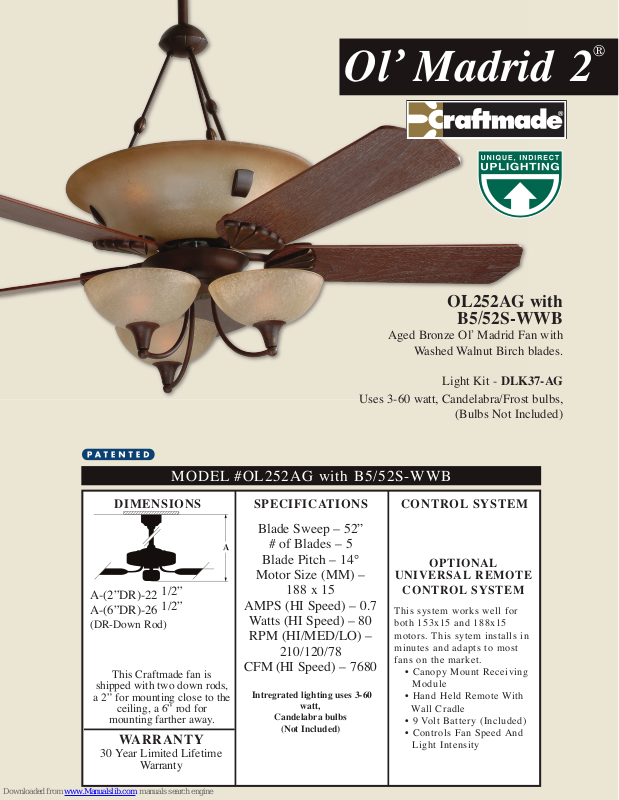

Ol’ Madrid 2
OL252AG with
B5/52S-WWB
Aged Bronze Ol’ Madrid Fan with
Washed Walnut Birch blades.
®
MODEL #OL252AG with B5/52S-WWB
DIMENSIONS
A-(2”DR)-22
A-(6”DR)-26
(DR-Down Rod)
This Craftmade fan is
shipped with two down rods,
a 2” for mounting close to the
ceiling, a 6” rod for
mounting farther away.
WARRANTY
30 Year Limited Lifetime
1/2”
1/2”
Warranty
Uses 3-60 watt, Candelabra/Frost bulbs,
SPECIFICATIONS
Blade Sweep – 52”
# of Blades – 5
Blade Pitch – 14°
Motor Size (MM) –
188 x 15
AMPS (HI Speed) – 0.7
Watts (HI Speed) – 80
RPM (HI/MED/LO) –
210/120/78
CFM (HI Speed) – 7680
Intregrated lighting uses 3-60
watt,
Candelabra bulbs
(Not Included)
Light Kit - DLK37-AG
(Bulbs Not Included)
CONTROL SYSTEM
OPTIONAL
UNIVERSAL REMOTE
CONTROL SYSTEM
This system works well for
both 153x15 and 188x15
motors. This sytem installs in
minutes and adapts to most
fans on the market.
• Canopy Mount Receiving
Module
• Hand Held Remote With
Wall Cradle
• 9 Volt Battery (Included)
• Controls Fan Speed And
Light Intensity
