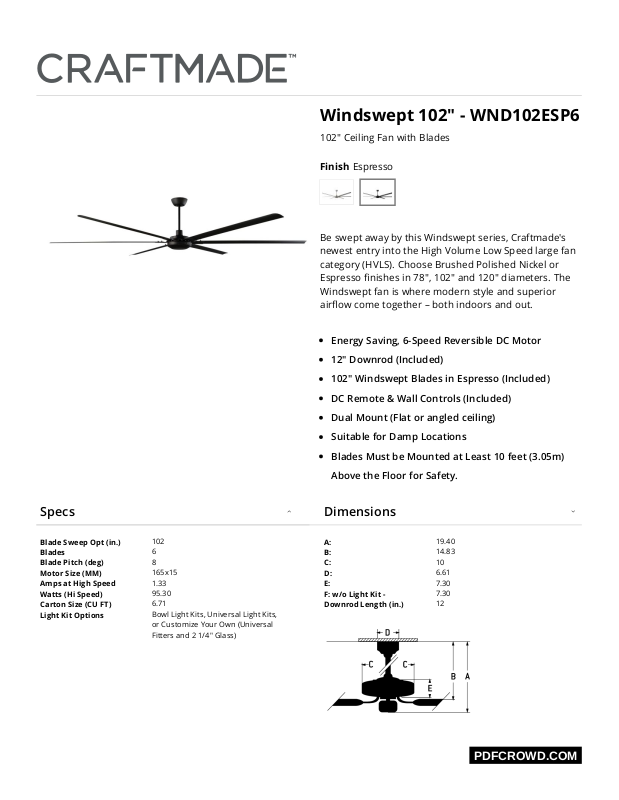

Windswept 102" - WND102ESP6
102" Ceiling Fan with Blades
Espresso
Be swept away by this Windswept series, Craftmade's
newest entry into the High Volume Low Speed large fan
category (HVLS). Choose Brushed Polished Nickel or
Espresso finishes in 78", 102" and 120" diameters. The
Windswept fan is where modern style and superior
airflow come together – both indoors and out.
Energy Saving, 6-Speed Reversible DC Motor
12" Downrod (Included)
102" Windswept Blades in Espresso (Included)
DC Remote & Wall Controls (Included)
Dual Mount (Flat or angled ceiling)
Suitable for Damp Locations
Blades Must be Mounted at Least 10 feet (3.05m)
Above the Floor for Safety.
Blade Sweep Opt (in.)
102
Blades
6
Blade Pitch (deg)
8
Motor Size (MM)
165x15
Amps at High Speed
1.33
Watts (Hi Speed)
95.30
Carton Size (CU FT)
6.71
Light Kit Options
Bowl Light Kits, Universal Light Kits,
or Customize Your Own (Universal
Fitters and 2 1/4" Glass)
A:
19.40
B:
14.83
C:
10
D:
6.61
E:
7.30
F: w/o Light Kit -
7.30
Downrod Length (in.)
12
Finish
Specs
Dimensions
