Page 1
DIMENSIONS
SPECIFICATIONS
STANDARD
OPERATION
C42
Blade Sweep – 42”
# of Blades – 5
Blade Pitch – 14°
Motor Size – 153 x 8
AMPS (HI Speed) – .40
Watts (HI Speed) – 46
RPM (HI⁄MED⁄LO) – 200/120/55
CFM (HI Speed) – 5100
C52
Blade Sweep – 52”
# of Blades – 5
Blade Pitch – 12°
Motor Size – 153 x 15
AMPS (HI Speed) – .70
Watts (HI Speed) – 80
RPM (HI⁄MED⁄LO) – 200/125/55
CFM (HI Speed) – 6300
Antique Brass*, Antique White*,
Black*, Brownstone*,
Brushed Nickel, Chrome,
Polished Brass*, Red,
Sandstone White*, White*,
White Brass
FINISHES
C52BS with B5/52S-RB3 and
F400-BS with #293
Brownstone™ with Rosewood blades.

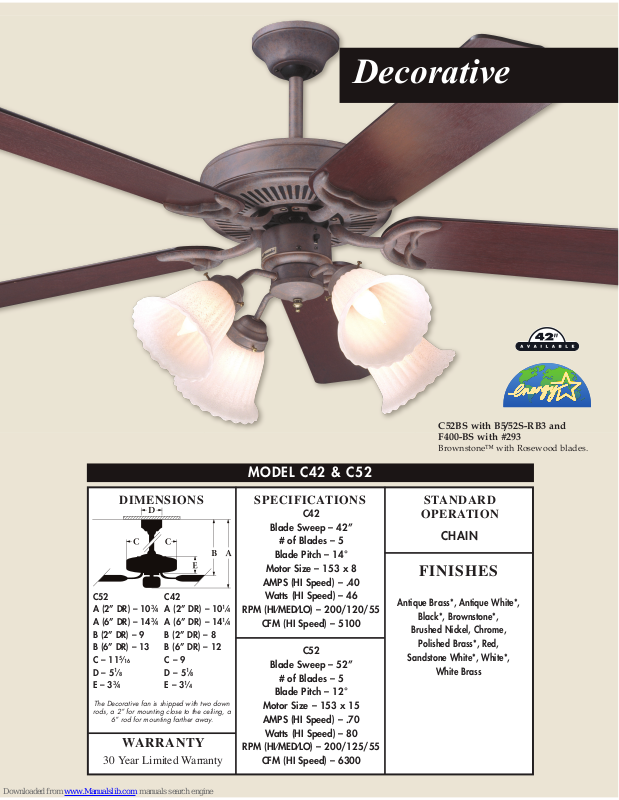

MODEL C42 & C52
C52
A (2” DR) – 10
3
⁄4
A (6” DR) – 143⁄4
B (2” DR) – 9
B (6” DR) – 13
C – 11
5
⁄16
D – 51⁄8
E – 33⁄4
C42
A (2” DR) – 10
1
⁄4
A (6” DR) – 141⁄4
B (2” DR) – 8
B (6” DR) – 12
C – 9
D – 5
1
⁄8
E – 31⁄4
The Decorative fan is shipped with two down
rods, a 2” for mounting close to the ceiling, a
6” rod for mounting farther away.
CHAIN
Decorative
30 Year Limited Warranty
WARRANTY
