C Prox Ltd DPS-T, DPS, DPS-W User Manual

1

C Prox Ltd (inc Quantek)

59 Sheffield Road, Dronfield, S18 2GF

[phone] [e-mail] www.quantek.co.uk

Standalone Keypad Access Control

DPS-T

User Manual

Please read the manual carefully before installing this unit

2

1. Packing list

Name

Quantity

Remarks

Keypad

1

User manual

1

Screw driver

1

Φ20mm

×6

0mm,

special for keypad

Rubber plug

2

Φ6mm

×30 mm, used for fixing

Self tapping screws

2

Φ4mm

×28 mm, used for fixing

Star screws

1

Φ3mm

×6mm,

used for fixing

Please ensure that all the above contents are correct. If any are missing please notify us immediately

2. Quick reference programming guide

To enter programming mode

.*. Master code .#.

999999 is the default master code

To exit programming mode

.*.

Note that to undertake the following programming the master user must be logged in

To change the master code

0. .New code. .#. .New code. .#.

The master code can be 6 to 8 digits

To add a PIN user

.1. .User ID number. .#. .PIN. .#.

The ID number is any number between 1 & 2000. The PIN is any four
digits between 0000 & 9999 with the exception of 1234 which is
reserved. Users can be added continuously without exiting
programming mode.

To add a card user

.1. .Read card. .#.

Cards can be added continuously without exiting programming mode

To delete a PIN or card user

.2. .User ID number. .#.

for a PIN user or

.2. .Read card. .#.

for a card user

Users can be deleted continuously without exiting programming

mode

To unlock the door for a PIN user

Enter the .PIN. then press .#.

To unlock the door for a card user

.Read valid card.

3. Description

The unit is a single door multifunction standalone access controller or a Wiegand output keypad or card
reader. It is suitable for mounting either indoors only. It is housed in a strong, sturdy and vandal proof zinc
alloy electroplated case. This unit supports up to 2000 users in either a card, 4 digit PIN, or a card + PIN
option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock
output current short circuit protection, Wiegand output, and a backlit keypad. These features make the
unit an ideal choice for door access not only for small shops and domestic households but also for
commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

3

4. Features

• Strong zinc alloy electroplated anti-vandal case • Adjustable door output, alarm and door open times

• Full programming from the keypad • Very low power consumption (30mA)

• 2000 users, supports card, PIN, or card + PIN • Fast operating speed, <20ms with 2000 users

• Can be used as a standalone keypad • Lock output short circuit protection

• Touch sensitive backlit keys • Easy to install and program

• Wiegand 26 input for connection to external reader • Built in LDR for anti-tamper

• Wiegand 26 output for connection to a controller • Built in buzzer

• Red, yellow & green LEDs display working status

5. Specification

Operating voltage 12-24Vdc
User capacity 2000
Card reading distance 3-6 cm
Active current <60 mA
Idle current 25±5 mA
Lock output load Max 3A
Alarm output load Max 20A
Operating temperature -20 to 60⁰C
Operating humidity 10% to 90% RH
Waterproof Internal use only
Adjustable door relay time 0-99 seconds
Adjustable alarm time 0-3 minutes
Wiegand interface Wiegand 26 bit
Wiring connections Electric lock, exit button, external alarm

6. Installation

• Remove the back cover from the keypad using the supplied special screw driver.

• Mark and drill two holes on the wall for the self-tapping fixing screws and one for the cable.

• Put the two wall plugs into the fixing holes.

• Fix the back cover firmly on the wall with the two self-tapping screws.

• Thread the cable through the cable hole.

• Attach the keypad to the back cover.

4

7. Wiring

Colour Function Description

Green D0 WG output D0
White D1 WG output D1
Grey ALARM Alarm negative (alarm positive connected to 12/24V+)
Yellow OPEN Exit button one end (the other end connected to GND)
Brown D_IN Magnetic switch one end (the other end connected to GND)
Red 12/24V + 12/24V + DC regulated power input
Black GND 12/24V – DC regulated power input
Blue NO Relay normally open
Purple COM Relay common
Orange NC Relay normally closed

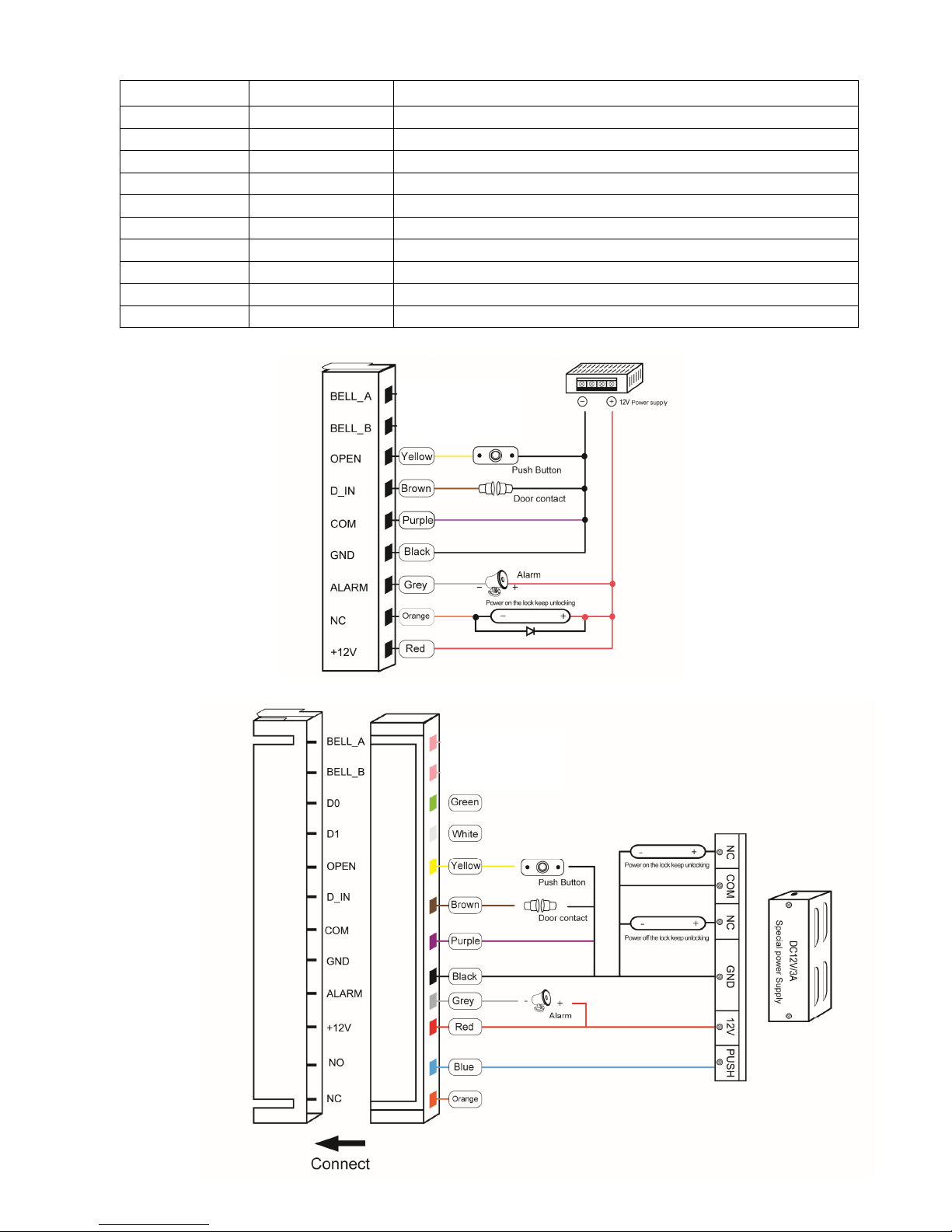

Common powe

r

supply diagram

Special power

supply diagram

5

8. To reset to factory default

a. Disconnect power from the unit.
b. Press and hold the # key whilst powering the unit back up.
c. On hearing the two “Di” sounds, release the # key, system is now back to factory settings.

Please note only installer data is restored, user data will not be affected.

9. Anti- tamper alarm

The unit uses an LDR (light dependent resistor) as an anti-tamper alarm. If the keypad is removed from the
cover then the alarm will operate.

10. Sound and light indication

Operation Status Red Light Green Light Yellow Light Buzzer

Power on - Bright - Di

Stand by Flashing - - -

Press keypad - - - Di

Operation successful - Bright - Di

Operation failed - - - DiDiDi

Enter into programming mode

Solid - -

-

In the programming mode - - Solid Di

Exit from the programming Bright - - Di

Open the door - Solid - Di

Alarm Flashing - - Alarm

11. Detailed programming guide

11.1 User settings

To enter programming mode

.*. Master code .#.

999999 is the default master code

To exit programming mode

.*.

Note that to undertake the following programming the master user must be logged in

To change the master code

.0. .New code. .#. .New code. .#.

The master code can be 6 to 8 digits

Setting the working mode:

Set valid card users only

Set valid card and PIN users

Set valid card or PIN users

.3. .0. .#.

Entry is by card only

.3. .1. .#.

Entry is by card and PIN together

.3. .2. .#.

Entry is by either card or PIN (default)

6

To add a user in either card or PIN mode, i.e. in the .3. .2. .#. mode. (Default setting).

To add a PIN user

.1. .User ID number. .#. .PIN. .#.

The ID number is any number between 1 & 2000. The PIN is any four digits
between 0000 & 9999 with the exception of 1234 which is reserved. Users
can be added continuously without exiting programming mode as follows:

.1. .User ID No1. .#. .PIN. .#. .User ID No2. .#. .PIN. .#. ….

To delete a PIN user

.2. .User ID number. .#.

Users can be deleted continuously without exiting programming mode

To change the PIN of a PIN user

(This step must be done out of programming
mode)

.*. .ID number. .#. .Old PIN. .#. .New Pin. .#. .New Pin. .#.

To add a card user (method 1)

This is the fastest way to enter cards, user ID
number auto generation.

.1. .Read card. .#.

Cards can be added continuously without exiting programming mode

To add a card user (method 2)

This is the alternative way to enter cards using
User ID allocation. In this method, a User ID is
allocated to a card. Only one User ID can be
allocated to a single card.

.1. .User ID number. .#. .Read card. .#.

Users can be added continuously without exiting programming mode

To add a card user (method 3)

Add by the number on the card. Card number is
the last 8 digits printed on the back of the card.
User ID number auto generation.

.1. .Card number. .#.

Users can be added continuously without exiting programming mode

To add a card user (method 4)

In this method, a User ID is allocated to a card
number. Only one User ID can be allocated to
the card number.

.1. .ID number. .#. .Card number. .#.

Users can be added continuously without exiting programming mode

To delete a card user (method 1)

This method uses the card itself that needs to
be deleted.

.2. .Read card. .#.

Users can be deleted continuously without exiting programming mode

To delete a card user (method 2)

This method is for deleting users by User ID
number. This operation can be used when the
user has lost their card.

.2. .User ID number. .#.

Users can be deleted continuously without exiting programming mode

To delete a card user (method 3)

This option is for deleting users by card
number. This operation can be used when the
user has lost their card.

.2. .Card number. .#.

Users can be deleted continuously without exiting programming mode

To add a card and PIN user in card and PIN mode ( .3. .1. .#. ) mode.

To add a card and PIN user

The PIN is any 4 digits between 0000 & 9999
with the exception of 1234 which is reserved.

Add the card user as for a card user

Press .*. to exit from programming mode, then allocate the card a PIN as
follows:

.*. .Read card. .1234. .#. .PIN. .#. .PIN. .#.

7

11.2 Door settings

Relay output delay time

To set door relay strike time

.*. .Master code. .#. .4. .0 – 99. .#. .*.

0 – 99 is to set the door relay time to 0 – 99 seconds

Door open detection

Door open too long (DOTL) warning. When used with an optional magnetic contact or a magnetic lock with a built-in contact,
if the door is opened normally, but not closed after one minute, the inside buzzer will beep automatically to remind people to
close the door and continue for one minute before switching off automatically.

Door forced open warning. When used with an optional magnetic contact or a magnetic lock with a built-in contact, if the
door is forced open, or if the door is opened after 20 seconds, the inside buzzer and alarm output will both operate. The
alarm output time is adjustable between 0 – 3 minutes, with the default being 1 minute.

To disable door open detection (factory
default)

.6. .0. .#.

To enable door open detection

.6. .1. .#.

To change a PIN in card and PIN mode
(method 1)

Change using card. Note that this is done
outside of programming mode so the user can
undertake this themselves.

.*. .Read card. .Old PIN. .#. .New PIN. .#. .New PIN. .#.

To change a PIN in card and PIN mode
(method 2)

Change using User ID number. Note that this is
done outside of programming mode so the user
can undertake this themselves.

.*. .ID number. .#. .Old PIN. .#. .New PIN. .#. .New PIN. .#.

To delete card and PIN user

To delete the user just delete the card

.2. .User ID number. .#.

To add a card user in card mode ( .3. .0. .#. ) mode.

To add or delete a card user

The operating is the same as adding and deleting a card user in

.3. .0. .#.

To delete all users

To delete all users

Please note this is a dangerous operation, use
with care

.2. .0000. .#.

To unlock the door

For a PIN user

Enter the .PIN. then press .#.

For a card user

.Read card.

For a card and PIN user

.Read card. then enter .PIN. .#.

8

12. The unit operating as a Wiegand output reader

In this mode the unit supports a Wiegand 26 bit output so the Wiegand data lines can be connected to any
controller which supports Wiegand 26 bit input.

Alarm output time

To set the alarm output time (0-3
minutes). Factory default 1 minute

.5. .0 – 3. .#.

Keypad lockout & alarm output options

If there are 10 invalid cards or 10 incorrect PIN’s entered in a 10 minute period, either the keypad will lockout for 10 minutes
or both the alarm and inside buzzer will operate for 10 minutes, depending on the option selected below.

Normal status: No keypad lockout or
alarm (factory default)

.7. .0. .#.

(Factory default)

Keypad lockout

.7. .1. .#.

Alarm and inside buzzer operation

.7. .2. .#.

To turn off the alarm

To reset the door forced open alarm

.Read valid card. or .Master code. .#.

To reset the door open too long alarm

Close the door or .Read valid card. or .Master code. .#.

9

Issue record

Site: Door location:

User ID No User name PIN Card number Issue date

0001
