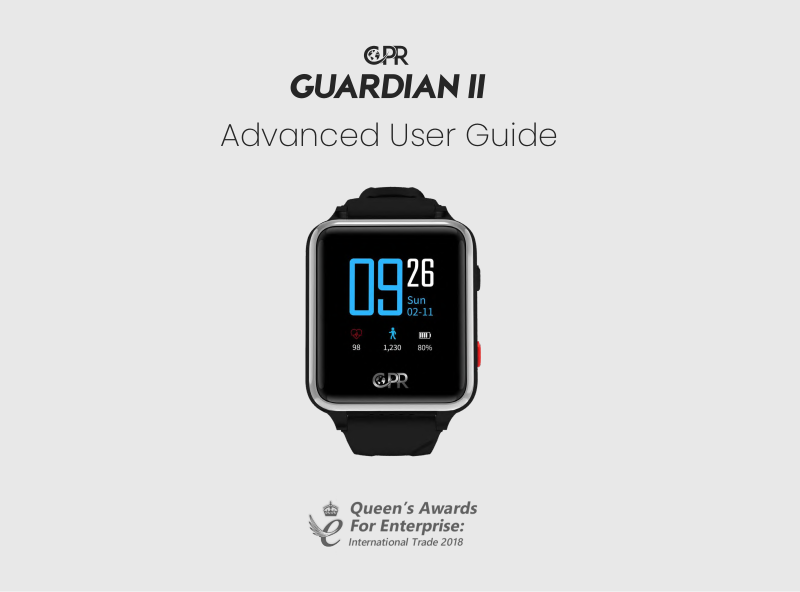

Advanced User Guide
3 CPRGUARDIAN.COMCPR GUARDIAN II
CPR Guardian II User Guide
1.
2.
Set Up & Getting Started
> 1.1 Getting To Know Your Guardian II
> 1.2 Syncing Your Watch With The App
Using The Guardian App
> 2.1 Add Contacts
> 2.2 Call The Watch
3.
> 2.3 Measure The Wearer’s Heart Rate
> 2.4 Locate The Wearer
> 2.5 Set Pedometer Goals
> 2.6 Unpair The Watch From The App
> 2.7 Add Another Watch To The App
Using The Guardian Watch
4.
> 3.1 Make A Phone Call
> 3.2 Make An SOS Call
> 3.3 Send A Voice Message
> 3.4 Test Your Heart Rate
> 3.5 Change The Clock Face
> 3.6 Charge The Watch
Additional Information
> 4.1 Functions & Usage
> 4.2 Cautions & Warranty
4 CPRGUARDIAN.COMCPR GUARDIAN II
The CPR Guardian II
The CPR Guardian is designed to keep the wearer safe,
independent and active at all times with a built-in
emergency assist button, a heart rate monitor,
mobile phone and GPS tracking.
The GUARDIAN II provides you and your loved ones with peace
of mind and reassurance knowing you can always be there
for them whenever they need you.
SOS Button
Phone Calls
GPS Tracking HR Monitor
5 CPRGUARDIAN.COMCPR GUARDIAN II
Introduction
1.1 Getting To Know Your Guardian II
Accessing The SIM Portal
Box Contents
• 1X Guardian II Watch Phone
• 1X USB Cable
SIM Details
Use the SIM number and PIN printed on the SIM Information
Card to access the CPR SIM portal.
• 1X SIM card (already inside the watch)
• 1X SIM Information Card
• 1X Quick Start Guide
Step 1
To manage your SIM, please visit:
https://www.cprguardian.com/simlogin
Battery Care & Charging
To protect and optimize your battery performance. We
recommend you charge the watch for at least 12 Hours for
the 1st charge and over 8 Hours for the 2nd and 3rd charge.
Always use the USB cable provided and a CE approved USB
charger plug to avoid irreparable damage.
Step 2
Sign into the portal using your SIM number
starting with ‘44’ followed by the PIN Code.
Step 3
When you login, sign up as a new user and then
select your SIM plan.
Please align the magnetic charging cable connector to the 4
pin metal contacts on the watch backplate, and make sure it
is properly connected (the magnetic charging cable will not
charge if it’s reversed). When the watch starts to charge, the
charging icon will appear on the watch display screen.
6 CPRGUARDIAN.COMCPR GUARDIAN II
Introduction
1.1 Getting To Know Your Guardian II
Time
Power On/Off Button
Date
Microphone
Battery
SOS Button
SIM Card Port
Heart Rate
Monitor
Steps
Heart Rate
Speaker
Charging Port
7 CPRGUARDIAN.COMCPR GUARDIAN II
Set Up & Getting Started
1.2 Syncing Your Watch With The App
4
1
1
32
Download the CPR Guardian
App from the App Store /
Google Play store
Once the app has
downloaded, you need to
allow notifications by pressing
‘Ok’
8 CPRGUARDIAN.COMCPR GUARDIAN II
Next, familiarise yourself with
the app’s functions by
swiping right through
the app summary
Set Up & Getting Started
1.2 Syncing Your Watch With The App
4
5 6
Once the login page is
reached, proceed by
selecting ‘New User’
Next, press ‘Get Code’Choose your country code and
then enter your mobile
phone number
9 CPRGUARDIAN.COMCPR GUARDIAN II
Set Up & Getting Started
1.2 Syncing Your Watch With The App
7
8 9
You will receive an SMS text
message with a
unique code
Proceed by entering
your unique code
10 CPRGUARDIAN.COMCPR GUARDIAN II
Next, create a secure
6-16 letter password
Set Up & Getting Started
12
1.2 Syncing Your Watch With The App
10
11
After creating your password,
you can proceed to login
Proceed by pressing
‘Add Device’
11 CPRGUARDIAN.COMCPR GUARDIAN II
Then select
‘scan device QR code ‘
Set Up & Getting Started
13
15
1.2 Syncing Your Watch With The App
14
To reveal your watch’s QR
Code, swipe up on the
watch face.
Once scanned proceed by
adding your relationship
to the wearer
12 CPRGUARDIAN.COMCPR GUARDIAN II
Enter the watch user’s details,
ensuring that the watch SIM
number begins with ‘0’
Set Up & Getting Started
1.2 Syncing Your Watch With The App
16
17
Once you’re done, press back
button to save your details
Once watch has been added
press [ ] for the watch
to update, this can take
up to 5 minutes
13 CPRGUARDIAN.COMCPR GUARDIAN II
Using The Guardian App
2.1 Add Contacts
1
2
3
Press the [ ] icon on home
screen of the app
Next, select
‘Add Contact’
from the Command List
Continue to fill out the fields such
as name, number and then
press ‘Save’
14 CPRGUARDIAN.COMCPR GUARDIAN II
Using The Guardian App
2.2 Call The Watch
1
2
To call the watch, go to the
home screen and then press
the [ ] icon to call the watch
You may be prompted to press
‘Call’ before the call
can begin
15 CPRGUARDIAN.COMCPR GUARDIAN II
Using The Guardian App
2.3 Measure The Wearer’s Heart Rate
1
3
To measure wearer’s heart rate,
select the Heart Rate section at
the bottom of the homescreen
Press ‘Measure Now’ – the data
will then be available on the
home screen of the app
*This Can Take Up To 3 Minutes
16 CPRGUARDIAN.COMCPR GUARDIAN IIPAGE NAME
Using The Guardian App
1
2.4 Locate The Wearer
2
To locate the wearer, begin by
pressing the icon [ ] on the
app home screen
In real-time the app will locate
the wearer’s location
17 CPRGUARDIAN.COMCPR GUARDIAN II
Using The Guardian App
1
2.5 Set Pedometer Goals
2
3
Begin by pressing the icon [ ] on
the app homescreen
Select Pedometer Goals from
the features list
Enter the amount of steps you
would like to reach daily
18 CPRGUARDIAN.COMCPR GUARDIAN II
Using The Guardian App
1
3
2.6 Add Another Watch To The App
2
Begin by pressing ‘Switch Device’
on the home screen
Next, press the [ ] icon located
at the bottom of the screen
19 CPRGUARDIAN.COMCPR GUARDIAN II
Next, scan the device QR
Code to add the new device
Using The Guardian App
1
2.7 Unpair The Watch From The App
2
Begin by pressing ‘Switch Device’
on the home screen
Next, press ‘Unpair’ to remove the
watch from the app
20 CPRGUARDIAN.COMCPR GUARDIAN II
Using The CPR Guardian II
Greg
07000000000
3.1 Make A Phone Call
1
2 3
John
07000000000
Jane
Phonebook
07000000000
To make a normal call,
swipe right to left on
the watch face
Next, tap the
‘Phonebook’
icon
21 CPRGUARDIAN.COMCPR GUARDIAN II
Select who you wish to
call & hold down on
the contact to call
Using The CPR Guardian II
3.2 Make An SOS Call
1
To make SOS calls from the watch
hold down the red SOS button
for 3 seconds
SOS
The watch will the begin to
repeatedly call the SOS contacts
until the call is answered
22 CPRGUARDIAN.COMCPR GUARDIAN II
Using The CPR Guardian II
3.3 Send A Voice Message
1
2 3
Voice Chat
To send a voice message
swipe right until you see
the ‘Voice Chat’ icon
Next, tap the
‘Voice Chat’
icon
23 CPRGUARDIAN.COMCPR GUARDIAN II
To record your message,
press & hold the
microphone icon
Using The CPR Guardian II
3.4 Test Your Heart Rate
1
2
Heart Rate
89
Last Time: 89 BPM
BPM
To test your heart rate, swipe right on
the watch face until you see the Heart
Rate icon.
Next, wait up to 60 seconds
for the result. To re-test, tap
the screen again
24 CPRGUARDIAN.COMCPR GUARDIAN II
Using The CPR Guardian II
3.5 Change The Clock Face
1
2
89
3
89
12
PM
9
6
3
Sun
:
02/11
To change the watch clock face
press the home screen on the
watch for 3 seconds
Repeat the first step again to
cycle through the watch faces
25 CPRGUARDIAN.COMCPR GUARDIAN II
Repeat the first step again to
cycle through the watch faces
Using The CPR Guardian II
3.6 Charge The Watch
1
2
To charge the watch
insert the USB end into
a power supply
Charging Port
Next, connect the
magnetic end to the
back of the watch
26 CPRGUARDIAN.COMCPR GUARDIAN II
Additional Information
2.2 Functions & Usage
> Power ON Long Press the power button for 3 seconds.
* If the new watch does not power on, it may not be sufficiently
SOS Button Hold down the “SOS button” for 3 seconds, the
watch will automatically update the GPS location and continually
dial the phone book numbers until answered.
Phone Call Make a phone call: enter the watch “Phone Book”
interface, choose the App preset contact and press to dial the number.
Answer a phone call: when you receive an incoming call on the watch,
just press the Green icon on the watch screen to answer the call.
charged, please recharge the watch.
* If there is a problem with the watch display (such as: black
screen), please press and hold the power button for 15 seconds
to power on the watch again.
* Only the App preset mobile contact numbers can make calls to the
watch, and the watch can only dial the preset mobile contact numbers in
the phone book.
Location Enter the App to check the current location of the watch.
Pedometer Enter the watch “Pedometer” interface and press the
icon to check the Steps/Distance/Calories, and all the data will transfer
> Power OFF Press nd hold the power button for 15
seconds to turn off the watch.
* Light up the screen: Press the power button once.
* Light off / Lock the screen: Press the power button once (when
there is no operations on the watch, the illuminated screen will
go off after 5 seconds).
to the App automatically.
Heart Rate Monitor
the icon to start the heart rate testing. The test data will show on the
watch after the test is complete.
Enter the “Heart Rate” interface and press
Voice chat Send a voice message: enter the watch “Voice chat”
interface, tap the microphone icon shown on the screen to start and
> Change The Watch Faces Press and hold the watch
screen in the main interface, to enter and change the
different watch faces.
* Slide to Left / Right: enter the watch function menu Phone Book,
Heart Rates, Pedometer, Voice Chat
record the voice message, then send the voice message when you finish.
Every voice message can record for up to 15 seconds.
* Slide from Top to Down: display the watch status such as the
SIM card network connection signal and battery life.
27 CPRGUARDIAN.COMCPR GUARDIAN II
Additional Information
2.2 Cautions & Warranty
Cautions
• GPS and other telephone functions require SIM credit. The
GPS will not work when the watch is powered off or the SIM
card/GSM network does not have coverage or is out of
service.
• Please do not wash or submerge the watch in water.
• Do not allow children to chew or ingest parts of the watch.
• Avoid using the watch in excessive temperatures.
• Opening the watch will make your warranty null and void.
Warranty
This product is guaranteed by the manufacturer for a period
of 1 year from the date of purchase. This guarantee does not
cover defects arising from accidental damage, misuse or
Heart Rate
wear and tear and is available only to the original purchaser
of the product.
28 CPRGUARDIAN.COMCPR GUARDIAN II
Customer Service +44 (0) 800 652 7780
Email Support support@cprguardian.com
Website cprguardian.com
29 CPRGUARDIAN.COMCPR GUARDIAN II
Loading...
