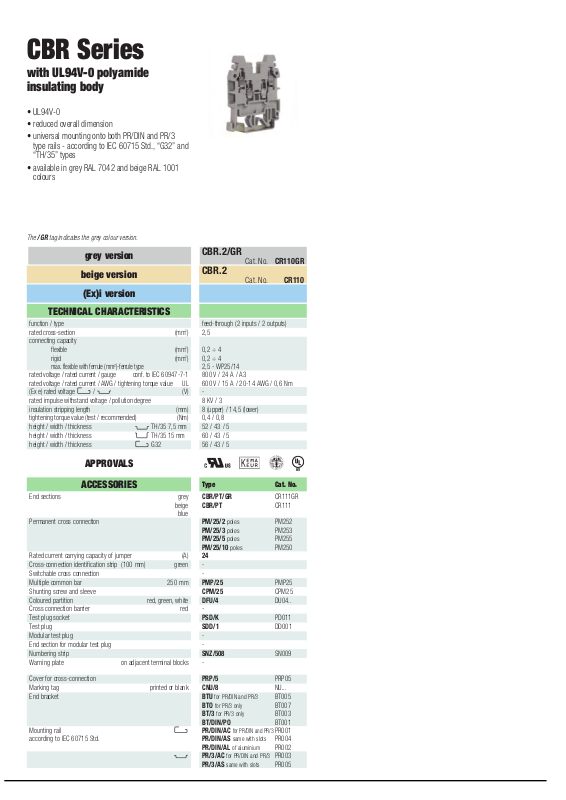

CPP3.81-2VE 2 7.62 CBR Series Data Sheet
CBR Series
with UL94V-0 polyamide
insulating body
• UL94V-0
• reduced overall dimension
• universal mounting onto both PR/DIN and PR/3
type rails - according to IEC 60715 Std., “G32” and
“TH/35” types
• available in grey RAL 7042 and beige RAL 1001
colours
The /GR tag indicates the grey colour version.
grey version
beige version
(Ex)i version
TECHNICAL CHARACTERISTICS
function / type feed-through (2 inputs / 2 outputs)
rated cross-section (mm2)
connecting capacity
flexible (mm2)
rigid (mm2)
max. flexible with ferrule (mm2)-ferrule type
rated voltage / rated current / gauge co
rated voltage / rated current / AWG
(Ex e) rated voltage / (V) rated impulse withstand voltage / pollution degree
insulation stripping length (mm) 8 (upper) / 14,5 (lower)
tightening torque value (test / recommended) (Nm)
height / width / thickness
height / width / thickness
height / width / thickness
nf. to IEC 60947-7-1
/ tightening torque value UL
TH/35 7,5 mm
TH/35 15 mm
G32
CBR.2/GR
Cat. No. CR110GR
CBR.2
Cat. No. CR110
2,5
0,2 ÷ 4
0,2 ÷ 4
2,5 - WP25/14
800 V / 24 A / A3
600 V / 15 A / 20-14 AWG / 0,6 Nm
8 KV / 3
0,4 / 0,8
52 / 43 / 5
60 / 43 / 5
56 / 43 / 5
APPROVALS
ACCESSORIES
End sections grey
beige
blue
Permanent cross connection
Rated current carrying capacity of jumper (A)
Cross-connection identification strip (100 mm) green
Switchable cross connection
Multiple common bar 250 mm
Shunting screw and sleeve
Coloured partition red, green, white
Cross connection barrier red
Test plug socket
Test plug
Modular test plug
End section for modular test plug
Numbering strip
Warning plate on adjacent terminal blocks
Cover for cross-connection
Marking tag printed or blank
End bracket
Mounting rail
according to IEC 60715 Std.
Type Cat. No.
CBR/PT/GR CR111GR
CBR/PT CR111
PM/25/2
poles
PM/25/3
PM/25/5
PM/25/10
24
-
-
PMP/25
CPM/25
DFU/4 DU04..
-
PSD/K
SDD/1
-
SNZ/508 SN009
-
PRP/5
CNU/8 NU...
BTU for PR/DIN and PR/3 BT005
BTO for PR/3 only BT007
BT/3
BT/DIN/PO BT001
PR/DIN/AC
PR/DIN/AS
PR/DIN/AL
PR/3/AC for PR/DIN and PR/3 PR003
PR/3/AS same with slots PR005
poles
poles
poles
for PR/3 only BT003
for PR/DIN and PR/3
same with slots PR004
of aluminium PR002
PM252
PM253
PM255
PM250
PMP25
CPM25
PD011
DD001
PRP05
PR001
