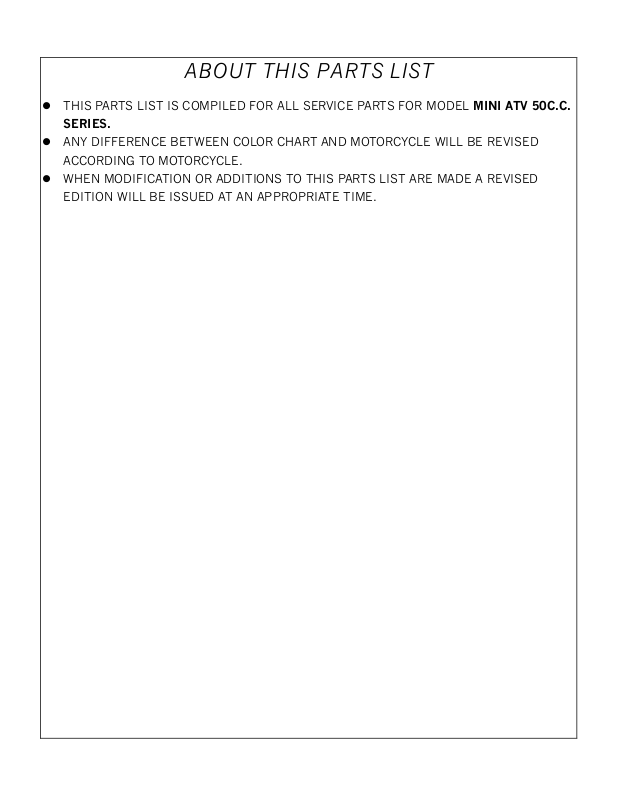

ABOUT THIS PARTS LIST
THIS PARTS LIST IS COMPILED FOR ALL SERVICE PARTS FOR MODEL MINI ATV 50C.C.
SERIES.
ANY DIFFERENCE BETWEEN COLOR CHART AND MOTORCYCLE WILL BE REVISED
ACCORDING TO MOTORCYCLE.
WHEN MODIFICATION OR ADDITIONS TO THIS PARTS LIST ARE MADE A REVISED
EDITION WILL BE ISSUED AT AN APPROPRIATE TIME.
Page 2

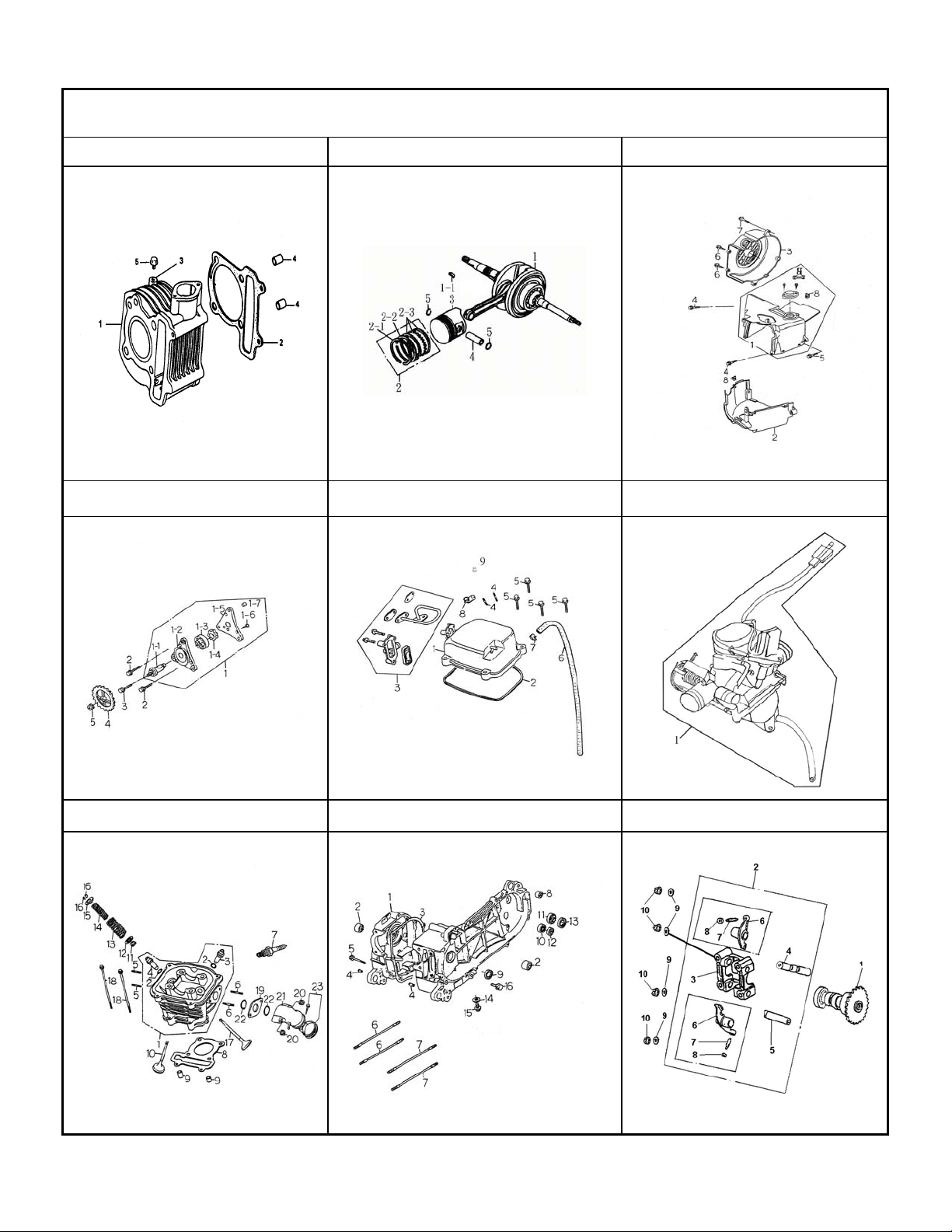

CONTENTS-ENGINE GROUP MINI-ATV 50C.C.
E1 CYLINDER
E2 PISTON
CRANK SHAFT
E3 SHROUD
FAN COVER
E4 OIL PUMP E5 CYLINDER HEAD COVER E6 CARBURETOR
E7 CYLINDER HEAD E8 CRANK CASE E9 CAM SHAFT
Page 3

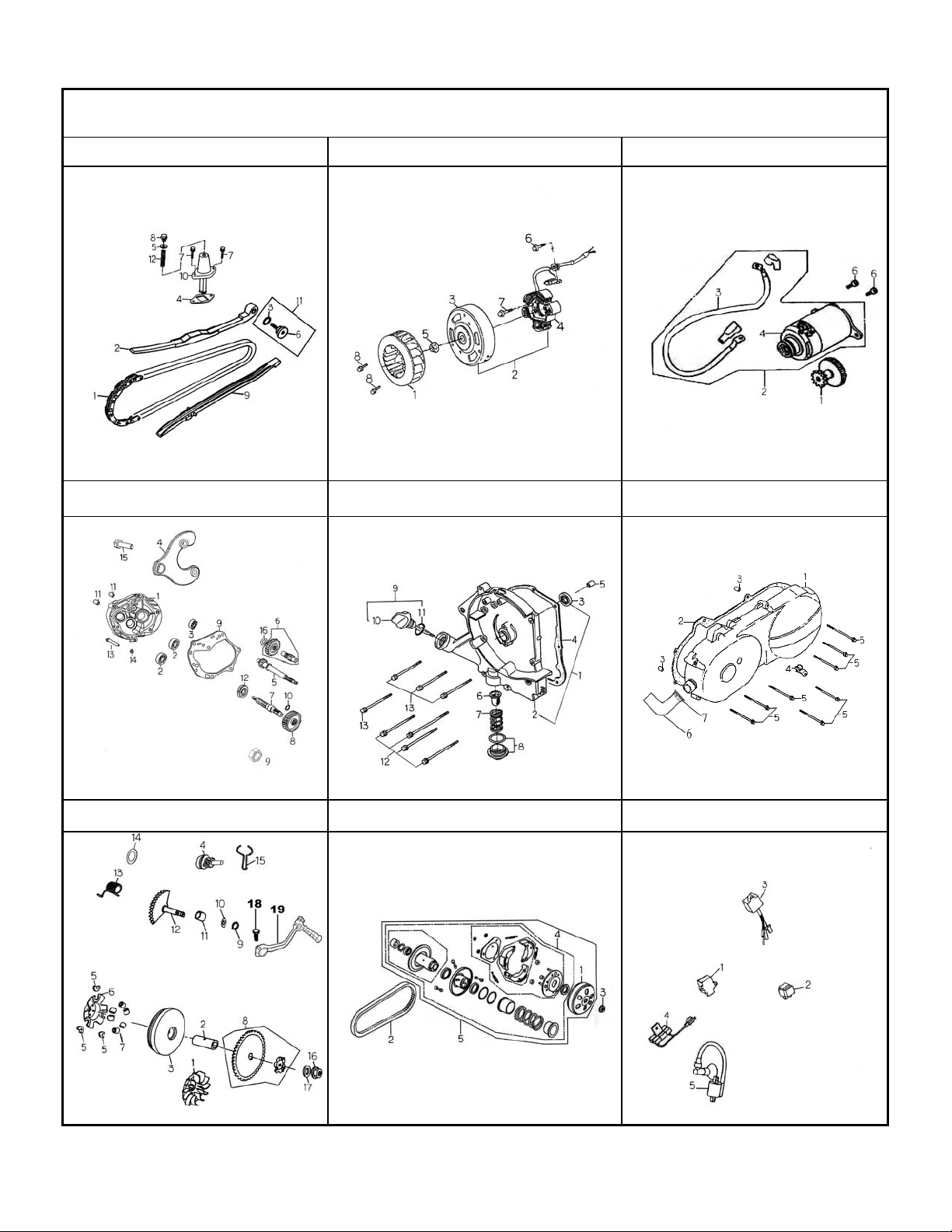

CONTENTS-ENGINE GROUP MINI-ATV 50C.C.
E10 CAM CHAIN
TENSIONER
E13 TRANSMISSION E14 RIGHT CRANK CASE COVER E15 LEFT CRANK CASE COVER
E11 GENERATOR E12 STARTING MOTOR
E16 DRIVE FACE E17 DRIVE PULLEY E18 ELECTRICAL PARTS
Page 4
Page 5

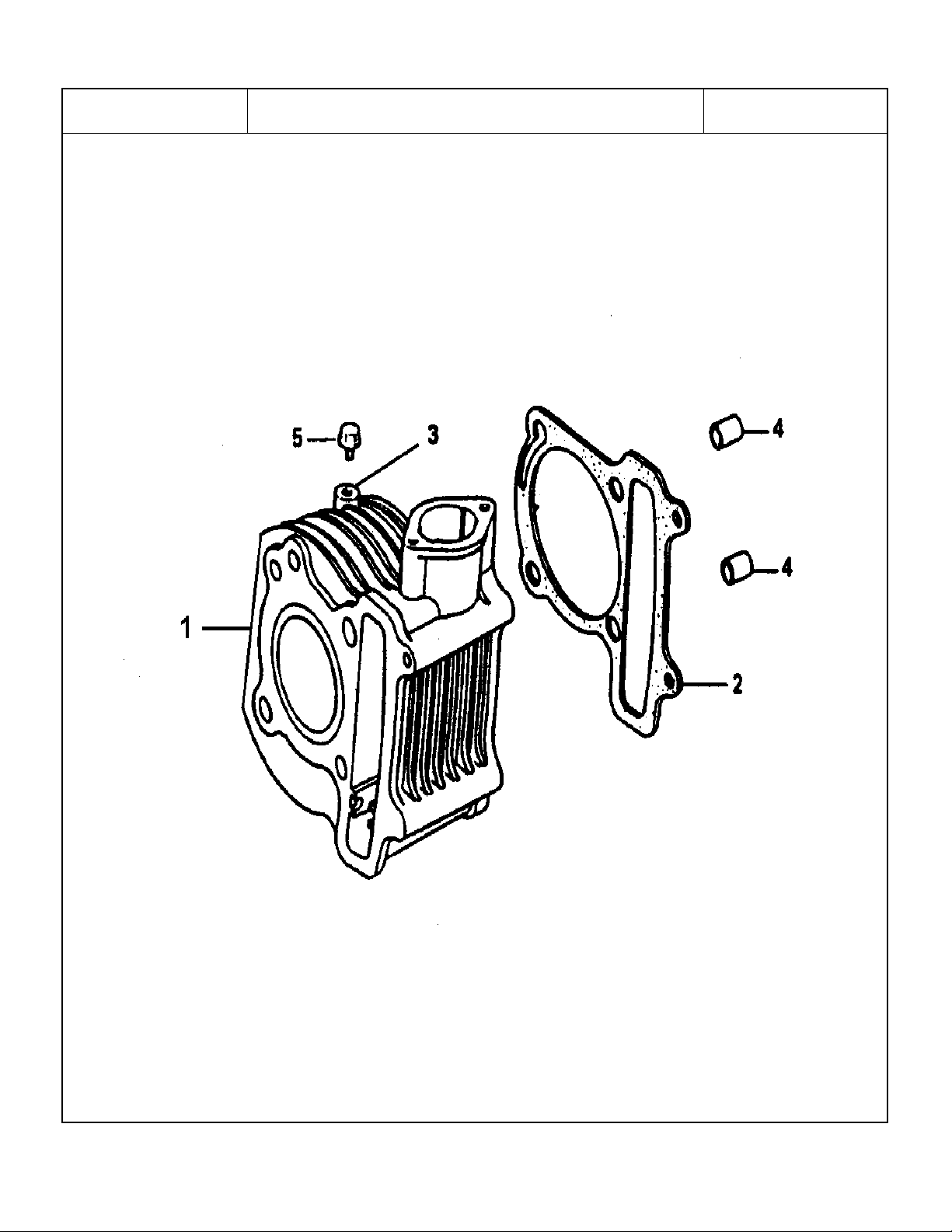

E1 CYLINDER MINI 50C.C.
Page 6
E1
ITEM PARTS NO. DESCRIPTION
1 83A-02400-00-00 CYLINDER CMOP. 1
2 83A-08216-00-00 CYL. GASKET 1
3 S-4101-06124-55 SEALING WASHER 6MM 1
4 S-4301-08138-00 DOWEL PIN 8X13.8 2
5 S-5701-06012-01 FLANGE BOLT 6X12 1
CYLINDER
REQD. NO.
MINI
50C.C.
Page 7

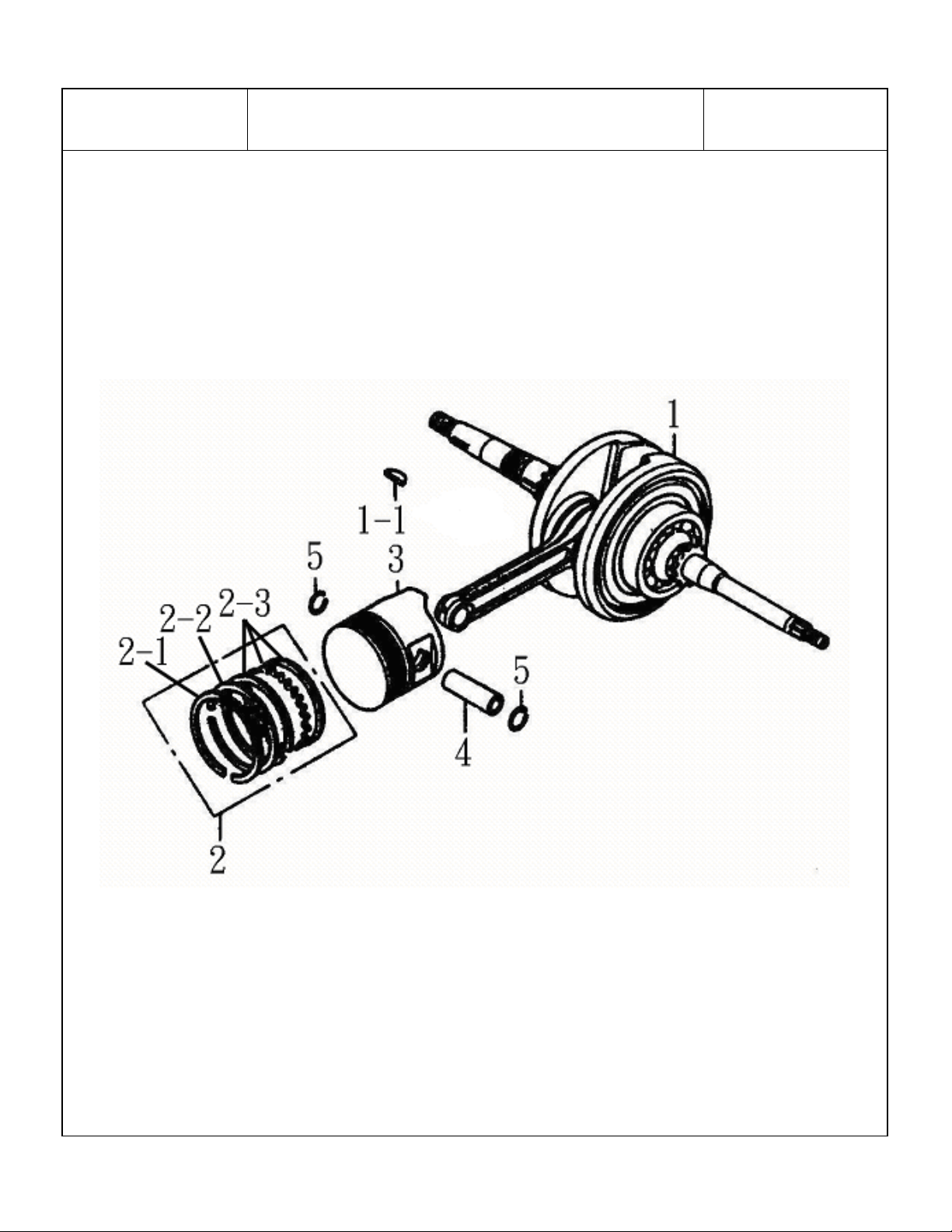

E2
PISTON
MINI 50C.C.
CRANK SHAFT
Page 8
E2
ITEM PARTS NO. DESCRIPTION
1 83A-04100-00-00 CRANK SHAFT COMP. 1
1-1 83A-04151-00-00 WOODRUFF KEY 1
2 83A-02620-00-00 PISTON RING SET (STD) 1
2-1 83A-02621-00-00 PISTON TOP RING 1
2-2 83A-02622-00-00 PISTON 2ND RING 1
2-3 83A-02623-00-00 PISTON OIL RING SET 1
3 83A-02611-00-00 PISTON COMP. (STD) 1
4 83A-02631-10-00 PISTON PIN 1
5 S-4601-10130-00 PISTON PIN CLIP 13MM 2
CRANK SHAFT / PISTON
REQD. NO.
MINI
50C.C.
Page 9
E3

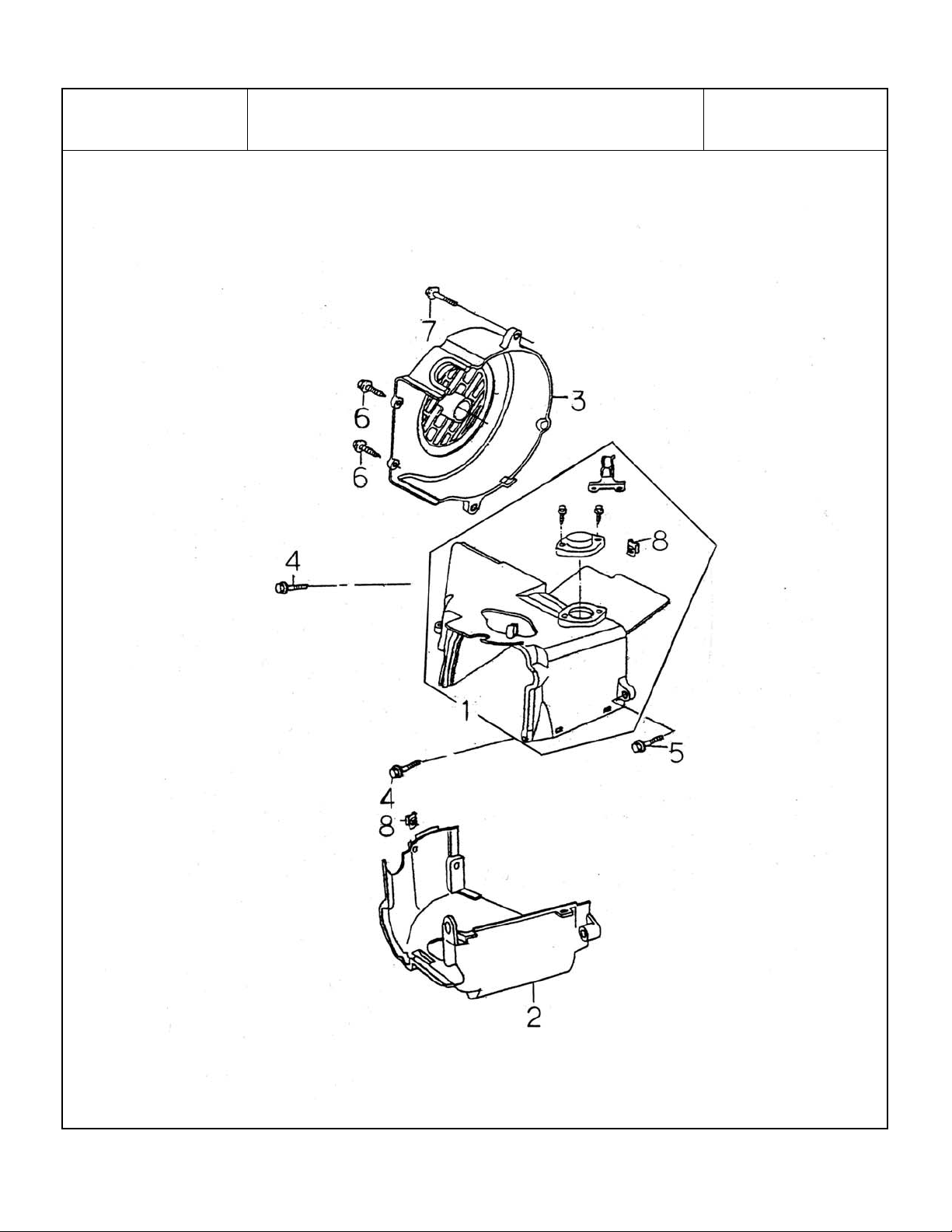

SHROUD
FAN COVER
MINI
50C.C.
Page 10
E3
ITEM PARTS NO. DESCRIPTION
1 83A-07120-00-00 SHROUD B ASSY. 1
2 83A-07130-00-00 SHROUD A ASSY. 1
3 83A-07110-10-00 FAN COVER ASSY. 1
4 S-6001-06016-01 FLANGE BOLT 6X16 2
5 S-6001-06022-01 FLANGE BOLT 6X22 1
6 S-3955-05012-90 TAPPING SCREW 5X12 2
7 S-6001-06025-01 FLANGE BOLT 6X25 2
8 S-4111-10165-00 SPRING WASHER 2
SHROUD / FAN COVER
REQD. NO.
MINI
50C.C.
Page 11

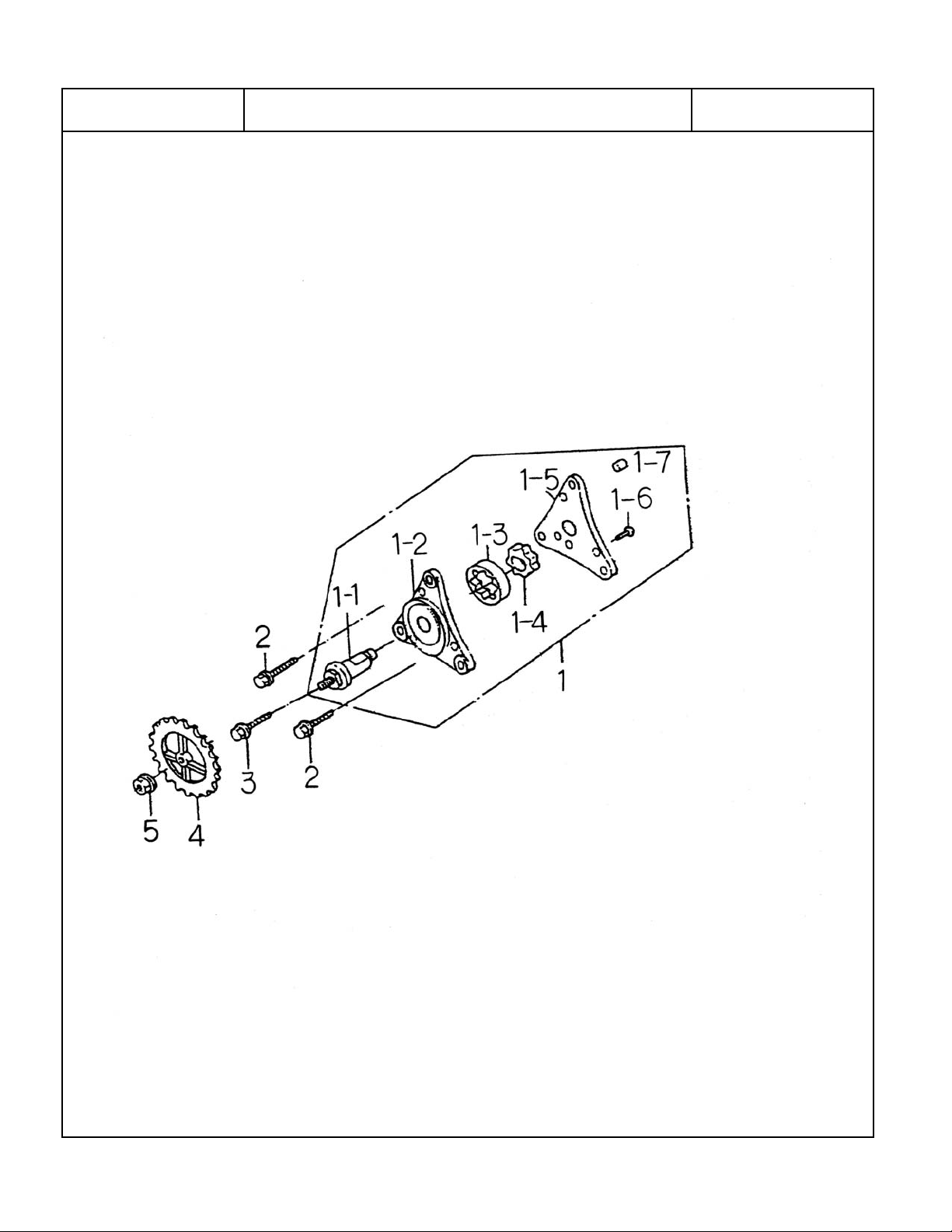

E4 OIL PUMP MINI 50C.C.
Page 12
E4
ITEM PARTS NO. DESCRIPTION
1 83A-05100-00-00 OIL PUMP ASSY. 1
1-1 83A-05124-00-00 OIL PUMP SHAFT 1
1-2 83A-05111-00-00 OIL PUMP BODY 1
1-3 83A-05122-00-00 OIL PUMP OUT. ROTOR 1
1-4 83A-05121-00-00 OIL PUMP IN. ROTOR 1
1-5 83A-05113-00-00 OIL PUMP PLATE 1
1-6 S-3500-04010-01 PAN HEAD SEREW 4X10 3
1-7 S-4302-04065-00 DOWEL PIN 4X6.5 1
2 S-6001-06020-01 FLANGE BOLT 6X20 2
3 S-6001-06025-01 FLANGE BOLT 6X25 1
4 83A-05211-00-00 OIL PUMP DRVN. SPRKT. 1
5 S-4050-06000-01 FLANGE NUT 6MM 1
OIL PUMP
REQD. NO.
MINI
50C.C.
Page 13

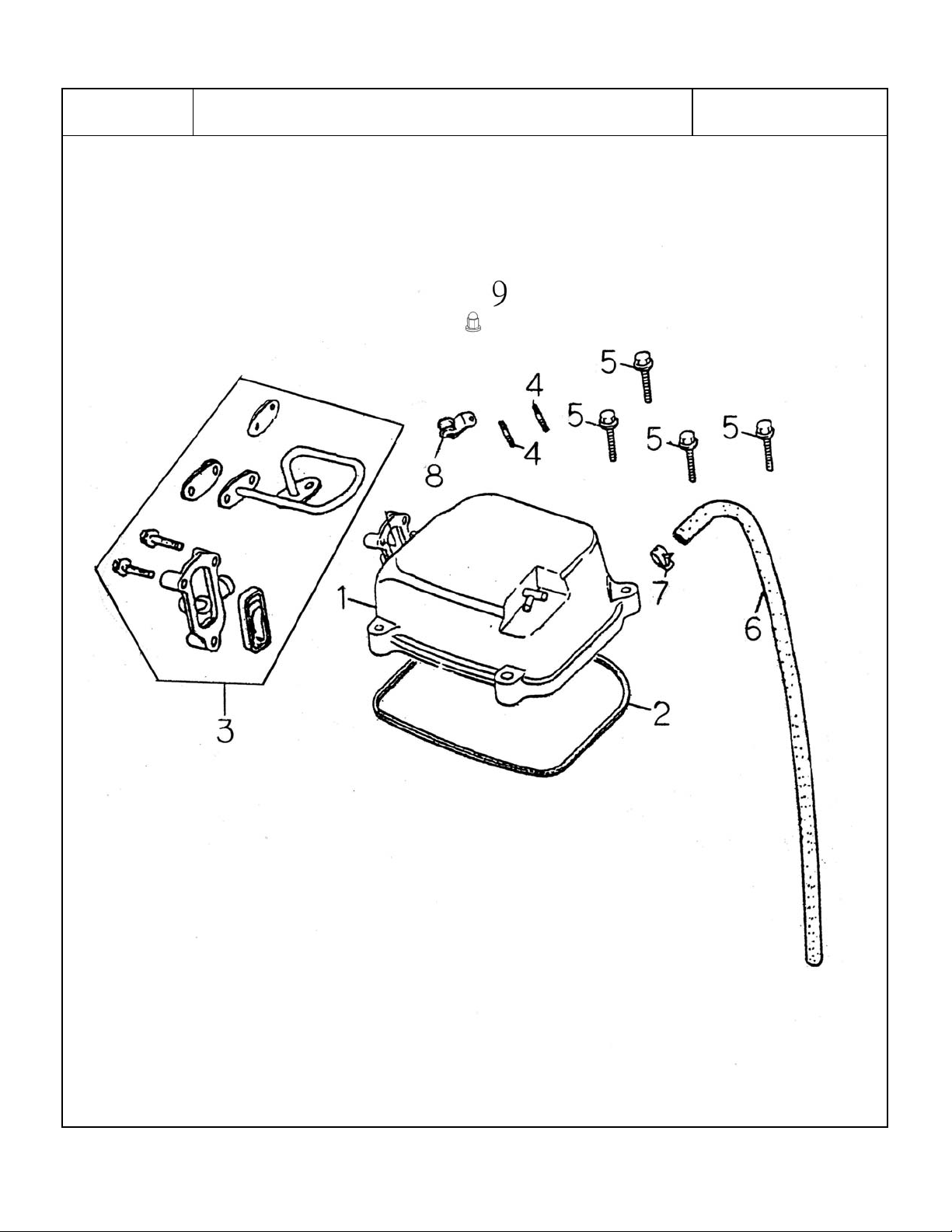

E5 CYLINDER HEAD COVER MINI 50C.C.
Page 14
E5
ITEM PARTS NO. DESCRIPTION
1 83A-02310-00-00 CYL. HEAD COVER COMP. 1
2 83A-02311-00-00 HEAD COVER GASKET 1
3 83A-02478-00-00 SECOND AIR ASSY. 1
4 S-2713-06028-20 STUD BOLT 6X28 2
5 S-6001-06025-01 FLANGE BOLT 6X25 4
6 83A-02314-10-00 BREATHER TUBE 1
7 A-4204-02080-00 TUBE CLIP B 8MM 1
8 81A-09431-00-00 CLMPER THROTTLE CABLE 1
9 S-4016-06000-01 HEX. CAP NUT 2
CYLINDER HEAD COVER
REQD. NO.
MINI
50C.C.
Page 15
Page 16

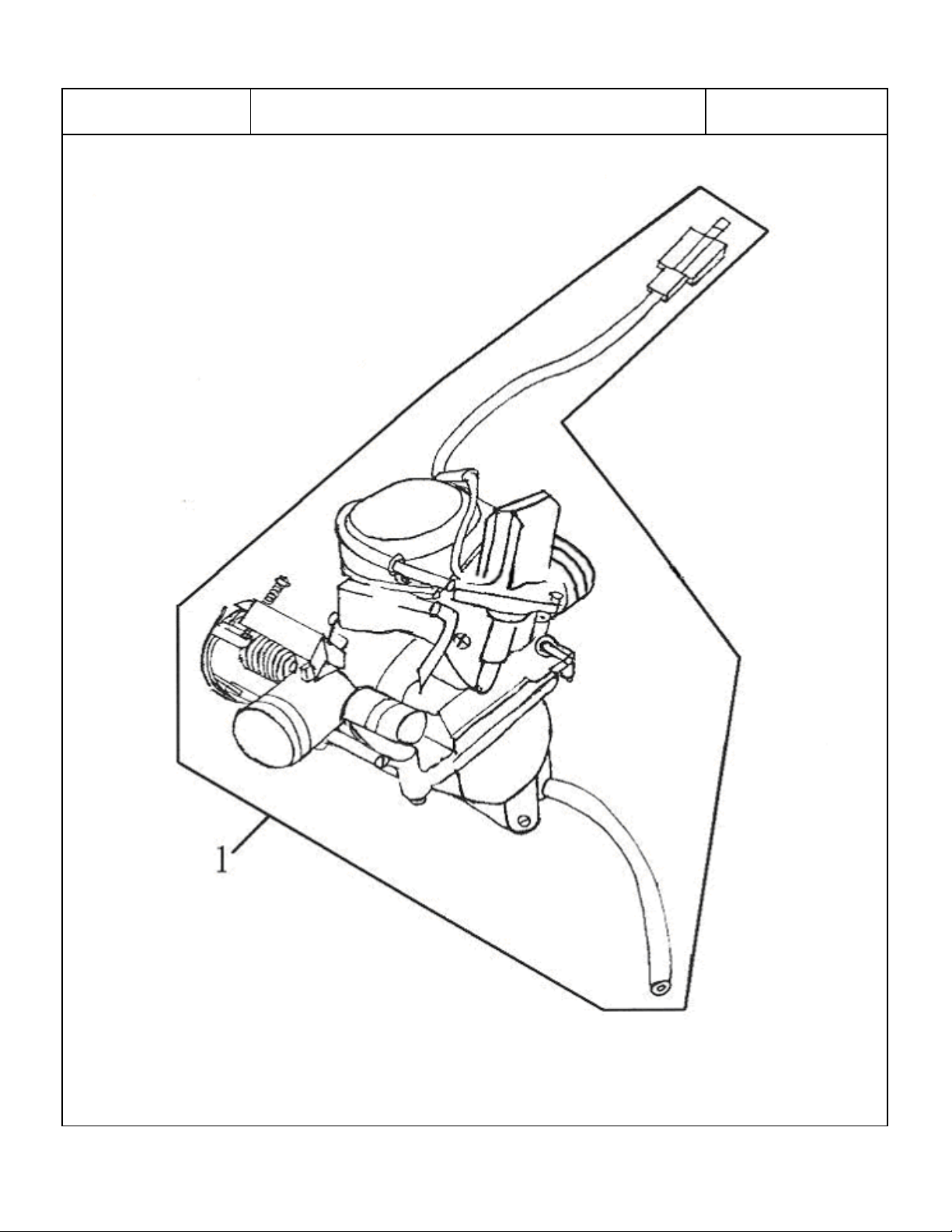

E6 CARBURETOR MINI 50C.C.
Page 17
E6
ITEM PARTS NO. DESCRIPTION
1 83A-09400-00-00 CARBURETOR ASSY. 1
CARBURETOR
REQD. NO.
MINI
50C.C.
Page 18

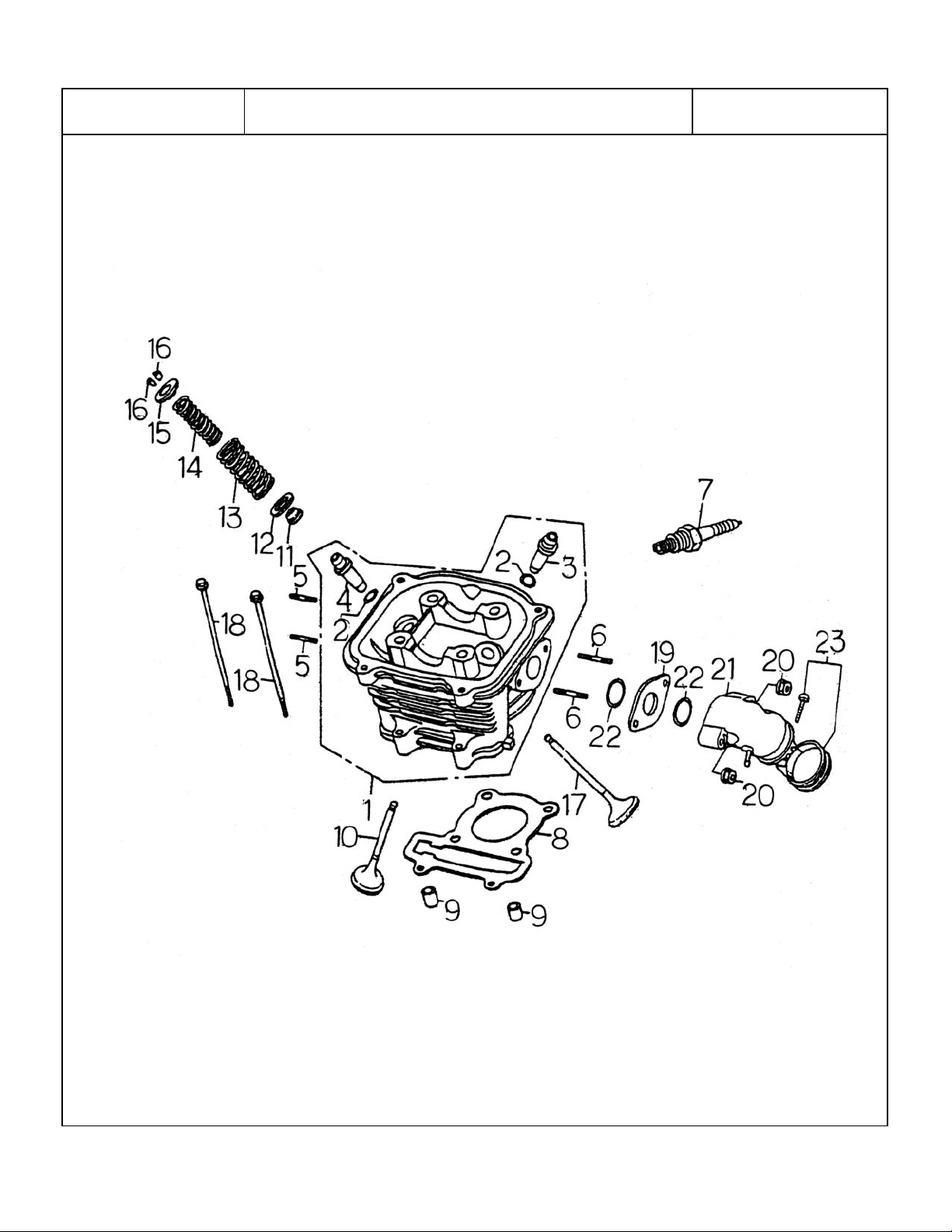

E7 CYLINDER HEAD MINI 50C.C.
Page 19
E7
ITEM PARTS NO. DESCRIPTION
1 83A-02110-10-00 CYLINDER HEAD COMP. 1
2 S-1305-10220-00 O-RING 22X1 2
3 83A-03401-00-00 IN. VALVE GUIDE 1
4 83A-03402-00-00 EX. VALVE GUIDE 1
5 S-2716-06032-20 STUD BOLT 6X32 2
6 S-2716-06050-50 STUD BOLT 6X50 2
7 83A-23111-00-00 SPARK PLUG (C7HSA) 1
8 83A-08111-00-00 CYL. HEAD GASKET 1
9 S-4301-08140-00 DOWEL PIN 8X14 4
10 83A-03201-00-00 IN. VALVE 1
11 83A-03411-00-00 VALVE STEM SEAL 2
12 83A-03424-00-00 OUTER VALVE SPRING SEAT 2
13 83A-03413-00-00 VALVE OUTER SPG. 2
14 83A-03414-00-00 VALVE INNER SPG. 2
15 83A-03421-00-00 VALVE SPG. RETAINER 2
16 83A-03427-00-00 VALVE COTTER 4
17 83A-03301-00-00 EX. VALVE 1
18 S-6001-06085-01 FLANGE BOLT 6X85 2
19 83A-08223-00-00 CARB. INSULATOR 1
20 S-4050-06000-01 FLANGE NUT 6MM 1
21 83A-09211-00-00 IN. PIPE COMP. 1
22 S-1303-15210-00 O-RING 21X1.5 2
23 83A-09231-00-00 INSULATOR BAND 1
CYLINDER HEAD
REQD. NO.
MINI
50C.C.
Page 20

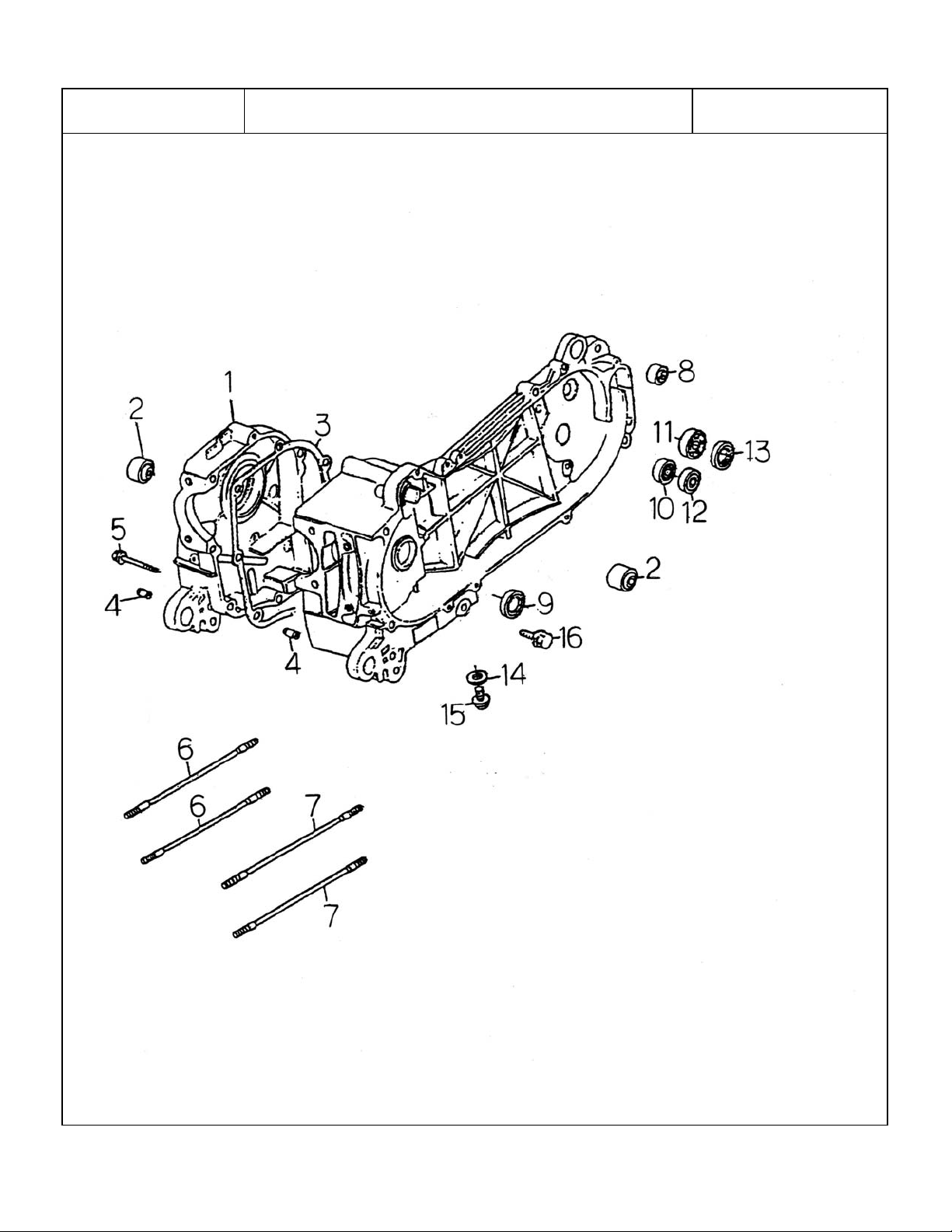

E8 CRANK CASE MINI 50C.C.
Page 21
E8
ITEM PARTS NO. DESCRIPTION
1 83A-01110-00-00 R. CRANK CASE ASSY. 1
2 83A-01221-00-00 ENG. HANGER RUB. BUSH 2
3 83A-08201-00-00 CRANK CASE GASKET 1
4 S-4301-08140-00 DOWEL PIN 8X14 2
5 S-6001-06045-01 FLANGE BOLT 6X45 1
6 83A-02422-00-00 STUD BOLT Ａ 7X168 2
7 83A-02423-00-00 STUD BOLT Ｂ 7X176 2
8 83A-01222-00-00 RR. CUSHION UNDER RUB. BUSH 1
9 S-1201-19830-50 OIL SEAL 19.8X30X5 1
10 S-6120-06201-00 BALL BEARING 6201 1
11 S-6120-06203-00 BALL BEARING 6203SPC 1
12 S-6120-06203-00 BALL BEARING 6203 1
13 S-1201-17030-60 OIL SEAL 17X30X6 1
14 S-4101-08164-03 WASHER 8MM 1
15 S-6001-08035-01 FLANGE BOLT 8X35 1
16 S-2800-12015-01 DRAIN PLUG BOLT 12MM 2
CRANK CASE
REQD. NO.
MINI
50C.C.
Page 22

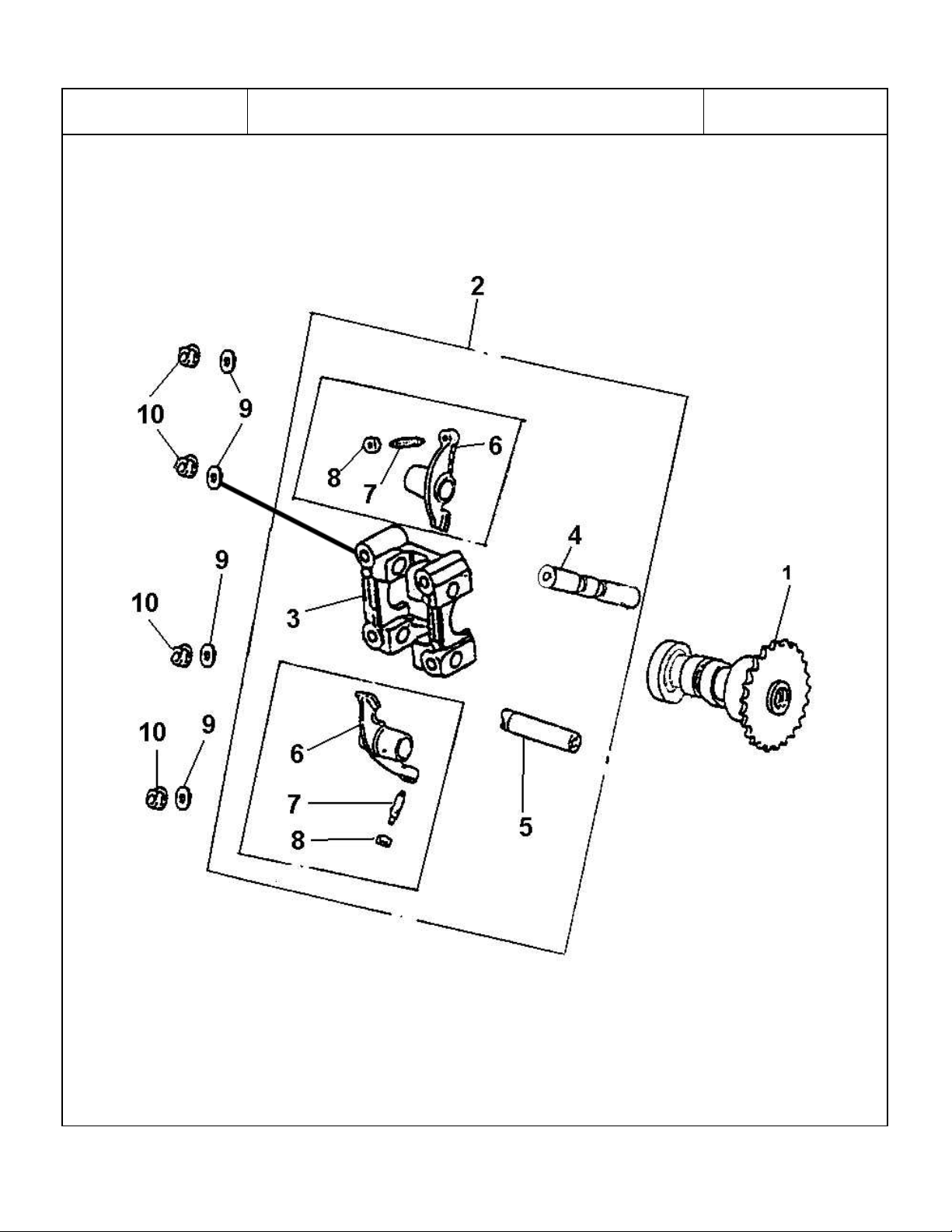

E9 CAMSHAFT MINI 50C.C.
Page 23
E9
ITEM PARTS NO. D E S C R I P T I O N
1 83A-03110-00-00 CAM SHAFT COMP. 1
2 83A-03130-00-00 CAM SHAFT HOLDER ASSY. 1
3 83A-03131-00-00 CAM SHAFT HOLDER 1
4 83A-03521-00-00 IN. ROCKER ARM SHAFT 1
5 83A-03531-00-00 EX. ROCKER ARM SHAFT 1
6 83A-03511-00-00 VALVE ROCKER ARM 2
7 83A-03512-00-00 TAPPET ADJUSTING SCREW 2
8 83A-03513-00-00 TAP. ADJ. NUT 2
9 S-4101-07165-55 PLATE WASHER 7MM 4
10 S-4060-07000-01 FLANGE NUT 7MM 4
CAMSHAFT
REQD. NO.
MINI
50C.C.
Page 24
E10

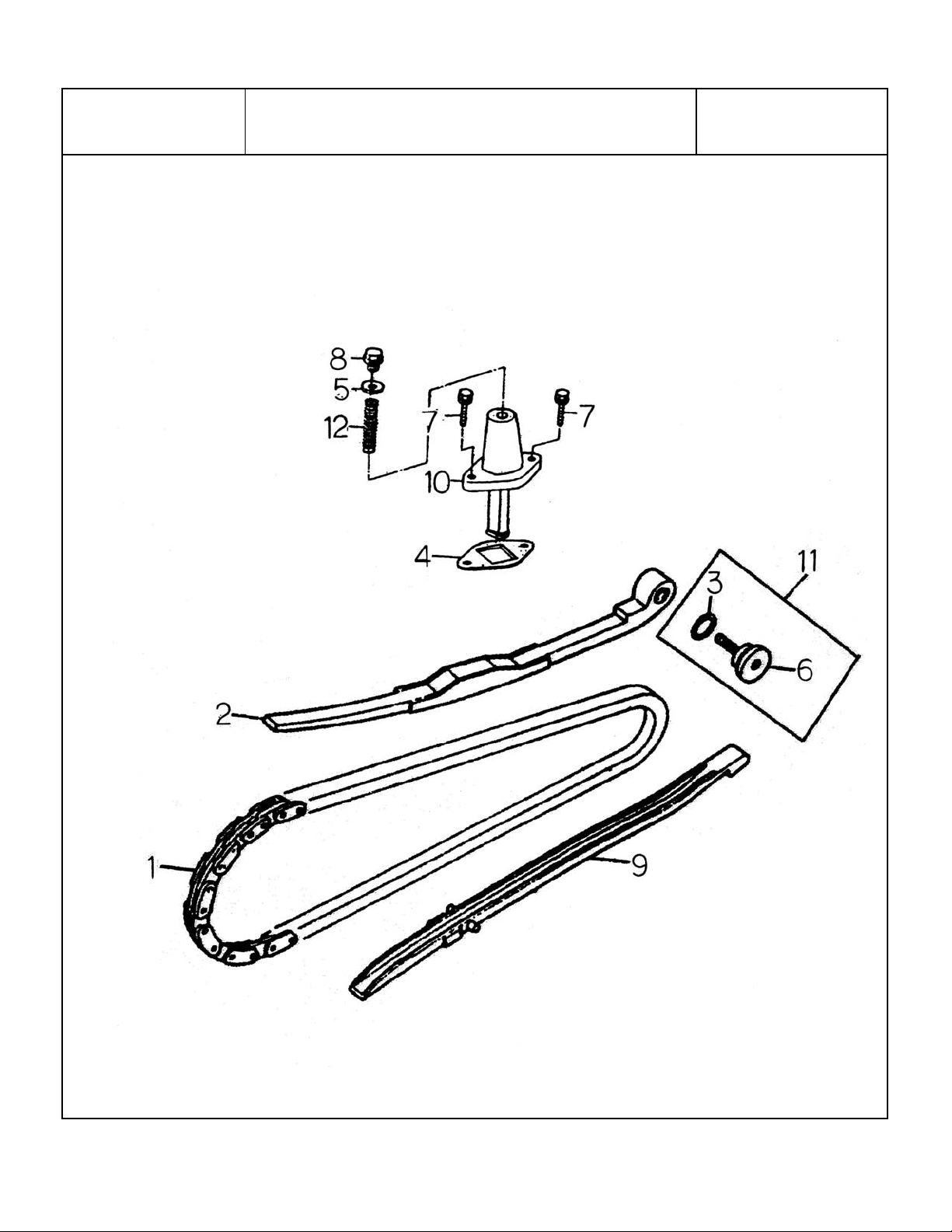

CAM CHAIN
MINI 50C.C.
TENSIONER
Page 25
E10
ITEM PARTS NO. DESCRI P T I O N
1 83A-03121-00-00 CAM CHAIN 1
2 83A-03811-00-00 C.C. TENSIONER 1
3 S-1305-15155-00 O-RING 15.5X1.5 1
4 83A-08224-00-00 TENSIONER LIFTER GASKET 1
5 S-4101-08164-01 WASHER 8X16X1.6 1
6 83A-03841-00-00 CAM CHAIN TENSIONER PIVOT 1
7 S-6000-06018-01 FLAGE BOLT 6X18 2
8 83A-03837-00-00 TENSION ADJUSTER BOLT 1
9 83A-03814-00-00 C.C. GUIDE COMP. 1
10 83A-03830-00-00 TENSIONER LIFTER ASSY. 1
11 83A-03840-00-00 C.C. TENSIONER PIVOT 1
12 83A-03839-00-00 SPRING CAM CHAIN ADJUSTER 1
CAM CHAIN / TENSIONER
REQD. NO.
MINI
50C.C.
Page 26

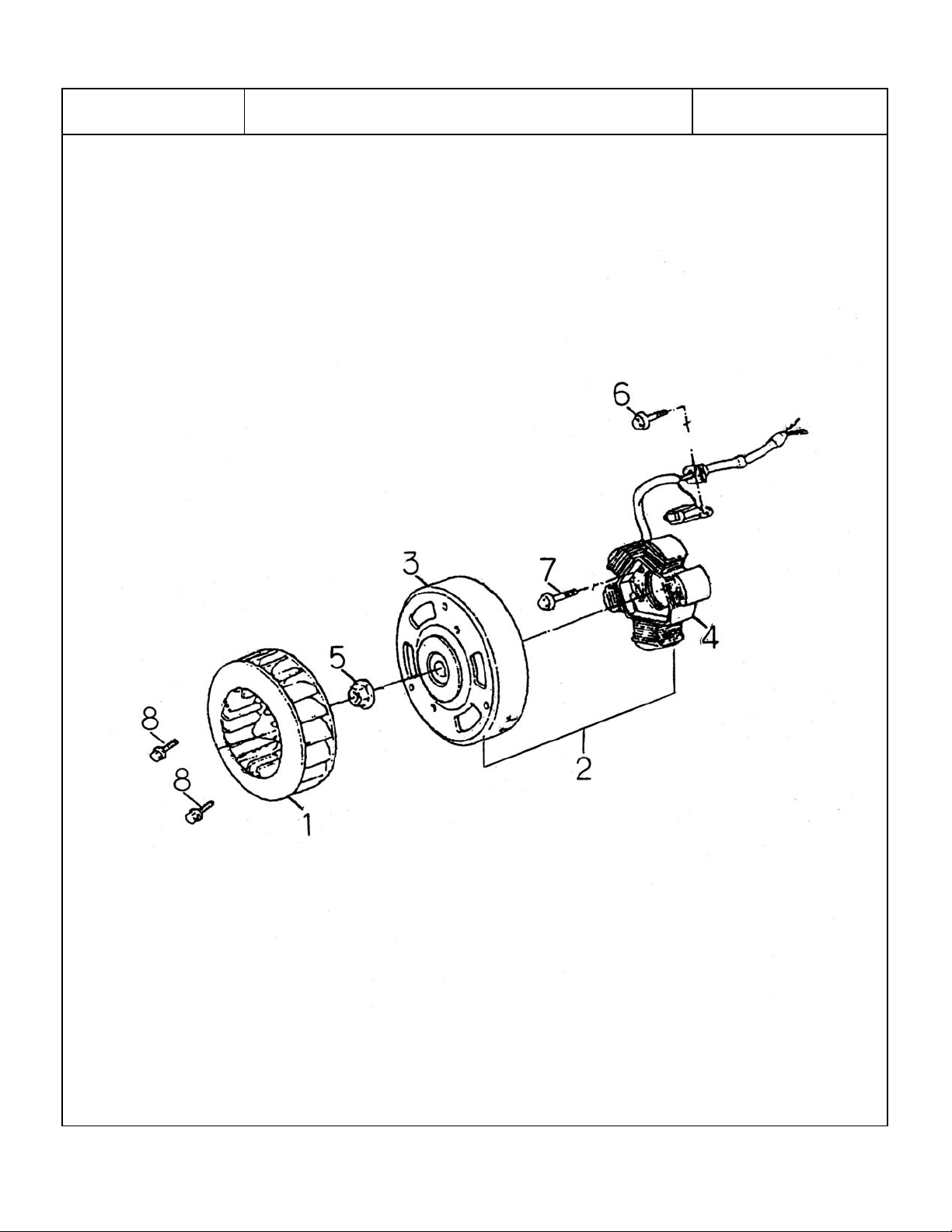

E11 GENERATOR MINI 50C.C.
Page 27
E11 GENERATOR
REQD. NO.
ITEM PARTS NO. D E S C R I P T I O N
1 83A-07161-00-00 COOLING FAN COMP. 1
2 83A-21100-00-00 A.C.G. ASSY. 1
3 83A-21110-00-00 FLYWHEEL COMP. 1
4 83A-21130-00-00 STATOR COMP. 1
5 S-4101-10205-01 FLANGE NUT 10MM 1
6 S-2101-05012-01 HEX. BOLT 5X12 1
7 S-6001-06022-01 FLANGE BOLT 6X22 2
8 S-6001-06018-01 FLANGE BOLT 6X18 2
MINI
50C.C.
Page 28

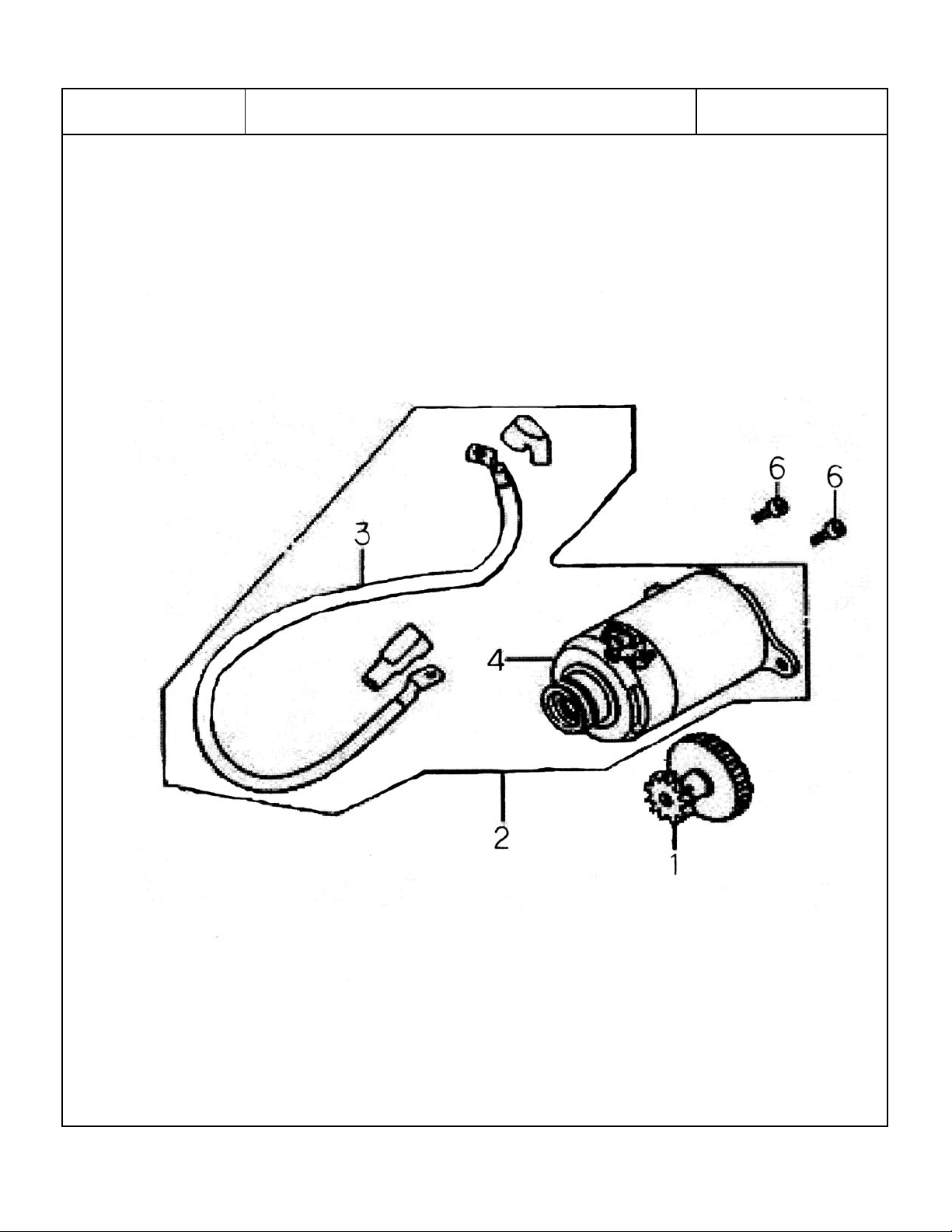

E12 STARTING MOTOR MINI 50C.C.
Page 29
E12
ITEM PARTS NO. DESCRI P T I O N
1 83A-22311-00-00 ST. REDUCTN GEAR 1
2 83A-22200-00-00 ST. MOTOR ASSY. 1
3 83A-22203-00-00 STARTER MOTOR CABLE 1
4 83A-22201-00-00 ST. MOTOR ASSY. 1
5 S-6001-06025-01 FLANGE BOLT 6X25 2
STARTING MOTOR
REQD. NO.
MINI
50C.C.
Page 30

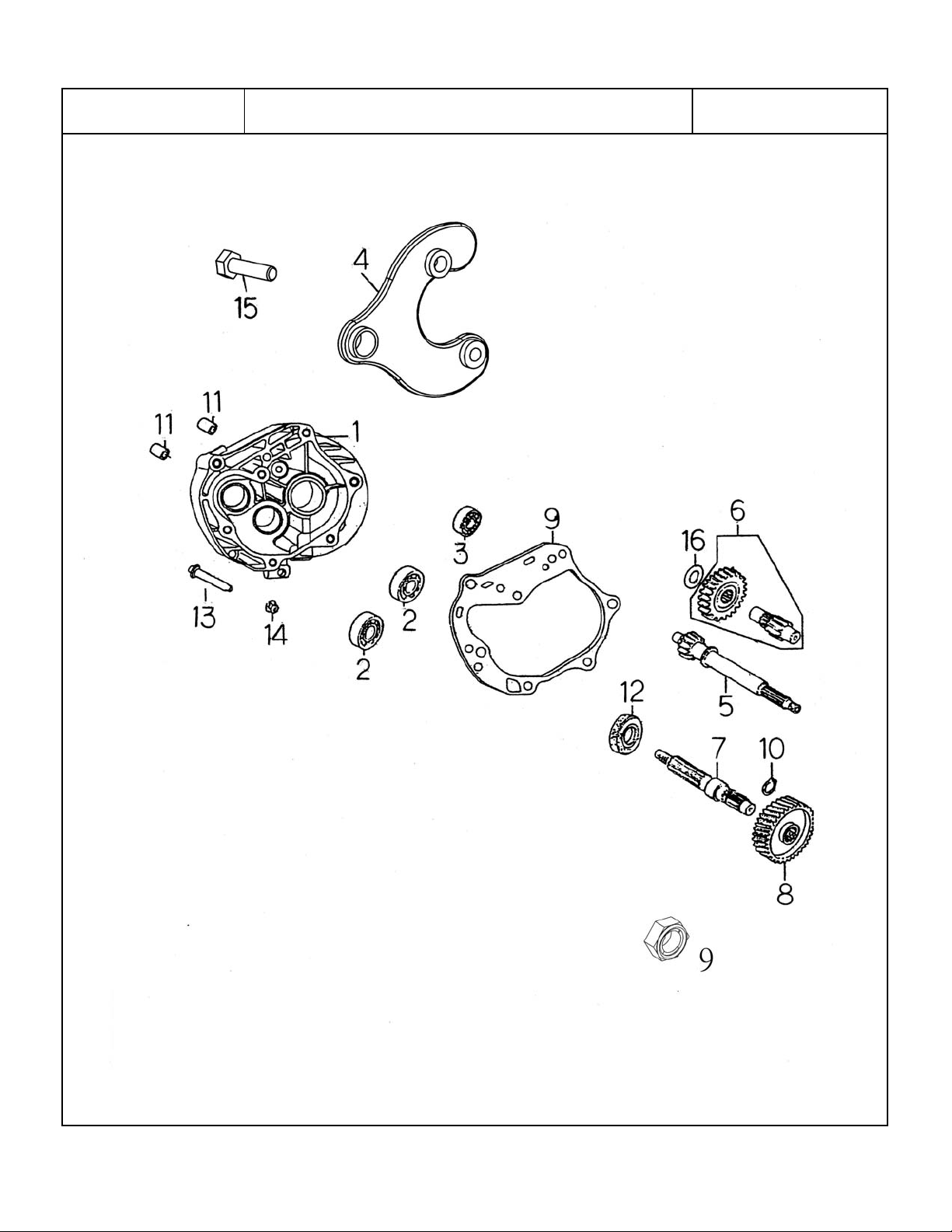

E13 TRANSMISSION MINI 50C.C.
Page 31
E13
ITEM PARTS NO. DESCRIPTION
1 83A-01501-00-00 MISSION CASE 1
2 S-6120-06201-00 BALL BEARING 6201 2
3 S-6120-06004-00 BALL BEARING 6004 1
4 83A-01271-00-00 ENG. HANGER 1
5 83A-15111-00-00 DRIVE SHAFT 1
6 83A-16110-00-00 COUNTER SHAFT COMP. 1
7 83A-16172-00-00 FINAL SHAFT 1
8 83A-16171-00-00 FINAL GEAR 1
9 83A-08203-00-00 MISSION CASE GASKET 1
10 S-4511-12200-00 CIR-CLIP 20MM 1
11 S-4301-10200-00 DOWEL PIN 10X20 2
12 S-1201-27042-70 OIL SEAL 27X42X7 1
13 83A-01260-00-00 BRAKE SHOE ANCHOR PIN 1
14 S-4050-08000-01 FLANGE NUT 8MM 1
15 S-2201-10038-01 HEX. BOLT 10X38 1
16 S-4101-12224-90 WASHER SIDE 12MM 1
17 B05-44288-00-00 HEX. U NUT 1
TRANSMISSION
REQD. NO.
MINI
50C.C.
Page 32

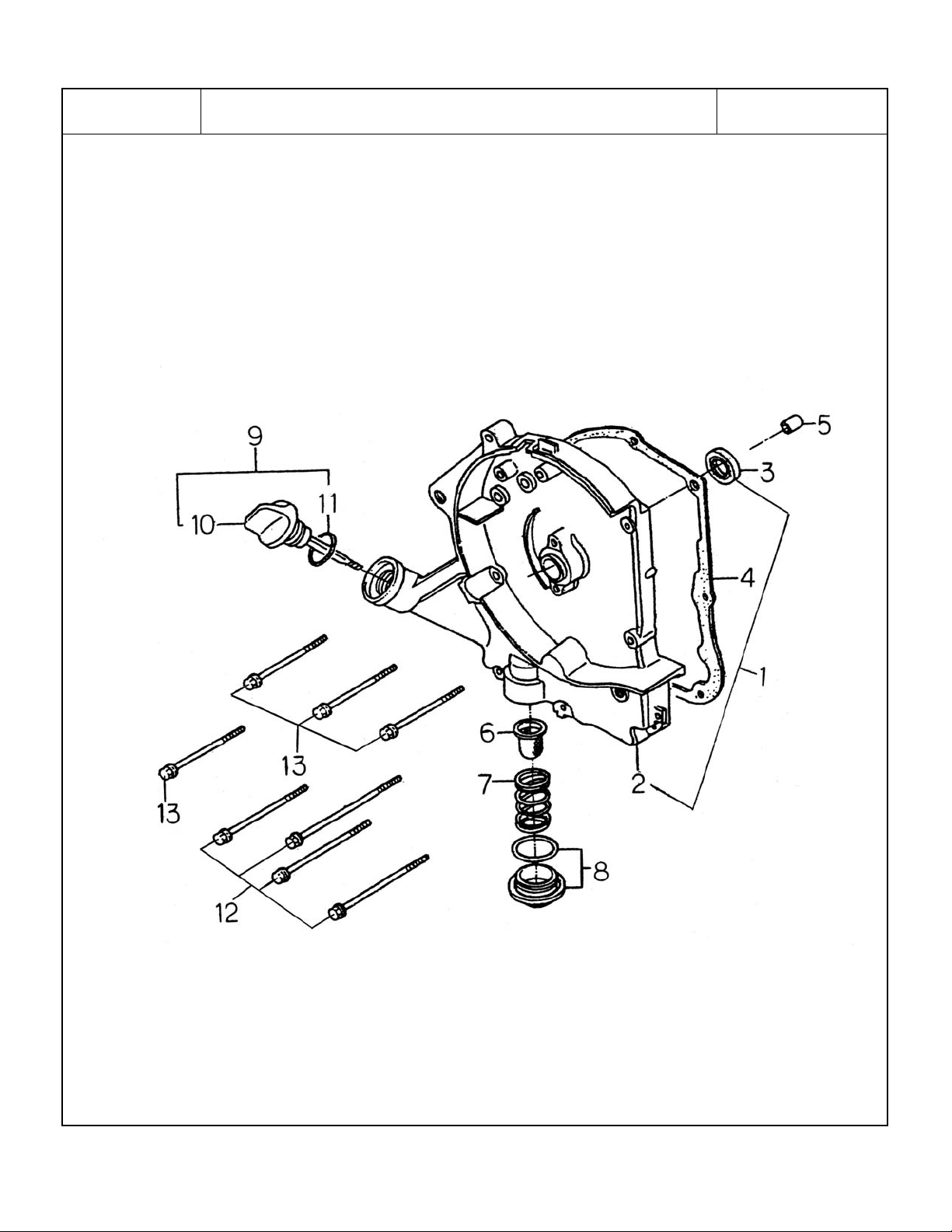

E14 RIGHT CRANK CASE COVER MINI 50C.C.
Page 33
E14
ITEM PARTS NO. D E S C R I P T I O N
1 83A-01410-00-00 R. SIDE CRANK CASE COMP. 1
2 83A-01401-00-00 R. CRANK CASE COVER 1
3 S-1201-19431-50 OIL SEAL 19.4X31X5 1
4 83A-08231-00-00 R. CRANK CASE COVER 1
5 S-4301-08140-00 DOWEL PIN 8X14 2
6 83A-05232-00-00 OIL FILTER SCREEN 1
7 83A-05233-00-00 OIL FILTER SCREEN SPRING 1
8 83A-05230-00-00 TAP ADJ. HOLE CAP ASSSY. 1
9 83A-05280-00-00 OIL LEVEL GAUGE ASSY. 1
10 83A-05281-00-00 OIL LEVEL GAUGE 1
11 S-1305-30180-00 O-RING 18X3 1
12 S-6001-06100-01 FLANGE BOLT 6X100 4
13 S-6001-06085-01 FLANGE BOLT 6X85 4
RIGHT CRANK CASE COVER
REQD. NO.
MINI
50C.C.
Page 34

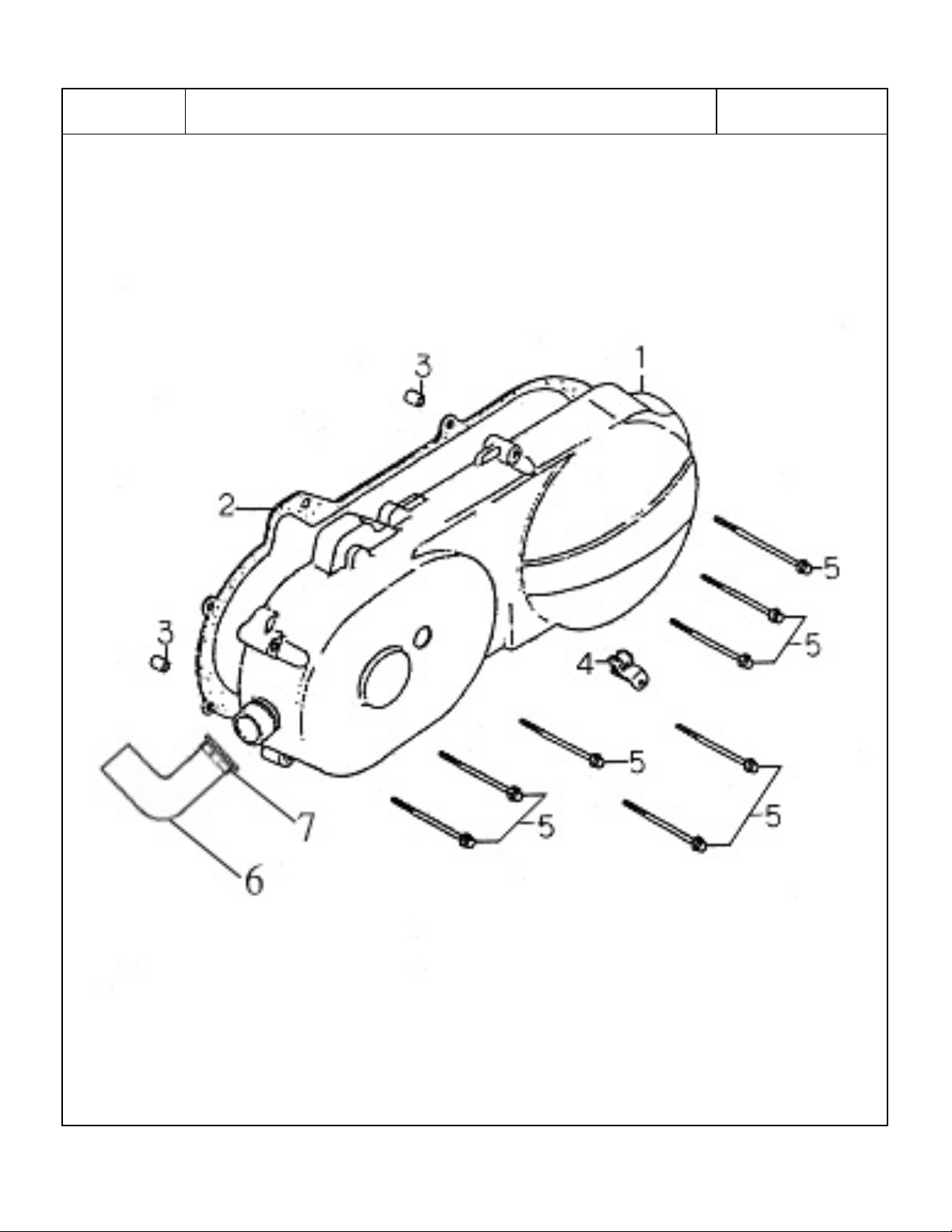

E15 LEFT CRANK CASE COVER MINI 50C.C.
Page 35
E15
ITEM PARTS NO. D E S C R I P T I O N
1 83A-01301-00-00 L. CRANK CASE COVER (CPI) 1
2 83A-08241-00-00 L. COVER GASKET 1
3 S-4301-08140-00 DOWEL PIN 8X14 2
4 81A-01322-00-00 CLAMPER BRAKE CABLE 1
5 S-6001-06035-01 FLANGE BOLT 6X35 8
6 F04-09113-00-00 DUCT 1
7 A04-09177-00-00 CLAMP 1
LEFT CRANK CASE COVER
REQD. NO.
MINI
50C.C.
Page 36

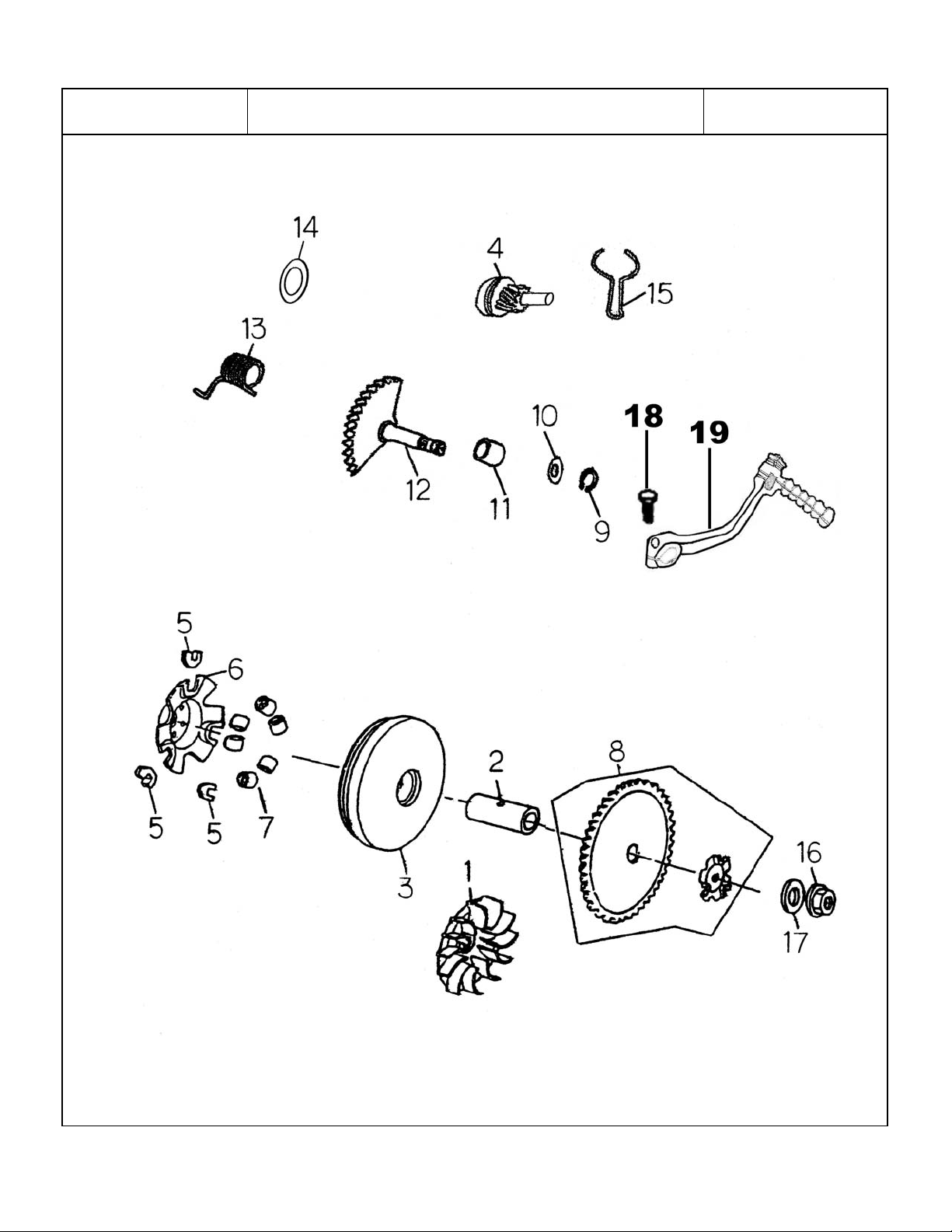

E16 DRIVE FACE / KICK STARTER MINI 50C.C.
Page 37
E16
ITEM PARTS NO. D E S C R I P T I O N
1 83A-12132-00-00 COOLING FAN CVT 1
2 83A-12133-00-00 DRIVE FACE BOSS 1
3 83A-12110-00-00 MOVABLE DRIVE FACE COMP. 1
4 83A-17210-00-00 START IDLE GEAR COMP. 1
5 83A-12124-00-00 SLIDE PIECE 3
6 83A-12123-00-00 RAMP PLATE 1
7 83A-12121-00-00 WEIGHT ROLLER COMP. 6.5gr 6
8 83A-12131-00-00 DRIVE FACE 1
9 S-4511-10140-00 CIR-CLIP 14MM 1
10 S-4101-14184-00 WASHER 14MM 1
11 83A-17172-00-00 KICK SPINDLE BUSH 1
12 83A-17130-00-00 KICK STARTER SPINDLE COMP. 1
13 83A-17141-00-00 ST. KICK SPRING 1
14 S-4101-10204-00 WASHER 10MM 1
15 83A-17224-00-00 ST. GEAR FRICTION SPG. 1
16 S-4011-12200-01 HEX NUT 12MM 1
17 S-4101-12224-01 SPECIAL WASHER 12MM 1
18 S-2000-06025-01 HEX. BOLT 6X25 1
19 61G-17111-00-00 KICK STARTER ARM 1
DRIVE FACE
REQD. NO.
MINI
50C.C.
Page 38

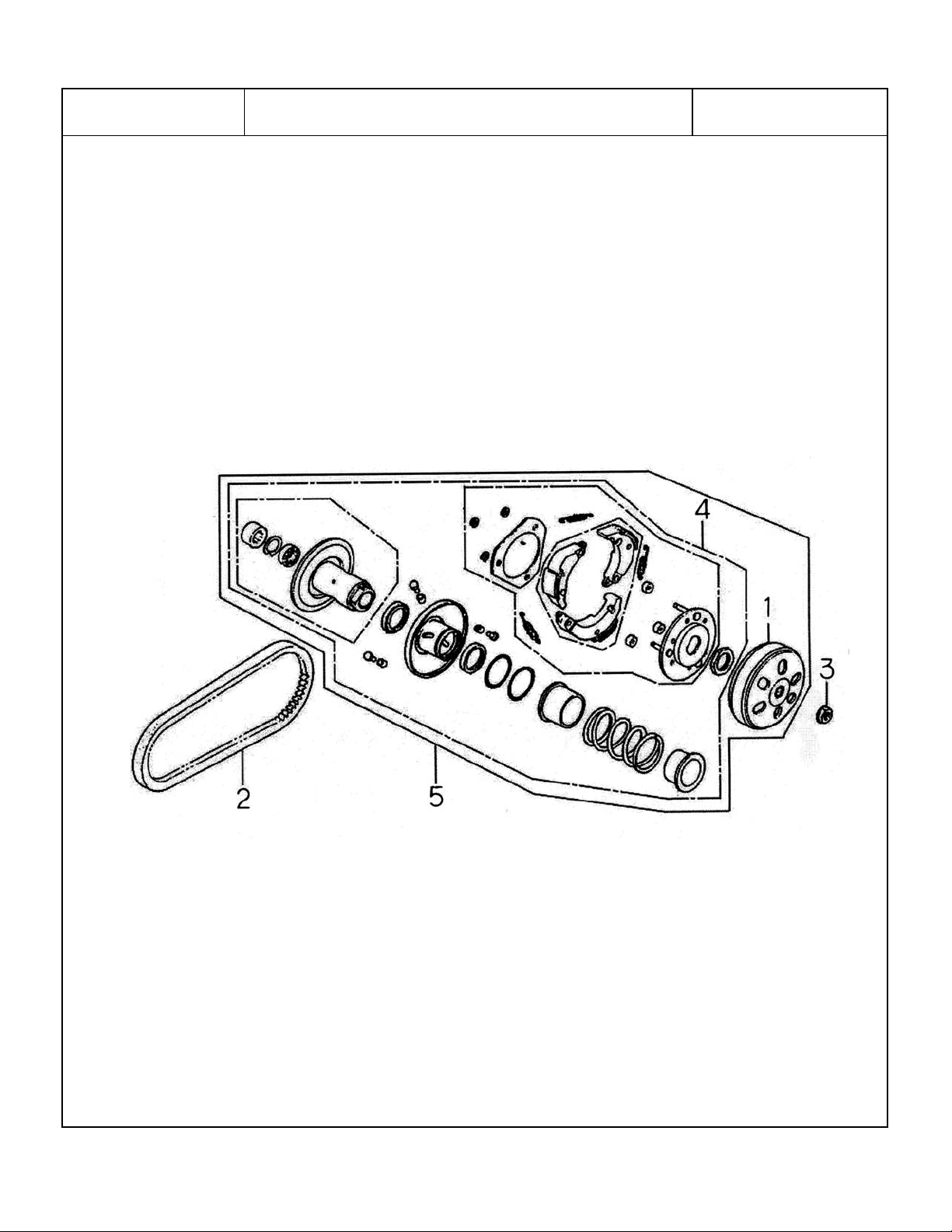

E17 DRIVEN PULLEY MINI 50C.C.
Page 39
E17
ITEM PARTS NO. D E S C R I P T I O N
1 83A-12441-00-00 CLUTCH OUTER 1
2 83A-12211-00-00 DRIVE BELT 1
3 S-4050-10000-01 FLANGE NUT 10MM 1
4 83A-12401-00-00 DRIVE PLATE ASSY. 1
5 83A-12400-00-00 DRIVEN PULLEY ASSY. 1
DRIVEN PULLEY
REQD. NO.
MINI
50C.C.
Page 40

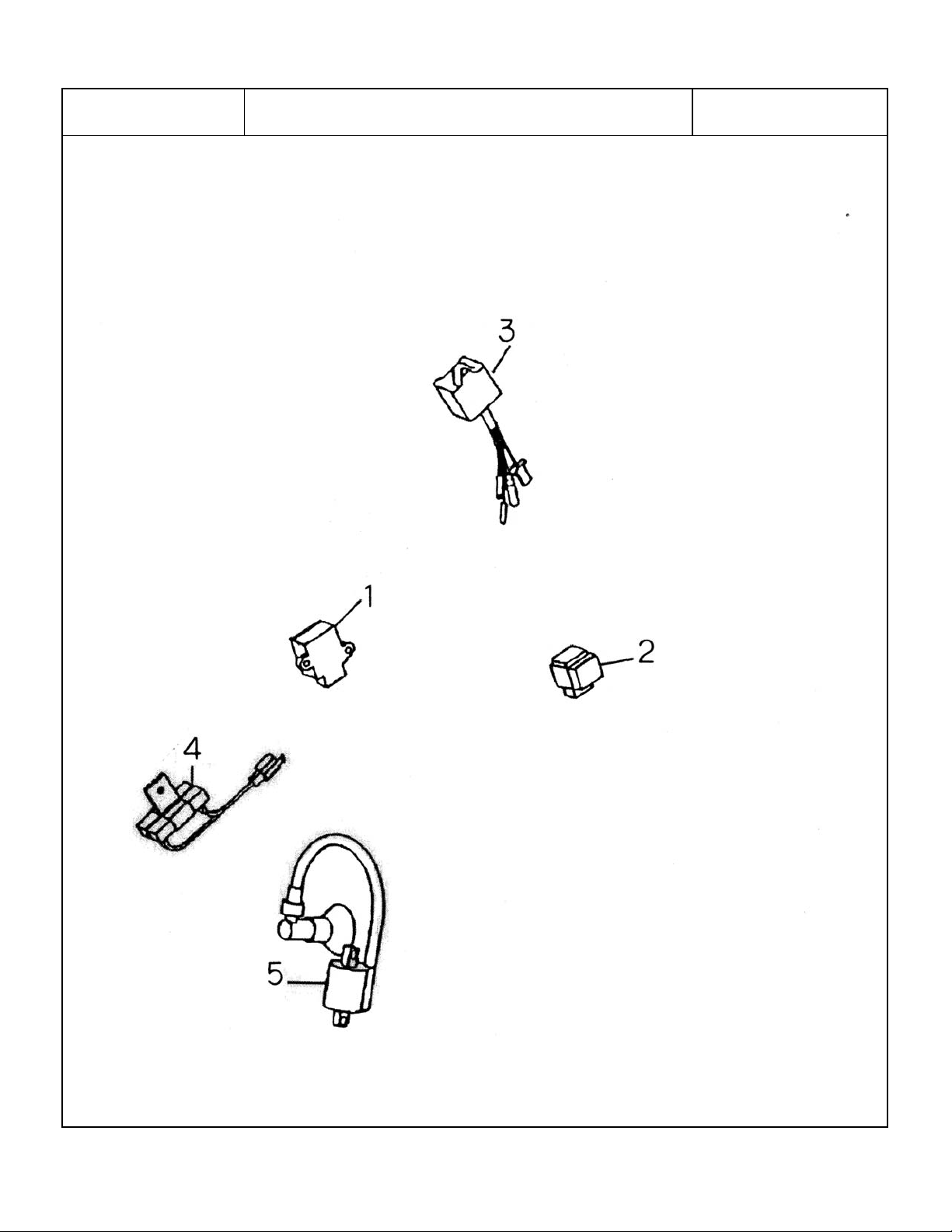

E18 ELECTRICAL PARTS MINI 50C.C.
Page 41
E18
ITEM PARTS NO. D E S C R I P T I O N
1 61A-21310-00-00 REG. REC. COMP. 1
2 83A-28310-00-00 STARTER RELAY ASSY. 1
3 F01-23110-00-00 C.D.I. ASSY. 1
4 B01-28410-00-00 RESISTOR COMP. 1
5 83A-23140-00-00 INGNITION COIL ASSY. 1
ELECTRICAL PARTS
REQD. NO.
MINI
50C.C.
