CPI MINI50 Engine CPI MINI50 Engine

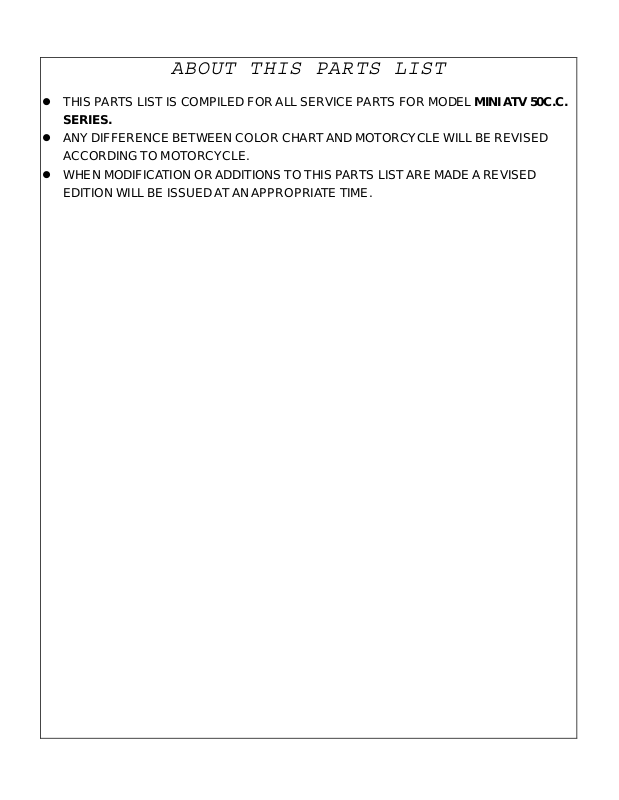

ABOUT THIS PARTS LIST

z THIS PARTS LIST IS COMPILED FOR ALL SERVICE PARTS FOR MODEL MINI ATV 50C.C.

SERIES.

z ANY DIFFERENCE BETWEEN COLOR CHART AND MOTORCYCLE WILL BE REVISED

ACCORDING TO MOTORCYCLE.

z WHEN MODIFICATION OR ADDITIONS TO THIS PARTS LIST ARE MADE A REVISED

EDITION WILL BE ISSUED AT AN APPROPRIATE TIME.

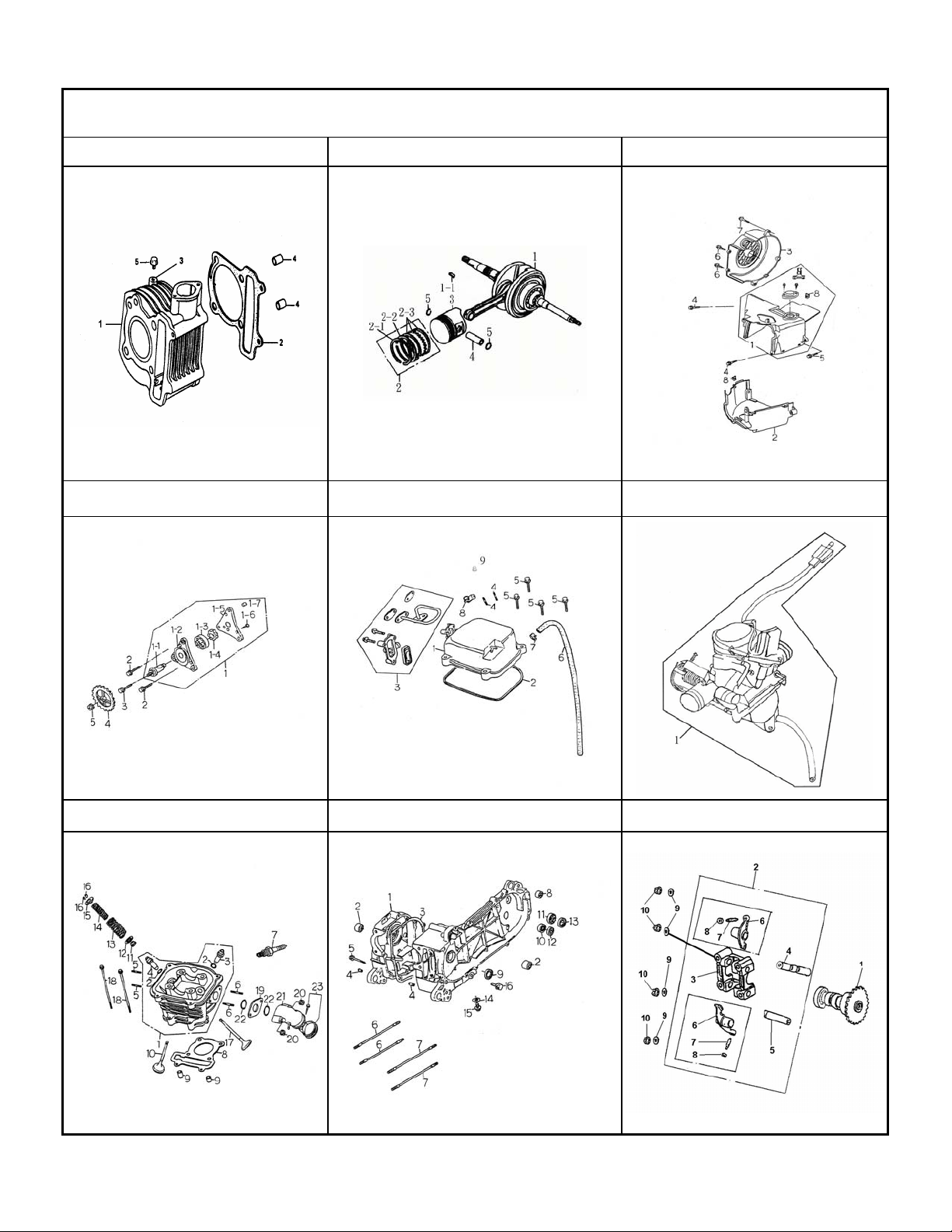

CONTENTS-ENGINE GROUP MINI-ATV 50C.C.

E1 CYLINDER

E2 PISTON CRANK SHAFT

E3 SHROUD FAN COVER

E4 OIL PUMP E5 CYLINDER HEAD COVER E6 CARBURETOR

E7 CYLINDER HEAD E8 CRANK CASE E9 CAM SHAFT

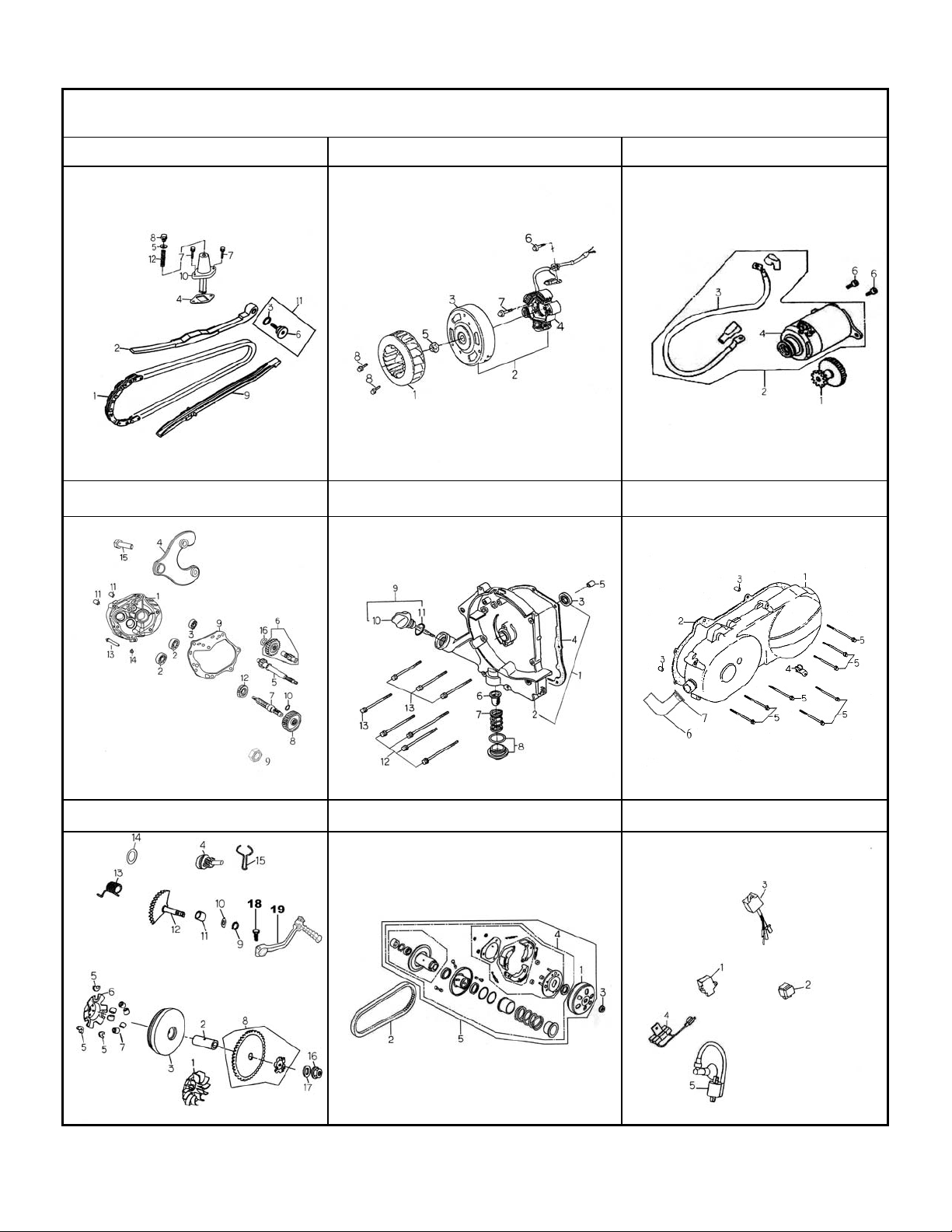

CONTENTS-ENGINE GROUP MINI-ATV 50C.C.

E10 CAM CHAIN TENSIONER

E13 TRANSMISSION E14 RIGHT CRANK CASE COVER E15 LEFT CRANK CASE COVER

E11 GENERATOR E12 STARTING MOTOR

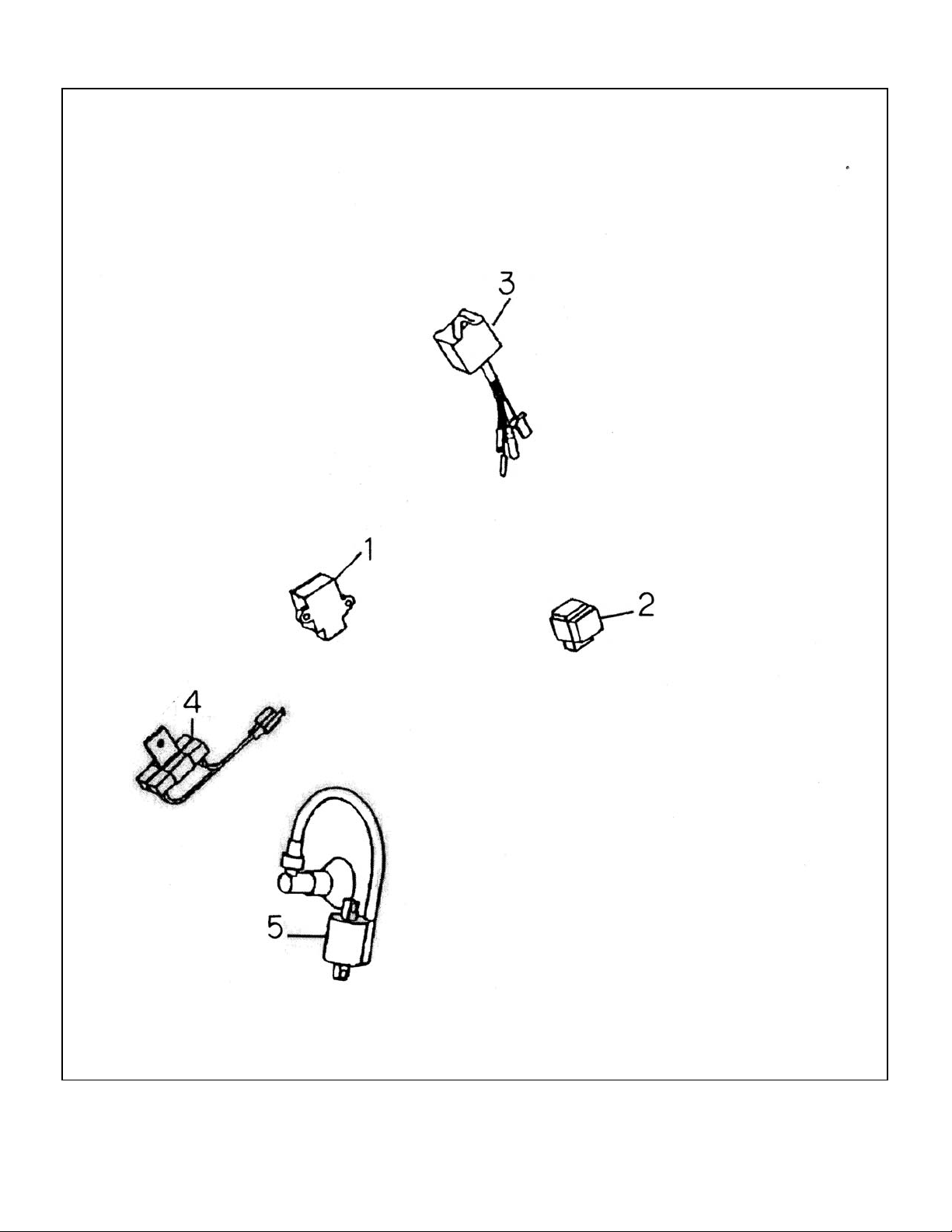

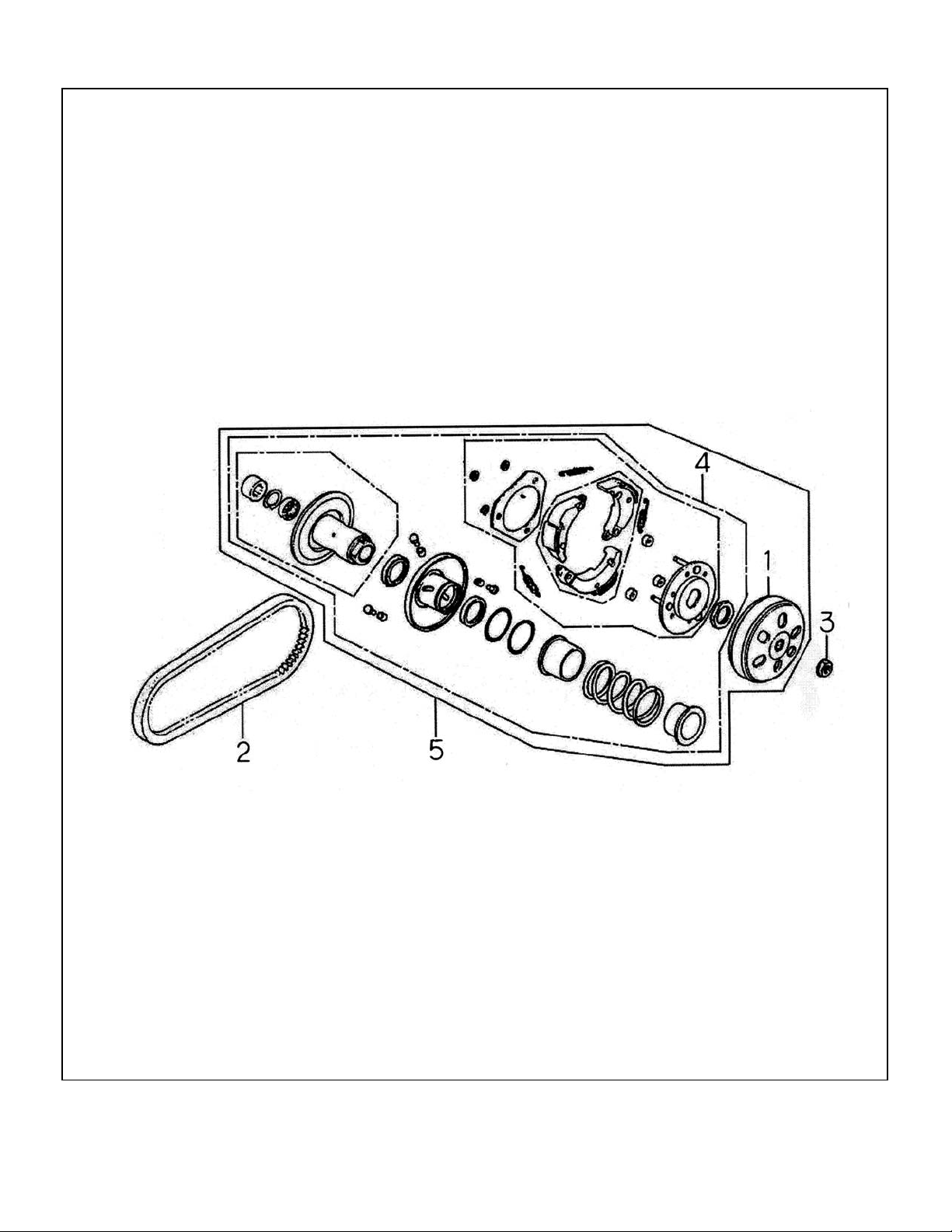

E16 DRIVE FACE E17 DRIVE PULLEY E18 ELECTRICAL PARTS

E1 CYLINDER MINI 50C.C.

E1 CYLINDER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

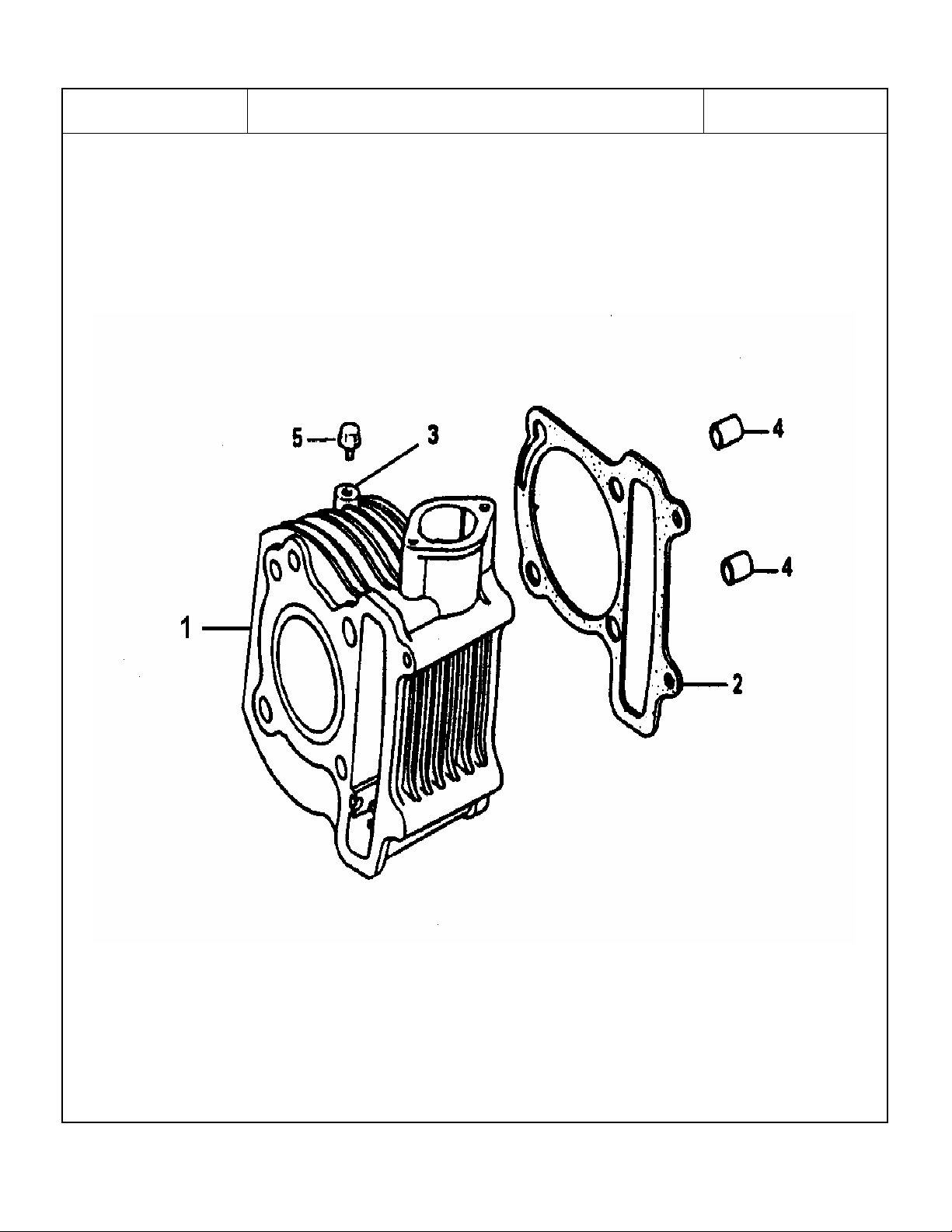

1 83A-02400-00-00 CYLINDER CMOP. 1 2 83A-08216-00-00 CYL. GASKET 1 3 S-4101-06124-55 SEALING WASHER 6MM 1 4 S-4301-08138-00 DOWEL PIN 8X13.8 2 5 S-5701-06012-01 FLANGE BOLT 6X12 1

MINI

50C.C.

E2

PISTON

MINI 50C.C.

CRANK SHAFT

E2 CRANK SHAFT / PISTON

REQD. NO.

ITEM PARTS NO. DESCRIPTION

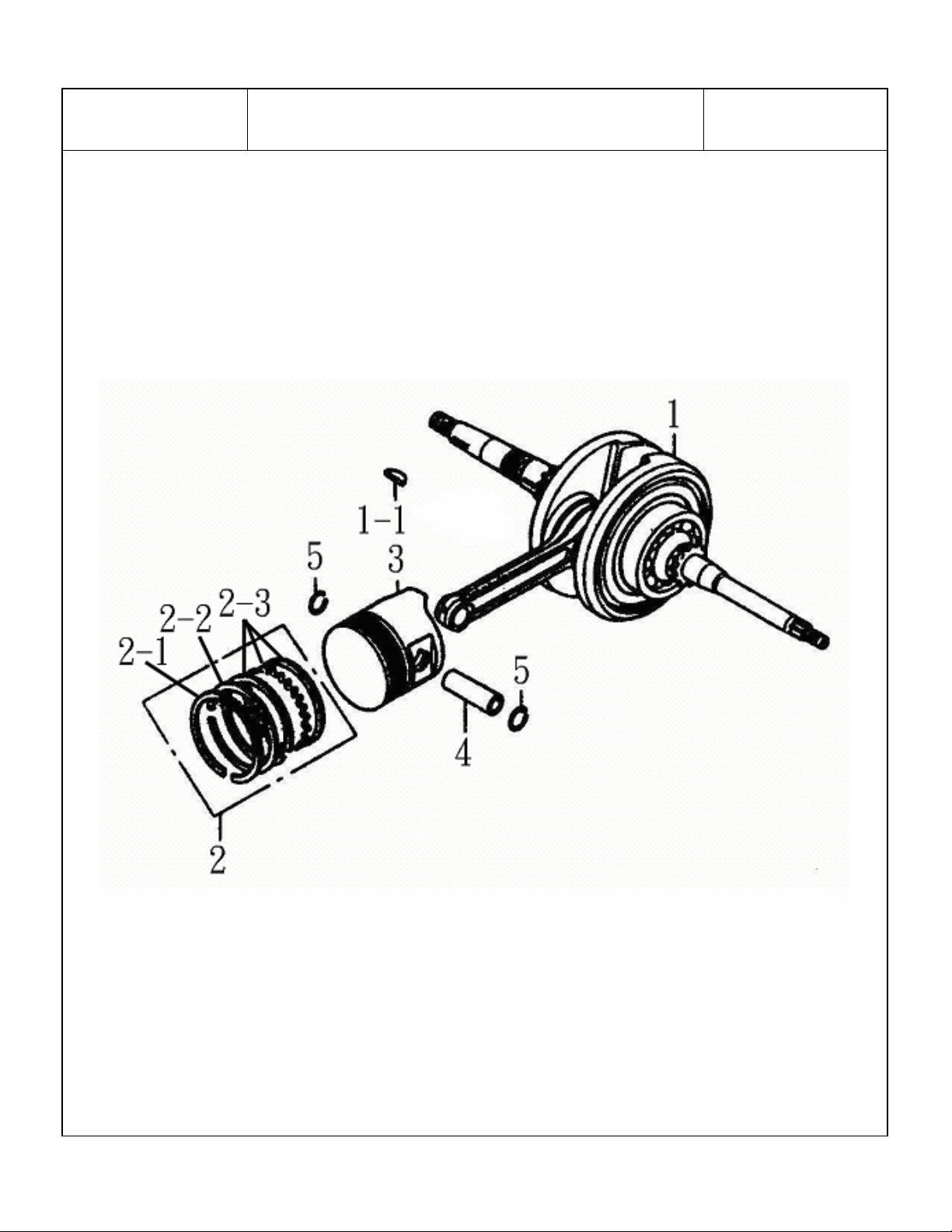

1 83A-04100-00-00 CRANK SHAFT COMP. 1

1-1 83A-04151-00-00 WOODRUFF KEY 1

2 83A-02620-00-00 PISTON RING SET (STD) 1 2-1 83A-02621-00-00 PISTON TOP RING 1 2-2 83A-02622-00-00 PISTON 2ND RING 1 2-3 83A-02623-00-00 PISTON OIL RING SET 1

3 83A-02611-00-00 PISTON COMP. (STD) 1

4 83A-02631-10-00 PISTON PIN 1

5 S-4601-10130-00 PISTON PIN CLIP 13MM 2

MINI

50C.C.

E3

SHROUD

FAN COVER

MINI

50C.C.

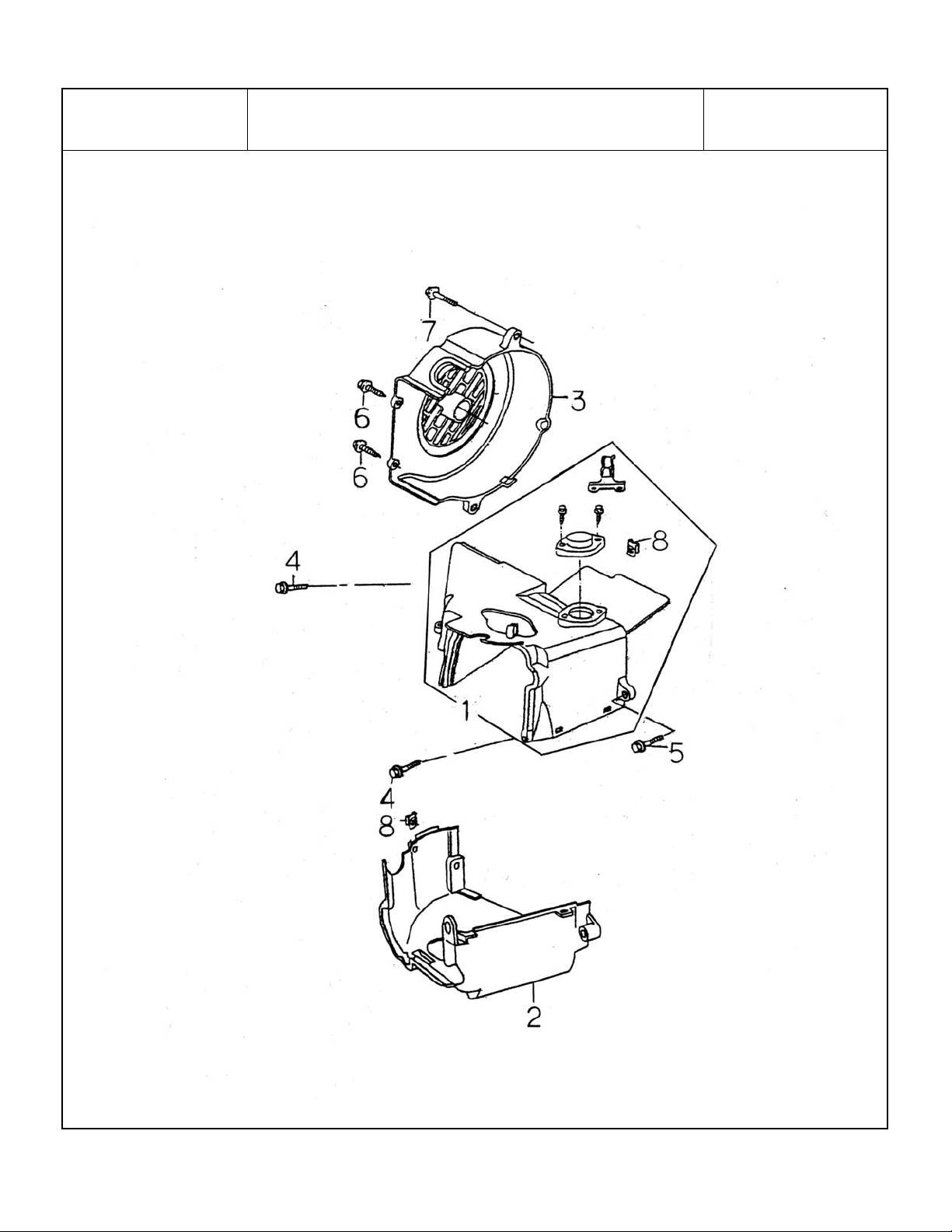

E3 SHROUD / FAN

COVER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-07120-00-00 SHROUD B ASSY. 1

2 83A-07130-00-00 SHROUD A ASSY. 1

3 83A-07110-10-00 FAN COVER ASSY. 1

4 S-6001-06016-01 FLANGE BOLT 6X16 2

5 S-6001-06022-01 FLANGE BOLT 6X22 1

6 S-3955-05012-90 TAPPING SCREW 5X12 2

7 S-6001-06025-01 FLANGE BOLT 6X25 2

8 S-4111-10165-00 SPRING WASHER 2

MINI

50C.C.

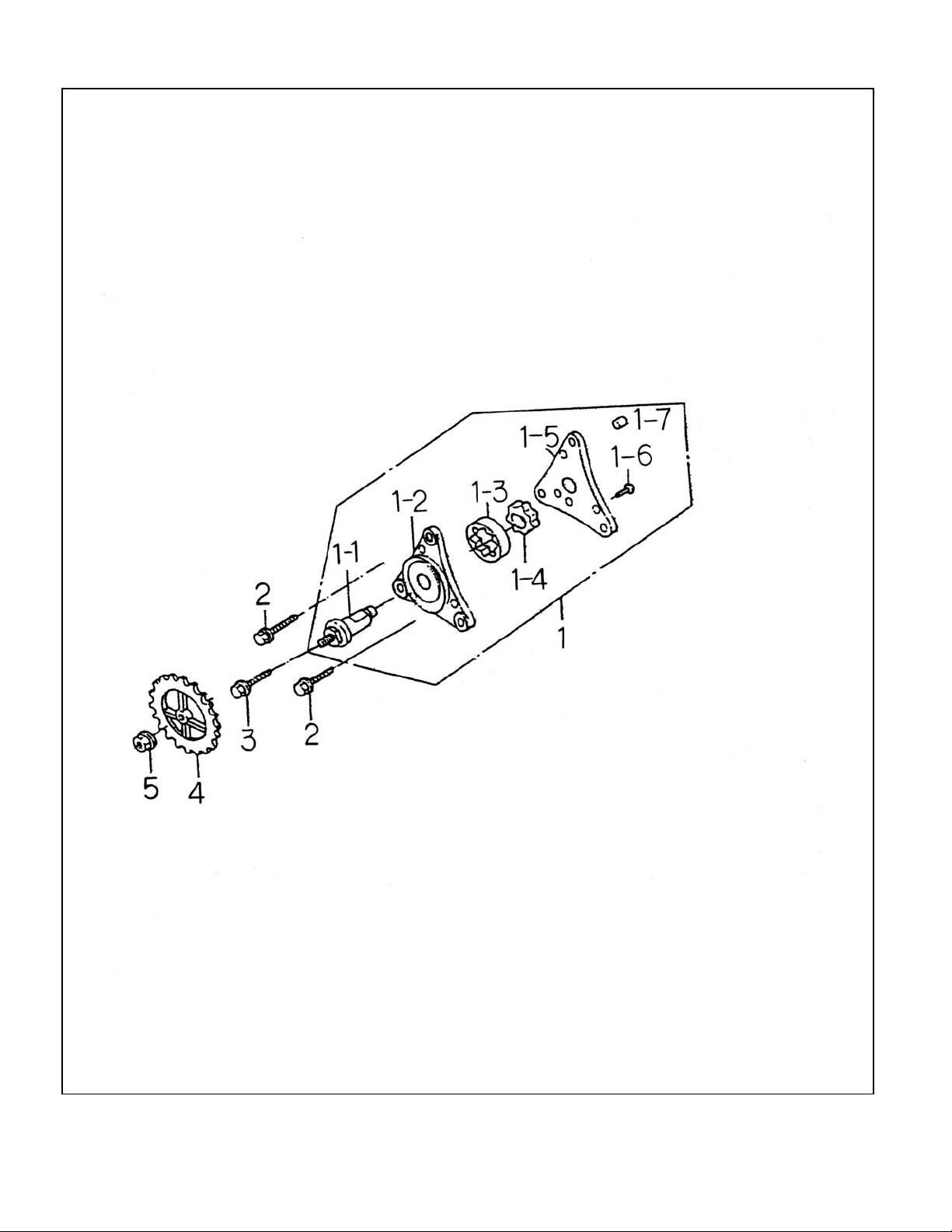

E4 OIL PUMP

MINI

50C.C.

E4 OIL PUMP

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-05100-00-00 OIL PUMP ASSY. 1 1-1 83A-05124-00-00 OIL PUMP SHAFT 1 1-2 83A-05111-00-00 OIL PUMP BODY 1 1-3 83A-05122-00-00 OIL PUMP OUT. ROTOR 1 1-4 83A-05121-00-00 OIL PUMP IN. ROTOR 1 1-5 83A-05113-00-00 OIL PUMP PLATE 1 1-6 S-3500-04010-01 PAN HEAD SEREW 4X10 3 1-7 S-4302-04065-00 DOWEL PIN 4X6.5 1

2 S-6001-06020-01 FLANGE BOLT 6X20 2

3 S-6001-06025-01 FLANGE BOLT 6X25 1

4 83A-05211-00-00 OIL PUMP DRVN. SPRKT. 1

5 S-4050-06000-01 FLANGE NUT 6MM 1

MINI

50C.C.

E5 CYLINDER HEAD COVER

MINI

50C.C.

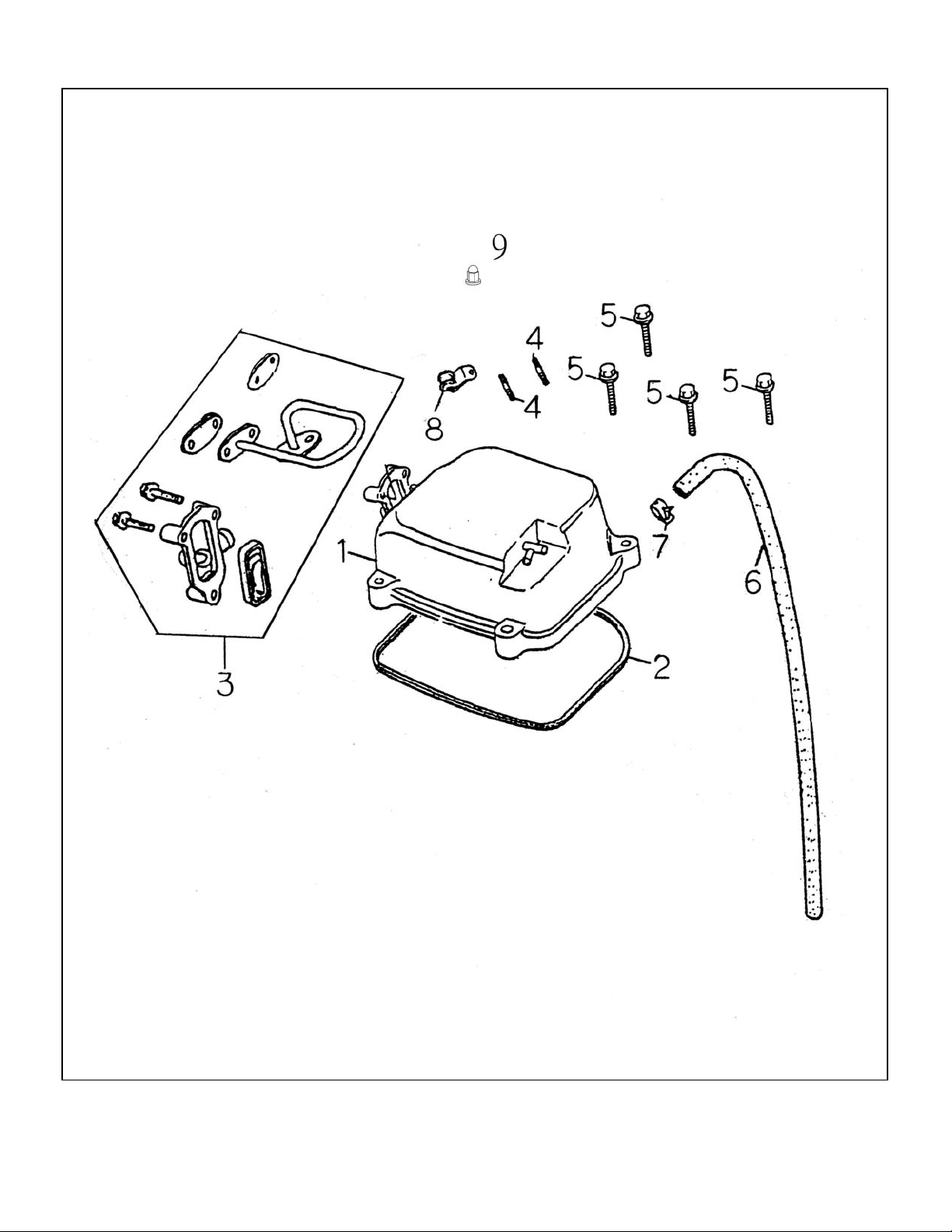

E5 CYLINDER HEAD COVER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-02310-00-00 CYL. HEAD COVER COMP. 1

2 83A-02311-00-00 HEAD COVER GASKET 1

3 83A-02478-00-00 SECOND AIR ASSY. 1

4 S-2713-06028-20 STUD BOLT 6X28 2

5 S-6001-06025-01 FLANGE BOLT 6X25 4

6 83A-02314-10-00 BREATHER TUBE 1

7 A-4204-02080-00 TUBE CLIP B 8MM 1

8 81A-09431-00-00 CLMPER THROTTLE CABLE 1

9 S-4016-06000-01 HEX. CAP NUT 2

MINI

50C.C.

E6 CARBURETOR

MINI

E6 CARBURETOR

REQD. NO.

ITEM PARTS NO. DESCRIPTION

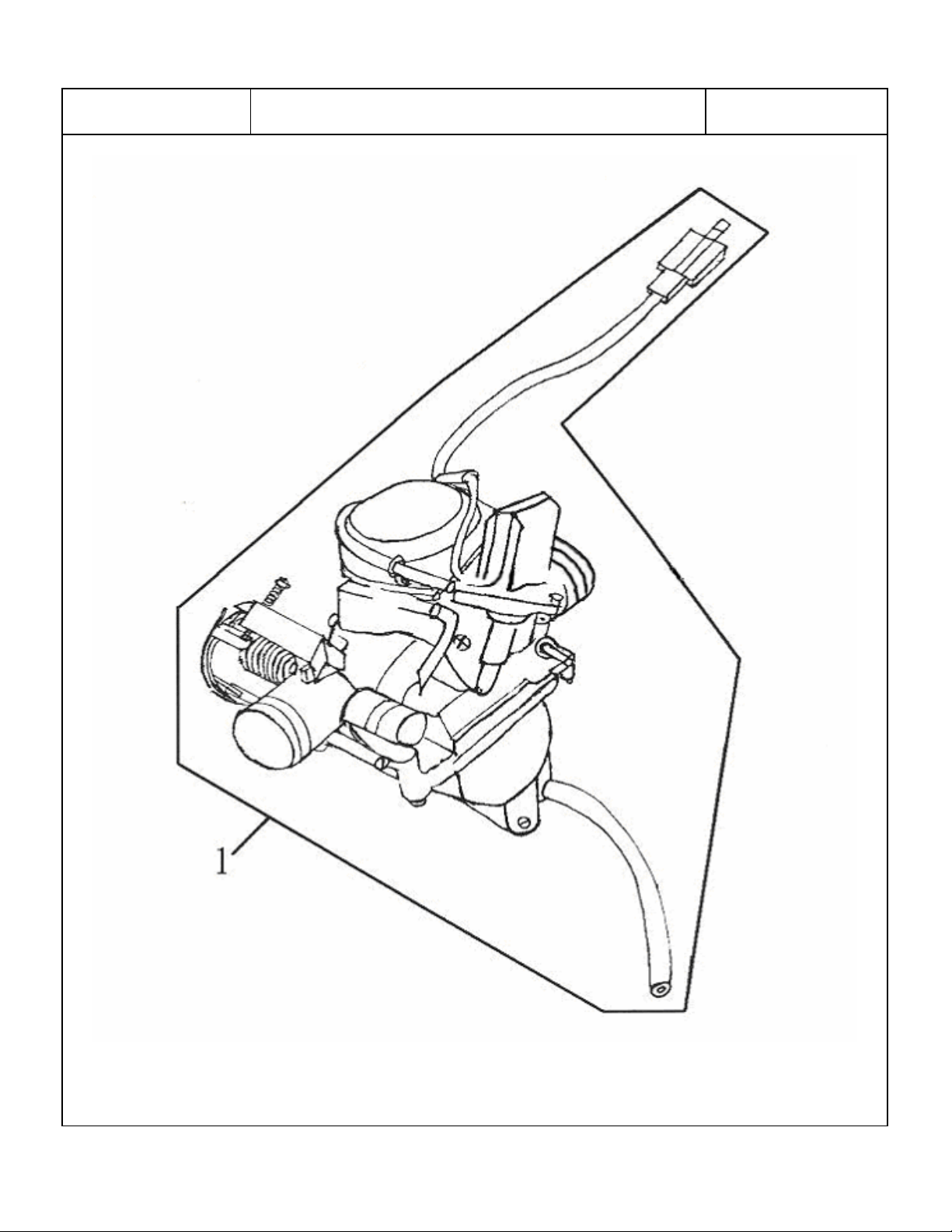

1 83A-09400-00-00 CARBURETOR ASSY. 1

MINI

50C.C.

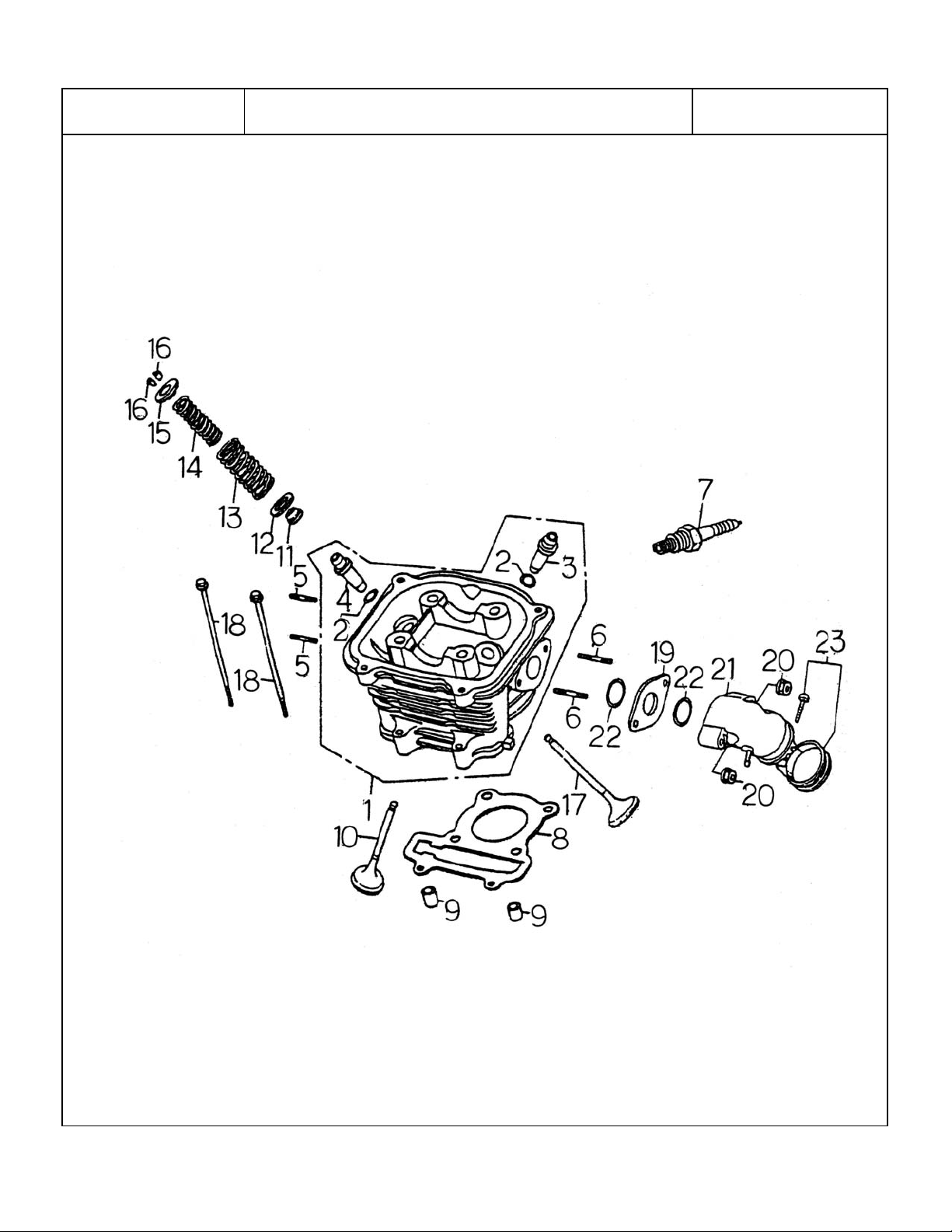

E7 CYLINDER HEAD

MINI

E7 CYLINDER HEAD

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-02110-10-00 CYLINDER HEAD COMP. 1

2 S-1305-10220-00 O-RING 22X1 2

3 83A-03401-00-00 IN. VALVE GUIDE 1

4 83A-03402-00-00 EX. VALVE GUIDE 1

5 S-2716-06032-20 STUD BOLT 6X32 2

6 S-2716-06050-50 STUD BOLT 6X50 2

7 83A-23111-00-00 SPARK PLUG (C7HSA) 1

8 83A-08111-00-00 CYL. HEAD GASKET 1

9 S-4301-08140-00 DOWEL PIN 8X14 4

10 83A-03201-00-00 IN. VALVE 1 11 83A-03411-00-00 VALVE ST EM SEAL 2 12 83A-03424-00-00 OUTER VALVE SPRING SEAT 2 13 83A-03413-00-00 VALVE OUTER SPG. 2 14 83A-03414-00-00 VALVE INNER SPG. 2 15 83A-03421-00-00 VALVE SPG. RETAINER 2 16 83A-03427-00-00 VALVE COTTER 4 17 83A-03301-00-00 EX. VALVE 1 18 S-6001-06085-01 FLANGE BOLT 6X85 2 19 83A-08223-00-00 CARB. INSULATOR 1 20 S-4050-06000-01 FLANGE NUT 6MM 1 21 83A-09211-00-00 IN. PIPE COMP. 1 22 S-1303-15210-00 O-RING 21X1.5 2 23 83A-09231-00-00 INSULATOR BAND 1

MINI

50C.C.

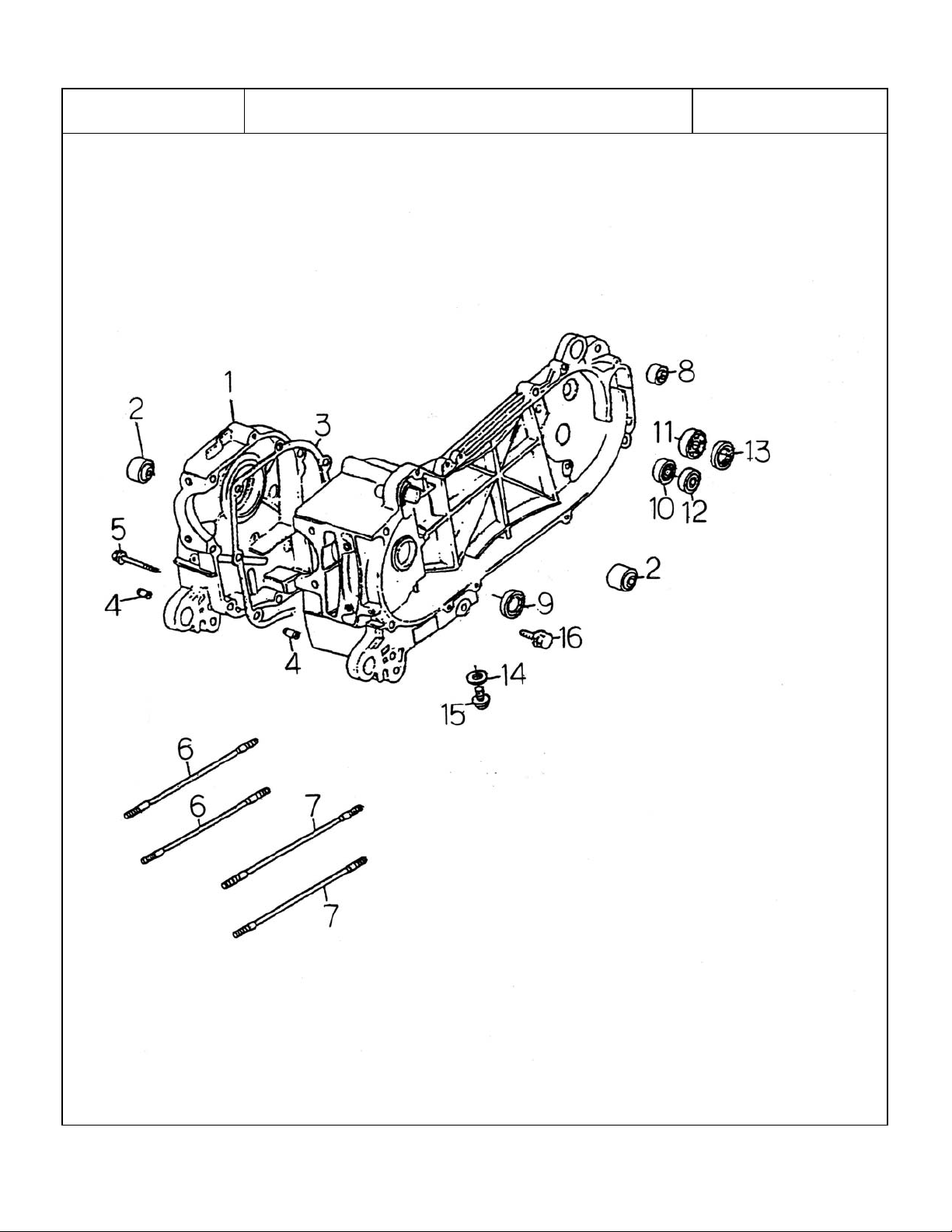

E8 CRANK CASE

MINI

E8 CRANK CASE

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-01110-00-00 R. CRANK CASE ASSY. 1

2 83A-01221-00-00 ENG. HANGER RUB. BUSH 2

3 83A-08201-00-00 CRANK CASE GASKET 1

4 S-4301-08140-00 DOWEL PIN 8X14 2

5 S-6001-06045-01 FLANGE BOLT 6X45 1

6 83A-02422-00-00 STUD BOLT Ａ 7X168 2

7 83A-02423-00-00 STUD BOLT Ｂ 7X176 2

8 83A-01222-00-00 RR. CUSHION UNDER RUB. BUSH 1

9 S-1201-19830-50 OIL SEAL 19.8X30X5 1

10 S-6120-06201-00 BALL BEARING 6201 1 11 S-6120-06203-00 BALL BEARING 6203SPC 1 12 S-6120-06203-00 BALL BEARING 6203 1 13 S-1201-17030-60 OIL SEAL 17X30X6 1 14 S-4101-08164-03 WASHER 8MM 1 15 S-6001-08035-01 FLANGE BOLT 8X35 1 16 S-2800-12015-01 DRAIN PLUG BOLT 12MM 2

MINI

50C.C.

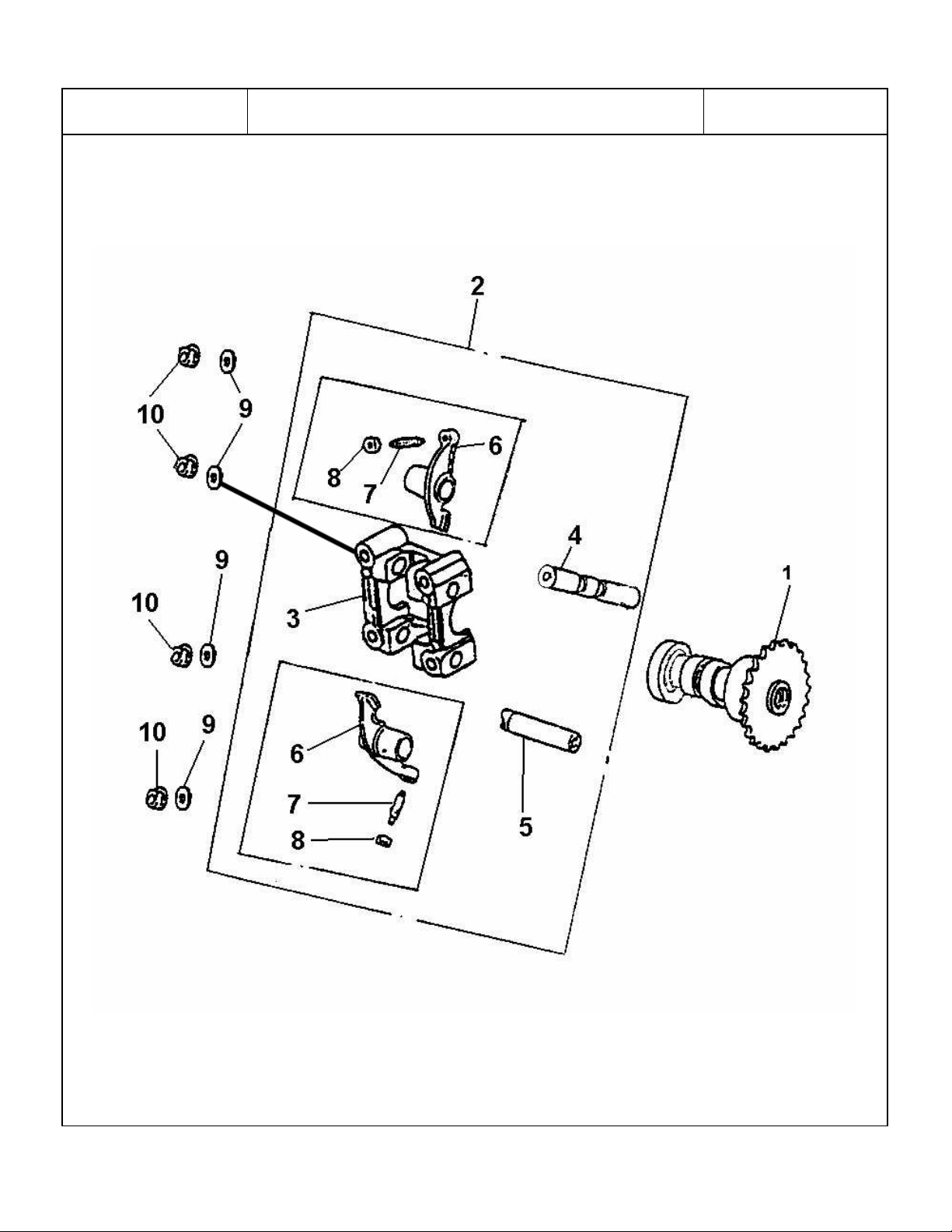

E9 CAMSHAFT MINI 50C.C.

E9 CAMSHAFT

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-03110-00-00 CAM SHAFT COMP. 1

2 83A-03130-00-00 CAM SHAFT HOLDER ASSY. 1

3 83A-03131-00-00 CAM SHAFT HOLDER 1

4 83A-03521-00-00 IN. ROCKER ARM SHAFT 1

5 83A-03531-00-00 EX. ROCKER ARM SHAFT 1

6 83A-03511-00-00 VALVE ROCKER ARM 2

7 83A-03512-00-00 TAPPET ADJUSTING SCREW 2

8 83A-03513-00-00 TAP. ADJ. NUT 2

9 S-4101-07165-55 PLATE WASHER 7MM 4

10 S-4060-07000-01 FLANGE NUT 7MM 4

MINI

50C.C.

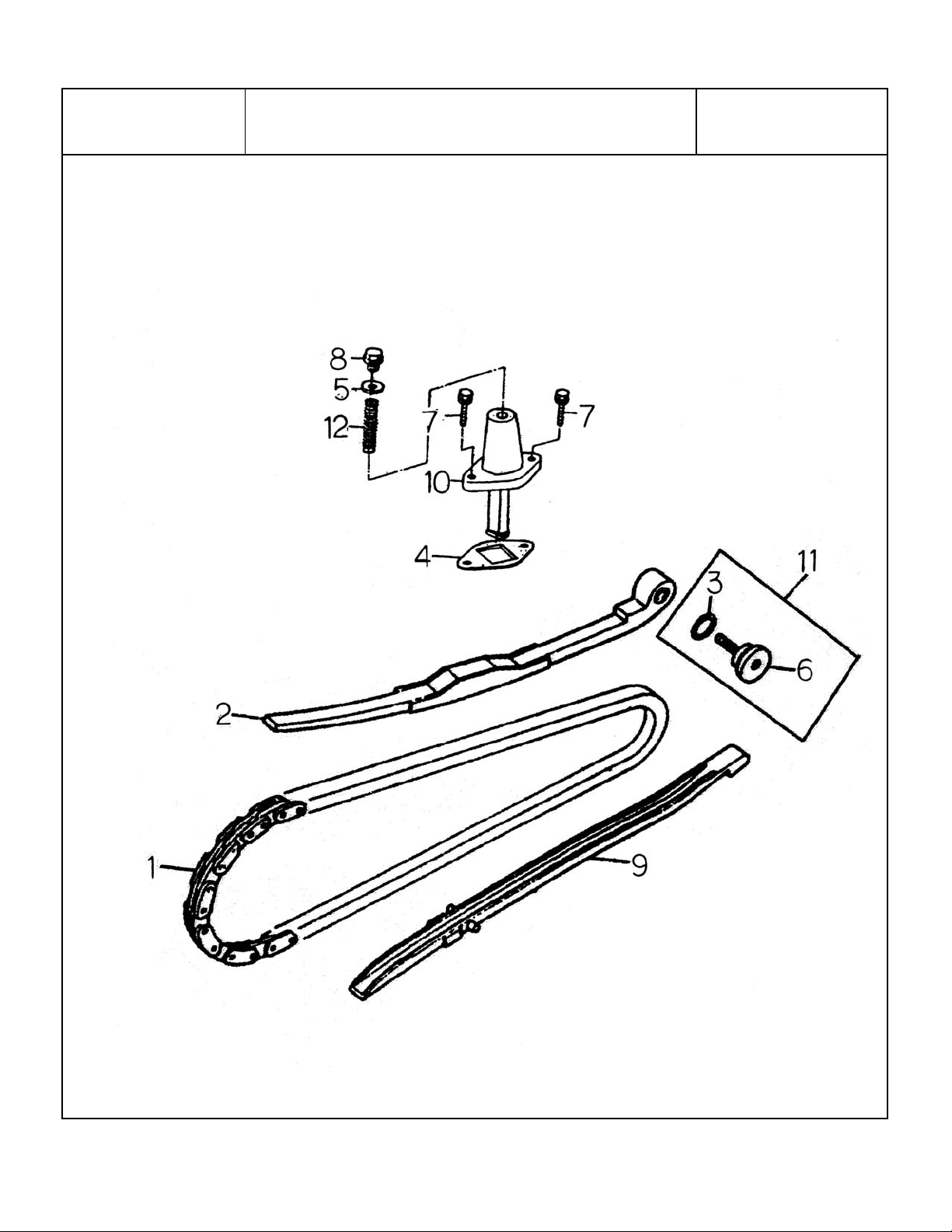

E10

CAM CHAIN

MINI 50C.C.

TENSIONER

E10 CAM CHAIN / TENSIONER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-03121-00-00 CAM CHAIN 1

2 83A-03811-00-00 C.C. TENSIONER 1

3 S-1305-15155-00 O-RING 15.5X1.5 1

4 83A-08224-00-00 TENSIONER LIFTER GASKET 1

5 S-4101-08164-01 WASHER 8X16X1.6 1

6 83A-03841-00-00 CAM CHAIN TENSIONER PIVOT 1

7 S-6000-06018-01 FLAGE BOLT 6X18 2

8 83A-03837-00-00 TENSION ADJUSTER BOLT 1

9 83A-03814-00-00 C.C. GUIDE COMP. 1

10 83A-03830-00-00 TENSIONER LIFTER ASSY. 1 11 83A-03840-00-00 C.C. TENSIONER PIVOT 1 12 83A-03839-00-00 SPRING CAM CHAIN ADJUSTER 1

MINI

50C.C.

E11 GENERATOR

MINI

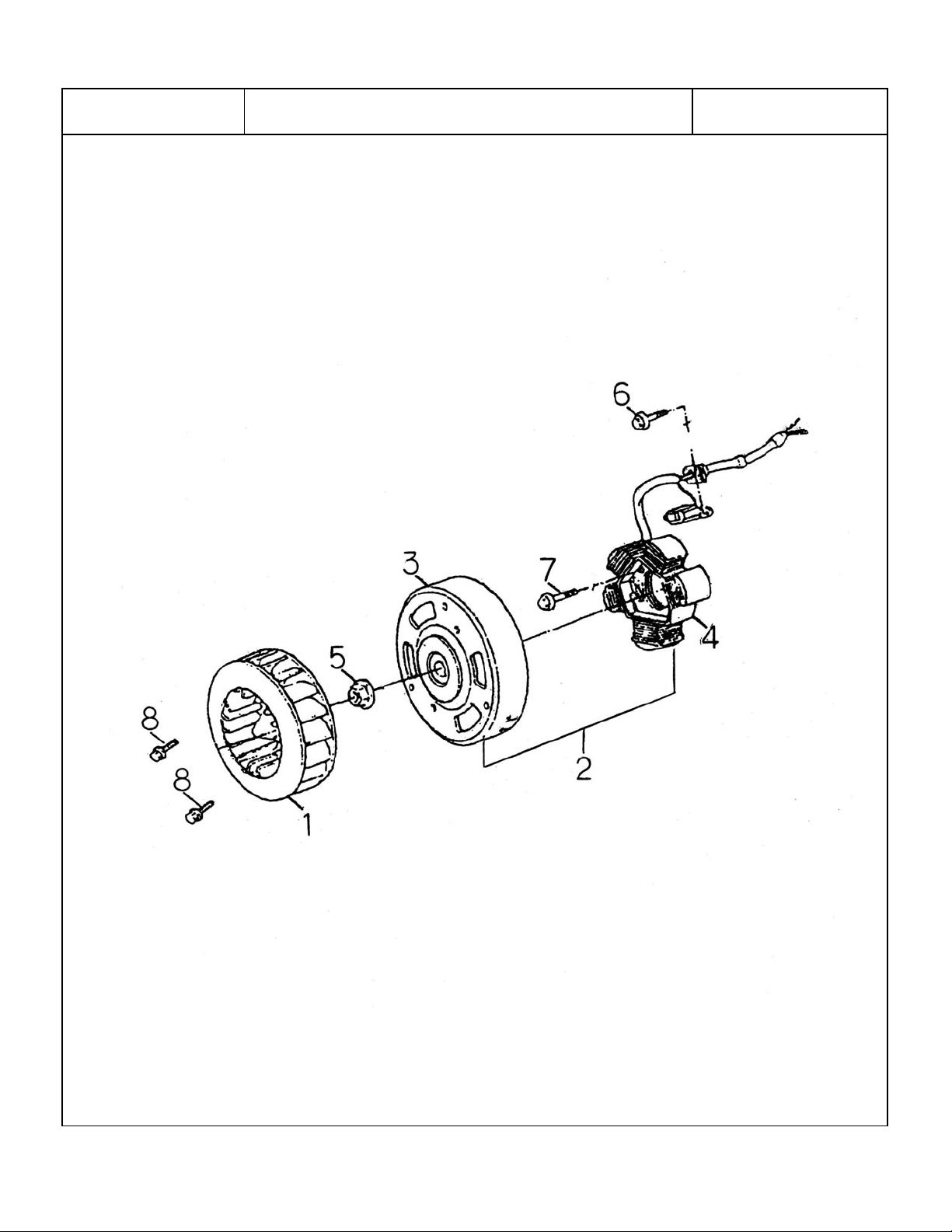

E11 GENERATOR

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-07161-00-00 COOLING FAN COMP. 1

2 83A-21100-00-00 A.C.G. ASSY. 1

3 83A-21110-00-00 FLYWHEEL COMP. 1

4 83A-21130-00-00 STATOR COMP. 1

5 S-4101-10205-01 FLANGE NUT 10MM 1

6 S-2101-05012-01 HEX. BOLT 5X12 1

7 S-6001-06022-01 FLANGE BOLT 6X22 2

8 S-6001-06018-01 FLANGE BOLT 6X18 2

MINI

50C.C.

E12 STARTING MOTOR

MINI

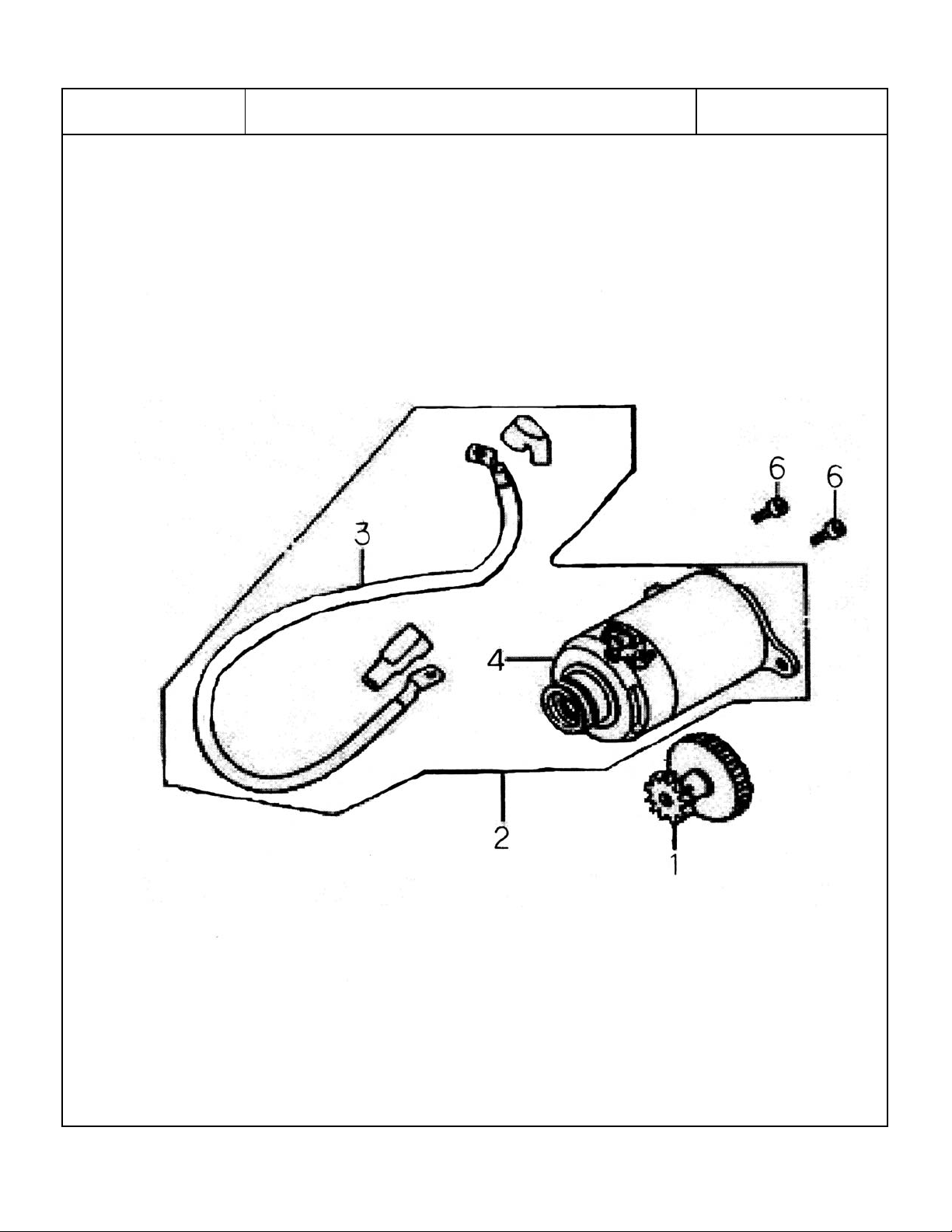

E12 STARTING MOTOR

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-22311-00-00 ST. REDUCTN GEAR 1

2 83A-22200-00-00 ST. MOTOR ASSY. 1

3 83A-22203-00-00 STARTER MOTOR CABLE 1

4 83A-22201-00-00 ST. MOTOR ASSY. 1

5 S-6001-06025-01 FLANGE BOLT 6X25 2

MINI

50C.C.

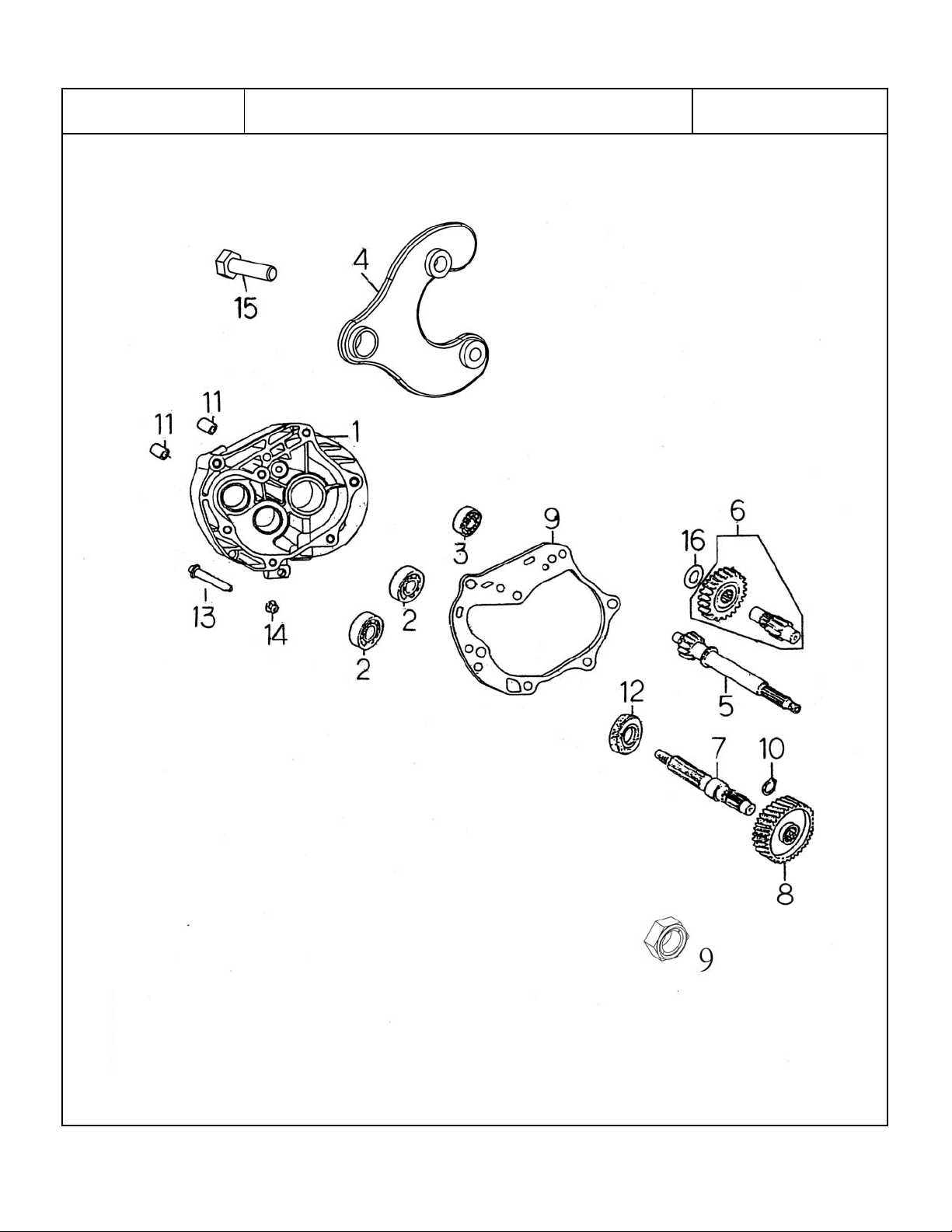

E13 TRANSMISSION MINI 50C.C.

E13 TRANSMISSION

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-01501-00-00 MISSION CASE 1

2 S-6120-06201-00 BALL BEARING 6201 2

3 S-6120-06004-00 BALL BEARING 6004 1

4 83A-01271-00-00 ENG. HANGER 1

5 83A-15111-00-00 DRIVE SHAFT 1

6 83A-16110-00-00 COUNTER SHAFT COMP. 1

7 83A-16172-00-00 FINAL SHAFT 1

8 83A-16171-00-00 FINAL GEAR 1

9 83A-08203-00-00 MISSION CASE GASKET 1

10 S-4511-12200-00 CIR-CLIP 20MM 1 11 S-4301-10200-00 DOWEL PIN 10X20 2 12 S-1201-27042-70 OIL SEAL 27X42X7 1 13 83A-01260-00-00 BRAKE SHOE ANCHOR PIN 1 14 S-4050-08000-01 FLANGE NUT 8MM 1 15 S-2201-10038-01 HEX. BOLT 10X38 1 16 S-4101-12224-90 WASHER SIDE 12MM 1 17 B05-44288-00-00 HEX. U NUT 1

MINI

50C.C.

E14 RIGHT CRANK CASE COVER

MINI

E14 RIGHT CRANK CASE COVER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

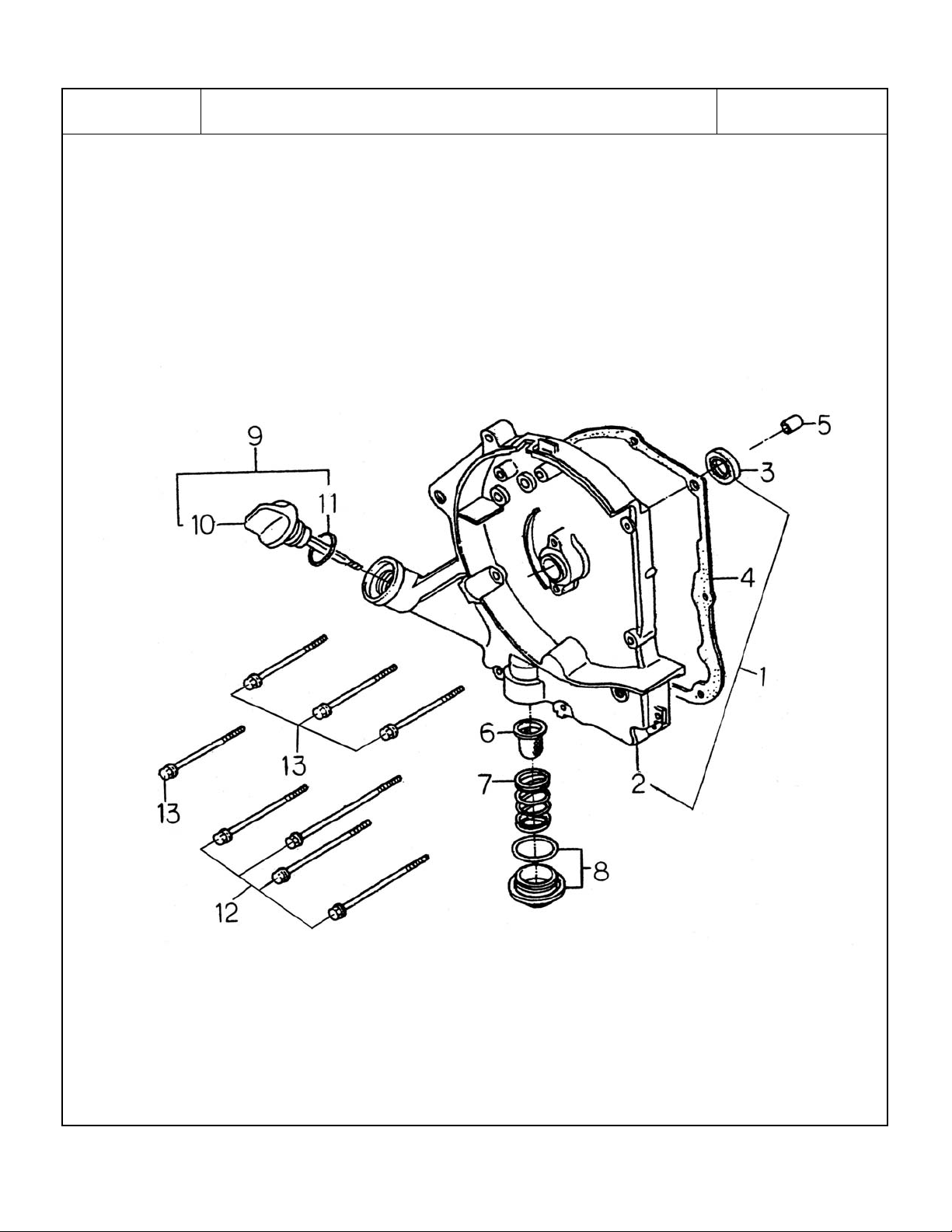

1 83A-01410-00-00 R. SIDE CRANK CASE COMP. 1

2 83A-01401-00-00 R. CRANK CASE COVER 1

3 S-1201-19431-50 OIL SEAL 19.4X31X5 1

4 83A-08231-00-00 R. CRANK CASE COVER 1

5 S-4301-08140-00 DOWEL PIN 8X14 2

6 83A-05232-00-00 OIL FILTER SCREEN 1

7 83A-05233-00-00 OIL FILTER SCREEN SPRING 1

8 83A-05230-00-00 TAP ADJ. HOLE CAP ASSSY. 1

9 83A-05280-00-00 OIL LEVEL GAUGE ASSY. 1

10 83A-05281-00-00 OIL LEVEL GAUGE 1 11 S-1305-30180-00 O-RING 18X3 1 12 S-6001-06100-01 FLANGE BOLT 6X100 4 13 S-6001-06085-01 FLANGE BOLT 6X85 4

MINI

50C.C.

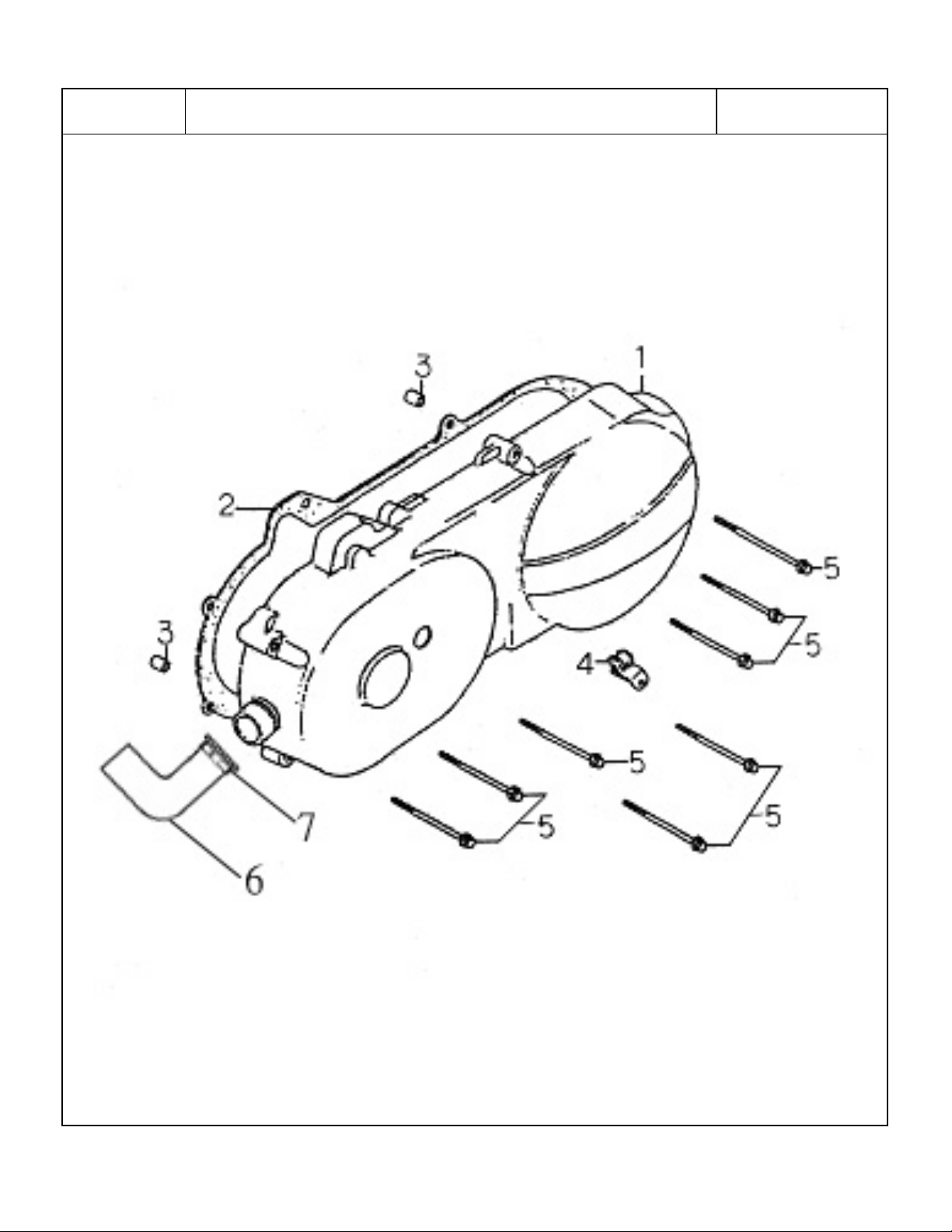

E15 LEFT CRANK CASE COVER

MINI

E15 LEFT CRANK CASE COVER

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-01301-00-00 L. CRANK CASE COVER (CPI) 1

2 83A-08241-00-00 L. COVER GASKET 1

3 S-4301-08140-00 DOWEL PIN 8X14 2

4 81A-01322-00-00 CLAMPER BRAKE CABLE 1

5 S-6001-06035-01 FLANGE BOLT 6X35 8

6 F04-09113-00-00 DUCT 1

7 A04-09177-00-00 CLAMP 1

MINI

50C.C.

E16

DRIVE FACE

/ KICK

MINI 50C.C.

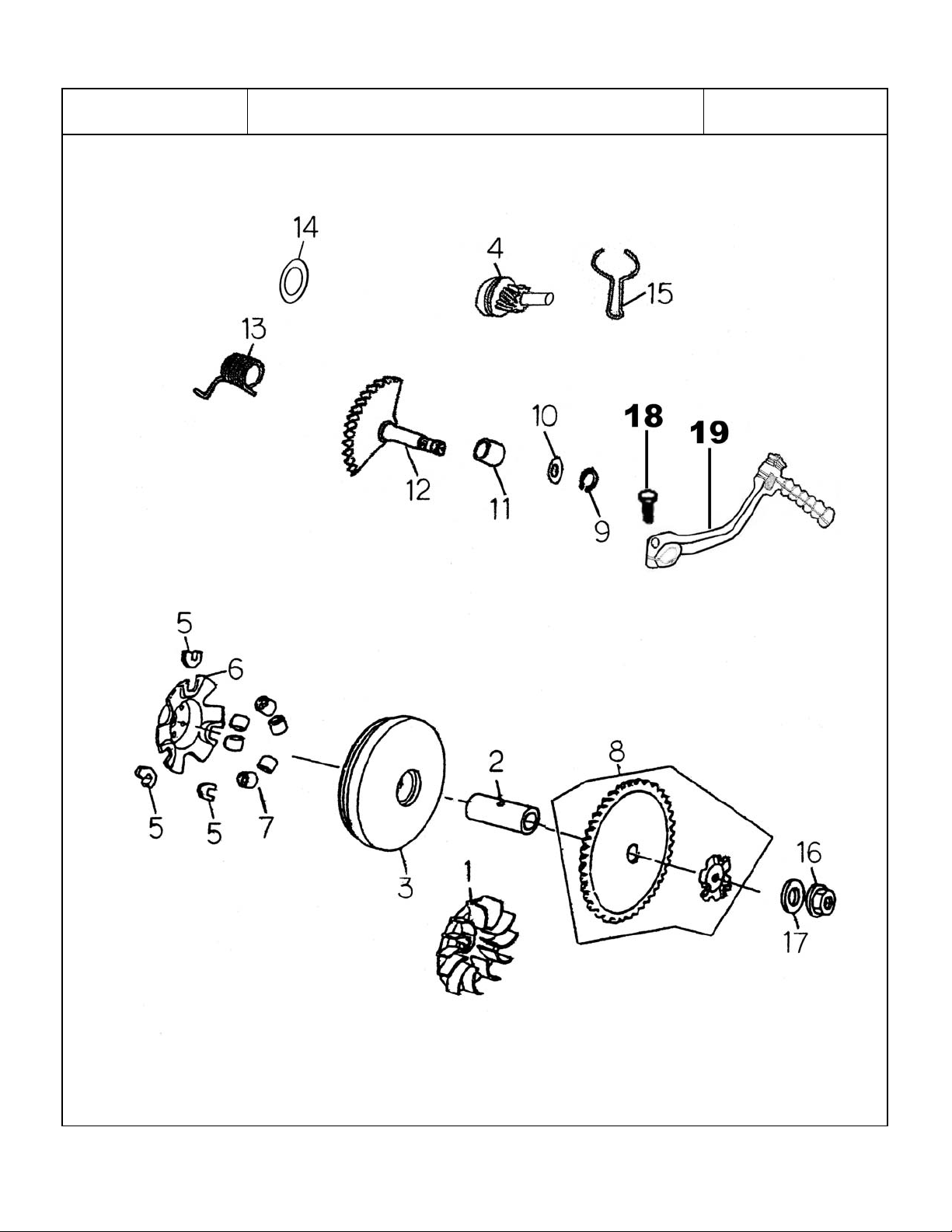

E16 DRIVE FACE

REQD. NO.

ITEM PARTS NO. DESCRIPTION

1 83A-12132-00-00 COOLING FAN CVT 1

2 83A-12133-00-00 DRIVE FACE BOSS 1

3 83A-12110-00-00 MOVABLE DRIVE FACE COMP. 1

4 83A-17210-00-00 START IDLE GEAR COMP. 1

5 83A-12124-00-00 SLIDE PIECE 3

6 83A-12123-00-00 RAMP PLATE 1

7 83A-12121-00-00 WEIGHT ROLLER COMP. 6.5gr 6

8 83A-12131-00-00 DRIVE FACE 1

9 S-4511-10140-00 CIR-CLIP 14MM 1

10 S-4101-14184-00 WASHER 14MM 1 11 83A-17172-00-00 KICK SPINDLE BUSH 1 12 83A-17130-00-00 KICK STARTER SPINDLE COMP. 1 13 83A-17141-00-00 ST. KICK SPRING 1 14 S-4101-10204-00 WASHER 10MM 1 15 83A-17224-00-00 ST. GEAR FRICTION SPG. 1 16 S-4011-12200-01 HEX NUT 12MM 1 17 S-4101-12224-01 SPECIAL WASHER 12MM 1

18 S-2000-06025-01 HEX. BOLT 6X25 1 19 61G-17111-00-00 KICK STARTER ARM 1
