CPI MINI50 CPI MINI50

34

20041016

CPI MOTORCYCLE

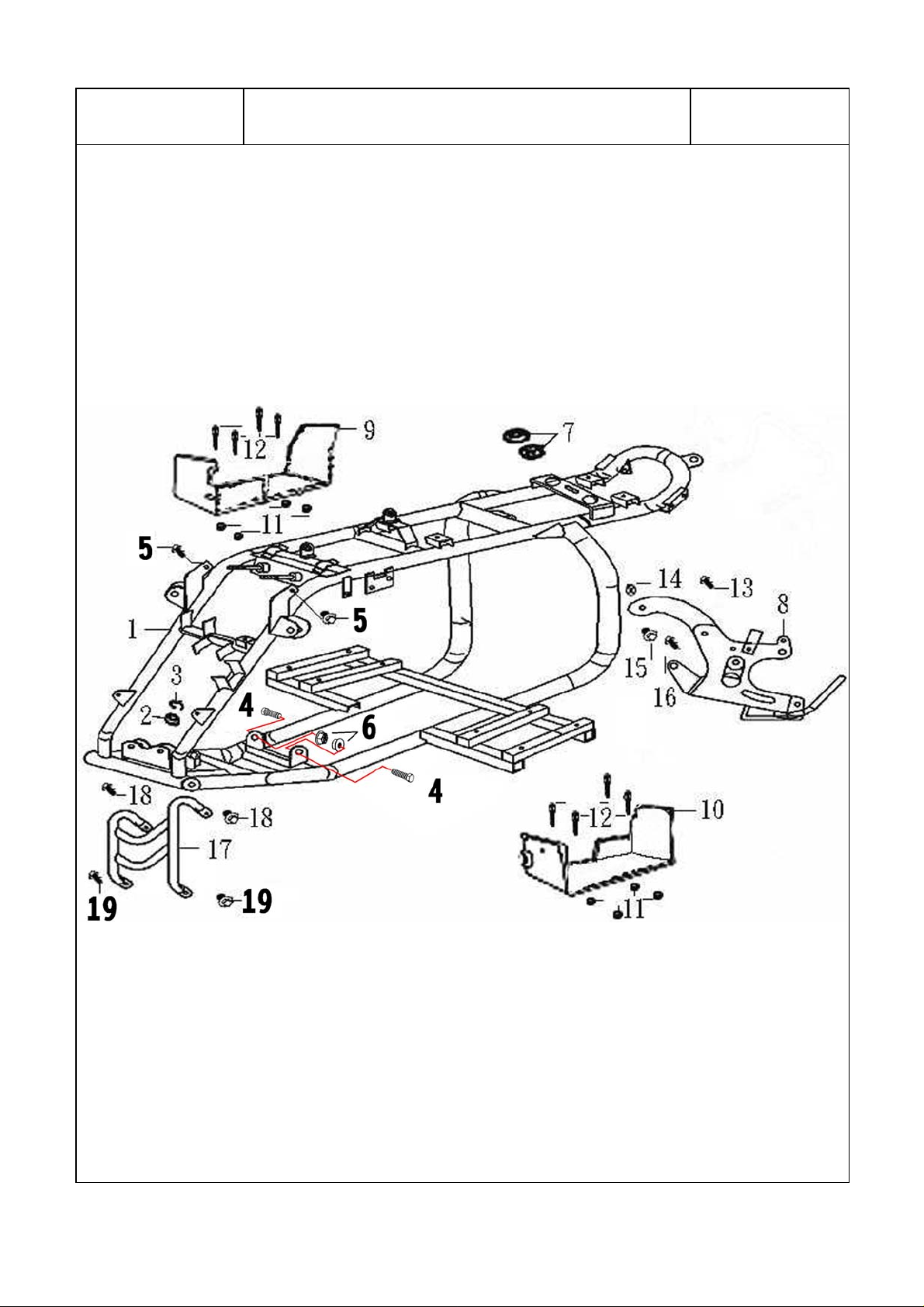

F1 FRAME BODY

MINI 50

35

CPI MOTORCYCLE

F1 FRAME BODY

ITEM PARTS NO. DESCRIPTION

1 A04-41110-10-00 FRAME COMP. 1

2 S-6123-06002-20 BEARING 6002ZZ 1
3 S-4521-12320-00 C CLIP 1

4 S-5821-10045-03 FLANGE BOLT 2

5 S-3530-06018-77 PAN HEAD SCREW 6X18 2
6 S-4061-10000-03 FLANGE U NUT 10MM 1
7 B11-42156-00-00 DAMPER,1 1
8 A04-48110-00-00 REAR FORK COMP 1

9 A04-63421-00-00 FLOOR,2 1
10 A04-63411-00-00 FLOOR,1 1
11 S-4051-06000-13 FLANGE U NUT 6MM 8
12 S-5800-06030-04 FLANGE BOLT 6X30 8
13 A04-48171-00-00 BOLT 1

REQD. NO.

MINI 50

14 S-4051-08000-03
15 S-5801-08038-02

FLANGE U NUT 8MM
FLANGE BOLT 08X38

1
1

16 S-2000-12055-02 NEX. BOLT 12X55 1

17 A05-42151-10-00 FRONT FENDER ROD（BLACK） 1

18 S-5800-06012-02 FLANGE BOLT 6X12 2
19 S-5800-08012-02 FLANGE BOLT 8X12 2

◎2005-02-17 車架課-林弘基發內部聯絡單設變 A04 車架、排氣管、後輪軸。

◎2005-01-20 因搭配黑色車架，故將前保護桿顏色由原先鍍鉻（A05-42151-10-9B）
改為黑色（A05-42151-10-00）。

◎2005-03-08 新版 A05 取消前輪軸，變更鎖附方式，故新增第 4 項 S-5821-10045-03
2pcs 。

36

CPI MOTORCYCLE

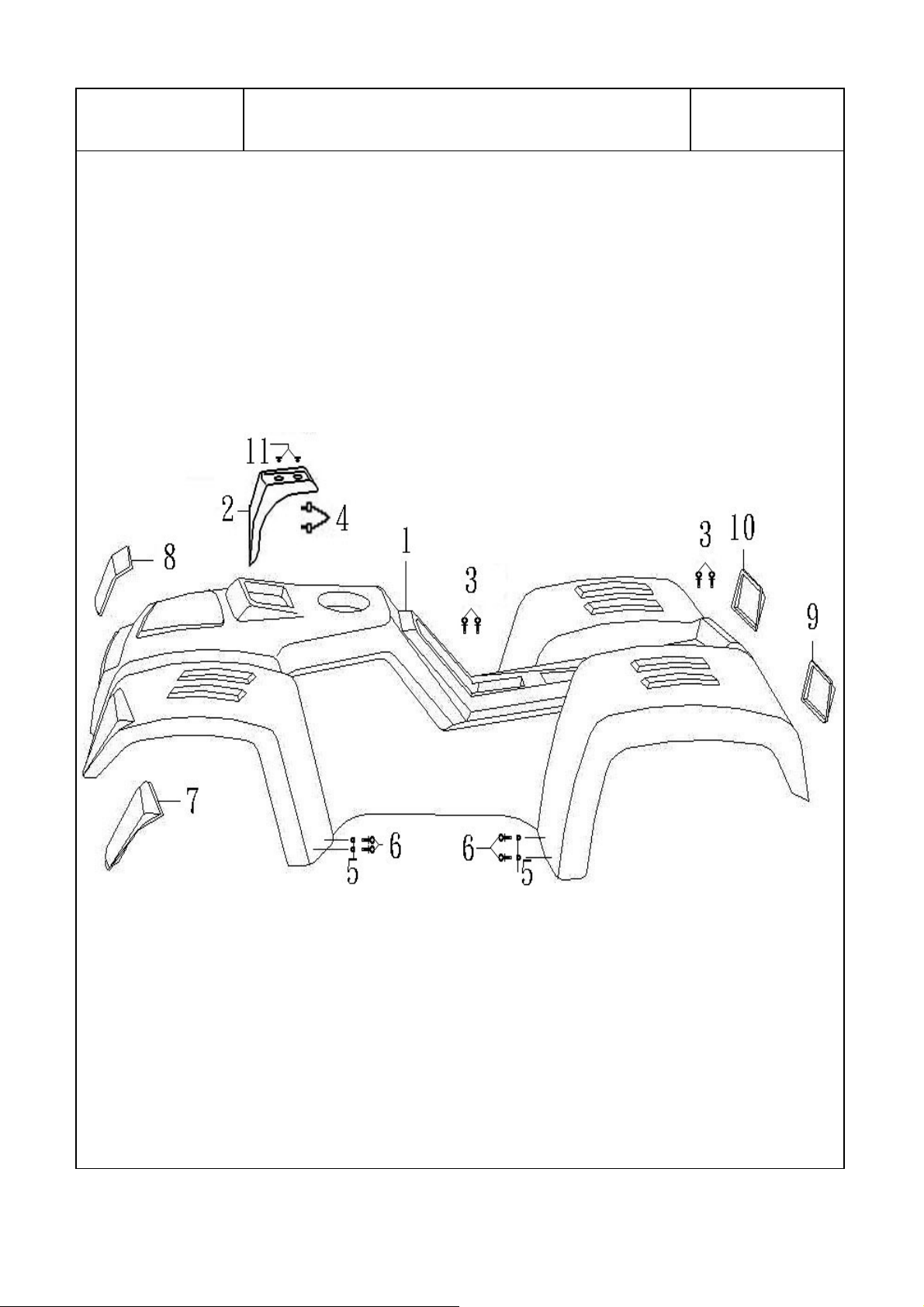

F2 SIDE COVER

MINI 50

37

CPI MOTORCYCLE

F2 SIDE COVER

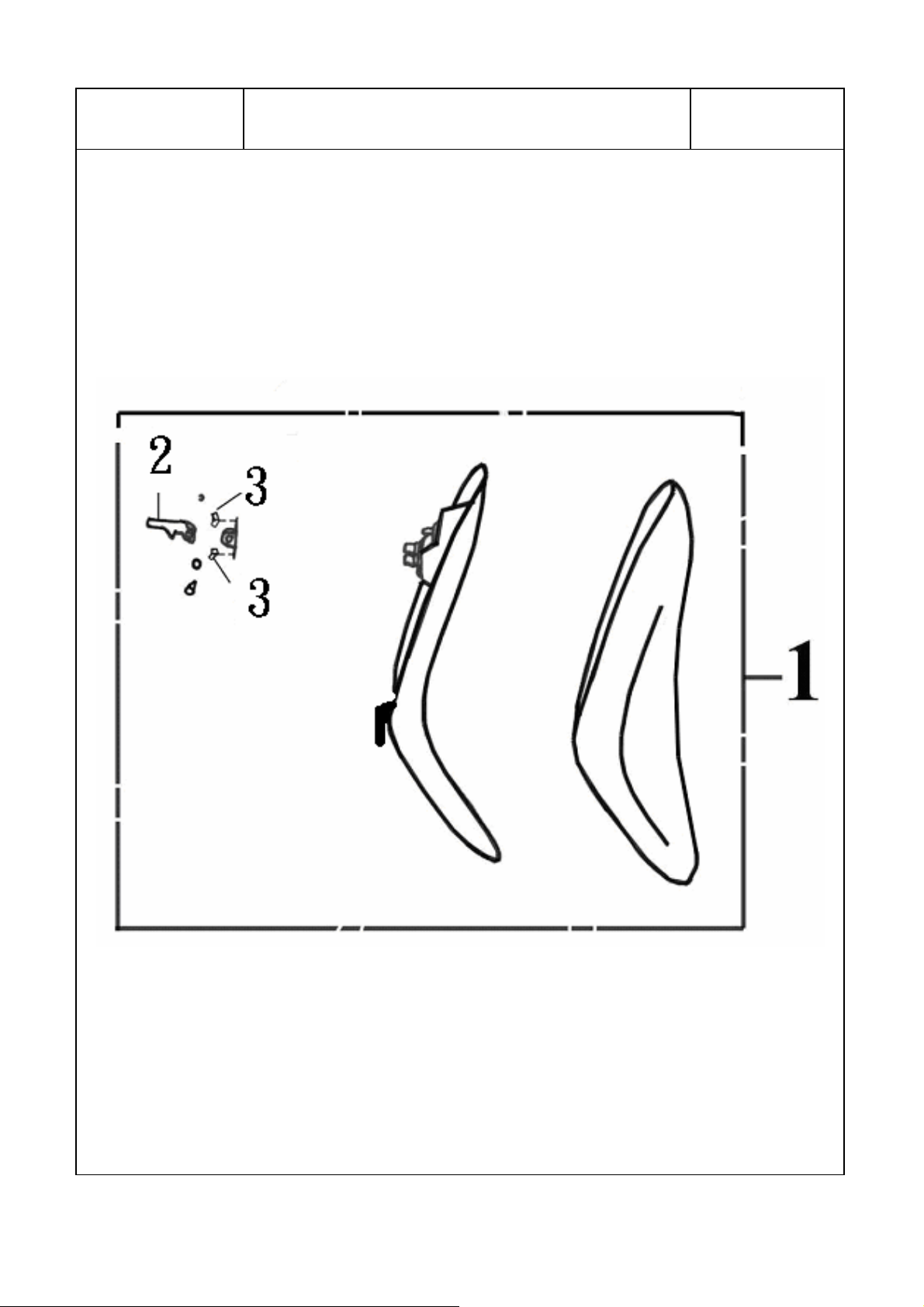

ITEM PARTS NO. DESCRIPTION

1 A05-63111-00-** LEG SHIELD 1

2 A05-62316-00-** METER VISOR ASSY 1

3 S-3404-06012-03 BOLT W/WASHER 6X12 4

4 S-3915-04008-01 TAPPING SCREW 4X8 2

5 S-3530-06018-77 PAN HEAD SCREW 6X18 8

6 S-4051-06000-13 FLANGE U NUT 6MM 8

7 A05-63119-00-00 COVER,1 1

8 A05-63129-00-00 COVER,2 1

9 A05-63139-00-00 COVER,3 1
10 A05-63149-00-00 COVER,4 1
11 F01-62332-00-00 BLND PLOG 2

Please refer to below to know the colour code of plastic cover, thanks.
EX: Black side cover,1=A05-63111-00-65

REQD. NO.

MINI 50

※

The colour code of plastic cover

Colour

Painted

Code

Original

Code

Red Yellow Blue Black Silver Orange Green

■ ■ ■ ■ ■ ■

10 24 43 63 78 80 3B

■ ■ ■ ■ ■

1D 22 4B 65 78 X 39 29 00

Light
yellow

■ ■ □

Source

38

CPI MOTORCYCLE

F3 FUEL TANK

MINI 50

39

CPI MOTORCYCLE

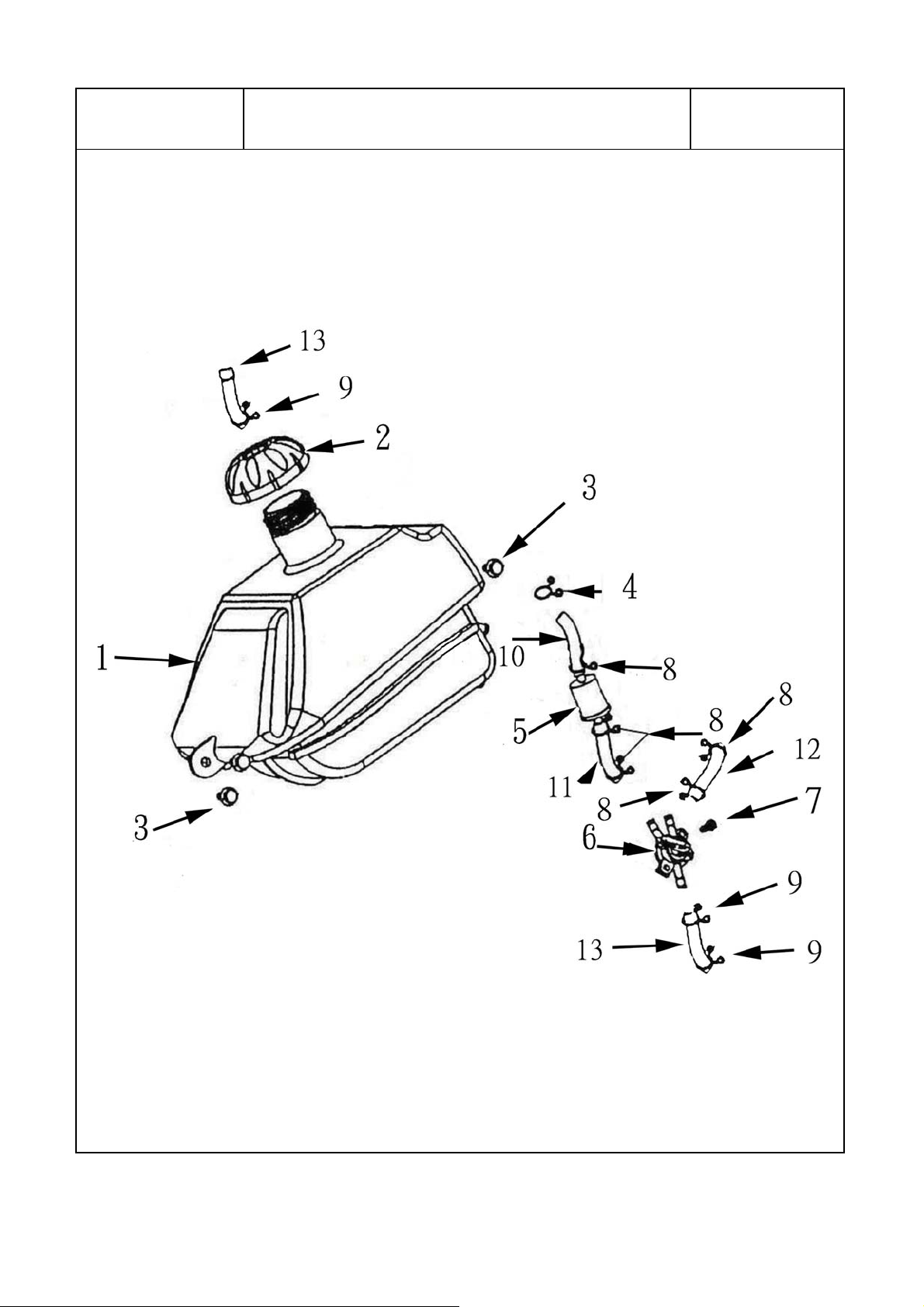

F3 REAR SUSPENSION

ITEM PARTS NO. DESCRIPTION

1 A04-52110-00-00 FUEL TANK COMP. 1

2 A04-52211-00-00 FUEL TANIC CAP COMP. 1

3 S-3404-06020-04 BOLT W/WASHER 6X20 2

4 A-4204-08120-00 TUBE CLIP B 12MM 1

5 B11-52410-00-00 FUEL FILTER ASSY. 1

6 T36-52310-00-00 FUEL COCK ASSY. 1

7 S-5800-06012-04 FLANGE BOLT 6X12 1

8 A-4202-12900-00 CLIP 5

9 A-4202-08090-00 CLIP 3

10 T36-52371-00-00 FUEL HOSE,1 1
11 A04-52372-00-00 FUEL HOSE,2 1
12 A04-52373-00-00 FUEL HOSE,3 1
13 T36-52377-00-00 VACUUM HOSE 2

REQD. NO.

MINI 50

40

CPI MOTORCYCLE

F4 SUSPEN SION

MINI 50

41

CPI MOTORCYCLE

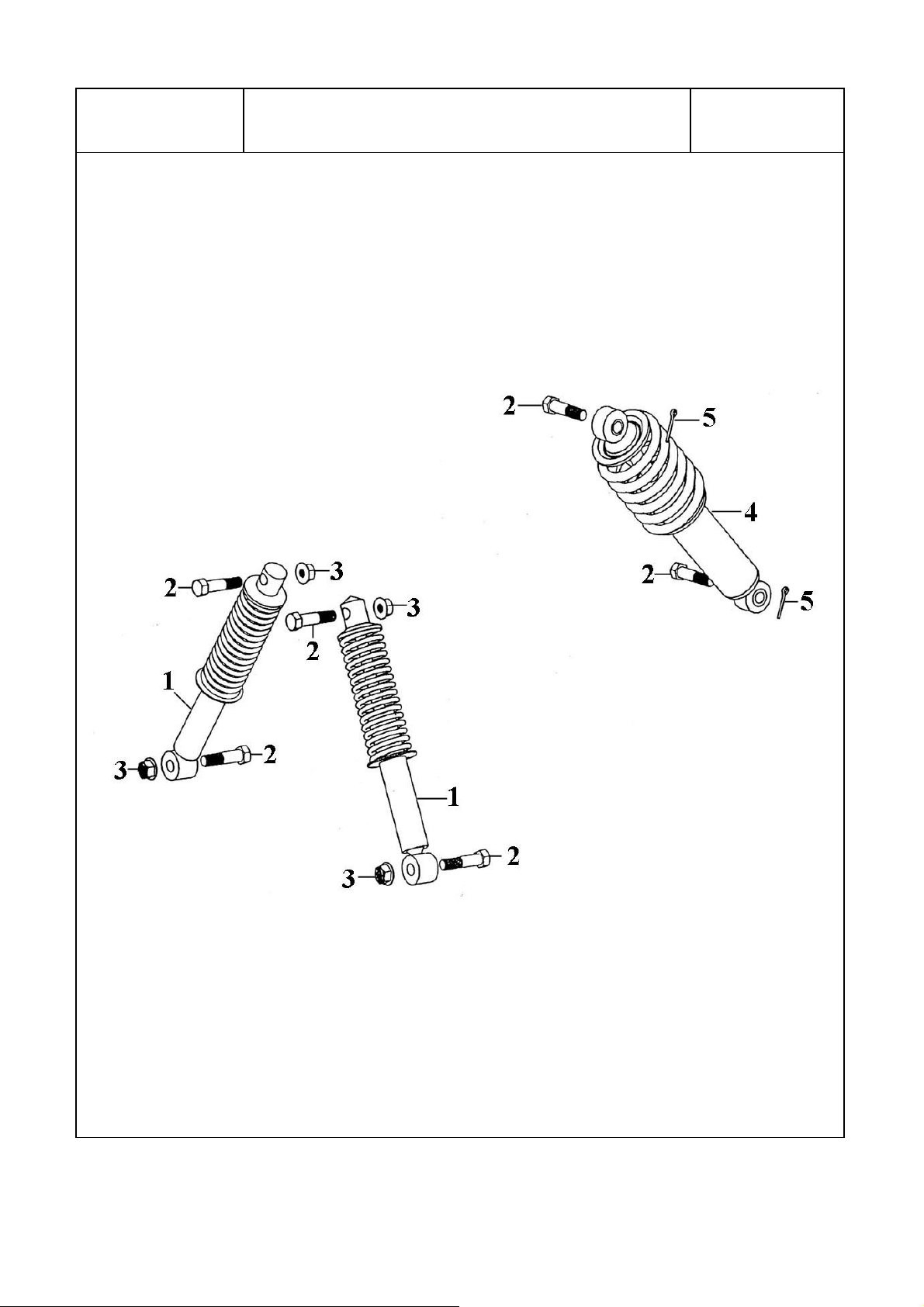

F4 SUSPEN SION

ITEM PARTS NO. DESCRIPTION

1 A04-47210-00-00 FR. SHOCK ABSORBER ASSY. 2

2 S-5827-10040-04 BOLT W/HOLE 10X14 6

3 S-4061-10000-03 FLANGE U NUT 10MM 4

4 A04-48210-00-00 RR. SHOCK ABSORBER ASSY. 1

5 S-4251-12221-00 SPLIT PIN 1.2X22 2

REQD. NO.

MINI 50

42

CPI MOTORCYCLE

F5 STEERING

MINI 50

43

CPI MOTORCYCLE

F5 STEERING

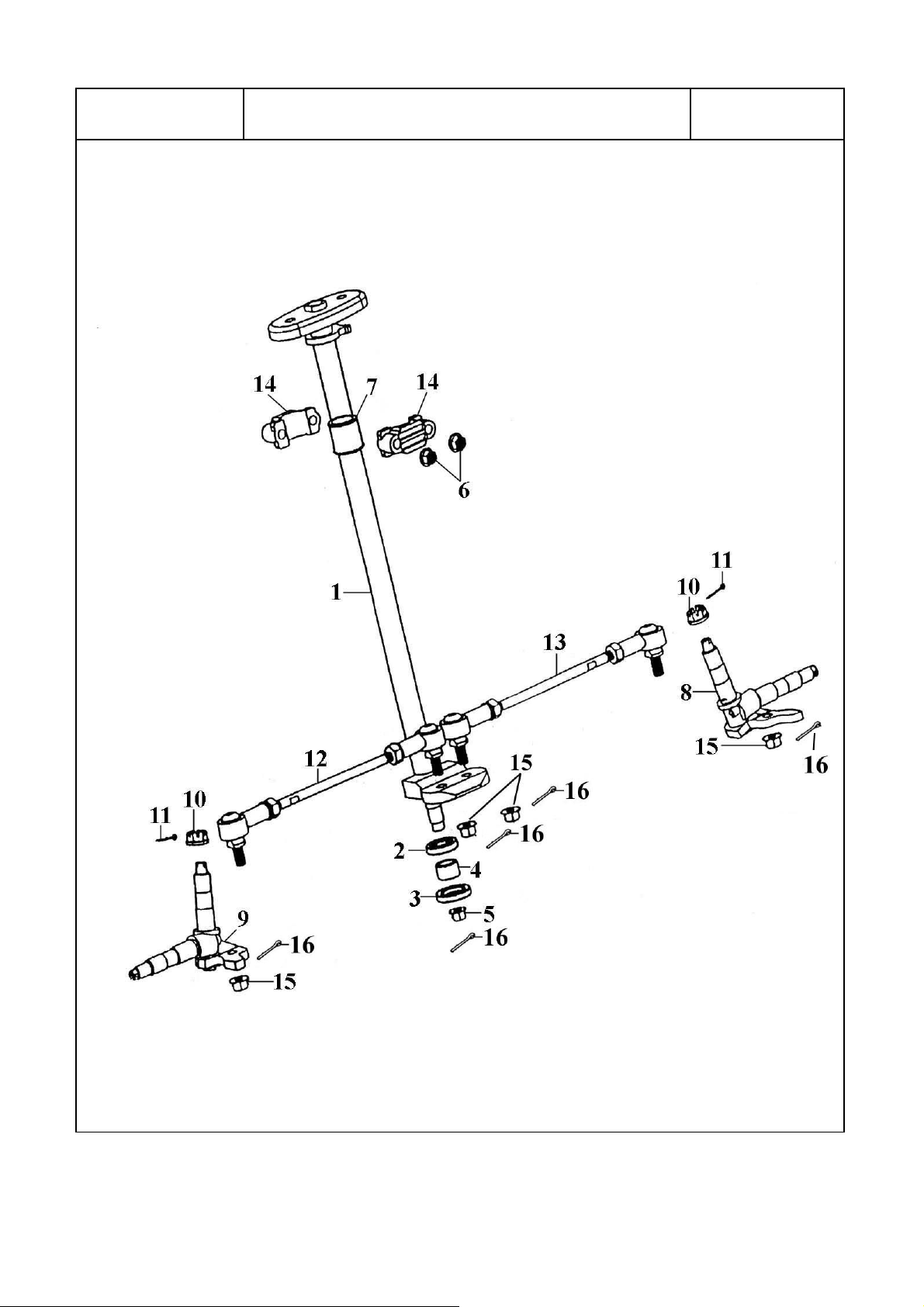

ITEM PARTS NO. DESCRIPTION

REQD. NO.

MINI 50

1 A04-62140-00-00 SHAFT STEERING 1

2 S-1201-18032-70 OIL SEAL 18X32X7 1

3 S-1201-22035-70 OIL SEAL 22X35X7 1

4 B11-45446-00-00 COLLAR 1

5 S-4061-14000-01 FLANGE U NUT 14MM 1

6 S-4051-08000-03 FLANGE NUT 8MM 2

7 B11-62158-00-00 SLEEVE 1

8 B11-62144-00-00 KNUCKLE,1 1

9 B11-62154-00-00 KNUCKLE,2 1
10 B11-62168-00-00 NUT 10MM 2
11 S-4201-18213-03 SPLIT PIN 1.8X21.3 2

12 A04-62143-10-00 STEERING TIE. ROD. ASSY,2 1
13 A04-62143-10-00 STEERING TIE. ROD. ASSY,1 1

14 B11-62146-00-00 HOLDER, STEERING SHAFT 2
15 S-4060-10000-03 FLANGE U NUT 10MM 4
16 S-4251-12221-00 SPLIT PIN. 5

44

CPI MOTORCYCLE

F6 SEAT ASSY.

MINI 50

45

CPI MOTORCYCLE

F6 SEAT ASSY

ITEM PARTS NO. DESCRIPTION

1 A04-66111-00-00 DOUBLE SEAT ASSY. 1

2 B11-66131-00-00 SEAT CATCH COMP. 1

3 S-4050-06000-01 FLANGE NUT 6MM 2

REQD. NO.

MINI 50

46

CPI MOTORCYCLE

F7 FRONT WHEEL

MINI 50

47

CPI MOTORCYCLE

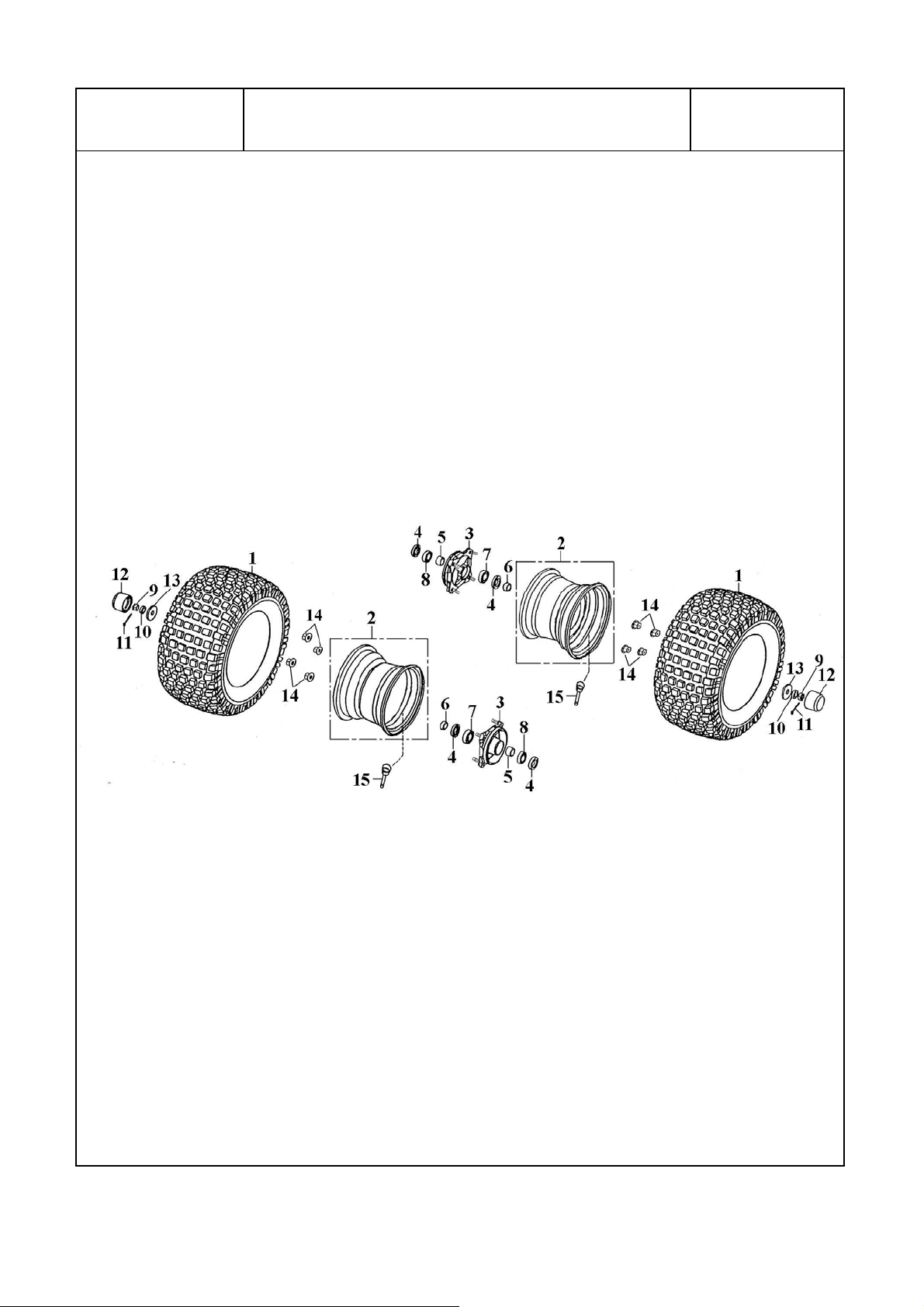

F7 FRONT WHEEL

ITEM PARTS NO. DESCRIPTION

1 B11-43311-00-00 TIRE 16X8-7 2

2 B11-43210-00-00 WHEEL COMP. 7X5.2 2

3 B11-45442-00-00 FRONT BRAKE DROM 2

4 S-1201-22035-70 OIL SEAL 22X35X7 4

5 B11-45446-00-00 COLLAR 2

6 B11-45456-00-00 COLLAR 2

7 S-6120-06002-10 BALL BEARING 6002Z 2

8 S-6120-06003-10 BALL BEARING 6003Z 2

9 B11-43266-00-00 CASTLE NUT 12MM 2
10 B11-43257-00-00 WASHER 2
11 S-4201-22305-03 SPLIT PIN 2.2X30.5 2
12 B11-43268-00-00 ROBBER CAP 2
13 B11-43256-00-00 WASHER 2
14 S-4061-10000-03 FLANGE BOLT 8
15 B11-43322-00-00 RIM VALVE 2

REQD. NO.

MINI 50

48

CPI MOTORCYCLE

F8 FRONT BRAKE

MINI 50

49

CPI MOTORCYCLE

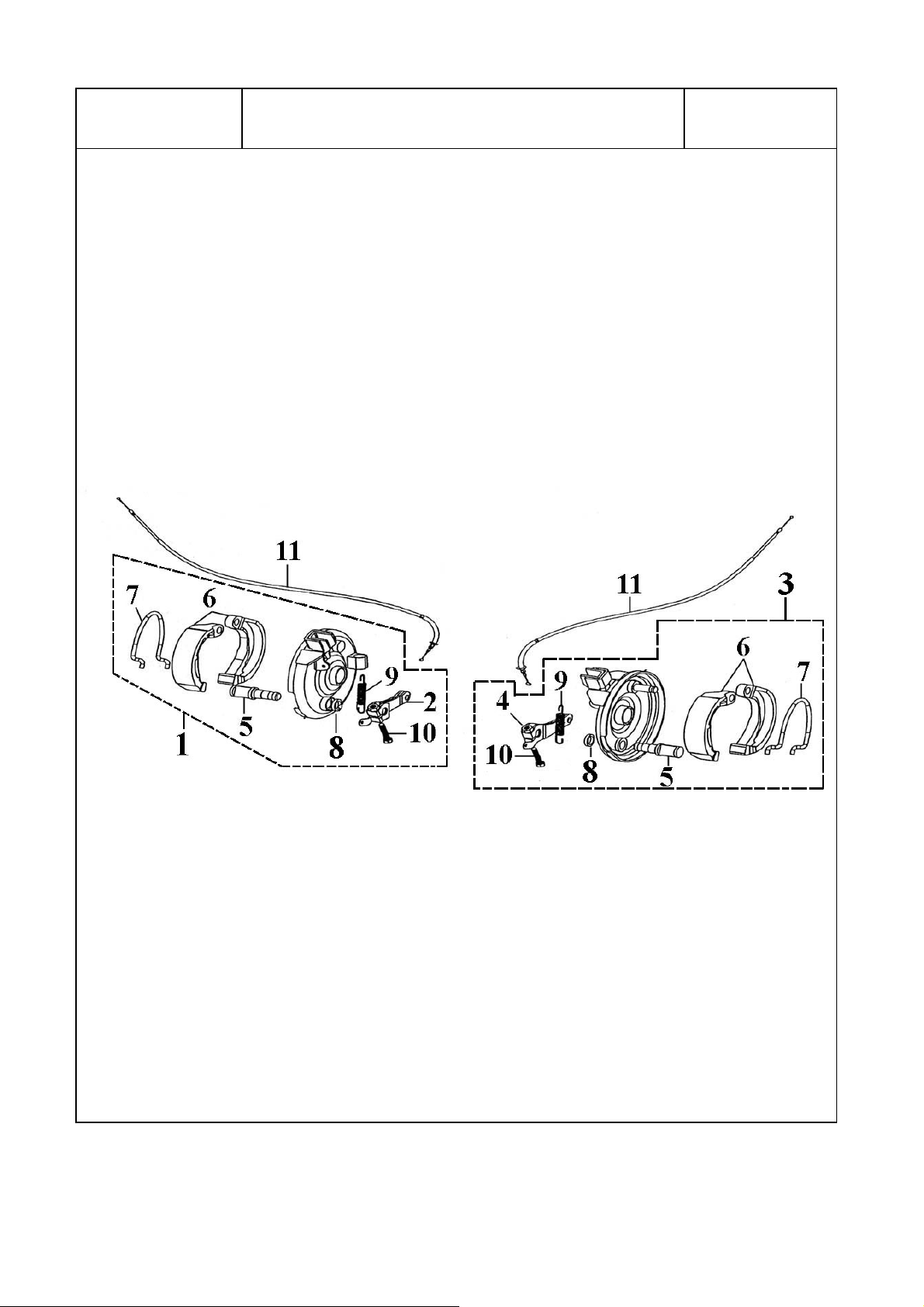

F8 FRONT BRAKE

ITEM PARTS NO. DESCRIPTION

1 A04-45450-00-00 FRONT BRAKE PANEL ASSY,RI 1

2 B11-45612-00-00 CAM SHAFT LEVER,2 1

3 A04-45440-00-00 FRONT BRAKE PANEL ASSY,LE 1

4 B11-45611-00-00 CAM SHAFT LEVER,1 1

5 B11-45621-00-00 CAM SHAFT,1 2

6 B11-45420-00-00 BRAKE SHOE KIT 2

7 B11-45461-00-00 SPRING 2

8 B11-45638-00-00 DUST SEAL 2

9 A04-45635-00-00 TENSION SPRING 2
10 B11-45616-00-00 BOLT 5X23 2
11 A04-58111-00-00 BRAKE CABLE,1 2

REQD. NO.

MIMI 50

50

CPI MOTORCYCLE

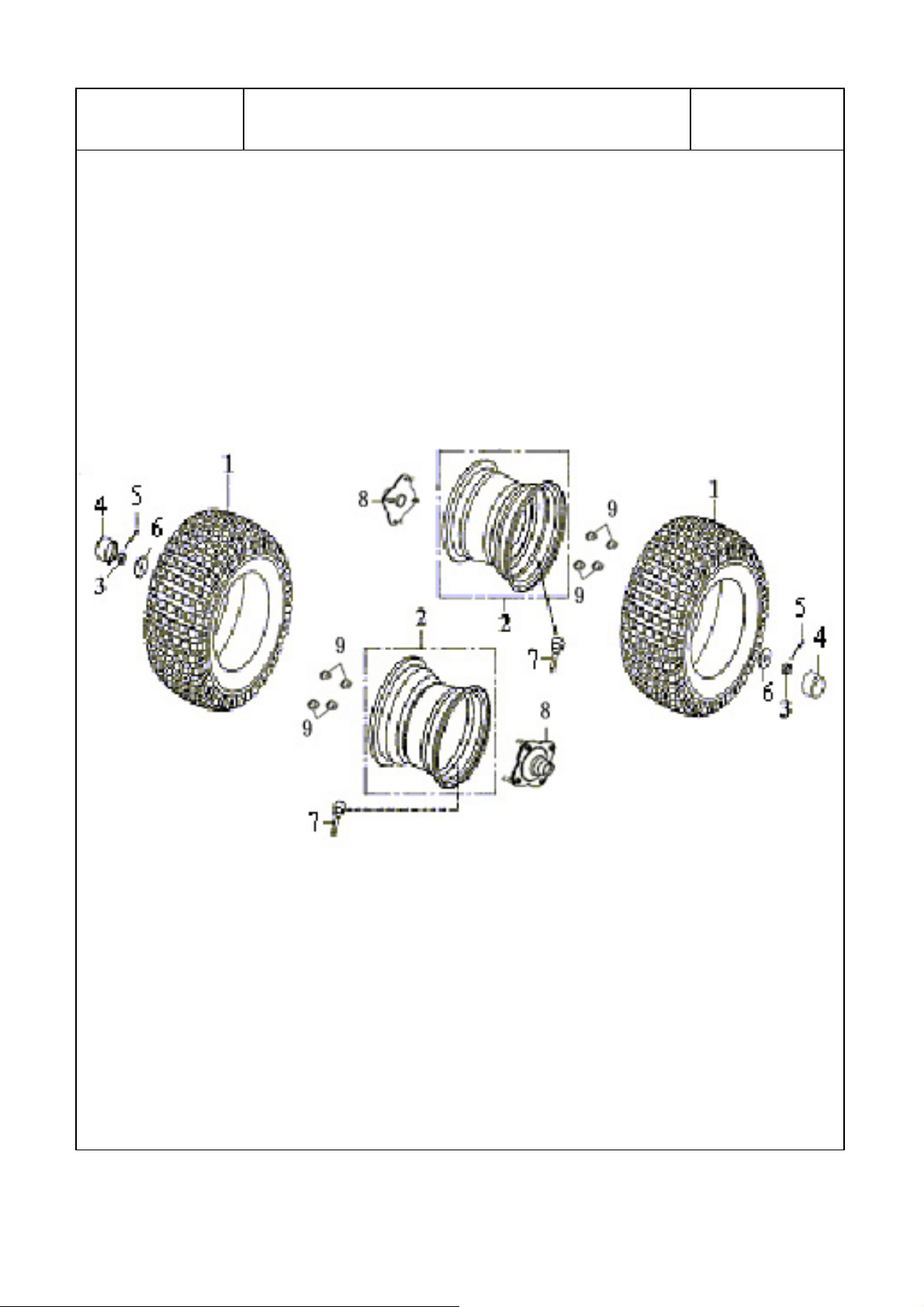

F9 REAR WHEEL

MINI 50

51

CPI MOTORCYCLE

F9 REAR WHEEL

ITEM PARTS NO. DESCRIPTION

1 B11-43311-00-00 TIRE 16X8-7 2

2 B11-43210-00-00 WHEEL COMP. 7X5.2 2

3 F01-44266-00-00 CASTLE NUT 14MM 2

4 B11-43268-00-00 ROBBER CAP 2

5 S-4201-22305-03 SPLIT PIN 2.2X30.5 2

6 B11-44256-00-00 WASHER 2

7 B11-43322-00-00 RIM VALVE 2

8 A04-44223-00-00 REAR WHEEL CONNECTER 2

9 S-4061-10000-03 FLANGE U NUT 8

REQD. NO.

MINI 50

52

CPI MOTORCYCLE

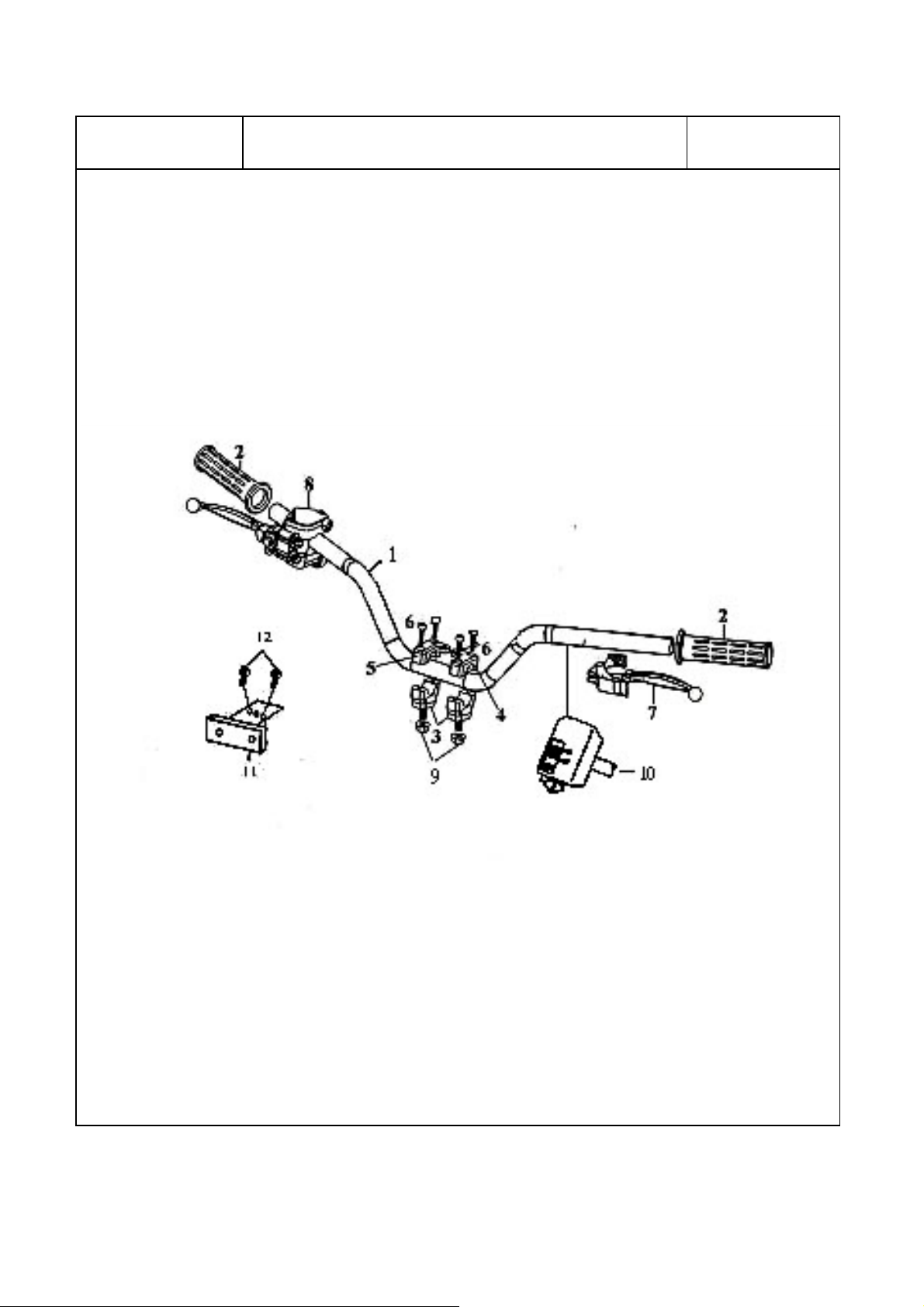

F10 HANDLE BAR

MINI 50

53

CPI MOTORCYCLE

F10 HANDLE BAR

ITEM PARTS NO. DESCRIPTION

1 A04-62110-00-00 HANDLE COMP. 1

2 A04-62251-00-00 GRIP 2

3 B11-62146-00-00 HOLDER,STEERING SHAFT 2

4 B11-62225-00-00 HANDLE HOLDER COVER,1 1

5 B11-62235-00-00 HANDLE HOLDER COVER,2 1

6 S-6700-06025-01 SOCKET BOLT 6X25 4

7 A04-27750-00-00 LEVEL ASSY. LEFT 1

8 A04-27850-00-00 LEVEL ASSY. RIGHT 1

9 S-4061-10000-03 FLANGE U NUT 10MM 1
10 A05-27700-00-00 LEFT HANDLE SWITCH ASSY. 2
11 A05-62325-00-00 HANDLE COVER STAY 1
12 S-6000-06012-70 FLANGE BOLT 6X12 2

REQD. NO.

MINI 50

54

CPI MOTORCYCLE

F11 REAR BRAKE

MINI 50

55

CPI MOTORCYCLE

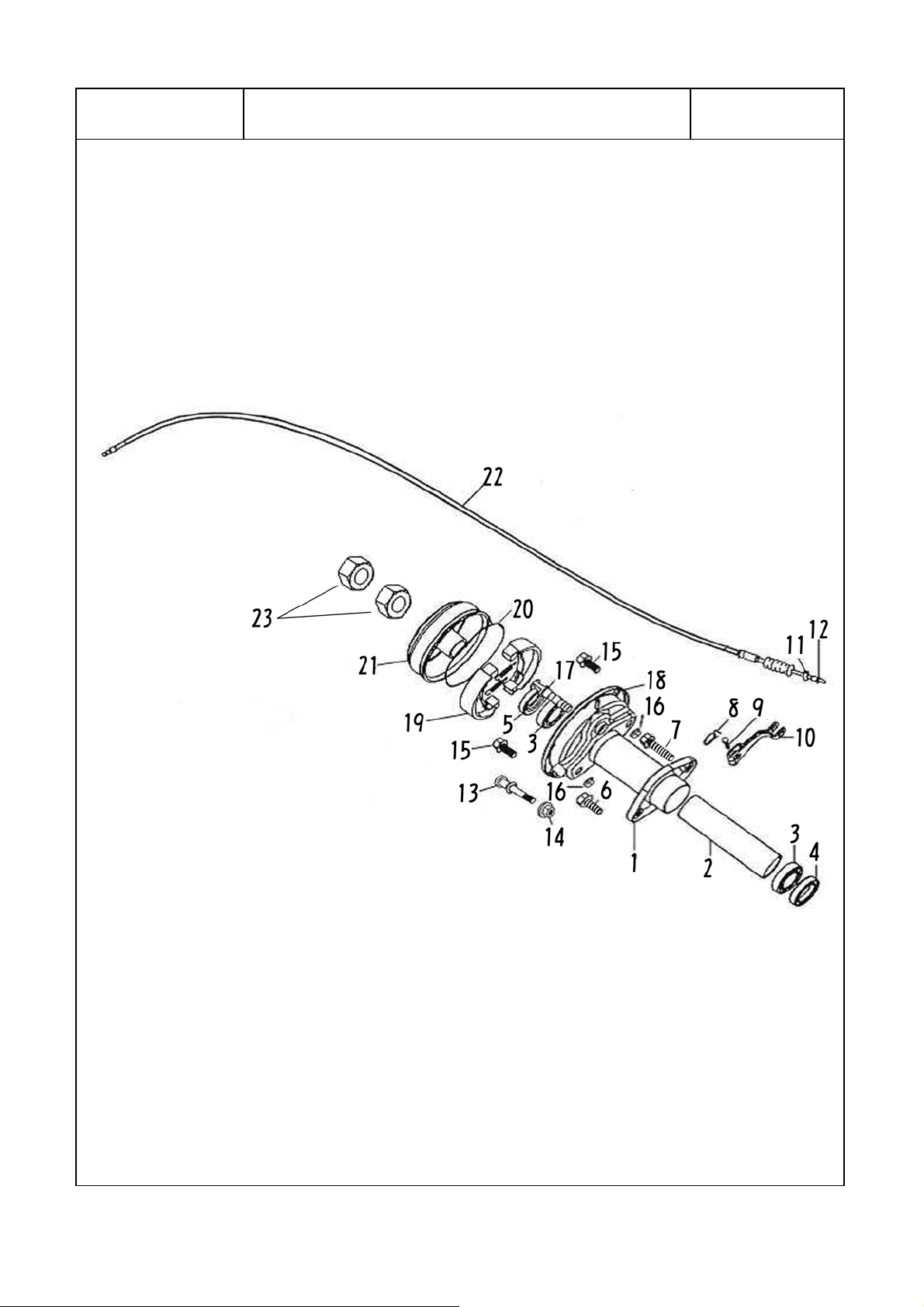

F11 REAR BRAKE

ITEM PARTS NO. DESCRIPTION

1 A04-44521-00-00 REAR WHEEL AXLE SEAT 1

2 A04-44522-00-00 SPACER TUBE 1

3 S-6120-06006-20 BALL BEARING 6006ZZ 2

4 S-1201-40055-10 OIL SEAL 40X55X10 1

5 S-1201-35055-11 OIL SEAL 35X55X11 1

6 S-5800-12028-02 FLANGE BOLT 12X28 1

7 S-5800-12040-02 FLANGE BOLT 12X40 1

8 B11-46635-00-00 TENSION SPPING 1

9 S-2201-06030-04 HEX. BOLT 6X30 1
10 B11-46611-00-00 CAM SHAFT LEVER,2 1
11 B01-58274-00-00 PIN 1
12 B01-58264-00-00 ADJUSTING NUT 1
13 B11-46441-00-00 BRAKE SHOE ANCHOR PIN 1
14 S-4001-08000-01 HEX. NUT 8MM 1
15 S-2000-12050-02 NEX.BOLT 12X50 2
16 S-4060-12000-03 FLANGE NUT 12MM 2
17 B11-46621-00-00 CAM SHAFT,2 1
18 B11-46411-00-00 RAER BRAKE PANEC COMP 1
19 B11-46420-00-00 BRAKE SHOE KIT 1
20 B11-46445-00-00 BUST SEAL 1
21 B11-46412-00-00 REAR BRAKE DRUM 1
22 A04-58210-10-00 BRAKE CABLE 1
23 A04-44518-00-00 REAR WHEEL AXLE FLANGE NUT 2

REQD. NO.

MINI 50

◎2005-03-10 因車架課改變鎖附方式，故新增第 6 項 S-5800-12040-02 六角緣面螺
絲 1 pcs。

56

CPI MOTORCYCLE

F12

SWING ARM

MINI 50

FOOTREST/FEND BAR

57

CPI MOTORCYCLE

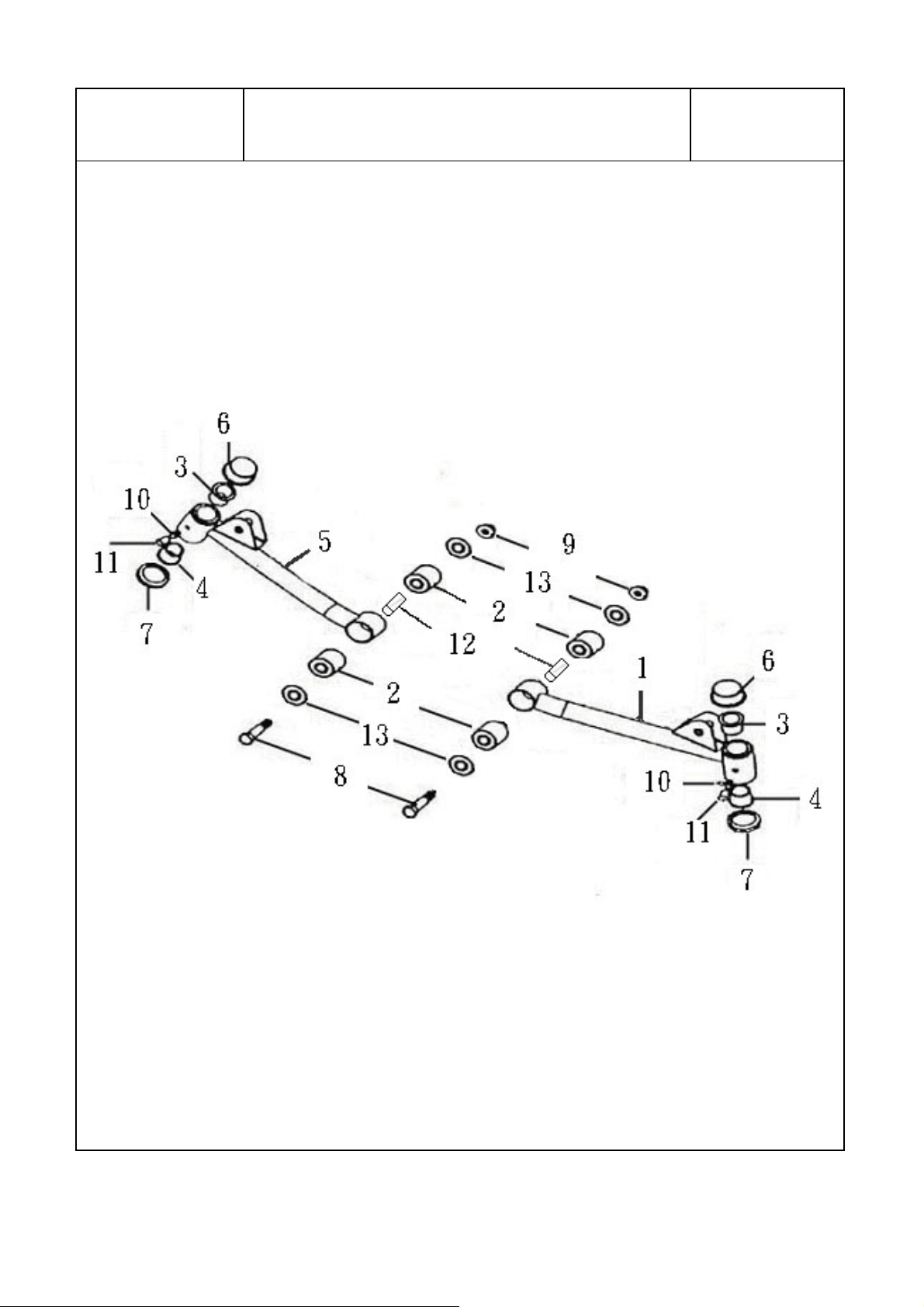

F12 SWING ARM/FOOTREST/FEND BAR

ITEM PARTS NO. DESCRIPTION

1 A04-47311-00-00 FRONT SWING ARM,1 1

2 A01-47357-00-00

BUSH CONTAIN OIL,1
3 B11-47357-10-00 BUSH CONTAIN OIL,1 2
4 B11-47358-10-00 BUSH CONTAIN OIL,2 2
5 A04-47321-00-00 FROUT SWING ARM,2 1
6 B11-47329-00-00 WATER PROOF COVER 2
7 B11-47336-00-00 DUST SEAT 2
8 S-5801-10080-02 FLANGE BOLT 10X80 2
9 S-4061-10000-03 FLANGE U NUT 10MM 2

10 B11-47367-00-00 GREASE VALVE 4
11 B11-47368-00-00 GREASE VALVE CAP 4
12 A01-47337-00-00 COLLAR 2
13 A01-47336-00-00 DUST SEAL 4

REQD. NO.

MINI 50

4

58

CPI MOTORCYCLE

F13 MUFFLER ASSY.

MINI 50

59

CPI MOTORCYCLE

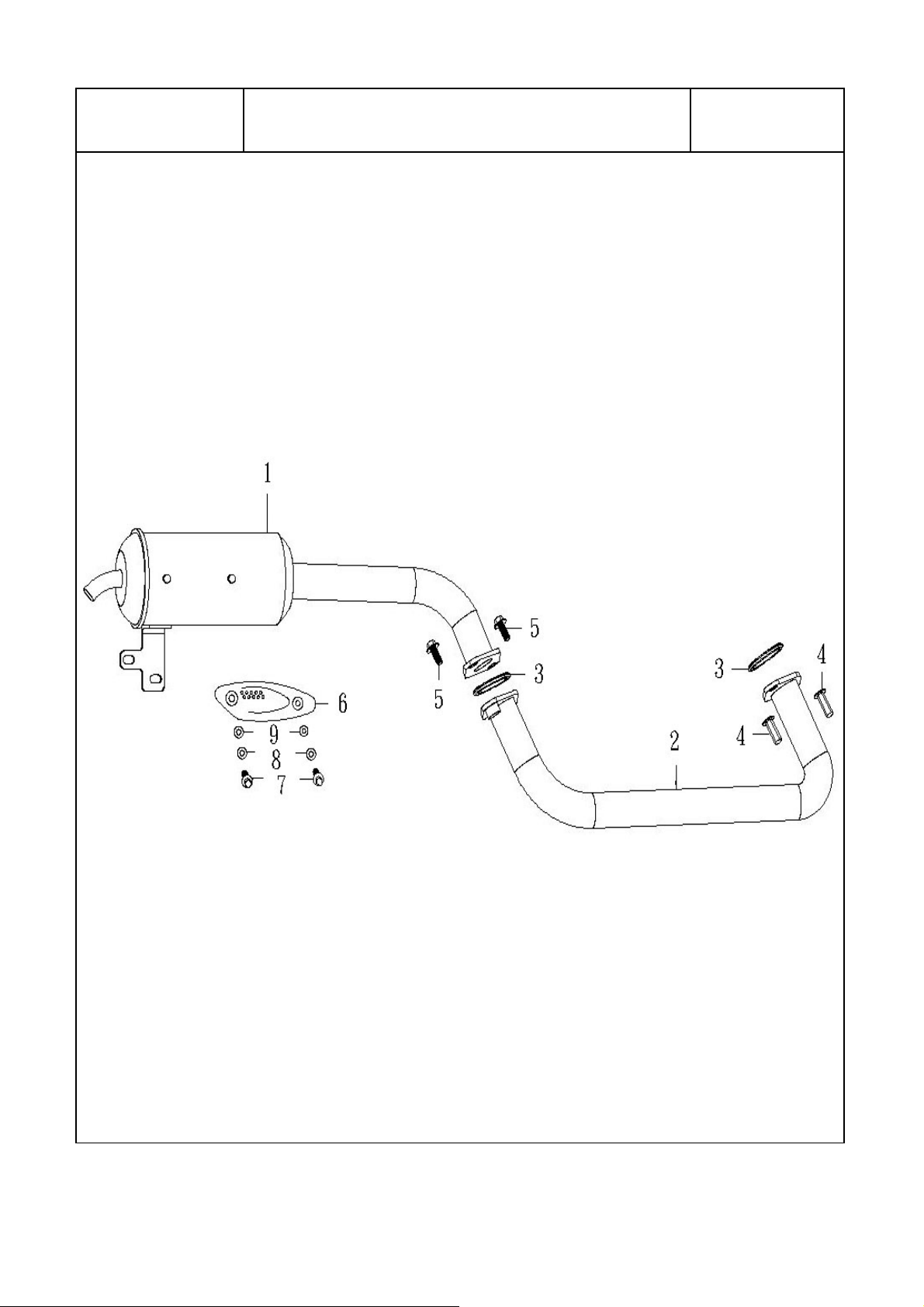

F13 MUFFLER ASSY.

ITEM PARTS NO. DESCRIPTION

1 A04-18201-10-00 EXHAUST MANIFOLD 1

2 A04-18211-00-00 MUFFLER 1
3 B03-18131-00-00 EXHAUST PIPE GASKET 1
4 B03-18138-00-00 NUT 6MM 2
5 S-5800-06025-04 FLANGE BOLT 6X25 2
6 A04-18111-00-00 MUFFLER PROTECTOR,1 1
7 S-6000-06012-70 FLANGE BOLT 6X12 2
8 S-4101-06083-70 PLATE WASHER 6MM 2
9 S-4101-06084-90 PLATE WASHER 6MM 2

REQD. NO.

MINI 50

◎2005-02-17 車架課-林弘基發內部聯絡單設變 A04 車架、排氣管、後輪軸。

60

CPI MOTORCYCLE

F14 ELECTRICAL PARTS

MINI 50

61

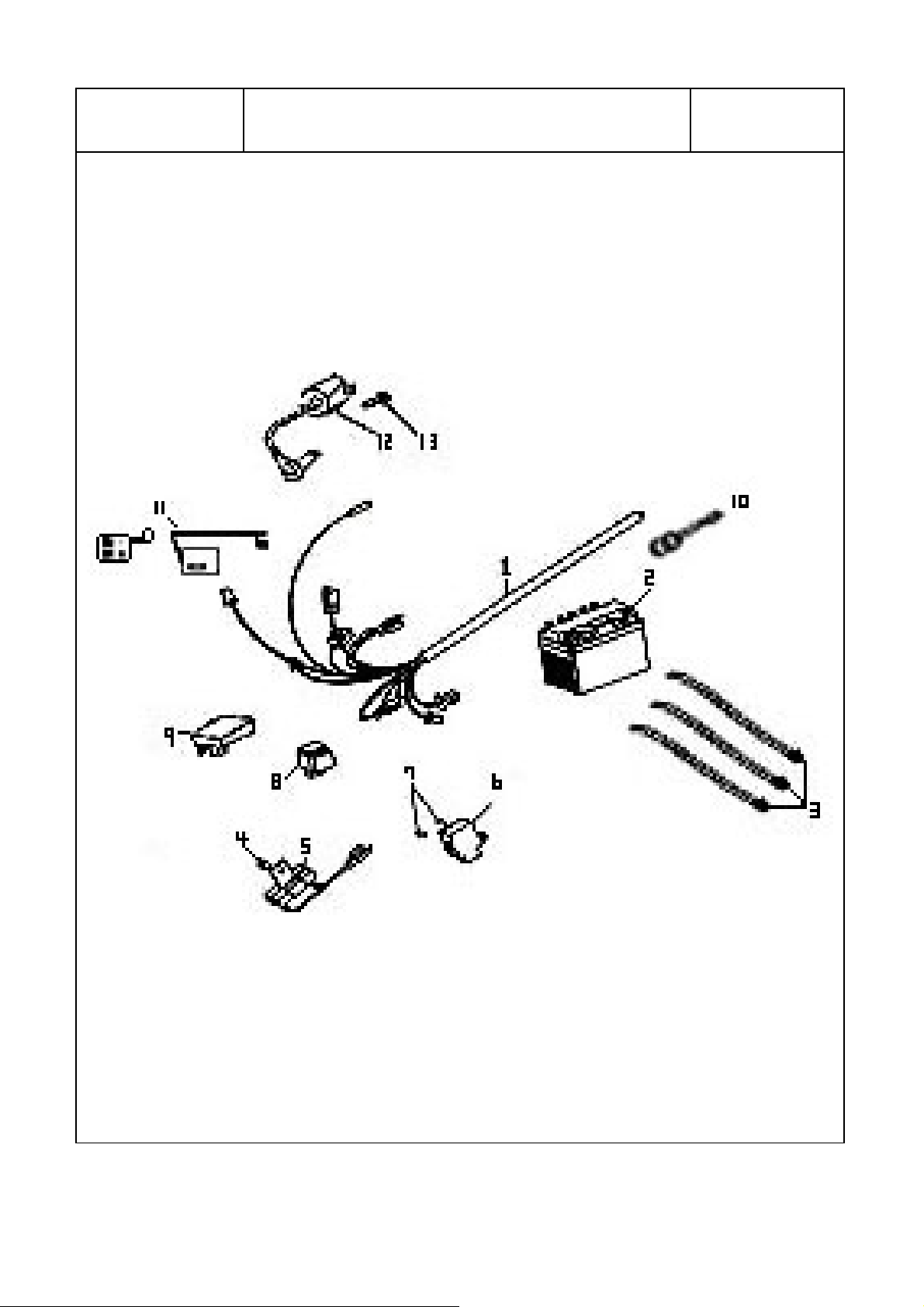

CPI MOTORCYCLE

F14

ITEM PARTS NO. DESCRIPTION

1 A05-23610-00-00 WIRE HARNESS ASSY. 1
2 B01-23410-00-00 BATTERY ASSY. 1
3 A-4402-02502-01 BAND 3
4 S-3500-06012-03 PAN HEAD SCREW 6X12 1
5 B01-28410-00-00 RESISTOR COMP. 1
6 61A-21310-00-00 REG. REC. COMP. 1
7 S-3500-05012-03 PAN HEAD SCREW 5X12 2
8 83A-28310-00-00 STARTER RELAY ASSY. 1
9 F01-23110-00-00 C.D.I. ASSY. 1

10 B11-56212-00-00 SAFETY SWITCH. 1
11 A04-27110-00-00 REMOTER ASSY. 1
12 83A-23140-00-00 INGIN TION COIL ASSY. 1
13 S-5800-06025-04 FLANGE BOLT 6X25 1

ELECTRICAL PARTS

REQD. NO.

MINI 50

62

CPI MOTORCYCLE

F15 REAR WHEEL AXLE

MINI 50

63

CPI MOTORCYCLE

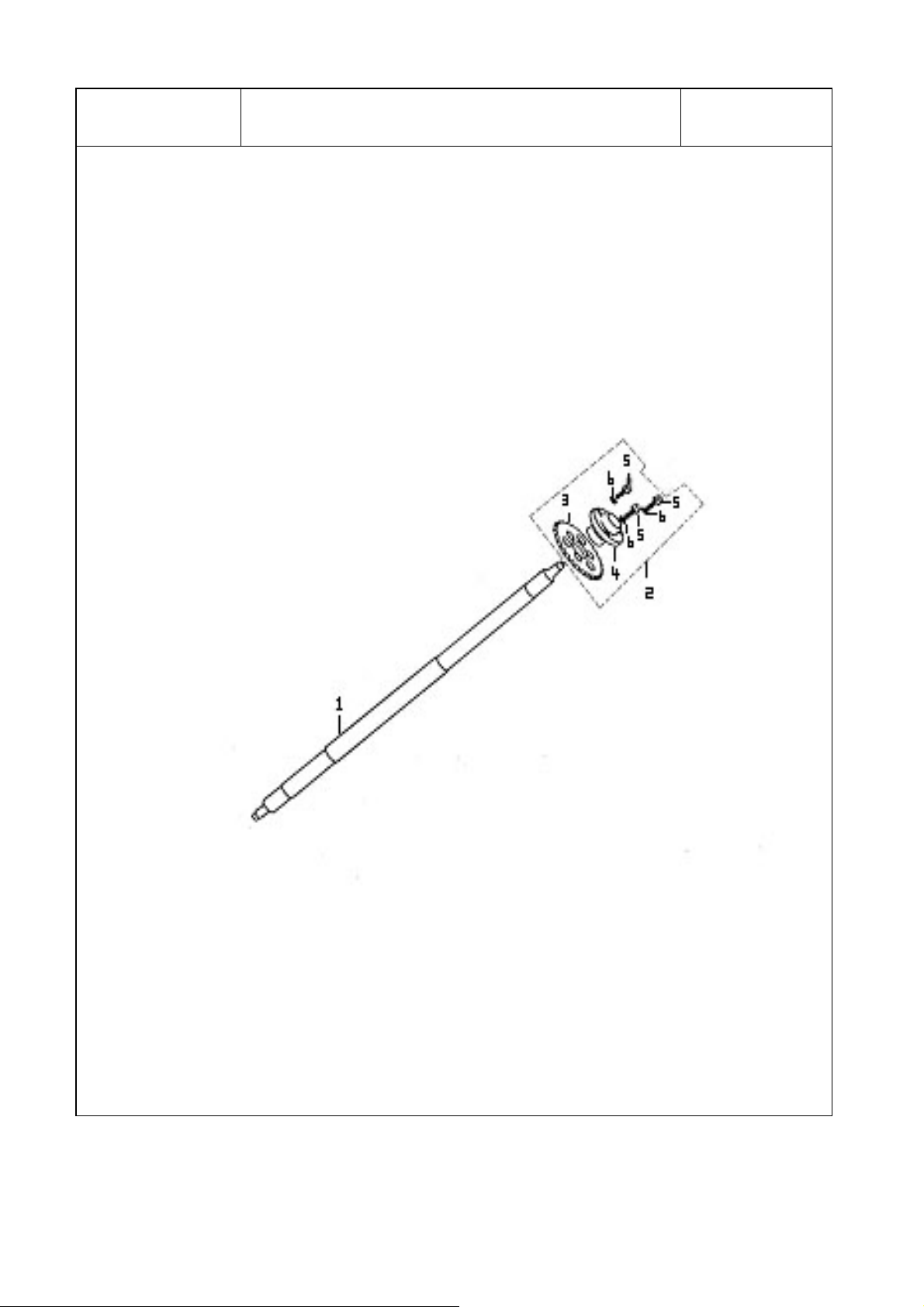

F15 REAR WHEEL AXLE

ITEM PARTS NO. DESCRIPTION

1 A04-44511-20-00 REAR WHEEL AXLE 1

2 A04-16950-00-00 SPROCKET ASSY 1
3 A04-16930-00-00 SPROCKET 35T 1
4 A04-16955-00-00 SPROCKET HOLDER 1
5 S-5800-08020-02 FLANGE BOLT 8X20 3
6 S-4111-08145-33 SPPING WASHER 8MM 3

◎2005-02-17 車架課-林弘基發內部聯絡單設變 A04 車架、排氣管、後輪軸。

2005◎ -09-14 ITEM1 進階為 A04-44511-20-00。

REQD. NO.

MINI 50

64

CPI MOTORCYCLE

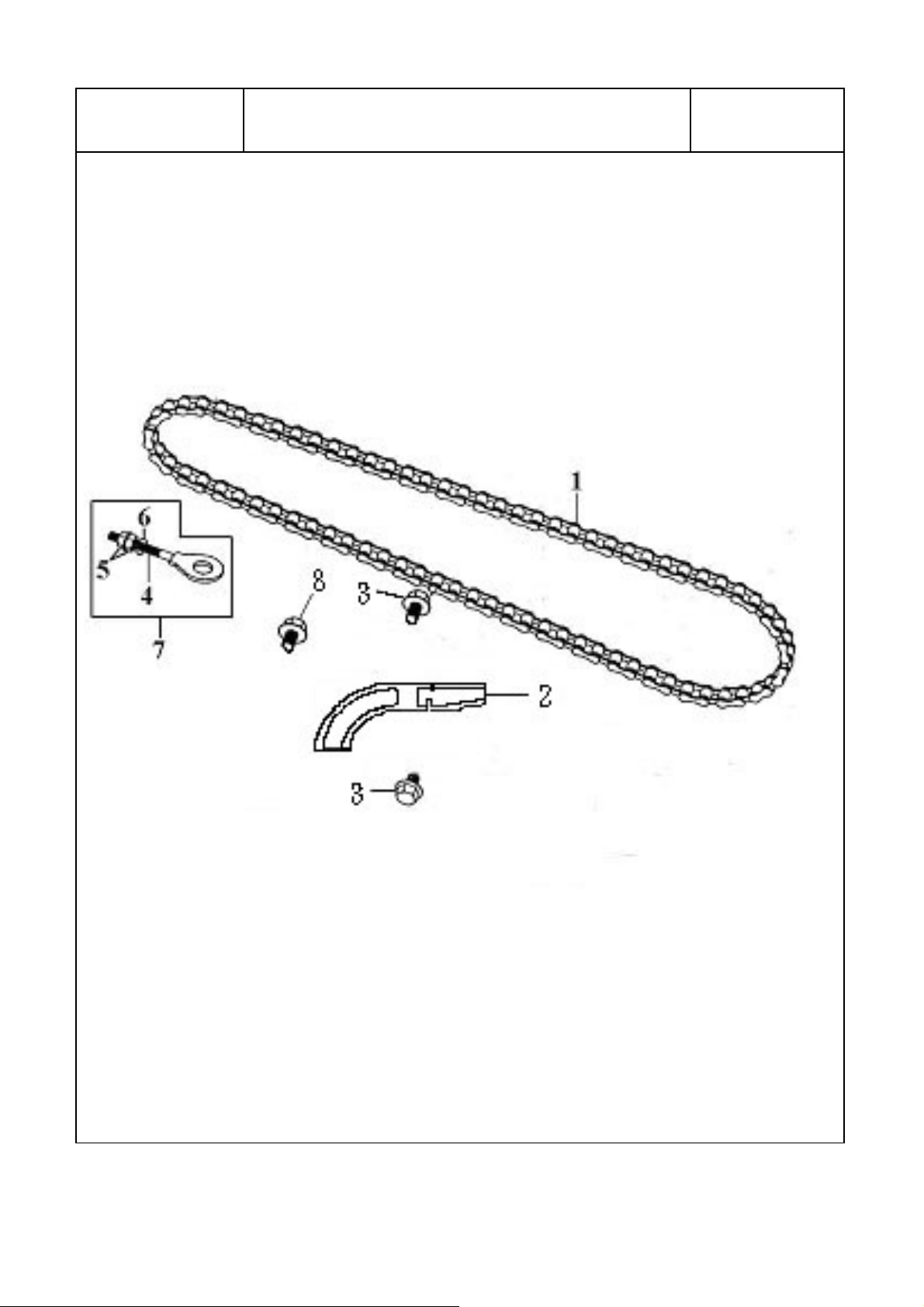

F16 CHAIN

MINI 50

65

CPI MOTORCYCLE

F16 CHAIN

ITEM PARTS NO. DESCRIPTION

1 A04-16960-00-00 DRIVE CHAIN 420X60 1
2 A04-16941-00-00 CHAIN CASE 1
3 S-5800-08012-02 FLANGE BOLT 8X12 2
4 A04-46471-00-00 CHAIN ADJUSTER 1
5 S-4001-06000-01 HEX. NUT 6MM 2
6 S-4101-06131-01 WASHER 2
7 A04-46470-00-00 CHAIN ADJUSTER ASSY, 1
8 S-5800-08014-02 FLANGE BOLT 8X14 1

REQD.NO.

MINI 50

66

CPI MOTORCYCLE

...

67

CPI MOTORCYCLE
