TM
DIGITAL HIGHLIGHTER
Capture text
Share & Collaborate
Listen
Go to
www.cpen.com/connect
for complete user guide and
app download

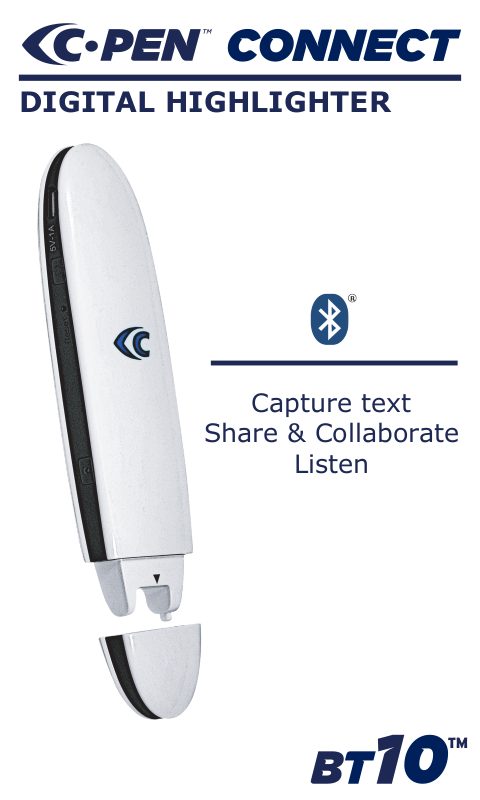

THE DEVICE
④
③
⑤
⑥
②
⑦
⑧
① Protective cap
② The pen body
③ Indicator light
④ USB charging port: power supply through
USB data cable.
⑤ Power key: power on/off, wake-up from
sleep.
⑥ Reset key: Forced power off.
⑦ Function key: Press the key to enter the
user-defined key value (as programmed in
the host app).
⑧ Scan position indication: Align the arrow to
the line of text to be scanned during
scanning.
⑨ Scan trigger switch: Scan light lits up when
pressed.
①
⑨
GET STARTED
C-PEN Connect/BT10 is a Bluetooth
handheld text scanner/digital highlighter
with which printed text easily can be
captured, recognised and transferred to a
host device (computer/smartphone/tablet).
To function, BT10 needs to be Bluetooth
connected to a host, and C-PEN Connect
app needs to be installed and running on
the host.
To install C-PEN Connect app, go to
www.cpen.com/connect
How to connect BT10 to a host
• Download and install the C-PEN
Connect app (use link above).
• Follow connection instruction in app
startup wizard.
NOTE: when connecting the first time make sure only one (1) device is within
Bluetooth range.
For more details see
www.cpen.com/connect
LED INDICATOR
C-PEN Connect features a multi coloured
LED indicating various states/modes of
operation.
States Description LED status
Power on
Booting
Turn o
Auto shutdown
Sleep
Low battery
Charging
Connecting
Connected
Auto shutdown and Sleep timeouts are
adjustable in the host app.
Press and hold power key
for 5s
When battery os low
Press and hold power key
or timeout
for 4s
Power save mode on
timeout
Description
Charging
Battery charged
Trying to connect to host
Bluetooth connected and
battery >15%
OFF
Green ashing
Green icker
then OFF
OFF
OFF
Red ashing
Red
Yellow
Blue ashing
Blue
POWER modes
C-PEN Connect has three power modes;
ON, SLEEP, OFF
• When OFF, press power button 5s to
power on.
• When ON, press power button 5s to
power off.
• When ON, press power button briefly
to set to SLEEP mode.
• When in SLEEP mode, press any
button briefly to power on.
It is also possible to set automatic
timeouts for OFF and SLEEP modes. These
settings are accessible in the host app.
See app settings for options.
Safety Precautions for Battery
Usage
THE LITHIUM BATTERY IS HAZARDOUS.
ANY ATTEMPT TO DISASSEMBLE THE
BATTERY IS NOT ALLOWED. IF YOU
DISASSEMBLE OR REPLACE THE BATTERY,
IT MAY EXPLODE. THROWING IT INTO A
FIRE MAY ALSO CAUSE AN EXPLOSION.
KEEP THE BATTERY AND THE DEVICE DRY,
AND AWAY FROM WATER OR OTHER
LIQUID TO AVOID SHORT-CIRCUIT. MAKE
SURE NOT TO USE THE BATTERY WHEN IT
IS DAMAGED, DEFORMED, DISCOLORED
OR OVERHEATED OR EMITS AN ODOR.
THIS PRODUCT SHOULD BE USED WITH
CARE IN TROPICAL REGIONS. IF YOU
HAVE QUESTIONS ON HOW TO USE THE
PEN, PLEASE CONTACT OUR TECHNICAL
SUPPORT/SERVICE FOR HELP.
BATTERY maintenance and
precautions
Battery capacity deteriorates over time. To
optimize battery life time:
• Charge battery prior to becoming
completely empty.
• Do not expose the battery to heat
longer than necessary (above 30°C
is considered hot).
• Disconnect charger as soon as
possible after battery becoming fully
charged.
• Especially do not leave battery flat
as it may harm the battery.
• EVEN IF THE DEVICE IS NOT USED
FOR A LONGER PERIOD IT’S
RECOMMENDED TO CHARGE THE
BATTERY AT LEAST EVERY THREE
MONTHS.
Declaration of conformity
Virrata AB hereby declares that the
product C-PEN Connect/BT10 complies
with the requirements of Radio Equipment
Directive 2014/53/EU.
Warning
Any Changes or modifications not
expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note:
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or
transmitter.
This equipment should be installed and
operated with minimum distance 20cm
between the radiator& your body.
RoHS Declaration
Based on information provided by our
suppliers this product meets the requirements of RoHS Directive 2011/65/EU.
The maximum concentration value of the
prohibited six substances of “RoHS
Directive” do not exceed the following:
– Cadmium and its compounds:
0.01% (100 ppm) by weight in
homogeneous materials.
– Lead and its compounds, Mercury
and its compounds, Hexavalent
chromium and its compounds, Poly
Brominated biphenyls (PBB), Poly
Brominated diphenyl ethers (PBDE):
0.1% (1000 ppm) by weight in
homogeneous materials.
WEEE Notice
The Directive on Waste Electrical and
Electronic Equipment (WEEE) which
entered into force as European law on
13th February 2003 resulted in a major
change in the treatment of electrical
equipment at end-of-life The purpose of
this Directive is a first priority the
prevention of WEEE and in addition to
promote the reuse recycling and other
forms of recovery of such wastes so as to
reduce disposal. The WEEE logo on the
product or on its box indicates that this
product must not be disposed of or
dumped with your other household waste.
You are liable to dispose of all your
electronic
or electrical waste equipment by relocating over to the specified collection point
for recycling of such hazardous waste.
Isolated collection and proper recovery of
your electronic and electrical waste
equipment at the time of disposal will
allow us to help conserving nature
resources. Moreover, proper recycling of
the electronic and electrical waste
equipment will ensure the safety of human
health and environment. For more
information about electronic and electrical
waste equipment disposal recovery and
collection points please contact your local
city center household waste disposal
service shop from where you purchased
the equipment or manufacturer of the
equipment.
© Copyright C-PEN, C-PEN CONNECT and
BT10 are registered trademarks or
trademarks of Virrata AB, C-Pen Trading AB
and partners.
C-PEN Connect BT10 is distributed by
ScanningPens Ltd.
Official website: www.cpen.com
Support: support.cpen.com
REGISTER YOUR PRODUCT!
To allow us to support you at our best in
case needed, please register your product.
By registering your product(s) you will also
receive information about the products,
including updates.
www.cpen.com/c-pen-product-registration/
Skanör 2018-09-09
_______________________
Peter Johansson
CEO, Virrata AB
Technical Specification:
- Bluetooth 4.0
- Rechargeable Li-Ion battery 600mAh
- Font size 6,5-24 pt
- Scan speed 12 cm/s
- Weight 42g
- Dimensions 124x29x15 mm
- Native languages CN,DK,DE,EN,
FR,IT,NL,NO,RU,SE,SP
Content of box:
- C-PEN Connect / BT10
- USB cable
- Quick start guide
System requirements:
- iOS 10 / Android 4.4
