CP Electronics EBDSPIR-HB-PRM User Manual

Product Guide
EBDSPIR-HB-PRM
HIGH BAY PIR Presence/Absence Detector
Section Contents Page
1 Dimensional information 1 2 Description and operation 2 3 Wiring and fixing 3 4 Programming 6 5
Detection pattern diagrams
6
Fault finding
7
8
Part numbers
7 7 8
8

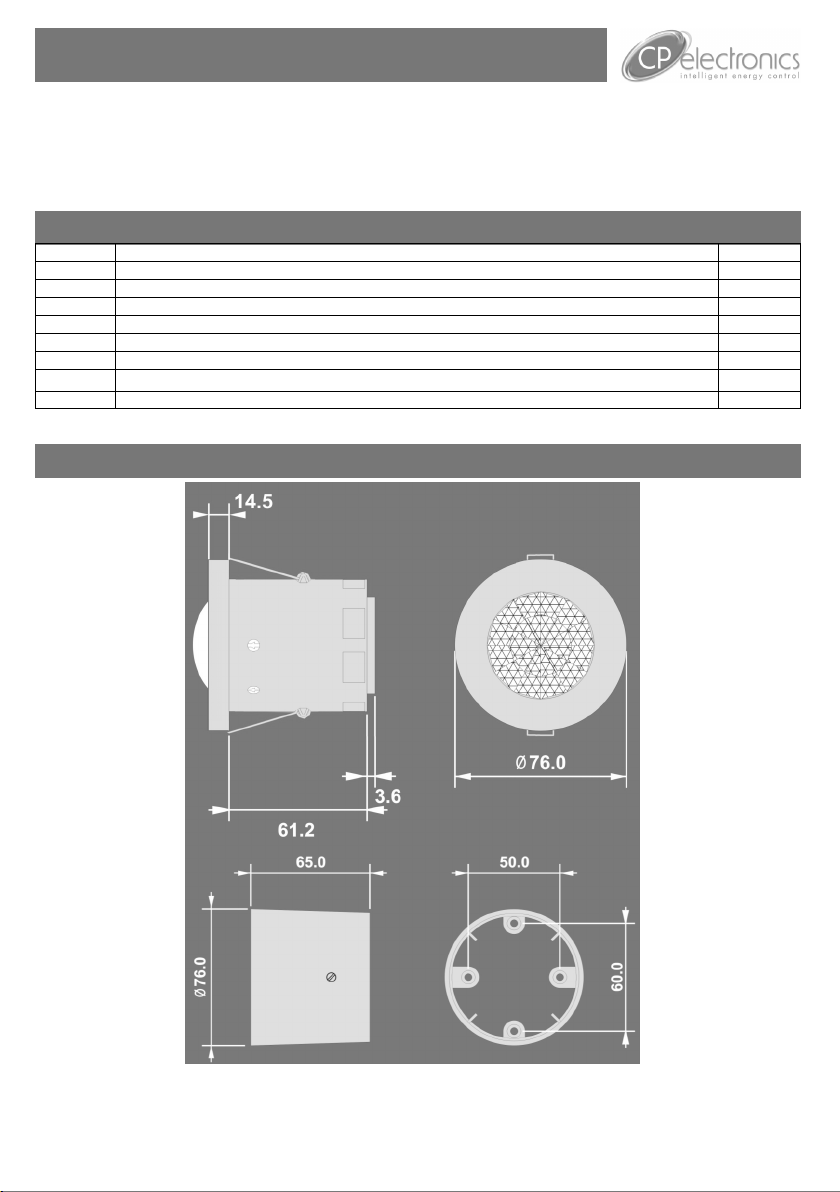

1. Dimensions
Contents
page
2. Description and Operation
The EBDSPIR-HB-PRM PIR (passive infrared) detector provides automatic control of lighting loads with optional manual control. This product has been specifically designed for the detection of movement in high bay lighting applications such as warehouses and factories. It can be used on incandescent, fluorescent and compact fluorescent lighting, and has the added benefit of being able to connect an external switch.
Two modes of operation are available: Presence detection: When movement is detected the load will automatically turn on. When the area is no longer occupied the load will automatically switch off after an adjustable time period. If an external switch is connected, this can override the lights off (after the detection time period has elapsed it will revert to automatic operation). An integral adjustable photocell allows the lights to be kept off if there is sufficient ambient light.
Absence detection:
The load is manually switched on using an external switch. When the area is no longer occupied the load will automatically switch off after the adjustable time period has elapsed. Pressing the switch again during occupancy override the lights off (after the detection time period has elapsed it will revert to automatic operation). In both modes of operation a short button press turns the load on whilst a long button press turns the load off.
An integral infra-red sensor in the unit allows the unit to be programmed using the optional DD-LCDHS-LR programming handset. This gives complete flexibility over many of the operating parameters. Without the handset, manual adjustments can be made to the sensitivity, lux and time settings using the controls on the rear of the sensor head.
page 2
EBDSPIR-HB-PRM
3. Wiring & Fixing
1. Wire the products using the diagram opposite.
2. To switch from more than one position simply wire two or more units in parallel using the Live, Neutral and Switched Live wires only.
3. Position the sensor according to the detection pattern shown in section 5. Ensure that the marks on the sensor line up with the direction of the aisle.
4. Avoid direct sunlight entering the sensor.
5. Do not site within 1m of forced air heating or ventilation.
6. Do not fix to a vibrating surface.
7. Mount using one of the two options overleaf.
8. Connect the sensor via the terminal blocks. Live supply to the L terminal; load to the L/OUT terminal; Neutral to the N terminal on the green terminal block. External switch connections to the switch terminal.
9. Use a small screwdriver to set the LUX level adjuster fully anticlockwise, the time to minimum (fully clockwise) and the sensitivity to maximum (fully anticlockwise).
10. Power the unit upthe load should come on immediately.
11. Vacate the room or remain very still and wait for the load to switch off (should take no more than 2 minutes).
12. Check that the load switches on when movement is detected.
13. The LUX thumbwheel determines the ambient light level at which the lights turn on.
14. Select the time using the adjuster, fully anticlockwise is the maximum.
Absence detection
17. To use absence detection a retractive (momentary) switch must be connected between the 2 terminals on the diagram. Note that this will be switching mains voltage.
18. The unit ships with presence detection as default. To change to absence detection, press and release the external switch 5 times within the first minute of power up. The LED will turn on solid for 30 seconds to indicate absence mode has been selected.
19. To change back to presence detection, repeat the above procedurethe LED will flash for 30 seconds to indicate presence mode has been selected.
Note: the above adjustments can also be made using the DD-LCDHS-LR handset instead of the manual adjusters or external switches. See section 4.
page 3
FLUSH FIXING
Warning - be careful bending springs when mounting unit.
SURFACE FIXING
1 2
Hole Ø64mm
2 1
50mm or 60mm fixing centres
page 4
Pull out spring tab and rotate spring arm as shown
3 5
3
4
4
5
6
page 5
4. Programming
All the following functions can be programmed using the remote control DD-LCDHS-LR handset:
1. Detector Parameters (factory default in brackets):
1.1 Time adjustment (20 min) 10 seconds to 99 minutes time delay (select 0 for 10 second
delay – use for commissioning only).
1.2 Sensitivity On (9) Sensitivity level when the detector is already operational adjustable between 1 (min.) and 9 (max.)
1.3 Sensitivity Off (9) Sensitivity level for switching the detector on – adjustable between 1 (min.) and 9 (max.).
1.4 Power Up On (Y) Select No for a 30 second delay on start up. If Yes is selected, there will be no delay on start up and the detector will always power up detecting.
1.5 Walk Test (N) An LED behind the detector lens will flash to show movement has been detected (use for commissioning).
1.6 Disable Detector (N) Disables detection. In this mode the detector acts as a photocell only. The lux preset determines the light level at which the output is turned on. The sensitivity preset determines the light level at which the output turns off. The time preset prevents nuisance tripping and in this mode is adjustable between 0-13 minutes.
1.7 Factory Default Restores factory default settings.
2. Switching functions (factory default in brackets):
2.1 Presence detection Auto switch on with detection, auto off after movement ceases
(default) and time delay ends.
2.2 Absence detection Manual switch on, auto off after movement ceases and time
delay ends.
2.3 Switch level on (9) Lux level setting to prevent the luminaires being switched on if
the ambient light level is sufficient (adjustable between 1
and 9). The luminaires will always be switched on at level 9.
2.4 Switch level off (9) Lux level setting to switch the luminaires off during occupancy
if the ambient light level goes above the setting (adjustable between 1 and 9). Level 9 will always keep the lights on. This setting can be used for ―window row switching‖.
3 User Menu
DD-LCDHS-LR user menu:
3.1 Lux up Can only be used with the set buttonsee 3.6.
3.2 Lux down Can only be used with the set buttonsee 3.6.
3.3 Override on Permanently overrides the luminaire output on.
3.4 Override off Permanently overrides the luminaire output off.
3.5 Cancel Cancels the on or off override, returning the detector to normal operation.
3.6 Set Send before using lux up or lux down. The switch level on (see 2.3) can
then be adjusted using the lux up or lux down buttons.
page 6
5. Detection Patterns and Aisle Mounting
Height Range
15m 5.1m x 5.1m
12m 4.0m x 4.0m
10m 3.4m x 3.4m
8m 2.7m x 2.7m
6m 2.0m x 2.0m
Aisle Mounting
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is good. Strap across the L and LIVE OUT terminal to turn the load on.
If the supply and wiring are good, check the LUX level setting. Increase the LUX level setting to allow the controller to turn on at higher ambient natural light level.
If the detection range is smaller than expected, check the diagram above. Rotating the sensor slightly may improve the range.
6. Fault Finding
LIGHTS DO NOT GO OFF
Ensure that the area is left unoccupied for longer than the selected timer setting.
Make sure that the sensor is not adjacent to circulat­ing air or heaters.
page 7
7. Specification
LOAD
10A of lighting and or ventilation including incandescent, fluorescent, compact fluorescent, low voltage (switch primary of transformer).
SUPPLY VOLTAGE 220-240 Volts AC 50 Hz TIME OUT PERIOD Adjustable 10 seconds to 99 minutes LIGHT LEVEL Light to dark TERMINAL CAPACITY 2.5mm2 MATERIAL Flame retardant ABS TYPE Class 2 TEMPERATURE -10°C to 35°C CONFORMITY EMC-89/336/EEC
LVD-73/23/EEC
8. Part Numbers
EBDSPIR-HB-PRM PIR presence/absence detector DBB Surface mounting box DD-LCDHS-LR IR remote control programming handset with LCD screen
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE wiring regulations.
FM 45789 EMS 534520
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
page 8
C.P. Electronics Ltd
Brent Crescent London NW10 7XR United Kingdom Tel: + 44 (0) 333 900 0671 Fax: + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk
Ref #WD284 Issue 3
