2. Description and Operation
The EBDSPIR-HB-DD PIR (passive infrared) presence detector provides automatic control of lighting
loads with optional manual control. This product has been specifically designed for the detection of
movement in high bay lighting applications such as warehouses and factories. It can be used on
incandescent, fluorescent and compact fluorescent lighting and DSI or DALI digital dimming ballasts over
1 or 2 channels. The unit detects movement using a PIR sensor and turns the load on. When an area is no
longer occupied the load will switch off after an adjustable time out period.
The dimming channel of the detector can be used to control the light output of luminaires that are fitted
with dimming ballasts. The detector measures the overall light level in the detection area and calculates
the correct output for the luminaires, to achieve a preset lux level (maintained illuminance).
The switching channel of the detector can either be used to isolate the supply to the dimming ballasts
(saving on the standby current of the ballasts) or to switch a separate channel of standard, non-dimming
luminaires.
Two input terminals can be used to manually override the dimming levels and override the lights on or off.
The flexibility of having two channels and two switch inputs allows the following example scenarios:
1. Dim an outside row of luminaires whilst internal fittings are switched
2. Provide absence detection for two separate channels (see below)
3. Maintained illuminance system with manual up/down controls
An integral infra-red sensor in the unit allows the unit to be programmed using the optional DD-LCDHS-LR
programming handset. This gives complete flexibility over many of the operating parameters. Without the
handset, manual adjustments can be made to the sensitivity, lux and time settings using the controls on
the rear of the sensor head.
Two modes of operation are available:
Presence detection:
When movement is detected the load will automatically turn on. When the area is no longer occupied the
load will automatically switch off after an adjustable time period. If an external switch is connected, this
can override the lights off (after the detection time period has elapsed it will revert to automatic operation).
An integral adjustable photocell allows the lights to be kept off if there is sufficient ambient light.
Absence detection:
The load is manually switched on using an external switch. When the area is no longer occupied the load
will automatically switch off after the adjustable time period has elapsed. Pressing the switch again during
occupancy override the lights off (after the detection time period has elapsed it will revert to automatic
operation).
In most applications the EBDSPIR-HB-DD can be used with simple manual adjustment. However, the
EBDSPIR-HB-DD unit has a comprehensive set of features that can be set using the DD-LCDHS-LR
handset. Alternatively the units can be commissioned as follows:
On-site commissioning service - please contact our sales department for details.
Pre-commissioning service - the units will be despatched to site with the correct features set. The
part number will read EBDSPIR-HB-DD/PRG followed by the project reference number. Please
contact our sales department for details.
page 2
3. Wiring & Fixing
1. Wire the products using the diagrams shown in section 6.
2. To switch from more than one position simply wire two or more units in parallel using the Live,
Neutral, Switched Live and manual switch wires only. The dimming connection must be wired to
one unit only.
3. Position the sensor according to the detection pattern shown in section 7. Ensure that the marks
on the sensor line up with the direction of the aisle.
4. Avoid direct sunlight entering the sensor.
5. Do not site within 1m of forced air heating or ventilation.
6. Do not fix to a vibrating surface.
7. Mount using one of the two options above overleaf.
8. Connect the sensor via the terminal blocks. Live supply to the L terminal; load to the L/OUT
terminal; Neutral to the N terminal on the green terminal block. Dimming / external connections
should be made as required according to the applicable wiring diagrams shown in section 6.
9. Use a small screwdriver to set the LUX level adjuster fully anti-clockwise, the time to minimum
(fully clockwise) and the sensitivity to maximum (fully anti-clockwise).
10. Power the unit up—the load should come on immediately.
11. Vacate the room or remain very still and wait for the load to switch off (should take no more than 2
minutes).
12. Check that the load switches on when movement is detected.
13. For dimming applications, set the light output level by using the LUX adjustment thumbwheel or
the handset. See section 5.5 for handset operation.
During operation the output level varies very gradually. However when the LUX level is
changed the unit automatically enters setup mode: in this mode the output level varies
rapidly. After the setup time the unit reverts to normal.
When adjusting the output, allow the output level to settle by changing very gradually.
To disable the maintained illuminance function completely, set the LUX level to maximum
(fully anti-clockwise).
15. For non-dimming applications the LUX thumbwheel determines the ambient light level at which the
16. Select the time using the adjuster, fully anti-clockwise is the maximum.
Note: the above adjustments can also be made using the DD-LCDHS-LR handset instead of the manual
adjusters. See section 5.
lights turn on.
page 3
FLUSH FIXING
Warning - be careful bending
springs when mounting unit.
SURFACE FIXING
1 2
Hole Ø64mm
2 1
50mm or 60mm fixing centres
page 4
Pull out spring tab and rotate
spring arm as shown
3 5
3
4
4
5
6
page 5
5. Programming
All the following functions can be programmed using the remote control DD-LCDHS handset:
1. Detector Parameters (factory default in brackets):
1.1 Time adjustment 10 seconds to 99 minutes time delay (select 0 for 10 second
delay – use for commissioning only).
1.2 Sensitivity On (9) Sensitivity level when the detector is already operational
adjustable between 1 (min.) and 9 (max.)
1.3 Sensitivity Off (9) Sensitivity level for switching the detector on – adjustable
1.4 Power Up On (Y) Select No for a 30 second delay on start up. If Yes is selected,
1.5 Walk Test (N) An LED behind the detector lens will flash to show movement
1.6 Disable Detector (N) Disables detection, leaving the relay output permanently off
1.7 Factory Default Restores factory default settings.
2. Modes (factory default in brackets):
2.1 Channel Modes
2.1.1 Switch only Usually used for absence detection - in this mode the dimming
2.1.2 Switch and dim together (default) The detector will switch and dim the lighting together.
2.1.3 Switch and dim separate Provides 2 channel operation – Channel 1 is switched via the
2.2 Switch Modes
2.2.1 2 position switch together (default) A single centre biased retractive switch will be used to
control both channels together.
2.2.2 2 position switch separate A single centre biased retractive switch will be used to
2.2.3 1 position switch together A single position retractive switch controls both channels
2.2.4 1 position switch separate Two single position retractive switches, controlling the
3. Switching Channel 1 functions (factory default in brackets):
3.1 Presence detection Auto switch on with detection, auto off after movement ceases
3.2 Absence detection Manual switch on, auto off after movement ceases and time
3.3 Switch level on (9) Lux level setting to prevent the luminaires being switched on if
and 9). The luminaires will always be switched on at level 9.
3.4 Switch level off (9) Lux level setting to switch the luminaires off during occupancy
For a higher resolution of ‗switch level off‘ a scale of 101-199
between 1 (min.) and 9 (max.).
there will be no delay on start up and the detector will always
power up detecting.
has been detected (use for commissioning).
with the dimming output operational. This mode is used when
the unit is for maintained illuminance only.
channel is not used.
relay output, and Channel 2 is dimmed / switched via the
dimming output.
control only the dimming channel.
together.
channels separately.
(EBDSPIR-DD default) and time delay ends.
(EBDSPIR-DD/ABS default) delay ends.
the ambient light level is sufficient (adjustable between 1
For a higher resolution of ‗switch level on‘ a scale of 101-199
is available in the ‗Special menu‘.
if the ambient light level goes above the setting (adjustable
between 1 and 9). Level 9 will always keep the lights on. This
setting can be used for ―window row switching‖.
is available in the ‗Special menu‘.
page 6
4 Dimming Channel 2 functions (factory default in brackets):
4.1 Light level Maintained illuminance level (adjustable between 1 and 999). At 999 the
4.2 Presence detection Auto switch on with detection, auto off after movement ceases and
(default) time delay ends.
4.3 Absence detection Manual switch on, auto off after movement ceases and time delay ends.
4.4 Switch level on (9) Lux level setting to prevent the luminaires being switched on if the
4.5 Switch level off (9) Lux level setting to switch the luminaires off during occupancy if the
4.6 DSI (default) Selects DSI dimming
4.7 DALI Selects DALI dimming
4.8 Memorise (N) If this is set to Yes, the last manual lux level set will be memorised and
4.9 On value (99) Dimming output level when switched on (0-99).
4.10 Off value (0) Dimming output level when switched off (0-99). If a non-zero off value is
4.11 Fade value (10) After occupancy ceases, this dimming output level is loaded for the fade
4.12 Fade mins (0) This is the time period (adjustable between 0 and 99 minutes) that the
4.13 Max value (99) Maximum dimming output level (adjustable between 0 and 99).
4.14 Min value (1) Minimum dimming output level (adjustable between 0 and 99).
4.15 Speed on (40) Determines the dimming response speed after the setup time has
4.16 Speed set (5) Determines the dimming response speed during the set up time.
4.17 Set seconds (120) Determines how long the dimming response set-up period lasts on power-
4.18 Burn-in (0) Determines how long the output will be at 100% so that lamps ‗burn-
4.18 DALI on (off) Provides a permanent voltage to DALI ballasts when DALI has not been
output will be always be at maximum.
ambient light level is sufficient (adjustable between 1 and 9). The
luminaires will always be switched on at level 9. For a higher resolution of
‗switch level on‘ a scale of 101-199 is available in the ‗Special menu‘.
ambient light level goes above the setting (adjustable between 1 and 9).
Level 9 will always keep the lights on. This setting can be used for
―window row switching‖. For a higher resolution of ‗switch level on‘ a scale
of 101-199 is available in the ‗Special menu‘.
used as the new switch on level.
set, then the output will toggle between this value and completely off
depending on the switch level on and off values. For example, if it is light
outside, the fittings will be off if there is no occupancy. If it is dark outside,
they will adopt the preset off value. This feature is only enabled if ‗Min
value‘ is set to 99.
time (adjustable between 0 and 99).
luminaire will be held at the fade value before turning off. A value of 0
disables the fade function.
finished. Measured in 0.1 sec intervals.
Measured in 0.1 sec intervals. If set to 0 will disable dimming for ―Set
seconds‖ below, used if fittings are required to warm up before dimming.
up or on setting change (adjustable between 1 and 999 seconds). This
enables the desired lux level to be achieved rapidly when the lights come
on, or during setup.
in‘ (adjustable between 1 and 999 hours). The ‘burn-in‘ time is not affected
by power supply interruptions. To disable burn-in set to 0.
implemented correctly in the ballast. Maximum number of ballasts is 10
unless the relay is disabled then it is 20. This is a Special menu option.
5 User Menu
DD-LCDHS user menu or UHS handset functions:
5.1 Lux up Increase light level. Reverts when occupancy cycle complete.
5.2 Lux down Decrease light level. Reverts when occupancy cycle complete.
5.3 Scene up Steps up between 6 pre-defined scenes.
5.4 Scene down Steps down between 6 pre-defined scenes.
5.5 Scene# Select the individual scene, between 0 and 6. (1 = min. output; 2 = 10%;
3 = 25%; 4 = 50%; 5 = 75%; 6 = 100%)
5.6 Override on Permanently overrides the luminaire output on.
5.7 Override off Permanently overrides the luminaire output off.
5.8 Cancel Cancels the on or off override, returning the detector to normal operation.
5.9 Set If sent before using lux up or lux down, it will set the light level as in 4.1
page 7
OPTION 2: USING A CENTRE BIASED RETRACTIVE SWITCH TO PROVIDE
SWITCHED AND DIMMING OUTPUT (STANDARD CONFIGURATION)
6.1 Single channel dimming
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
6. Wiring Diagrams
6.1 Single channel dimming
Functions: Switches the luminaire with occupancy and maintains illuminance. Dims and switches
using optional centre biased retractive switch (MK K4900 or similar).
Configured to presence detection: Turns on automatically with occupancy. Maintains illuminance.
Press and release down switch to turn off. Press and release up switch to turn back on. Press and hold
up switch to dim up, press and hold down switch to dim down. Turns off after occupancy.
Configured to absence detection: Press and release up switch to turn on. Maintains illuminance.
Press and release down switch to turn off. Press and hold up switch to dim up, press and hold down
switch to dim down. Turns off after occupancy.
Channel mode: Set to ―Switch and dim together‖.
Switch mode: Set to ―2 position switch together‖.
-
+
When there is a requirement to have an ‗Off‘ state that requires a permanent dimmed level. Then use the
DSI / DALI ―pair‖ to both switch and dim, and a live feed direct to the ballast. Set the ‗Off value‘ (section
4.10 in the Programming section) to a value greater than zero to achieve a permanent dimmed level for
the ‗Off‘ state. See the diagram below for wiring details.
page 8
OPTION 3(A): USING 2 MOMENTARY PUSH TO MAKE SWITCHES TO PROVIDE SWITCHED OUTPUT TO A
NON-DIMMING LUMINAIRE AND SWITCHED / DIMMING OUTPUT TO A DIMMING LUMINAIRE OVER 2 CHANNELS
6.2 Two Channel, individual switches
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
PLEASE NOTE THAT THE
DIMMING SIGNAL IS USED TO
SWITCH THE DIMMING
LUMINAIRE ON/OFF AND
THEREFORE THE 240V FEED
TO THE LUMINAIRE FITTING
MUST COME FROM THE
PERMANENT LIVE SUPPLY
SWITCH 1 - MOMENTARY
PUSH TO MAKE SWITCH
(240V SWITCHING)
SWITCH 2 - MOMENTARY
PUSH TO MAKE SWITCH
(240V SWITCHING)
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
LUMINAIRE
(NON-DIMMING)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL

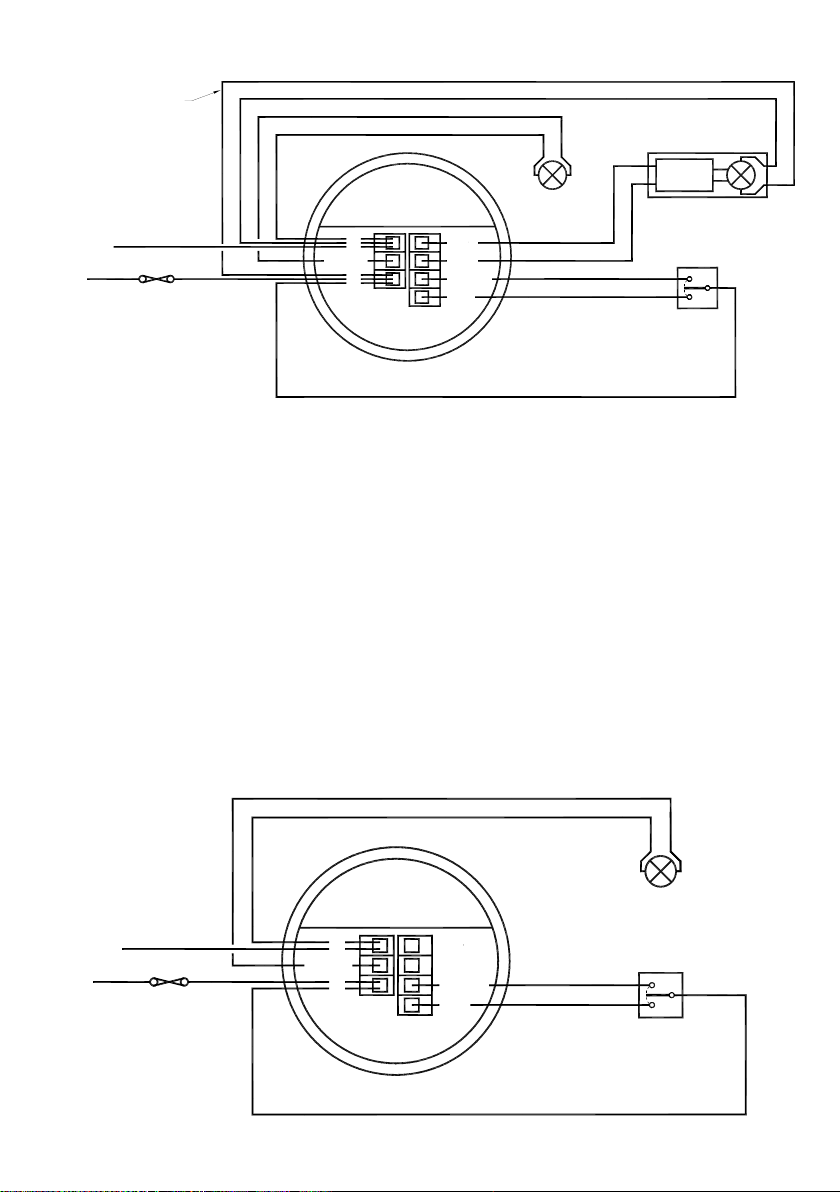

6.2 Two channel, individual switches
Functions: Switches both channels with occupancy. Maintains illuminance, dims and switches the
dimming channel using optional single position retractive switch (switch 2). Switches the switching channel
using the optional single position retractive switch (switch 1).
Configured to presence detection: Turns on automatically with occupancy. Maintains illuminance
(dimming channel only). Press and release switch to toggle output. Press and hold switch to dim up and
down (reverses direction with each press). Turns off after occupancy.
Configured to absence detection: Press and release switch to turn on. Maintains illuminance (dimming
channel only). Press and release switch to turn off. Press and hold switch to dim up and down (reverses
direction with each press). Turns off after occupancy.
Channel mode: Set to ―Switch and dim separate‖
Switch mode: Set to ―1 position switch separate‖
+
6.3 Two channel, single switch
Functions: Switches both channels with occupancy. Maintains illuminance, dims and switches the
dimming channel using optional centre biased retractive switch .
Configured to presence detection: Turns on automatically with occupancy. Maintains illuminance
(dimming channel only). Press and release down switch to turn off. Press and release up switch to turn
back on. Press and hold up switch to dim up, press and hold down switch to dim down. Turns off after
occupancy. Channel 1 does not operate with switch.
Configured to absence detection: Press and release up switch to turn on. Maintains illuminance
(dimming channel only). Press and release down switch to turn off. Press and hold up switch to dim up,
press and hold down switch to dim down. Turns off after occupancy. Channel 1 does not operate with
switch.
Channel mode: Set to ―Switch and dim separate‖
Switch mode: Set to ―2 position switch separate‖
page 9
OPTION 1(B): USING A CENTRE BIASED RETRACTIVE SWITCH TO PROVIDE
ABSENCE DETECTION, WILL ALSO PROVIDE OPTIONAL OVERRIDE OFF.
OPTION 2: USING A CENTRE BIASED RETRACTIVE SWITCH TO PROVIDE
SWITCHED AND DIMMING OUTPUT (STANDARD CONFIGURATION)
6.1 Single channel dimming
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
6.4 Single channel switching
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
LUMINAIRE
(NON-DIMMING)
OPTION 3(A): USING 2 MOMENTARY PUSH TO MAKE SWITCHES TO PROVIDE SWITCHED OUTPUT TO A
NON-DIMMING LUMINAIRE AND SWITCHED / DIMMING OUTPUT TO A DIMMING LUMINAIRE OVER 2 CHANNELS
OPTION 3(B): USING A CENTRE BIASED RETRACTIVE SWITCH TO PROVIDE SWITCHED OUTPUT TO A
NON-DIMMING LUMINAIRE AND SWITCHED / DIMMING OUTPUT TO A DIMMING LUMINAIRE OVER 2 CHANNELS
PLEASE NOTE THAT THE CENTRE BIASED RETRACTIVE
SWITCH WILL PROVIDE CONTROL FOR THE DIMMING
LUMAIRE(S) ONLY. THE NON-DIMMING LUMINAIRE(S) WILL
BE CONTROLLED ONLY BY THE SENSOR
6.2 Two Channel, individual switches
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
PLEASE NOTE THAT THE
DIMMING SIGNAL IS USED TO
SWITCH THE DIMMING
LUMINAIRE ON/OFF AND
THEREFORE THE 240V FEED
TO THE LUMINAIRE FITTING
MUST COME FROM THE
PERMANENT LIVE SUPPLY
SWITCH 1 - MOMENTARY
PUSH TO MAKE SWITCH
(240V SWITCHING)
SWITCH 2 - MOMENTARY
PUSH TO MAKE SWITCH
(240V SWITCHING)
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
LUMINAIRE
(NON-DIMMING)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
L/OUT
L
N
EBDSPIR-DD SENSOR
SW1/UP
DIM+
DIM-
SW2
DOWN
PLEASE NOTE THAT THE
DIMMING SIGNAL IS USED TO
SWITCH THE DIMMING
LUMINAIRE ON/OFF AND
THEREFORE THE 240V FEED
TO THE LUMINAIRE FITTING
MUST COME FROM THE
PERMANENT LIVE SUPPLY
DIMMING
BALLAST
DIMMING LUMINAIRE
(DSI or DALI)
LUMINAIRE
(NON-DIMMING)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
6.3 Two Channel, common switch
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
6.3 Two channel, common switch (continued)
6.4 Single channel switching
Functions: Switches channel 1 only with occupancy, optional override switch. No dimming output.
Configured to presence detection: Turns on automatically with occupancy. Press and release down
switch to turn off. Press and release up switch to turn back on. Turns off after occupancy.
Configured to absence detection: Press and release up switch to turn on. Press and release down
switch to turn off. Turns off after occupancy.
Channel mode: Set to ―Switch only‖
Switch mode: Set to ―2 position switch together‖. Note: a single position switch can be used instead to
toggle the output, set to ―1 position switch separate‖.
+
page 10
-
+
7. Detection Patterns and Aisle Mounting
Height Range
15m 5.1m x 5.1m
12m 4.0m x 4.0m
10m 3.4m x 3.4m
8m 2.7m x 2.7m
6m 2.0m x 2.0m
Formula
Range at Xm = (X/15 x 6) x 0.85
Aisle Mounting
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is good.
Strap across the L and LIVE OUT terminal to turn
the load on.
If the supply and wiring are good, check the LUX
level setting. Increase the LUX level setting to allow
the controller to turn on at higher ambient natural
light level.
If the detection range is smaller than expected,
check the diagram above. Rotating the sensor
slightly may improve the range.
8. Fault Finding
LIGHTS DO NOT GO OFF
Ensure that the area is left unoccupied for longer
than the selected timer setting.
Make sure that the sensor is not adjacent to circulating air or heaters.
page 11
9. Specification
LOAD
Channel 1 (switching):
10A of lighting and or ventilation including incandescent, fluorescent, compact fluorescent, low voltage
(switch primary of transformer).
Channel 2 (dimming):
Maximum number of DSI or DALI ballasts is 10 unless the relay is disabled then it is 20.
SUPPLY VOLTAGE 220-240 Volts AC 50 Hz
TIME OUT PERIOD Adjustable 10 seconds to 99 minutes
LIGHT LEVEL Light to dark
TERMINAL CAPACITY 2.5mm2
MATERIAL Flame retardant ABS
TYPE Class 2
TEMPERATURE -10°C to 35°C
CONFORMITY EMC-89/336/EEC
LVD-73/23/EEC
10. Part Numbers
EBDSPIR-HB-DD PIR presence detector
EBDSPIR-HB-DD/PRG PIR detector pre-commissioned (contact sales department)
DBB Surface mounting box
DD-LCDHS-LR IR remote control programming handset with LCD screen
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in
accordance with the latest edition of the IEE wiring regulations.
FM 45789 EMS 534520
Due to our policy of continual product improvement CP Electronics reserves the right
to alter the specification of this product without prior notice.
page 12
C.P. Electronics Ltd
Brent Crescent
London
NW10 7XR
United Kingdom
Tel: + 44 (0) 333 900 0671
Fax: + 44 (0) 333 900 0674
www.cpelectronics.co.uk
enquiry@cpelectronics.co.uk
Ref #WD285 Issue 4
Loading...
