CP Electronics EBDSPIR-AD User Manual

Product Guide
EBDSPIR-AD
Analogue Dimming PIR Presence/Absence Detector
Contents
Section Contents Page
1 Dimensional information 1 2 Description and operation 2 3 Wiring and fixing 3 4 Programming 6 5
Wiring diagrams
6
Detection pattern diagrams
7
Fault finding
8
Specification
9
Part numbers
1. Dimensions
8 10 11 12 12
page
2. Description and Operation
The EBDSPIR-AD PIR (passive infrared) presence detector provides automatic control of lighting loads with optional manual control. It can be used on fluorescent and compact fluorescent lighting with 1-10V analogue dimming ballasts. The unit detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.
The detector can be used to control the light output of luminaires that are fitted with dimming ballasts. The detector measures the overall light level in the detection area and calculates the correct output for the luminaires, to achieve a preset lux level (maintained illuminance).
Two input terminals can be used to manually override the dimming levels and override the lights on or off.
An integral infra-red sensor in the unit allows the unit to be programmed using the optional DD-LCDHS programming handset. This gives complete flexibility over many of the operating parameters. Without the handset, manual adjustments can be made to the sensitivity, lux and time settings using the controls on the rear of the sensor head.
The UHS user handset can be used to change output lux levels and override the lights on or off.
Two standard units are available:
EBDSPIR-AD - presence detection: When movement is detected the load will automatically turn on. When the area is no longer occupied the load will automatically switch off after an adjustable time period.
EBDSPIR-AD/ABS - absence detection:
The load is manually switched on. When the area is no longer occupied the load will automatically switch off after the adjustable time period has elapsed. Note that the EBDSPIR-AD can be programmed to absence detection using the programming handset.
In most applications the EBDSPIR-AD can be used with simple manual adjustment. However, the EBDSPIR-AD unit has a comprehensive set of features that can be set using the DD-LCDHS handset. Alternatively the units can be commissioned as follows:
On-site commissioning service - please contact our sales department for details. Pre-commissioning service - the units will be despatched to site with the correct features set. The
part number will read EBDSPIR-AD/PRG followed by the project reference number. Please contact our sales department for details.
page 2
3. Wiring & Fixing
1. Wire the products using the diagrams shown in section 5.
2. To switch from more than one position simply wire two or more units in parallel using the Live,
3. The detector should be sited so that the occupants of the room fall inside the detection pattern
4. Avoid direct sunlight entering the sensor.
5. Do not site within 1m of forced air heating or ventilation.
6. Do not site within 1m of any lighting.
7. Do not fix to a vibrating surface.
8. Mount using one of the two options above overleaf.
9. Connect the sensor via the terminal blocks. Live supply to the L terminal; load to the L/OUT
10. Use a small screwdriver to set the LUX level adjuster fully anti-clockwise, the time to minimum
11. Power the unit upthe load should come on immediately.
12. Vacate the room or remain very still and wait for the load to switch off (should take no more than 2
13. Check that the load switches on when movement is detected.
14. For dimming applications, set the light output level by using the LUX adjustment thumbwheel or
15. Select the time using the adjuster, fully anti-clockwise is the maximum.
16. Using the UHS or UHS3 infra-red handset: the override on button turns the unit on permanently;
Note: the above adjustments can also be made using the DD-LCDHS handset instead of the manual adjusters. See section 4.
Neutral, Switched Live and manual switch wires only. The dimming connection must be wired to one unit only.
shown in section 6, at a recommended ceiling height of 2.8m. Note that the lower the sensor is installed the smaller the detection range will be, subject to the parameters shown on the diagram.
terminal; Neutral to the N terminal on the green terminal block. Dimming / external connections should be made as required according to the applicable wiring diagrams shown in section 5.
(fully clockwise) and the sensitivity to maximum (fully anti-clockwise).
minutes).
the handset. See section 4.5 for handset operation.
During operation the output level varies very gradually. However when the LUX level is
changed the unit automatically enters setup mode: in this mode the output level varies rapidly. After the setup time the unit reverts to normal.
When adjusting the output, allow the output level to settle by changing very gradually. To disable the maintained illuminance function completely, set the LUX level to maximum
(fully anti-clockwise).
the override off button turns the unit off permanently; the cancel button cancels the overrides. When an override is selected an LED will flash inside the unit. The UHS handset can also be used to set the lux levelssee Section 4.5
page 3
FLUSH FIXING
1 2
Hole Ø64mm
Warning - be careful bending springs when mounting unit.
SURFACE FIXING
2 1
50mm or 60mm fixing centres
Pull out spring tab and rotate spring arm as shown
page 4
3
4
5
3
4
5
6
page 5
4. Programming
All the following functions can be programmed using the remote control DD-LCDHS handset:
1. Detector Parameters (factory default in brackets):
1.1 Time adjustment 10 seconds to 99 minutes time delay (select 0 for 10 second
delay – use for commissioning only).
1.2 Sensitivity On (9) Sensitivity level when the detector is already operational adjustable between 1 (min.) and 9 (max.)
1.3 Sensitivity Off (9) Sensitivity level for switching the detector on – adjustable
1.4 Power Up On (Y) Select No for a 30 second delay on start up. If Yes is selected,
1.5 Walk Test (N) An LED behind the detector lens will flash to show movement
1.6 Disable Detector (N) Disables detection, leaving the relay output permanently off
1.7 Factory Default Restores factory default settings.
2. Modes (factory default in brackets):
2.1 Channel Modes
2.1.1 Switch only Usually used for absence detection - in this mode the dimming
2.1.2 Switch and dim together (default) The detector will switch and dim the lighting together.
2.1.3 Switch and dim separate Not used.
2.2 Switch Modes
2.2.2 2 position switch separate A single centre biased retractive switch will be used to
2.2.3 1 position switch together A single centre biased retractive switch will be used to
2.2.4 1 position switch separate Not used.
3. Switching Channel 1 functions (factory default in brackets):
3.1 Presence detection Auto switch on with detection, auto off after movement ceases
3.2 Absence detection Manual switch on, auto off after movement ceases and time
3.3 Switch level on (9) Lux level setting to prevent the luminaires being switched on if
and 9). The luminaires will always be switched on at level 9.
3.4 Switch level off (9) Lux level setting to switch the luminaires off during occupancy
For a higher resolution of ‗switch level off‘ a scale of 101-199
between 1 (min.) and 9 (max.).
there will be no delay on start up and the detector will always power up detecting.
has been detected (use for commissioning).
with the dimming output operational. This mode is used when the unit is for maintained illuminance only.
channel is not used.
control dimming and switching.
control dimming and switching.
(EBDSPIR-AD default) and time delay ends.
(EBDSPIR-AD/ABS default) delay ends.
the ambient light level is sufficient (adjustable between 1
For a higher resolution of ‗switch level on‘ a scale of 101-199 is available in the ‗Special menu‘.
if the ambient light level goes above the setting (adjustable between 1 and 9). Level 9 will always keep the lights on. This setting can be used for ―window row switching‖.
is available in the ‗Special menu‘.
page 6
4 Dimming Channel 2 functions (factory default in brackets):
4.1 Light level Maintained illuminance level (adjustable between 1 and 999). At 999 the
4.2 Presence detection Not used. See Channel 1 setting.
4.3 Absence detection Not used. See Channel 1 setting.
4.4 Switch level on (9) Not used. See Channel 1 setting.
4.5 Switch level off (9) Not used. See Channel 1 setting.
4.6 Memorise (N) If this is set to Yes, the last manual lux level set will be memorised and
4.7 On value (99) Dimming output level when switched on (0-99).
4.8 Off value (0) Dimming output level when switched off (0-99). If a non-zero off value is
4.9 Fade value (10) After occupancy ceases, this dimming output level is loaded for the fade
4.10 Fade mins (0) This is the time period (adjustable between 0 and 99 minutes) that the
4.11 Max value (99) Maximum dimming output level (adjustable between 0 and 99).
4.12 Min value (1) Minimum dimming output level (adjustable between 0 and 99).
4.13 Speed on (40) Determines the dimming response speed after the setup time has
4.14 Speed set (5) Determines the dimming response speed during the set up time.
4.15 Set seconds (120) Determines how long the dimming response set-up period lasts on power-
4.16 Burn-in (0) Determines how long the output will be at 100% so that lamps ‗burn-
output will be always be at maximum.
used as the new switch on level.
set, then the output will toggle between this value and completely off depending on the switch level on and off values. For example, if it is light outside, the fittings will be off if there is no occupancy. If it is dark outside,
they will adopt the preset off value. This feature is only enabled if ‗Min value‘ is set to 99.
time (adjustable between 0 and 99).
luminaire will be held at the fade value before turning off. A value of 0 disables the fade function.
finished. Measured in 0.1 sec intervals.
Measured in 0.1 sec intervals. If set to 0 will disable dimming for ―Set seconds‖ below, used if fittings are required to warm up before dimming.
up or on setting change (adjustable between 1 and 999 seconds). This enables the desired lux level to be achieved rapidly when the lights come on, or during setup.
in‘ (adjustable between 1 and 999 hours). The ‘burn-in‘ time is not affected by power supply interruptions. To disable burn-in set to 0.
5 User Menu
DD-LCDHS user menu or UHS handset functions:
5.1 Lux up Increase light level. Reverts when occupancy cycle complete.
5.2 Lux down Decrease light level. Reverts when occupancy cycle complete.
5.3 Scene up Steps up between 6 pre-defined scenes.
5.4 Scene down Steps down between 6 pre-defined scenes.
5.5 Scene# Select the individual scene, between 0 and 6. (1 = min. output; 2 = 10%;
3 = 25%; 4 = 50%; 5 = 75%; 6 = 100%)
5.6 Override on Permanently overrides the luminaire output on.
5.7 Override off Permanently overrides the luminaire output off.
5.8 Cancel Cancels the on or off override, returning the detector to normal operation.
5.9 Set If sent before using lux up or lux down, it will set the light level as in 4.1
page 7

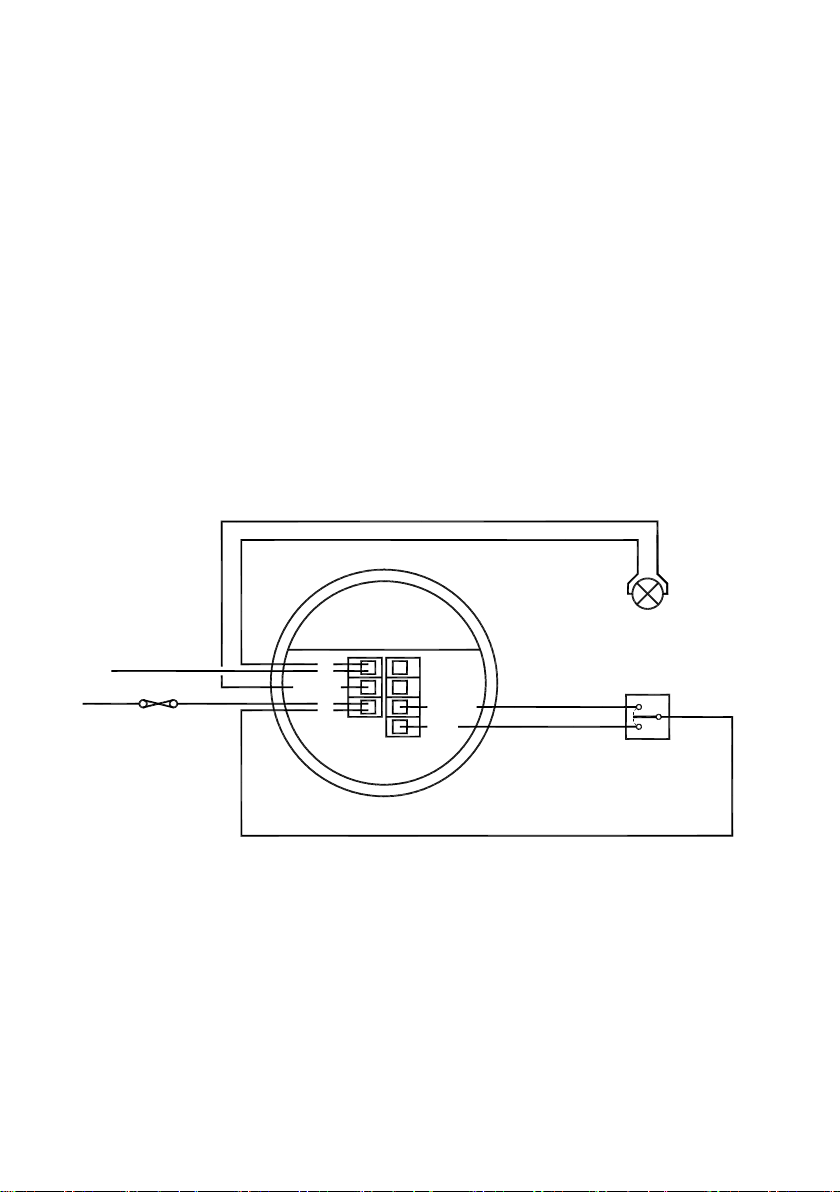

5. Wiring Diagrams
L/OUT
L
N
SW1/UP
+
-
SW2
DOWN
DIMMING
BALLAST
DIMMING LUMINAIRE
(1-10V)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
5.1 Single channel dimming
Functions: Switches the luminaire with occupancy and maintains illuminance. Dims and switches using optional centre biased retractive switch (MK K4900 or similar).
Configured to presence detection: Turns on automatically with occupancy. Maintains illuminance. Press and release down switch to turn off. Press and release up switch to turn back on. Press and hold up switch to dim up, press and hold down switch to dim down. Turns off after occupancy.
Configured to absence detection: Press and release up switch to turn on. Maintains illuminance. Press and release down switch to turn off. Press and hold up switch to dim up, press and hold down switch to dim down. Turns off after occupancy.
Channel mode: Set to ―Switch and dim together‖.
Switch mode: Set to ―2 position switch together‖. Note: a single position switch can be used instead to
toggle the output, set to ―1 position switch separate‖.
page 8
5.2 Single channel switching
L/OUT
L
N
SW1/UP
+
-
SW2
DOWN
DIMMING BALLAST
DIMMING LUMINAIRE
(1-10V)
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
L/OUT
L
N
SW1/UP
SW2
DOWN
CIRCUIT PROTECTION
(IF REQUIRED)
LIVE
NEUTRAL
CENTRE BIASED
RETRACTIVE SWITCH
(240V SWITCHING)
Optional for presence,
mandatory for absence detection
LUMINAIRE
(NON-DIMMING)
+
-
Functions: Switches channel 1 only with occupancy, optional override switch. No dimming output.
Configured to presence detection: Turns on automatically with occupancy. Press and release down
switch to turn off. Press and release up switch to turn back on. Turns off after occupancy.
Configured to absence detection: Press and release up switch to turn on. Press and release down switch to turn off. Turns off after occupancy.
Channel mode: Set to ―Switch only‖
Switch mode: Set to ―2 position switch together‖. Note: a single position switch can be used instead to
toggle the output, set to ―1 position switch separate‖.
page 9
6. Detection Patterns
Area of lower sensitivity Area of high sensitivity
page 10
LOAD DOES NOT COME ON
Check to see if the live supply to the circuit is good. Strap across the L and LIVE OUT terminal to turn the load on.
If the supply and wiring are good, check the LUX level setting. Increase the LUX level setting to allow the controller to turn on at higher ambient natural light level.
If the detection range is smaller than expected, check the diagram above. Rotating the sensor slightly may improve the range.
7. Fault Finding
LOAD DOES NOT GO OFF
Ensure that the area is left unoccupied for longer than the selected timer setting.
Make sure that the sensor is not adjacent to circulat­ing air, heaters or lamps.
page 11
8. Specification
LOAD Channel 1 (switching):
10A of lighting and or ventilation including incandescent, fluorescent, compact fluorescent, low voltage (switch primary of transformer).
Channel 2 (dimming):
Maximum number of 1-10V analogue ballasts is 10.
SUPPLY VOLTAGE 220-240 Volts AC 50 Hz TIME OUT PERIOD Adjustable 10 seconds to 99 minutes LIGHT LEVEL Light to dark TERMINAL CAPACITY 2.5mm2 MATERIAL Flame retardant ABS TYPE Class 2 TEMPERATURE -10°C to 35°C CONFORMITY EMC-89/336/EEC
LVD-73/23/EEC
9. Part Numbers
EBDSPIR-AD Analogue dimming PIR presence detector EBDSPIR-AD/ABS Analogue dimming PIR absence detector EBDSPIR-AD/PRG Analogue dimming PIR detector pre-commissioned (contact sales department) DBB Surface mounting box DD-LCDHS IR remote control programming handset with LCD screen UHS IR remote control user handset with lux and scene setting functionality UHS3 IR remote control user handset with on/off override only
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE wiring regulations.
FM 45789 EMS 534520
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
page 12
C.P. Electronics Ltd
Brent Crescent London NW10 7XR United Kingdom Tel: + 44 (0) 333 900 0671 Fax: + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk
Ref #WD313 Issue 2
