Designed to Endure
This weapon’s simple, durable design made it last generations.
Your Coyote grill will do the same.
DURABLE HAS
NEVER BEEN
THIS BEAUTIFUL.
Coyote Outdoor Living, a new line of ultra high-quality
products for outdoor living.
Our new series of Coyote™
grills oers feature-rich
outdoor kitchen equipment
that will last a lifetime, all in
an elegant, timeless style.
High-quality, professional grade grilling is
a complex art form—if just one of a dozen
dierent factors goes wrong, the whole
system will fail. at’s why Coyote™ focuses
so intensely on even the most minute
details. Not only do we design impressive
and unique features like interior lighting,
sear burners, and rotisserie roasters, we
also take great pride in things like the
construction materials and methods. Every
grill box oers fully-welded seams and only
uses premium-grade stainless steel, which
has a high chromium content allowing it to
maintain a rigid crystalline structure at very
high temperatures.
e result is an aordable grill that looks
beautiful in any setting and consistently
produces professional-quality cuisine, year
aer year. No matter the season, the meat,
the chef, or the method, Coyote™ grills
always bring the heat.
Coyote Series Overview
C-SERIES: Model No. CCX2LP & CCX2NG
28" COYOTE C-SERIES GRILL HEAD
C-SERIES: Model No. CC3LP & CC3NG
34" COYOTE C-SERIES GRILL HEAD
S-SERIES: Model No. CS(L)36LP & CS(L)36NG
36" COYOTE S-SERIES GRILL
WITH/WITHOUT LED LIGHTS
S-SERIES: Model No. CSL42LP & CSL42NG
42" COYOTE S-SERIES GRILL WITH
LED LIGHTS
H-SERIES: Model No. CH50LP & CH50NG
50" COYOTE CENTAUR™ GAS AND
CHARCOAL GRILL
C-SERIES
e Coyote C-Series meets the needs of even the most demanding grill masters.
With stainless steel construction and beautiful satin nickel nish it will be the
center point of any outdoor kitchen. C-Series grills come standard with premium-
grade stainless steel burners, grates, warming rack, interior hood lights and the
flavor-building performance of our Heat Control Grids™.
C-Series Grill Standard Features
• Premium stainless steel construction
• Stainless steel burners, grates and component parts
• Double walled stainless steel hood
• Continuous weld on grill box with seamless edging
• Stainless steel warming rack and Heat Control Grids™
• Interior grill lighting
28" C-Series Grill
• 2 high performance Coyote iBurners™
• 640 sq. in. cooking area
• Up to 40,000 BTU
• Also available as fully assembled free standing grill in a box
• Cutout dimensions: 11" × 25" × 20.5"
• Overall dimensions: 22.5" × 28" × 23.75"
34" C-Series Grill
• 3 high performance Coyote iBurners™
• 780 sq. in. cooking area
• Up to 60,000 BTU
• Cutout dimensions: 11" × 31" × 20.5"
• Overall dimensions: 22.5" × 34" × 23.75"
Stainless steel carts are available for all grill heads. Custom made grill covers and insulated grill jackets are also available.
For more detailed specifications, visit
COYOTEOUTDOOR.COM
CCX2-FS
The new Coyote CCX2 makes outdoor living a reality virtually anywhere... without compromising
design or performance.
S-SERIES
As the top line of Coyote™ grills, the S-Series combines all the power and function
of an ultra high-end grill with the design and durability of a Coyote™. Every S-Series
grill includes a variety of luxury features, such as interior grill lighting, rotisserie kit,
and smoker box, as well as a rear infrared burner and our RapidSear™ burner for
locking in the natural juices and nutrients found in high-quality meat.
S-Series Grill Standard Features
• Premium stainless steel construction
• Stainless steel burners, grates and component parts
• Double walled stainless steel hood
• Interior grill lighting
• Continuous weld on grill box with seamless edging
• Stainless steel warming rack and Heat Control Grids™
• Rotisserie kit and smoker box
• LED illuminated knobs (optional on 36" grill)
36" S-Series Grill
• 3 high performance Coyote iBurners™
• 1 infrared rear burner
• Coyote RapidSear™ burner
• 875 sq. in. cooking area
• Up to 95,000 BTU
• Cutout dimensions: 11" × 32.5" × 20.5"
• Overall dimensions: 22.5" × 35.5" × 23.75"
42" S-Series Grill
• 4 high performance Coyote iBurners™
• 1 infrared rear burner
• Coyote RapidSear™ burner
• 1275 sq. in. of cooking area
• Up to 115,000 BTU
• Cutout dimensions: 11" × 39.5" × 20.5"
• Overall dimensions: 22.5" × 42" × 23.75"
Stainless steel carts are available for all grill heads. Custom made grill covers and insulated
jackets are also available.

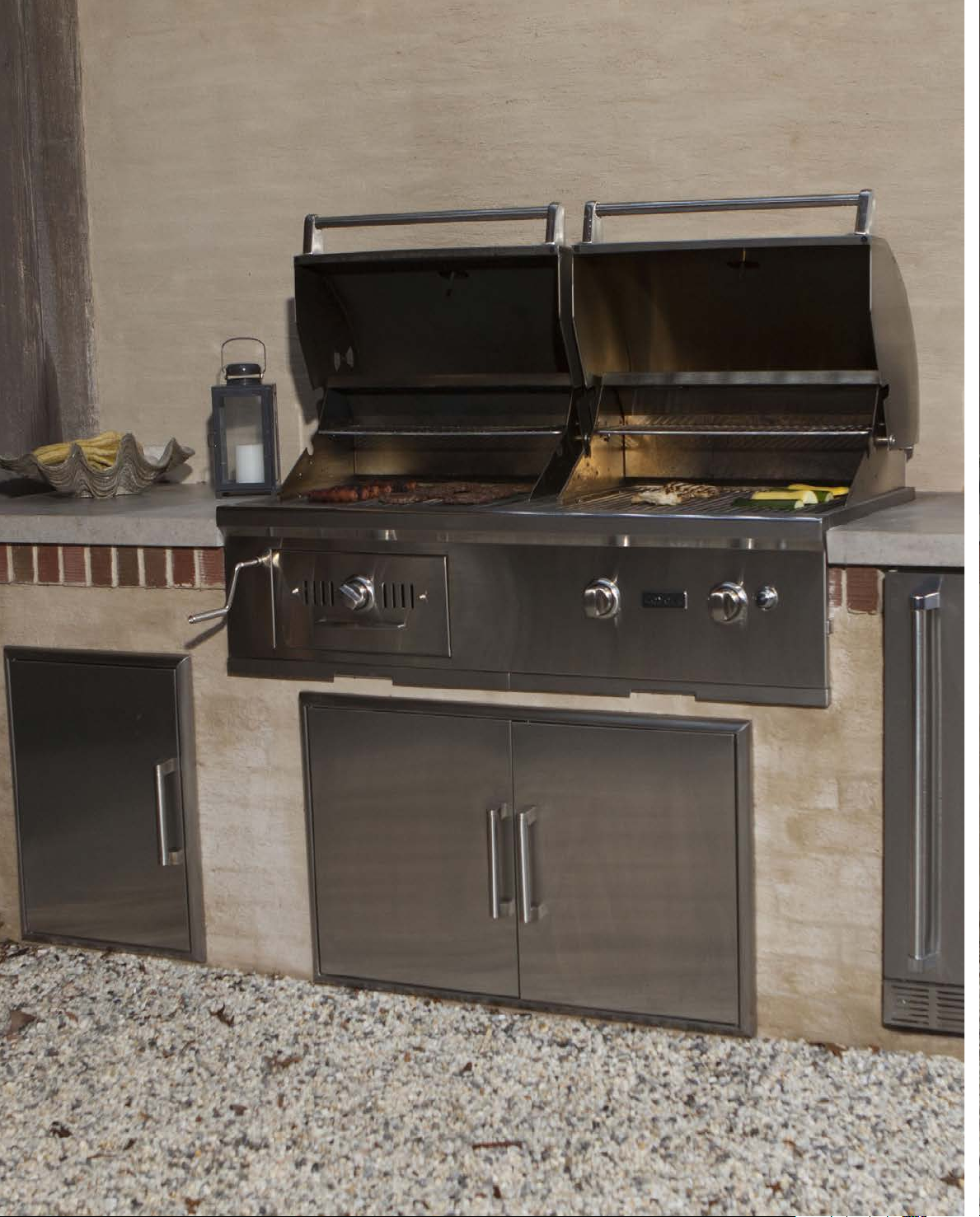

50" COYOTE CENTAUR™
GAS AND CHARCOAL/SMOKER GRILL
We call it "The Centaur" after the powerful, mythical half man - half horse. The Coyote™ dual fuel
Hybrid grill is the ultimate grill for the "renaissance" outdoor chef. Choose the ultra-premium power,
function and performance of a Coyote™ gas grill or go for the flavorful, authentic experience of
cooking on or smoking in a Coyote™ charcoal grill, or use both options at once... The choice is yours.
HYBRID GRILL FEATURES
• Premium stainless steel construction
• Stainless steel grates, component parts and warming rack
• Double walled stainless steel hood on each side
• Continuous weld on grill box with seamless edging
GAS GRILL FEATURES
• LP/NG Specific
• 2 high performance Coyote™ iBurners™
• Over 600 sq. in. cooking area
• Up to 40,000 BTU
• Interior grill lighting
• Performance enhancing Heat Control Grids™
CHARCOAL/SMOKER GRILL FEATURES
• Over 600 sq. in. cooking area
• Removable commercial tray for easy cleanup
• Adjustable fuel tray for cooking flexibility
• Uses any form of charcoal or wood chips
• Adjustable dampers for controlling air flow
COYOTE™ SIDE BURNERS
SINGLE SIDE BURNER
Model No. CSSB (LP/NG)
• (1) 15,000 BTU Brass Burner
• Stainless steel cover included
• Cutout: 10.5" × 10.5" × 14"
• Overall: 13.25" × 11.5" × 17"
DUAL SIDE BURNER
Model No. CDSB (LP/NG)
• (2) 30,000 BTU Brass Burner
• Stainless steel cover included
• Cutout: 10.5" × 12" × 20.5"
• Overall: 13.25" × 13.25" × 23"
Custom made side burner covers are also available.
COYOTE™ POWER BURNER
POWER BURNER
Model No. CPB (LP/NG)
• Dual-valve burner with up to 60k BTU output
• Stainless Steel lid included
• Simmer performance at 1k BTU
• Teppanyaki/Wok optional
• Cutout - 11.5 x 21 x 22.5
• Overall - 12.75 x 24 x 26
WARMING DRAWER
Model No. CWD
• Outdoor-rated ETL certified
• Internal electric heating element
• 30" Overall width
GRIDDLE
Model No. CGRDL
• 14” commercial grade griddle
• Compatible with all Coyote Grills
• Easy cleanup removable drip tray
SINGLE ACCESS DOORS
17" × 24" SINGLE ACCESS DOOR
Model No. CSA1724
• Premium stainless steel construction
with beveled trim
• 17" hinge side access door
24" × 17" SINGLE ACCESS DOOR
Model No. CSA2417
• Premium stainless steel construction
with beveled trim
• 24” hinge side access door
20" × 14" SINGLE ACCESS DOOR
Model No. CSA2014
• Premium stainless steel construction
with beveled trim
• 20" hinge side access door
14" × 20" SINGLE ACCESS DOOR
Model No. CSA1420
• Premium stainless steel construction
with beveled trim
• 14” hinge side access door
DOUBLE ACCESS DOORS
26" DOUBLE ACCESS DOORS
Model No. CDA2426
• Premium stainless steel construction
with beveled trim
• Magnetic latches for easy closing
31" DOUBLE ACCESS DOORS
Model No. CDA2431
• Premium stainless steel construction
with beveled trim
• Paper towel holder inside door
• Magnetic latches for easy closing
39" DOUBLE ACCESS DOORS
Model No. CDA2439
• Premium stainless steel construction
with beveled trim
• Paper towel holder inside door
• Magnetic latches for easy closing
ADDITIONAL ACCESSORIES
PAPER TOWEL HOLDER
Model No. CPTH
• Stainless steel construction
• Fits any size paper towel
• Convenient and easy to install
• Beveled trim
DRAWERS
SINGLE STORAGE DRAWER
Model No. CSSD
• Premium stainless steel construction
with beveled trim
• Easy open drawer
• Additional shelf space within drawer
• Large storage space
PULLOUT DRAWER
Model No. CPOD
• Premium stainless steel construction
with beveled trim
• Extendable drawers on rollers
• Interior of drawer includes cut-out to secure tank
• Holds standard round garbage can
• Professional-style door handle
TWO-DRAWER CABINET
Model No. C2DC
• Premium stainless steel construction
with beveled trim
• Easy open drawers
• Large storage space within each drawer
THREE-DRAWER CABINET
Model No. C3DC
• Premium stainless steel construction
with beveled trim
• Extended drawers on rollers facilitates smooth
operation
• Rigid welded construction to ensure strength and
longevity
• Professional-style door handles
COYOTE™ COMBINATION
STORAGE SOLUTIONS
COMBO DRAWERS
Model No. CCD-POD
• Pull out Drawer plus Double Access Doors
COMBO DRAWERS
Model No. CCD-2DC
• Two Drawer Cabinet plus Double Access Doors
COMBO DRAWERS
Model No. CCD-WD
• Warming Drawer plus Pull out Drawer plus Single
Storage Drawer
REFRIGERATION AND REFRESHMENT
REFRESHMENT CENTER
Model No. CRC
• Premium stainless steel construction
• 30" overall width
• Includes drop-in cooler with drain
• Removable Condiment tray insert for drop-in cooler
• Convenient bottle shelf, towel holder and bottle
opener
• Cutting board accessory for sink
OUTDOOR REFRIGERATOR
Model No. CBIR-L / CBIR-R
The Outdoor Refrigerator comes in a sleek stainless
steel exterior for great aesthetics at a great value.
This elegant and smart model features large shelves,
automatic defrost, interior light, and an adjustable
thermostat.
• Outdoor rated, free-standing refrigerator
• Automatic defrost
• Stainless steel exterior
• Capacity of 4.1 Cubic feet
• Interior light and adjustable thermostat
• Front vented for built-in application
• Left or Right hinge swing
DROP-IN COOLER
Model No. CDIC
• Stainless steel construction
• Stainless steel hinged lid with / high quality lid seal
• Fully insulated
• Holds cans and/or bottles
• Drain hole included
• Beveled trim
28" Grill
11"
25"
20 1/2"
22 1/2"
28"
23 3/4"
40,000
40,000NoNo
28" Grill with Hood Lights
11"
25"
20 1/2"
22 1/2"
28"
23 3/4"
40,000
40,000NoQty 1
34" Grill with Hood Lights
11"
31"
20 1/2"
22 1/2"
34"
23 3/4"
60,000
60,000NoQty 1
36" Grill with Hood Lights
11"
32 1/2"
20 1/2"
22 1/2"
35 1/2"
23 3/4"
95,000
95,000
Qty 1
Qty 1
36" Grill with Hood & LED Lights
11"
32 1/2"
20 1/2"
22 1/2"
35 1/2"
23 3/4"
95,000
95,000
Qty 1
Qty 2
42" Grill with Hood & LED Lights
11"
39 1/2"
20 1/2"
22 1/2"
42"
23 3/4"
115,000
115,000
Qty 1
Qty 2
CH50
50" Hybrid Grill with Hood Lights
13"
47 3/4"
20 1/2"
22 1/2"
50"
23 3/4"
40,000
40,000NoQty 1
Coyote Single Side Burner
11"
10 1/8"
13 5/8"
13"
11 3/8"
17"
15,000
15,000NoNo
Coyote Dual Side Burner
11"
11 7/8"
20 1/4"
13"
13 1/8"
23 1/4"
30,000
30,000NoNo
Insulated Jackets
Height
Width
Depth
Height
Width
Depth
Insulated Jacket for CC2
11 1/4"
28 1/4"
21 3/4"
11"
30 3/4"
22 1/4"
Insulated Jacket for CC3
11 1/4"
34 1/4"
21 3/4"
11"
36 3/4"
22 1/4"
Insulated Jacket for CS36
11 1/4"
35 3/4"
21 3/4"
11"
38 1/4"
22 1/4"
CJAKTCS42
Insulated Jacket for CS42
26" Double Access Door
20 1/2"
20 3/4"
N/A
24"
24 1/4"
3"
31" Double Access Door
20 1/2"
26 1/2"
N/A
24"
30"
3"
39" Double Access Door
20 1/2"
34 1/2"
N/A
24"
38"
3"
Single Access Door 20" x 14"
20 1/2"
14 1/2"
N/A
22"
16"
3"
Single Access Door 14" x 20"
14 1/2"
20 1/2"
N/A
16"
22"
3"
Single Access Door 24" x 17"
24 1/2"
17 1/2"
N/A
27"
20"
3"
CSA1724
Single Access Door 17" x 24"
3 Drawer Cabinet
24 1/2"
16 3/4"
17 1/4"
26"
18 3/4"
18"
Single Storage Drawer
13 1/2"
31 1/2"
20 1/2"
15"
32 1/2"
21 1/4"
2 Drawer Cabinet
20 1/2"
14 1/2"
17 1/2"
22"
16 1/4"
18"
LP Tank or Trash Drawer
20 1/2"
14 1/4"
17 1/2"
22"
18"
18"
Paper Towel Holder
8 1/4"
13 1/2"
8"
10"
15"
9"
CWD
Warming Drawer
9 1/2"
28 1/4"
23 1/2"
10 3/4"
29 1/2"
26 3/4"
Double Drawer Combo
20 1/4"
43 3/8"
17 1/8"
24 1/8"
45 1/4"
18 3/8"
Pull Out Drawer Combo
20 3/8"
43 3/8"
16 1/4"
24 1/8"
45 1/4"
17 1/2"
CCD-WD
Warming Drawer Combo
4.1 Outdoor Refrigerator
33 5/8"
20 3/4"
23"
33 1/2"
20 1/2"
22 3/4"
Drop In Cooler
12"
23 1/4"
17 1/4"
15"
25"
18"
CRC
Refreshment Center
10"
29 1/4"
22 3/4"
10 3/4"
30 1/4"
29"
Drain Hose Included
Qty 1 Plug Needed - unit is 450 Watt
When choosing a l ocation for your gas gr ill, you should not locate it under any comb ustible construct ion. The side, bottom, and back of the
Total BTU Ratings:
These numbers show the total volume of gas used by the product while operating at full capacity.
recreational vehicles or boats.
Dimensions & Specifications
Clearance to Comubstible Construction:
grill should not b e any closer than 24" to combusti ble material.
Model Product Description
Grills
CC2
CCX2
CC3
CS36
CSL36
CSL42
Side Burners
CSSB
CDSB
CPB
CJAKTCC2
CJAKTCC3
CJAKTCS36
Coyote Power Burner
Access Doors
CDA2426
CDA2431
CDA2439
CSA2014
CSA1420
CSA2417
Drawers
C3DC
CSSD
C2DC
CPOD
CPTH
Cutout Dimensions Overall Dimensions
Height Width Depth Height Width Depth LP NG Rotisserie Lights
Height Width Depth Height Width Depth LP NG Rotisserie Lights
11 1/2" 21" 22 1/2" 12 3/4" 24" 26" 60,000 60,000 No No
11 1/4" 42 1/2" 21 3/4" 11" 45" 22 1/4"
Height Width Depth Height Width Depth
17 1/2" 24 1/2" N/A 20" 27" 3"
Height Width Depth Height Width Depth
Total BTU Ratings
For Combustible Construction
For Combustible Construction
For Combustible Construction
For Combustible Construction
Electrical Outlets
Needed (110V)
Notes
Notes
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Notes
N/A
N/A
N/A
N/A
N/A
Combo Drawers
CCD-2DC
CCD-POD
Refrigeration & Refreshment Centers
CBIR
CDIC
Cutout Dimensions: Build your bbq island to these specifications to ensure proper fit of the product being used.
Overall Dimensions: Describe the actual dimensions of the product once it is resting/installed in a bbq island.
Clearance to Combustibles: The dimensions required by the manufacturer for clearance to combustible materials.
Important Note to Consumer: This flysheet is not intended to replace your Owners' Manual which contains specific safety requirements and consumer guidelines.
Please refer to your Owners' Manual prior to operating your built-in bbq. All grills listed are intended for outdoor use only and are not intended to be installed in or on
Height Width Depth Height Width Depth
19 1/2" 40 5/8" 25 1/4" 20 3/4" 42 1/8" 26 1/2"
Height Width Depth Height Width Depth
Questions? Visit our website at www.coyoteoutdoor.com
Notes
N/A
N/A
Qty 1 Plug Needed - unit is 450 Watt
Notes
Qty 1 Plug Needed - Vented Bottom Front
Can be turned in either direction
DESIGN NOTES
Visit us at www.coyoteoutdoorliving.com
Loading...
