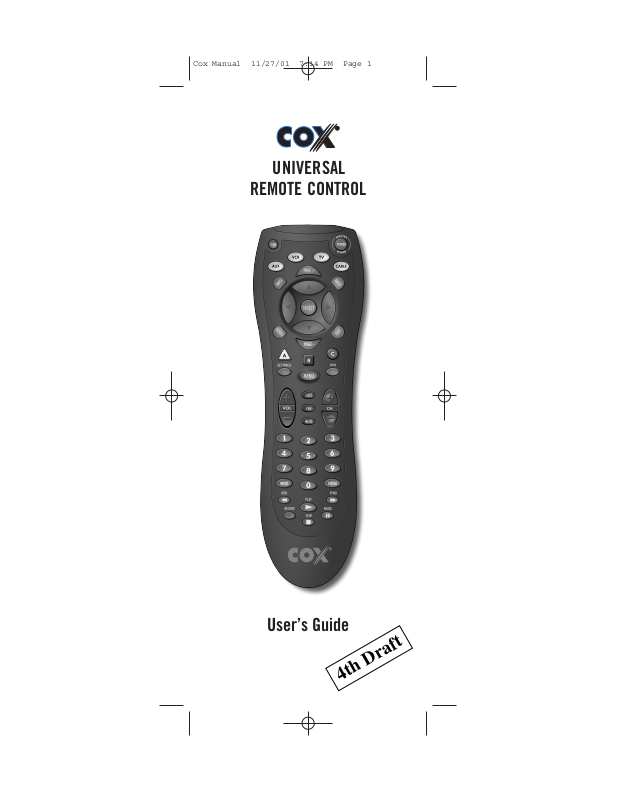

UNIVERSAL

REMOTE CONTROL

User’s Guide

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features And Functions . . . . . . . . . . . . . . . . . . . . . . 4

Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programming Device Control

. . . . . . . . . . . . . . . . . 8

Programming TV/VCR Combo Control . . . . . . . . . 9

Manufacturer’s Codes. . . . . . . . . . . . . . . . . . . 11

Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . 11

Setup Codes for VCRs. . . . . . . . . . . . . . . . . . . . . . 14

Setup Codes for TV/VCR Combos . . . . . . . . . . . . . 17

Setup Codes for PVRs . . . . . . . . . . . . . . . . . . . . . . 17

Setup Codes for Cable Converters. . . . . . . . . . . . . 17

Setup Codes for DVD Players. . . . . . . . . . . . . . . . . 18

Setup Codes for Stereo Receivers . . . . . . . . . . . . . 18

Setup Codes for Stereo Amplifiers. . . . . . . . . . . . . 19

Searching For Your Code . . . . . . . . . . . . . . . . . . . . 20

Checking The Codes

. . . . . . . . . . . . . . . . . . . . . . . 21

Programming ID Lock . . . . . . . . . . . . . . . . . . . 22

Programming Channel Control Lock . . . . . . . . . . 23

To De-Activate Channel Control Lock. . . . . . . . . . . 23

To Re-Activate Channel Control Lock. . . . . . . . . . . 23

Using The Master Power Key. . . . . . . . . . . . . . . . . 24

Re-Assigning Device Keys . . . . . . . . . . . . . . . . . . 25

Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . 26

To Change Volume Lock to CABLE Mode . . . . . . . . 26

To Change Volume Lock to TV Mode. . . . . . . . . . . . 26

To Change Volume Lock to VCR Mode . . . . . . . . . . 26

To Change Volume Lock to AUX Mode . . . . . . . . . . 27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Additional Information . . . . . . . . . . . . . . . . . . . . . . 28

INTRODUCTION

The Cox Universal Remote Control by Universal Electronics is our latest generation universal remote control. It is designed with sophisticated technology that will allow you to consolidate the clutter of all of the original remote controls in your home entertainment system. Moreover,it’s packed with easy-to-use features such as:

• Preprogrammed to operate the cable converter supplied by Cox Communications

• Preprogrammed interactive technology links hot keys to your interactive service

• Master Power key for master on/off control of all of your equipment with a single keystroke

• Cable ID Lock to lock your remote control for use only with the cable converter

• Channel Lock to lock channel selection only to the cable converter

• Code Search to help program control of older or discontinued components

• Code library for video and audio devices

• Color-coded keys to quickly locate popular functions

Before using the product,you will need to program it to operate the specific home entertainment devices you wish to control. Follow the instructions detailed in this manual to set up your unit and then start enjoying your new remote control.

FEATURES AND FUNCTIONS

Use the illustration below to locate features on the Cox Universal Remote Control and then study the Key Charts (on the next two pages) to learn how they function.

Key Charts

Use SETUP for all programming sequences.

Press POWER once to turn on or off a home entertainment device.

Press and hold MASTER POWER for 3 seconds to turn on or off all home entertainment devices (see Using The Master Power Key on page 24).

Press AUX,VCR,TV,or CABLE once to select a home entertainment device to control. Each key has an embedded LED (red light) that blinks upon selection and indicates that the remote control is working and is sending signals.

Use INFO to display the current channel and program information.

Use PAGE+ to page up through menu screens and program guide.

Press BACK once to show the previous page while using the interactive service.

Use the Cursor keys to move the cursor in the program guide and menu screens and to navigate within the interactive service.

Use SELECT to choose options,PPV events,and to tune programs from the program guide.

Use GUIDE to display the program guide.

Use PAGE- to page down through menu screens and program guide.

Use EXIT to exit out of your cable converter’s menu and guide.

Use A,B,or C to access additional cable features (see your cable converter’s manual).

continued on the next page...

FEATURES AND FUNCTIONS

Key Charts (continued)

Use SETTINGS to access additional cable features (see your cable converter’s manual).

Press MENU once to display the available interactive services.

Press PPV to view the available Pay-Per-View event.

Use VOL+ (or VOL-) to raise (or lower) the sound volume.

Press LAST once to recall the last channel.

Use FAV to cycle through your favorite channels stored in your cable converter.

Press MUTE once to turn the sound off or on.

Use CH+ (or CH-) to select the next higher (or lower) channel.

Use INPUT to control the input select feature on most TVs.

Press ENTER once after entering channel numbers on some TVs.

Use the keypad (0 ~ 9) to directly select channels (e.g., 09 or 31).

In the VCR and TV modes, use REW, PLAY,FFWD, STOP,and PAUSE to control your VCR,DVD player,or PVR. To record a program in the VCR or AUX mode, press RECORD twice.

In the CABLE mode, use these keys (except RECORD) to control VOD (Video On Demand).

INSTALLING BATTERIES

1. On the back of the remote control,push the tab

and lift off the battery cover.

2. Obtain two (2) fully-charged AA alkaline bat-

teries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries.

3. Align the cover’s keys with the case’s holes and

press the cover back into place. The tab should click when the cover is locked.

4. Test the unit by pressing POWER and any

mode key (e.g.,AUX, VCR,TV,or CABLE). If the batteries are inserted correctly, the selected mode key will blink once.

NOTE:Whenever batteries need replacement,the remote control will cease to operate.Simply replace the batteries and the remote control will be restored to its full functionality, complete with your favorite settings.

❶

❸

❷

PROGRAMMING DEVICE CONTROL

The Cox Universal Remote Control is preprogrammed to operate your cable converter, an RCA TV, an RCA VCR, and a Pioneer audio receiver. To control devices other than the default brands, perform the following steps; otherwise skip this section:

NOTES: To control a DVD player,program the VCR or AUX key. To control a PVR,program the VCR key.To control a stereo amplifier or receiver, program the AUX key. For TV/VCR Combo control,skip this section and perform the instructions on the next page.

If you have another brand of cable converter and interactive service you would like to control, you’ll first need to unlock the cable ID Lock before changing the converter code – see “Programming ID Lock” on page 22.

1. Turn on a device and, if applicable, insert video

media, (e.g.,cassette or disc).

NOTE: Please read steps 2-4 completely before proceeding. Highlight or write down the codes and device you wish to program before moving on to step 2.

2. On the remote control, press a device key once

(e.g., AUX,VCR, TV,or CABLE). Press and hold SETUP until the selected mode key blinks twice, then release SETUP.

3. Use the Manufacturer’s Codes (starting on

page 11) to locate the the type of device and brand name and then enter the first four-digit code for your device. If performed correctly, the selected mode key will blink twice.

NOTE: If the selected mode key emits a long blink, the code is invalid.Repeat steps 2 through 3 and try entering the same code again.

4. Aim the remote control at the device and press

POWER once. The device should turn off. If it does not, repeat steps 2-3,trying each code for your brand until you find one that works. If it still does not work,try searching for the code (see Searching For Your Code on page 20).

NOTE: If the device does not have a POWER key, press the (Play) key.

5. Repeat steps 1 through 4 for each device you

want the the remote control to control. For future reference, write down each working device code in the following boxes:

AUX

AUX Device ____________________

VCR

CABLE

PROGRAMMING TV/VCR COMBO CONTROL

If you own a TV/VCR Combo,perform the following instructions to control this device:

1. Turn on your TV/VCR Combo and insert a

video cassette.

2. On the remote control,press VCR once.

Press and hold SETUP until the VCR ke y blinks twice, then release SETUP.

3. Use the Setup Codes For TV/VCR Combos (on

page 17) to locate the brand name and then enter the first four-digit code for your TV/VCR Combo.If you perform this procedure correctly, the VCR key will blink twice.

NOTE: If the VCR key did not blink twice after entering the code’s last digit, then repeat steps 2 through 3 and try entering the same code again.

4. Aim the remote control at your TV/VCR

Combo and press POWER once. The device should turn off.If it does not respond, repeat steps 2-3,trying each code listed for your brand until you find one that works.If it still does not work,try searching for the code (see Searching

For Your Code on page 20).

continued on next page...

PROGRAMMING TV/VCR COMBO CONTROL (continued)

5. If you’ve located a TV/VCR setup code that

works your TV/VCR Combo and a separate TV code is also listed,you’ll need to program this code into the remote control to access volume control (see Programming Device Control on page 8).

If there is no separate TV code listed, you will need to perform the following steps to access volume control:

a. Press and hold SETUP until the VCR key

blinks twice, then release SETUP.

b. Ente r 9 - 9 - 3.The VCR key will blink twice.

c. Press VCR once. The VCR key will blink

twice.

6. For future reference,write down each working

device code in the boxes below:

TV/VCR

TV (if used)

MANUFACTURER’S CODES

Setup Codes for TVs:

AOC 0030, 0019, 0052 Abex 0032 Admiral 0093, 0463 Aiko 0092 Akai 0030 Alaron 0179 Ambassador 0177 America Action 0180 Ampro 0751 Anam 0180 Anam National 0055 Audiovox 0451, 0180, 0092,0623 Baysonic 0180 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood 0019 Broksonic 0236, 0463 CCE 0217 CXC 0180 Candle 0030, 0056,0186 Carnivale 0030 Carver 0054 Celebrity 0000 Cineral 0451, 0092 Citizen 0060, 0030,0056, 0092, 0186 Concerto 0056 Contec 0180, 0157 Craig 0180 Crosley 0054 Crown 0180 Curtis Mathes 0047, 0054,0154, 0051, 0451,0093, 0060,0030, 0145,0056,

0016, 0166, 0466,0747 Daewoo 0451, 0019, 0092,0623, 0624 Daytron 0019 Denon 0145 Dumont 0017, 0019 Dwin 0720, 0774 Electroband 0000 Electrohome 0381, 0389 Emerson 0154, 0236,0463, 0180, 0178, 0019, 0179,0038, 0177, 0623,

0624 Envision 0030 Fisher 0154 Fujitsu 0179, 0683 Funai 0180, 0179, 0171 Futuretech 0180

continued on the next page...

MANUFACTURER’S CODES

Setup Codes for TVs (continued):

GE 0047, 0051, 0451,0093, 0178, 0021, 0055,0027, 0747 Gibralter 0017, 0030, 0019 GoldStar 0030, 0178, 0019, 0056, 0001,0032 Gradiente 0053, 0056 Grunpy 0180, 0179 Hallmark 0178 Harley Davidson 0179 Harman/Kardon 0054, 0078 Harvard 0180 Hitachi 0145,0056, 0016,0032, 0038, 0151 Infinity 0054 Inteq 0017 JBL 0054 JCB 0000 JVC 0053 KEC 0180 KTV 0180, 0030,0217 Kaypani 0052 Kenwood 0030, 0019 Kloss 0024, 0078 Konka 0628, 0632, 0638,0703, 0707 LG 0056 LXI 0047, 0054, 0154, 0156,0178, 0747 Logik 0016 Luxman 0056 MGA 0150, 0030, 0178, 0019 MTC 0060, 0030, 0019, 0056 Magnavox 0054, 0030,0179, 0024,0186, 0386 Majestic 0016 Marantz 0054, 0030 Matsushita 0250 Megatron 0178, 0145 Memorex 0154, 0250, 0463, 0150,0178, 0179, 0056, 0016 Midland 0047,0017, 0051, 0032, 0747 Minutz 0021 Mitsubishi 0093, 0150,0178, 0019 Motorola 0093, 0055 Multitech 0180, 0217 NAD 0156, 0178, 0166 NEC 0030, 0019, 0056 NTC 0092 Nikko 0030, 0178, 0092 Onwa 0180 Optimus 0154, 0250, 0166 Optonica 0093 Orion 0236, 0463, 0179 Panasonic 0051, 0250,0055

Penney 0047,0156, 0051, 0060, 0030, 0178,0021, 0019, 0056, 0027,

0032, 0747 Philco 0054, 0463,0030, 0145, 0019 Philips 0054 Pilot 0030, 0019 Pioneer 0038, 0166,0679 Portland 0019, 0092 Princeton 0717 Prism 0051 Proscan 0047, 0747 Proton 0178, 0052,0466 Pulsar 0017,0019 Quasar 0051, 0250, 0055 RCA 0047, 0051, 0093,0019, 0038, 0090, 0679, 0747 Radio Shack 0047,0154, 0180, 0030,0178, 0019, 0056, 0032,0747 Realistic 0154,0180, 0030,0178, 0019,0056, 0032 Runco 0017, 0030, 0603 SSS 0180, 0019 Sampo 0030, 0032, 0052 Samsung 0060, 0030, 0178, 0019,0056, 0032 Sansei 0451 Sansui 0463 Sanyo 0154, 0146 Scimitsu 0019 Scotch 0178 Scott 0236, 0180, 0178, 0019,0179 Sears 0047, 0054, 0154, 0156,0178, 0179, 0056, 0146,0171, 0747 Semivox 0180 Semp 0156 Sharp 0093, 0157,0386, 0688 Shogun 0019 Signature 0016 Simpson 0186 Sony 0000, 0111 Soundesign 0180, 0178, 0179,0186 Squareview 0171 Starlite 0180 Supreme 0000 Sylvania 0054, 0030,0381 Symphonic 0180, 0171 TMK 0178, 0056, 0177 TNCi 0017 Tandy 0093 Tatung 0055 Technics 0051, 0250 Technol Ace 0179 Techwood 0051, 0056 Teknika 0054, 0180, 0150,0060, 0019,0179, 0056,0016, 0092,0186 Telefunken 0056 Toshiba 0154, 0156, 0060, 1256 Trical 0157

continued on the next page...

MANUFACTURER’S CODES

Setup Codes for TVs (continued):

Universal 0027 Vector Research 0030 Victor 0053 Vidikron 0054 Vidtech 0178, 0019 Wards 0054,0030, 0178, 0021, 0019, 0179,0056, 0016, 0027, 0111 White Westinghouse 0463, 0623, 0624 Yamaha 0030, 0019 Zenith 0017, 0463, 0016, 0092,0624

Setup Codes for VCRs:

Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0037, 0000 Akai 0041 America Action 0278 American High 0035 Asha 0240 Audiovox 0037 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209,0002, 0479 CCE 0072, 0278 Calix 0037 Canon 0035 Carver 0081 Cineral 0278 Citizen 0037, 0278 Colt 0072 Craig 0037, 0047, 0240, 0072 Curtis Mathes 0060, 0035,0041, 0162, 0760 Cybernex 0240 Daewoo 0045, 0278 Denon 0042 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032 Emerson 0037, 0184,0000, 0121, 0043, 0209, 0002,0278, 0479 Fisher 0047, 0104 Fuji 0035, 0033 Funai 0000 GE 0060, 0035, 0048,0240, 0760 Garrard 0000 Go Video 0432

GoldStar 0037, 0038 Gradiente 0000 HI-Q 0047 Harley Davidson 0000 Harman/Kardon 0081, 0038 Harwood 0072 Headquarter 0046 Hitachi 0000,0042, 0041 Hughes Network Sys. 0042 JVC 0067, 0041 Jensen 0041 KEC 0037, 0278 KLH 0072 Kenwood 0067, 0041, 0038 Kodak 0035, 0037 LXI 0037 Lloyd’s 0000 Logik 0072 MEI 0035 MGA 0240, 0043 MGN Technology 0240 MTC 0240, 0000 Magnasonic 0278 Magnavox 0035, 0039,0081, 0000,0149 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162 Memorex 0035, 0037, 0048, 0039,0047, 0240, 0000, 0104, 0209,0162,

0046, 0479, 1162 Minolta 0042 Mitsubishi 0048, 0067,0043 Motorola 0035, 0048 Multitech 0000, 0072 NEC 0104, 0067, 0041, 0038 Nikko 0037 Noblex 0240 Olympus 0035 Optimus 0037, 0048, 0104,0162, 0432, 1162 Orion 0184, 0209, 0002,0479 Panasonic 0035, 0162,0225, 0002, 1162 Penney 0035,0037, 0240, 0042, 0038 Pentax 0042 Philco 0035, 0209,0479 Philips 0035, 0081, 0003 Pilot 0037 Pioneer 0067 Polk Audio 0081 Profitronic 0240 Proscan 0060, 0760 Protec 0072

continued on the next page...

MANUFACTURER’S CODES

Setup Codes for VCRs (continued):

Pulsar 0039 Quarter 0046 Quartz 0046 Quasar 0035, 0162, 1162 RCA 0060, 0035, 0048,0240, 0042, 0149, 0760 Radio Shack 0000 Radix 0037 Randex 0037 Realistic 0035,0037, 0048,0047, 0000,0104, 0046 ReplayTV 0001, 0616 Runco 0039 STS 0042 Samsung 0240, 0045 Sanky 0048, 0039 Sansui 0000, 0067, 0209, 0041, 0479 Sanyo 0047, 0240, 0104, 0046 Scott 0184, 0045, 0121, 0043 Sears 0035, 0037, 0047, 0000,0042, 0104, 0046 Semp 0045 Sharp 0048 Shintom 0072 Shogun 0240 Singer 0072 Sony 0035, 0032, 0000, 0033, 0004 Sylvania 0035, 0081,0000, 0043 Symphonic 0000 TMK 0240 Tatung 0041 Teac 0000, 0041 Technics 0035, 0162 Teknika 0035, 0037, 0000 Thomas 0000 Tivo 0003, 0636 Toshiba 0045, 0043 Totevision 0037, 0240 Unitech 0240 Vector 0045 Vector Research 0038 Video Concepts 0045 Videosonic 0240 Wards 0060,0035, 0048, 0047, 0081, 0240,0000, 0042, 0072, 0149,

0760 White Westinghouse 0209, 0072, 0278 XR-1000 0035, 0000, 0072 Yamaha 0038 Zenith 0039, 0000, 0209, 0033,0479

Setup Codes for TV/VCR Combos:

Broksonic 0002, 0479 (for TV use 0463) Citizen 0278 Colt 0072 Curtis Mathes 0035 (for TV use 0051) Daewoo 0278 (for TV use 0624) Emerson 0002, 0278 (for TV use 0624), 0479 (for TV use 0463) Funai 0000 GE 0035 (for TV use 0051), 0048 (for TV use 0093),

0060 (for TV use 0047), 0240 GoldStar 0037 (for TV use 0056) Harley Davidson 0000 Hitachi 0000 Lloyd’s 0000 Magnasonic 0278 Magnavox 0000, 0081 (for TV use 0054) Magnin 0240 Memorex 0037, 0162 (for TV use 0250), 1162,1262 MGA 0240 Mitsubishi 0048 (for TV use 0093) Optimus 0162 (for TV use 0250), 1162 Orion 0002, 0479 (for TV use 0463) Panasonic 0035 (for TV use 0051),0162 (for TV use 0250), 1162 Penney 0035 (for TV use 0051), 0037 (for TV use 0056),0240 Quasar 0035 (for TV use 0051), 0162 (for TV use 0250) RCA 0035 (for TV use 0051), 0048 (for TV use 0093),

0060 (for TV use 0047), 0240 Sansui 0000, 0479 (for TV use 0463) Sanyo 0240 Sears 0000, 0037 (for TV use 0056) Sharp 0048 (for TV use 0093) Sony 0000, 0032 (for TV use 0000) Sylvania 0081 (for TV use 0054) Symphonic 0000 Thomas 0000 White Westinghouse 0278 (for TV use 0624) Zenith 0000, 0479

Setup Codes for PVRs

(Personal Video Recorders)

Panasonic 0002 Philips 0003 Replay TV 0001, 0002 Sony 0004 TiVo 0003, 0004

Setup Codes for Cable Converters:

General Instrument 0476 Jerrold 0476 Pioneer 0533, 0877 Scientific Atlanta 0477,0877

continued on the next page...

MANUFACTURER’S CODES (continued)

Setup Codes for DVD Players:

Apex 0672 Denon 0490 Fisher 0670 GE 0522 Gradiente 0651 Hitachi 0573,0664 Hiteker 0672 JVC 0558, 0623 Kenwood 0534, 0682 Konka 0711, 0719, 0720,0721 Magnavox 0503, 0675 Marantz 0539 Mitsubishi 0521 Onkyo 0503 Optimus 0571 Oritron 0651 Panasonic 0490, 0632 Philips 0503, 0539 Pioneer 0525, 0571,0632 Proscan 0522 RCA 0522, 0571 Samsung 0573 Sharp 0630 Sony 0533 Technics 0490 Theta Digital 0571 Toshiba 0503 Yamaha 0490, 0545 Zenith 0503, 0591

Setup Codes for Stereo Receivers:

ADC 0531 Aiwa 0121, 1089, 1405 Capetronic 0531 Carver 0042, 1089, 1189 Casio 0195 Clarinette 0195 Denon 1104, 1160 Fisher 0042 Garrard 0463 Harman/Kardon 0110, 0891 JBL 0110 JVC 0074 Kenwood 0186, 0042, 1027, 1313,1569, 1570 LXI 0181

Lloyd’s 0195 MCS 0039 Magnavox 0531, 0195,0391, 1089,1189 Marantz 0039, 1089,1189 Modulaire 0195 Nakamichi 0097 Onkyo 0135 Optimus 0531, 0999, 0186,0042, 0181, 0738, 0801,1023 Panasonic 0039, 1518 Penney 0195 Philips 0391, 1089, 1189, 1269 Pioneer 0531, 0014,0150, 0998,1023 Proscan 1254 Quasar 0039 RCA 0531, 1023, 1254 Realistic 0195,0181 Sansui 1089 Sanyo 0801 Sharp 0186 Sherwood 0491, 0502 Sony 0474, 1058, 1158, 1258 Soundesign 0999 Sunfire 1313 Teac 0463 Technics 0039, 1308, 1309,1518 Thorens 1189 Victor 0074 Wards 0014 Yamaha 0176, 0186,1176 Yorx 0195 Zenith 0857

Setup Codes for Stereo Amplifiers:

GE 0078 Harman/Kardon 0892 JVC 0331 Luxman 0165 Marantz 0321, 0892 Nakamichi 0321 Optimus 0395 Philips 0892 Polk Audio 0892 Realistic 0395 Sansui 0321 Sony 0689 Soundesign 0078 Victor 0331 Wards 0078 Yamaha 0354

SEARCHING FOR YOUR CODE

If your TV,VCR,Cable Converter or Auxiliary device does not respond to the Cox Universal Remote Control after trying all of the codes listed for your brand, or if your brand is not listed at all,try searching for your code.

For example, to search for a code for your TV:

1. Turn on your TV.

2. On the remote control,press TV once.

Then press and hold SETUP until the TV key blinks twice,then release SETUP.

3. Enter 9 - 9 - 1.The TV key will blink twice.

4. Aim the remote control at the the TV and slowly

alternate between pressing POWER and TV. Stop when the TV turns off.

NOTE: In the search mode,the remote control will send IR codes from its library to the selected device, starting with the most popular code first.

5. Press SETUP once to lock in the code.

6. To search for the codes of your other devices,

repeat steps 1 through 5,but substitute the appropriate key (i.e.,AUX, VCR,or CABLE) for the (Auxiliary, VCR,or Cable) device you are searching for.

CHECKING THE CODES

If you have set up the Cox Universal Remote Control using the Searching For Your Codeprocedure (on the previous page),you may need to find out which four-digit code is operating your equipment. For example,to find out which code is operating your TV:

1. Turn on your TV.

2. On the remote control, press TV once.

Then press and hold SETUP until the TV key blinks twice,then release SETUP.

3. Enter 9 - 9 - 0.The TV key will blink twice.

4. To view the code for the first digit,press 1 once.

Wait 3 seconds and count the number of times the TV key blinks (e.g.,3 blinks = 3) and write down the number in the leftmost TV Code box (see below).

NOTE: If a code digit is “0”,the selected mode key will not blink.

5. Repeat step 4 three more times for remaining

digits. Use 2 for the second digit,3 for the third digit, and 4 for the fourth digit. Finish writing down the code in the TV Code boxes below.

6. To check for other device codes,repeat steps 1

through 5,but substitute the appropriate key (i.e., AUX,VCR,or CABLE) for the (Auxiliary, VCR,or Cable) device you are checking.Write down the codes in the appropriate boxes below.

AUX Code

Aux Device ____________________

VCR Code

TV Code

CABLE Code

PROGRAMMING ID LOCK

The Cox Universal Remote Control is preprogrammed and locked at the factory to operate the cable converter and interactive service given to you by your cable company.

However,if you have another brand or model of cable converter and interactive service that you would like to control, then you’ll need to perform the following steps to unlock the cable ID Lock,enter in a new manufacturer’s code, and lock the ID Lock again.

1. Turn on the Cable Converter.

2. On the remote control,press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice,then release SETUP.

3. Enter 9 - 8 - 2.The CABLE key will blink

four times.

4. Perform the instructions in Programming

Device Control on page 8 to program device control for the desired cable converter and interactive service. Upon completion, perform the remaining steps (5 and 6 on this page) to again lock the ID lock.

5. On the remote control,press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice,then release SETUP.

6. Enter 9 - 8 - 2.The CABLE key will blink twice.

PROGRAMMING CHANNEL CONTROL LOCK

By default, the remote control’s channel-control capabilities are locked to the cable converter. The affected keys are 0~ 9, CH+,CH-, ENTER,and LAST.This will guarantee that you do not inadvertently change a channel on your TV or VCR.However, you can de-activate this feature to allow full access to these keys in the TV and VCR modes.

To De-Activate Channel Control Lock:

1. On the remote control,press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice,then release SETUP.

2. Enter 9 - 7 - 3.The CABLE key will blink twice.

3. Press CH- once. The CABLE key will blink

four times.

4. Now, the remote control will provide TV and

VCR channel-control capabilities while in the TV or VCR mode.

NOTE: This feature does not affect the AUX mode.

To Re-Activate Channel Control Lock:

1. On the remote control,press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice,then release SETUP.

2. Enter 9 - 7 - 3.The CABLE key will blink twice.

3. Press CH+ once. The CABLE key will blink twice.

4. Now, regardless of what mode you select

(i.e., TV,VCR,or CABLE), only the channel control capability of your cable converter will be accessible.

NOTE: This feature does not affect the AUX mode.

USING THE MASTER POWER KEY

The Cox Universal Remote Control is equipped with a unique feature that allows you to sequentially turn on or off all of your home entertainment devices with a single key press as follows:

1. Point the remote control at the devices.

2. Press and hold MASTER POWER for 3 seconds

to sequentially turn on or off all home entertainment devices.

Depending on what mode is currently selected, the remote control will send IR commands to the devices in the following order:

For example, if TV is selected, pressing and holding MASTER POWER for 3 seconds will turn off the VCR, an auxiliary device, and the Cable converter.

NOTE: The remote control always defaults to the CABLE mode after all devices are turned off. Therefore, the initial power-on sequence will always be TV, VCR, and an auxiliary device, if no other device key is pressed first.

Start Mode Device On/Off End Mode

AUX Cable,TV, VCR CABLE

VCR Aux il ia ry, C abl e, T V CABLE

TV VCR,Auxiliary,Cable CABLE

CABLE TV, VCR, Auxiliary CABLE

RE-ASSIGNING DEVICE KEYS

The Cox Universal Remote Control can be set up to control a second TV or VCR, or any combination of up to four home entertainment devices. For example,to have the unit control a TV, a Cable Converter, and two VCRs, you will need to re-assign the unused AUX key to operate the second VCR as follows:

1. On the remote control,press VCR once.

Then press and hold SETUP until the VCR key blinks twice, then release SETUP.

2. Enter 9 - 9 - 2.The VCR key will blink twice.

3. Press VCR once, then press AUX once. The

VCR key will blink twice.

4. The AUX key is now ready to be programmed

for your second VCR. See Programming Device Control on page 8.

To re-assign other device keys,repeat steps 1 to 4 and substitute the key sequence using the following chart:

To Re-Assign Perform Key Sequence

TV as 2nd VCR key: SETUP - 9 - 9 - 2 - VCR - TV

TV as 2nd Auxiliary key: SETUP - 9 - 9 - 2 - AUX - TV

TV as 2nd Cable key: SETUP - 9 - 9 - 2 - CABLE - TV

TV back to TV: SETUP - 9 - 9 - 2 - TV - TV

VCR as 2nd TV key: SETUP - 9 - 9 - 2 - TV - VCR

VCR as 2nd Auxiliary key: SETUP - 9 - 9 - 2 - AUX - VCR

VCR as 2nd Cable key: SETUP - 9 - 9 - 2 - CABLE - VCR

VCR back to VCR: SETUP - 9 - 9 - 2 - VCR - VCR

AUX as 2nd TV key: SETUP - 9 - 9 - 2 - TV - AUX

AUX as 2nd VCR key: SETUP - 9 - 9 - 2 - VCR - AUX

AUX

as 2nd Cable key:

SETUP - 9 - 9 - 2 - CABLE - AUX

AUX

back to

AUX

SETUP - 9 - 9 - 2 - AUX - AUX

Upon completion of a re-assignment,the selected mode key will blink twice to confirm your selection.Then, you’ll need to program device control (see Programming Device Control on page 8).

CHANGING VOLUME LOCK

The Cox Universal Remote Control is set to control volume of a device through your TV while in the TV,VCR,or Cable mode. However,in the Auxiliary mode, you will still have separate control of of your auxiliary device’s volume.

If your TV is not remote controllable,or if you would like the volume to be controlled by a different device,you can change the Volume Lock setting to control a volume through a non-associated mode (e.g.,through the cable in the TV mode).

To change Volume Lock to CABLE mode:

1. On the remote control,press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice, then release SETUP.

2. Enter 9 - 9 - 3.The CABLE key will blink twice.

3. Press CABLE once.It will blink twice.

4. Now, whenever you press VOL+,VOL-,or

MUTE, volume will be controlled by your Cable Converter.

To change Volume Lock to TV mode:

1. On the remote control,press TV once.

Then press and hold SETUP until the TV key blinks twice, then release SETUP.

2. Enter 9 - 9 - 3.The TV key will blink twice.

3. Press TV once.It will blink twice.

4. Now, whenever you press VOL+,VOL-,or

MUTE, volume will be controlled by your TV.

To change Volume Lock to VCR mode:

1. On the remote control,press VCR once.

Then press and hold SETUP until the VCR key blinks twice, then release SETUP.

2. Enter 9 - 9 - 3.The VCR key will blink twice.

3. Press VCR once.It will blink twice.

4. Now, whenever you press VOL+,VOL-,or

MUTE, volume will be controlled by your VCR.

To change Volume Lock to AUX mode:

NOTE: Performing these steps will allow you to access the volume control of your auxiliary device in all modes.

1. On the remote control,press AUX once.

Then press and hold SETUP until the AUX key blinks twice,then release SETUP.

2. Enter 9 - 9 - 3.The AUX key will blink twice.

3. Press AUX once.It will blink twice.

4. Now, whenever you press VOL+,VOL-,or MUTE,

the volume will be controlled by your auxiliary device.

TROUBLESHOOTING

PROBLEM: Mode key does not blink when you press a key.

SOLUTION: Replace the batteries with two (2) new AA

alkaline batteries (see page 7).

PROBLEM: Mode key blinks when you press a key, but home

entertainment device does not respond.

SOLUTION: Make sure you are aiming the remote control at

your home entertainment device and that you are within 15 feet of the device you are trying to control.

PROBLEM: The remote control does not control home enter-

tainment devices or commands are not performing properly.

SOLUTION: Try all listed codes for the device brand being set

up.Make sure all devices can be operated with an infrared remote control.

PROBLEM: TV/VCR combo does not respond properly.

SOLUTION: Use the VCR codes for your brand. Some combo

units may require both a TV code and a VCR code for full operation (see page 9).

PROBLEM: No volume on a second TV.

SOLUTION: Follow instructions in Changing Volume Lock

(see previous page).

continued on the next page...

TROUBLESHOOTING (continued)

PROBLEM: CH+ , CH – ,and LAST do not work for your

RCA TV.

SOLUTION: Due to RCA design (1983-1987), only the original

remote control will operate these functions.

PROBLEM: Changing channels does not work properly.

SOLUTION: If original remote control required pressing

ENTER to change channels,press ENTER on the remote control after entering a channel number.

PROBLEM: Tried “Search Method”and still could not find a

working code.

SOLUTION: Try the “Search Method” again after clearing out

the device key as follows: Press and hold SETUP until mode key blinks twice,then release. Next enter 9 - 9 - 2.Then press and release the mode key to be cleared twice.

PROBLEM: Remote control does not turn on Sony or Sharp

TV/VCR Combo.

SOLUTION: For power on, these products require program-

ming TV codes on the remote control.For Sony, use TV code 0000 and VCR code 0032. For Sharp, use TV code 0093 and VCR code 0048.

ADDITIONAL INFORMATION

This product does not have any user-serviceable parts. Opening the case,except for the battery cover, may cause permanent damage to your Cox Universal Remote Control.

Copyright 2001 by Universal Electronics Inc.No part of this publication may be reproduced,transmitted,transcribed, stored in any retrieval system, or translated to any language, in any form or by any means, electronic, mechanical, magnetic, optical, manual,or otherwise, without prior written permission of Universal Electronics Inc.

M7810 11/01

Cox UNIVERSAL REMOTE CONTROL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
