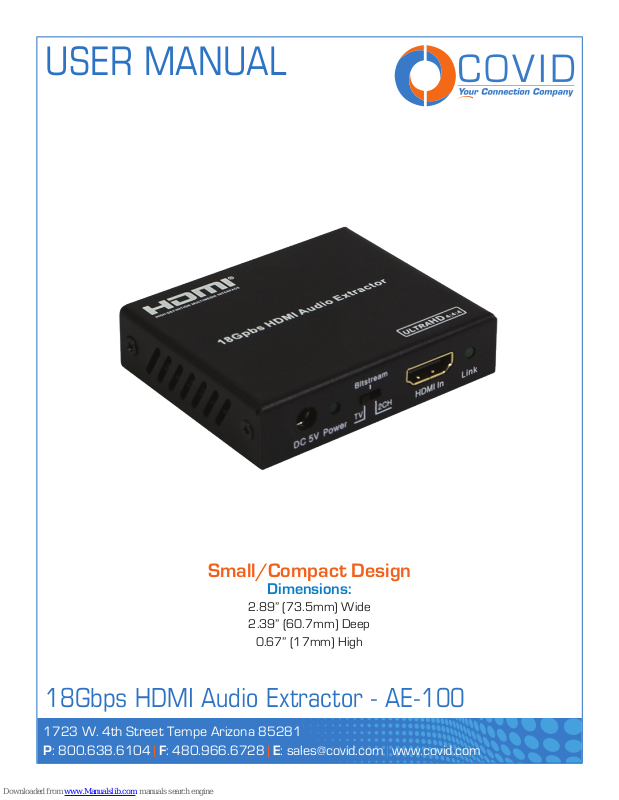

Page 1
USER MANUAL
Small/Compact Design
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Dimensions:
2.89” (73.5mm) Wide
2.39” (60.7mm) Deep
0.67” (17mm) High
Page 2
USER MANUAL
Contents
Contents......................................................................1
Introduction....................................................................2
Package Contents ...............................................................2
Features ......................................................................2
Panel Description................................................................3
Technical Specifications ...........................................................4
Connection Diagram..............................................................5
Warranty .....................................................................6
Safety Information ...............................................................6
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Page 1
Page 3
USER MANUAL
Introduction
The HDMI 18Gbps Audio Extractor can extract audio signals from any HDMI compliant source to digital optical
or analog stereo L/R audio outputs. Both the input and output HDMI support resolutions up to 4K2K@50/60Hz.
This product supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio
formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atoms and DTS-HD Master Audio. The
audio sampling rate is up to 192kHz. HDCP 2.2 and CEC bypass are supported.
Package Contents
• 1 × HDMI 18Gbps Audio Extractor
• 1 × 5V/1A Power Adapter
• 1 × User Manual
Features
• HDMI 2.0b (18Gbps)
• HDCP 2.2 & DVI compliant
• Supports resolutions up to 4K@60Hz
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH
• Supports HDMI high bit rate (HBR) audio pass through
• Audio sample rates up to 192kHz
• 10bits HDR (High Dynamic Range) pass through
• Supports CEC bypass
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Page 2
Page 4
USER MANUAL

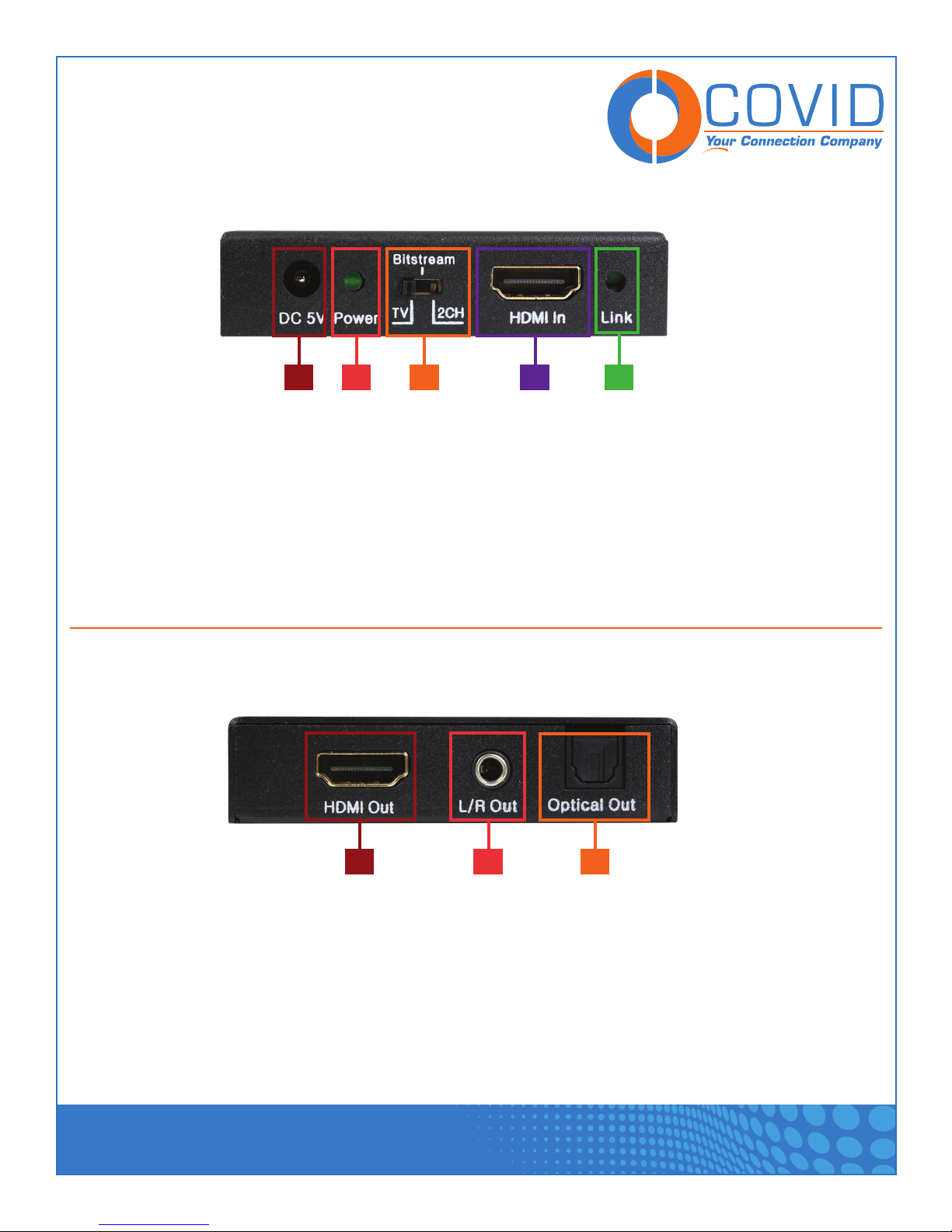

Panel Description
Front Panel
1 2 3
1. DC 5V: Connect 5V/1A adapter to AC wall outlet to power unit.
2. Power LED: System power indicator.
3. TV/Bit Stream / 2CH: This allows users to select audio format according to TV, Bit Stream or LPCM 2CH.
4. HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4 player.
5. Link LED: The LED will illuminate when it detects an HDMI input signal.
Rear Panel
4
5
1. HDMI Out: Connect to HDMI display device such as TV or projector
2. L/R Out: Connect to audio amplifier or TV L/R audio input port
3. Optical Out: Connect to audio amplifier optical audio input port.
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
1 2 3
Page 3
Page 5
USER MANUAL
Technical Specifications
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18Gbps
Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz
and 1080p 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5. 1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD
(Pass-through)
Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5. 1CH, DTS 2/5.1 CH
L/R Audio Formats Analog Stereo 2CH
ESD Protection Human body model - +/- 8kV (air-gap discharge) & +/-4kV (contact discharge)
Connections
Inputs 1 x HDMI Type A (19-pin female)
Outputs 1 x HDMI Type A (19-pin female)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 73.5mm (2.89”) (W) x 60.7mm (2.39”) (D) x 17mm (0.67”) (H)
Weight 130g (0.29lbs)
Power Supply Input: AC100 - 240V 50/60Hz
Power Consumption 1W (Max)
Operation Temperature 32 - 104 °F / 0 - 40 °C
Storage Temperature -4 - 104 °F / -20 - 60 °C
Master Audio, Dolby Atmos, DTS:X
1 x L/R Audio Out (3.5mm Stereo Mini-jack)
1 x Optical Out (S/PDIF)
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Relative Humidity 20-90% RH (no condensation)
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Page 4
Page 6
USER MANUAL

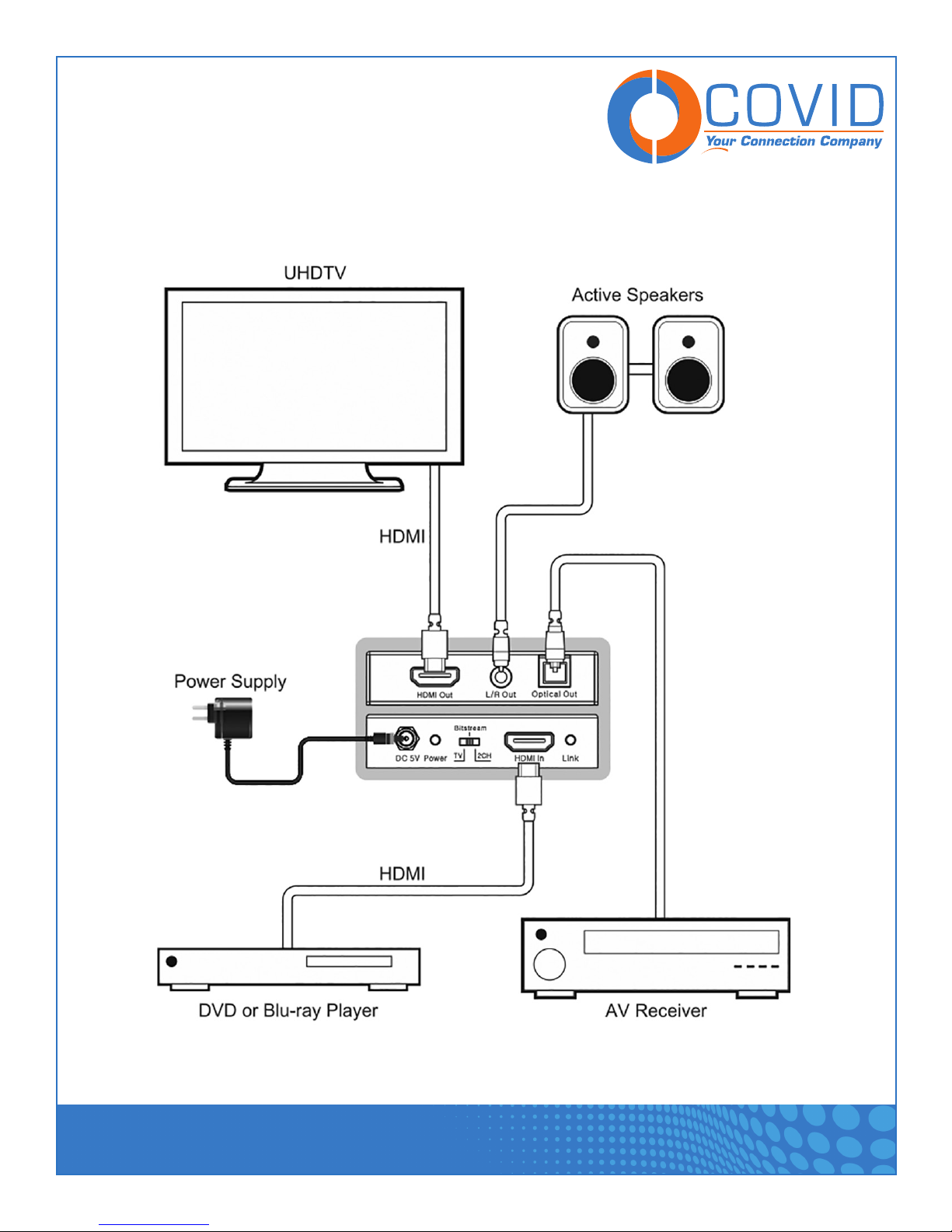

Connection Diagram
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Page 5
Page 7
USER MANUAL
!
!
Warranty
Parts and labor warranty time is three year and from the date of original shipment. This warranty shall be
void if a serial number has been removed from the product.
Upon determination of a legitimate defect covered by this warranty and at COVID’s sole discretion, user
should bear the transport cost during the warranty.
If product is out of warranty then repair charge is required. Out of warranty repairs will only be made after
cost has been approved by Customers and proper financial arrangements are made. Customer must cover
round trip shipment expenses.
Safety Information
To reduce the risk of electric shock, do not expose this product to rain or moisture.
Do not modify the wall plug. Doing so will void the warranty and safety features.
If the wall plug does not fit into your local power socket, hire an electrician to replace your
!
obsolete socket.
This equipment should be installed near the socket outlet and the device should be easily
accessible in the case it requires disconnection.
18Gbps HDMI Audio Extractor - AE-100
1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 | F: 480.966.6728 | E: sales@covid.com | www.covid.com
Page 6
