CounterPath X-Lite 3.0 User Manual

X–Lite 3.0

User Guide

CounterPath X-Lite 3.0

CounterPath Solutions, Inc. Floor 8, 100 West Pender St. Vancouver, BC Canada V6B 1R8 Tel: 1.604.878.0440 www .counterpath.com sales@counterpath.com

This document contains information proprietary to CounterPath Solutions, Inc., and shall not be used for engineering, design, procurement, or manufacture, in whole or in part, without the consent of CounterPath Solutions, Inc.

CounterPath, X-Lite, and the logo are trademarks of CounterPath Solutions, Inc. The content of this publication is intended to demonstrate typical uses and capabilities of the X-Lite softphone

application from CounterPath Solutions, Inc. Users of this mate rial must determine for th emselves wheth er the information contained herein applies to a particular IP-based networking system.

CounterPath makes no warranty regarding the content of this docu ment, including—but not limit ed to—implied warranties of fitness for any particular purpose.

In no case will CounterPath or persons invo lved in th e pr oduct ion of th is do cumente d ma teria l be lia ble for any incidental, indirect or otherwise consequential damage or loss that may result after the use of this publication.

This document corresponds to X-Lite version 3.0.

CounterPath X-Lite 3.0

1 Introduction

1.1 What is X-Lite?

X–Lite 3.0 is CounterPath’s next-generation softphone client, offering users all the productivity of a traditional telephone with desktop and mobile computer enhancements. From a simple click of a mouse button or tap on the keyboard users can dial, answer, or otherwise manage calls and personal availability. Whether over wired or wireless connections, X-Lite supports a variety of headset devices to augment the modern telephony experience, severing the restrictive tethers of traditional, limited telephone receivers.

Designed to work over IP-based systems, X-Lite provides endp oint VoIP solutions that use internet-based telephony servers within an enterprise LAN (Local Area Network) or VoIP service provider network.

Standard Telephone Features

The X-Lite 3.0 softphone has all the standard telephone features, including:

•Two lines

• Call display and Message Waiting Indicator (MWI)

• Speakerphone

•Mute

•Redial

•Hold

• Do not disturb

•Call ignore

• Call history – list of received, missed, dialed and blocked calls

• Call forward

• Call record

• Three-way audio and video conferencing.

Enhanced Features and Functions

The X-Lite 3.0 softphone also supports the following VoIP features and functions:

• Instant messaging and presence using the SIMPLE protocol.

• Managed Contacts list—importing and exporting contacts between X-Lite and other applications.

• Support for Intel service across both wired and wireless networks using industry standards such as 802.11e.

• “Zero touch” configuration of audio and video devices; no manual setup is required.

• “Zero touch” detection of the bandwidth that a user’s computer can access for communication.

• Acoustic echo cancellation, automatic gain control, voice activity detection.

• Support for the following audio codecs: Broadvoice-32, Broadvoice-32 FEC, G.711aLaw, G.711uLaw, GSM, iLBC, L16 PCM Wideband. For more information about audio codecs, see page 36.

• Support for the following video codecs: H.263, H.263 1998. For more information about video codecs, see page 37.

• Automatic selection of the best codec based on the remote party’s capability, available bandwidth, and network conditions. X-Lite switches codecs during a call in response to changing network conditions.

• Compliance with the RFC 3261 SIP standard.

• STUN and ICE NAT traversal. XTunnels for firewall traversal.

• Support for DTMF (RFC 2833, inband DTMF or SIP INFO messages).

Centrino® Mobile technology, allowing X-Lite to provide more consistent quality of

CounterPath X-Lite 3.0

2 Installation and Setup

2.1 Getting Ready

Obtaining Information from a VoIP Service Provider

After choosing a VoIP service provider, users will require specific account information to populate the following X-Lite settings:

•User name

• Password

• Authorization Name

•Domain

• Proxy address and port*

• STUN server address and port*

• XTunnels server address and port*

* value not used by all VoIP service providers

System Requirements

Minimum Optimal

Processor

Memory 256 MB RAM 256 MB RAM Hard Disk Space 30 MB 30 MB Operating System

Connection IP network connection (e.g. broadband, LAN,

Sound Card Full-duplex, 16-bit

Pentium III

Intel 700 MHz or equivalent

Windows Windows® XP

wireless)

2000

Intel®Pentium 4

2.0 GHz or equivalent

Multimedia Device Requirements

X-Lite requires users to have both speakers and a microphone for placing and accepting calls. Any of the following configurations are acceptable:

• External speakers and microphone

• Built-in speakers and microphone

• Dual-jack multimedia headse t

• Bluetooth

• USB multimedia headset

• USB phone.

multimedia headset

CounterPath X-Lite 3.0

Optimized Devices

X-Lite is optimized to work with the following devices:

• Actiontec Internet Phone Wizard

• Clarisys Claritel i750

• GN Netcom GN 8120 USB and GN Netcom 8110 USBXP

• Plantronics CS50-USB Wireless Office Headset System

• TigerJet RJ11 to USB Phone Adaptor (incorporating the Tiger560C)

• TigerJet USB Phone Set (incorporating the Tiger560C)

• VoIP Voice Cyberphone (V550MLR USB Phone)

• VoIP Voice Cyberphone K (V652VVMLR USB Phone)

• Legerity PhonePort™ PCI card

• Intel® 600SM PCI card.

Video Cameras

Calls made with X-Lite will work with out a v ideo came ra, althou gh a c amera is nece ssary for sen ding real-time images to remote parties. X-Lite supports most USB video cameras.

2.2 Installing X-Lite

1. Run the X-Lite setup executable file and follow the prompts from the install wizard.

2. At the final step of the wizard, check the Launch X-Lite checkbox to start using the softphone.

3. Click Finish to complete the installation.

CounterPath X-Lite 3.0

Auto Update

Upon startup, X-Lite will check for updates and—if found—will prompt users for authorization to install them.

Uninstalling X-Lite

Uninstall X-Lite like any other program: launch the Windows Control Panel from the Start menu, then select Add or Remove Programs. Follow the prompts.

2.3 Configuring X-Lite

1. Start X-Lite by using the Windows Start menu or by double-clicking the desktop icon.

2. The Call display shows Initializing, followed by Discovering network and Awaiting proxy login information. Users must set up at least one account before using X-Lite to place or receive calls. For information about account setup, see “Setting up Accounts” below.

3. To use an account for VoIP communication, the account must be enabled within the X-Lite client.To enable an account, click at the top of the softphone, choose SIP Account Settings and select the Enable checkbox for the desired account. For more information about enabling accounts, see page 42.

Setting up Accounts

CounterPath X-Lite 3.0

1. Create the account: click at the top of the softphone and choose SIP Account Settings. Click Add. The Properties of Account window appears.

2. Under the Acco unt tab, complete the fields with in the User Details area.

3. For the remaining tabs, default settings are acceptable, or users can change them to suit a particular setup. Settings that may need immediate changes include:

• Under the Account tab, fields within the Domain Proxy area.

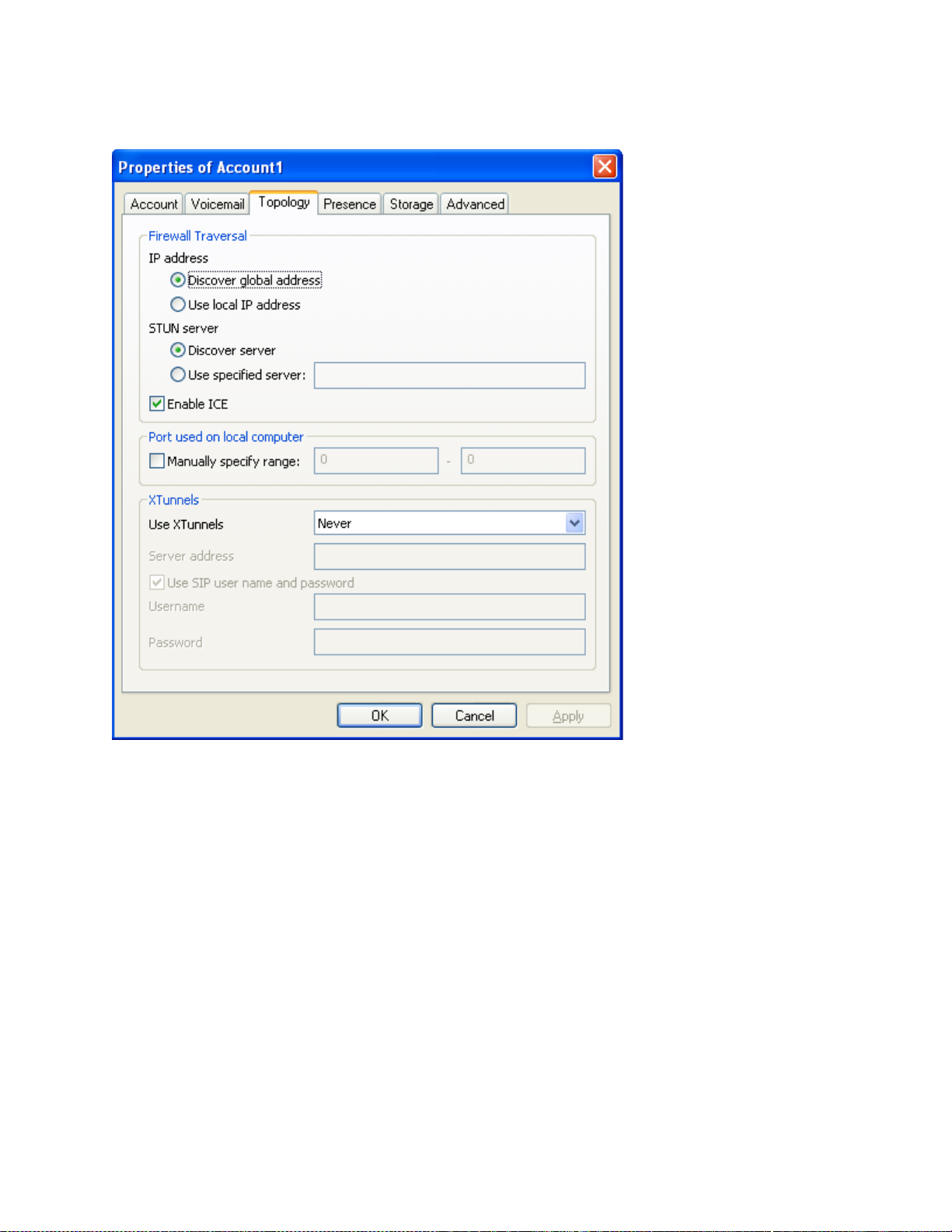

• Under the Topology tab, settings to help X-Lite traverse NATs and firewalls.

For further details about the Account Settings window, see “SIP Account Settings” on page 42.

2.4 Setting up Voicemail

VoIP service providers may offer voicemail as a complement to their regular phone services. Users with access to voicemail-enbaled accounts can set up certain voicemail features within the X-Lite softphone client (see “Account Properties – Voicemail” on page 45). In particular:

• To enable connecting to voicemail by clicking Voicemail tab of their SIP account’s properties dialog (see above) and then enter appropriate information within the Number to dial for checking voicemail field.

• To enable sending incoming calls to voicemail by clicking on the Call display, X-Lite users must complete the Number for sending calls to voicemail field under the Voicemail tab.

on the Call display, X-Lite users must access the

2.5 Setting up a Contacts List

Using a Contacts list is the most efficient way to place calls. Users can set up contacts in several ways:

• During a call, users can add a remote party to their Contacts list (see “Add to Contacts List” on page 11).

• Users can add entries to the Contacts list one by one (see “Adding a Contact” on page 17).

• Users can import a Contacts list from an existing file or from another application (see “Importing Contacts” on page 19).

For general information about contacts (see “Contacts Tab” on page 16).

CounterPath X-Lite 3.0

3 Using the Softphone

3.1 The On-screen Display

Video Drawer

Adjust Camera

Display and Dialpad

Minimize

Menu Close

Calls & Contacts Drawer

Availability

Dial

Auto Answer, Auto Conference

Do Not Disturb, Conference

Hang up

Speaker ControlMicrophone Control

CounterPath X-Lite 3.0

Display

The following information and icons may appear on the Call display:

When the phone is ringing with an incoming call, click here to ignore. X-Lite stops ringing, and a message appears to the remote caller advising that the call could not be established.

When the phone is ringing with an incoming call, click here to send the call to voicemail. VoIP service providers have details about their voicemail options (i.e. voicemail is not part of X-Lite’s inherent functionality).

If this icon does not appear for incoming calls, X-Lite’s voicemail settings are not configured properly (see “Account Properties – Voicemail” on page 45).

Indicates that there are new voicemail messages. Click this icon to access voicemail.

If clicking this icon does not connect to voicemail, X-Lite’s voicemail settings are not configured properly (see “Account Properties – Voicemail” on page 45.

Indicates that the user has missed an incoming call. T o clear the icon, click on the call area within the Missed Calls list of the Calls & Contacts drawer.

The duration of the current or last call.

Message area: During a call, this area may show account balances (hours or currency). Contact the appropriate VoIP service provider for details.

Click to add this caller to the Contacts list (see page 16 for information about Contacts lists).

When a call is in progress, this icon indicates that:

• – the user is talking

• – the user is not talking

• – MUTE is on

Video Drawer

To display the Video drawer, click the black button toward the extreme left edge of the softphone application. Click the same black button to hide the drawer. Users can click the button to display the operating system’s standard window for setting camera properties (this is not an X-Lite window).

To detach the drawer, click the button; to reattach the drawer, click the button. The Video drawer has two panels. The top panel shows incoming video (video from the remote party ). The

lower panel shows outgoing video. The button starts and stops transmission of local video.

Advertisement Window

When users have the Video Drawer open but are not engaged in a video call, X-Lite displays advertisements within the top half of the panel (i.e. where X-Lite displays remote video during a video call).

CounterPath X-Lite 3.0

Calls & Contacts Drawer

To display the Contacts drawer, click the black button toward the extreme right edge of the softphone application.

This drawer displays a user’s Contacts lists, lists of recent calls, and availability information (i.e. presence) for both the user and contacts. For more information, see page 15.

3.2 Starting X-Lite

1. Start X-Lite by using the Windows Start menu or by double-clicking the desktop icon. Note that users can

have X-Lite running at the same time as they are running eyeBeam—CounterPath’s retail softphone available for purchase at http://counterpath.com.

2. Take an appropriate action:

• If the user has enabled an account, the next message displayed will be Registering. X-Lite attempts to log into every enabled account, and when login is complete, the Call display shows Ready. Your username is.

• If the user has not enabled an account, the SIP Accounts window will appear. Enable an account; X-Lite will designate that account as the de fault. For information a bout enabling accounts , see “SIP Accounts” on

page 42.

• If the user has set up no account, the final message will be Awaiting proxy login information. For information about setting up an account, see “Configuring X-Lite” on page 4.

When logged in to an account, the Call display will show Ready - Your username is. For more information about accounts, see “Rules for Enabled Accounts and Default Account” on page 43.

Showing and Hiding the Softphone

After clicking to minimize the softphone application, users will still be able to receive calls. After exiting the application while the softphon e is mi ni mize d, X-Lite will start minimized for the next session. Users can specify that X-Lite should provide visual cues whenever a call arrives while the softphone is

minimized or covered by another application. See “Options – General – Alerts and Sounds” on page 32.

Receiving a New Contact Request

If local presence availability is enabled, users can receive a New Conta ct Request dialog box at any time while X-Lite is running. For information about such requests, see “Availability” on page 22.

CounterPath X-Lite 3.0

3.3 Placing a Call

Users can place calls to a remote party using:

• A SIP address (e.g.

• A traditional phone number (if the VoIP service provider for the account supports PSTN gateways)

Method Description

Keying 1. Enter the SIP address or number in the Call display using the softphone keypad or the computer keyboard.

2. Click or press Enter to dial.

Partial keying After keying in part of a number, X-Lite may suggest additional text for completing the entry. Press Tab to

accept the suggestion or continue typing the desired number. Click or press Enter to dial.

Drag-and-drop Drag an entry from the Contacts tab or any of the lists in the Calls tab to the Call display (for information

about the Calls & Contacts drawer, see page15). If the Contacts list contains numerous contacts, use the field to filter the list, then drag the entry.

Right clicking Right-click an entry on the Contacts tab or any of the lists in the Calls tab, and choose Phone this Person (for

information about the Calls & Contacts drawer, see page 15).

kpereira@domainabc.com)

• Enter the entire SIP username (

• If the “Turn Letters Into Digits” feature is enabled, X-Lite converts letters that a user types into

corresponding numbers from the dialpad. Click Clear, then press the keyboard’s spacebar and try typing again (see “Options – General – Application” on page 30 for details).

kpereira@domainabc.com) or just the name (kpereira).

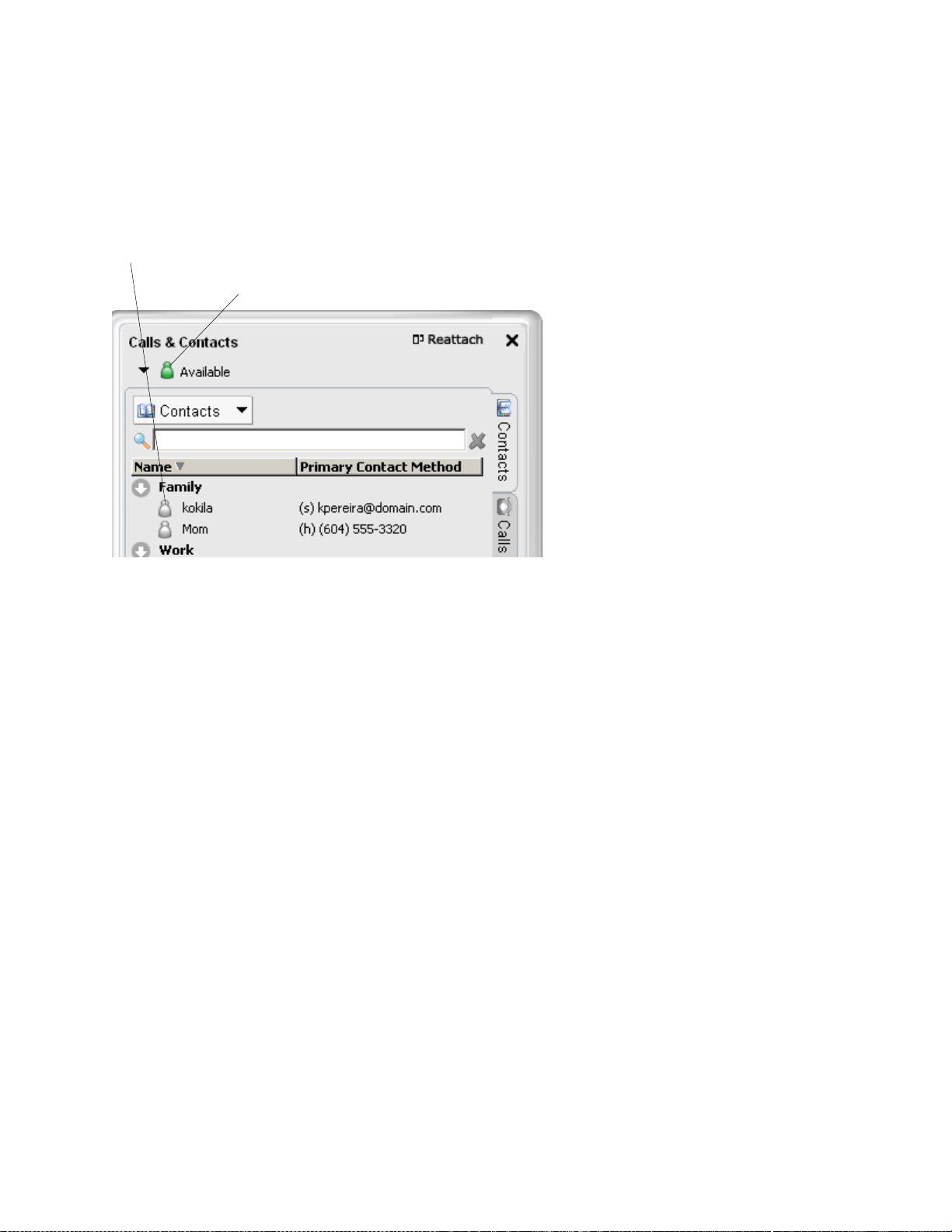

If the Contacts list contains numerous contacts, use the field to filter the list, then right-click the entry.

Redialing Click Redial.

If users have Call Alerts turned on, the Call Alert box will appear at the bottom of the screen to announce incoming calls. For information about turning on alerts, see page 32.

Users will hear a ringing tone while X-Lite attempts to make a connection.

Ending a Call

To hang up, click on the Call display or Call Alert box, or press Esc on the keyboard. Details of the call remain on the Call display. To clear the Call display, click Clear.

Note that selecting another line puts an existing call on hold without hanging up.

3.4 Answering a Call

X-Lite must be running to answer incoming calls. (If X-Lite is not running, incoming calls may be directed to voicemail).

The softphone rings and the line of the incoming call light s up. If Call Alerts are on , the Call Ale rt box ap pears. If the Bring To Front feature is enabled, the phone comes to the front of the screen above all other running applications. For information about alerts and bring-to-front functionality, see page 32.

CounterPath X-Lite 3.0

X-Lite displays the SIP address of the person calling. If the SIP address for this person is also in the user’s Contacts list, X-Lite converts the SIP address into the display name associated with that address.

Users can answer calls in any of three ways:

• Click on the softphone or on the Call Alert box.

• Click the appropriate line number on the softphon e.

• If X-Lite is the active application, press Enter on the keyboard.

Users can ignore calls in any of three ways:

• Click on the Call display or on the Call Alert box; a message app ears to the calle r advising that the call could not be established. The phone stops ringing, and the call is added to the

Received Calls list.

• Click on the Call display to send the call to voicemail. Voicemail access is a VoIP service provider option, not one of X-Lite’s integrated features.

• Ignore the ringing until X-Lite sends the call to voicemail.

Users can also ban any caller, as follows:

•Click on the Call display; X-Lite adds the call to the Received Calls list.

•Within the Received Calls list, right-click the entry X-Lite added and select Ban this Person.

Ending a Call

To hang up, click on the Call display or Call Alert box, or press Esc on the keyboard. Details of the call remain on the Call display. To clear the Call display, click Clear.

Note that selecting another line puts an existing call on hold without hanging up.

3.5 Handling a Call

While the Call Is in Progress

Video

Click Start on the Video drawer to transmit video to the remote party. If the remo te party has enabled video at their end, users will see them in the top half of the video panel.

Adjusting Volume

Use the microphone slider to adjust the volume of outgoing voice. Use the speaker slider to adjust the volume of incoming sound.

Mute

Click on the dial pad to mute local sounds and prevent them from reaching remote parties. The icon will appear within the Call display. While sound is muted, users may wish to stop any local video feed as well.

Speakerphone

Click on the dial pad to put a caller (or callers within a conference call) on the speaker phone. Note that users must have a speakerphone device configured before accessing this feature.

CounterPath X-Lite 3.0

Call Record

Click REC at any time to record a call. Click REC again to stop recording. X-Lite saves recordings as .wav files for audio and

Call Information

T o view information suc h as the current codecs in use, hover ov er the line bu tton (e.g. Line 1) on which th e call is being made. Information appears as a tool tip.

Add to Contacts List

At any time during a call, users can click on the Call display to add the remote party to their Contac ts list. For information about the fields within the dialog box and about the Contacts list in general, see page 17.

.avi files for video, placing them in the location specified under Options → Application.

Placing a Call on Hold

Click Hold or click any line. To resume a call, click the line that is on hold.

AA – Auto Answer

Click AA on the dialpad to automatically answer calls as they come in.

Flash

The Flash button on X-Lite works the same way as Flash or Link works on a traditional telephone. Click Flash on the dialpad.

• If a call is active, clicking Flash will provide a new line and place the active call on hold.

• If a new incoming call is ringing, clicking Flash will answer the call.

• If a line is on hold, clicking Flash will pick up the line.

Note: exact functionality depends on VoIP service provider support for Flash.

Sending to Voicemail, DND, and Call Forwarding

Sending to Voicemail

Users can send any incoming call to voicemail by clicking on the Call display. Users can access voicemail messages by clicking the on the Call display (X-Lite displa ys this icon only

when there are new messages). For important information about voicemail functionality, see “Setting up Voicemail” on page 5.

DND – Do Not Disturb

Click DND on the dialpad. X-Lite will either send all subsequent incoming calls to voicemail or provide an audible “busy” indication to remote parties, depending on VoIP service provider support for this feature.

Call Forwarding

Users can enable or disable call forwarding. When enabled, X-Lite will forward incoming calls to another phone number (other than voicemail). To enable call forwarding, click at the top of the phone and choose SIP Account Settings. Select the desired account, then click Properties, then the Voicemail tab, then complete the Forwarding section. For details, see “Account Properties – Voicemail” on page 45.

CounterPath X-Lite 3.0

3.6 Conference Calls

There are three ways to set up a conference call:

• “Manual Setup: AA Off and AC Off”, below

• “AA Off and AC On” on page 13

• “Conference Server Mode: AA on and AC On” on page 13.

Manual Setup: AA Off and AC Off

Users can host a conference by calling the other parties involved, or by allowing them to call in to the local softphone.

Starting a Conference Call

To host a conference between several callers:

1. With one active call, place the call on hold by either:

• selecting the other line and dialing a third party, or

• clicking an incoming call.

2. To add all existing calls to a conference, click CONF. All lines will become participants in the conference.

3. To suspend a conference, click CONF to place all remote parties on hold. The other participants will not be

able to speak to one another. With a conference on hold, users can talk privately to one party by clicking the appropriate line.

4. To restart the conference, click CONF again. Note that users can become a conference host even if they did not initiate the original call. For example, one

person could phone in, after which the local user could place and accept other calls and establish a conference.

Adding a Party to an Active Conference

1. Place the conference on hold by clicking CONF.

2. Invite another party to the conference by either:

• Selecting the line of an incoming call.

• Selecting an available line to initiate a call to an outside party.

• Right-clicking a name in the Calls & Contacts tab.

Users can speak to new parties while the conference is on hold.

3. To add all active lines to the conference, click CONF.

Removing a Party during an Active Conference

1. Suspend the conference by clicking CONF.

2. Select the line of the participant who will be leaving the conference.

3. Say goodbye to the party, then click .

4. Click CONF to ree stablish the conference. A party can also leave a conference on their own by simply hangi ng up.

Removing all Parties

If a conference call is in progress (not on hold), users can hang up on all parties and t hu s en d t he co nferen ce by clicking .

CounterPath X-Lite 3.0

Manual Answering & Automatic Conferencing: AA Off and AC On

“Users answer calls manually and X-Lite adds each to the conference aut omat ica ll y.”

1. Click AC to enable auto-conferencing.

2. Answer the first call. There is no need to put the call on hold.

3. Answer the next call that comes in on the second line. X-Lite will create an automatic conference for the local user and both remote parties.

• The conference gets established even if one line was on hold.

• X-Lite includes all lines in the conference call, including those that were on hold.

Automatic Conference Server Mode: AA on and AC On

“X-Lite acts as a fully-automated conference server.”

1. Click AC and AA to enable auto-answering and auto-conferencing.

2. When the first call comes in, X-Lite will answer automatically. Local users can speak to this remote party.

3. When another call arrives, X-Lite will answer automatically and add the remote party to a conference call.

While the Call Is in Progress

Changing the Mode

While a conference call is in progress, users can change between any of the modes described above by enabling the desired combination of AA and AC.

Video in Conference Mode

Click Start on the Video dra wer to transmit video to the othe r parties in a conference. If the remote parties have enabled video transmission at their end as well, local users will see the other parties in the top half of X-Lite’s video panel.

Adjusting Volume

Use the microphone slider to adjust the volume of outgoing voice. Use the speaker slider to adjust the volume of incoming sound.

Mute

Click on the dial pad to mute local sounds and prevent them from reaching remote parties. The icon will appear on the Call display. When sound is muted, users may wish to stop any local video feed as well.

Speakerphone

Click on the dial pad to put a caller (or callers within a conference call) on the speaker phone. Note that users must have a speakerphone device configured before accessing this feature.

Call Record

Click REC at any time to record a call. Click REC again to stop recording. X-Lite saves recordings as .wav files for audio and

Call Information

.avi files for video, placing them in the location specified under Options → Application.

T o view information suc h as the current codecs in use, hover ov er the line bu tton (e.g. Line 1) on which th e call is being made. Information appears as a tool tip.

CounterPath X-Lite 3.0

Add to Contacts List

Multiple Conference Hosts

An X-Lite conference call may include up to three individuals—the conference host plus a participant on each of the two available lines. Users can establish multiple conference hosts to “daisy c hain” a conferen ce call with more than three participants using the X-Lite client.

For example, one person may host two other parties (to occupy all available lines) with one of those parties being a conference of their own containing two other parties. This would bring the total number in the aggregate conference call to four.

In theory , such “daisy chai ns” would allow for an unlimited number of parties in a conference call. In a real scenario, however, the number of participants is limited by bandwidth constraints at each of the conference host’s computers, causing audio quality to degrade more and more as new participants arrive.

X-Lite will switch automatically to the best codecs available as required (i.e. as participants are added). For information about codecs, see “Options – Advanced – Audio Codecs” on page 36. If conference call audio is of poor quality, the conference is probably beyond the limits of users’ very best codec—the conference is too big.

CounterPath X-Lite 3.0

4 Managing Calls and Contacts

4.1 Calls & Contacts Drawer

To display the X-Lite Calls & Contacts drawer, click the black button toward the extreme right edge of the softphone application. Users can open (display) and close (hide) this drawer at any time using the same button.

User availability. See page 22

Contacts. See page 16

Calls: received, dialed and blocked calls. See page 20.

CounterPath X-Lite 3.0

4.2 Contacts Tab

Availability of the local user. See page22.

The Contacts menu

The search field

Availability of remote parties (color-coded). See page 25.

The Contacts tab displays a user’s contacts and allows multiple contact methods for them, including:

• SIP address (softphone)

• Home phone number

• Cellphone number

• E-mail. Users can identify one of these contacts as the primary contact method. Users can phone any contact. If the contact has a SIP address, users can also send the m inst ant messages, watch

their availability, and let them watch the local us er’s availability. If the contact has an e-mail address, users can send an e-mail from X-Lite.

Typically, X-Lite organizes contacts into one of three built-in groups: Family, Friends, and Work. Users can create more groups as desired (see “Adding, Deleting or Renaming Groups” on page 17).

Changing the Contacts List View

To display the drawer in a realizable window, detach the Calls & Contacts drawer. To show contacts organized into groups, click the Contacts menu and select Show Categorized. To show only those contacts who have designated themselves as “available” and are currently online, click the

Contacts menu and select Show only contacts with availability. To sort contacts, click the Conta cts me nu and select a desired Sort By rule.

CounterPath X-Lite 3.0

Using Contacts

Call a contact To use the person’s primary number, double-click or drag the contact to

the Call display. To choose a specific number to use, right-click the contact and select

Call, then click the desired number.

E-mail a contact for whom the user has designated a valid email address

Right-click and select Send E-mail.

Send an IM to a contact who

Right-click and select Instant Message.

has a SIP address

Watch the availability of a contact who has a SIP address

See Table 2 on page 25 for definitions of the availability icons. See “Availability” on page 22 for information about obtaining

availability information for remote parties.

Managing Contacts

Adding, Deleting or Renaming Groups

Click the Contacts menu and select Manage Groups. The Manage Groups dialog will appear.

• To create a new group, click New Group, type a name, then press Enter.

• To delete a group, highlight the group and select Remove. X-Lite moves contacts that were in that group

to a catch-all “No Group” group.

• To rename a group, highlight the group and select Edit. Type the new name and press Enter.

Adding a Contact

Click the Contacts menu and select Add Contact. The Contact Properties dialog box appears (see below).

Finding a Contact

If the Contacts list is long, use the field to filter for the desired contact. To clear the filter and re-display all contacts, clear the field.

Changing Contact Information

To change information for a contact, right-click the contact and select Edit. The Contact Properties dialog box will appear (see below). Changes that users can make to contact information include:

• Any contact details.

• Adding, deleting or changing one or more contact methods.

• Switching the primary contact method.

• Moving a contact to a different.

• Adding an existing contact to additional groups by selecting one or more extra groups.

• Changing the Show this contact’s Availability checkbox to enable or disable availability information for

the contact. For information about Availability, see page 22.

Moving or Deleting a Contact

• To move a contact to a different group, select the contact and drag it to the desired group’s name.

• To delete a contact, right-click the contact and select Delete. X-Lite removes the contact from the group.

CounterPath X-Lite 3.0

Contact Properties Dialog Box

1. Enter the desired information under the two tabs.

2. After clicking OK, X-Lite adds the contact to the group or groups specified and displays the designated

primary contact method in the list.

Table 1: Contact Properties Dialog Box

Field Description

Name Complete as desired. Display as Required. This is the name that will appear in the Call display and the Call Alert when this

person phones.

Group(s) Either:

• Choose one group.

• Click Select More and select several groups. The new contact will be added to each group.

• Create a new group by clearing the field and typing in a new name. The new contact will be added to the newly-named group.

• Clear the displayed group in order to add the contact to “No Group”

CounterPath X-Lite 3.0

Table 1: Contact Properties Dialog Box

Field Description

Contact Methods Enter as many contact methods as desired. E-mail and SIP entries must follow the format:

<name>@<domain> If desired, change the primary contact method within the Contact Methods area.

Show this contact’s Availability Check this box to obtain the contact’s availability for display within the Contacts list. This field

is enabled only when at least one SIP address is specified for the contact. The contact will have a besi de their name in the Contacts list. Initially, this icon will be gray;

later the icon will change in color to indicate the contact’s current availability. For details on Availability, see page 22.

Details tab Complete as desired.

Importing Contacts

Users can import an existing Contacts list from:

• A comma-separated-value file. Use this approach to import contacts from a Microsoft

Excel® file. Users

will first have to set up the file (see below).

•A Microsoft® Outlook® or Microsoft® Exchange contacts list (a *.pst file).

•A vCard file (

*.vcf file). A vCard is an electronic business card that users can attach to outgoing email.

X-Lite will add new contacts to any existing contacts.

1. Click the Conta cts me nu and select Import. The Import Contacts wizard will start.

2. After clicking Finish within the wizard, X-Lite updates the Contacts tab to show the imported entries. Note

that none of the new entries is set up with availability turned on; to view the availability of these new contacts, users must modify the appropriate entries by changing their Show this contact’s Availability checkbox. See above for details.

Setting up an Excel File for Import

1. Remove any introductory text or headings from the top of the file. (X-Lite will ignore text at the end of the file during import).

2. Insert a blank row as the first row, then insert the headings that X-Lite will use to interpret the meaning of each contact-related column (users can specify these columns in any order). Popular headings are:

• display-name

• entry_id

• given_name

• surname

• postal_address.

For a complete list of headings, see “Appendix C: Contact List Headings” on page 60.

3. Save the file as

<filename>.csv.

Exporting Contacts

Users can export a Contacts list to a comma-separated-value file, a .pst file or a .vcf file.

1. Click the Conta cts me nu and select Export. The Export Contacts wizard will start.

2. After clicking Next, the export starts. The result of exporting will be one of the following:

•For an Outlook list. If Outlook

export, X-Lite updates the existing .pst file to include entries from the X-Lite Contacts

is open, the entries appear immediately in that application’s contacts list.

CounterPath X-Lite 3.0

X-Lite exports all information from the Contacts list to Microsoft® Outlook®. Only information that can

be displayed in Outlook X-Lite exports SIP addresses (stored in custom fields) but Outlook

actually appears in the Outlook® contacts window. Typically, this means that

does not display them all.

• For other formats, X-Lite creates a new file of the specified type.

4.3 Calls Tab

There are three lists that show calls made and received:

• Missed Calls: incoming calls that the user missed.

• Received Calls: incoming calls, both answered and missed.

• Dialed Calls: outgoing calls, both answered, unanswered and hung up.

• Blocked Incoming Calls: X-Lite will block a n incoming call from a person whom the user has banned (see “Privacy Rules” on page 53).

CounterPath X-Lite 3.0

Managing Calls Lists

Users can open and close each list to show or hide the contents.

Icon Meaning

The list is empty.

There are calls in the list.

There are calls in the list, at least one of which is an unanswered call.

The list is expanded to show the contents.

The list is expanded to show the contents, at least one of which is an unanswered call.

The user answered the call.

The user missed the call (i..e. the user was unavailable for or chose to ignore the call).

Users can select a list and click Calls in order to:

• Delete all entries from the list.

Users can also right-click any entry within the Received or Dialed list to select one of:

• Ban this Person — the person will not be able to initiate phone calls or instant messages with the local

user, and will not be able to see their online status. Users can change these privacy rules at any time (see

page 25).

• Delete Call.

• Add to Contacts — the Add Contact dialog box will appear. Complete the dialog box and press OK. For

more information about the fields involved, see “Managing Contacts” on page 17.

Phoning and Sending IM from a List

Users can right-click on an entry in the Received or Dialed list to:

• Phone the person.

• Phone the person and add them to an existing conference call. For more information about conference calls, see “Conference Calls” on page 12.

• Send an instant message to the person. For details, see page 28.

CounterPath X-Lite 3.0

4.4 Availability

Availability refers to a user’s abil ity to see whet her a remote co ntact i s availab le or not (o nlin e, on phon e, busy, etc.). X-Lite displays availability information within in the Calls & Contacts drawer.

Users can publish their availability to contacts who have SIP addresses, and can configure X-Lite to view the availability of other contacts.

Availability of remote parties (color-coded)

User availability (color-coded)

Sharing Availability

Watching Others’ Availability

To enable viewing the availability of a remote party, either add that person to the Contacts list while making sure to check the Show this contact’s Availability field, or modify existing contact information by checking the field. For more information, see page 17.

As soon as the person is set up in the Contacts list, X-Lite sends them a notification reque s t. The request asks them to authorize the local user for viewing that person’s online availability. If the person allows this request, then the icon beside their name in th e Contacts list becomes color-coded (see below for details) to help the local user determine their availability.

Allowing Remote Parties to View A User’s Availability (Publishing Local Availability)

When a remote party authorizes a notification request from a local X-Lite user (see above), the local user’s name is added to their Contacts list. As soon as a remote party adds an X-Lite user to their list, their SIP client sends a request back asking that they be able to view the local user’s online availability.

If a user does not yet have a privacy rule set up for the remote party, the request will appear as a New Contact Request. If the user did set up a privacy rule before the remote party makes a request for viewing local availability, the local user will n ever see a promp t for author izatio n; X-Li te wi ll repl y aut omatica lly t o the request according to the rule specified for the remote party.

CounterPath X-Lite 3.0

Respond to the request:

Button Next Action Result

Allow The remote party will be able to view local availability.

X-Lite will add the remote party to the local user’s privacy rules with Show my Status set to “Yes. “ Users can change this rule later (see page 27).

Allow and add This button appears only if the remote party is

not already on the local Contacts list. When a user clicks Allow and add, the

Add Contact dialog box appears. Complete the dialog box and press OK. For more information about the fields involved, see “Managing Contacts” on page 17.

Deny The remote party will not be able to view local availability.

The remote party will be able to view local availability. X-Lite will add the remote party to the Contacts list, and to the local user’s privacy rules with Show my Status set to “No.” Users can change this rule later (see page 27).

In the future, users will not receive any availability-related requests from that particular remote party, because the user has already set up a rule to allow or ban that person from viewing local availability.

In addition, X-Lite will send this same request to the remote party for authorization to view their availability.

X-Lite will add the remote party to the local user’s privacy rules with Show my Status set to “No.“

Close the window The remote party will not be able to view local availability.

X-Lite will not add the remote party to the local user’s privacy rules.

CounterPath X-Lite 3.0

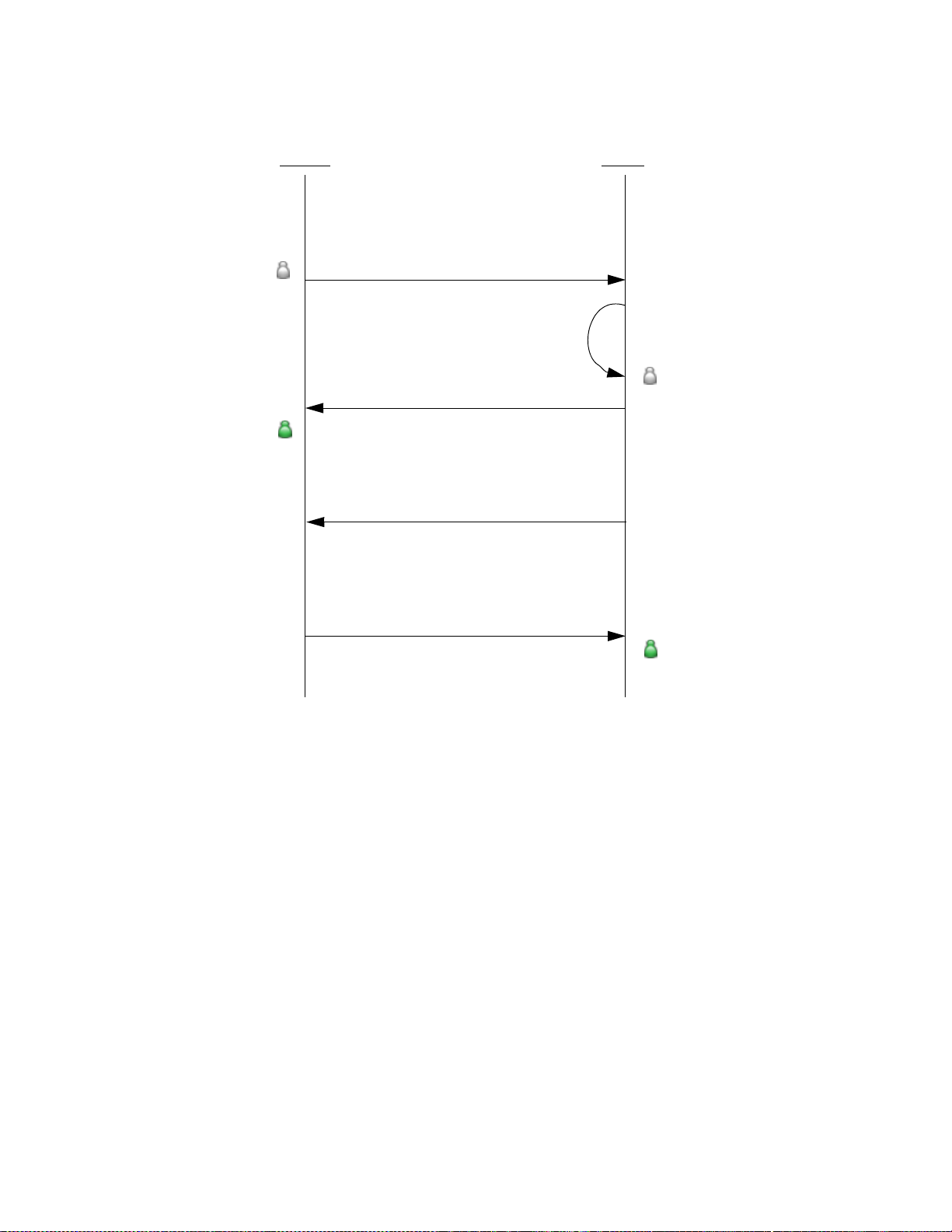

The following diagram illustrates how the sharing of availability occurs.

Joseph Kokila

Joseph adds Kokila to his Contacts list with “Show this contact’s Availability” checked

X-Lite adds an availability icon for Kokila, colored gray

X-Lite turns Kokila’s availability icon green

Joseph receives a notification request and responds by clicking Allow

Joseph’s X-Lite sends a “let me see you”

request to Kokila

Kokila’s X-Lite sends an “allow” response

With Joseph now in Kokila’s Contacts list,

Kokila’s X-Lite sends a “let me see you” request

Joseph’s X-Lite sends an “allow” response

Kokila receives a notification request and responds by clicking

Allow and add

X-Lite adds Joseph to Kokila’s Contacts list, adds an availability icon for Joseph, colored gray, and creates a privacy rule for Joseph specifying “allow” and “show”

X-Lite turns Joseph’s availability icon green

Changing Availability Permissions

• If a user decides that they no longer want a remote party to view their online availability , they can change

the Show My Status field for that person within their Privacy Rules (see page 27). X-Lite will change the icon for that person to “Offline.”

• If a user decides that they no longer want to watch remote party’s online availability, they can uncheck the

Show this contact’s Availability field within the Contact Properties dialog box (see page 17).

Managing Local Availability

Changing Local Availability

Click the downward-facing arrow beside the status indicator , then select the desi red availability from among the list (see Table 2 below).

When local availability changes, X-Lite sends the updated availability to everyone whom the user has authorized to view their availability.

Setting up Availability Indicators

Users can create custom availability indicators, and can edit or delete both custom and built-in indicators. In the Calls & Contacts drawer, click the downward-facing arrow beside the availability icon, then select

Availability Settings (see page 33 for details).

CounterPath X-Lite 3.0

Indicator Meaning for local Availability Meaning for remote Availability

Auto-detect X-Lite will set the availability as appropriate, one of:

• Available — The user is logged in but is either not on the phone or idle.

• On the phone — Appears as soon as the user places a call or answers a call.

• Idle — The user has not moved/clicked the mouse or pressed a keyboard key for the Idle period. Set the Idle period in Options → General → Availability (see page 33).

Available Either:

• The user set their availability to this status

• The user set their availability to “Auto-detect” and X-Lite determined that they are not occupied.

Busy The user set their availability to this status. T he remote user, for which the local user

On the phone Either:

• The user set their availability to this status

• The user set their availability to “Auto-detect” and X-Lite determined that they are engaged with a call.

Idle Either:

• The user set their availability to this status

• The user set their availability to “Auto-detect” and

X-Lite determined that they have not moved or clicked the mouse or pressed a keyboard key for the Idle period. To set the Idle period see Options → General → Availabi lity on page 33.

Table 2: Availability Indicators

Not applicable

The remote user, for which the local user has subscribed to receive availability information, appears to be available.

has subscribed to receive availability information, appears to be busy.

The remote user, for which the local user has subscribed to receive availability information, appears to be on the phone with another caller.

The remote user, for which the local user has subscribed to receive availability information, appears to be idle.

Away The user set their availability to this status. The remote user, for which the local user

Offline Not applicable The remote user, for which the local user

no icon Not applicable The local user appears to not be watching

has subscribed to receive availability information, appears to be away.

has subscribed to receive availability information, appears to be offline.

this remote contact’s ava ilability (see “Sharing Availability” on page 22).

4.5 Privacy Rules

Users can allow other people to contact them or ban other peop le from contacting them. The re are separate rules for incoming phone calls, incoming instant messages, and availability viewing. Users can ban/allow an individual person, or an entire domain.

Users can also ban a person listed in a Calls list. Right-click on the name and select Ban this Person.

CounterPath X-Lite 3.0

Privacy Rules Window

Click at the top of the phone and select Privacy Rules. The window may show rules added during availability exchang es (see “Sharing Availability on page 22).

Adding a Name or Domain

1. Click Add.

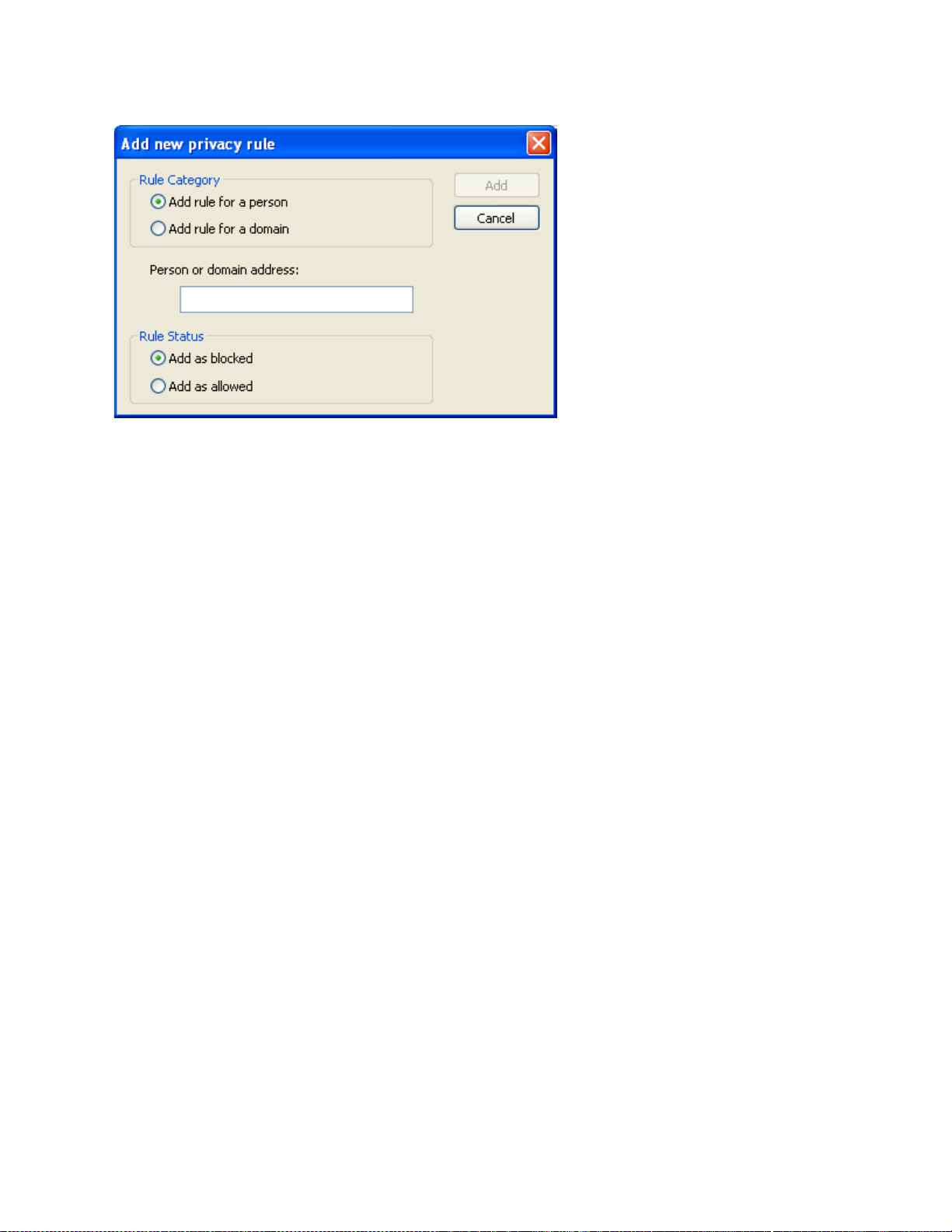

2. Complete the dialog box. If adding an individual (“Add rule for a person”), enter a SIP address. X-Lite fills in any omitted domains with the domain of the local user. If adding an entire domain (“Add rule for a domain”), enter the domain only.

X-Lite adds the new name/domain to the user’s Privacy Rules list with all groups set to “Yes” or “No.” If a user receives a new contact request from a person in their rules list, X-Lite responds according to the

specified rule (X-Lite will not display the New Contact Request dialog box).

CounterPath X-Lite 3.0

Changing Rules

To change the settings for an existing name, click the cell to be changed. X-Lite changes the value (e.g. from “No” to “Yes”).

Deleting an Entry

Highlight the desired entry and click Delete. X-Lite deletes the entry.

•If the rule was for a person who is either in the user’s Contacts list or has a contact list of their own that contains the user, X-Lite will display a New Contact Request for that person.

•If the rule was for a domain within which any person is either in the user’s Contacts list or has a contact list of their own that contains the user, X-Lite will display a New Contact Request for that person.

CounterPath X-Lite 3.0

this i

5 Instant Messaging (IM)

5.1 Sending and Receiving an IM

To display the IM window, right-click any entry in the Calls & Contacts drawer and select Instant Message. Type a message, including formatting as desired, then click Send.

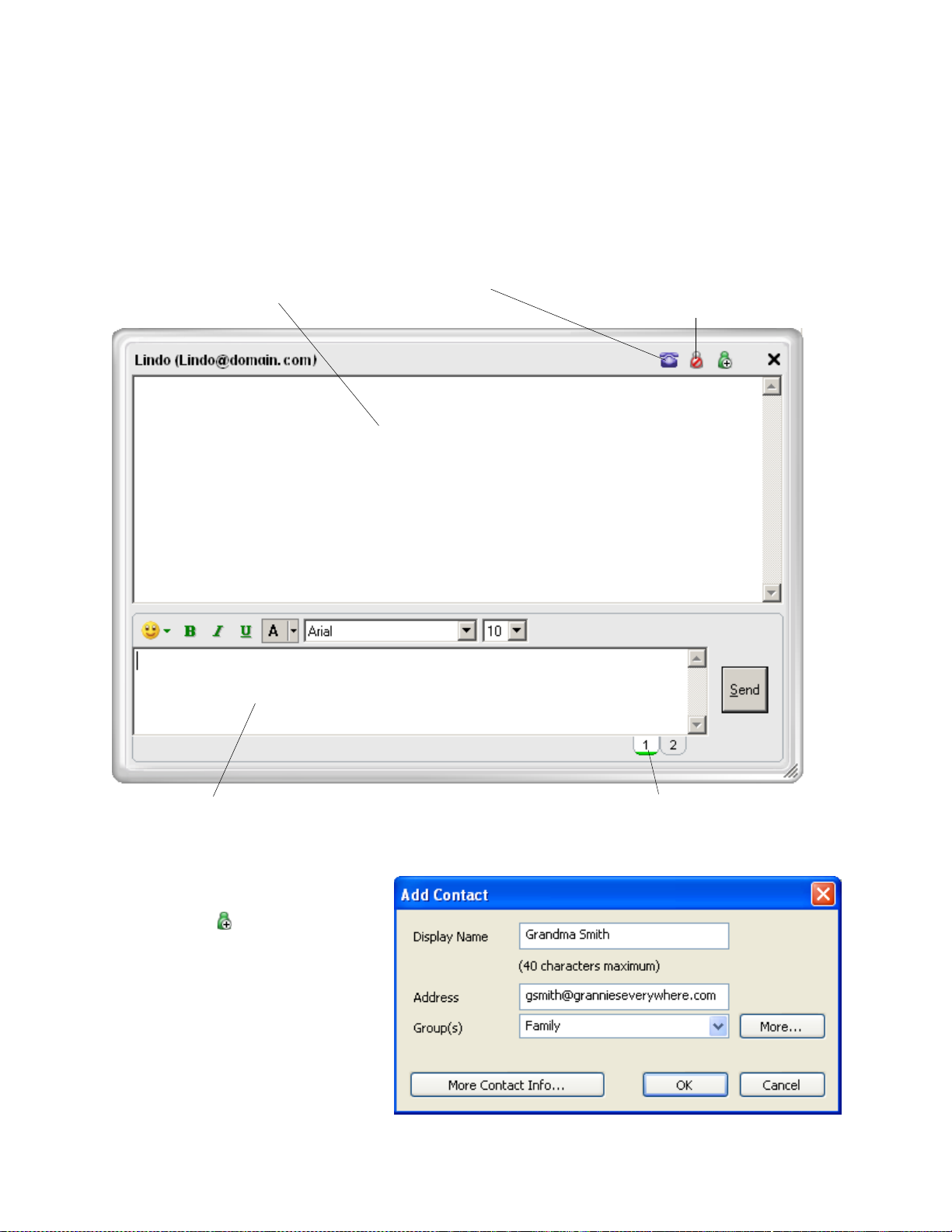

Conversation area Note: users can press Ctrl-F to search for specific text within a lengthy conversation.

Click to place a phone call to the remote person’s SIP address

sers can click from sending instant messages, from calling and from viewing their online status. To un-ban a person, see “Privacy Rules” on page 25.

con to ban the remote party

Message input area

Adding to the Contacts List

Users can click to add a person to their Contacts list.

The Add Contact dialog box appears. Complete the dialog box and press OK. For more information about the fields involved, see “Managing Contacts” on

page 17.

These tabs can be used to switch between two separate message compositions, which can be helpful if the user is busy typing a message when another message arrives (from the same person) that requires an immediate response. Clicking Send sends only the message under the selected tab.

CounterPath X-Lite 3.0

6 The X-Lite Menu

Access the X-Lite menu by clicking at the top of the phone. The menu items include:

• Options — options control the way users can work with X-Lite, and apply to all potential accounts (see “Options – General – Application” on page 30).

• SIP Account Settings — these settings control how X-Lite interacts with a VoIP service provider (see

page 42).

• Privacy Rules — allows a user to control who may and who may not communicate with them (see

page 25).

• Open Diagnostic Log — a VoIP service provider’s customer support representative may ask users to open this log if they are experiencing problems with X-Lite (see “Options – Advanced – Diagnostics” on

page 41).

• Open Diagnostic Folder — a VoIP service provider’s customer support representative may ask users to open the diagnostics folder if they are experiencing problems with X-Lite (see “Options – Advanced – Diagnostics” on page 41).

• Help — this menu item directs users to http://support.counterpath.net.

• About — provides users with information about the version of X-Lite that is running.

• Exit — allows users to exit the X-Lite softphone application.

CounterPath X-Lite 3.0

6.1 Options

Options are settings and preferences that apply to all potential accounts that a user might create.

Options – General – Application

CounterPath X-Lite 3.0

Table 3: Options – General – Application

Field Description

Always on top of other applications Check or uncheck to suit individual preferences. Launch when Windows starts Check or uncheck to suit individual preferences. Prompt when shutdown Check or uncheck to suit individual preferences. Turn letters into digits when typing into the

phone

Number of calls in each list Enter a number to suit individual preferences. Double clicking Choose an action to suit individual preferences. Enable Zero Touch device configuration When checked, X-Lite detects installed audio and video devices and configures

Enable Zero Touch bandwidth detection When checked (recommended), X-Lite detects network connection speed and

Enable status bar messages When checked, messages relating to zero touch configuration will appear in a

Folder for recording Specify a location for saving files containing recorded conversations.

Check or uncheck to suit individual preferences. Users can also toggle this feature at any time by pressing the spacebar.

one of them for use with the application. If a user has several audio or video devices and does not like the device that

X-Lite selects, they can override the selection on the Devices pane (see page 34).

hence the potential bandwidth for VoIP. If the user moves their computer to a different IP address, X-Lite detects the new connection speed automatically.

When unchecked, users must specify their network connection (see “Options – General – Devices” on page 34).

notification balloon at the lower right corner of the screen whenever X-Lite’s configuration changes.

Note: notification balloons are supported in newer versions of Windows

CounterPath X-Lite 3.0

Options – General – Alerts and Sounds

On this page users can:

• Manage custom ringtones. Users can import a ringtone (a

.wav file), then play it to assess its worthiness.

Users can activate one ringtone, and can delete any ringtone no longer desired.

• Set up X-Lite to bring the softphone to the front automatically whenever a call comes in.

• Set up X-Lite to display the Call Alert box (see right) when a call comes in (either always or only when the softphone is not visible).

CounterPath X-Lite 3.0

Options – General – Availability

This screen lets users add status indicators to X-Lite’s standard Availability indicators. For more information about Availability, see page 22.

•Users can set the Idle timer, which represents the time since the user last moved the mouse, clicked the mouse, or pressed a keyboard key. After the timer expires, X-Lite changes the user’s availability to “Idle.”

•Users can add a custom indicator by clicking New, typing in the new status description, and assigning an icon (e.g. a user might create an indicator called “Client meeting” that uses the standard “Away” icon).

•Users can edit or delete a custom indicator.

CounterPath X-Lite 3.0

Options – General – Devices

Table 4: Options – General – Devices

Field Description

Speaker device Microphone device

Headset

Change these fields only to override the device that X-Lite’s zero touch device configuration selected (see T a ble 3 on page 31).

In both these fields, select the appropriate headset device. The headset is the device that is usually used for audio out (sounds heard) and audio

in (voice input). The only situation in which a headset is not used is when a user presses the Speaker Phone button.

Users must make a selection here unless planning to use speakerphone mode only. Select the headset in both the Speaker device field and the Micr ophone device field.

Use acoustic echo cancellation (AEC) Reduces the echo effect that can arise if the sound from the speakerphone or

headphone feeds back into the microphone. Turning on this feature improves general audio quality.

Typically on.

CounterPath X-Lite 3.0

Table 4: Options – General – Devices

Field Description

Use auto gain control (AGC) Adjusts the microphon e volume level so that the remote party does not hear any

distortions that may occur when a user sets their microphone input too high or their

Headset

Use noise reduction Attempts to remove background noise.

volume too low (due to too low input level). Typically on.

Typically off for the headset.

Speaker device Change this field only to override the device that X-Lite’s zero touch device

Speakerphone

Microphone device Change this field only to override the device that X-Lite’s zero touch device

Use acoustic echo cancellation (AEC) Reduces the echo effect that can arise if the sound from the speakerphone feeds

Use auto gain control (AGC) Adjusts the microphon e volume level so that the remote party does not hear any

Use noise reduction Attempts to remove background noise.

configuration selected (see T a ble 3 on page 31). Make the appropriate choice:

• Select the device to use for audio out (sounds heard) when the speakerphone is engaged (make sure to select a speaker device other than the headset).

• Select None for no speakerphone device. The Speaker Phone button on the dialpad becomes disabled.

configuration selected (see T a ble 3 on page 31). Make the appropriate choice:

• Select the device to use for audio in (voice input) upon clicking the

Speaker Phone button. Note: the input device can be any microphone, and need not be the

microphone specified as the headset speaker device (e.g. the microphone used during speakerphone mode could be the microphone on a camera instead of the headset microphone).

• Select None for no speakerphone device. The Speaker Phone button on the

dialpad becomes disabled.

back into the microphone. Turning this feature on may improve general audio quality; the drawback, however, is that AEC uses more processing power, which may hinder running applications.

Typically on.

distortions that may occur when a user sets their microphone input too high or their volume too low (due to too low input level).

Typically on.

Typically on for the speakerphone.

Speaker device The device to use for audible announcements of a ringing softphone; users choose

Ring

Device

Speaker volume The volume of the ringer. Camera Complete this field only after disabling zero touch device configur ation (see T able 3

Camera

one of the headset, the speakephone or none.

on page 31). Select the appropriate camera model.

CounterPath X-Lite 3.0

Options – Advanced – Audio Codecs

This pane shows all the codecs that are available with X-Lite. Users can enable or disable codecs as desired. With only one codec enabled, all calls made will use that c odec. With more than one codec e nabled, X-Lite will

choose the best codec to use based on the remote party’s capability, the available bandwidth, and current network conditions.

Users cannot change the properties of any audio codecs.

About Codecs

Audio codecs describe the format by which audio streams are compressed for transmission over networks. Codecs can be categorized as either narrowband or wideband:

• Narrowband codecs work with low bandwidth connections such as a dialup. These codecs have a sampling rate of 8 KHz.

• Wideband codecs work with high bandwidth connections and provide superior audio quality (but do not work with PSTN networks). These codecs have a sampling rate of 16 KHz.

CounterPath X-Lite 3.0

Supported Codecs

X-Lite supports a wide range of codecs. See Table 5, below.

Table 5: Audio Codecs Supported in X-Lite

Codec Narrowband Wideband

Broadvoice-32 3 Broadvoice-32 FEC 3 G.711aLaw * 3 G.711uLaw * 3 GSM 3 iLBC 3 L16 PCM Wideband 3

* Generally, one of these codecs must be enabled to place a PSTN (land line) call.

Options – Advanced – Video Codecs

CounterPath X-Lite 3.0

Video codecs describe the format by which video streams are compressed for transmission over networks. Some codecs require less bandwidth than others, but may result in lower video quality.

Users can enable or disable codecs as desired, even if a particular VoIP service provider supports the codec. With only one codec enabled, all calls made will use that particular compression format. With more than one

codec enabled, X-Lite will choose the best codec to use based on the remote party’s capability, the available bandwidth, and current network conditions.

Users cannot change the properties of any video codecs.

Options – Advanced – Network

CounterPath X-Lite 3.0

Table 6: Options – Advanced – Network

Field Description

Network Connection Speed Complete this field only after disabling zero touch bandwidth detection (see

Table 3 on page 31). Select the network connection type for the computer on which X-Lite is running.

Preserve bandwidth during silence periods When this feature is enabled, X-Lite stops transmitting audio whenever the user

Call Inactivity When this feature is enabled, X-Lite automatically hangs up a call when it

stops talking. When this feature is disabled, X-Lite always transmits audio, which uses more

bandwidth but may result in better Typically disabled (enable if using a slow connection).

detects a specified period of inactivity. If a user is on a call that gets disconnected because of network problems (rather than because of one of the parties hanging up), X-Lite will end the call after the specified period of time.

Typically on. This feature may be turned off if, for example, a PBX server already handles inactivity issues.

call quality.

CounterPath X-Lite 3.0

Options – Advanced – Quality of Service

The Quality of Service pane lets users request a specific transport service for audio, video and signaling traffic. There are two types of services: the proper service depends on what a user’s VoIP service provider supports:

• GQoS, which is available for audio and video.

• DSCP (also known as ToS), which is available for audio, video and signaling.

In addition, when running X-Lite within Windows

on an Intel® Centrino® Duo mobile-technology-based laptop, users can request reserved bandwidth for audio traffic on 802.11e wireless networks. If available when the user places a call, X-Lite will reserve bandwidth for the call (which may lead to improved audio quality).

Some versions of Windows

Quality of Service

Type

GQoS Yes Yes Yes Yes DSCP No No Yes Yes

restrict the services that users can access:

Table 7: Windows Support for QoS

Windows 98

Second Edition

Windows NT Windows 2000 W indows XP

CounterPath X-Lite 3.0

X-Lite supports 802.1p QoS packet tagging. If users set up X-Lite for QoS, the client will include the specified information within packets that it sends to the network provider. Whether the packet is delivered using the specified service depends on whether or not the user’s broadband router and the network provider between the local and remote parties support multiple transport services (i.e. whether or not each network provider reads the QoS information and prioritizes packet delivery based on the requested service).

Options – Advanced – Diagnostics

This screen lets users enable logging to files. Logging consumes computer resources, so users should enable logging only when a VoIP service provider’s customer support representative instructs them to do so.

To set up logging:

1. Check Enable diagnostic log gi ng within Options → Advanced → Diagnostics.

2. Set the logging level.

3. Specify the folder where X-Lite will save logs.

4. Click Apply. X-Lite will log application activity to

.csv files in the specified folder, starting a new set of files e ach time the

user logs in. In order not to create large files when logging (which may cause computer problems), users must

CounterPath X-Lite 3.0

not remain logged in indefinitely while logging is enabled. Users should occasionally exit and restart X-Lite when logging application activity.

If requested by a customer support representative, users can:

• Open the logging folder and then open a log file using a standard text editor (e.g. Notepad).

• E-mail the logs in the specified folder to customer support by clicking Send diagnostic logs. A dialog box appears showing all logs. Select appropriate, click Open, and X-Lite sends the selected files.

6.2 SIP Account Settings

SIP Accounts

To manage SIP accounts, click at the top of the phone and select SIP Accoun t Set ti n gs . The SIP Account window appears, showing the account that the user has set up.

Users can:

• Resize the columns in the window

• Add an account

• Remove an account

• Enable an account (see below for details)

• Set or change the prop erties of an account (see below for details).

Enabling Accounts

Users must enable an account to make and receive calls on that account. Any account can be enabled or disable at any time. To enable an account, check the Enable box beside the account.

Setting the Default Account

When users start X-Lite or change whether or not an account is enabled, X-Lite logs in to an enabled account only.

CounterPath X-Lite 3.0

Rules for Enabled Accounts an d Default Account

The following rules apply for enabled and default accounts:

•With only one account enabled, that account becomes the default, by default. Users will be able to place and receive calls only on that account.

•Users can never place calls on a disabled account. Placing a call that is only reach able throu gh the servic e provider of a disabled account will fail with a “Not found” message.

•Users can never receive calls on a disabled account. If a remote party phones a user’s number that is only reachable through a disabled account, the call will fail.

Account Properties – Account

CounterPath X-Lite 3.0

Table 8: Account Properties – Account

Field Description

Display name This name shown in the X-Lite Call display.

Remote parties in a call see this name in their phone’s display.

User name Typically, this is the account number for the user’s SIP account (e.g. for

User DetailsDomain Proxy

kpereira@domainabc.com the user name is “kpereira”).

VoIP service providers disclose this information to their customers.

Password VoIP service providers disclose this information to their customers; in most

Authorization user name May not be required.

cases, users can change their password after logging in for the first time.

VoIP service providers disclose this information to their customers if required.

Domain Typically, this is the account number for the user’s SIP account (e.g. for

kpereira@domainabc.com the domain is “domainabc.com”).

VoIP service providers disclose this information to their customers.

Send outbound via Choose the setting that the applicable VoIP service provider specified:

Dialing Plan Information about the syntax of numbers the VoIP service provider supports.

Check this box to register with the appropriate VoIP service provider for receiving incoming calls.

Typically, this field is checked. This field may be unchecked if, for example, the user’s VoIP service does not

include the ability to receive incoming calls. In such a case, enabling this feature may cause registration to fail when the user closes the Account Properties window (i.e. X-Lite will fail to register with the VoIP service provider).

• domain: the service provider requires traffic to be directed to proxies that clients discover via the domain.

• proxy: the service provider has an outbound pr oxy address and requires users to provide that address to X-Lite. For the address enter a domain name (e.g.

domainabc.com) or an IP address (e.g. 123.456.789.12).

• target domain: sends outbound data directly to the remote party’s domain.

X-Lite’s default plan is:

#1\a\a.T;match=1;prestrip=2;

It is possible that this plan will work for as-is (the dialing plan is valid if calls succeed). If calls fail or if to set up a custom dialing plan (see “Dialing Plans” on page 55).

CounterPath X-Lite 3.0

Account Properties – Voicemail

These settings let users set up X-Lite to forward incoming calls. Service providers may offer voicemail support (e.g. they may offer customers a special number to dial or

website to visit for retrieving voicemail messages). Check with the appropriate service provider to determine if they employ a different mechanism for forwarding

incoming calls to voicemail. If so, check what their settings are and enter compatible information in X-Lite. In particular, if a service provider has a mechanism for call forwarding, determine whether or not to leave the Forwarding settings under the Voicemail tab blank.

To send all calls to voicemail while running X-Lite, use the DND button on the dial pad.

CounterPath X-Lite 3.0

Table 9: Account Properties – Voicemail

Field Description

Check for voicemail If a VoIP service offers voicemail, choose the setting they specify:

• Checked: X-Lite will subscribe to be notified when there is voicemail.

• Unchecked: the service provider may be set up to advise X-Lite when there is voicemail; check with the service provider for details.

If a particular VoIP account does not include voicemail, uncheck this option.

VoIP service providers control voicemail services (not X-Lite).

Number to dial for checking voicemail Complete only if a particular account includes voicemail service.

This is the number that X-Lite will call to connect to voicemail when a user clicks the icon within the Call display.

If left empty, the icon will no t function and users will have to dial the appropriate number to connect to voicemail.

VoIP service providers disclose this information to their customer s.

Number for sending calls to voicemail Complete only if a particular account includes voicemail service.

This is the number that incoming calls will be forwarded to if they are unanswered after the specified interval (below), or when a user clicks the

icon within the Call display.

If left empty, X-Lite will not display the icon. (leaving this field empty does not imply that voicemail will not work—only that the icon cannot be used to send incoming calls to voicemail.

VoIP service providers disclose this information to their customer s.

Send calls to voicemail if unanswered Complete only if a particular account includes voicemail service.

Sends incoming calls to voicemail after the specified number of seconds. Service providers may also provide similar functionality outside of X-Lite. If so,

be sure not to enter incompatible information in X-Lite and the service provider’s customer interface. If this field is left unchecked, ensure that the corresponding service provider feature is also disabled—otherwise, X-Lite will continue to forward all calls.

Always forward to this address Users can take advantage of this feature even if their account does not include

voicemail service. Forwards calls to another number instead of sending them to voicemail. (e.g. to

forward calls to a co-worker while on vacation).

• To enable forwarding, check the box and enter the number to which X-Lite should forward incoming calls.

• To disable forwarding, clear the checkbox.

Forward to this address when busy Users can take advantage of this feature even if their account does not include

voicemail service. Forwards incoming calls to another number only when the user is busy with a

call on another line.

• To enable forwarding, check the box and enter the number to which X-Lite should forward incoming calls. If a given VoIP account includes voicemail service, users can enter their voicemail numb er in thi s fie ld.

• To disable forwarding, clear the checkbox.

Service providers may also provide similar functionality outside of X-Lite. If so, be sure not to enter incompatible information in X-Lite and the service provider’s customer interface. If this field is left unchecked, ensure that the corresponding service provider feature is also disabled—otherwise, X-Lite will continue to forward all calls.

CounterPath X-Lite 3.0

Account Properties – Topology

CounterPath X-Lite 3.0

Table 10: Account Properties – Topology

Field Description

IP Address This setting controls how X-Lite presents IP addresses.

• Discover global address: lets X-Lite determine the user’s public IP address. This is the recommended setting unless a VoIP service provider advises otherwise.

• Use local IP address: uses the internal IP address of the computer running X-Lite.

STUN Discovery This setting specifies the STUN server that X-Lite should use.

Firewall Traversal

Enable ICE ICE optimizes traffic and may help with firewall traversal.

Manually specify port range Appropriate settings depend on the user’s computer setup:

X-Lite Host:

Ports Used

Use XTunnels Appropriate settings for XTunnels depend on whether the account’s VoIP service

XTunnels

• Discover the server: select this option to let X-Lite find the address of an appropriate STUN server. This is the recommended setting.

• Use specified server: compels X-Lite to use a different ST UN s erver (enter a domain name or IP address in the text field).

Typically, ICE is enabled, but may need to be disabled if a VoIP service provider has implemented a firewall traversal solution that is not compatible with ICE.

For firewall-related problems with calls, contact the appropriate service provider for information about their firewall traversal solution.

• Checked: the computer running X-Lite is located behind a restrictive firewall that only allows specific port ranges to be used for communication. Enter the range of ports to use for the SIP account (open those ports on any firewall device as well). Refer to applicable firewall documentation for details.

• Unchecked: the computer running X-Lite is not located behind a restrictive firewall.

provider uses an XTunnels server.

• Automatic: uses XTunnels when X-Lite detects a firewall that prohibits communication. This is the recommended setting if the account’ s service provider uses an XTunnels server.

• Always: compels X-Lite to always use XTunnels.

• Never: compels X-Lite to never use XTunnels. This is the correct setting for accounts whose service provider does not use an XTunnels server.

Use user login and password Check this box to use the username and password from the SIP account to log in to the

XTunnels server. Leaving this box unchecked forces users to enter appropriate information in the

Username and Password fields each time an XTunnels server prompts for such information.

Account Properties – Presence

Presence allows remote parties to view a local user’s o nline status (avail ability), and allo ws the local user to see the online status of others. Once users have configured presence settings under this tab, they can set up various privacy rules to customize their published availability (see “Availability” on page 22 and “Privacy Rules” on

page 25).

CounterPath X-Lite 3.0

Table 11: Account Properties – Presence

Field Description

Presence Mode Select the setting that the account’s service provider specified:

• Disabled: Presence is not supported

• Presence Agent

• Peer-to-Peer.

When selecting Presence Agent, users must also set the Storage method field (under the Storage tab) to XCAP.

Poll Time Enter the value that the account’s service provider specified.

The factory setting is 300.

Refresh Interval Enter the value that the account’s service provider specified.

The factory setting is 3600.

CounterPath X-Lite 3.0

Account Properties – Storage

CounterPath X-Lite 3.0

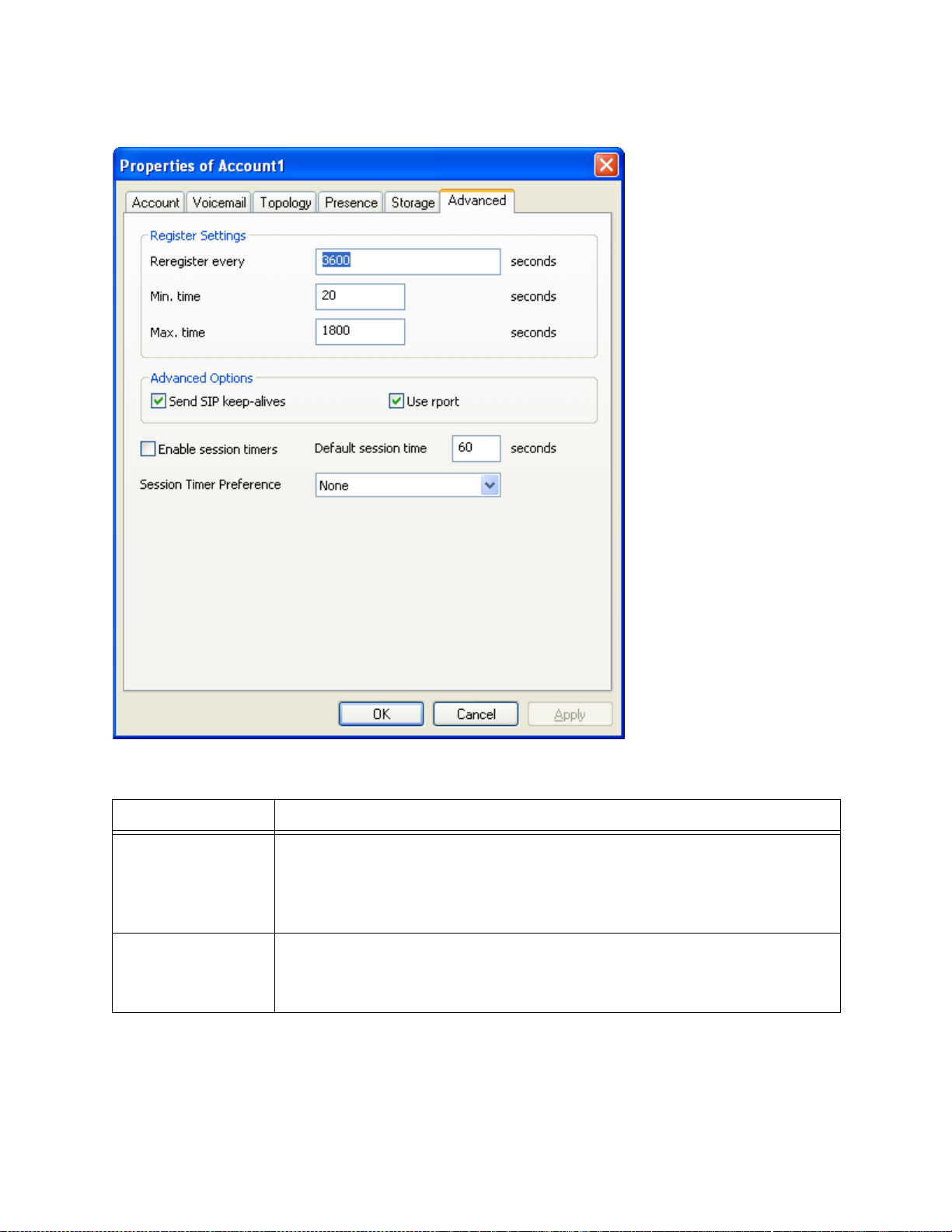

Account Properties – Advanced

Table 12: Account Properties – Advanced

Field Description

Reregister every The time interval between X-Lite’s attempts to reregister (i.e. attempts to refresh the account

registration with the VoIP service provider for the account). A value of zero means X-Lite should not attempt to reregister after the initial registration.

This value is inserted into the “Expires” header field of X-Lite’s The factory setting is 3600.

Min. time If a registration fails, X-Lite will wait this amount of time before attempting to reregister. If the

second attempt also fails, X-Lite will wait twice this specified time before trying again, then four times this specified time, and so on until reregistration succeeds.

The factory setting is 20.

CounterPath X-Lite 3.0

Table 12: Account Properties – Advanced

Field Description

Max. time This is the maximum wait time between attempts to reregister. Once this maximum is reached,

X-Lite will wait this specified time before all subsequent attem pts. For example, if the minimum time is 20 seconds and the maximum time is 120 seconds, X-Lite will

attempt to reregister as follows:

• Wait 20 seconds

• Attempt to connect

• If attempt fails, wait 40 seconds

• Attempt to connect

• If attempt fails, wait 80 seconds

• Attempt to connect

• If attempt fails, wait 120 seconds (the maximum)

• Attempt to connect

• If attempt fails, wait 120 seconds

•etc.

The factory setting is 1800.

Send SIP keep-alives T ypically checked, to instruct X-Lite to send SIP keep-alive messages for maintaining a “pinhole” in

the user’s firewall through which SIP messages can pass.

Use rport Typically checked. Enable session timers A session timer is a mechanism to detect—from a signalling perspective—whether a call session is

still active. When the timer expires, one party in the call sends a refresh to the other party and the clients reset the timer.

•Check to enable session timers. If desired, enter a value in Default session time (the factory setting is 60).

• Uncheck to disable session timers; X-Lite will not send refreshes.

Session timer preference This field specifies which party should send session timer refreshes during communication. The

preference is not a guarantee that the specified party will perform the refresh. Choices are:

• None: No preference

• Local refreshes: The local computer sends refreshes

• Remote refreshes: The remote party sends refreshes

• UAC refreshes: The user agent cli ent sends refreshes (i.e. the party that initiated establishment of the current communication)

• UAS refreshes: The user agent server sends refreshes (i.e. the party that received the initial request for the current communication).

CounterPath X-Lite 3.0

6.3 Privacy Rules

For information about privacy rules, see page 25.

6.4 Open Diagnostic Log and Folder

For information about these menu items, see “Options – Advanced – Diagnostics” on page 41.

CounterPath X-Lite 3.0

Appendix A: Application Hot Keys

Table 13: Application Hot Keys

Function Keyboard Shortcut

Select Line 1 F1 or Ctrl-1 Select Line 2 F2 or Ctrl-2 Options window F8 or Ctrl-8 View Diagnostic File F9 or Ctrl-9 Toggle Letters-to-Digits Spacebar (Windows only) Clear Backspace Dial Enter Display Help Ctrl-F1 Toggle Auto-Answer on/off Ctrl-a Open Calls & Contacts drawer Ctrl-b Toggle Do Not Disturb (DND) on/off Ctrl-d Toggle Auto-Conference on/off Ctrl-f Hang up Ctrl-h or Esc Call Ignore Ctrl-i Mute Ctrl-m Hold Ctrl-o Display SIP Account Status window Ctrl-p Exit Ctrl-q Redial Ctrl-r Send to voicemail (if supported) Ctrl-s Paste Ctrl-v Display voice statistics notification balloon Ctrl-F9 Increase/Decrease Speaker Volume Up/Down Arrows Increase/Decrease Microphone Volume Right/Left Arrows

CounterPath X-Lite 3.0

Appendix B: Dialing Plans

When a user places a call, X-Lite processes the input—what the user types, selects or drags onto the Call display—to modify the input as required for ensuring that the call succeeds. This ability to modify user input depends on the existence of a valid dialing plan for the account.

X-Lite processes user input as follows:

• Cleanup — X-Lite cleans up user input by removing spaces, dashes, and brackets. Cleanup allows X-Lite to support calls placed using contacts from a contact list (including Microsoft

• Matching — X-Lite compares user input to patterns defined by the dialin g plan for the enabled account. Each account has one dialing plan, and each dialing plan consists of one or more patterns.

After finding a match between the input and a pattern, X-Lite will perform specified transformations on

input based on the matched pattern.

After finding no matches from a user’s account, X-Lite will perform no transformations on the input for

the outgoing call.

For details on matching see “How X-Lite Processes Input” on page 57.

• Transformation — X-Lite performs the specified transformation.

After processing user input, X-Lite places the call using the transformed input.

Transformation Keywords

Outlook®).

Keyword Transformation Action

prestrip

poststrip

pre

post

replace

Order of Transformations

Strip the first n characters from the input before placing the call.

Strip the last n characters from the end of the input before placing the call.

Add the specified prefix to the input before placing the call.

Attach the specified postfix to the input before placing the call.

Replace the input with the specified string before placing the call.

X-Lite always performs transformations in the following order (the order in which dialing plan composers enter transformations is not significant):

prestrip > poststrip > pre > post > replace

B.1 Dialing Plan Syntax

In X-Lite, the dialing plan establishes the expected patterns of characters for a telephone number or SIP address, and allows for modification (transformation) of input based on matches to a pattern.

CounterPath X-Lite 3.0

The dialing plan has the following syntax:

pattern[|pattern];match=1;<transformation>=<value>;[match=2; <transformation>=<value>;]

...where:

• Items contained within

pattern — represents the pattern that X-Lite will match to user input. A dialing plan can have one or

• more patterns, with each pattern separated by a “ pattern. Patterns form an ordinal sequence, starting with

[] brackets are optional.

|” (pipe character). The pipe is optional after the last

1 (“match” elements identify individual

patterns—see below).

match; transformation — represents a pair that identifies the pattern (within the ordinal sequence

• of patterns) to compare with the input, and the optional transfor mation (or transfo rmations) t o perform on the input once X-Lite finds a match. A dialing plan can have one or more match/transformation pairs.

match=” is a literal, with the number identifying the corresponding pattern. Specific keywords replace

“

transformation=” (see above). Appropriate values replace “value.”

“

Spaces are allowed only within

<value> elements.

Pattern

Valid Content

The content for a pattern follows digit map rules from RFC 2705, supplemented by the rules for regular expressions. Where there is an overlap between digit map rules and regular expression rules, digit map rules take precedent. For this reason there are some special cases, included in the table below.

The following table describes the most common dialing plan pattern elements. As mentioned, all regular expression elements are supported.

To Specify a... Enter the following... Comment

Digit One of 0-9 Represents a specific numeric digit. Digit [digit-digit] Represents a specific digit within a given range. Digit [digit-digit, digit, digit-digit] Represents a specific digit within a comma-separated range of digits that may

be discontinuous.

Character # * + a-z Represents a specific non-numeric character.

• Use “\x” to represent “x”

• Use “\t” to represent “t”

Note that “\a” indicates a special kind of wildcard character and should not be

confused with representing a specific “a” character (see below). Character [character-character] Represents a specific character within a given range. Wildcard x Represents any numeric digit from zero to nine. Wildcard \a Represents any non-numeric character from among the allowed non-numeric

characters (see above). Wildcard . Represents an arbitrary repetition of the last digit zero or more times. A pattern

of “xxxx.” would indicate that matched user input would comprise three or

more numeric digits between zero and nine (the “.” indicates that the final “x”

can be repeated zero or more times).

CounterPath X-Lite 3.0

To Specify a... Enter the following... Comment

Timer T Indicates that a pause should take place before any further automatic dialing

Timers

starts.

Typical timer values are four seconds (4000 milliseconds).

Dialing plan composers should use timers in at least the following situations:

Any pattern that uses the “.” wildcard. For a pattern of “xxxx.T” the added

timer element allows users to type three or more digits; a similar pattern

without a timer element might assume that a user has made a valid pattern

match after entering just the first three digits.

Any dialing plan that has two patterns with similar elements but different

lengths. For two patterns “xxxT” and “xxxxxx” the added timer element

allows users to continue typing past the first three digits (add the timer element

to the pattern of shorter length).

See below for more information about timers.

There are two timers:

•T — described in the table above; default value is four seconds (4000 milliseconds).

•The long timer — default value is twenty seconds (20000 milliseconds).

These timers are used during i nput comparison, as described in “How X-Lite Processes Input” on page 58.

Example

\a\a.T|xxxxxxxxxx;match=1;prestrip=2;match=2;pre=8;

...where:

•

\a\a.T is the first pattern. xxxxxxxxxx; is the second pattern.

•

match=1;prestrip=2; is the first match-transformation pair.

•

match=2;pre=8; is the second match-transformation pair.

•

B.2 How X-Lite Processes Input

Comparing Input to Dialing Plan Patterns

X-Lite compares user input to the accoun t’s dialing plan . The process is slightly different depending on how the user places the call:

• If the user drags or selects the input, X-Lite compares the entire input to each dialing plan. Afte r findin g a match, X-Lite performs associated transformations before placing the call. Upon finding no match from a user’s accounts, X-Lite performs no transformations before placing the call.

• If the user types the input, X-Lite compares each digit one by one to account dialing plans. Such comparisons will result in one of the types of matches described in the table below.

It is possible for the same input to get matched to different dialing plans, depending on whether the user enters the input by typing or dragging/selecting. This is important to keep in mind while composing dialing plan patterns.

CounterPath X-Lite 3.0

Results of the Comparison

Table 14: Comparing User Input With Dialing Plan Patterns

Type of Match Conditions Result

Partial match Digits and characters typed so far match a pattern

but there are not yet enough of them to verify a pending or complete match.

Pending match The pattern contains no “.” but does contain the

T timer. Th ere is a perfect match. The pattern contains a “.” and the T timer. The

match meets minimum requirements.

Complete match The pattern contains no “.” and no T timer . There

is a perfect match. The pattern contains a “.” but does not contain

the T timer. The match meets minimum requirements.

No match The characters typed do not match the patterns

for any dialing plan.

B.3 Examples

If the user clicks or presses Enter, X-Lite performs no transformation.

If the user stops typing for the long timer length (twenty seconds), X-Lite performs no transformation on the characters typed so far.

If the user clicks or presses Enter, X-Lite performs the associated transformation.

If the T timer expires, X-Lite performs the associated transformation.

X-Lite performs the associated transformation.

If the user stops typing, nothing happens even after the T timer and long timer have both expired.

If the user clicks or presses Enter, X-Lite performs no transformation.

Example 1

\a\a.T|xxxxxxx.T;match=2;pre="9"

This simple example shows how to differentiate between a PSTN number and a SIP address, plus how to add a “9” dialing prefix to PSTN numbers only.

Example 2

3xxT|1xxxxxxxxxx|[2-9]xxxxxxxxx|+x.T;match=2;pre="9";match=3;pre="91"; match=4;prestrip=1;pre="9011"

3xxT

1xxxxxxxxxx

[2-9]xxxxxxxxx

+x.T;

The first pattern represents any three-digit number beginning with a “3.” There is no corresponding transformation (the assumption is that this is an internal extension within an enterprise network). The timer forces X-Lite to wait after detecting a three-digit number beginning with “3,” in case the user is actually placing a local call that also starts with a “3.”

The second pattern represents any eleven-digit number beginning with a “1” (the assumption is that this is a long-distance PSTN call within North America that also needs access to an outside line from within an enterprise network).

The third pattern is any ten-digit number beginning with a number other than “1” (the assumption is that this is a long-distance PSTN call for which the user needs to access an outside line).

The fourth pattern is a number of any length that begins with “+” to indicate an international PSTN call initiated from North America.

CounterPath X-Lite 3.0

match=2;pre="9";

match=3;pre="91";

match=4;prestrip=1;pre="9011"

This portion of the dialing plan pattern specifies that X-Lite should prefix “9” to the user input whenever the input matches the second pattern (see above).

This portion of the dialing plan pattern specifies that X-Lite should prefix a “9” and a “1” to the user input whenever the input matches the third pattern (see above).

This portion of the dialing plan pattern specifies that X-Lite should strip the “+” from and prefix a “9011” to the user input whenever the input matches the fourth pattern (see above).

Example 3

#1xxxxxxxT|#19xxxxxxx|xxxxxxxT|9xxxxxxx|;match=1;prestrip=2;pre=9;match=2; prestrip=2;match=3;pre=9;

#1xxxxxxxT

#19xxxxxxx

xxxxxxxT

9xxxxxxx

The first pattern represents a “#” character followed by seven additional digits. The timer forces X-Lite to wait for the user to enter more digits/characters that may match a different pattern; after the timer elapses, X-Lite assumes a match with this pattern and will strip the “#1” and add a “9” prefix to the user input before placing the call.

The second pattern represents a “#” character followed by a “19” and seven additional digits. After detecting a match between this pattern and user input, X-Lite will strip the “#1” from the input before placing the call.

The third pattern represents seven digits. The timer forces X-Lite to wait for the user to enter more digits/characters that may match a different pat tern; after the timer elapses, X-Lite assumes a match with this pattern and will add a “9” prefix to the user input before placing the call.

The fourth pattern represents a “9” followed by seven additional digits. After detecting a match between this pattern and user input, X-Lite will place the call without performing any transformations.

This example does not cover all situations for which a dialing plan should be designed for a particular locale (e.g. local calls, long-distance calls, international calls, etc.).

The example does illustrate two ideas:

•Automatic handling of the appropriate account prefix (e.g. “#1”), an important feature for users who are upgrading from X-Lite 2.0 and are accustomed to entering the account number themselves.

Use of “#” to identify an account is now deprecated. The dialing plan should be capable of determining

the appropriate account to use. Since users may still be in the habit of entering the prefix, they may want to include this particular pattern to deal with such possibilities.

• Distinguishing between a local seven-digit call for which the user does not dial “9” to access an outside line and one for which the user does dial “9” to access an outside line.

CounterPath X-Lite 3.0

Appendix C: Contact List Headings

Following is a list of all the headings that are used in the X-Lite contacts list. This list can be useful when formatting a contacts list for import into X-Lite. For details, see “Importing Contacts” on page 19

uri business_number sms_addresss display-name business_number2 ms_address2 entry_id business_number3 sms_address3 given_name business_number4 sms_address4 surname business_number5 sms_address5 email_address business_number6 sms_address6 email_address2 mobile_number custom_fields email_address3 mobile_number2 custom_fields2 email_address4 mobile_number3 custom_fields3 email_address5 mobile_number4 custom_fields4 email_address6 mobile_number5 pres_subscription sip_address mobile_number6 sip_address2 fax_number sip_address3 fax_number2 sip_address4 fax_number3 sip_address5 fax_number4 sip_address6 fax_number5 home_number fax_number6 home_number2 groups home_number3 comment home_number4 postal_address home_number5 default_address home_number6 default_address_type

CounterPath X-Lite 3.0

Appendix D: Location of Files

System files get copied to the installation directory specified when installing X-Lite. The default installation directory is:

C:\Program Files\CounterPath\X-Lite 3.0\

The installation directory contains:

•the executable (

•the folder

•dll files, including those for supported codecs and devices.

unins000.exe for uninstalling X-Lite.

•

unins000.dat, which contains information about uninstalls of X-Lite.

•

•uninstall.ico

•ugstgs.exe

x-lite.exe)

emoticons\*.*

X-Lite saves data files to the Counterpath folder in the standard location for application data, as defined in Windows

C:\Documents and Settings\<user name>\Local Settings\ ApplicationData\CounterPath\X-Lite n.n\<user name>\

. Typically, this location is:

CounterPath X-Lite 3.0

Appendix E: Alternative Ways to Run X-Lite

From a Hyperlink

People can create hyperlinks that reference a phone number or SIP address which, when an X-Lite user clicks the link, will start the softphone client and dial the number. Format such hyperlinks as follows:

<a href="sip:address or number">Click here to dial address or number</a>

For example:

<a href="sip:mgr@domainabc.com">Click here to dial mgr@domainabc.com</a>

From the Command Line

Users can start X-Lite from a prompt within the MS-DOS command line (users may n eed to ad d x-lite.exe to their PATH). To launch from the command line, type:

x-lite.exe → Enter

To start X-Lite from a DOS prompt and dial a number immediately, type:

x-lite.exe -dial=sip:<number> → Enter

CounterPath X-Lite 3.0

Appendix F: Glossary

AEC Acoustic echo cancellation. Processin g of audio data to reduce the echo effe ct that can

arise if the sound from a speakerphone or headphon e lea ks in to the mic ro ph on e in pu t device.

AGC Automatic gain control. Processing of audio data to adjust the microphone volume

level so that a remote party does not hear distortions that may be caused by a microphone input level that is too high or a volume that is too low (due to a low input level).

AVI Audio Video Interleave. A multimedia container format. AVI files contain both audio

and video data in a standard container that allows simultaneous playback.

Broadband Broad or wide bandwidth. In data transmission, the wider the band, the more data can

transmit during a given time span. A cable or xDSL connection to the network provides broadband for data transmission. A dialup or ISDN connection provides a narrow bandwidth for data transmission.

Codec The format by which audio or video streams are compressed for transmission over

networks.

Dialing plan The rules that X-Lite follows to interpret user input and to modify the number or

address, as required, to ensure that the call will be placed successfully.

DTMF Dual-tone multifrequency. DTMF is the system that is used in interactive

voice-response menu systems such as the menu system for accessing voicemail messages. The DTMF system allows the user to interact with the menu by clicking keys on the dialpad or pressing keys on the keyboard.

IM Instant Messaging. A technology that lets users send text message and files for near

instantaneous delivery and display on another computer.

IP Internet Protocol. A data-oriented protocol used for communicating across a network.

IP is the most common protocol used on the internet.

IP address A unique number that devices use to identify each other on an IP-based computer

network.

Media In a VoIP phone call, the audio and video portion of the call information. Compare to

“Signaling.”

MWI Message Waiting Indicator. An indicator notification of voicemail messages waiting

for the owner of a given SIP account.

Narrowband Narrow bandwidth. In data transmission, the wider the band, the more data can

transmit during a given time span. A cable or xDSL connection to the network provides broadband for data transmission. A dialup or ISDN connection provides a narrow bandwidth for data transmission.

Presence A communication feature that allows users to share real-time information about their

availability, mood, location, etc.

Proxy See SIP account. PSTN Public Switched Telephone Network. The traditional land-line phone network.

CounterPath X-Lite 3.0

RFC Request for Comment. A document that describes a particular internet technology.

RFCs may be a proposals, drafts or full internet standards (IETF standards).

RTP Real-time Transport Protocol. A protocol for delivering the media portion of a data

transmission over an IP network. SRTP is another media protocol.

Signaling The information in a VoIP call that establishes and controls the connection as well as

managing the network. The non-signaling portion of the call is the Media.

SIMPLE protocol SIP for Instant Messaging and Presence Leveraging Extensions. The instant

messaging (IM) protocol to which X-Lite adheres. SIMPLE encapsulates the rules for exchanging instant messages. See SIP.

SIP Session Initiation Protocol. The signaling protocol that X-Lite follows for phone calls. SIP account An account that provides users with the ability to make VoIP phone calls. The account

encapsulates the rules users must follow and the telephony functions users can access.

SIP address The address used to connect to a SIP endpoint (i.e. the “phone number” used in a VoIP

phone call). An example would be: sip:josephq@domainabc.com.

TCP Transmission Control Protocol. A transport protocol for delivering data over an IP

network. Other transport protocols include TLS and UDP..

UDP User Datagram Protocol. A transport protocol for delivering data over an IP network.

Other transport protocols include TCP and TLS.

URI Uniform Resource Identifier. A name or address that identifies a location on a

network. A SIP address is a type of URI.

URL Uniform Resource Locator . A URI that both iden tifies a name or address and in dicates

the network mechanism used to access the resource.

USB device Universal Serial Bus device. A device that follows a specific communications

standard. A headset may be a “USB type” of headset.

VAD Voice Activity Detection. A technology that detects whether audio is a human voice

or background noise. X-Lite includes a feature (Preserve bandwidth during silence periods under Options → Advanced → Network) that controls whether or not audio gets transmitted when VAD determines that no one is speaking.

vCard An electronic business card that people can attach to an em ail. vCards often appear as

a “signature” block that identifies the person, their title, and their business.

VoIP Voice over Internet Protocol. A variation of IP used for sending voice data over the

internet (i.e. for making phone calls over the internet).

VoIP service provider A business that provides a VoIP service, allowing users to connect to the internet for

making VoIP phone calls using X-Lite. VoIP service providers set up a separate SIP account for each user.

WAV Pronounced “wave.” A file format standard for storing audio on PCs.

CounterPath X-Lite 3.0 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

1.1 What is X-Lite?

Standard Telephone Features

Enhanced Features and Functions

2 Installation and Setup

2.1 Getting Ready

Obtaining Information from a VoIP Service Provider

System Requirements

Multimedia Device Requirements

Optimized Devices

Video Cameras

2.2 Installing X-Lite

Auto Update

Uninstalling X-Lite

2.3 Configuring X-Lite

Setting up Accounts

2.4 Setting up Voicemail

2.5 Setting up a Contacts List

3 Using the Softphone

3.1 The On-screen Display

Display

Video Drawer

Calls & Contacts Drawer

3.2 Starting X-Lite

Showing and Hiding the Softphone

Receiving a New Contact Request

3.3 Placing a Call

Ending a Call

3.4 Answering a Call

Ending a Call

3.5 Handling a Call

While the Call Is in Progress

Placing a Call on Hold

Flash

Sending to Voicemail, DND, and Call Forwarding

3.6 Conference Calls

Manual Setup: AA Off and AC Off

Manual Answering & Automatic Conferencing: AA Off and AC On

Automatic Conference Server Mode: AA on and AC On

While the Call Is in Progress

Multiple Conference Hosts

4 Managing Calls and Contacts

4.1 Calls & Contacts Drawer

4.2 Contacts Tab

Changing the Contacts List View

Using Contacts

Managing Contacts

4.3 Calls Tab

Managing Calls Lists

Phoning and Sending IM from a List

4.4 Availability

Sharing Availability

Managing Local Availability

4.5 Privacy Rules

Privacy Rules Window

5 Instant Messaging (IM)

5.1 Sending and Receiving an IM

Adding to the Contacts List

6 The X-Lite Menu

6.1 Options

6.2 SIP Account Settings

SIP Accounts

6.3 Privacy Rules

6.4 Open Diagnostic Log and Folder

Appendix A: Application Hot Keys

Appendix B: Dialing Plans

B.1 Dialing Plan Syntax

Pattern

Example

B.2 How X-Lite Processes Input

Comparing Input to Dialing Plan Patterns

Results of the Comparison

B.3 Examples

Example 1

Example 2

Example 3
