Page 1
FEATURES
USER MANUAL
REAL GEAR FOR REAL GAMERSREAL GEAR FOR REAL GAMERS
www.cougargaming.com
●
24 RGB-LEDS PRO LÜFTER +
TRIDIREKTIONALES BELEUCHTUNGSDESIGN
●
CORE BOX V2 UNTERSTÜTZEN
5-V-RGB-VERBINDUNG MIT
KOMPATIBLEN MOTHERBOARDS
●
100 BELEUCHTUNGSEFFEKTE MIT
KABELLOSER STEUERUNG
●
PATENTIERTES COUGAR-LÜFTERDESIGN,
DAS DEN LUFTSTROM OPTIMIERT
DEUTSCH
●
24 RGB-СВЕТОДИОДОВ В КАЖДОМ
ВЕНТИЛЯТОРЕ + ТРЕХСТОРОННИЙ
ДИЗАЙН ПОДСВЕТКИ
●
CORE BOX V2 ПОДДЕРЖИВАЕТ 5V
ПОДКЛЮЧЕНИЕ RGB К СОВМЕСТИМЫМ
МАТЕРИНСКИМ ПЛАТАМ
●
100 ЭФФЕКТОВ ПОДСВЕТКИ С
БЕСПРОВОДНЫМ УПРАВЛЕНИЕМ
●
ЗАПАТЕНТОВАННЫЙ ДИЗАЙН
ВЕНТИЛЯТОРОВ COUGAR С ОПТИМИЗАЦИЕЙ
ВОЗДУШНЫХ ПОТОКОВ
РУССКИЙ
FRANÇAIS
●
24 LED RVB PAR VENTILATEUR + ÉCLAIRAGE
À CONCEPTION TRIDIRECTIONNELLE
●
CORE BOX V2 RACCORDEMENT RVB 5V SUR
LES CARTES MÈRES COMPATIBLES
●
100 EFFETS LUMINEUX AVEC COMMANDE
SANS FIL
●
VENTILATEUR À CONCEPTION COUGAR
BREVETÉE QUI OPTIMISE LE FLUX D'AIR
HUNGARIAN
●
24 RGB LED-LÁMPA MINDEN
VENTILÁTORHOZ + HÁROMIRÁNYÚ
VILÁGÍTÁS
●
CORE BOX V2 TÁMOGATJÁK AZ 5 V-OS
RGB-CSATLAKOZÁST A
KOMPATIBILIS ALAPLAPOKKAL
●
100 FÉNYEFFEKTUS VEZETÉK NÉLKÜLI
VEZÉRLŐVEL
●
SZABADALMAZTATOTT COUGAR
VENTILÁTORRAL TÖRTÉNŐ KIALAKÍTÁS,
AMELY OPTIMALIZÁLJA A LÉGÁRAMLATOT
POLISH
●
24 DIOD RGB NA WENTYLATOR +
OŚWIETLENIE TRÓJKIERUNKOWE
●
CORE BOX V2 OBSŁUGUJĄ POŁĄCZENIE 5V
RGB W KOMPATYBILNYCH PŁYTAC H
GŁÓWNYCH
●
100 EFEKTÓW OŚWIETLENIA DZIĘKI
BEZPRZEWODOWEMU STEROWANIU
●
OPATENTOWANA KONSTRUKCJA
WENTYLATORA COUGAR ZAPEWNIAJĄCA
OPTYMALIZACJĘ PRZEPŁYWU POWIETRZA
●
24 LED RGB PER OGNI VENTOLA
+ DESIGN LUMINOSO
TRIDIREZIONALE
●
CORE BOX V2 SUPPORTANO LA
CONNESSIONE RGB 5V SULLE SCHEDE
MADRI COMPATIBILI
●
100 EFFETTI LUMINOSI AZIONABILI
DAL
CONTROLLER WIRELESS
●
SISTEMA BREVETTATO COUGAR PER
UN
FLUSSO D'ARIA OTTIMIZZATO
ITALIANO
中 文
●
每个风扇有24颗RGB LED灯+ 3向
背光设计
●
CORE BOX V2 支援5V RGB 连接
相容主机板
●
使用无线控制器可变换100种背光
效果
●
COUGAR风扇专利设计有效优化
气流运行效果
한국어
●
팬당 24 개의 RGB LED + 3 방향
조명
디자인
●
호환 마더 보드에 5V RGB 연결을
지원하는
CORE BOX V2
●
무선 제어를 통한 100 가지 조명 효과
●
공기 흐름을 최적화하는
특허받은 COUGAR 팬 디자인
ENGLISH
●
24 RGB LEDS PER FAN + TRI-DIRECTIONAL
LIGHTING DESIGN
●
CORE BOX V2 SUPPORT 5V
ADDRESSABLE HEADER TO COMPATIBLE
MOTHERBOARDS
●
100 LIGHTING EFFECTS WITH WIRELESS
CONTROL
●
PATENTED COUGAR FAN DESIGN THAT
OPTIMIZES AIRFLOW
●
24 LEDS RGB POR VENTILADOR + DESIGN
DE ILUMINAÇÃO TRI-DIRECIONAL
●
SUPORTE CORE BOX V2
5V RGB CONEXÃO A PLACAS MÃE
COMPATÍVEIS
●
100 EFEITOS DE ILUMINAÇÃO COM
CONTROLE WIRELESS
●
DESIGN DE VENTILADOR COUGAR
PATENTEADO QUE OTIMIZA O FLUXO DE AR
PORTUGUÊS
日本語
●
ファンは24 個のRGB LED搭載＋
3パターンのライティング効果
●
CORE BOX V2 互換性の
あるマザーボードの5V RGBコネクタとの接続
により、連動してのライティングが可能
●
ワイヤレスコントローラによって100種類の
RGB カラーを変更することが可能
●
エアーフローを最適化する特許取得済みの
COUGARファン設計
●
24 LEDS RGB EN CADA VENTILADOR +
DISEÑO DE ILUMINACIÓN TRIDIRECCIONAL
●
CORE BOX V2 SOPORTA CONEXIÓN A PUERTOS
RGB DE 5V EN PLACAS MADRE COMPATIBLES
●
EFECTOS DE ILUMINACIÓN CON CONTROL
INALÁMBRICO
●
VENTILADORES CON DISEÑO PATENTADO
QUE OPTIMIZA EL FLUJO DE AIRE
ESPAÑOL

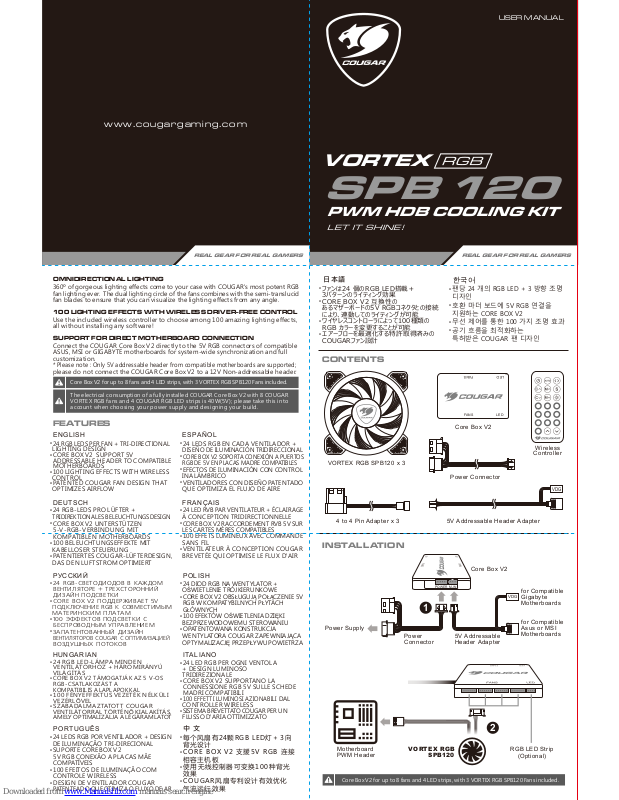

CONTENTS

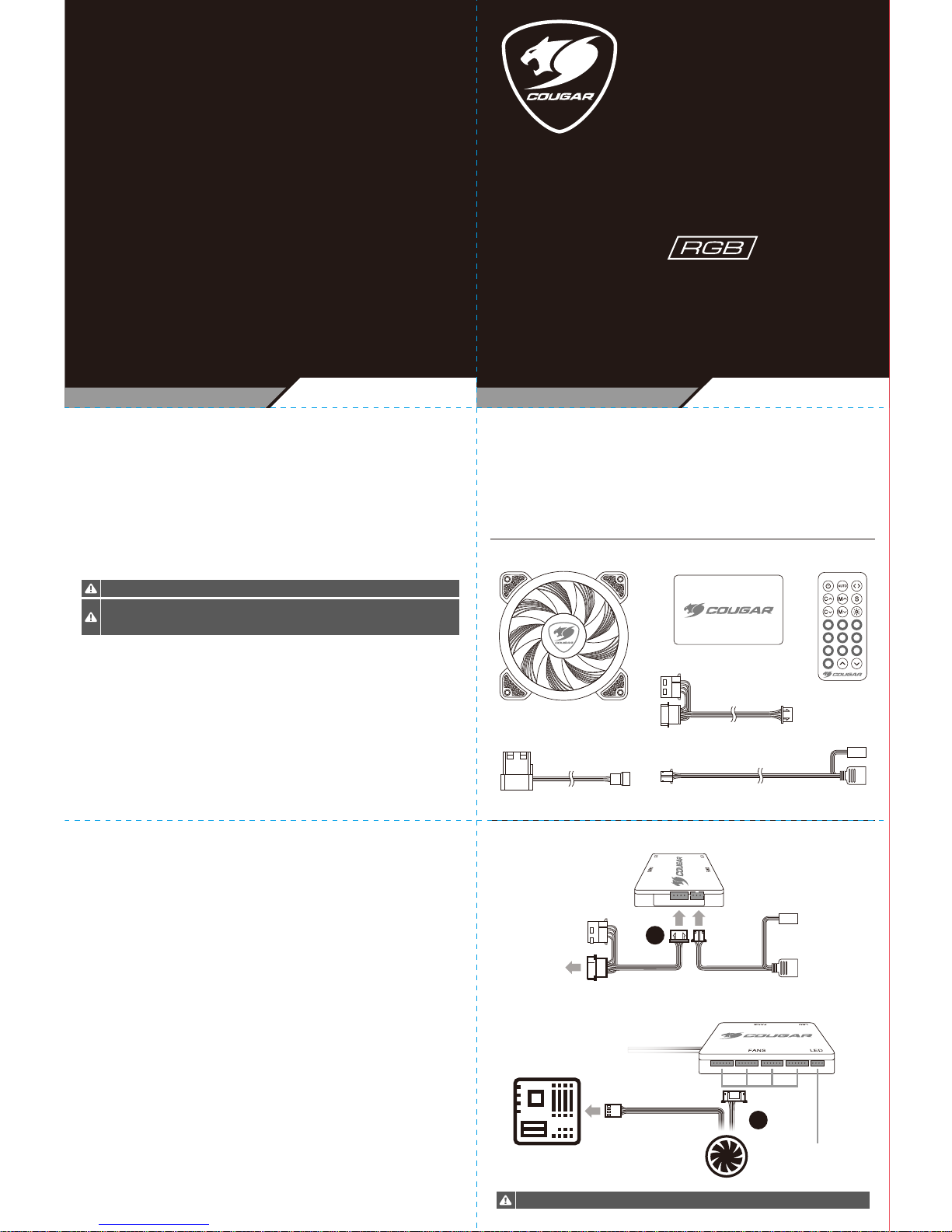

INSTALLATION
FANS LED
FANSLED
Use the included wireless controller to choose among 100 amazing lighting effects,
all without installing any software!
100 LIGHTING EFFECTS WITH WIRELESS DRIVER-FREE CONTROL
OMNIDIRECTIONAL LIGHTING
Connect the COUGAR Core Box V2 directly to the 5V RGB connectors of compatible
ASUS, MSI or GIGABYTE motherboards for system-wide synchronization and full
customization.
* Please note : Only 5V addressable header from compatible motherboards are supported;
please do not connect the COUGAR Core Box V2 to a 12V Non-addressable header.
SUPPORT FOR DIRECT MOTHERBOARD CONNECTION
VORTEX RGB SPB120 x 3
5V Addressable Header Adapter
5V Addressable
Header Adapter
4 to 4 Pin Adapter x 3
Wireless
Controller
Core Box V2
Core Box V2
Power Connector
Power
Connector
POWER M-IN
Power Supply
Motherboard
PWM Header
VORTEX RGB
SPB120
RGB LED Strip
(Optional)
1
2
Core Box V2 for up to 8 fans and 4 LED strips, with 3 VORTEX RGB SPB120 Fans included.
Core Box V2 for up to 8 fans and 4 LED strips, with 3 VORTEX RGB SPB120 Fans included.
The electrical consumption of a fully installed COUGAR Core Box V2 with 8 COUGAR
VORTEX RGB fans and 4 COUGAR RGB LED strips is 40W(5V); please take this into
account when choosing your power supply and designing your build.
360º of gorgeous lighting effects come to your case with COUGAR's most potent RGB
fan lighting ever. The dual lighting circle of the fans combines with the semi-translucid
fan blades to ensure that you can visualize the lighting effects from any angle.
VDG
VDG
for Compatible
Gigabyte
Motherboards
for Compatible
Asus or MSI
Motherboards
LET IT SHINE!
SPB 12 0
COOLING KITPWM HDB
VORTEX
Page 2
LEGAL NOTICES
This manual was created by Compucase Enterprise and may not be completely
or partially copied, passed on, distributed or stored without written consent by
Compucase Enterprise.
COUGAR® is a registered brand of Compucase Enterprise Other product and
company names mentioned in this documentation may be brands or trademarks
of their respective owners.
Compucase Enterprise reserves the right to make changes concerning the
contents of the manual and the technical data of the product without previous announcement.
DISCLAIMERS
●
COUGAR product is not authorized for use as critical components in life support
device or for incorrect application software or malfunction of the product.
●
COUGAR is not liable for the death or damage of person or loss of property when
product is using as, including but not limited to, medical equipment, military
equipment, traffic equipment and disaster prevention system.
●
COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost
savings, lost profits, or any incidental or consequential damages due to using
defect product of COUGAR.
If you have any question about the warranty, please feel free to contact us.
Customer support: https://cougargaming.com/support/contact/upload/
CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED
●
Any fault or damage caused by natural disasters (including storm, fire, flood,
thunder, earthquake, etc).
●
Any fault or damage caused by accidental factors and man-made reasons
(including hit, scrape, crash, moving, compression, stain, corrosion, use of
incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).
●
Use in an improper operating environment (including high temperature, high
humidity, water inflow, etc).
●
Inability to provide the product warranty card, purchase receipt or invoice to
prove the product is still within the warranty period and the shipping date of the
product is out of warranty.
●
The warranty card or product serial number has been altered or its number is
hard to identify.
●
The warranty period has expired.
●
Any fault or damage caused by non-compliance with regulations stated on the
user manual or improper, rough and careless treatment.
●
Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.
●
The problem is caused by improper repair or adjustment by the buyer or any
manufacturer without authorization from COUGAR.
●
The product is not acquired from an authorized distributor of the company or is
acquired from illicit sources.
●
Paper carton, instruction and other accessories are not warranted.
WARRANTY AGREEMENT
●
If the product has defects in material or manufacture, COUGAR will provide
product repair and replacement service within the warranty period.
●
Our warranty service is based on the date of the invoice or warranty card
(must be affixed with the store stamp).
If you lose the aforementioned evidence, we will apply the original shipping date
of the product as the beginning date of warranty period. The shipping date will
be identified by the product serial number(S/N).
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR VORTEX RGB SPB120 COOLING KIT
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights
granted under local law. These rights may vary.
The above specifications may vary by country or region
FAN SPECIFICATIONS PACKAGE CONTAINS
Autoplay All 100
Lighting Effects
Power Button Light Flow Direction
Adjustment(Left/Right)
Speed Adjustment
Brightness Adjustment
Single Color Lighting
Next/Previous Lighting Effect
(Single Color Mode)
Press and hold for 5 seconds until the device's backlight changes to white :
Unbind Your Core Box V2
(If you lose your controller after binding, use the new Controller to unbind
the Core Box V2 before using it)
Press and hold for 5 seconds until the device's backlight changes to red :
Bind your Core Box V2 to this Controller
(If a nearby controller is interfering with your Core Box V2, you can
make use of the binding functionality to prevent that Core Box V2 from
receiving commands from any controller other than the one it’s
bound to)
Next/previous Lighting Effect
(10 Most Popular Effects)
Press and Hold 3 Seconds :
Restore Factory Settings
Next/previous lighting effect
Dimension
Bearing
Speed
Air Flow
Air Pressure
Fan Voltage
LED Voltage
Cable Length
LED Lights
Acoustical
Noise
LED Power
consumption
120 x 120 x 25mm
Hydro-Dynamic Bearing
PWM 600-1500 R.P.M
43.54 CFM 73.94 m3/h
1.17mm H2O
12 VDC
5 VDC
26 dBA
600mm
24
2.4W
VORTEX RGB SPB120 x 3
Core Box V2 & Power Connector
Wireless Controller
4 to 4 Pin Adapter x 3
5V Addressable Header Adapter
Fan Screws
User Manual
( ALL 100 EFFECTS )

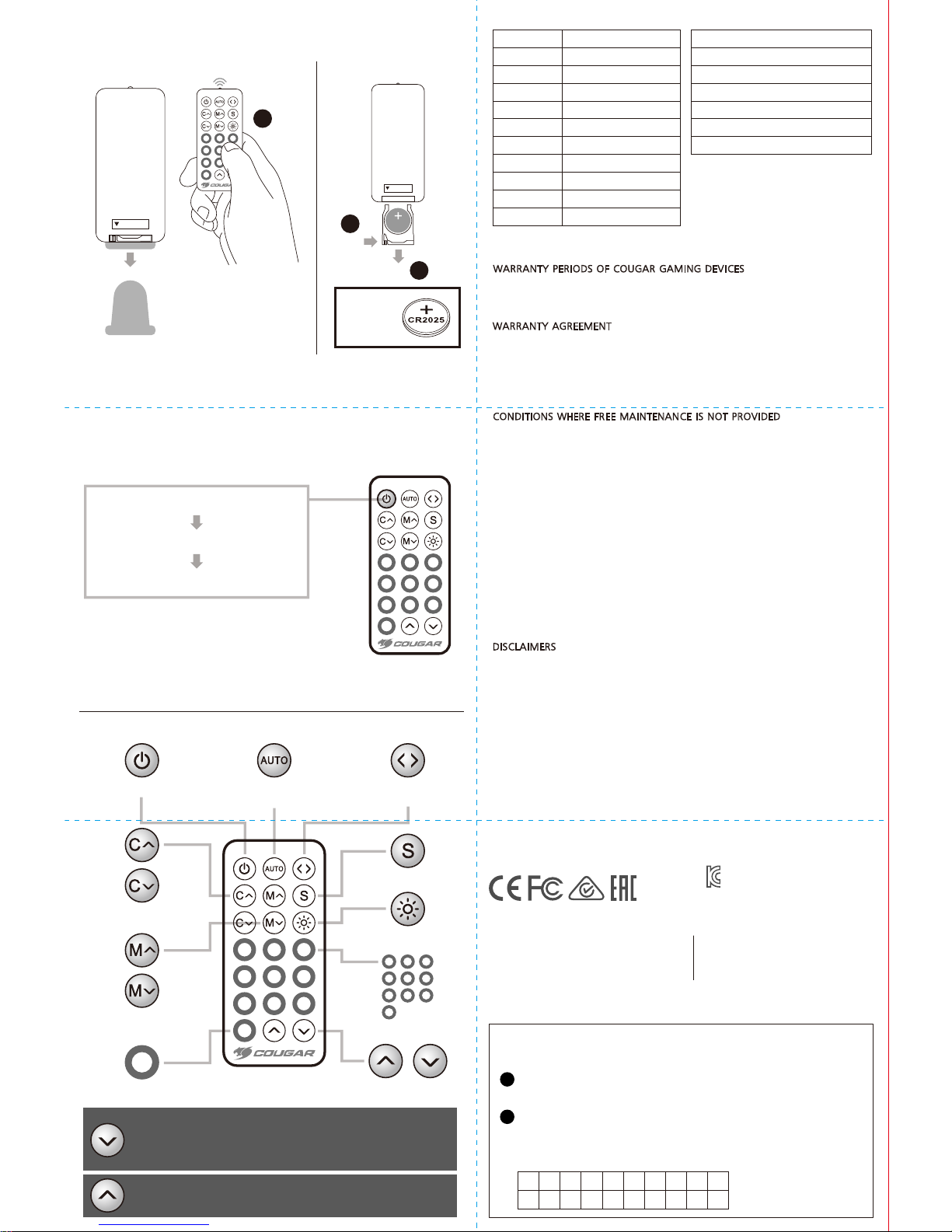

WIRELESS CONTROLLER
HOW TO SWITCH BETWEEN RGB CONTROL
MODES *BY PRESSING THE POWER BUTTON
REMOTE CONTROLLER MODE
Push
Pull
Pull
1
2
2
CR2025
RELEASE
RELEASE
Battery type:
CR2025
How to change the Battery
Default: Remote Controller
Press Once: Motherboard Driver RGB Control
Press Again: Turn Off RGB Lighting
*This applies only to RGB devices connected to the COUGAR Core Box v2.
Motherboard control is only available when the Core Box v2 is properly
connected to a compatible motherboard's 5v Addressable RGB header.
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в
феврале 2017 года.
После S/N: если указаны буквы, то две буквы представляют цифры из
таблицы ниже, и означают год, последующие две цифры –
месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен
в феврале 2017 года.
●
Например,
AG = 17 = 2017 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
A
B
MANUFACTURER CONTACT
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan,
Taiwan, R.O.C
Tel:+886-6-356-0606
More information you will find at cougargaming.com
Compucase Enterprise Co.,Ltd. All rights reserved. Made in China
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: [email protected]
Service email : https://cougargaming.com/support/contact/upload/
All other registered trademarks belong to their respective companies.
MSIP-REI-CEE-COUGAR VORTEX RGB
SPB120 PWM HDB COOLING KIT
