TROFEO
ENHANCED VISIBILITY MID-TOWER

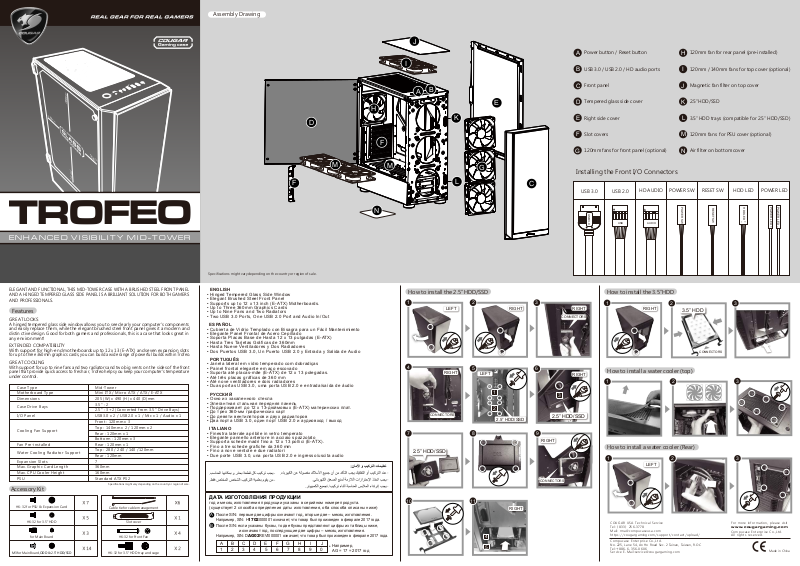

Assembly Drawing
|
J |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A Power button / Reset button |
H 120mm fan for rear panel (pre-installed) |
||||||||
|
I |
|
B USB 3.0 / USB 2.0 / HD audio ports |
I 120mm / 140mm fans for top cover (optional) |
||||||||
|
|
|
||||||||||
|
A |
B |
C |
Front panel |
|
|
J Magnetic fan filter on top cover |
|
|
|||
|
D |
|
|
|
K |
|
|
|
|
|
||
|
H |
E |
Tempered glass side cover |
2.5"HDD/SSD |
|
|
|
|||||
|
|
|
|
|
|
|
||||||
|
K |
|
|
|
|
|
|
|
|
|
|
|
D |
|
E |
Right side cover |
|
L 3.5”HDD trays (compatible for 2.5”HDD/SSD) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
|
F Slot covers |
|
|
M 120mm fans for PSU cover (optional) |
|
|||||
|
|
G 120mm fans for front panel (optional) |
N Air filter on bottom cover |
|
|
|||||||
|
|
|
|
|
||||||||
M |
M |
G |
Installing the Front I/O Connectors |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||||
F |
|
L |
C |
USB 3.0 |
USB 2.0 |
HD AUDIO |
POWER SW |
RESET SW |
HDD LED |
POWER LED |
||
|
|
|
|
|||||||||
|
N |
|
|
0.USB3 |
USB |
AUDIO |
SWPOWER |
|
SWRESET |
+ - |
LEDPOWER |
LEDPOWER |
|
|
|
|
|
|
|
|
|
HDD |
|
|
|
|
|
|
|
|
|
|
|
|
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
+ |
- |
Specifications might vary depending on the country or region of sale.
ELEGANT AND FUNCTIONAL, THIS MID-TOWER CASE WITH A BRUSHED STEEL FRONT PANEL AND A HINGED TEMPERED GLASS SIDE PANEL IS A BRILLIANT SOLUTION FOR BOTH GAMERS AND PROFESSIONALS.
Features
GREAT LOOKS
A hinged tempered glass side window allows you to see clearly your computer's components and easily replace them, while the elegant brushed steel front panel gives it a modern and distin ctive design. Good for both gamers and professionals, this is a case that looks great in any environment!
EXTENDED COMPATIBILITY
With support for high-end motherboards up to 12 x 13 (E-ATX) and seven expansion slots for up to three 360mm graphics cards, you can build a wide range of powerful builds within Trofeo.
GREAT COOLING
With support for up to nine fans and two radiators and two big vents on the sides of the front panel that provide quick access to fresh air, Trofeo helps you keep your computer's temperature under control.
Case Type |
Mid-Tower |
|
Motherboard Type |
Mini ITX / Micro ATX / ATX/ E-ATX |
|
Dimensions |
205 (W) x 490 (H) x 440 (D)mm |
|
Case Drive Bays |
3.5" : 2 |
|
2.5" : 3+2 (Converted from 3.5" Drive Bays) |
||
|
||
I/O Panel |
USB3.0 x 2 / USB2.0 x 1 / Mic x 1 / Audio x 1 |
|
|
Front : 120mm x 3 |
|
Cooling Fan Support |
Top : 140mm x 2 / 120mm x 2 |
|
Rear : 120mm x 1 |
||
|
||
|
Bottorm : 120mm x 3 |
|
Fan Pre-installed |
Rear : 120mm x 1 |
|
Water Cooling Radiator Support |
Top : 280 / 240 / 140 /120mm |
|
Rear : 120mm |
||
|
||
Expansion Slots |
7 |
|
Max. Graphic Card Length |
360mm |
|
Max. CPU Cooler Height |
160mm |
|
PSU |
Standard ATX PS2 |
|
|
Specifications might vary depending on the country |
|
Accessory Kit |
|
|
#6-32 for PSU & Expansion Card |
Cable tie for cable management |
|
#6-32 for 3.5" HDD |
Slot cover |
|
for Main Board |
#6-32 for Front Fan |
|
M3 for Main Board, ODD & 2.5" HDD/SSD |
#6-32 for 3.5" HDD tray and cage |
ENGLISH
• Hinged Tempered Glass Side Window
• Elegant Brushed Steel Front Panel
• Supports up to 12 x 13 inch (E-ATX) Motherboards.
• Up to Three 360mm Graphics Cards
• Up to Nine Fans and Two Radiators
• Two USB 3.0 Ports, One USB 2.0 Port and Audio In/Out
ESPAÑOL
• Cubierta de Vidrio Templado con Bisagra para un Fácil Mantenimiento
• Elegante Panel Frontal de Acero Cepillado
• Soporta Placas Base de Hasta 12 x 13 pulgadas (E-ATX)
• Hasta Tres Tarjetas Gráficas de 360mm
• Hasta Nueve Ventiladores y Dos Radiadores
• Dos Puertos USB 3.0, Un Puerto USB 2.0 y Entrada y Salida de Audio
PORTUGUÊS
• Janela lateral em vidro temperado com dobradiças
• Painel frontal elegante em aço escovado
• Suporta até placas-mãe (E-ATX) de 12 x 13 polegadas.
• Até três placas gráficas de 360 mm
• Até nove ventiladores e dois radiadores
• Duas portas USB 3.0, uma porta USB 2.0 e entrada/saída de áudio
РУССКИЙ
• Окно из закаленного стекла
• Элегантная стальная передняя панель
• Поддерживает до 12 x 13-дюймовых (E-ATX) материнских плат.
• До трех 360-мм графических карт
• До девяти вентиляторов и двух радиаторов
• Два порта USB 3.0, один порт USB 2.0 и аудиовход / выход
ITALIANO
• Finestra laterale apribile in vetro temperato
• Elegante pannello anteriore in acciaio spazzolato
• Supporta schede madri fino a 12 x 13 pollici (E-ATX). 360 mm
radiatori
USB 2.0 e ingresso/uscita audio
ДАТА ИЗГОТОВЛЕНИЯ
год и месяц изготовления продукции (существует 2 способа определения даты изготовления, оба способа описаны ниже)
AПосле S/N: первые две цифры означают год, вторые две – месяц изготовления. Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
BПосле S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
иозначают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
● Например, |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
0 |
||
AG = 17 = 2017 год |
|||||||||||
|
|
|
|
|
|
|
|
|
|
How to install the 2.5”HDD/SSD
1 |
2 |
3 |
LEFT |
RIGHT |
RIGHT |
CONNECTORS
4 |
5 |
|
|
6 |
RIGHT |
LEFT |
|
|
RIGHT |
|
|
1 |
|
3 |
|
|
|
|
|
|
|
2 |
|
|
CONNECTORS |
|
|
2.5” HDD/SSD |
2.5” HDD/SSD |
|
|
|
|
|
7 |
8 |
|
|
9 |
|
|
|
|
RIGHT |
2.5” HDD/SSD
CONNECTORS
10 |
11 |
RIGHT
4
5
How to install the 3.5”HDD
1 |
2 |
3 |
RIGHT |
|
3.5” HDD |
CONNECTORS
How to install a water cooler (top)
1 |
2 |
3 |
How to install a water cooler (Rear)
1 |
2 |
3 |
LEFT
COUGAR USA Technical Service |
For more information, please visit |
|
Tel: (833) 256-3778 |
www.cougargaming.com |
|
Mail: rma@compucaseusa.com |
Compucase Enterprise Co.,Ltd. |
|
https://cougargaming.com/support/contact/upload/ |
All rights reserved. |
|
|
|
|
Compucase Enterprise Co.,Ltd. |
|
|
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C |
|
|
Tel:+886-6-356-0606 |
Made in China |
|
Service E-Mail:service@cougargaming.com |
||
|
