www.cougargaming.com
REAL GEAR FOR REAL GAMERS

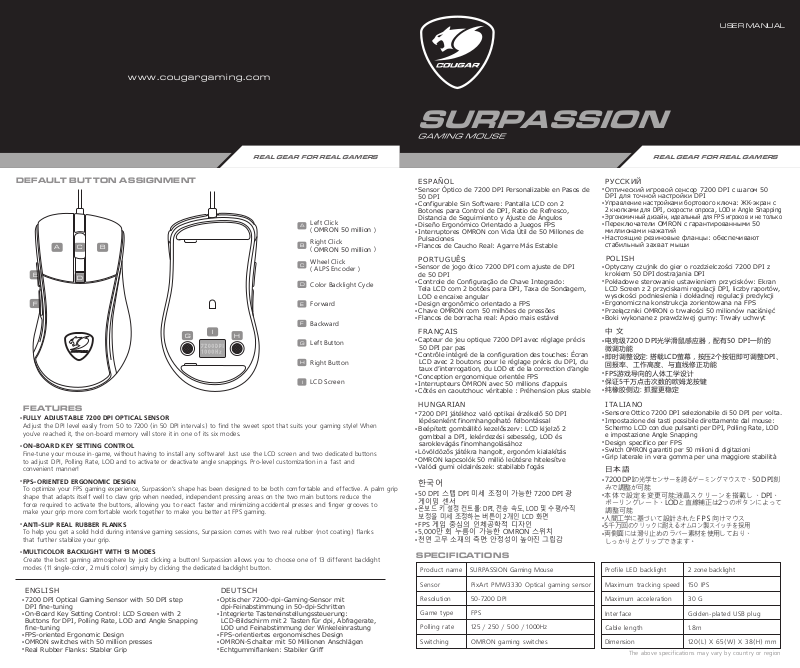

DEFAULT BUTTON ASSIGNMENT
|
|
|
|
A |
Left Click |
|
|
|
|
|
( OMRON 50 million ) |
A |
C |
B |
|
B |
Right Click |
|
( OMRON 50 million ) |
||||
|
|
|
|
C |
Wheel Click |
E |
|
|
|
|
( ALPS Encoder ) |
D |
|
|
|
|
|
|
|
|
D |
Color Backlight Cycle |
|
|
|
|
|
||
F |
|
|
|
E |
Forward |
|
|
|
|
F |
Backward |
|
|
G |
I |
H |
|
|
|
|
Left Button |
||
|
|
|
|
G |
|
|
|
|
|
H |
Right Button |
|
|
|
|
I |
LCD Screen |
FEATURES
●FULLY ADJUSTABLE 7200 DPI OPTICAL SENSOR
Adjust the DPI level easily from 50 to 7200 (in 50 DPI intervals) to find the sweet spot that suits your gaming style! When you've reached it, the on-board memory will store it in one of its six modes.
●ON-BOARD KEY SETTING CONTROL
Fine-tune your mouse in-game, without having to install any software! Just use the LCD screen and two dedicated buttons to adjust DPI, Polling Rate, LOD and to activate or deactivate angle snappings. Pro-level customization in a fast and convenient manner!
●FPS-ORIENTED ERGONOMIC DESIGN
To optimize your FPS gaming experience, Surpassion’s shape has been designed to be both comfortable and effective. A palm grip shape that adapts itself well to claw grip when needed, independent pressing areas on the two main buttons reduce the
force required to activate the buttons, allowing you to react faster and minimizing accidental presses and finger grooves to make your grip more comfortable work together to make you better at FPS gaming.
●ANTI-SLIP REAL RUBBER FLANKS
To help you get a solid hold during intensive gaming sessions, Surpassion comes with two real rubber (not coating) flanks that further stabilize your grip.
●MULTICOLOR BACKLIGHT WITH 13 MODES
Create the best gaming atmosphere by just clicking a button! Surpassion allows you to choose one of 13 different backlight modes (11 single-color, 2 multi color) simply by clicking the dedicated backlight button.
ENGLISH |
DEUTSCH |
● 7200 DPI Optical Gaming Sensor with 50 DPI step |
● Optischer 7200-dpi-Gaming-Sensor mit |
DPI fine-tuning |
dpi-Feinabstimmung in 50-dpi-Schritten |
● On-Board Key Setting Control: LCD Screen with 2 |
● Integrierte Tasteneinstellungssteuerung: |
Buttons for DPI, Polling Rate, LOD and Angle Snapping |
LCD-Bildschirm mit 2 Tasten für dpi, Abfragerate, |
fine-tuning |
LOD und Feinabstimmung der Winkeleinrastung |
● FPS-oriented Ergonomic Design |
● FPS-orientiertes ergonomisches Design |
● OMRON switches with 50 million presses |
● OMRON-Schalter mit 50 Millionen Anschlägen |
● Real Rubber Flanks: Stabler Grip |
● Echtgummiflanken: Stabiler Griff |
USER MANUAL
SURPASSION
ESPAÑOL
●Sensor Óptico de 7200 DPI Personalizable en Pasos de 50 DPI
●Configurable Sin Software: Pantalla LCD con 2 Botones para Control de DPI, Ratio de Refresco, Distancia de Seguimiento y Ajuste de Ángulos
●Diseño Ergonómico Orientado a Juegos FPS
●Interruptores OMRON con Vida Útil de 50 Millones de Pulsaciones
●Flancos de Caucho Real: Agarre Más Estable
PORTUGUÊS
●Sensor de jogo ótico 7200 DPI com ajuste de DPI de 50 DPI
●Controle de Configuração de Chave Integrado:
Tela LCD com 2 botões para DPI, Taxa de Sondagem, LOD e encaixe angular
●Design ergonômico orientado a FPS
●Chave OMRON com 50 milhões de pressões
●Flancos de borracha real: Apoio mais estável
FRANÇAIS
●Capteur de jeu optique 7200 DPI avec réglage précis 50 DPI par pas
●Contrôle intégré de la configuration des touches: Écran LCD avec 2 boutons pour le réglage précis du DPI, du taux dʼinterrogation, du LOD et de la correction dʼangle
●Conception ergonomique orientée FPS
●Interrupteurs OMRON avec 50 millions dʼappuis
●Côtés en caoutchouc véritable : Préhension plus stable
HUNGARIAN
●7200 DPI játékhoz való optikai érzékelő 50 DPI lépésenként finomhangolható felbontással
●Beépített gombállító kezelőszerv: LCD kijelző 2 gombbal a DPI, lekérdezési sebesség, LOD és saroklevágás finomhangolásához
●Lövöldözős játékra hangolt, ergonóm kialakítás
●OMRON kapcsolók 50 millió leütésre hitelesítve
●Valódi gumi oldalrészek: stabilabb fogás
●50 DPI DPI 7200 DPI
●: DPI, , LOD /2 LCD
●FPS
●5,000 OMRON
●:
REAL GEAR FOR REAL GAMERS
РУССКИЙ
●Оптический игровой сенсор 7200 DPI с шагом 50 DPI для точной настройки DPI
●Управление настройками бортового ключа: ЖК-экран с 2 кнопками для DPI, скорости опроса, LOD и Angle Snapping
●Эргономичный дизайн, идеальный для FPS игроков и не только
●Переключатели OMRON с гарантированными 50 миллионами нажатий
●Настоящие резиновые фланцы: обеспечивают стабильный захват мыши
POLISH
●Optyczny czujnik do gier o rozdzielczości 7200 DPI z krokiem 50 DPI dostrajania DPI
●Pokładowe sterowanie ustawieniem przycisków: Ekran LCD Screen z 2 przyciskami regulacji DPI, liczby raportów, wysokości podniesienia i dokładnej regulacji predykcji
●Ergonomiczna konstrukcja zorientowana na FPS
●Przełączniki OMRON o trwałości 50 milionów naciśnięć
●Boki wykonane z prawdziwej gumy: Trwały uchwyt
●7200 DPI 50 DPI
●: LCD 2 DPI
●FPS
●5
●:
ITALIANO
●Sensore Ottico 7200 DPI selezionabile di 50 DPI per volta.
●Impostazione dei tasti possibile direttamente dal mouse: Schermo LCD con due pulsanti per DPI, Polling Rate, LOD e impostazione Angle Snapping
●Design specifico per FPS
●Switch OMRON garantiti per 50 milioni di digitazioni
●Grip laterale in vera gomma per una maggiore stabilità
●7200 DPI 50 DPI
● : DPILOD 2 ●
●5 ●
SPECIFICATIONS
Product name |
SURPASSION Gaming Mouse |
|
|
Sensor |
PixArt PMW3330 Optical gaming sensor |
|
|
Resolution |
50-7200 DPI |
|
|
Game type |
FPS |
|
|
Polling rate |
125 / 250 / 500 / 1000Hz |
|
|
Switching |
OMRON gaming switches |
|
|
Profile LED backlight |
2 zone backlight |
|
|
Maximum tracking speed |
150 IPS |
|
|
Maximum acceleration |
30 G |
|
|
Interface |
Golden-plated USB plug |
|
|
Cable length |
1.8m |
|
|
Dimension |
120(L) X 65(W) X 38(H) mm |
|
|
The above specifications may vary by country or region
ON-BOARD KEY SETTING CONTROL
Click |
|
|
|
|
|
|
|
DPI MODE SWITCH |
|
|
1600DPI |
|
Press the left button to switch between the |
|
|
|
six DPI modes. The default DPI values for |
||
|
1000 Hz |
|
each of the six modes are |
|
L |
|
R |
400/800/1600/3200/5600/7200 DPI |
|
|
|
|||
1 |
|
3 |
CUSTOMIZED DPI MODE |
|
3 Sec |
|
Click |
Press and hold the left button for three |
|
2 |
seconds; when the DPI number on the LCD |
|||
|
|
|||
|
|
screen starts to blink, use the forward/ |
||
1600DPI |
|
2050DPI |
backward buttons to increase or decrease the |
|
1000 Hz |
|
1000 Hz |
DPI level in 50 DPI intervals. When you’ve |
|
L |
|
L |
reached the desired DPI level, press the Left |
|
|
|
|
button again to start using this mode. |
|
|
|
|
POLLING RATE / |
|
3 Sec |
3 Sec |
3 Sec |
LOD / AS SETTINGS |
|
MODE SWITCH |
||||
|
|
|
||
1600DPI |
1600DPI |
1600DPI |
Press and hold the right button three seconds |
|
to switch between these three customization |
||||
1000 Hz |
LOD : L |
AS : off |
||
modes. The active setting will be show on |
||||
R |
R |
R |
||
the lower part of the LCD screen. |
||||
|
|
|
(LOD: Lift off distance, AS: Angle snapping) |
|
|
|
Click |
|
|
|
|
|
POLLING RATE SETTINGS |
|
|
1600DPI |
|
(125/250/500/1000Hz) |
|
|
|
Press the right button to switch between |
||
|
1000 Hz |
|
||
|
|
the four polling rate levels. |
||
L |
|
R |
||
|
|
|||
|
|
Click |
LIFT OFF DISTANCE |
|
|
|
|
||
|
|
|
SETTINGS |
|
|
1600DPI |
|
(LOD: LOW/HIGH) |
|
|
LOD : L |
|
Press the right button to switch between |
|
L |
|
R |
L (Low distance) and H (High distance). |
|
|
|
|||
|
|
Click |
|
|
|
|
|
ANGLE SNAPPING |
|
|
1600DPI |
|
SETTINGS (AS: ON/OFF) |
|
|
|
Press the right button to activate or |
||
|
AS : off |
|
||
|
|
deactivate Angle Snapping. |
||
|
|
|
L R
RESTORE THE DEFAULT SETTING
To restore the default settings, please press and hold the forward, backward and wheel buttons and, without releasing them, connect the mouse to the computer.
1 |
2 |
USB |
PACKAGE CONTAINS
COUGAR SURPASSION Gaming Mouse |
To achieve optimal performance, it is highly recommended |
|
|
User Manual |
that you use this product with COUGAR Mouse Pads. |
|
|
|
|
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR SURPASSION gaming mouse Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
WARRANTY AGREEMENT
●If the product has defects in material or manufacture, COUGAR will provide product repair and replacement service within the warranty period.
●Our warranty service is based on the date of the invoice or warranty card (must be affixed with the store stamp).
If you lose the aforementioned evidence, we will apply the original shipping date of the product as the beginning date of warranty period. The shipping date will be identified by the product serial number(S/N).
CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED
●Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc).
●Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash, moving, compression, stain, corrosion, use of incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).
●Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).
●Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still within the warranty period and the shipping date of the product is out of warranty.
●The warranty card or product serial number has been altered or its number is hard to identify.
●The warranty period has expired.
●Any fault or damage caused by non-compliance with regulations stated on the user manual or improper, rough and careless treatment.
●Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.
●The problem is caused by improper repair or adjustment by the buyer or any manufacturer without authorization from COUGAR.
●The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.
●Paper carton, instruction and other accessories are not warranted. DISCLAIMERS
●COUGAR product is not authorized for use as critical components in life support device or for incorrect application software or malfunction of the product.
●COUGAR is not liable for the death or damage of person or loss of property when product is using as, including but not limited to, medical equipment, military equipment, traffic equipment and disaster prevention system.
●COUGAR's warranty liability is limited to repair, replacement.
●COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost savings, lost profits, or any incidental or consequential damages due to using defect product of COUGAR.
If you have any question about the warranty, please feel free to contact us. Customer support: service@cougargaming.com
LEGAL NOTICES
This manual was created by Compucase Enterprise and may not be completely or partially copied, passed on, distributed or stored without written consent by Compucase Enterprise.
COUGAR® is a registered brand of Compucase Enterprise Other product and company names mentioned in this documentation may be brands or trademarks of their respective owners.
Compucase Enterprise reserves the right to make changes concerning the contents of the manual and the technical data of the product without previous announcement.
|
|
All other registered trademarks belong |
Tested to comply with FCC standards |
|
MSIP-REI-CEE- |
FOR HOME OR OFFICE USE |
|
R63088 |
COUGAR |
to their respective companies. |
|
RoHS |
SURPASSION |
|
|
MANUFACTURER CONTACT
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C Tel:+886-6-356-0606
Service E-Mail: service@cougargaming.com
CAUTION
Please do not directly look into the optical beam!
COUGAR USA Technical Service Tel: (833) 256-3778
Mail: rma@compucaseusa.com https://cougargaming.com/support/contact/upload/
More information you will find at cougargaming.com Compucase Enterprise Co.,Ltd.
All rights reserved. Made in China
