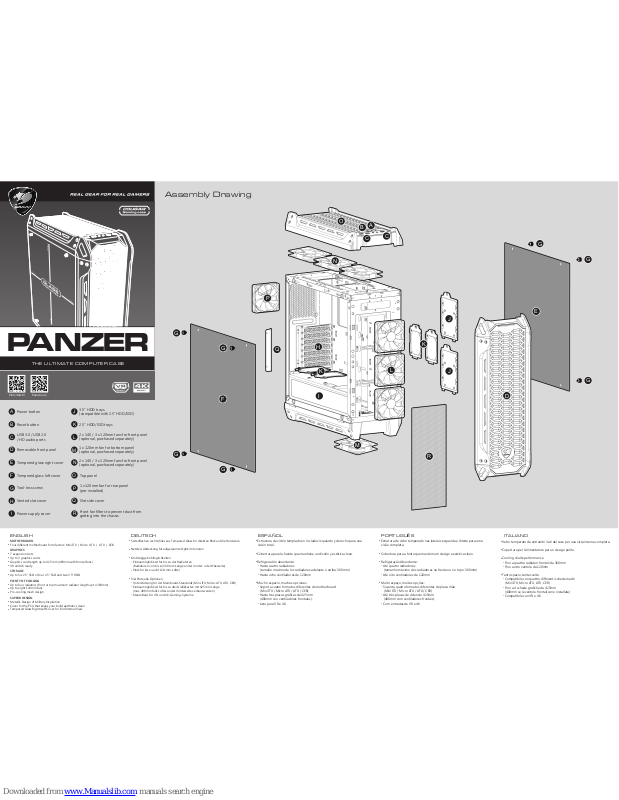

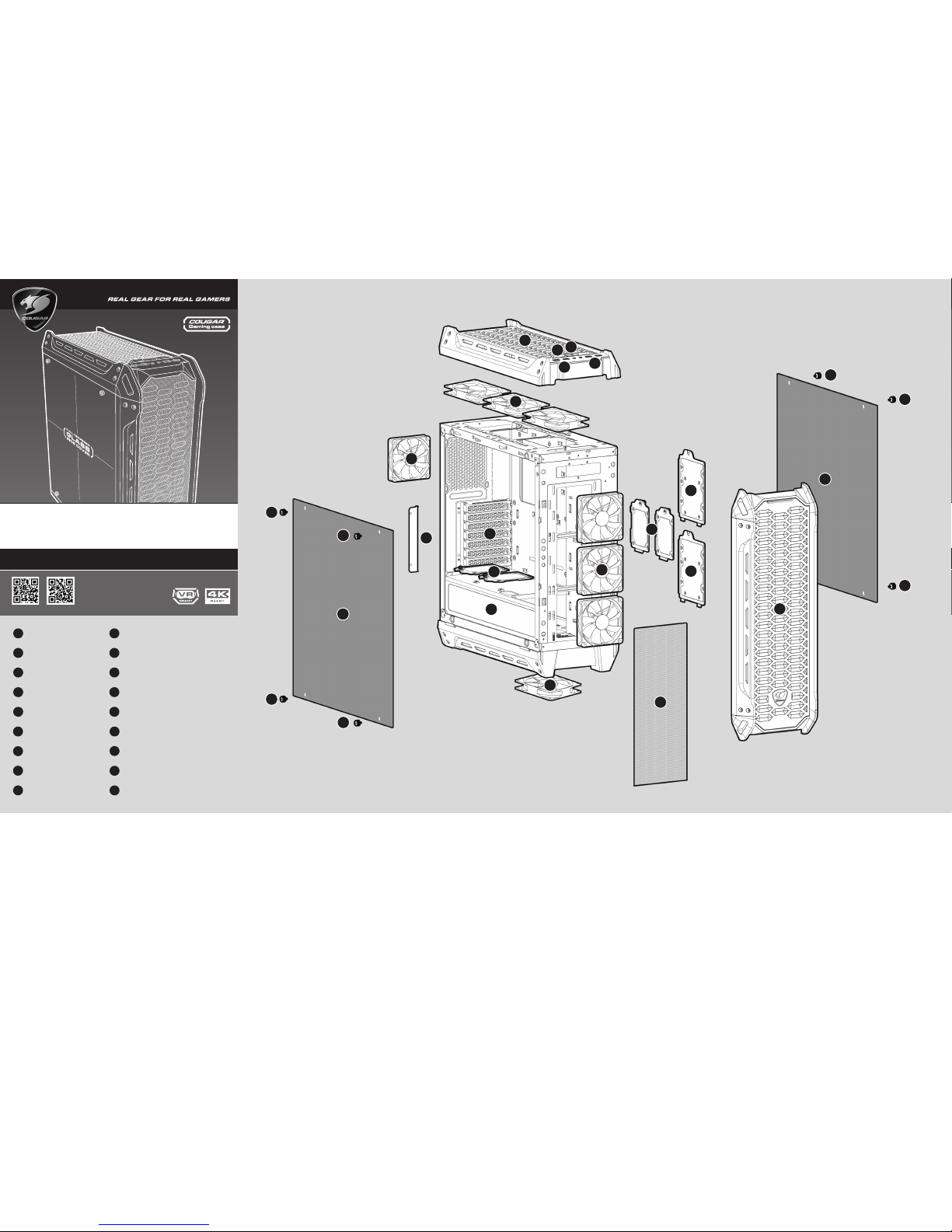

Assembly Drawing
COUGAR Facebook
PANZER
D
F
G
G
G
G
G
G
G
H
I
J
J
K
K
L
M
N
O
P
Q
R
E
A
C
C
B
THE ULTIMATE COMPUTER CASE
MOTHERBOARD
●
Four different motherboard form factors: Mini ITX / Micro ATX / ATX / CEB
GRAPHICS
●
7 expansion slots
●
Up to 3 graphics cards
●
Graphics card length up to 425 mm (400mm with frontal fans)
●
VR and 4K ready
STORAGE
●
Up to Six 2.5" SSD or four 2.5" SSD and two 3.5" HDD
PLENTY OF COOLING
●
Up to four radiators (front or top maximum radiator length up to 360mm)
●
Up to eight 120mm fans
●
Pro-cooling mesh design
SUPERB DESIGN
●
Metallic Design of Military Inspiration
●
Cover for the PSU that keeps your build aesthetics clean
●
Tempered Glass Right/Left Cover for Full Internal View
●
Estructura de vidrio templado en los lados izquierdo y derecho para una
visión total.
●
Cobertura para la fuente que mantiene un diseño y estética clean.
●
Refrigeración abundante:
●
Hasta cuatro radiadores
(tamaño máximo de los radiadores adelante o arriba: 360mm)
●
Hasta ocho ventiladores de 120mm
●
Mucho espacio, muchas opciones:
●
Soporta cuatro formatos diferentes de motherboard
(Mini ITX / Micro ATX / ATX / CEB).
●
Hasta tres placas gráficas de 425mm
(400mm con ventiladores frontales).
●
Listo para VR e 4K.
●
Seitenflächen rechts/links aus Tempered Glass für direkten Blick auf die Hardware
●
Netzteil-Abdeckung für aufgeräumte Optik im Inneren
●
Großzügige Kühlmglichkeiten
●
Einbaumöglichkeit für bis zu vier Radiatoren
(Radiatoren von bis zu 360 mm Länge an der Vorder- oder Oberseite)
●
Platz für bis zu acht 120-mm-Lüfter
●
Viel Platz, alle Optionen
●
Unterstützung für vier Mainboard-Standards (Mini-ITX, Micro-ATX, ATX, CEB)
●
Einbaumöglichkeit für bis zu drei Grafikkarten mit 425 mm Länge
(max. 400 mm falls Lüfter an der Vorderseite verbaut werden)
●
Ideale Basis für VR- und 4K-Gaming-Systeme
●
Vetro temperato da entrambi i lati del case per una vista interna completa.
●
Copertura per l'alimentatore per un design pulito.
●
Cooling di alte performance
●
Fino a quattro radiatori frontali da 360mm
●
Fino a otto ventole da 120mm
●
Tanto spazio, tante scelte.
●
Compatibile con quattro differenti schede madri
(Mini ITX, Micro ATX, ATX, CEB)
●
Fino a 4 schede grafiche da 425mm
(400mm se le ventole frontali sono installate)
●
Compatibile con VR e 4K
●
Estrutura de vidro temperado nas laterais esquerda e direita para uma
visão completa.
●
Cobertura para a fonte que mantém um design e estética clean.
●
Refrigeração Abundante:
●
Até quatro radiadores
(tamanho máximo dos radiadores na frente ou no topo: 360mm)
●
Até oito ventiladores de 120mm
●
Muito espaço, muitas opções:
●
Suporta quatro formatos diferentes de placa mãe
(Mini ITX / Micro ATX / ATX / CEB)
●
Até três placas de vídeo de 425mm
(400mm com ventiladores frontais).
●
Com entradas de VR e 4K
PORTUGUÊS
ESPAÑOL
DEUTSCH ITALIANOENGLISH
Power button
A
Reset button
B
USB 3.0 / USB 2.0
/ HD audio ports
C
Removable front panel
D
Tempered glass right cover
E
G
Tool-less screw
F
Tempered glass left cover
Vented slot cover
H
Power supply cover
I
3.5" HDD trays
(compatible with 2.5" HDD/SSD)
J
2.5" HDD/SSD trays
K
1 x 120mm fan for bottom panel
(optional, purchased separately)
M
2 x 140 / 3 x 120mm fans for front panel
(optional, purchased separately)
N
2 x 140 / 3 x 120mm fans for front panel
(optional, purchased separately)
L
Top panel
O
1 x 120mm fan for rear panel
(pre-installed)
P
Slot side cover
Q
Front fan filters to prevent dust from
getting into the chassis
R
440mm
17.32"
445mm
17.52"

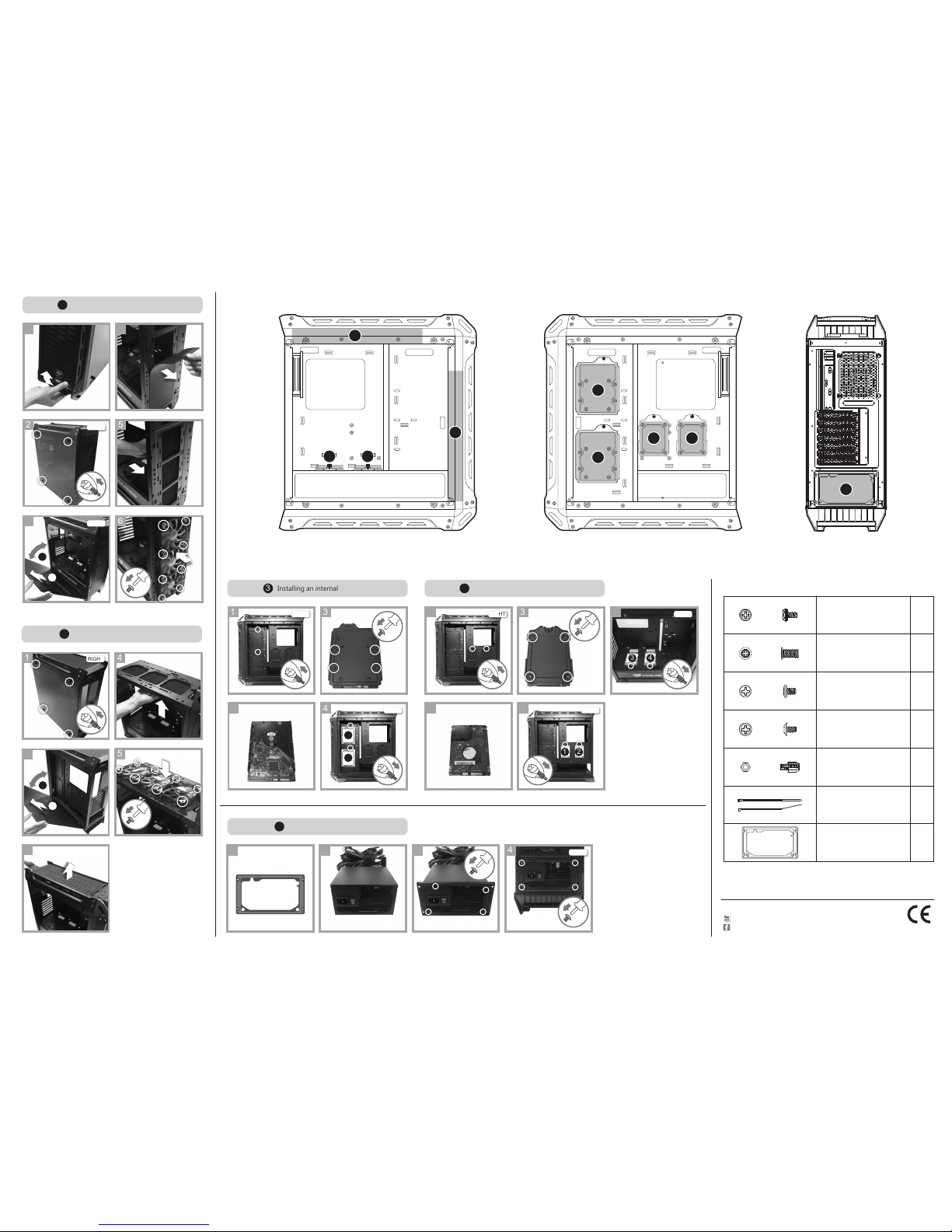

Page 2
5
4
2
3
1
RIGHT
5
6
1
Installing a water cooler (top)
2
Installing a water cooler (front)
1
2
3
4
LEFT
LEFT
45°
1
2
45°
1
2
Installing an internal 3.5" HDD
2
3.5" HDD
3
3
4
RIGHT
1
2
1
RIGHT
1
RIGHT
Installing an internal
2.5" HDD/SSD
2
2.5" HDD/SSD
4
3
4
RIGHT
1 2
5
LEFT
43
Installing a power supply
5
LEFT SIDE RIGHT SIDE REAR SIDE
2
1
3
3
4
44
4
5
ACCESSORY KIT
X 8Power supply screws
X 24Fans screws
X 24SSD screws
Motherboard / HDD screws X 17
X 4
X 1
Cable ties
Psu bracket
PSU BRACKET
X 2Stand-off
