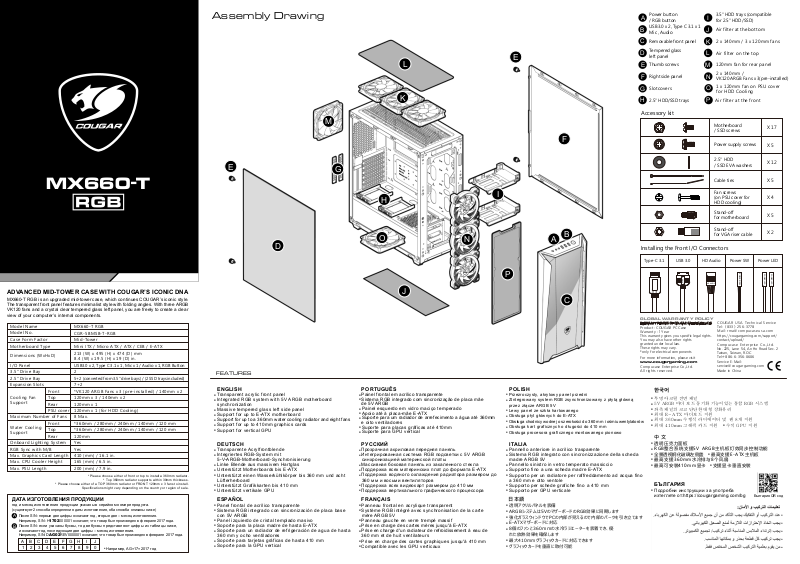

Cougar MX660-T RGB operation manual

MX660-T

Assembly Drawing

E

M

G

H

K

Power button

A

/ RGB button
USB3.0 x 2, Type C 3.1 x 1

B

Mic , Audio

Removable front panel

C

Tempered glass

D

E

L

left panel

Thumb screws

E

Right side panel

F

Slot covers

G

2.5" HDD/SSD trays

H

3.5" HDD trays (compatible

I

for 2.5" HDD/SSD)

Air filter at the bottom

J

2 x 140mm / 3 x 120mm fans

K

Air filter on the top

L

120mm fan for rear panel

M

2 x 140mm /

N

VK120 ARGB Fans x 3(pre-installed)

1 x 120mm fan on PSU cover

O

for HDD Cooling

Air filter at the front

P

Accessory kit

Motherboard
/ SSD screws

F

Power supply screws

HDD

2.5"
/ SSD EVA washers

Cable ties

I

Fan screws
(on PSU cover for
HDD cooling)

Stand-off
for motherboard

X 17

X 5

X 12

X 5

X 4

X 5

ADVANCED MID-TOWER CASE WITH COUGAR’S ICONIC DNA

MX660-T RGB is an upgraded mid-tower case, which continues COUGAR’s iconic style.
The transparent front panel features minimalist style with folding angles. With three ARGB
VK120 fans and a crystal clear tempered glass left panel, you are freely to create a clear
view of your computer’s internal components.

Model Name
Model No.
Case Form Factor
Motherboard Type

Dimensions (WxHxD)

I/O Panel

3.5" Drive Bay

2.5" Drive Bay
Expansion Slots

Cooling Fan
Support

Maximum Number of Fans

Water Cooling
Support

Onboard Lighting System
RGB Sync with M/B

Max. Graphics Card Length
Max. CPU Cooler Height
Max. PSU Length

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)

A

После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

После S/N:

B

и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.

Front
Top
Rear
PSU cover

Front
Top
Rear

если указаны буквы, то две буквы представляют цифры из таблицы ниже,

A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0

MX660-T RGB
CGR-5BMSB-T-RGB
Mid-Tower
Mini ITX / Micro ATX / ATX / CEB / E-ATX

213 (W) x 495 (H) x 474 (D) mm

8.4 (W) x 19.5 (H) x 19 (D) in.

USB3.0 x 2, Type C 3.1 x 1, Mic x 1 / Audio x 1, RGB Button
2
5+2 (converted from 3.5" drive bays) / (2 SSD trays included)
7+2
*VK120 ARGB Fans x 3 (pre-installed) / 140mm x 2
120mm x 3 / 140mm x 2
120mm x 1
120mm x 1 (for HDD Cooling)
8 Max.
*360mm / 280mm / 240mm / 140mm / 120 mm
*360mm / 280mm / 240mm / 140mm / 120 mm
120mm
Yes
Yes
410 (mm) / 16.1 in.
165 (mm) / 6.5 in.
200 (mm) / 7.9 in.

* Please choose either of front or top to install a 360mm radiator.

* Please choose either of a TOP 360mm radiator or FRONT 120mm x 3 fans to install.

Specifications might vary depending on the country or region of sale.

* Top 360mm radiator supports within 30mm thickness.

●

Например, AG=17=2017 год

D

FEATURES

ENGLISH

●

Transparent acrylic front panel

●

Integrated RGB system with 5V ARGB motherboard

synchronization

●

Massive tempered glass left side panel

●

Support for up to E-ATX motherboard

●

Support for up to a 360mm water cooling radiator and eight fans

●

Support for up to 410mm graphics cards

●

Support for vertical GPU

DEUTSCH

●

Transparente Acrylfrontblende

●

Integriertes RGB-System mit

5-V-ARGB-Motherboard-Synchronisierung

●

Linke Blende aus massivem Hartglas

●

Unterstützt Motherboards bis E-ATX

●

Unterstützt einen Wasserkühlkörper bis 360 mm und acht

Lüfterherboard

●

Unterstützt Grafikkarten bis 410 mm

●

Unterstützt vertikale GPU

ESPAÑOL

●

Panel frontal de acrílico transparente

●

Sistema RGB integrado con sincronización de placa base

con 5V ARGB

●

Panel izquierdo de cristal templado masivo

●

Soporte para la placa madre de hasta E-ATX

●

Soporte para un radiador de refrigeración de agua de hasta

360 mm y ocho ventiladores

●

Soporte para tarjetas gráficas de hasta 410 mm

●

Soporte para la GPU vertical

O

N

J

PORTUGUÊS

●

Painel frontal em acrílico transparente

●

Sistema RGB integrado com sincronização de placa mãe

de 5V ARGB

●

Painel esquerdo em vidro maciço temperado

●

Apoio até à placa-mãe E-ATX

●

Suporte para um radiador de arrefecimento a água até 360mm

e oito ventiladores

●

Suporte para placas gráficas até 410mm

●

Suporte para GPU vertical

РУССКИЙ

●

Прозрачная акриловая передняя панель

●

Интегрированная система RGB подсветки с 5V ARGB

синхронизацией материнской платы

●

Массивная боковая панель из закаленного стекла

●

Поддержка всех материнских плат до формата E-ATX

●

Поддержка водяного охлаждения радиатора размером до

360 мм и восьми вентиляторов

●

Поддержка всех видеокарт размером до 410 мм

●

Поддержка вертикального графического процессора

FRANÇAIS

●

Panneau frontal en acrylique transparent

●

Système RGB intégré avec synchronisation de la carte

mère ARGB 5V

●

Panneau gauche en verre trempé massif

●

Prise en charge des cartes mères jusqu'à E-ATX

●

Prise en charge d'un radiateur de refroidissement à eau de

360 mm et de huit ventilateurs

●

Prise en charge des cartes graphiques jusqu'à 410 mm

●

Compatible avec les GPU verticaux

B

A

P

C

POLISH

●

Przezroczysty, akrylowy panel przedni

●

Zintegrowany system RGB zsynchronizowany z płytą główną

przez złącze ARGB 5V

●

Lewy panel ze szkła hartowanego

●

Obsługa płyt głównych do E-ATX

●

Obsługa chodnicy wodnej o szerokości do 360 mm i ośmiu wentylatorów

●

Obsługa kart graficznych o długości do 410 mm

●

Obsługa procesora graficznego montowanego pionowo

ITALIA

●

Pannello anteriore in acrilico trasparente

●

Sistema RGB integrato con sincronizzazione della scheda

madre ARGB 5V

●

Pannello sinistro in vetro temperato massiccio

●

Supporto fino a una scheda madre E-ATX

●

Supporto per un radiatore per raffreddamento ad acqua fino

a 360 mm e otto ventole

●

Supporto per schede grafiche fino a 410 mm

●

Supporto per GPU verticale

日本語

●

透明アクリルパネルを装備

●

ARGBシステムは5VのマザーボードのRGB効果に同期します

●

強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます

●

E-ATXマザーボードに対応

●

8個のファンと360ｍｍの水冷ラジエーターを装着でき、優

れた放熱効果を確保します

●

最大410mmグラフィックカードに対応できます

●

グラフィックカードを垂直に取付可能

Stand-off
for VGA riser cable

Installing the Front I/O Connectors

USB 3.0Type-C 3.1 HD Audio

USB3.0

HD AUDIO

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR PC Case
Warranty : 1 Year
This warranty gives you specific legal rights.
You may also have other rights
granted under local law.
These rights may vary.
*only for electrical components

For more information, please visit

www.cougargaming.com

Compucase Enterprise Co.,Ltd.
All rights reserved.

Power SW Power LED

COUGAR USA Technical Service
Tel: [phone]
Mail: [e-mail]
https://cougargaming.com/support/
contact/upload/

Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2
Tainan, Taiwan, R.O.C
Tel:[phone]
Service E-Mail:
[e-mail]

Made in China

한국어

●

투명 아크릴 전면 패널

●

5V ARGB 마더 보드 동기화 기능이있는 통합 RGB 시스템

●

좌측 패널의 크고 단단한 대형 강화유리

●

최대 E-ATX 마더보드 지원

●

최대 360mm 수랭식 라디에이터 및 팬 8개 지원

●

최대 410mm 그래픽 카드 지원 ● 수직 GPU 지원

中 文

●

透明压克力面板

●

RGB整合系统支援5V ARGB主机板灯效同步控制功能

●

全景透视钢化玻璃左侧盖 ● 最高支援E-ATX主机板

●

最高支援360mm水冷排与8个风扇

●

最高可安装410mm显卡 ● 支援显卡垂直安装

БЪЛГАРИЯ

●

Подробни инструкции за употреба

изтеглете от:https://cougargaming.com/bg

POWER SW

X 2

POWER LED

POWER LED

+

-

България QR код

Removing the side panels Installing 2.5" HDD/SSD Installing 3.5" HDD

LED

1 2

3

4 5

6

7

1

1

Connectors

Lift up with 45°

2

Angle to Remove it

2

1

2

3

4

1

2.5" HDD/SSD
EVA washers

PUSH &

1

HOLD the Bar

3

1

Connectors

7

●

Right

Right

1

3

1

2

5 6

Please stick EVA washers on SSD holes

before installing 2.5" SSD.

2

PUSH &
HOLD the Bar

PUSH &
HOLD the Bar

4

4

120

120

Left

Installing water cooling radiators & cooling fans

120

140

140

240

280

*360

Please choose either of front or top to install a 360mm radiator.

120

Top 360mm radiator supports
within 30mm thickness.

TOP

1

REAR

4

3

2

Left

Controlling lighting modes

LeftRight Right Right

Installing Vertical Graphic Card

FIRST MODE: SEVERAL LIGHTING EFFECTS

You can use the front panel’s RGB button to switch between several beautiful lighting effects we have preset for you.

2

RGB SW
button

1

2

3

4

5

Power cable

6

1

Power supply

1

2

Please choose either
of a Vertical Graphic
Card or 2.5" SSD
trays on the PSU cover
to install.

The vertical graphic
card and the PCI-E
riser cable are not
included in the
package, please
purchase separately.

SECOND MODE: MOTHERBOARD SYNCHRONIZATION

2

FRONT

360

120140240280

Please use the included adapter to connect to a compatible motherboard’s 3-pin
5V Addressable RGB header. Then, press and hold the RGB button for 3 seconds.

FIRST MODE

Several Lighting

1 sec

Stand-off
for VGA riser cable

Effects

Press the RGB button
for one second

PSU COVER

120

*120

140

* Please choose either of a
TOP 360mm radiator or
FRONT 120mm x 3 fans
to install.

5V Addressable
RGB adapter

Power
connector

1 2 3 4 5 6

5V Addressable RGB connector

Power

1

cable

5V Addressable

2

RGB adapter

Power supply

Motherboard

SECOND MODE

Motherboard

3 secs

synchronization

Press and hold the RGB
button for 3 seconds

If you press and hold the RGB button for
3 seconds again. It will be returned to the
First mode: Preset Lighting Effects

3

Max. Graphics Card
Length :

410mm
