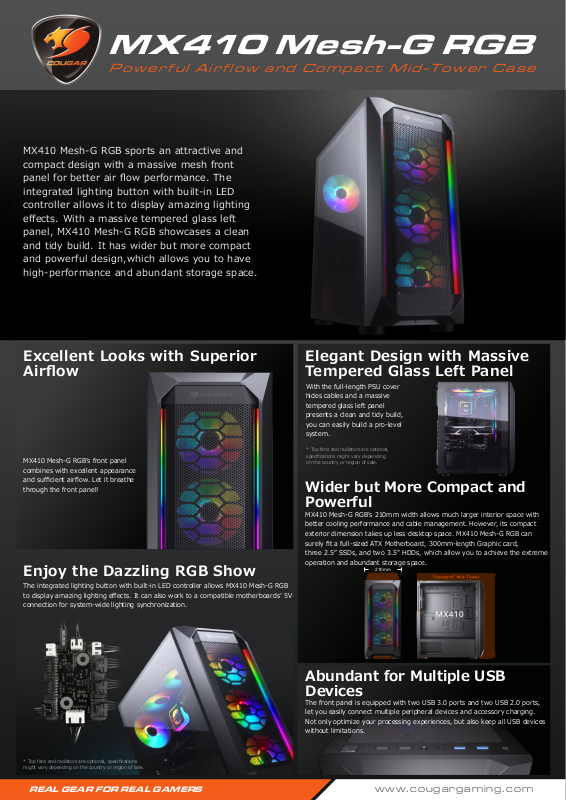

MX410 Mesh-G RGB
Powerful Airflow and Compact Mid - Tower Case
MX410 Mesh-G RGB sports an attractive and compact design with a massive mesh front panel for better air flow performance. The integrated lighting button with built-in LED controller allows it to display amazing lighting e ects. With a massive tempered glass left panel, MX410 Mesh-G RGB showcases a clean and tidy build. It has wider but more compact and powerful design,which allows you to have high-performance and abundant storage space.
Excellent Looks with Superior
Airflow
MX410 Mesh-G RGBʼs front panel combines with excellent appearance and su cient airflow. Let it breathe through the front panel!
Enjoy the Dazzling RGB Show
The integrated lighting button with built-in LED controller allows MX410 Mesh-G RGB to display amazing lighting e ects. It can also work to a compatible motherboardsʼ 5V connection for system-wide lighting synchronization.
Elegant Design with Massive Tempered Glass Left Panel
With the full-length PSU cover hides cables and a massive tempered glass left panel presents a clean and tidy build, you can easily build a pro-level system.
* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.
Wider but More Compact and
Powerful
MX410 Mesh-G RGBʼs 210mm width allows much larger interior space with better cooling performance and cable management. However, its compact exterior dimension takes up less desktop space. MX410 Mesh-G RGB can surely fit a full-sized ATX Motherboard, 300mm-length Graphic card,
three 2.5” SSDs, and two 3.5” HDDs, which allow you to achieve the extreme
operation and abundant storage space.
210 mm
Abundant for Multiple USB
Devices
The front panel is equipped with two USB 3.0 ports and two USB 2.0 ports, let you easily connect multiple peripheral devices and accessory charging. Not only optimize your processing experiences, but also keep all USB devices without limitations.
* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.
REAL GEAR FOR REAL GAMERS
www.cougargaming.com
MX410 Mesh-G RGB
Powerful Airflow and Compact Mid - Tower Case
Strong Cooling Performance
MX410 Mesh-G RGBʼs interior space supports up to 165mm height CPU air cooler, a 240mm water cooling radiator, and high-end cooling components. It helps you to protect critical components from overheating.
Water cooling radiator support |
Air cooling support |
120mm
120mm
240mm
120 |
120 |
mm |
|
mm |
|
240 120 mm mm
120mm
* Please choose either of front or top to install a 240mm radiator.
SPECIFICATIONS
Model No. |
CGR-5VM6B-MESH-G-RGB |
|
Case Type |
Mid Tower |
|
Motherboard Type |
Mini ITX / Micro ATX / ATX |
|
Dimension (WxHxD) |
210 x 455 x 380 (mm) / 8.3 x 17.9 x 15 (in) |
|
Case Drive Bays |
3.5" : 2 / 2.5" : 3 |
|
I/O Panel |
USB3.0 x 2, USB2.0 x 2, Mic x 1 / Audio x 1, |
|
RGB Control Button |
||
|
||
Expansion Slots |
7 |
|
Max. PSU Length |
160 (mm) / 6.3 (in) |
|
Max. CPU Cooler Height |
165 (mm) / 6.5 (in) |
|
|
|
* Please choose either of front or top to install a 240mm radiator.
|
Front : *240mm / 120mm |
|
Water Cooling Support |
Top : *240mm / 120mm (Max. component height on |
|
motherboard is 40mm) |
||
|
||
|
Rear : 120mm |
|
|
Front : 120mm x 3 (RGB fans x 3 pre-installed) |
|
Cooling Fan Support |
Top : 120mm x 2 |
|
|
Rear : 120mm x 1 (RGB fan x 1 pre-installed) |
|
Maximum Number of Fans |
6 Max. |
|
Max. Graphics Card Length |
300 (mm) / 11.8 (in) (Only fans at the front panel) |
|
|
270 (mm) / 10.6 (in) (Radiator with fans at the front panel) |
|
Onboard Lighting System |
Intergrated Lighting with Addressable RGB LEDs and |
|
Dynamic Lighting Effects in the Front Panel |
||
|
||
RGB Sync. with M/B |
Yes |
|
|
|
PACKING DATA
Product Name |
MX410 Mesh-G RGB |
Product Number (P/N) |
385VM70.0004 |
EAN CODE |
4710483770623 |
UPC CODE |
192554001982 |
JAN CODE |
4541995034527 |
Individual Size W/O Packaging Weight (N.Weight) |
5.5 |
(kg) |
|
Individual Packaging Weight (G.Weight) |
6.5 |
(kg) |
|
Individual Size W/O Packaging (WxHxD) |
210 x 455 x 380 |
(mm) / 8.3 x 17.9 x 15 (in) |
|
Individual Packaging Size (WxHxD) |
268 x 500 x 452 |
(mm) / 10.6 x 19.7 x 17.8 (in) |
|
REAL GEAR FOR REAL GAMERS |
www.cougargaming.com |
