Telephone For Hotels
& Business

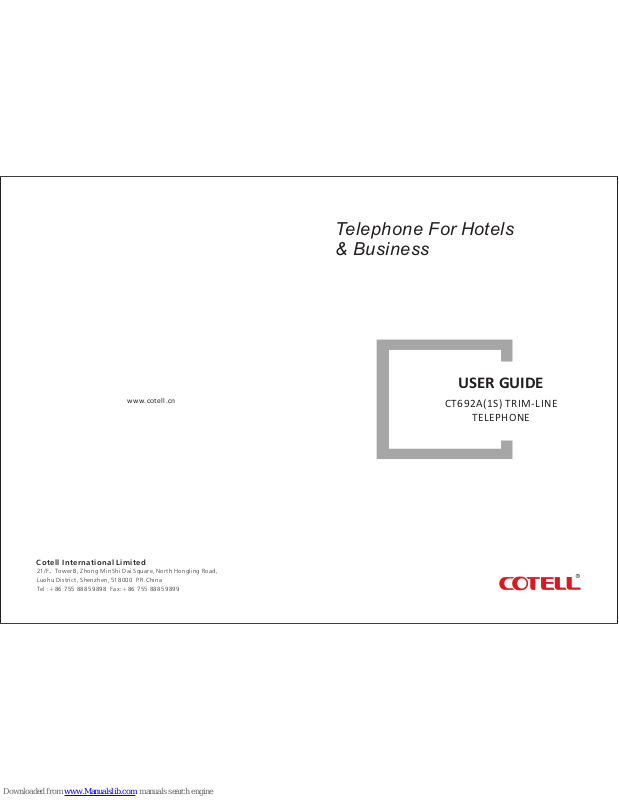

USER GUIDE
CT692A(1S) TRIM-LINE
TELEPHONE
Page 2
INSTALLATION
CONNECTING CT692A(1S) Bathroom Telephone
Included with the CT692A(1S) phone are (one each):
The phone can be used on desktop and wall mount.
CT692A(1S) FEATURES

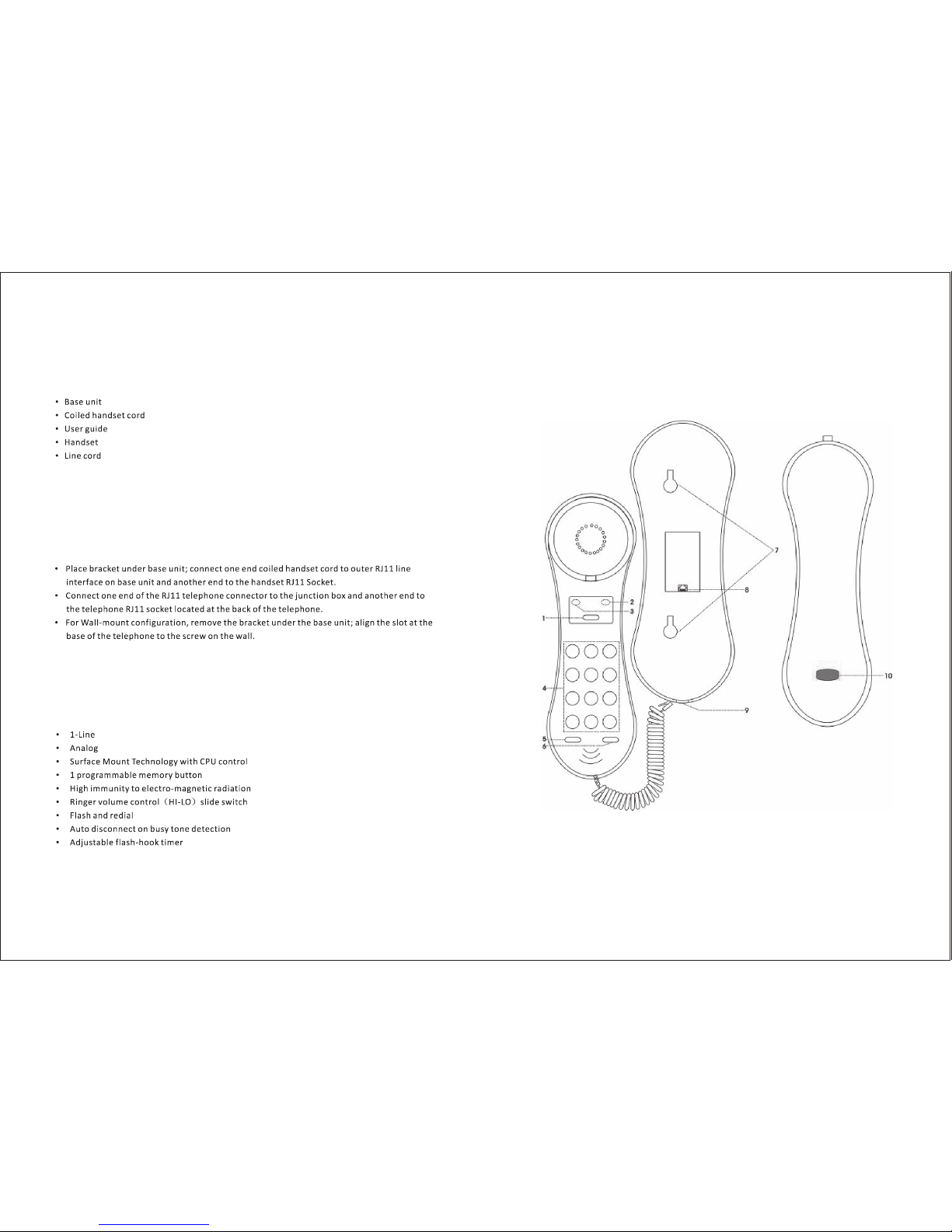

CT692A(1S) DIAGRAM
1
2
Page 3

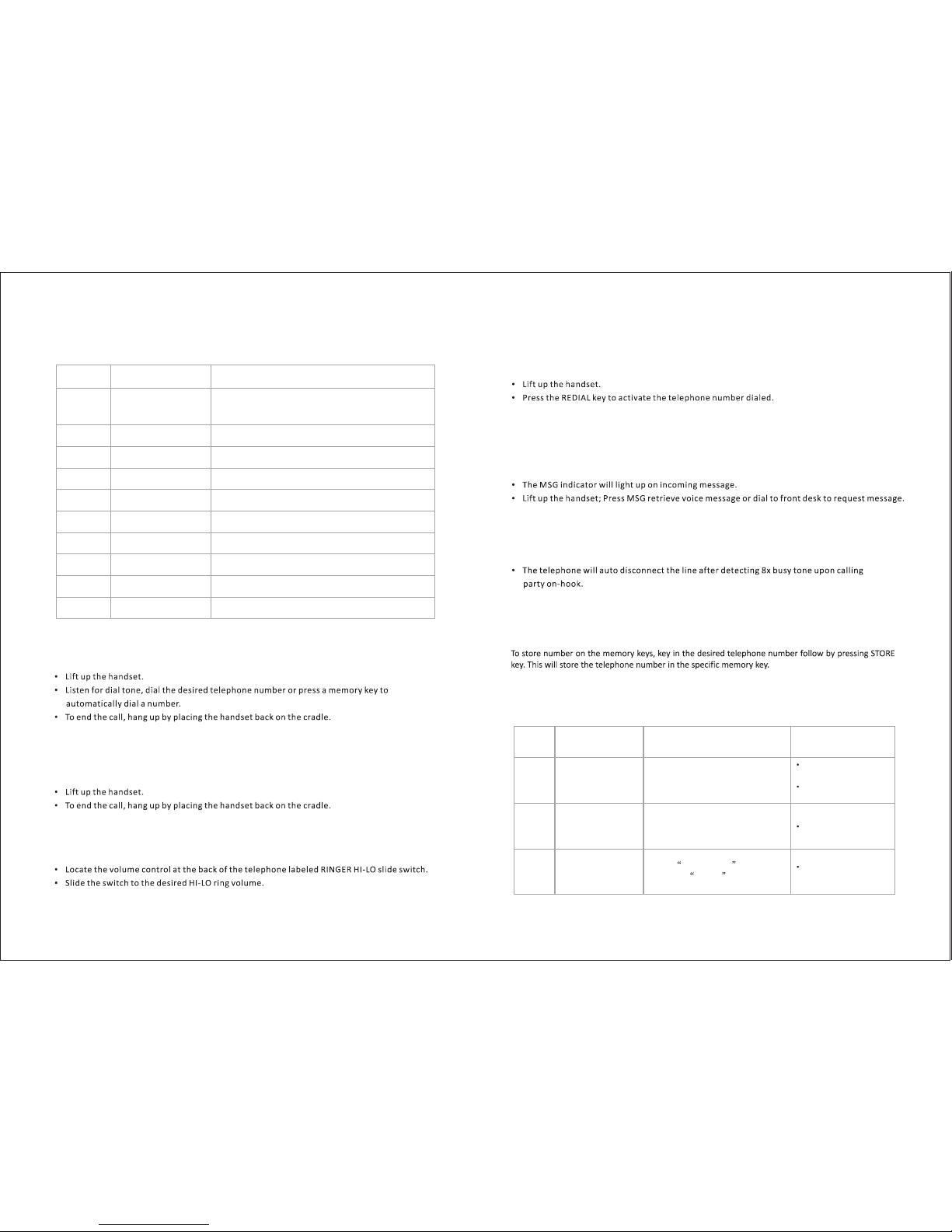

REDIAL
To REDIAL the last telephone number dialed.,
FUNCTION
KEYFEATURE
DESCRIPTION
2
3
4
5
6
7
8
9
10
CT692A(1S) BUTTON ASSIGNMENT
RINGER(HI-LO)
STORE
DIAL PAD
FLASH
REDIAL
SCREW SLOT
TEL JACK
HANDSET JACK
MSG
PLACING A CALL
RECEIVING A CALL
An audible ringing and flickering red message waiting light will indicate an incoming call.
ADJUSTING THE RING VOLUME
MSG
Press to retrieve voice mail,
AUTO DISCONNECT
1
ONE MEMORY KEY
Programmable memory key. The key can be
programmed to automatically dial telephone number
or activate telephone system service features.
Keypad for dialing.
REDIAL last number dialed.
Wall mount slot.
Telephone line jack.
Modular jack for handset.
Light up as message or incoming call indicator.
Adjust the ringer volume to high or low.
(Hidden under faceplate).
To store the desired telephone number in the
memory key (Hidden under faceplate).
Act as an electronic hook-switch to activate call transfer.
PHONE SETTING
NO . ITEM KEYPAD PROGRAM REMARK
1
2
3
Memory key
Flash timer setting
Pause timer setting
Press STORE key for 4 seconds;
follow by pressingXXX, press
memory key to store the number.
Press *, #,*, xxx, follow by pressing
FLASH key to end. The timer can be
set from 100ms-1200ms
Press *, #,*, xxx,*,# follow by
pressing REDIAL key to end.
XXX = Extension or
telephone number.
Store key hidden under
faceplate.
xxx= flash timer value.
xxx: 1=1.2Sec, 2=2.4Sec,
3=3.6Sec.
STORE
3
4
Page 4

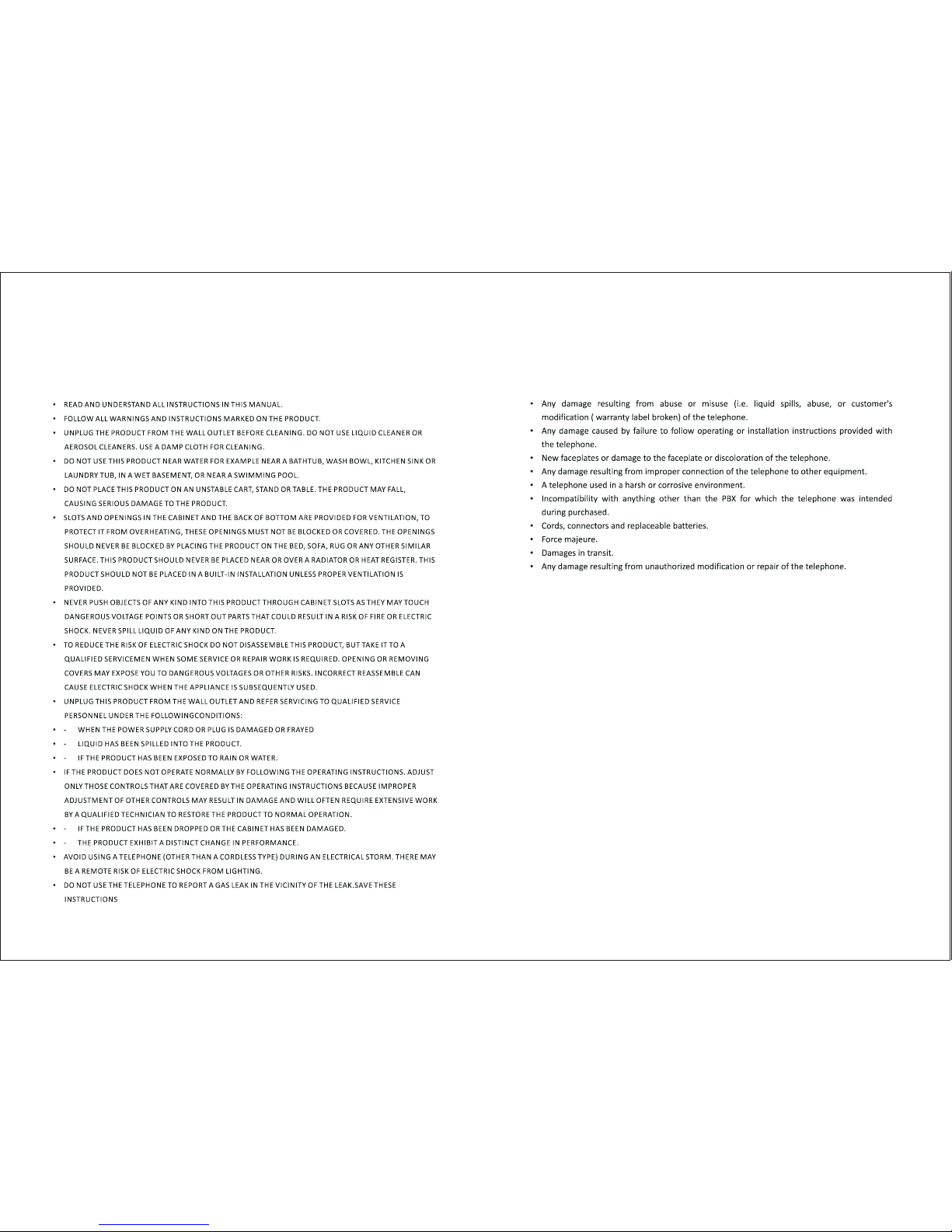

IMPORTANT SAFETY INSTRUCTIONS
WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE FOLLOWING:
COTELL PRODUCT SUPPORT
If you need technical assistance with this product, please contact COTELL INTERNATIONAL
LIMITED via one of the following methods:
Telephone : 86-755-88859898
Fax : 86-755-88859899
Email : [email protected]
Website : www.cotell.cn
Please contact us should the above operating instructions do not match the actual telephone.
