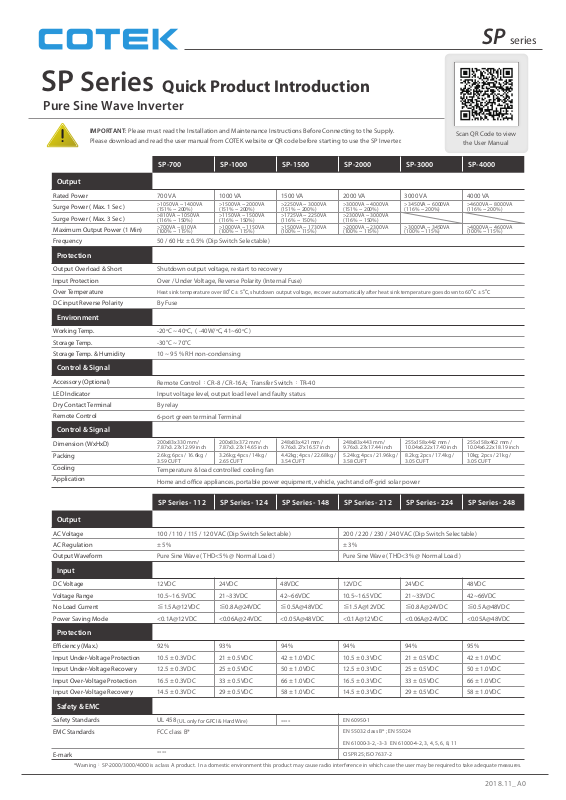

SP series
SP Series
Quick Product Introduction
Pure Sine Wave Inverter
IMPORTANT: Please must read the Installation and Maintenance Instructions Before Connecting to the Supply.
Please download and read the user manual from COTEK website or QR code before starting to use the SP Inverter.
SP-700 SP-1000 SP-1500 SP-2000 SP-3000 SP-4000
Output
Rated Power
Surge Power ( Max. 1 Sec )
Surge Power ( Max. 3 Sec )
Maximum Output Power (1 Min)
Frequency
Protection
Output Overload & Short
Input Protection
Over Temperature
DC input Reverse Polarity
Environment
Working Temp.
Storage Temp.
Storage Temp. & Humidity
Control & Signal
Accessory (Optional)
LED Indicator
Dry Contact Terminal
Remote Control
Control & Signal
Dimension (WxHxD)
Packing
Cooling
Application
700 VA
>1050VA ~ 1400VA
(151% ~ 200%)
>810VA ~ 1050VA
(116% ~ 150%)
>700VA ~ 810VA
(100% ~ 115%)
50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Shutdown output voltage, restart to recovery
Over / Under Voltage, Reverse Polarity (Internal Fuse)
Heat sink temperature over 80oC ± 5oC, shutdown output voltage, recover automatically after heat sink temperature goes down to 60oC ± 5oC
By Fuse
o
-20
C ~ 40oC, ( -40W/oC, 41~60oC )
o
-30
C ~ 70oC
10 ~ 95 % RH non-condensing
Remote Control：CR-8 / CR-16A; Transfer Switch：TR-40
Input voltage level, output load level and faulty status
By relay
6-port green terminal Terminal
200x83x330 mm /
7.87x3.27x12.99 inch
2.6kg; 6pcs / 16.6kg /
3.59 CUFT
Temperature & load controlled cooling fan
Home and oce appliances, portable power equipment, vehicle, yacht and o-grid solar power
1000 VA
>1500VA ~ 2000VA
(151% ~ 200%)
>1150VA ~ 1500VA
(116% ~ 150%)
>1000VA ~ 1150VA
(100% ~ 115%)
200x83x372 mm /
7.87x3.27x14.65 inch
3.26kg; 4pcs / 14kg /
2.65 CUFT
1500 VA
>2250VA ~ 3000VA
(151% ~ 200%)
>1725VA ~ 2250VA
(116% ~ 150%)
>1500VA ~ 1730VA
(100% ~ 115%)
248x83x421 mm /
9.76x3.27x16.57 inch
4.42kg; 4pcs / 22.68kg /
3.54 CUFT
2000 VA
>3000VA ~ 4000VA
(151% ~ 200%)
>2300VA ~ 3000VA
(116% ~ 150%)
>2000VA ~ 2300VA
(100% ~ 115%)
248x83x443 mm /
9.76x3.27x17.44 inch
5.24kg; 4pcs / 21.96kg /
3.58 CUFT
3000 VA
>3450VA ~ 6000VA
(116% ~ 200%)
>3000VA ~ 3450VA
(100% ~ 115%)
255x158x442 mm /
10.04x6.22x17.40 inch
8.2kg; 2pcs / 17.4kg /
3.05 CUFT
Scan QR Code to view
the User Manual
4000 VA
>4600VA ~ 8000VA
(116% ~ 200%)
>4000VA ~ 4600VA
(100% ~ 115%)
255x158x462 mm /
10.04x6.22x18.19 inch
10kg; 2pcs / 21kg /
3.05 CUFT
SP Series - 112 SP Series - 124 SP Series - 148 SP Series - 212 SP Series - 224 SP Series - 248
Output
AC Voltage
AC Regulation
Output Waveform
100 / 110 / 115 / 120 VAC (Dip Switch Selectable)
± 5%
Pure Sine Wave ( THD<5% @ Normal Load )
200 / 220 / 230 / 240 VAC (Dip Switch Selectable)
± 3%
Pure Sine Wave ( THD<3% @ Normal Load )
Input
DC Voltage
Voltage Range
No Load Current
Power Saving Mode
12VDC
10.5~16.5VDC
≦1.5A@12VDC
<0.1A@12VDC
24VDC
21~33VDC
≦0.8A@24VDC
<0.06A@24VDC
48VDC
42~66VDC
≦0.5A@48VDC
<0.05A@48VDC
12VDC
10.5~16.5VDC
≦1.5A@12VDC
<0.1A@12VDC
24VDC
21~33VDC
≦0.8A@24VDC
<0.06A@24VDC
48VDC
42~66VDC
≦0.5A@48VDC
<0.05A@48VDC
Protection
Eciency (Max.)
Input Under-Voltage Protection
Input Under-Voltage Recovery
Input Over-Voltage Protection
Input Over-Voltage Recovery
92%
10.5 ± 0.3VDC
12.5 ± 0.3VDC
16.5 ± 0.3VDC
14.5 ± 0.3VDC
93%
21 ± 0.5VDC
25 ± 0.5VDC
33 ± 0.5VDC
29 ± 0.5VDC
94%
42 ± 1.0VDC
50 ± 1.0VDC
66 ± 1.0VDC
58 ± 1.0VDC
94%
10.5 ± 0.3VDC
12.5 ± 0.3VDC
16.5 ± 0.3VDC
14.5 ± 0.3VDC
94%
21 ± 0.5VDC
25 ± 0.5VDC
33 ± 0.5VDC
29 ± 0.5VDC
95%
42 ± 1.0VDC
50 ± 1.0VDC
66 ± 1.0VDC
58 ± 1.0VDC
Safety & EMC
Safety Standards
EMC Standards
E-mark
*Warning：SP-2000/3000/4000 is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
UL 458
(UL only for GFCI & Hard Wire)
FCC class B*
----
----
EN 60950-1
EN 55032 class B* ; EN 55024
EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11
CISPR 25; ISO 7637-2
2018.11_A0
Page 2

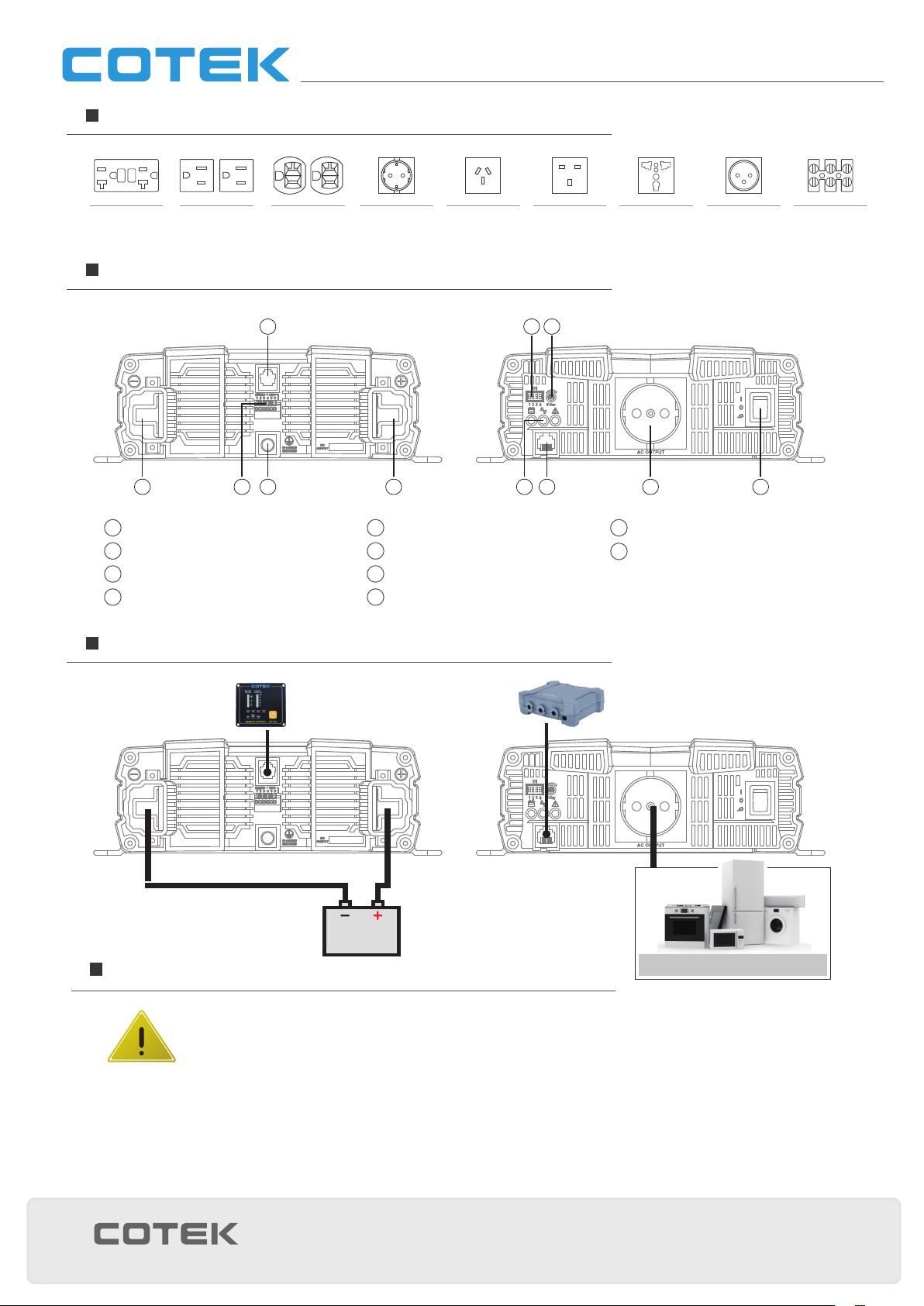

Socket Types
