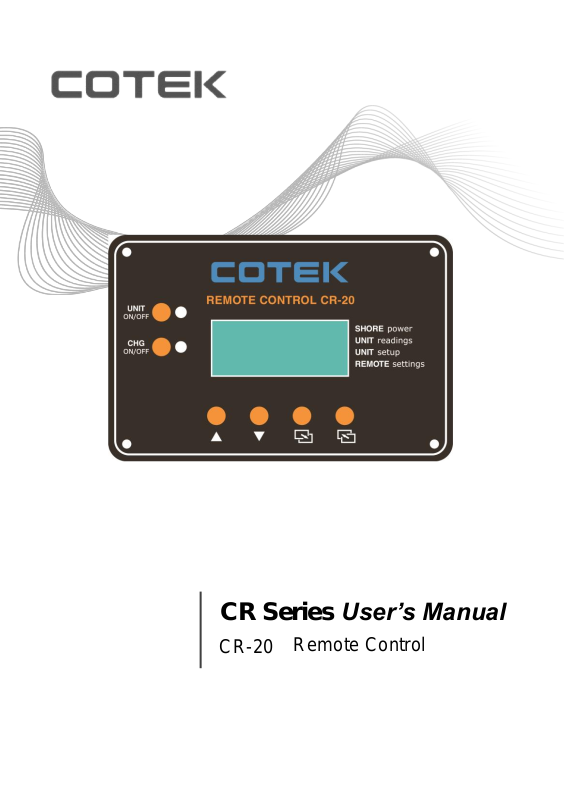

Cotek CR-20 User Manual

Remote Control

CR Series User’s Manual

CR-20

1.0 Overview

CR-20 is a remote control designed for connecting to SL inverter/charger.

The package is including:

(1) CR-20 (2) 1.5m Cable (3) User Manual

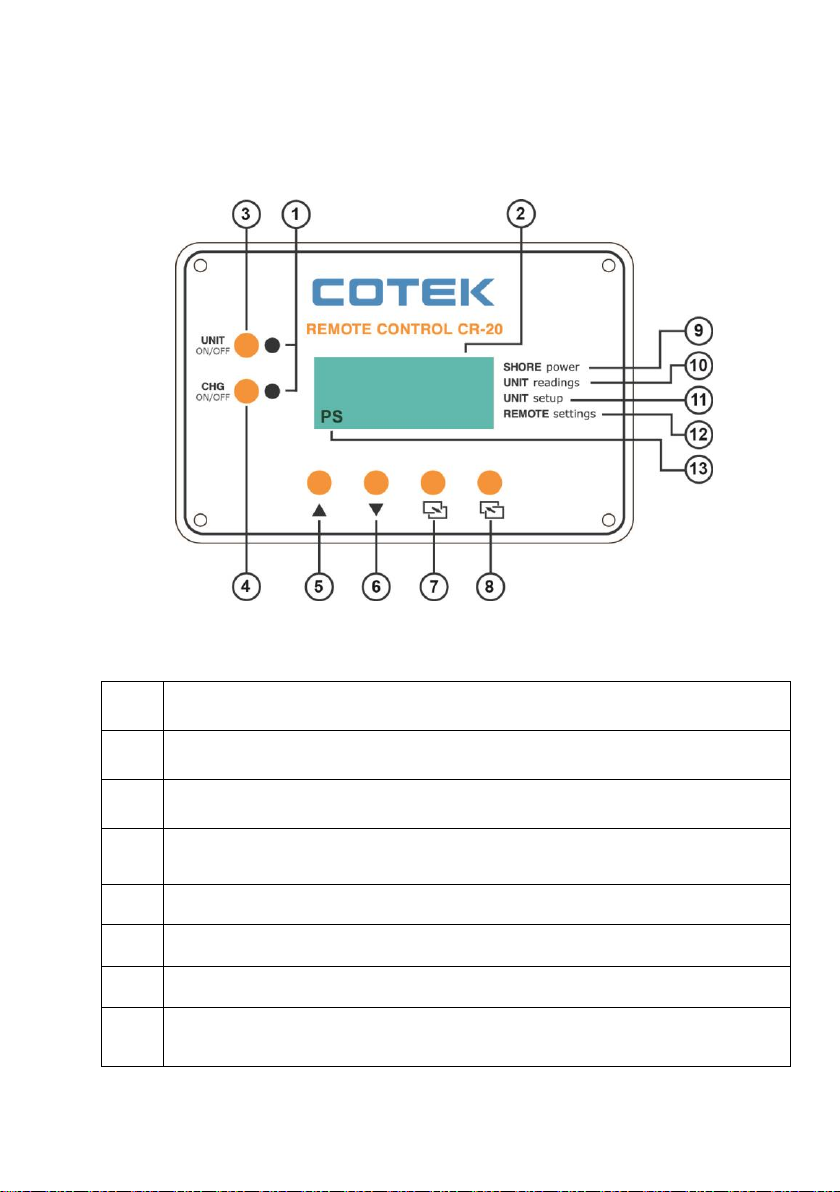

Fig. 1

Fig. 1 (Unit: mm)

The CR-20 is equipped with the following features :

1.1 LED Indicators

The LEDs provide the inverter/charger statuses in a straightforward way.

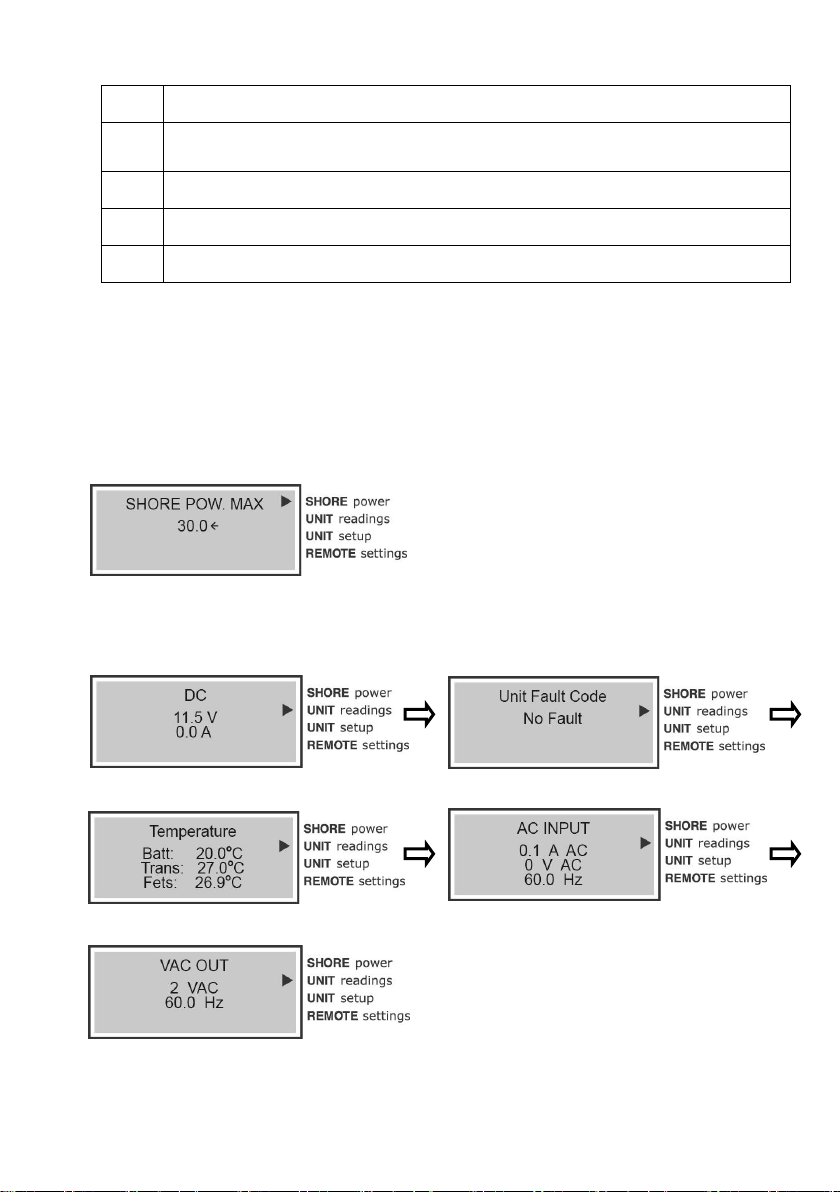

1.2 LCD Display:

LCD Display - The LCD display is a 16 x 4 line alphanumeric display used for
setting up the inverter/charger operation , as well as viewing current status or
fault messages.

1.3 ON/OFF Pushbuttons (x2)

To turn on/off inverter or charger quickly.

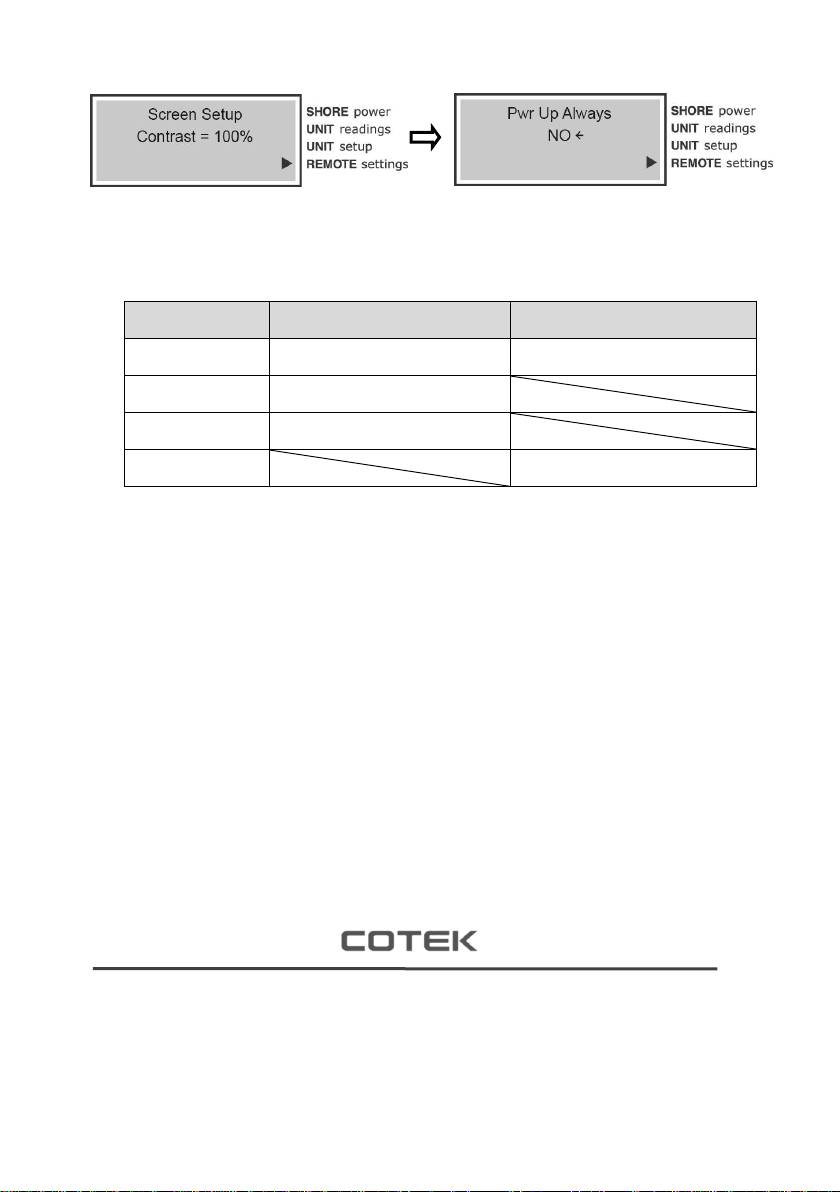

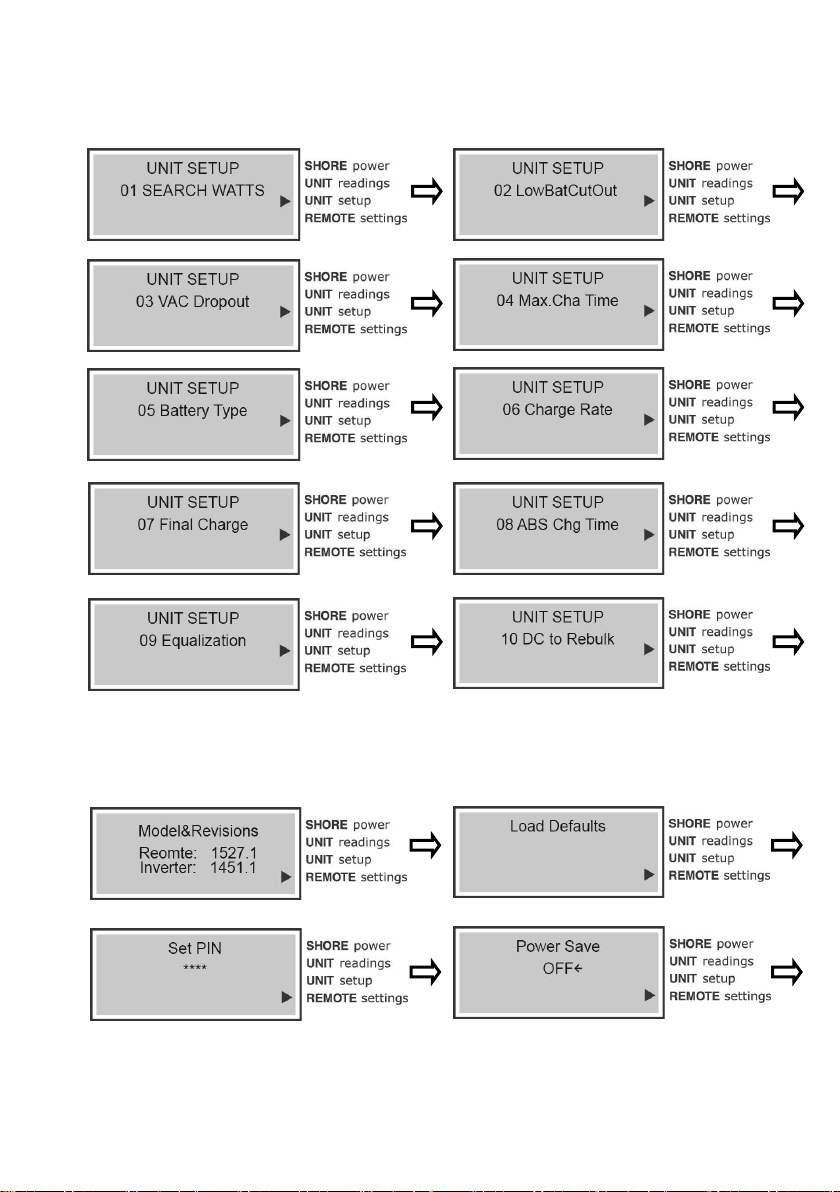

1.4 Buttons

Pressing buttons allows you to select a menu item or to save a setting, once it
is displayed on the LCD screen.

WARNING: Turning the unit OFF does not mean to disconnect the

batteries or AC Power Source. Therefore the “AC output load” is still active.

WARNING: Only use the remote control cable supplied, using different

cables could cause permanent damage to the SL inverter unit

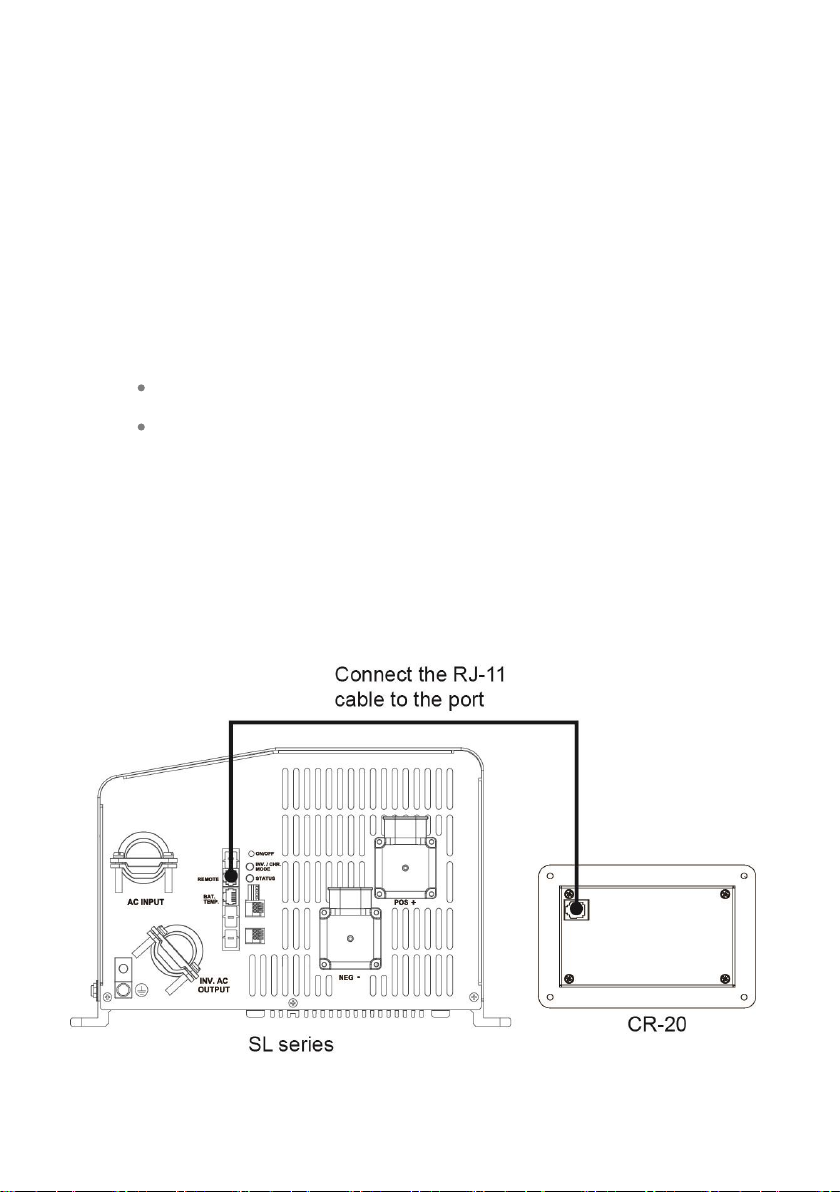

2.0 Installation

2.1 Installation Guidelines

Please determine the remote cable route throughout the home or
vehicle/boat, both to and from the inverter before connecting any wires.

Always check for existing electrical, plumbing, or other areas of potential
damage before drilling or cutting into walls to mount the remote.
Make sure all wires have a smooth bend radius and do not become kinked.
Please ensure the conductors passing through walls, bulkheads, or other
structural members are protected. This minimizes insulation damage such as
chafing, which can be caused by vibration or constant rubbing when installing
this remote in a boat, RV, or truck.
