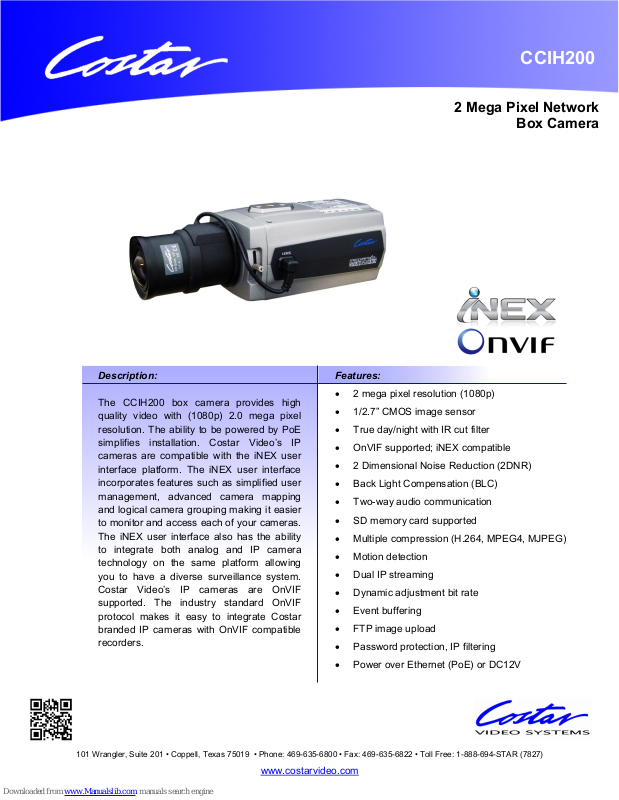

Costar CCIH200, CDIH226V, CDIH200 User Manual

CCIH200

101 Wrangler, Suite 201 • Coppell, Texas 75019 • Phone: [phone] • Fax: [phone] • Toll Free: 1-888-694-STAR (7827)

Features:

Description:

Costar Video’s IP

management, advanced camera mapping

and IP camera

Costar Video’s IP cameras are OnVIF

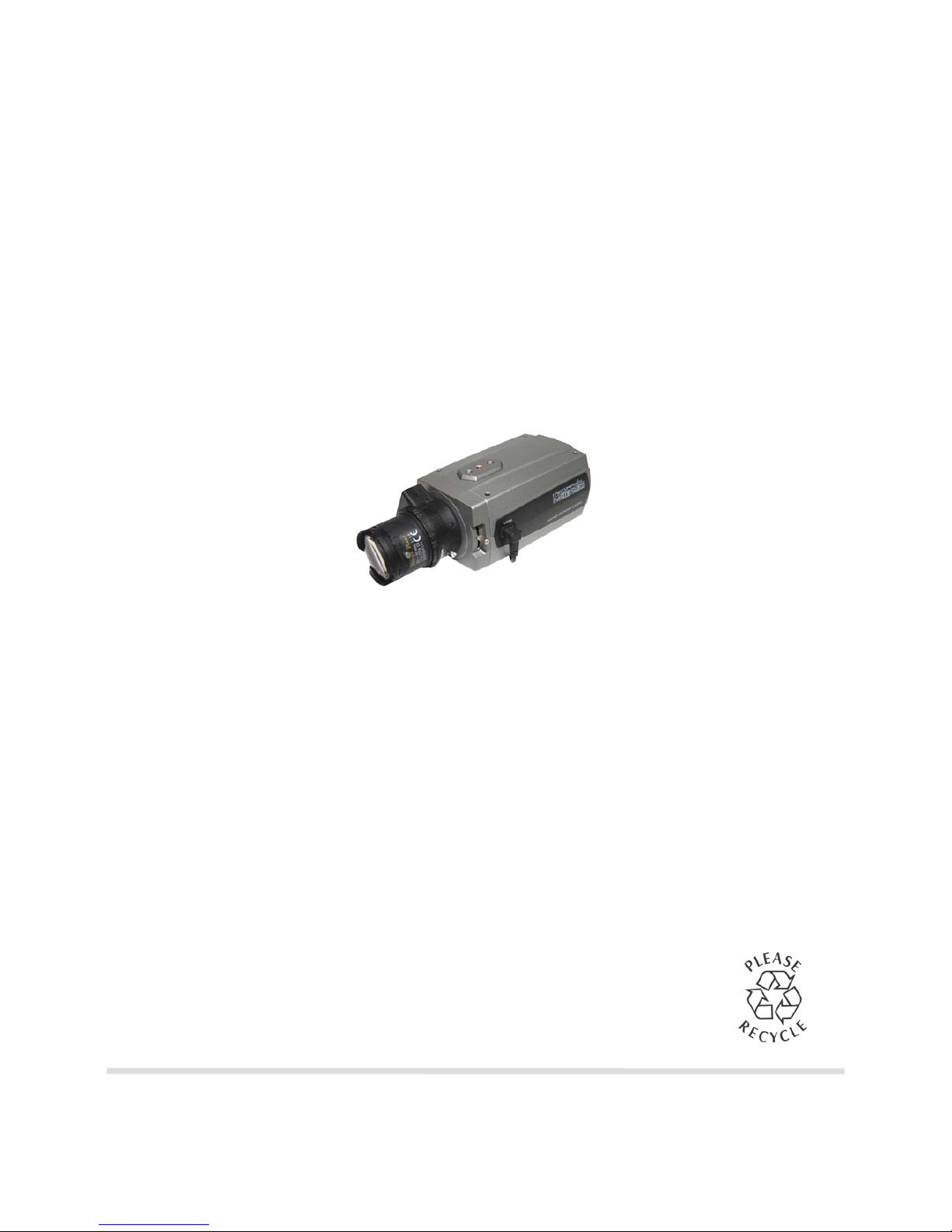

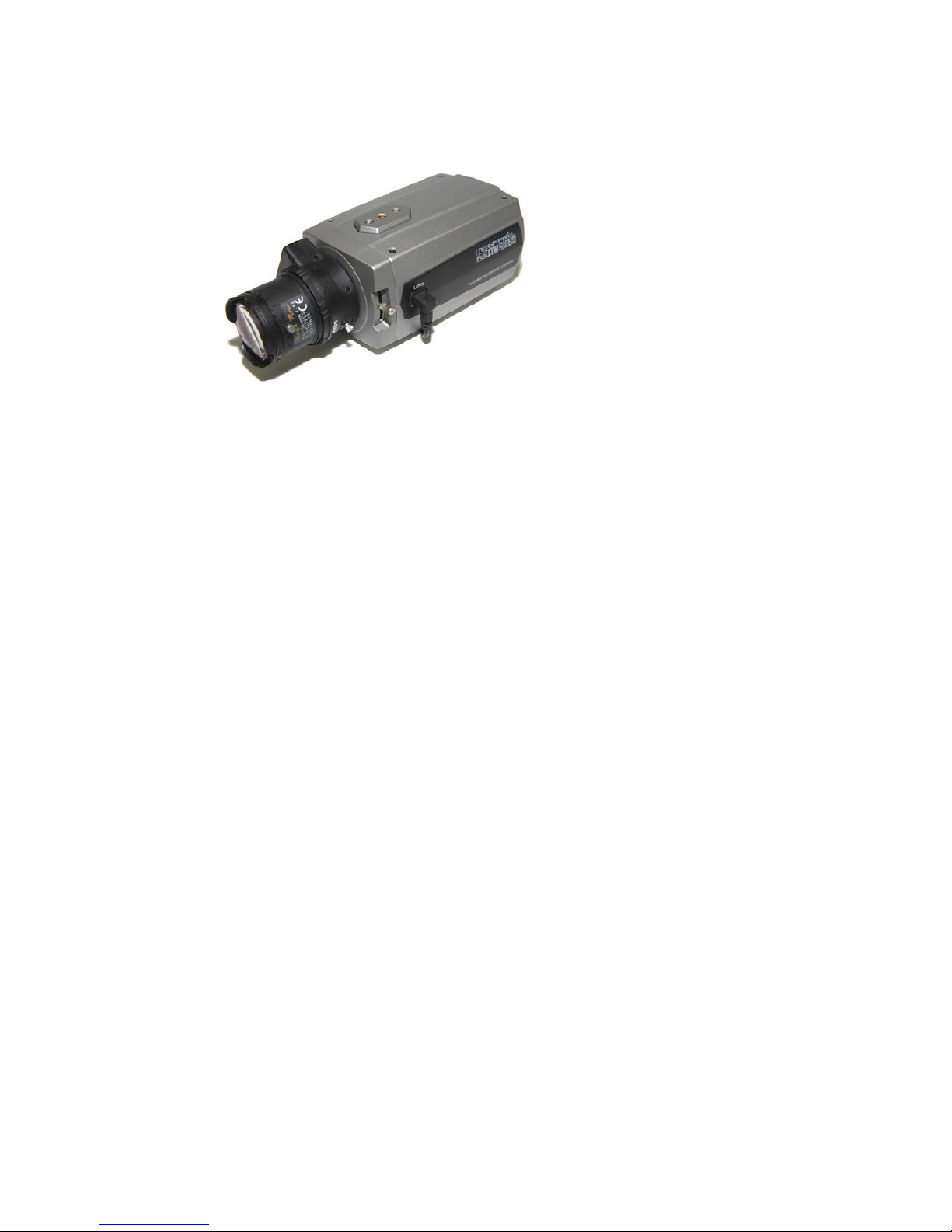

The CCIH200 box camera provides high
quality video with (1080p) 2.0 mega pixel
resolution. The ability to be powered by PoE
simplifies installation.
cameras are compatible with the iNEX user
interface platform. The iNEX user interface
incorporates features such as simplified user

2 Mega Pixel Network

Box Camera

• 2 mega pixel resolution (1080p)

• 1/2.7” CMOS image sensor

• True day/night with IR cut filter

• OnVIF supported; iNEX compatible

• 2 Dimensional Noise Reduction (2DNR)

• Back Light Compensation (BLC)

and logical camera grouping making it easier
to monitor and access each of your cameras.
The iNEX user interface also has the ability
to integrate both analog
technology on the same platform allowing
you to have a diverse surveillance system.

supported. The industry standard OnVIF
protocol makes it easy to integrate Costar
branded IP cameras with OnVIF compatible
recorders.

• Two-way audio communication

• SD memory card supported

• Multiple compression (H.264, MPEG4, MJPEG)

• Motion detection

• Dual IP streaming

• Dynamic adjustment bit rate

• Event buffering

• FTP image upload

• Password protection, IP filtering

• Power over Ethernet (PoE) or DC12V

www.costarvideo.com

2

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO
RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION
GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.

PRECAUTIONS
Safety -------------------------------------- Installation -------------------------------

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by the qualified
personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfac es (r ug s,
blankets, etc.) or near materials(curtains, draperies)
that may block the ventilation holes.

Height and vertical linearity controls located at the rear
panel are for special adjustments by qualified
personnel only.

Do not install the unit in an extremely hot or humid

place or in a place subject to excessive dust,
mechanical vibration.

The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.

Cleaning ---------------------------------

Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzene as they might
damage the finish of the unit.

Retain the original carton and packing materials for
safe transport of this unit in the future.

3

FCC COMPLIANCE STATEMENT

INFORMATION TO THE USER:

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO

COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC

RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL

INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT

INSTALLED AND USED IN ACCORDANCE W ITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

CAUTION:

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE

EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.

CE COMPLIANCE STATEMENT

WARNING: T his is a Class A product. In a domestic environment this pr oduct may cause radio

interference in which case the user may be required to take adequate measures.

4

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the ot her. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at p lugs, convenience
receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, brack et, or table specified

by the manufacturer, or sold with the a pparatus. When a cart is
used, use caution when m oving the cart/apparatus com bination
to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused
for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-suppl y cord or plug is d amaged, liquid has been
moisture, does not operate normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FO R USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRI C SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.

17. ITE is to be connected only to PoE networks without routing to the outside plant.

5

Contents

1. Description ------------------------------------------------------------------ 7

1.1 Components -- ------------------------------------------------------------------------------------------- 7

1.2 Key Features - ------------------------------------------------------------------------------------------- 8

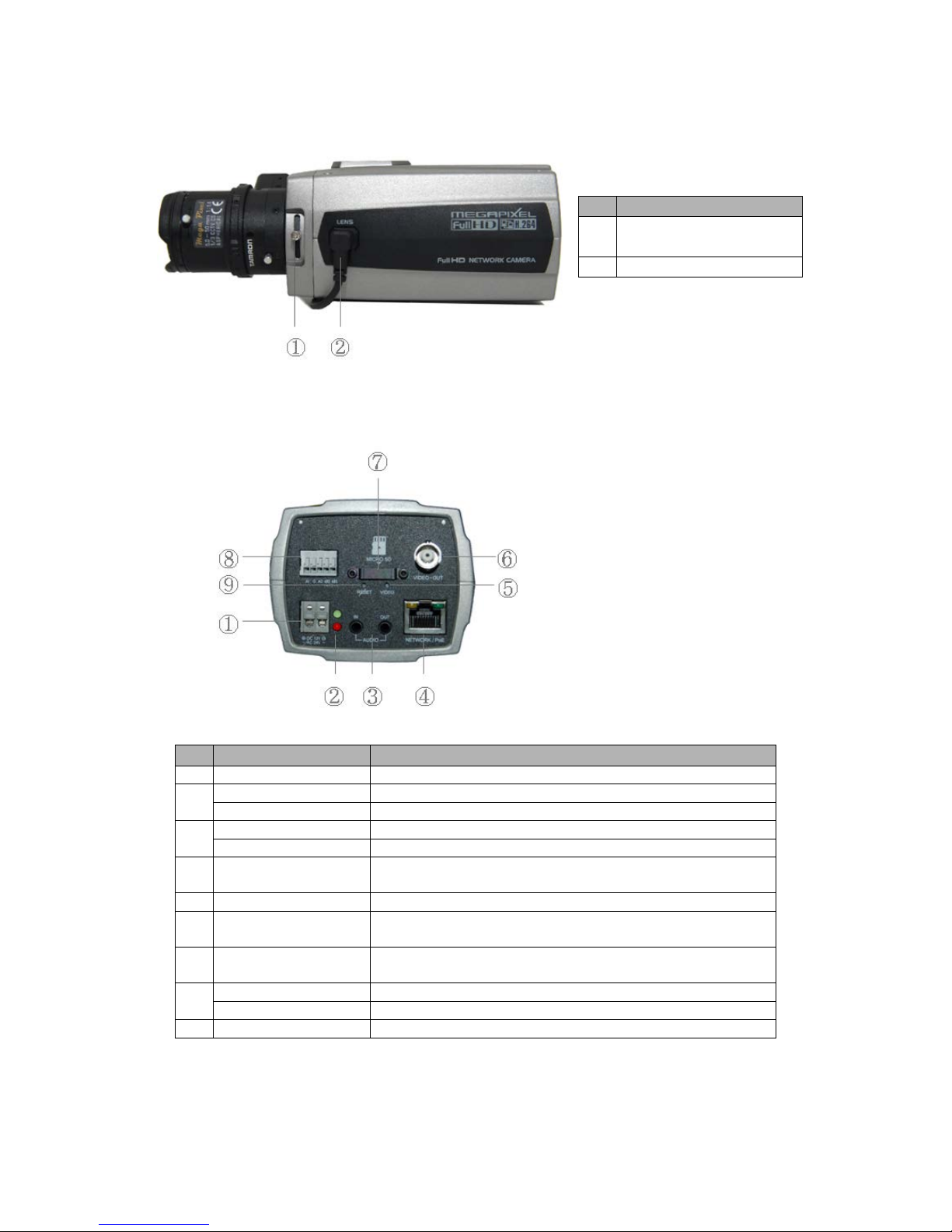

1.3 Over View----- ------------------------------------------------------------------------------------------- 9

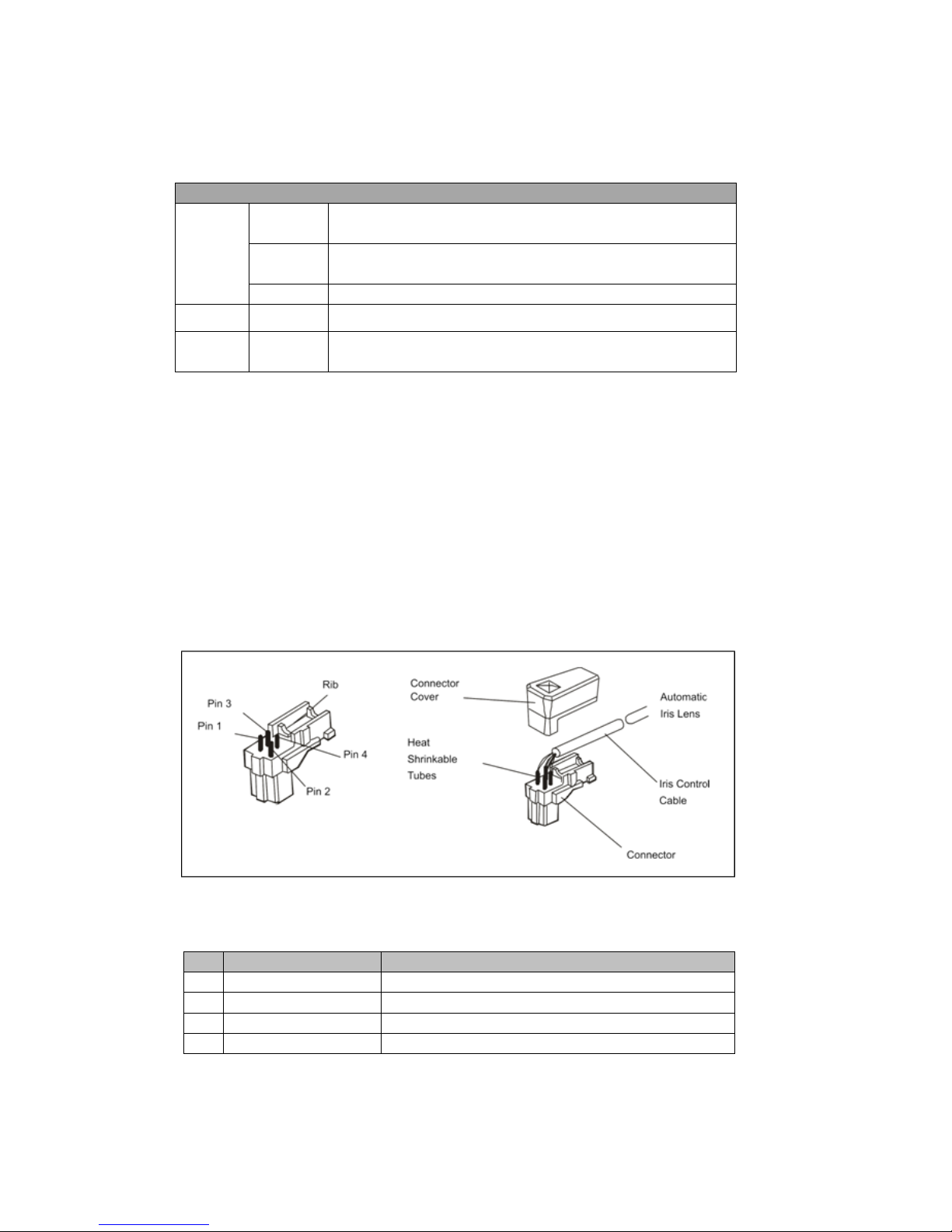

1.4 Camera Adjustment ------------------------------------------------------------------------------------- 10

2. Installation ----------------------------------------------------------------- 14

2.1 Network Connection ------------------------------------------------------------------------------------ 14

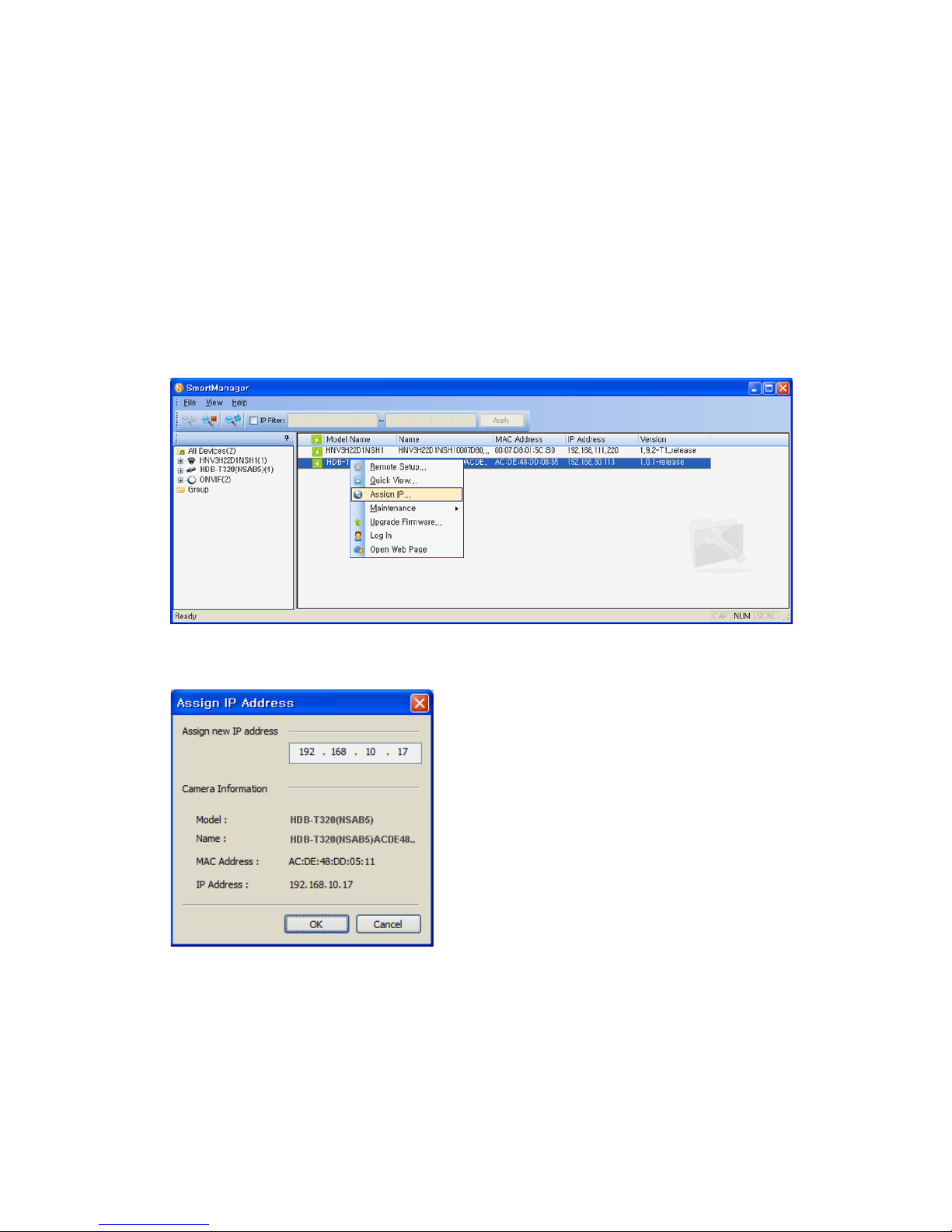

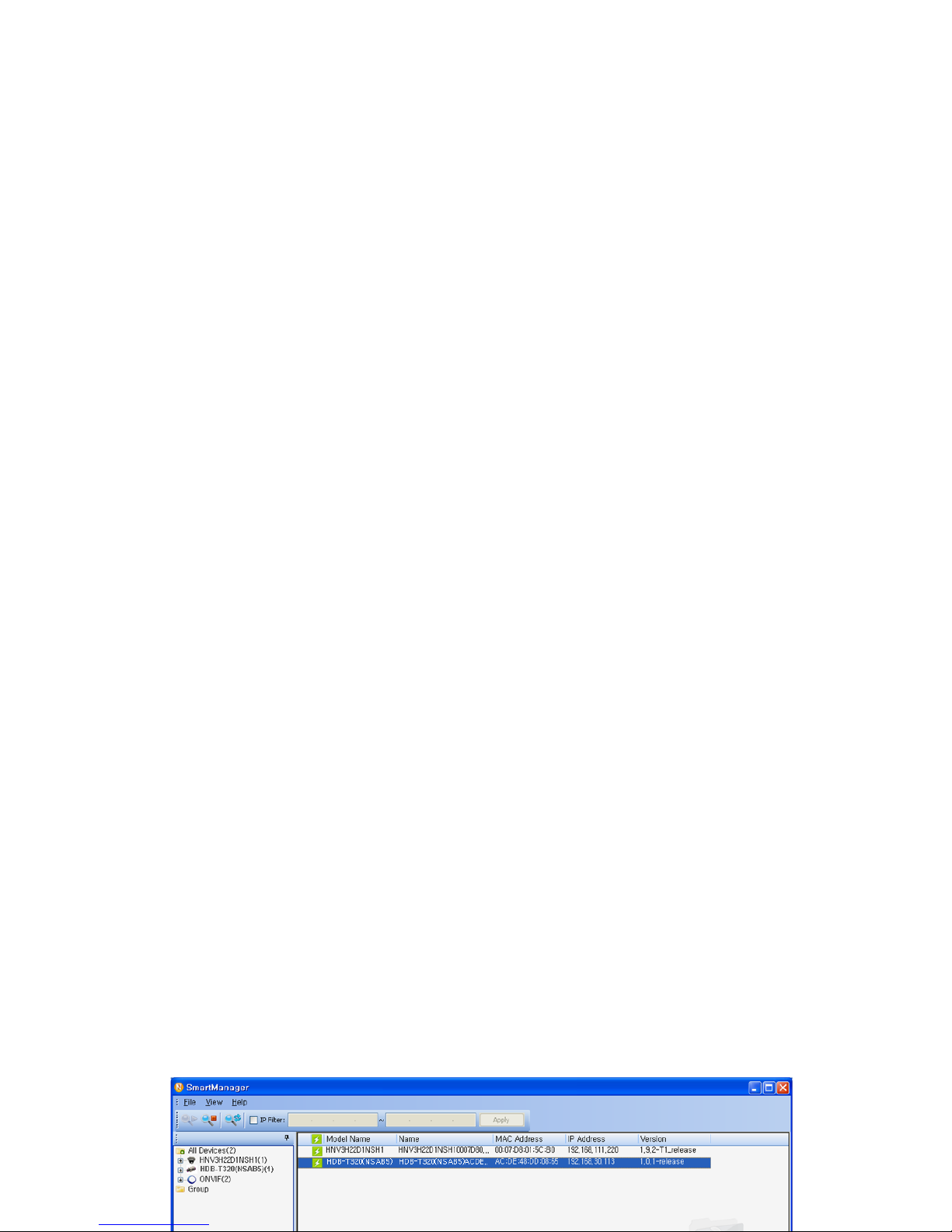

2.2 IP Assignment ------------------------------------------------------------------------------------------ 14

3. Operation -------------------------------------------------------------------- 16

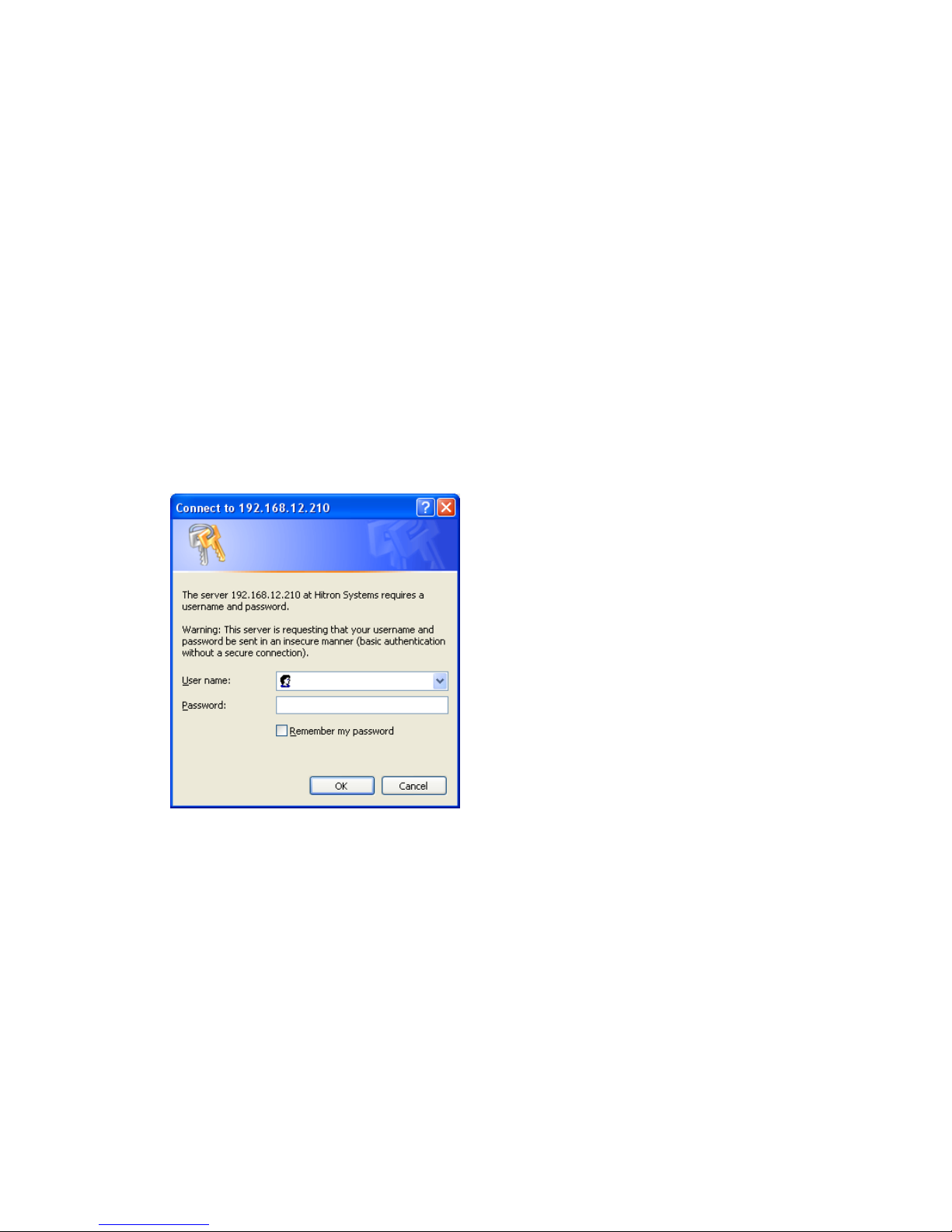

3.1 Access from a browser --------------------------------------------------------------------------------- 16

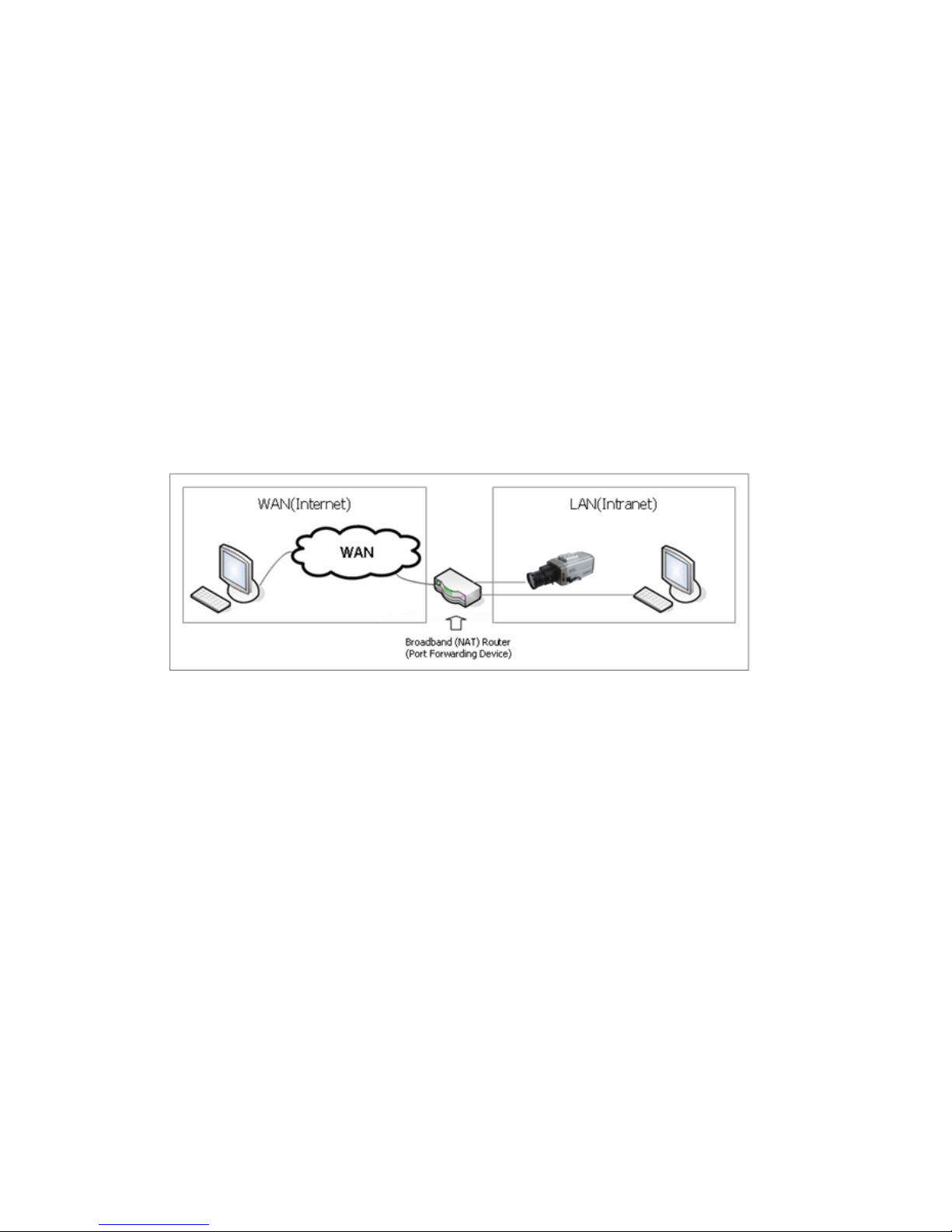

3.2 Access from the internet ------------------------------------------------------------------------------- 17

3.3 Setting the admin password over a secure connection ------------------------------------------- 17

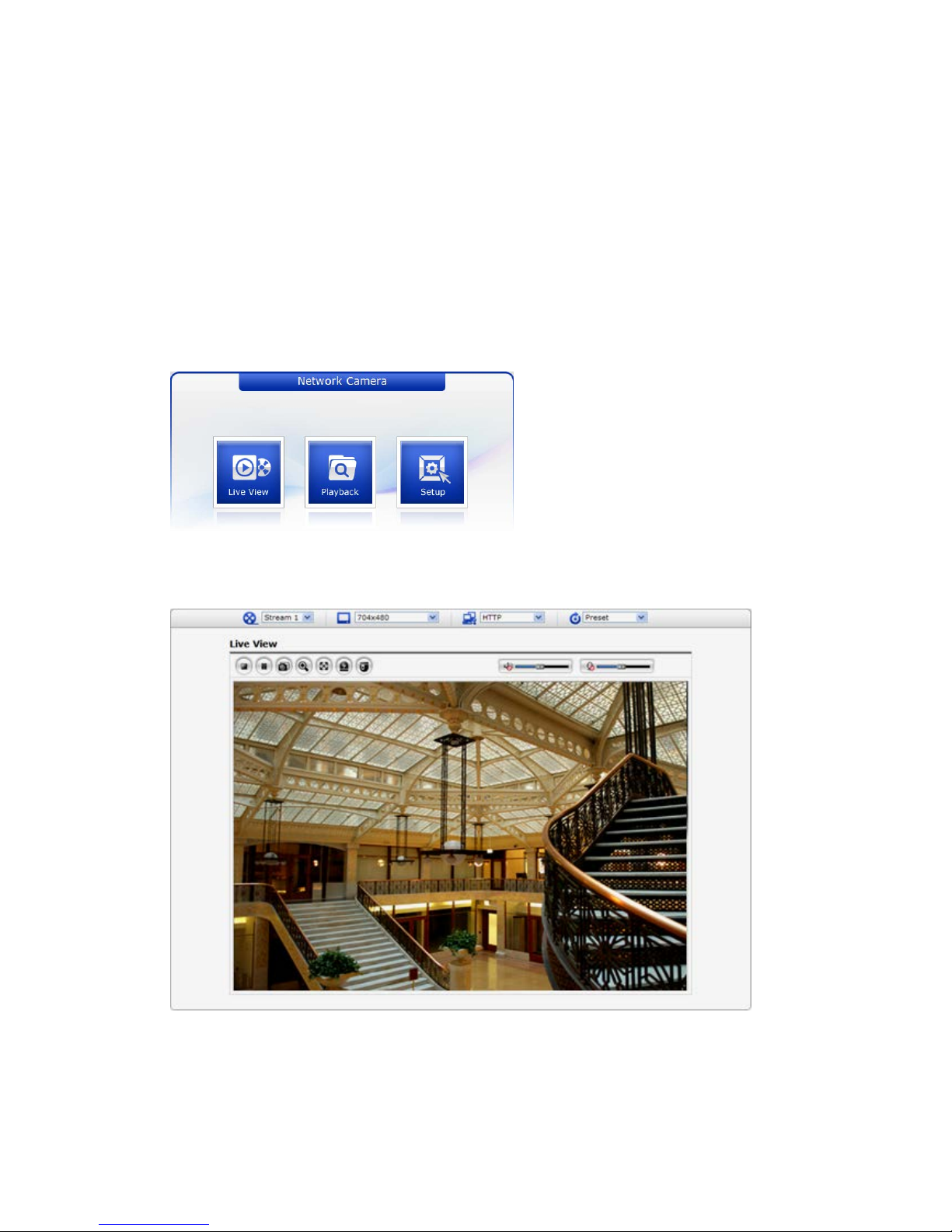

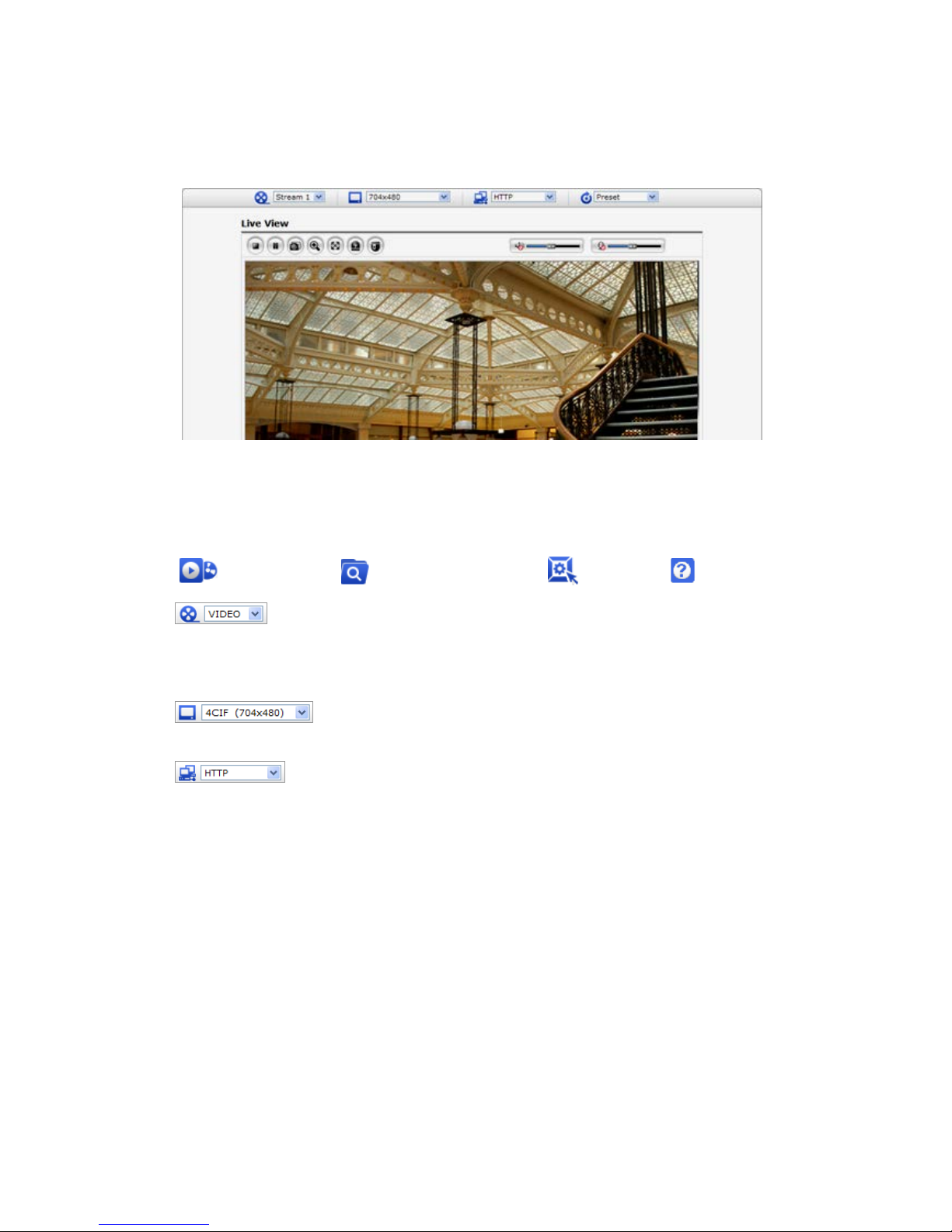

3.4 Live View Page ------------------------------------------------------------------------------------------- 18

3.5 Network Camera Setup --------------------------------------------------------------------------------- 20

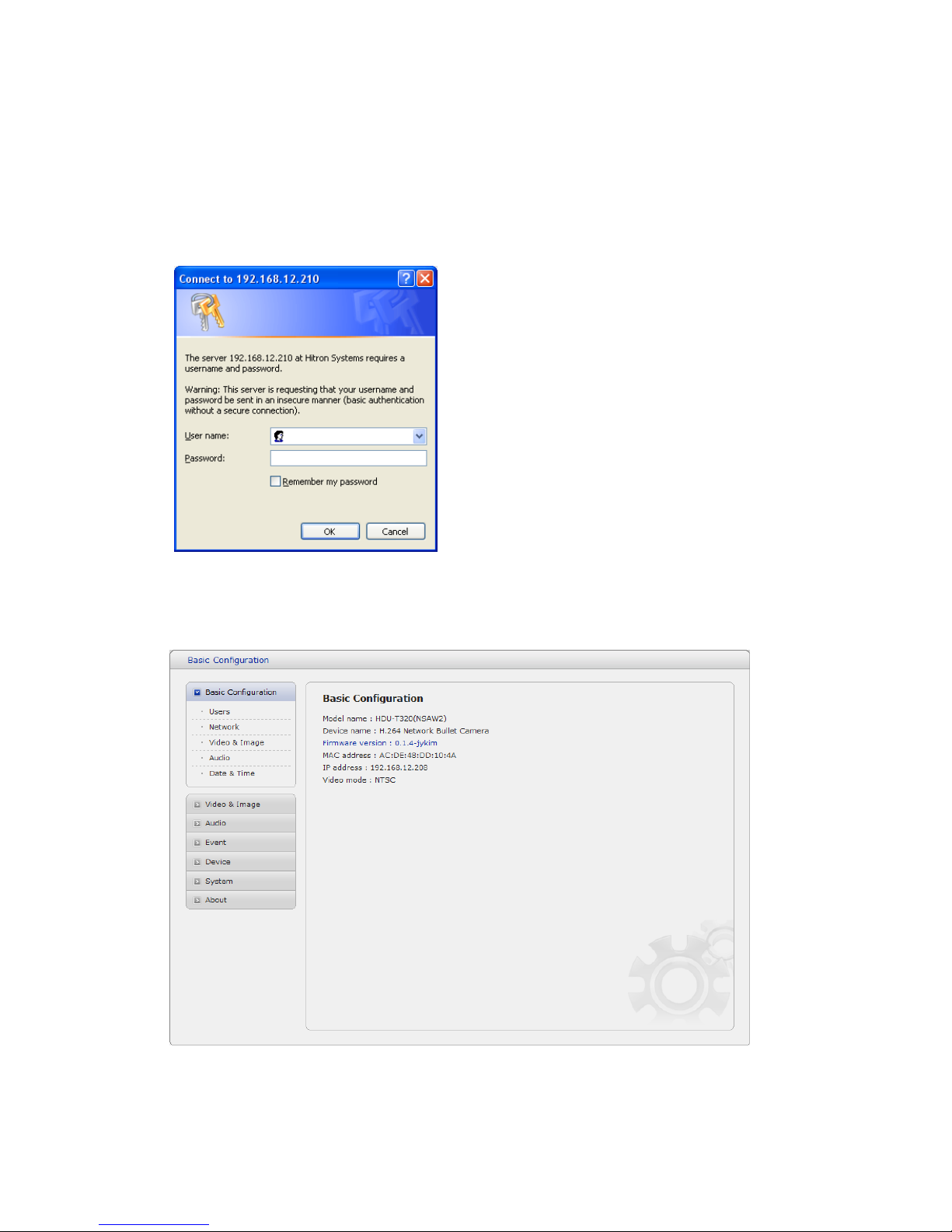

3.5.1 Basic Configuration ----------------------------------------------------------------------------- 20

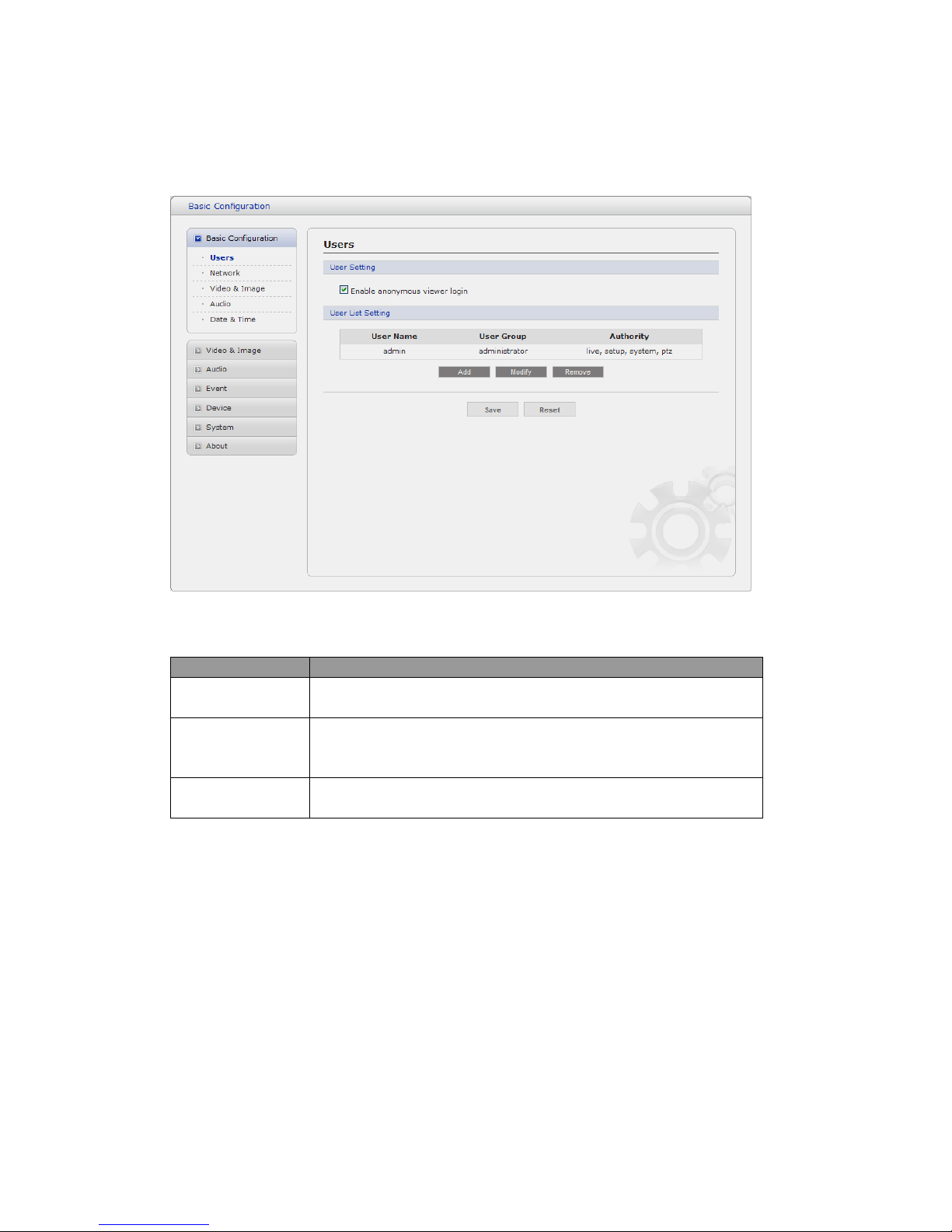

1) Users ------------------------------------------------------------------------------------------- 21

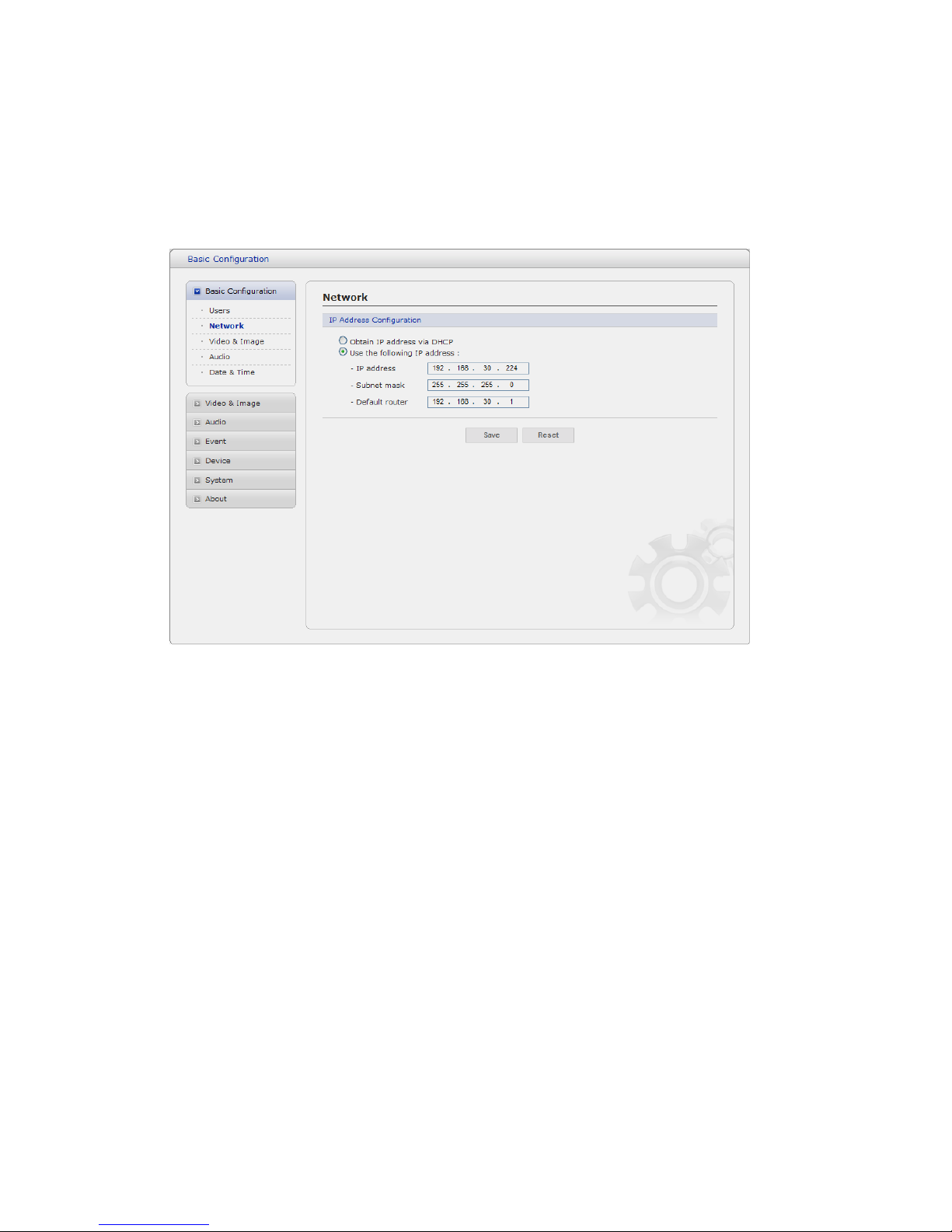

2) Network --------------------------------------------------------------------------------------- 22

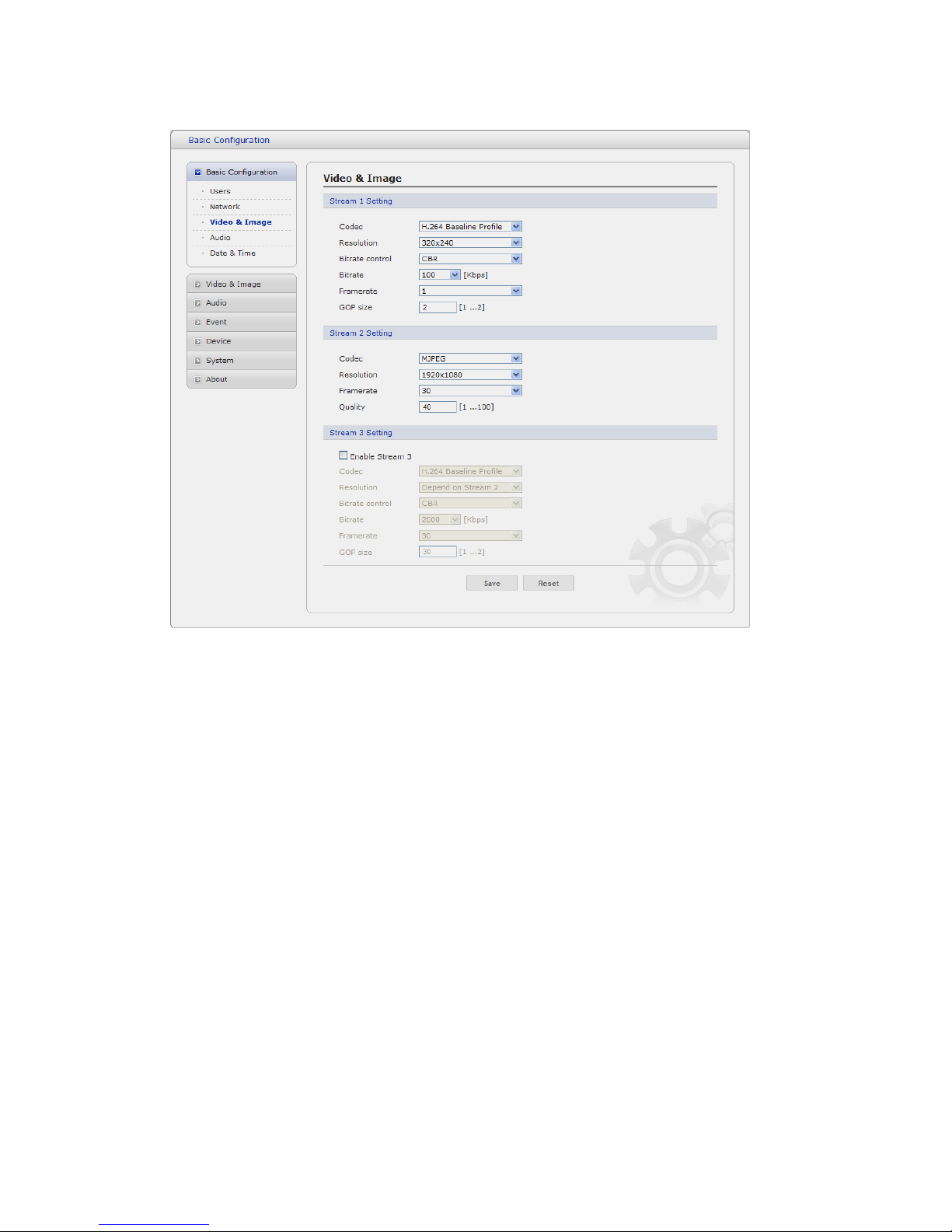

3) Video & Image ------------------------------------------------------------------------------- 23

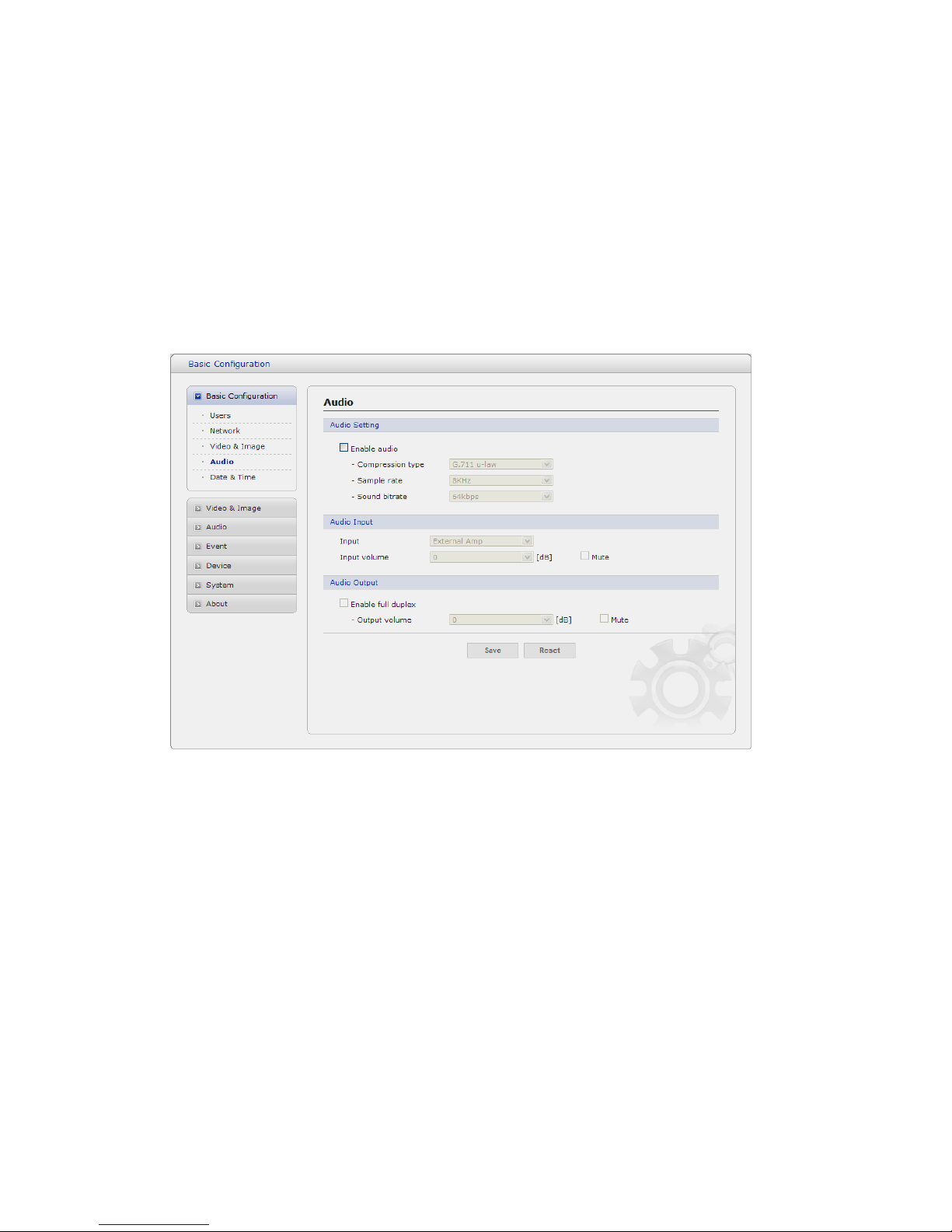

4) Audio ------------------------------------------------------------------------------------------- 25

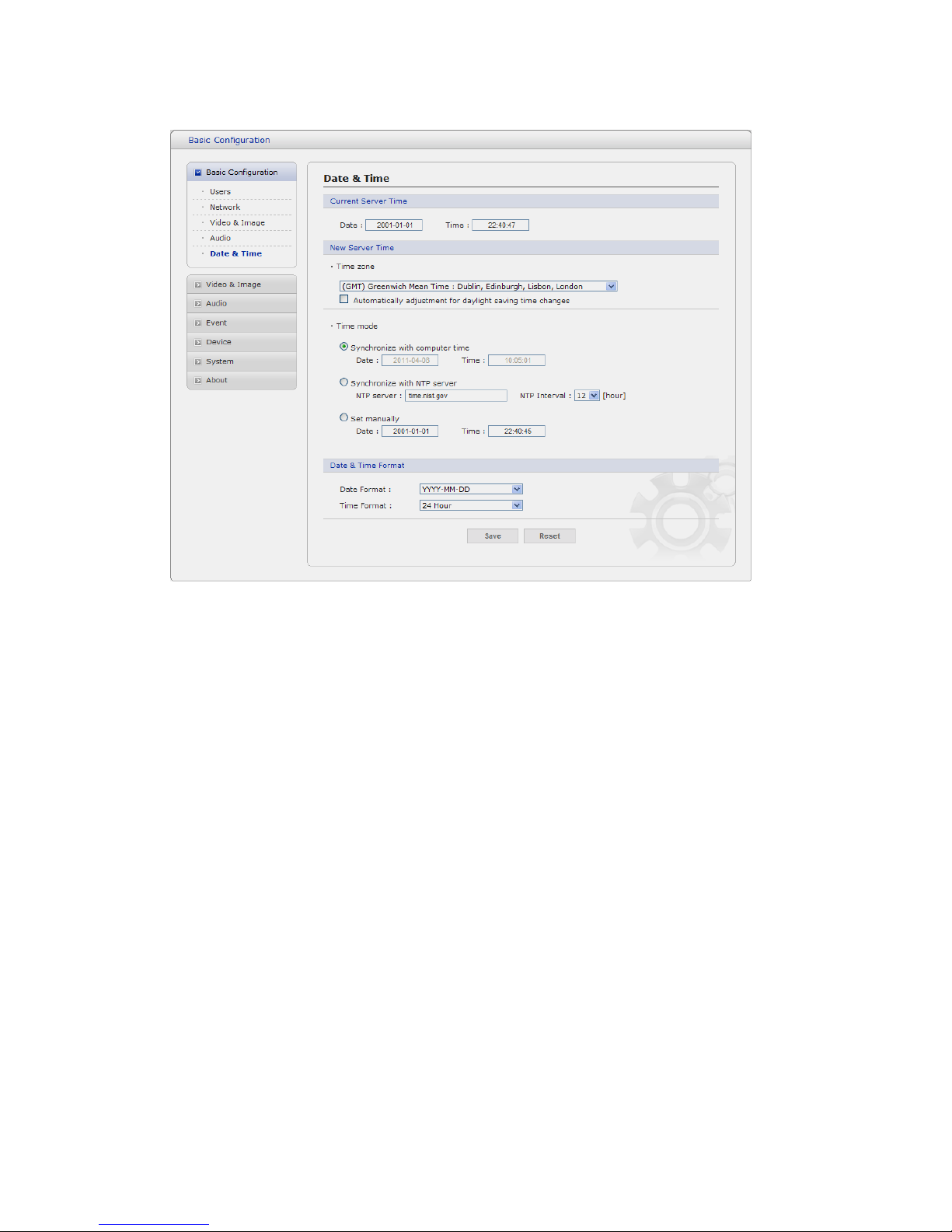

5) Date & Time ---------------------------------------------------------------------------------- 27

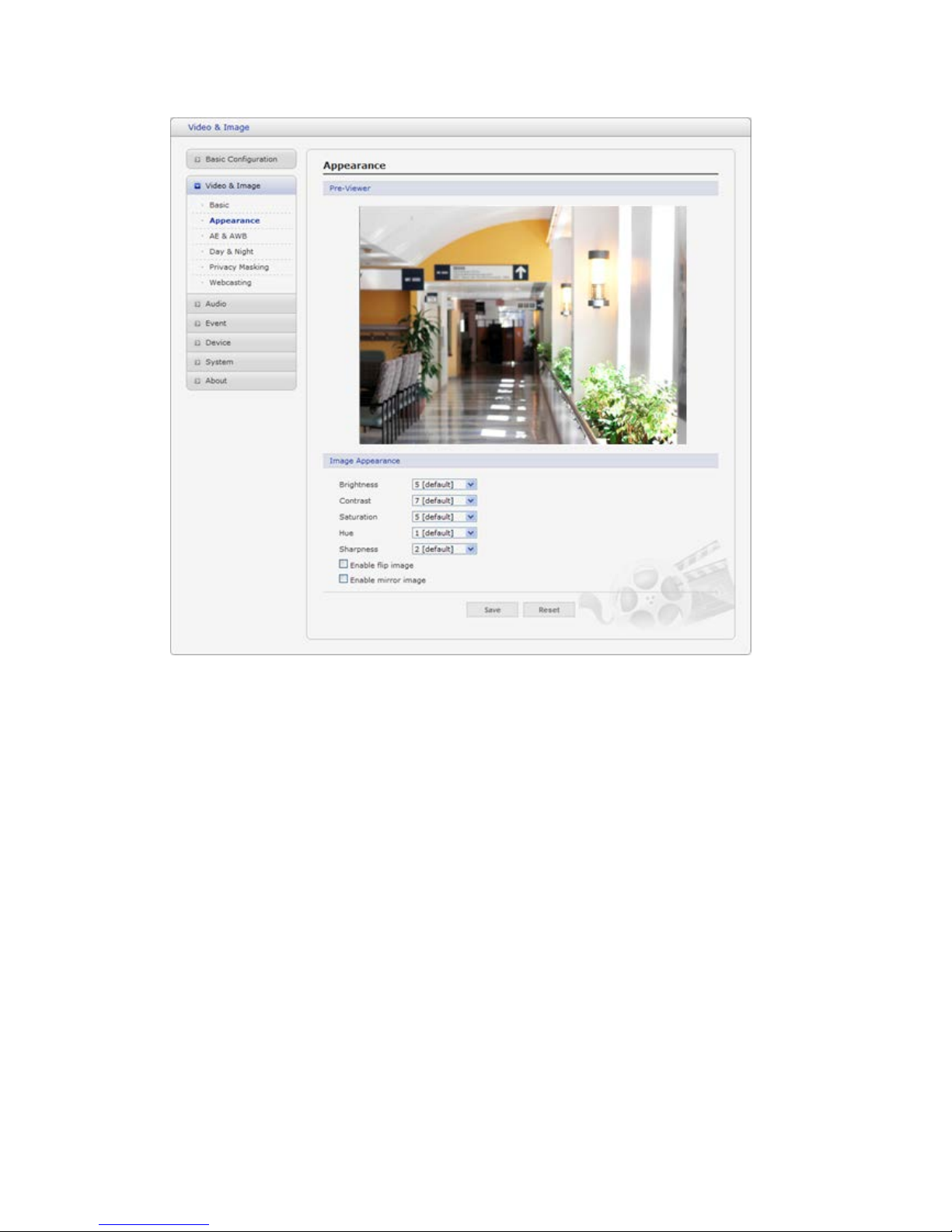

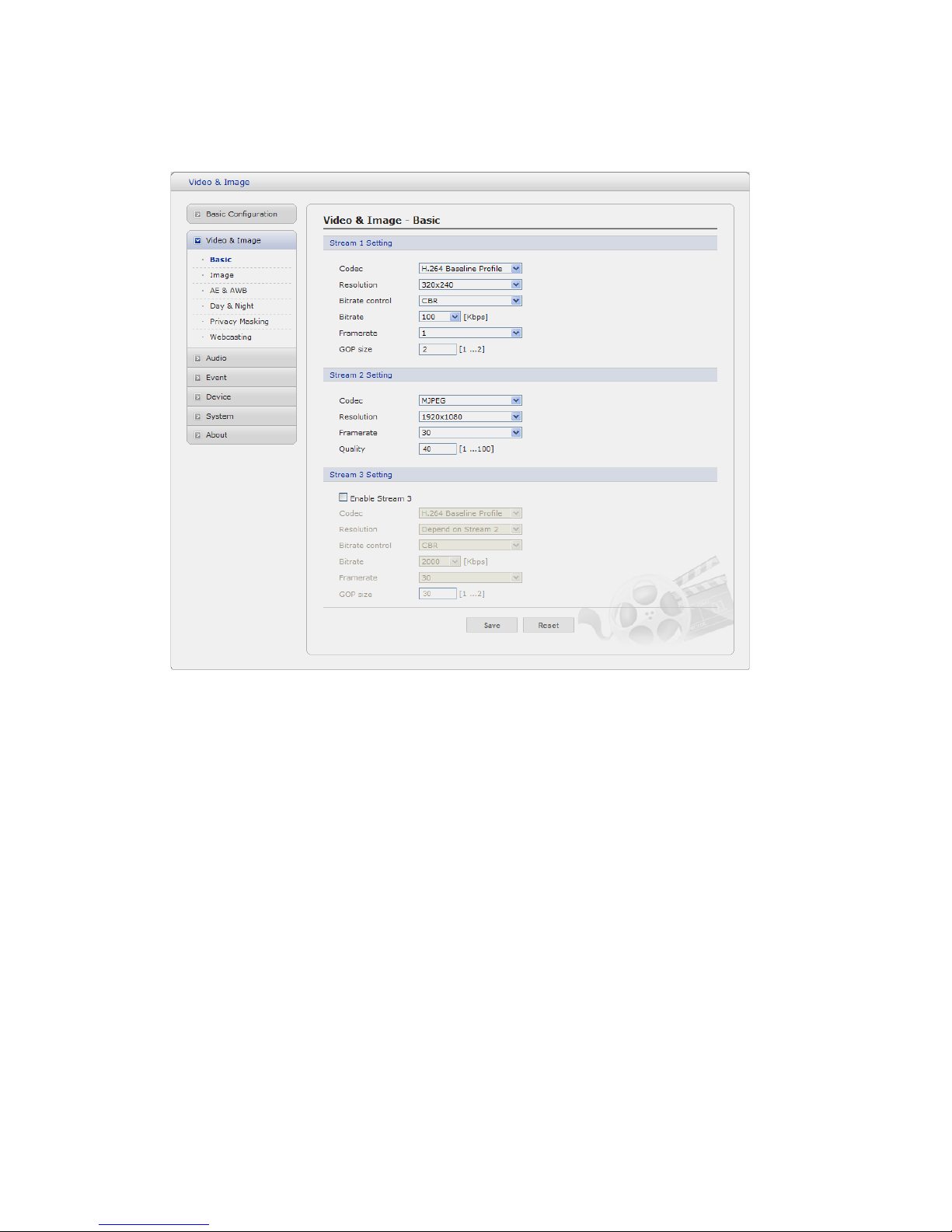

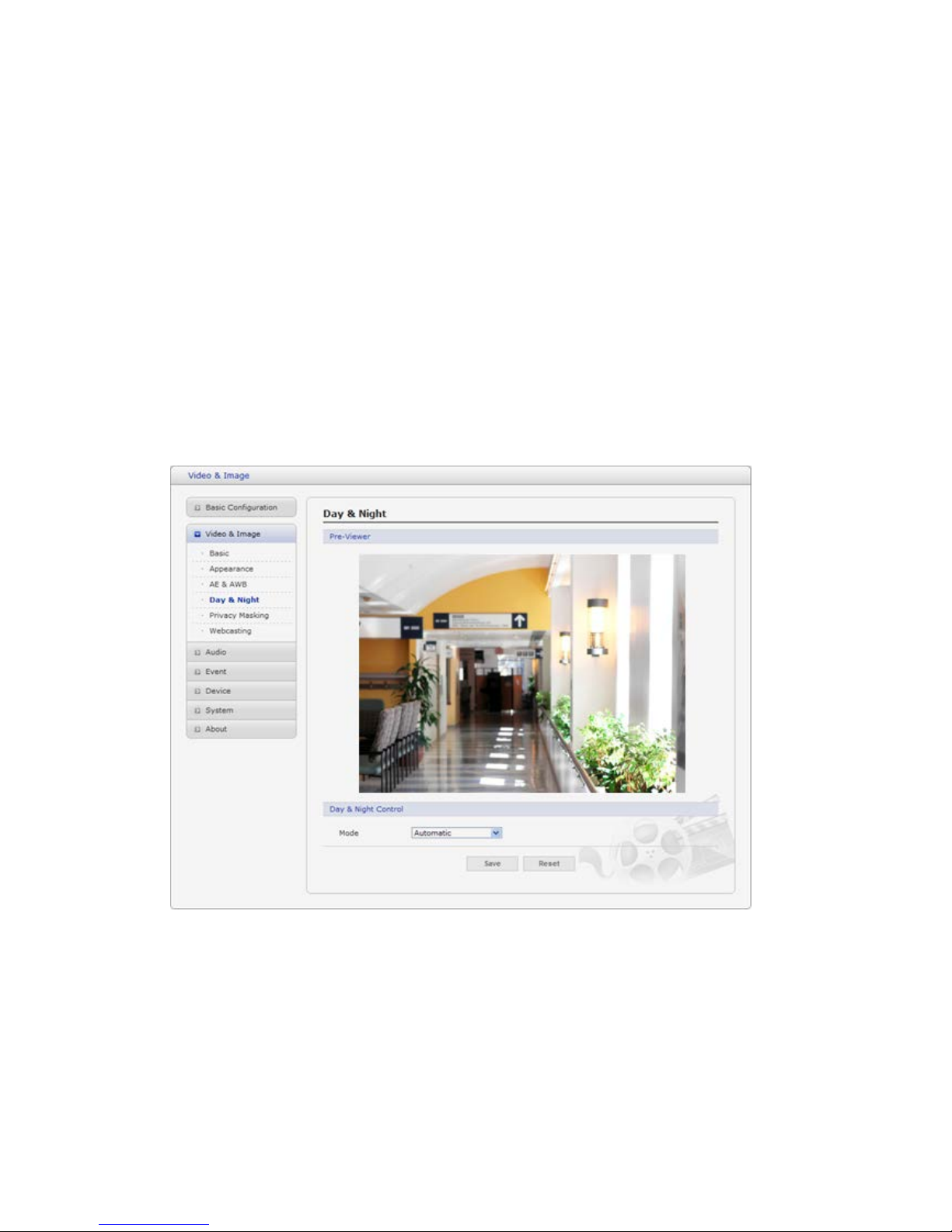

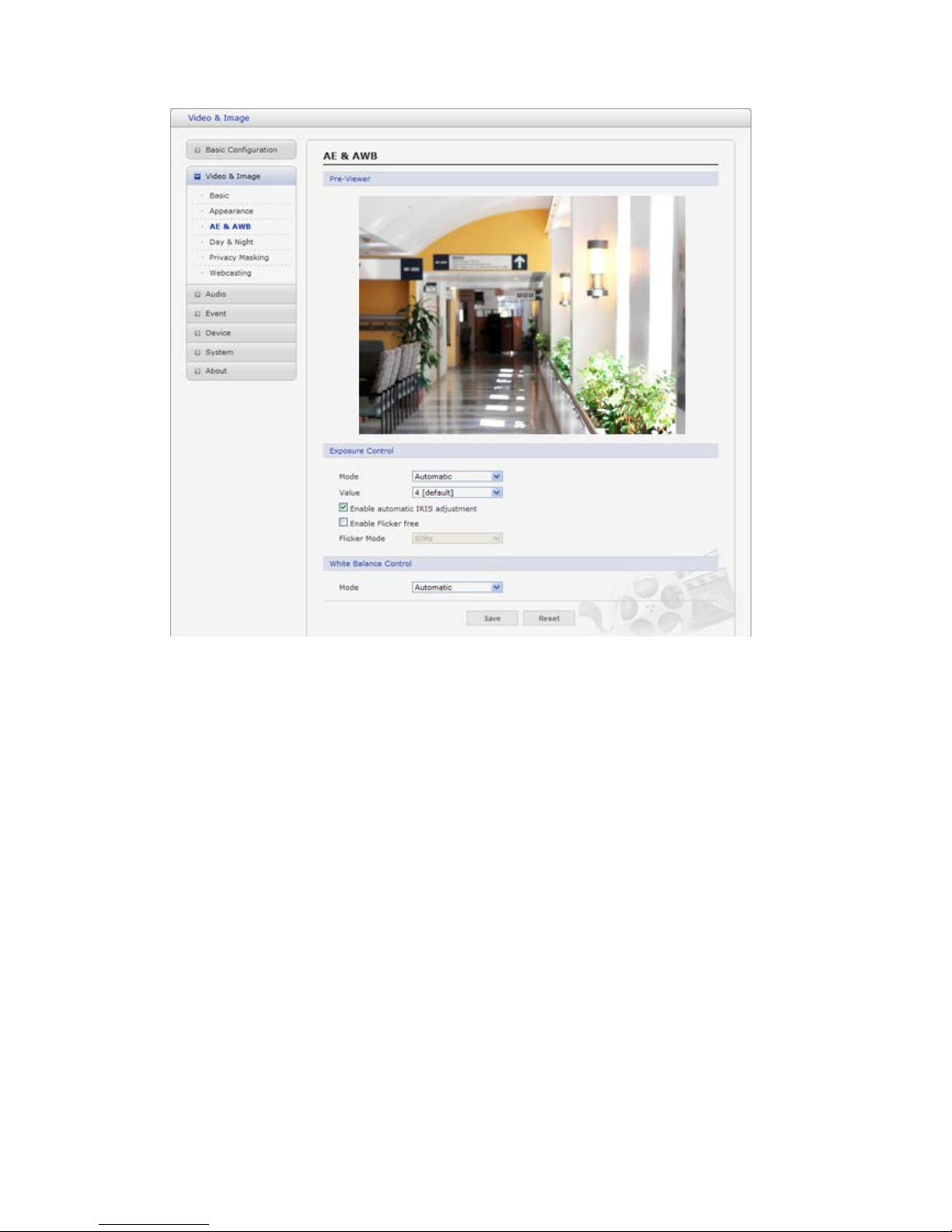

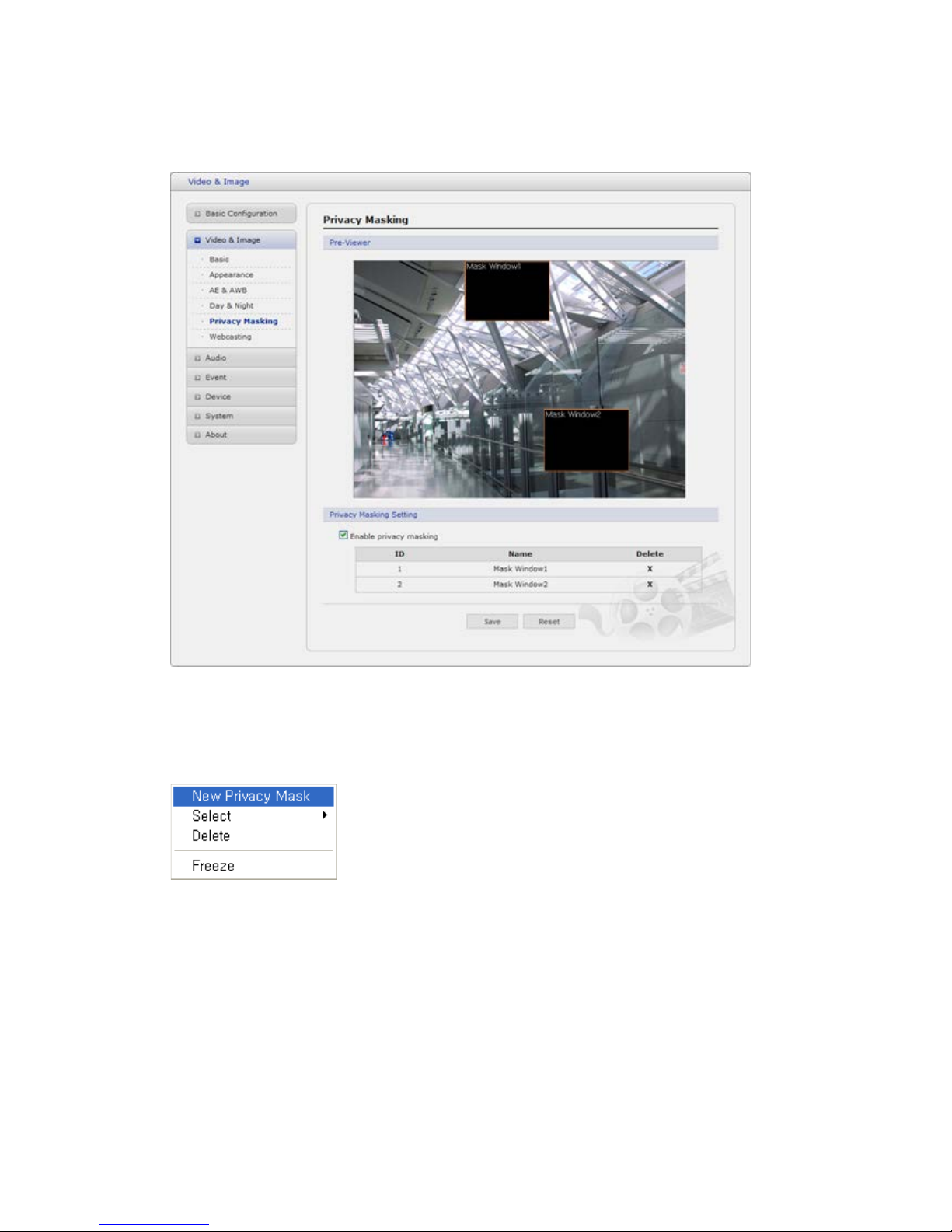

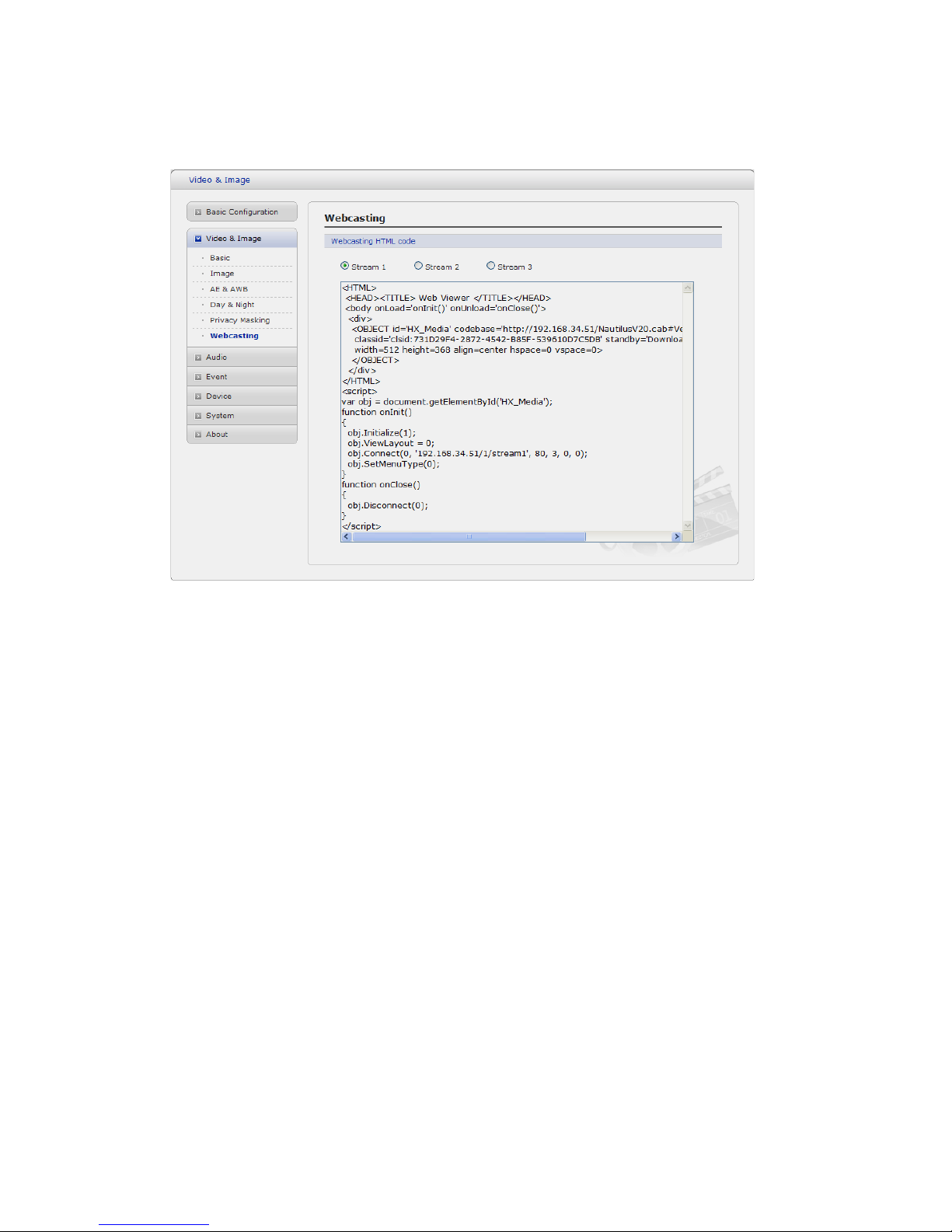

3.5.2 Video & Image ----------------------------------------------------------------------------------- 28

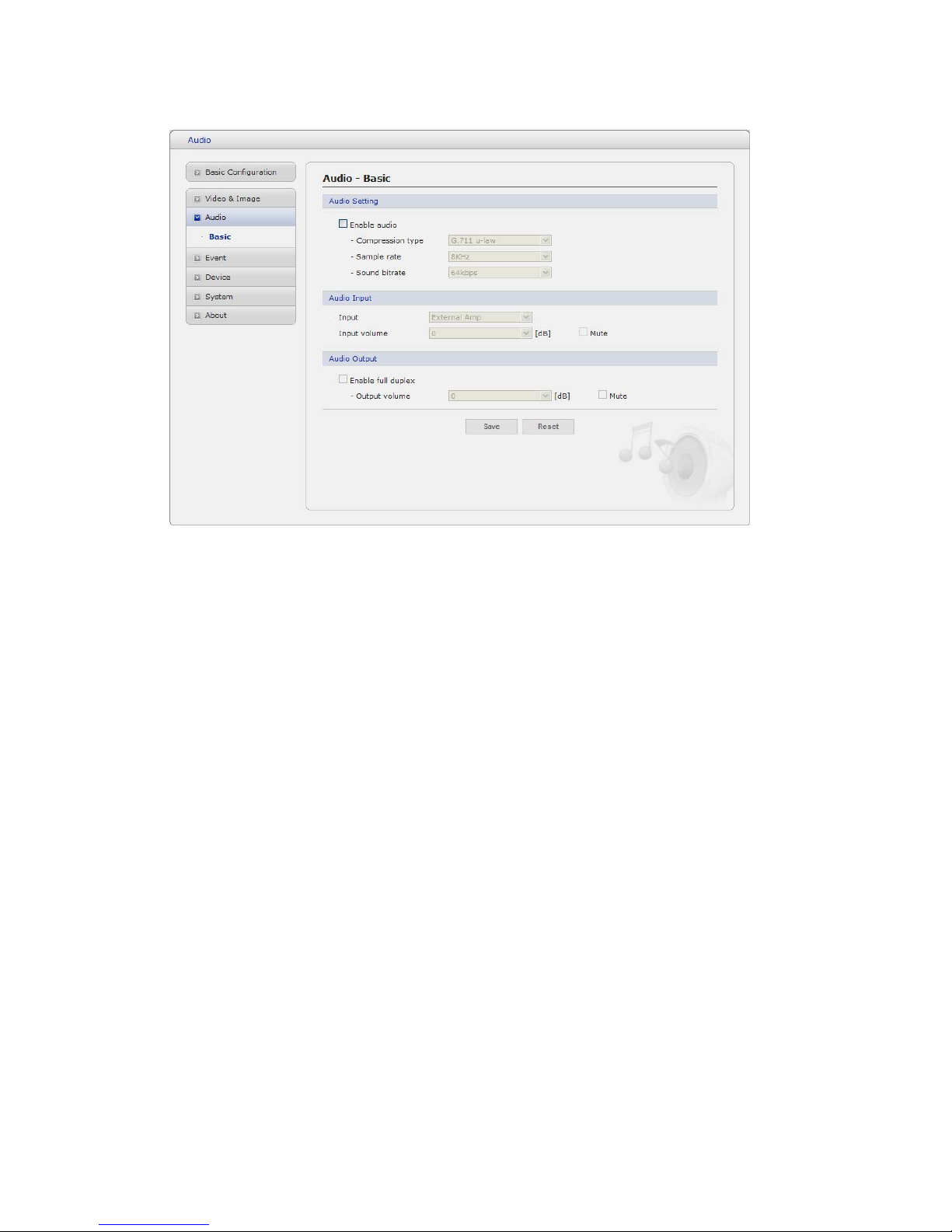

3.5.3 Audio ----------------------------------------------------------------------------------------------- 34

3.5.4 Event ----------------------------------------------------------------------------------------------- 35

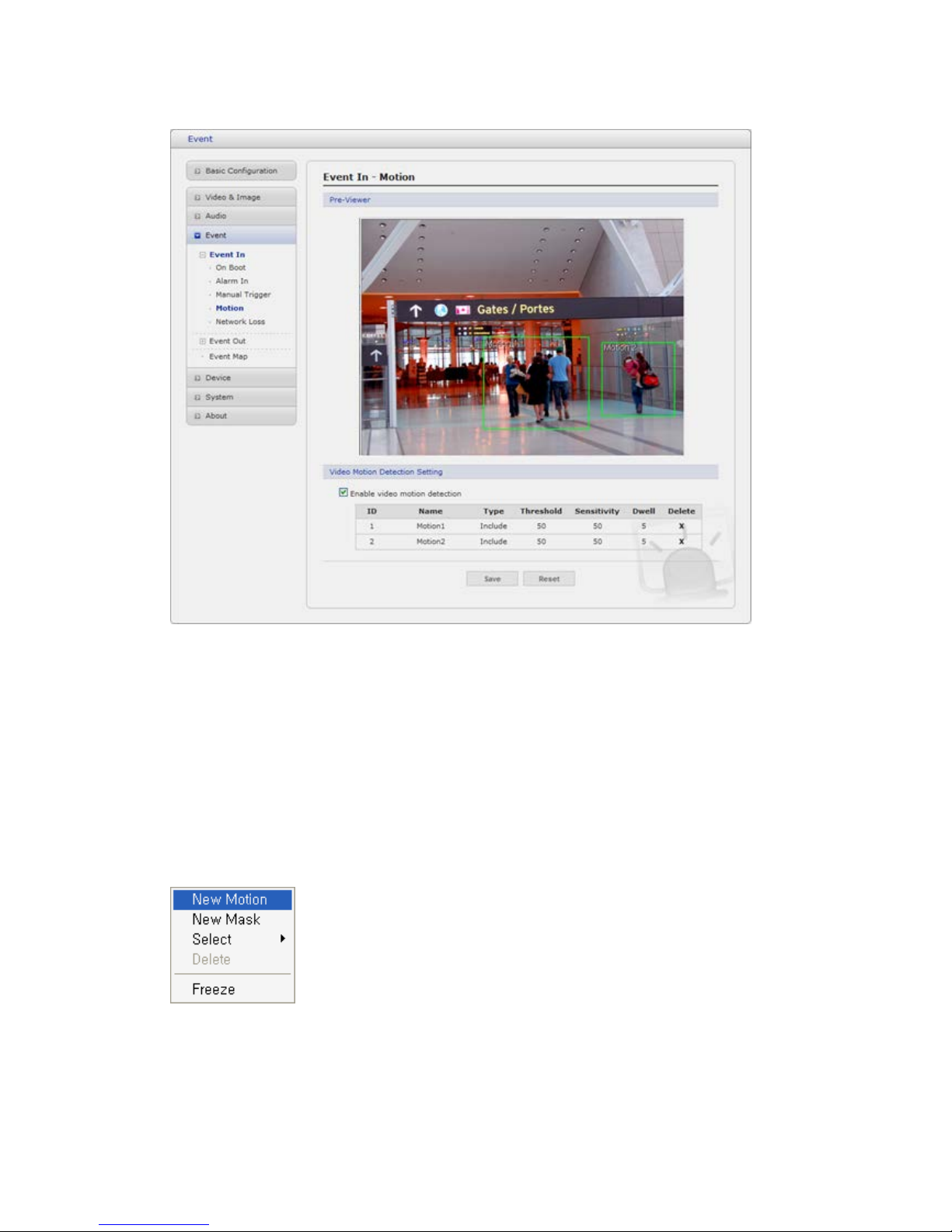

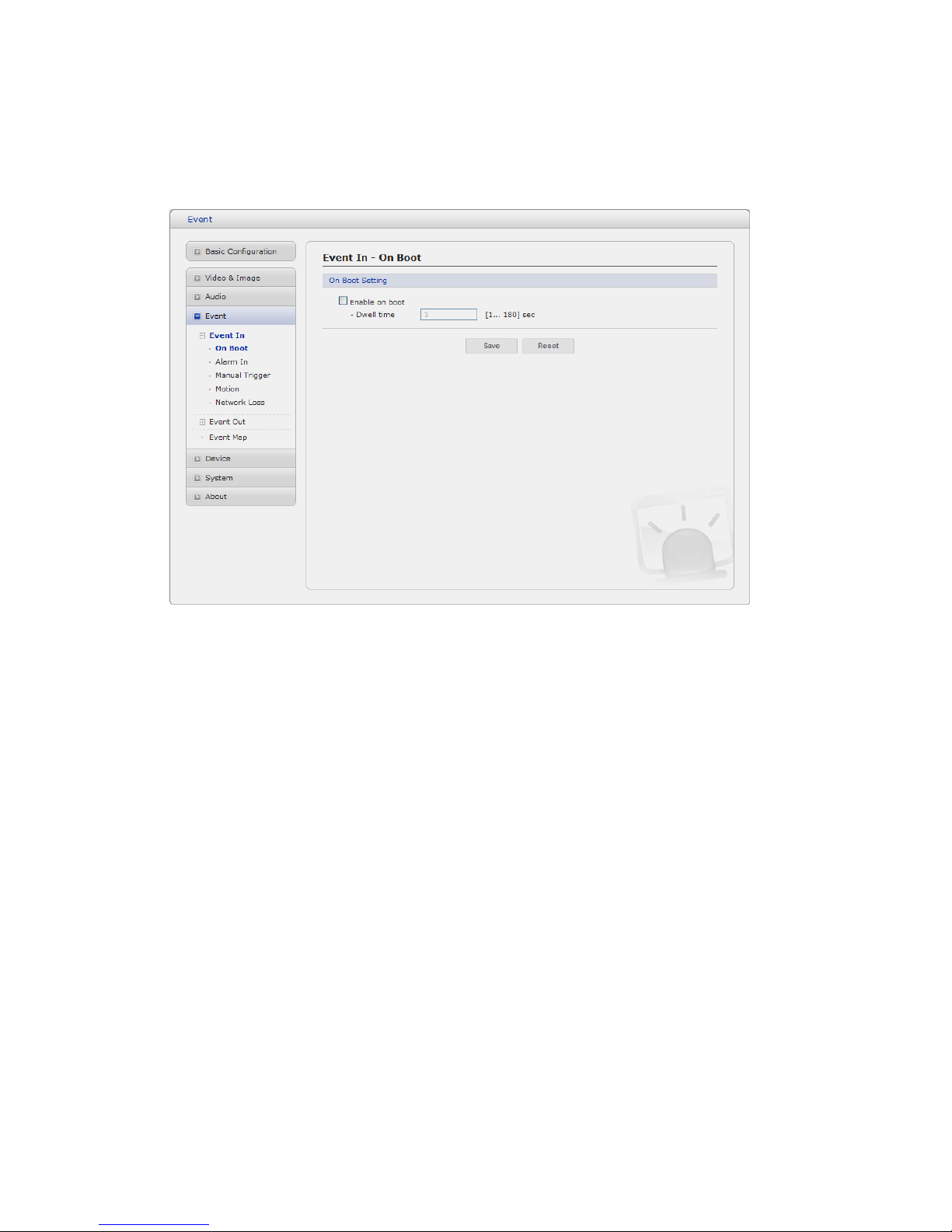

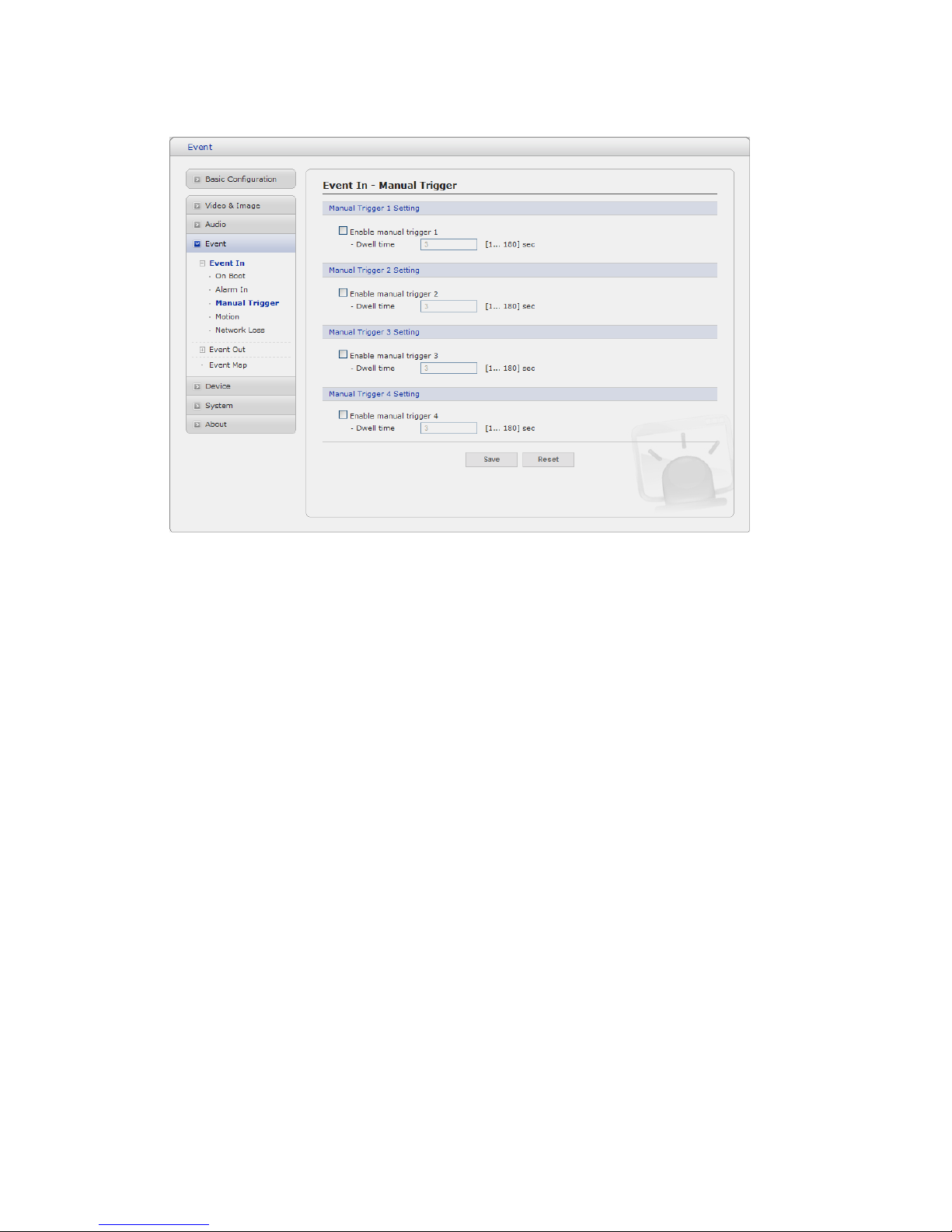

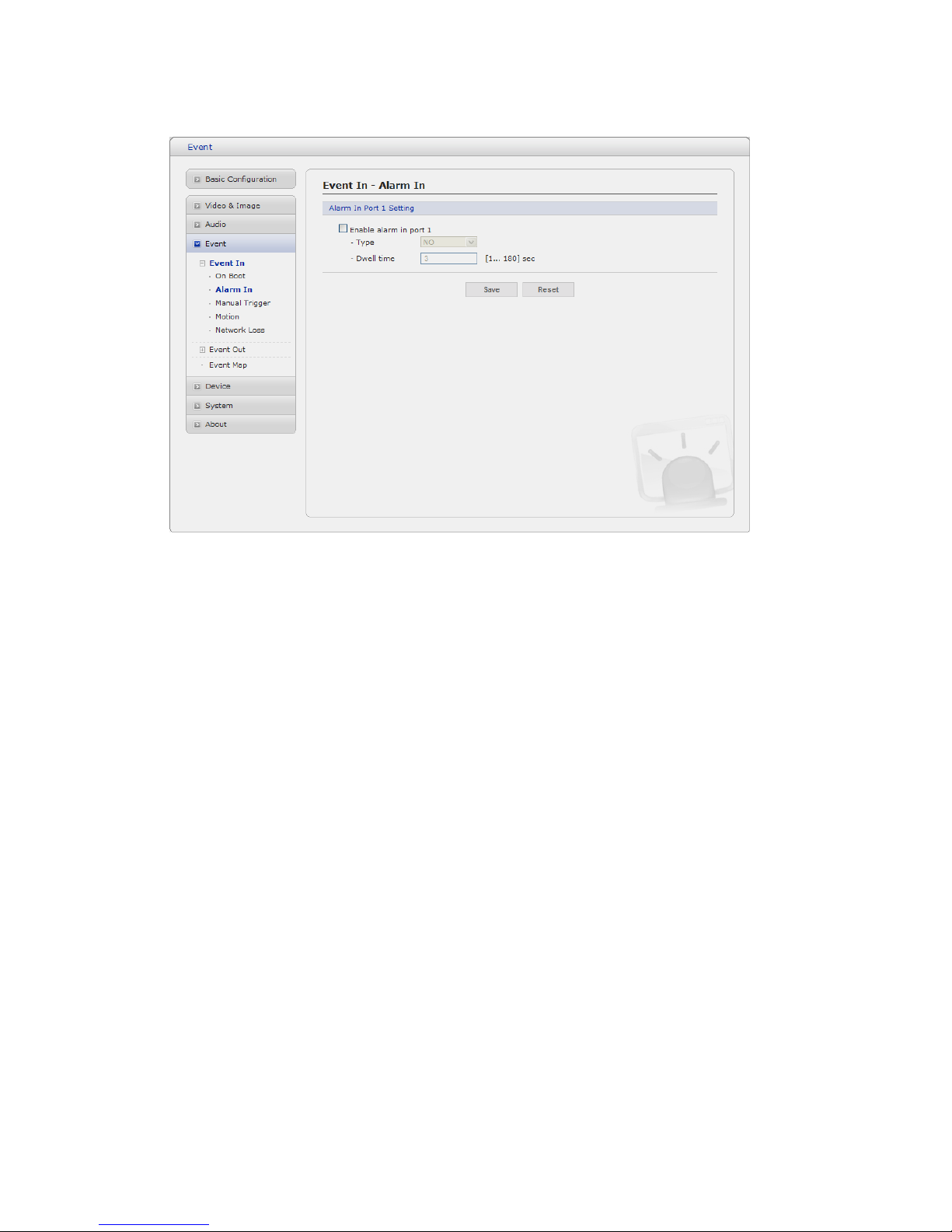

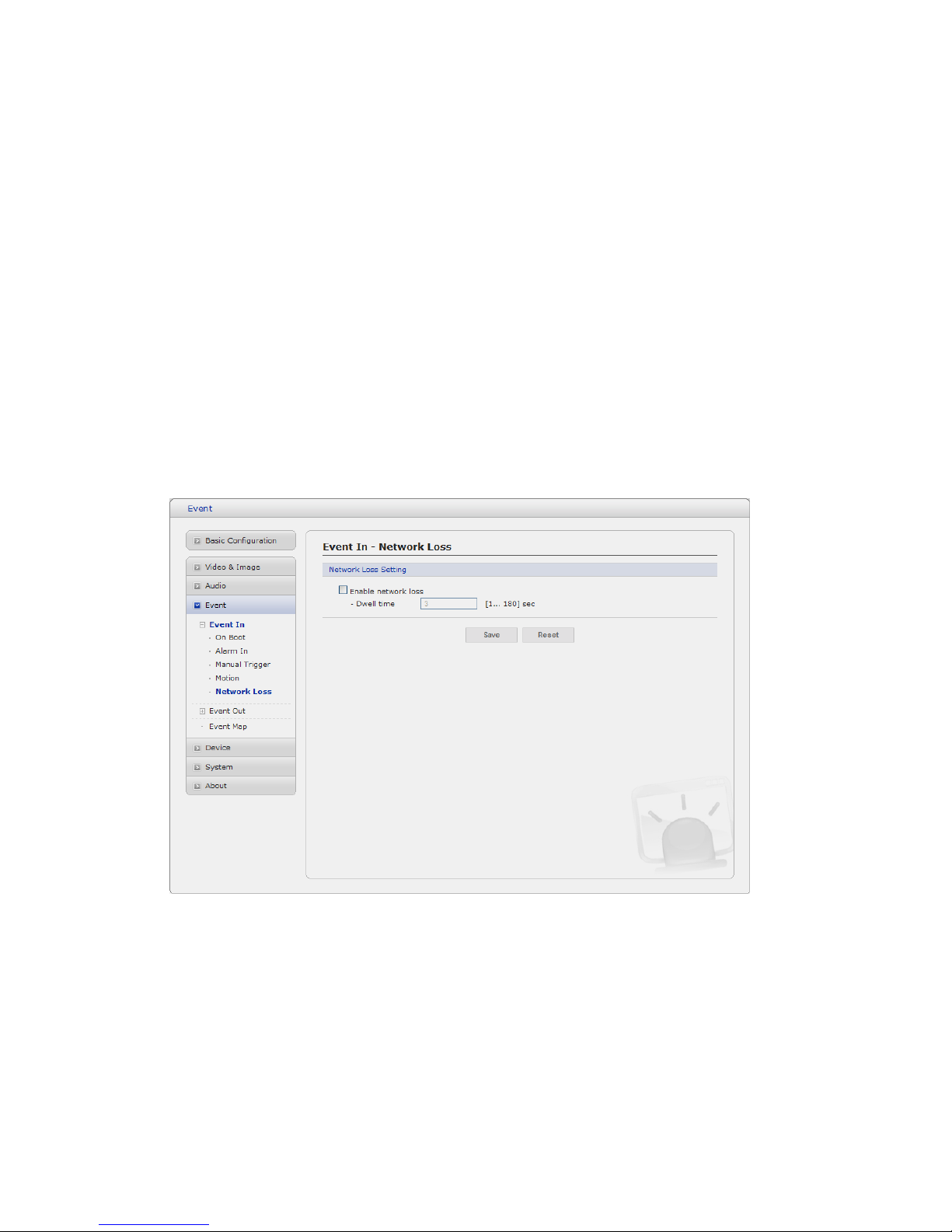

1) Event-In --------------------------------------------------------------------------------------- 35

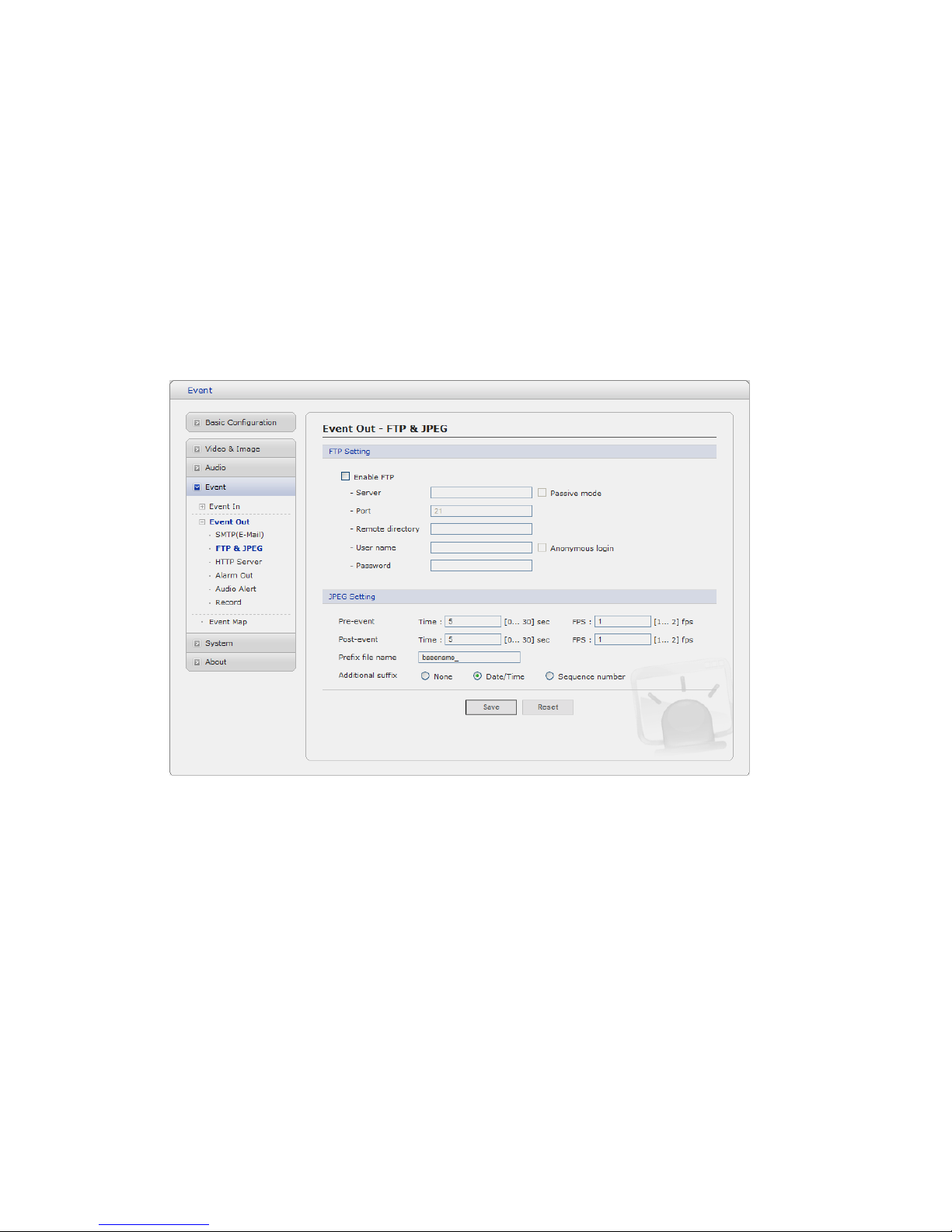

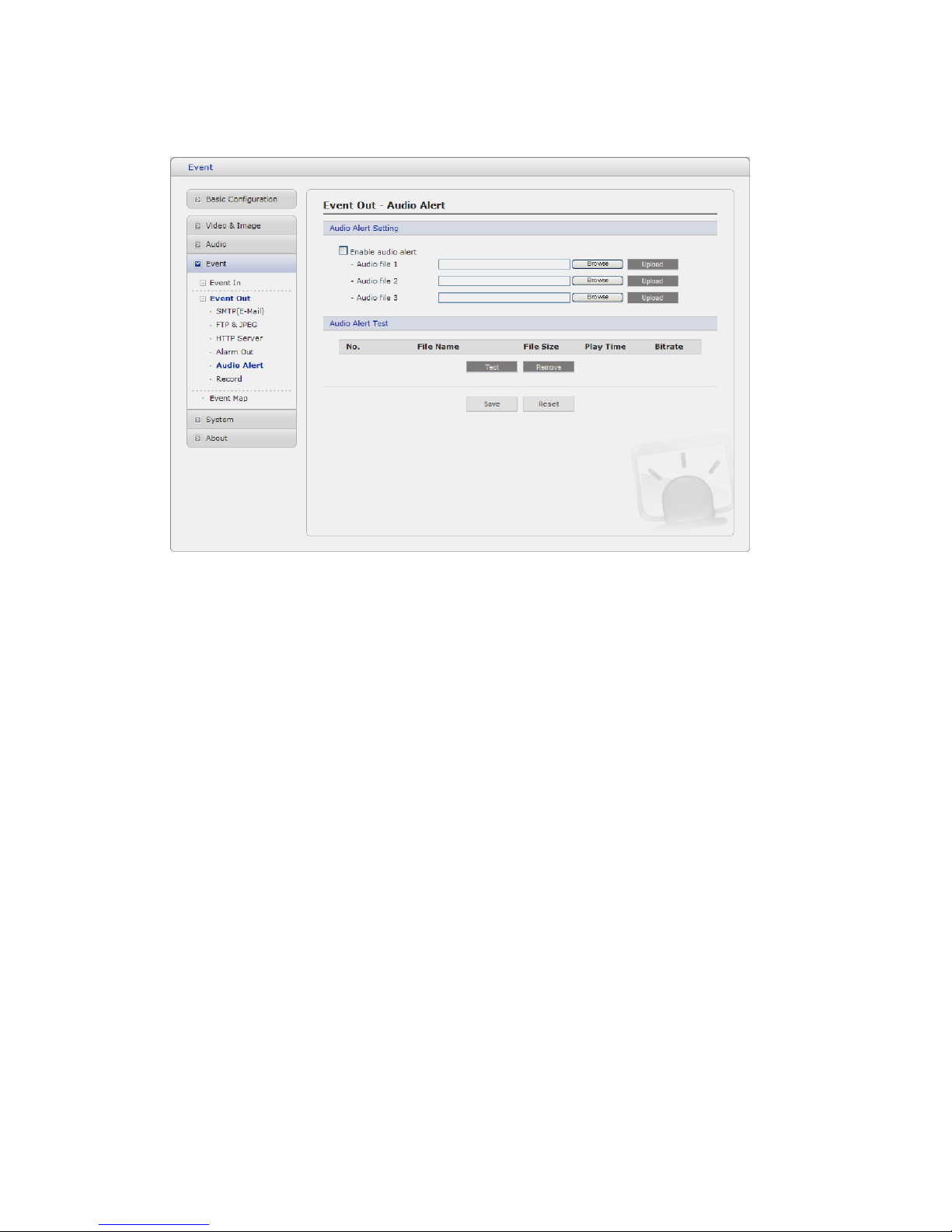

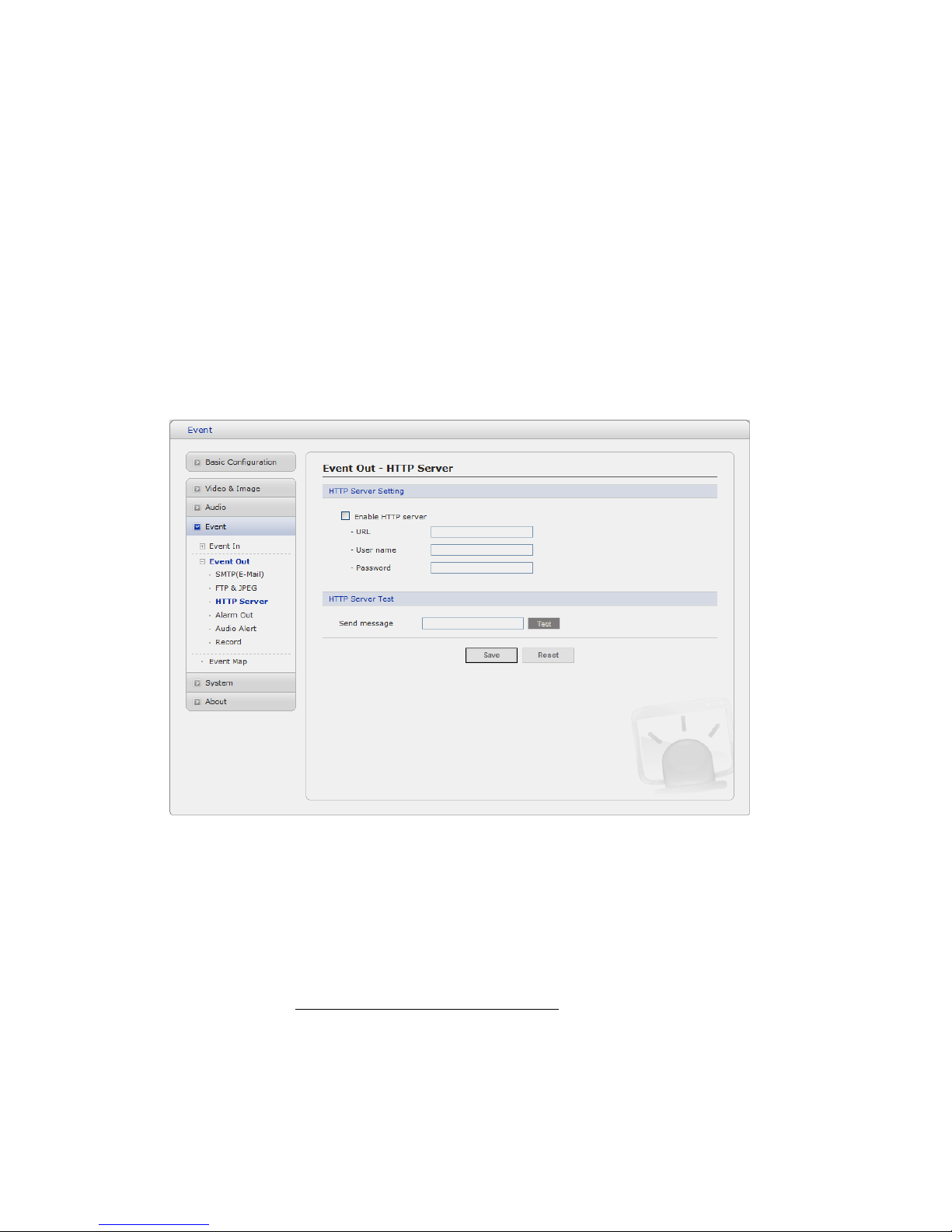

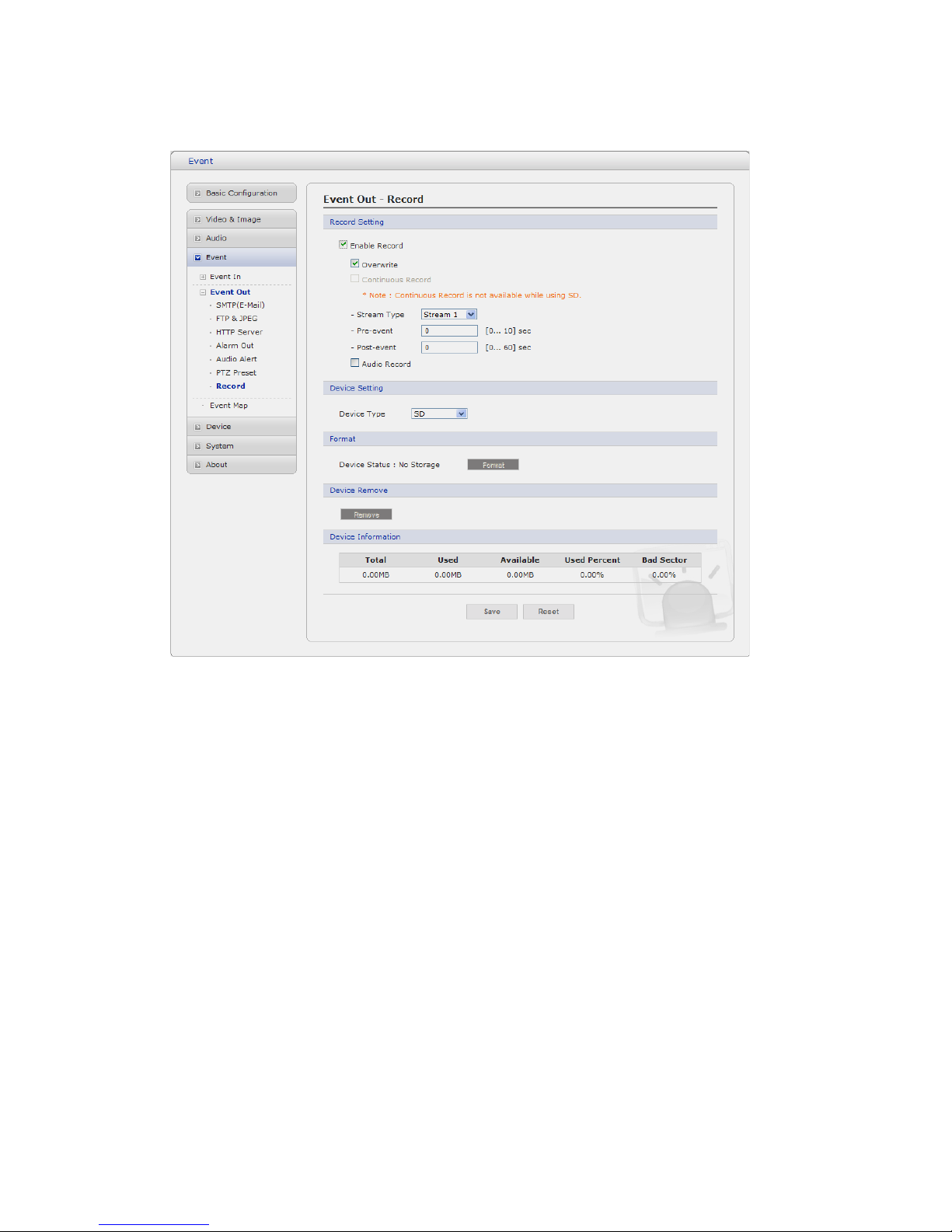

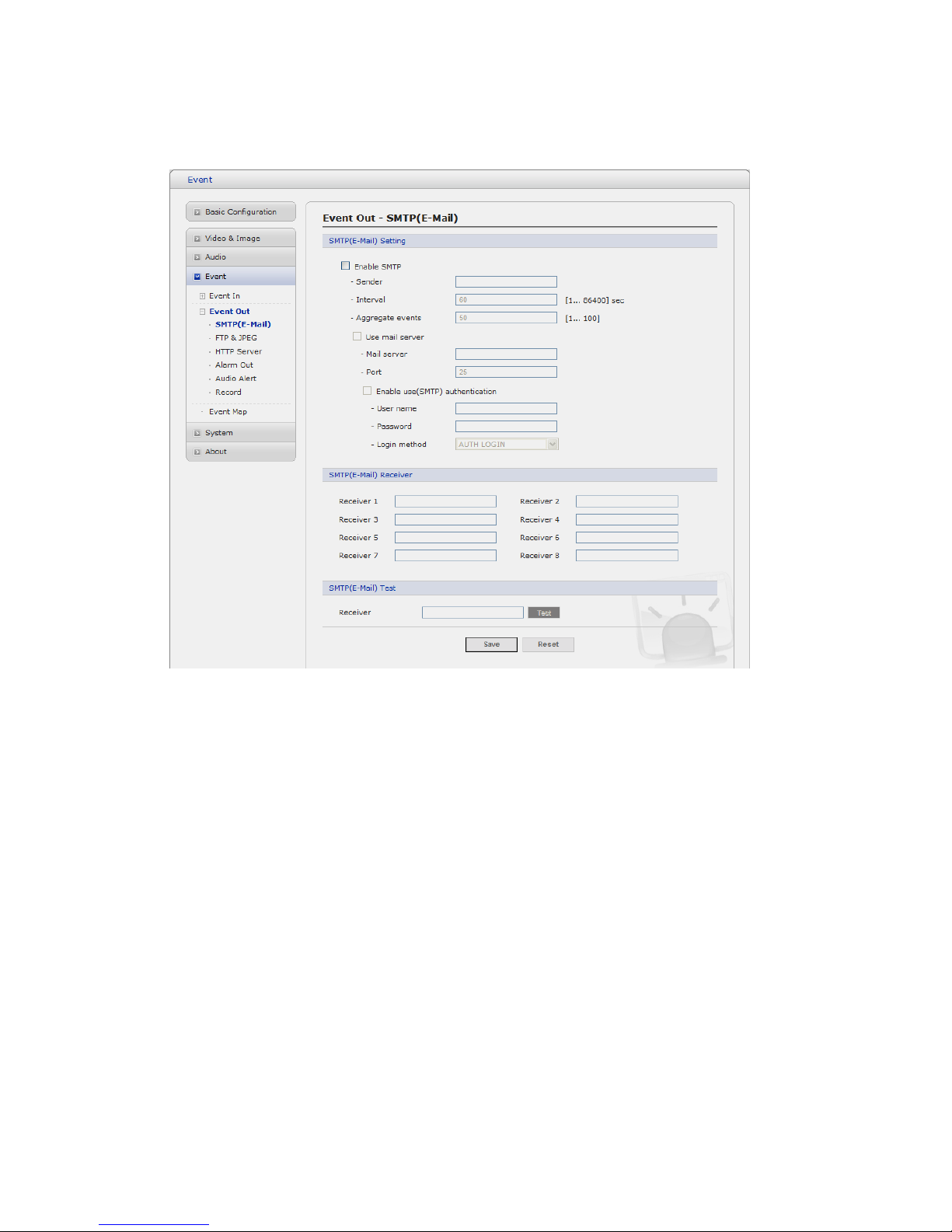

2) Event-Out ------------------------------------------------------------------------------------- 40

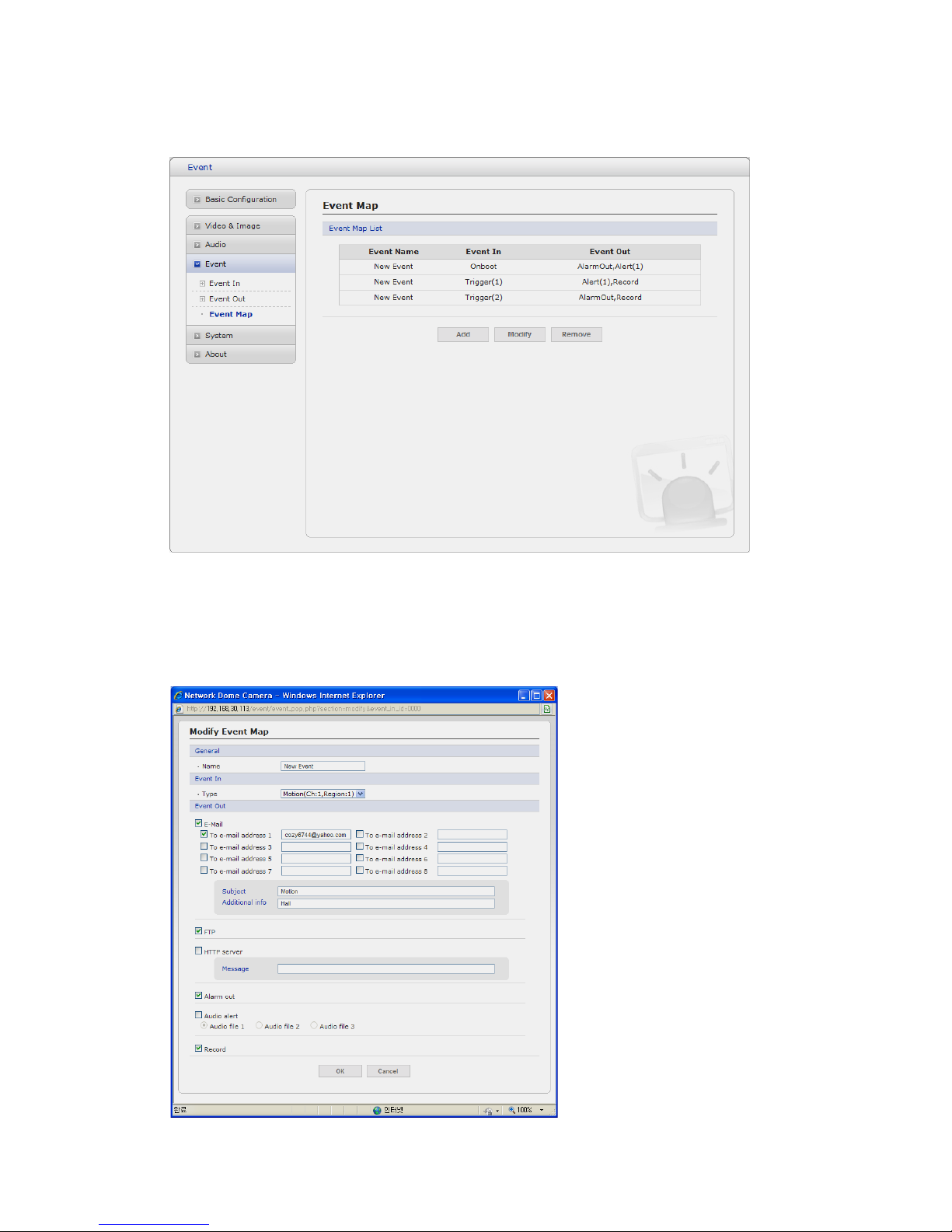

3) Event Map ------------------------------------------------------------------------------------- 48

3.5.5 Device ---------------------------------------------------------------------------------------------- 49

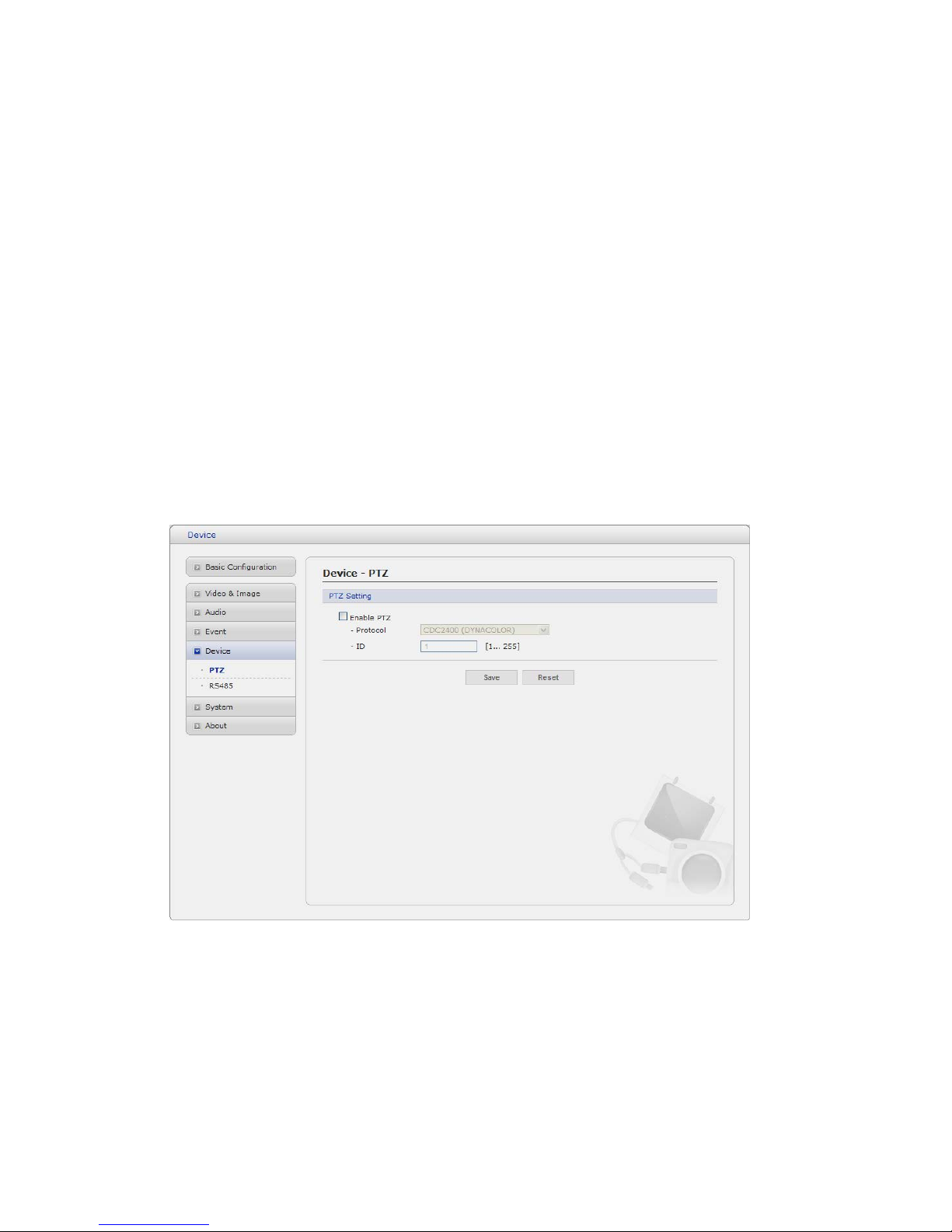

1) PTZ------------- -------------------------------------------------------------------------------- 49

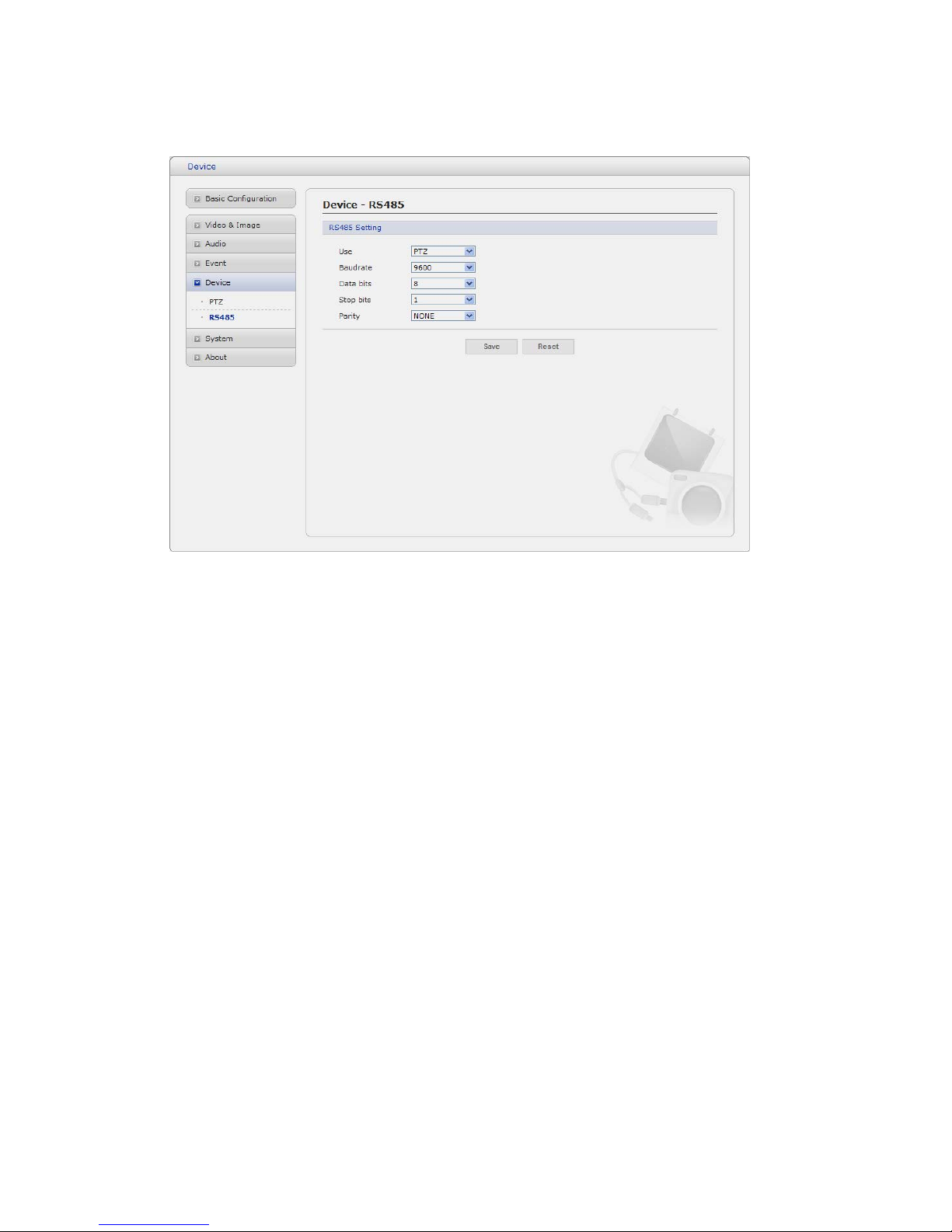

2) RS-485 ----------------------------------------------------------------------------------------- 50

3.5.6 System ------------------------------------------------------------------------------------------- 51

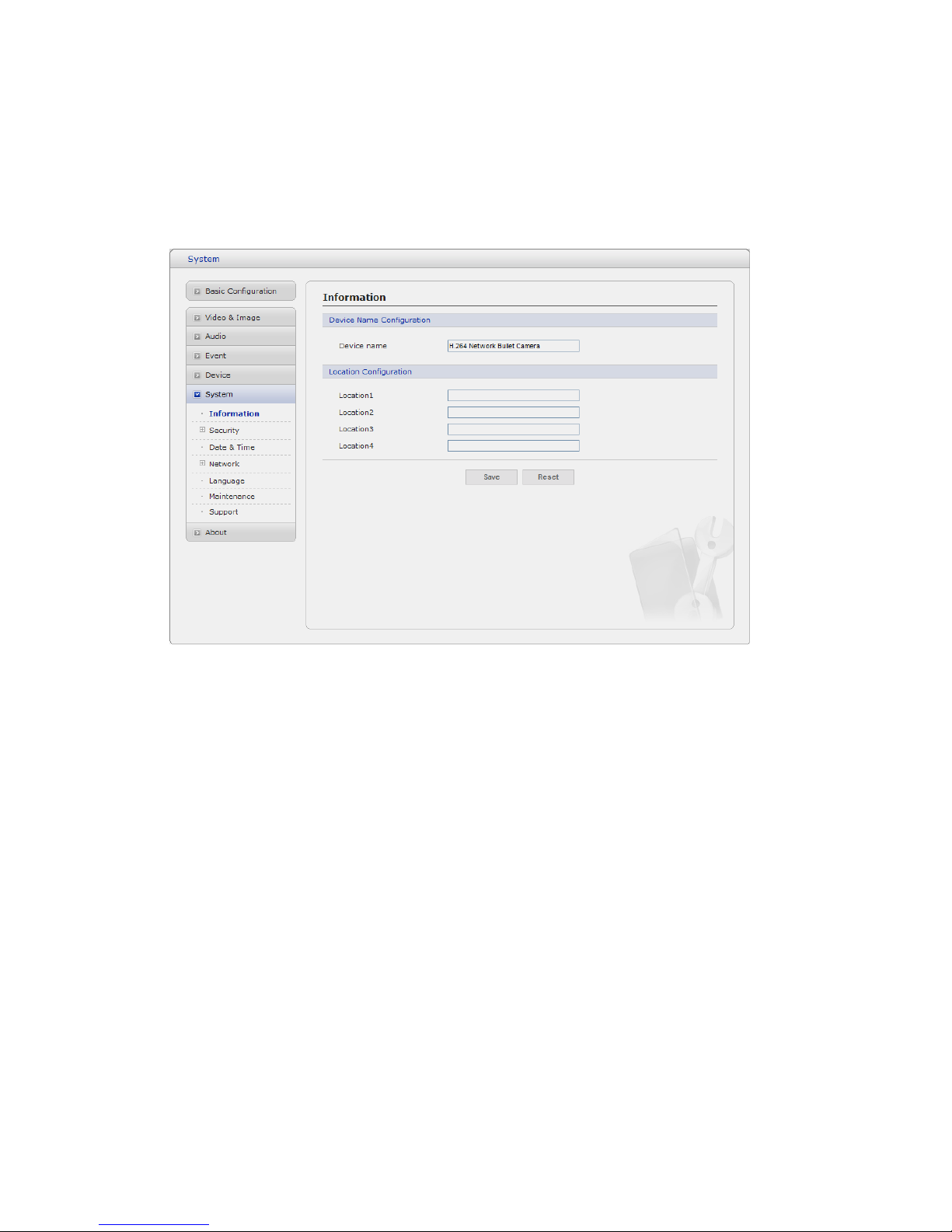

1) Information ----------------------------------------------------------------------------------- 51

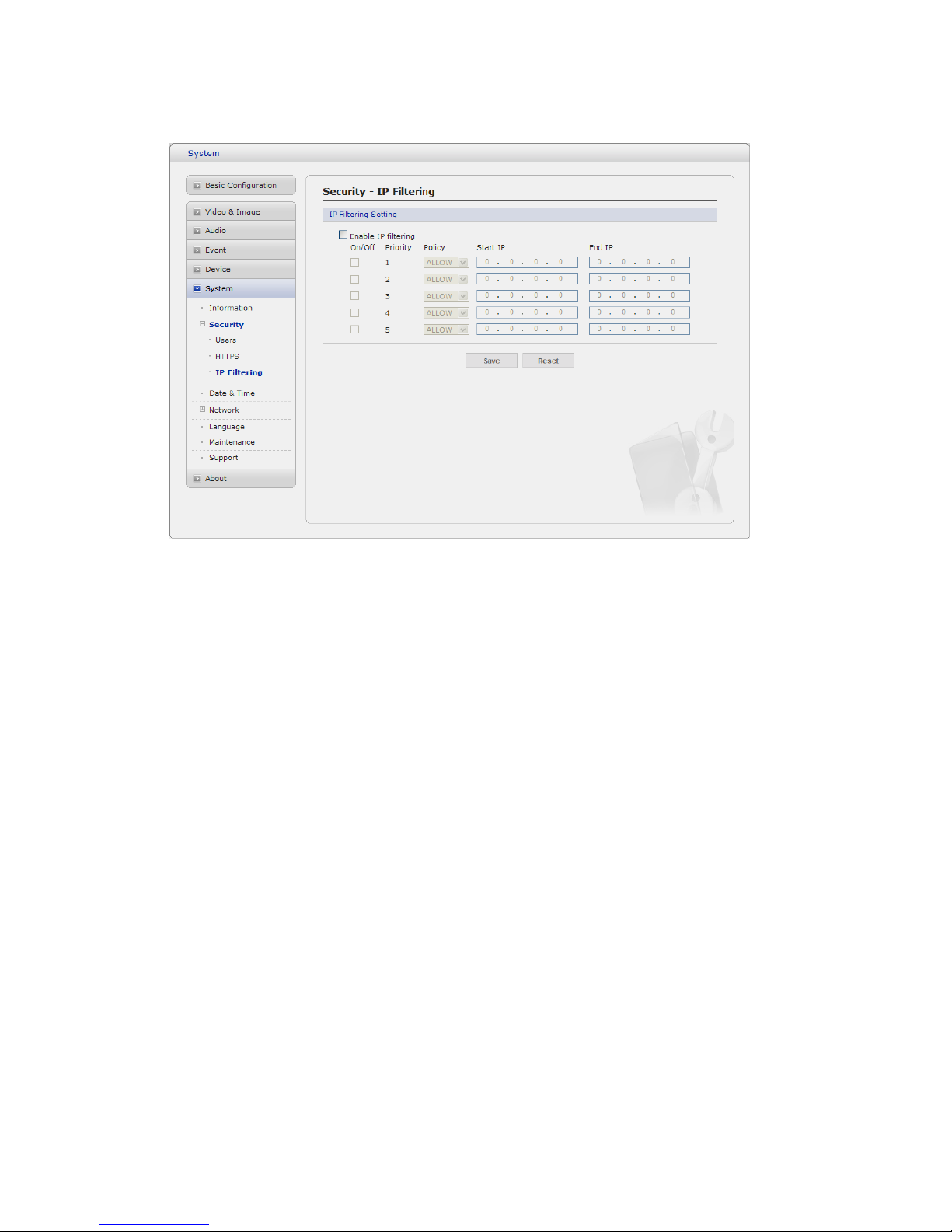

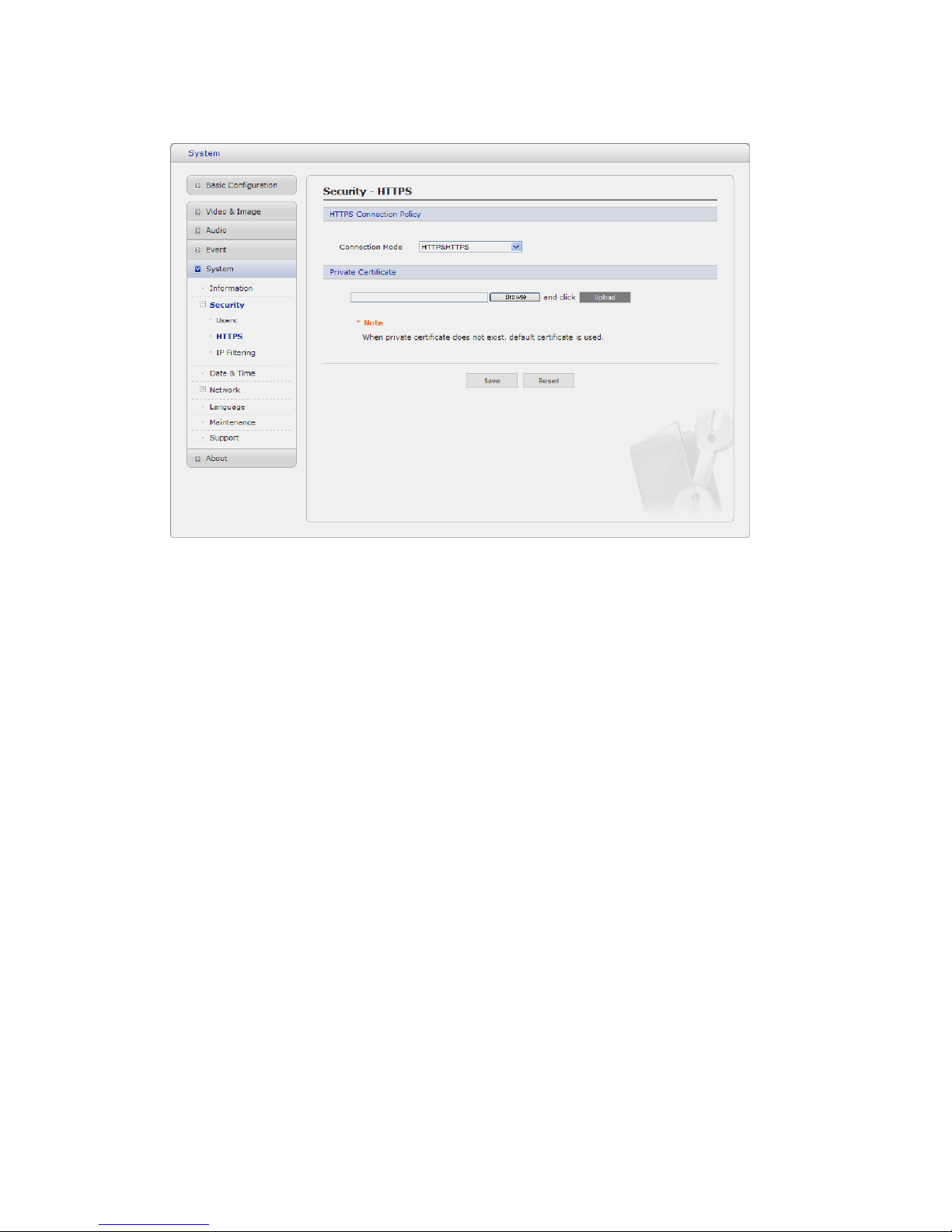

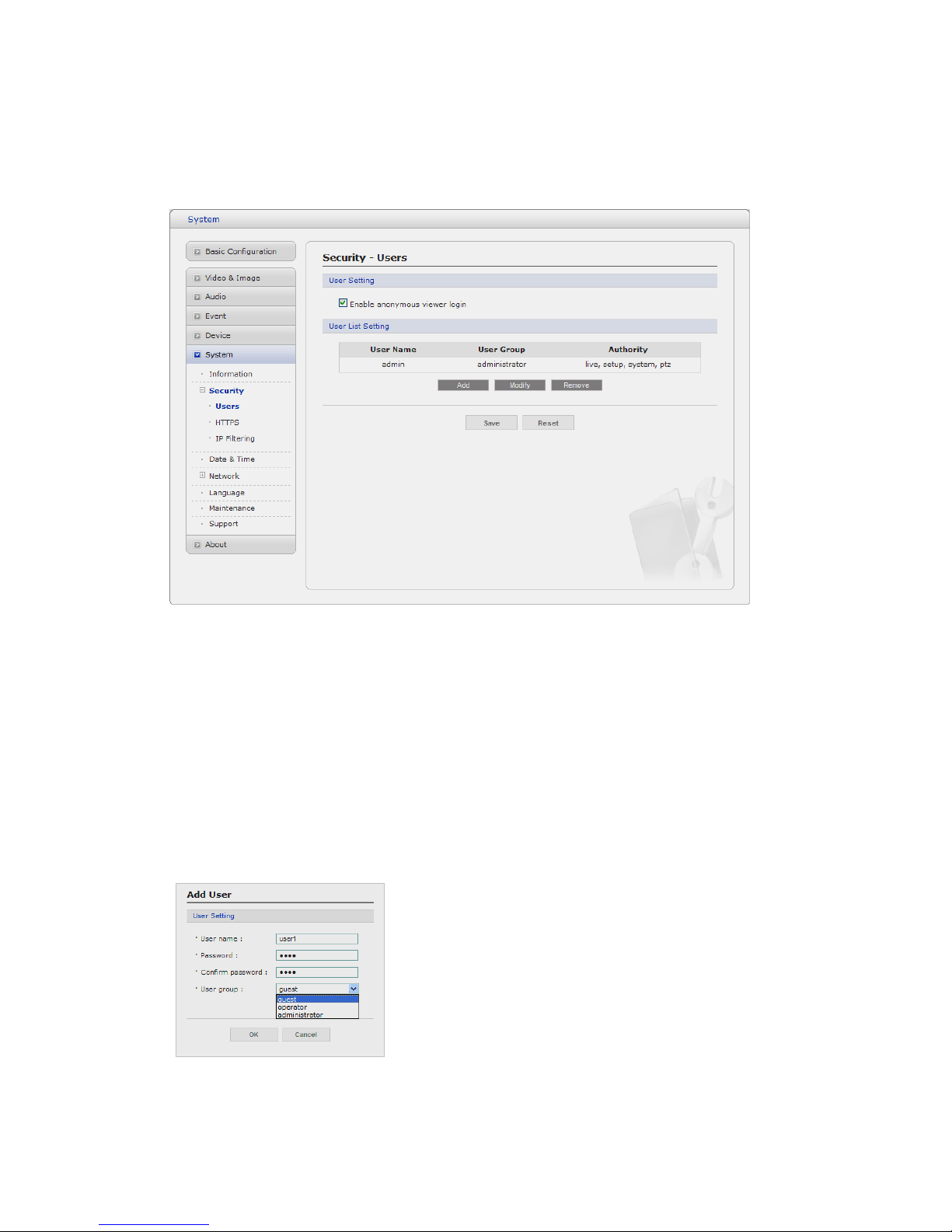

2) Security ---------------------------------------------------------------------------------------- 52

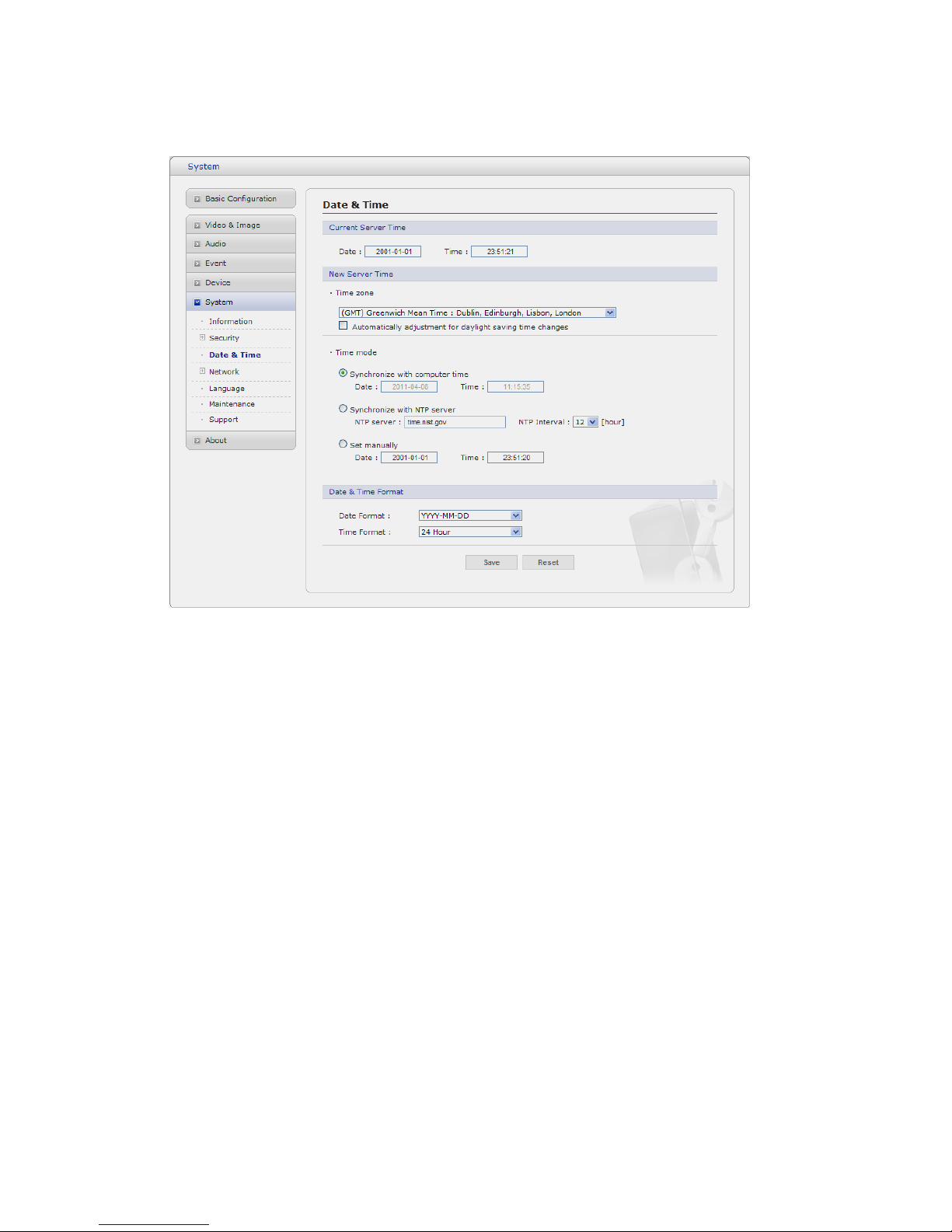

3) Date & Time ---------------------------------------------------------------------------------- 55

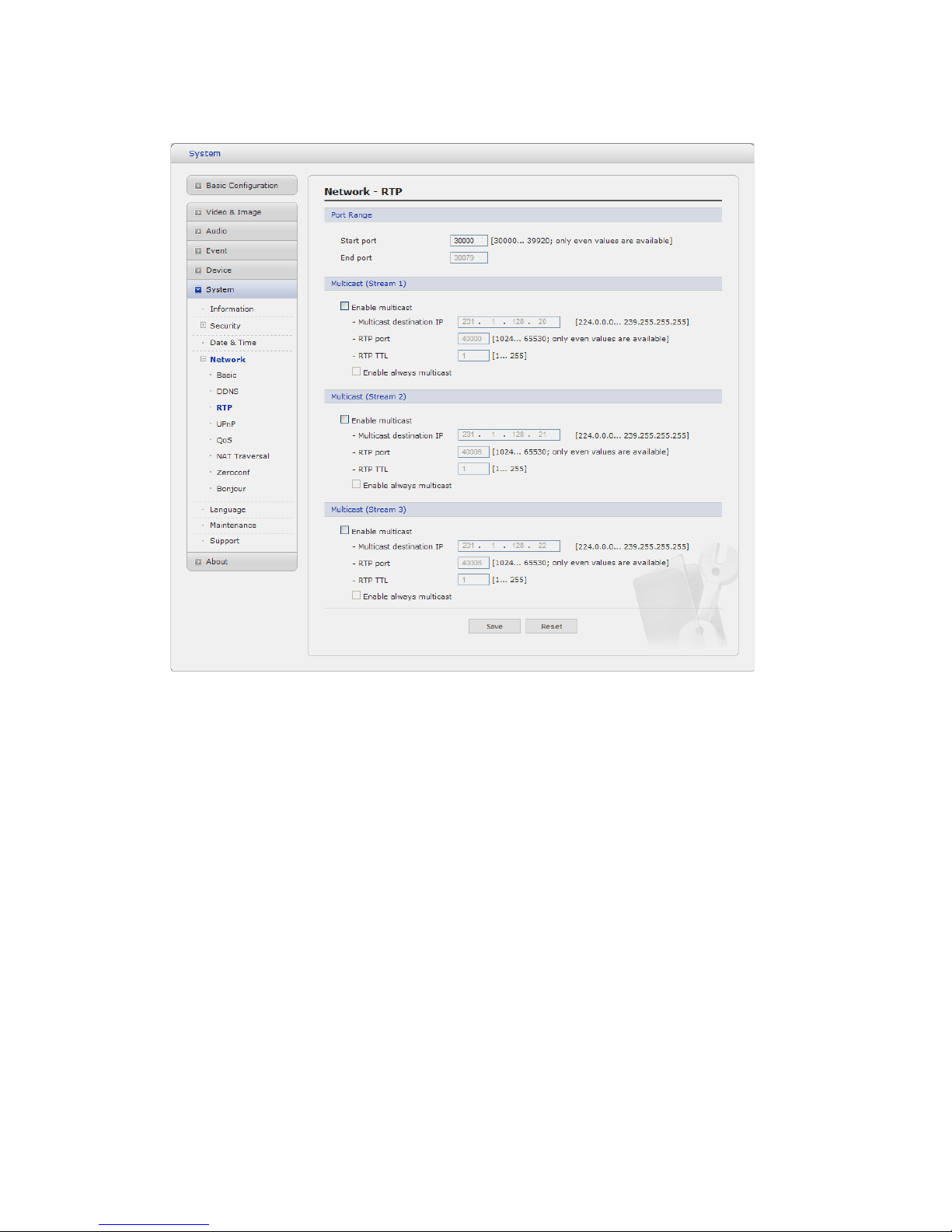

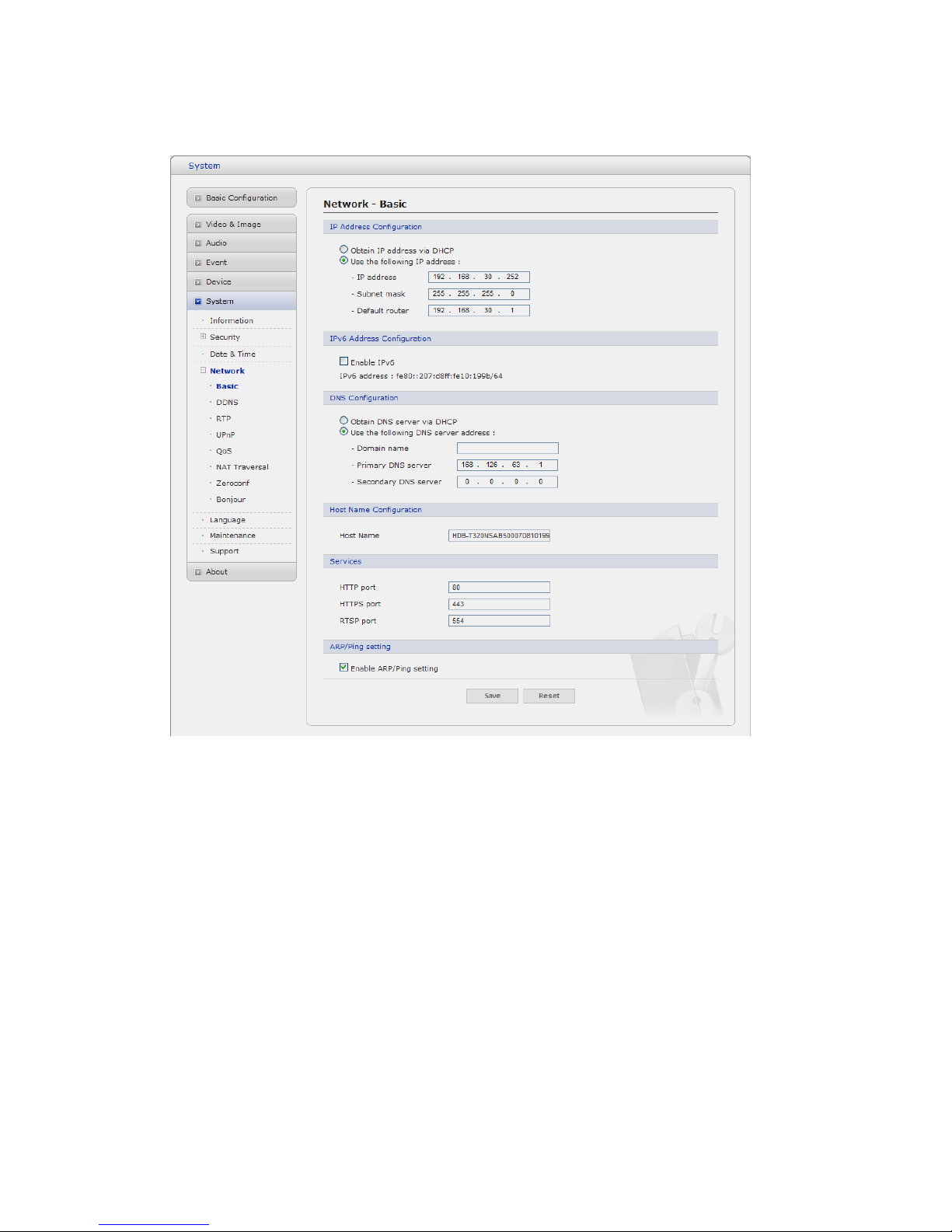

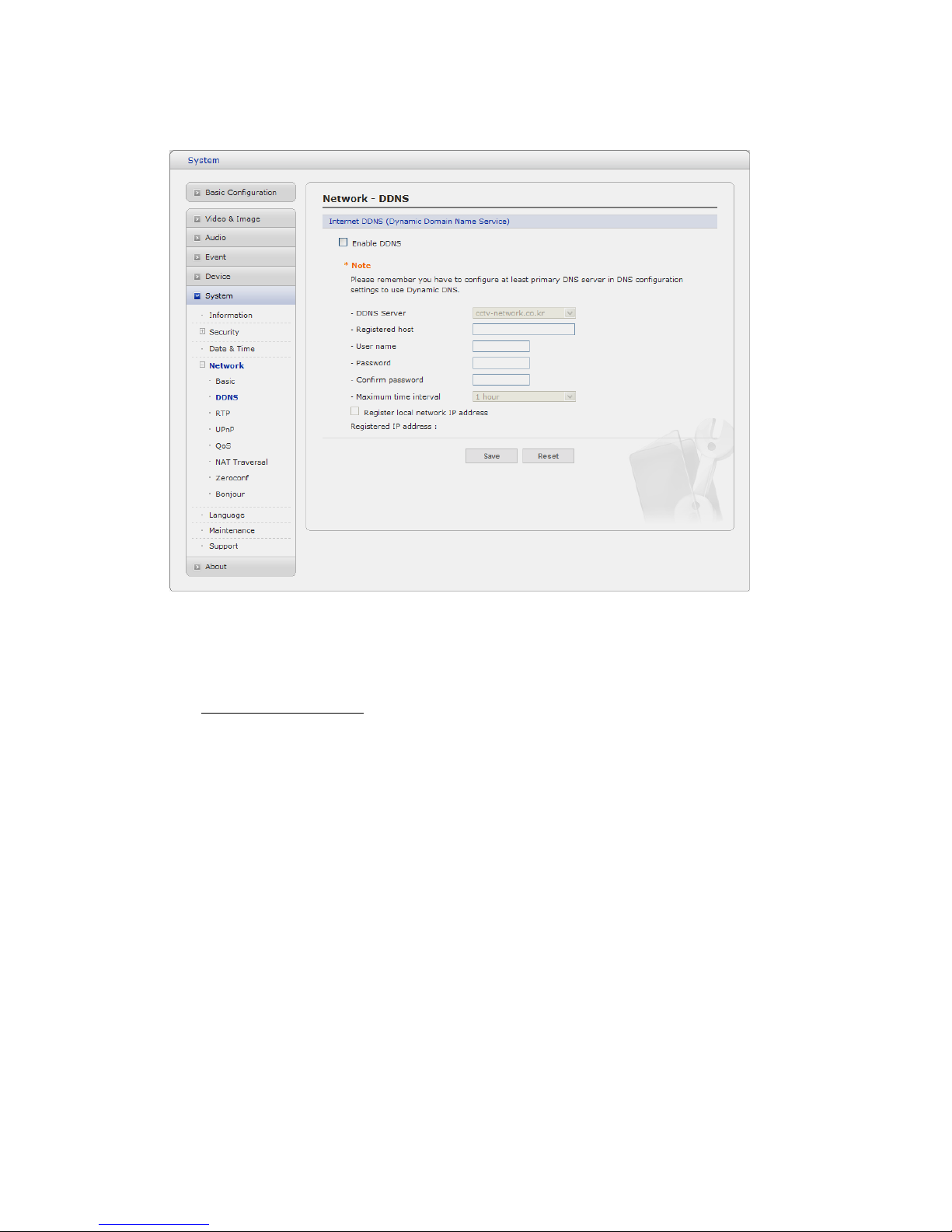

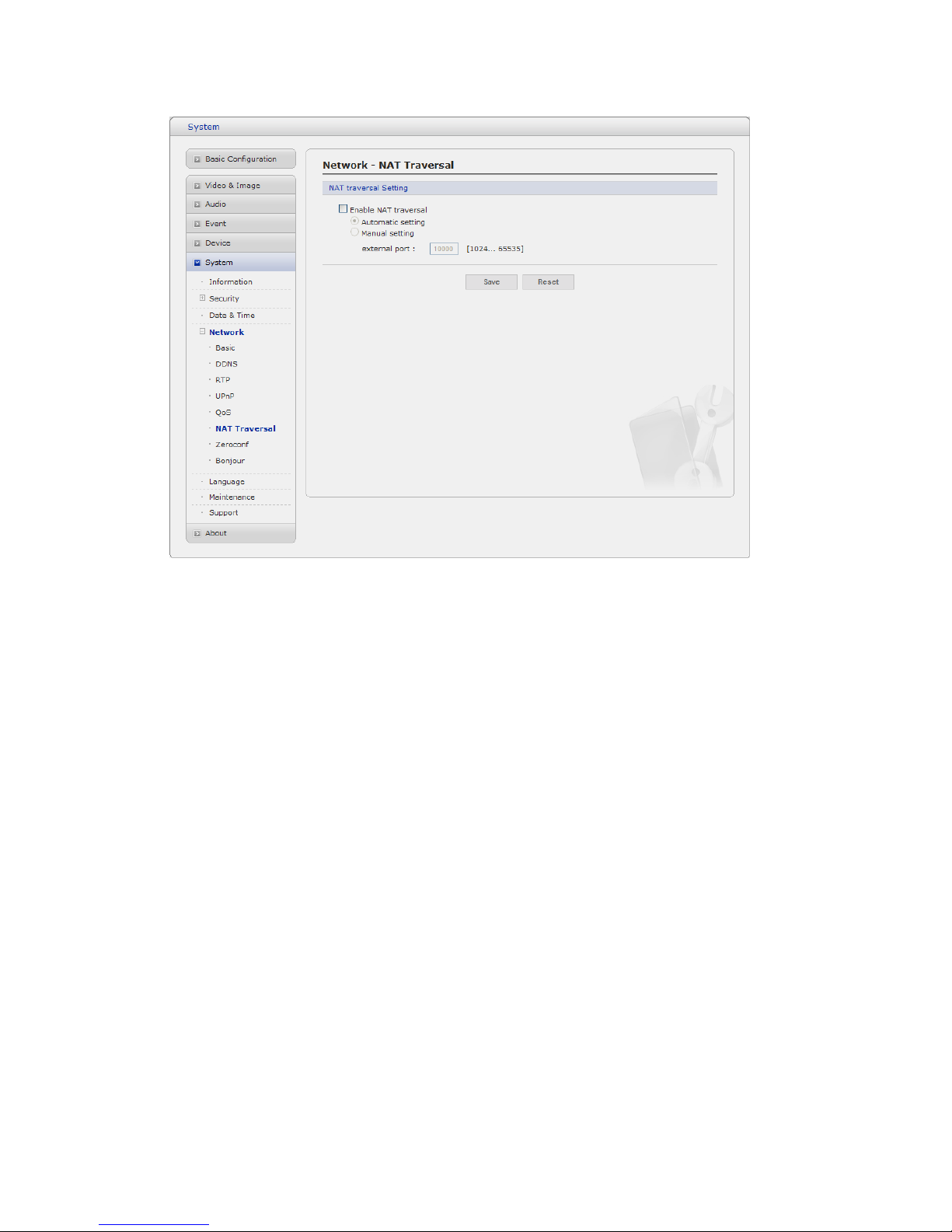

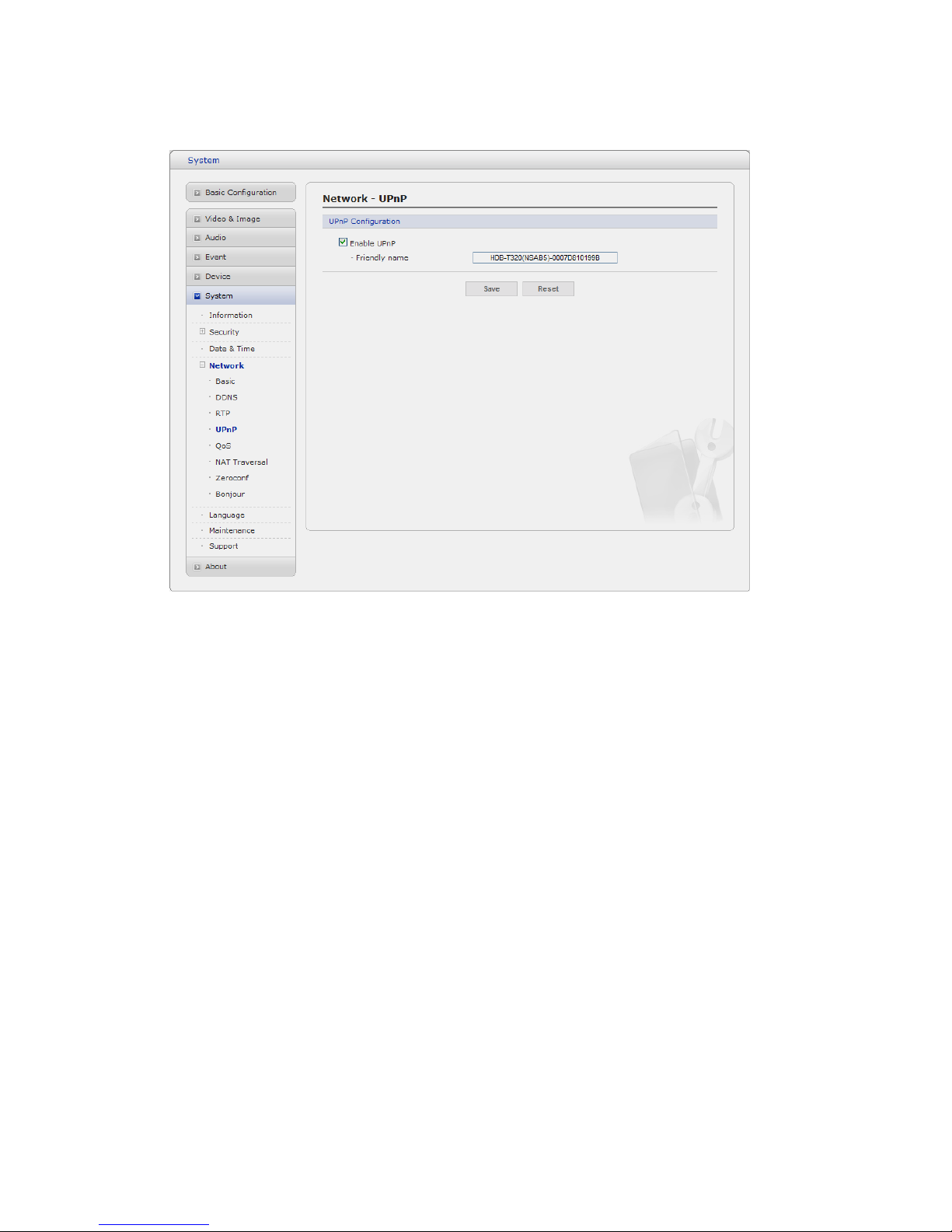

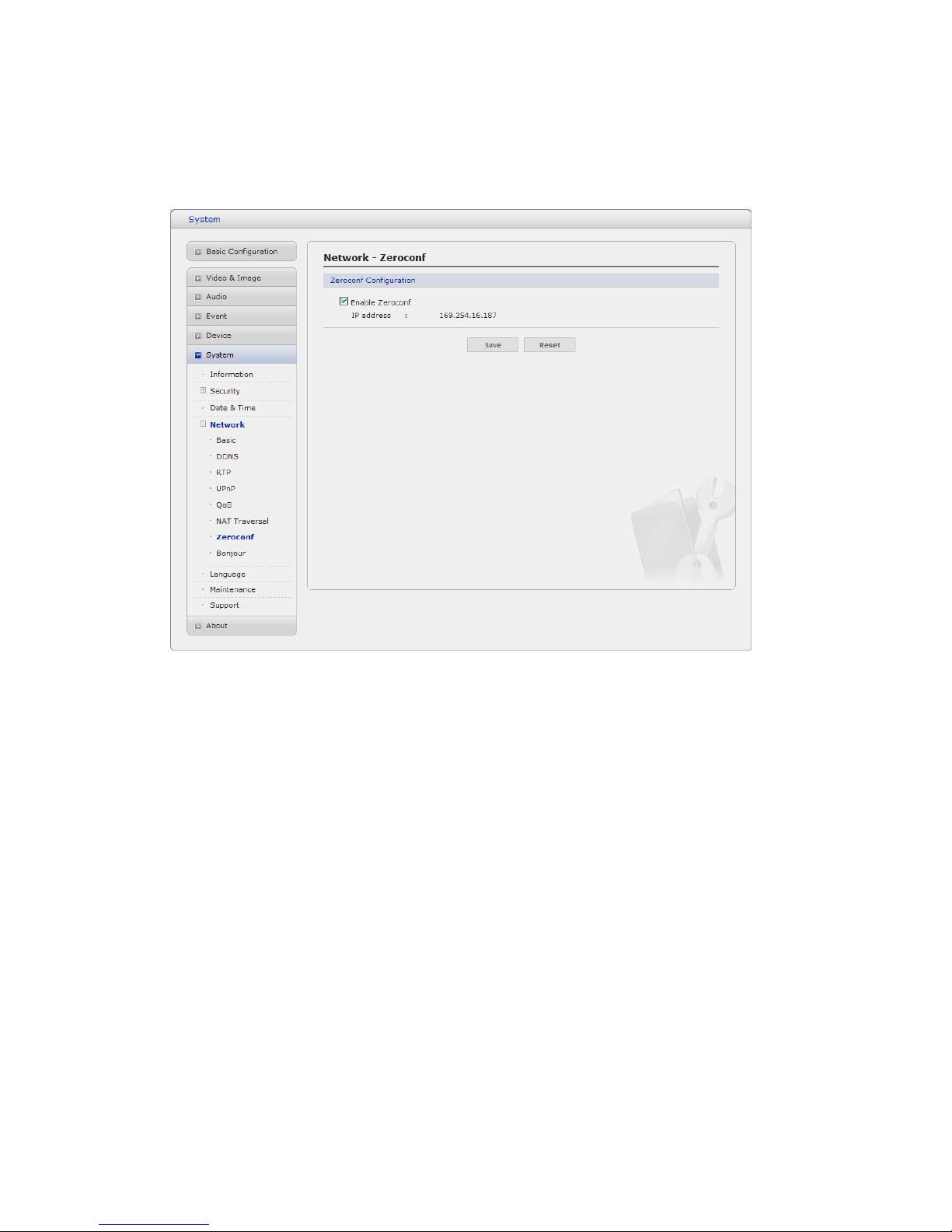

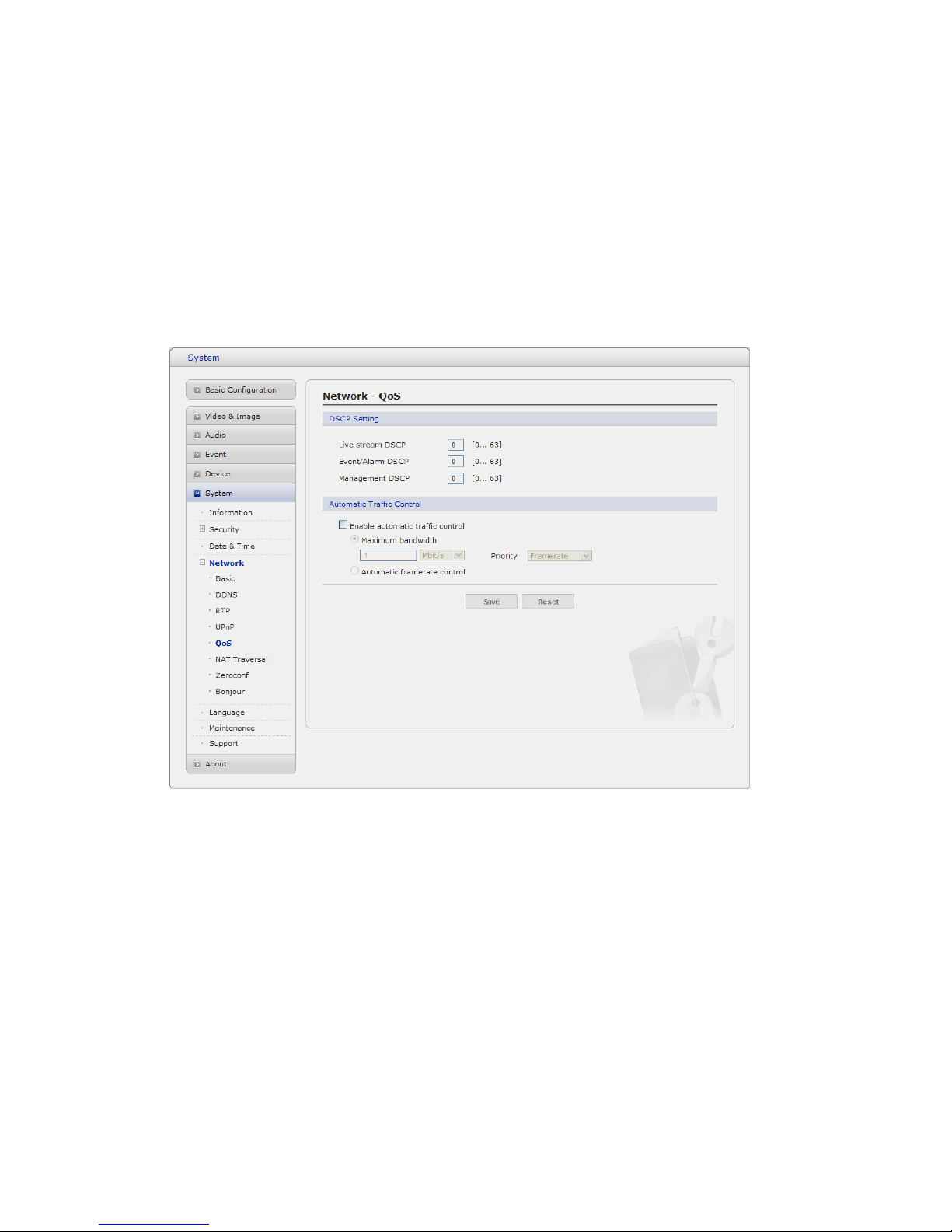

4) Network --------------------------------------------------------------------------------------- 56

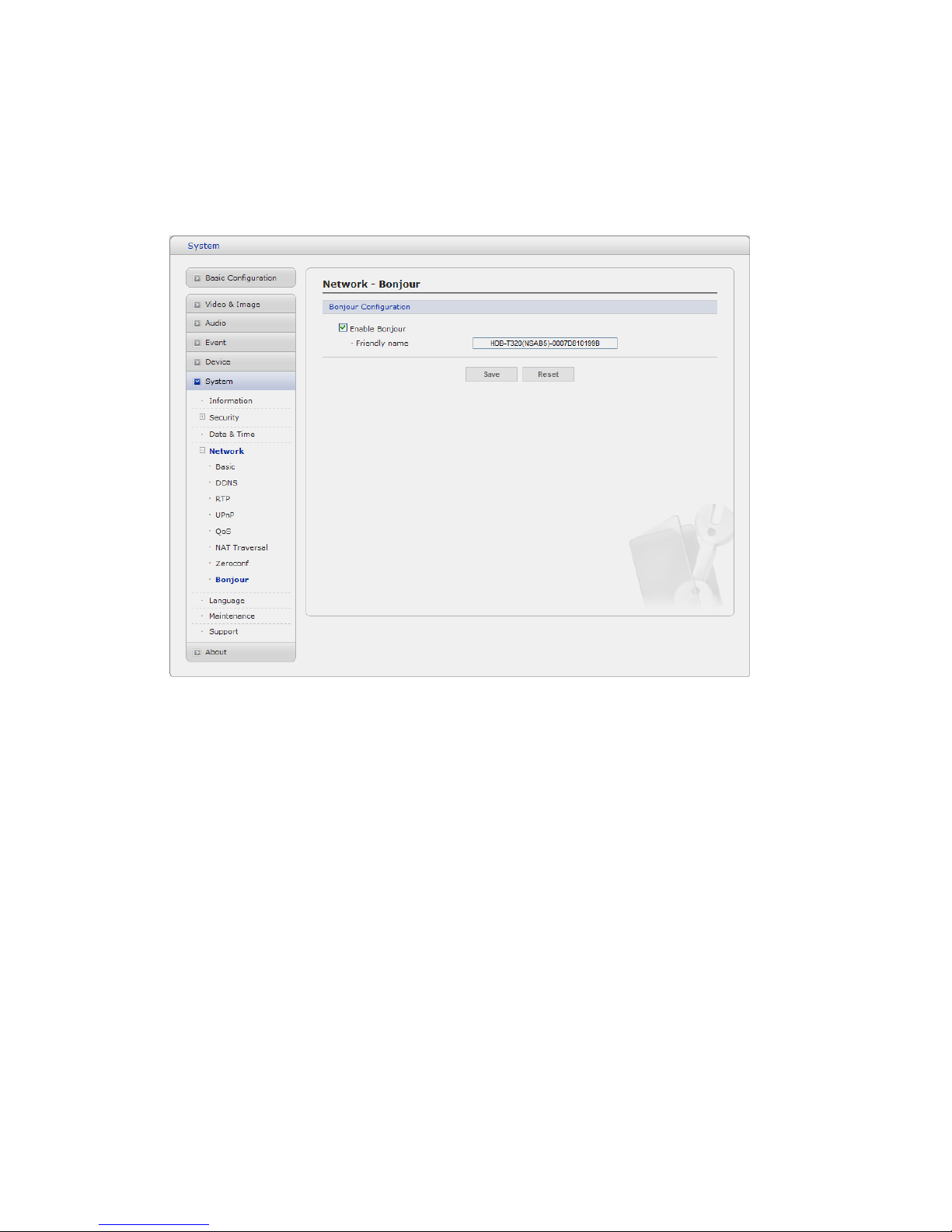

5) Language -------------------------------------------------------------------------------------- 65

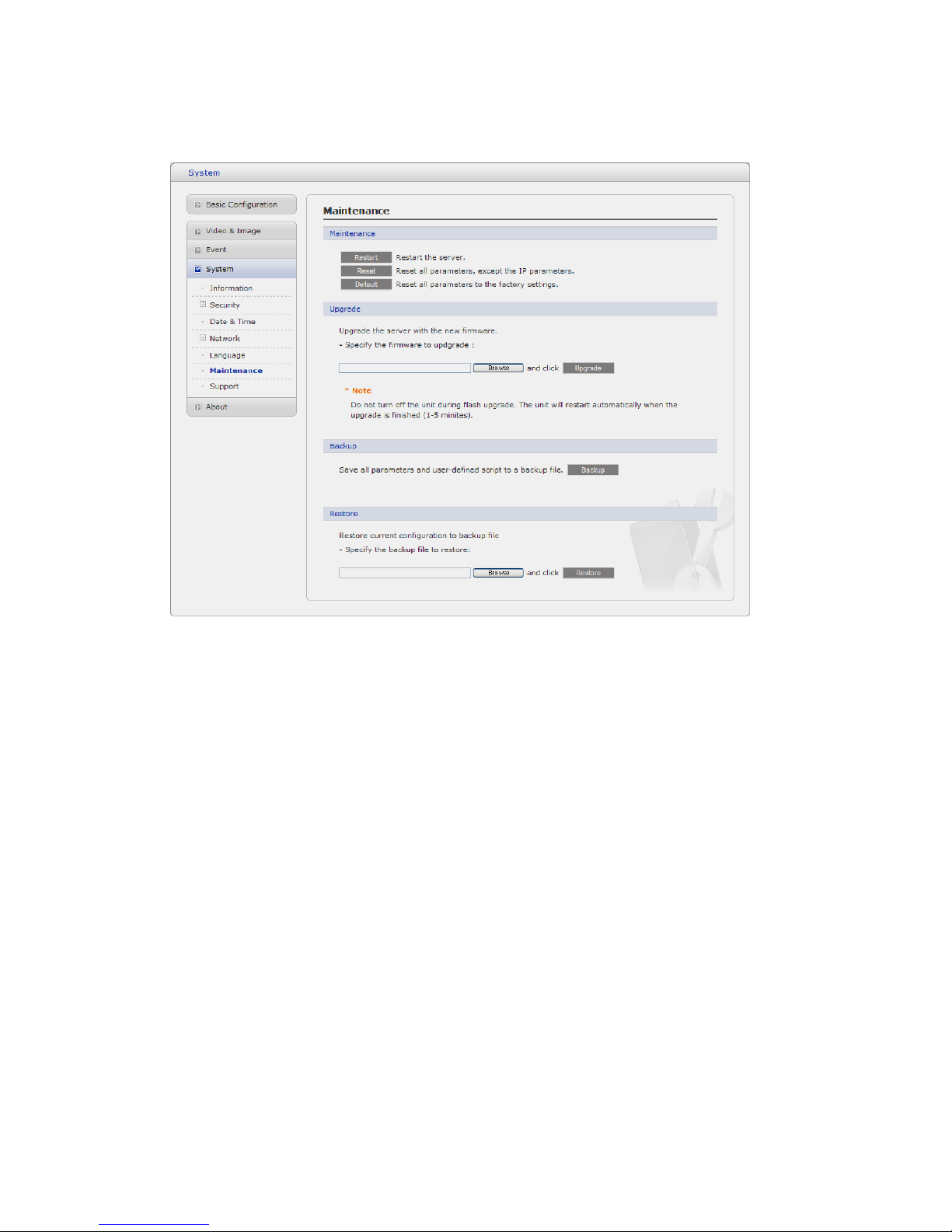

6) Maintenance ---------------------------------------------------------------------------------- 66

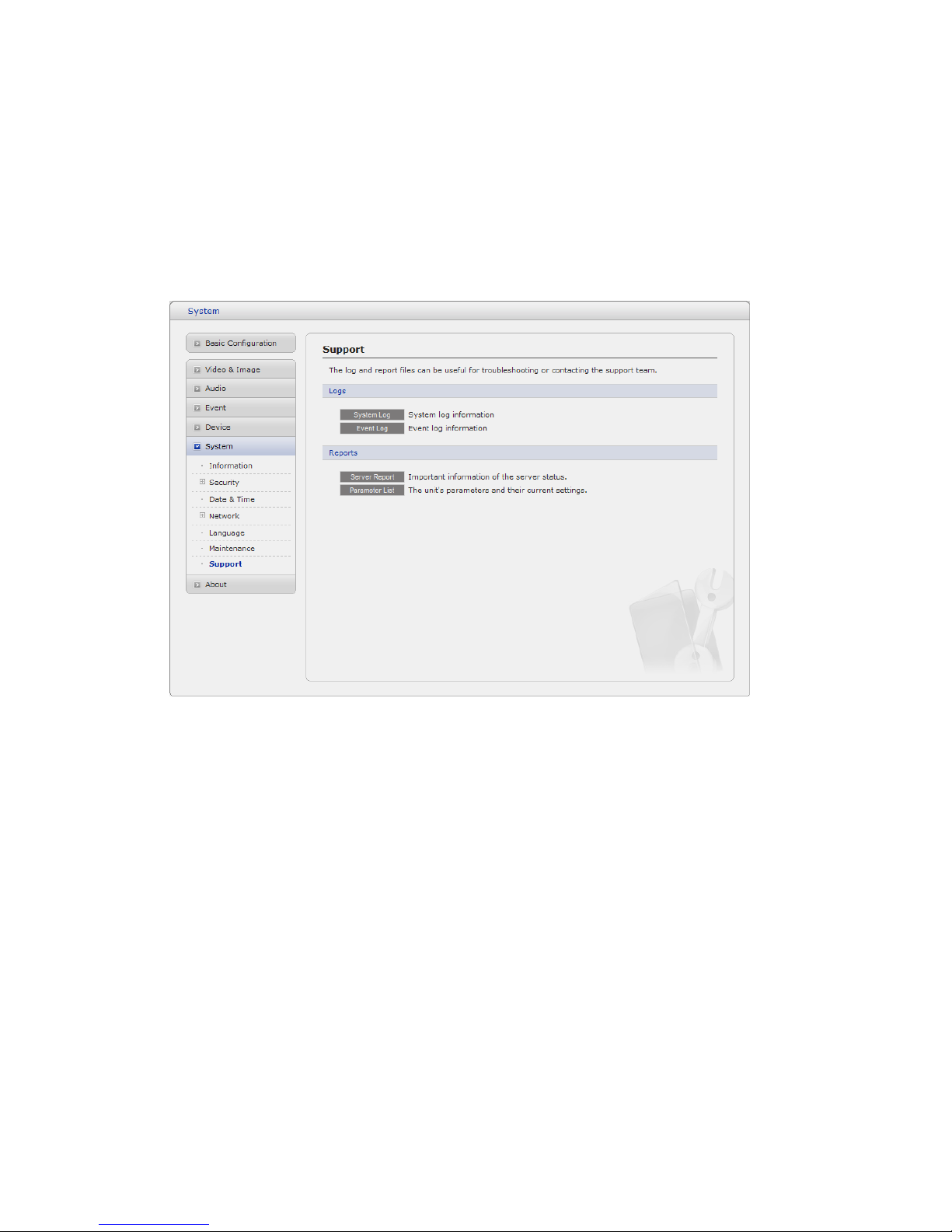

7) Support ---------------------------------------------------------------------------------------- 67

3.5.7 About ----------------------------------------------------------------------------------------------- 67

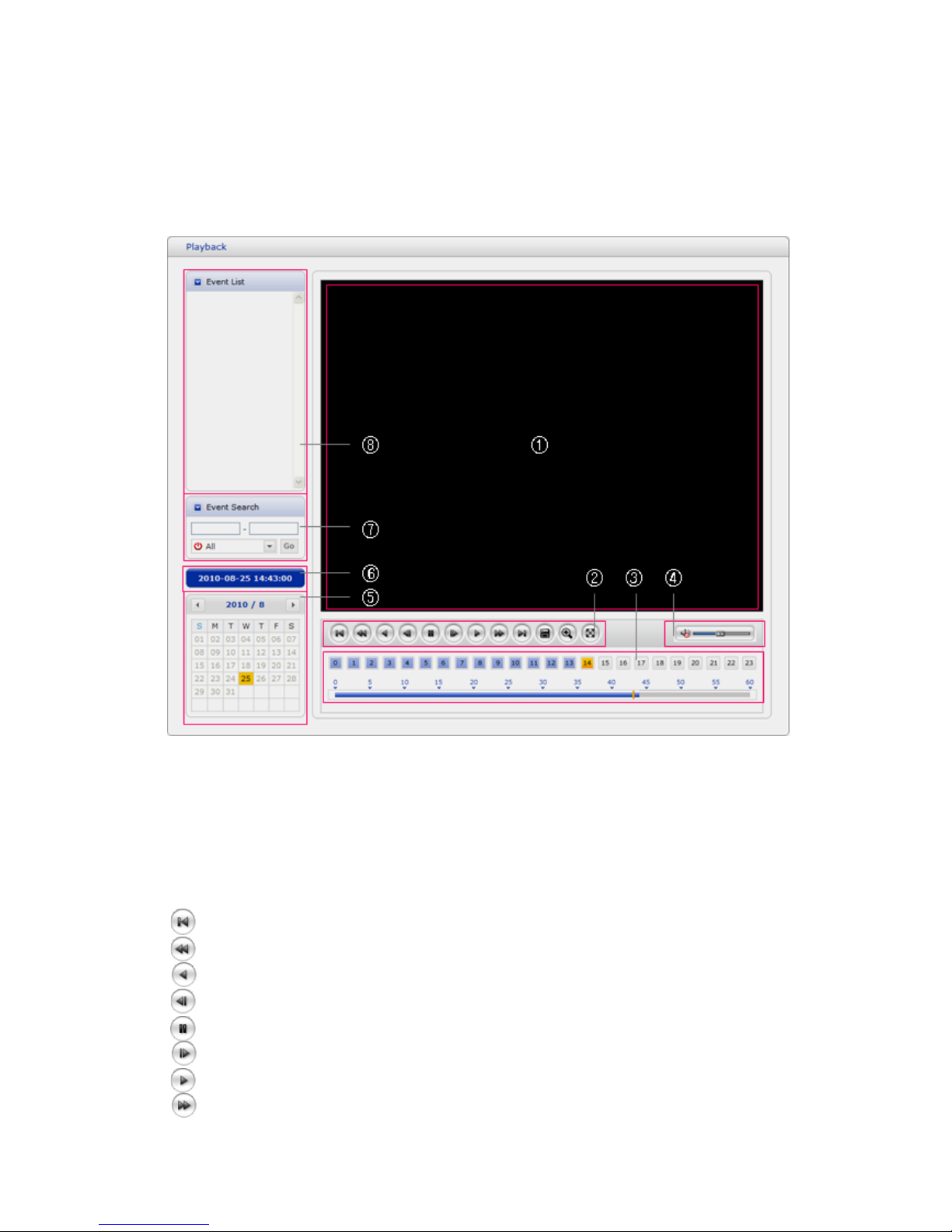

3.6 Playback----------------------------------------------------------------------------------------------------68

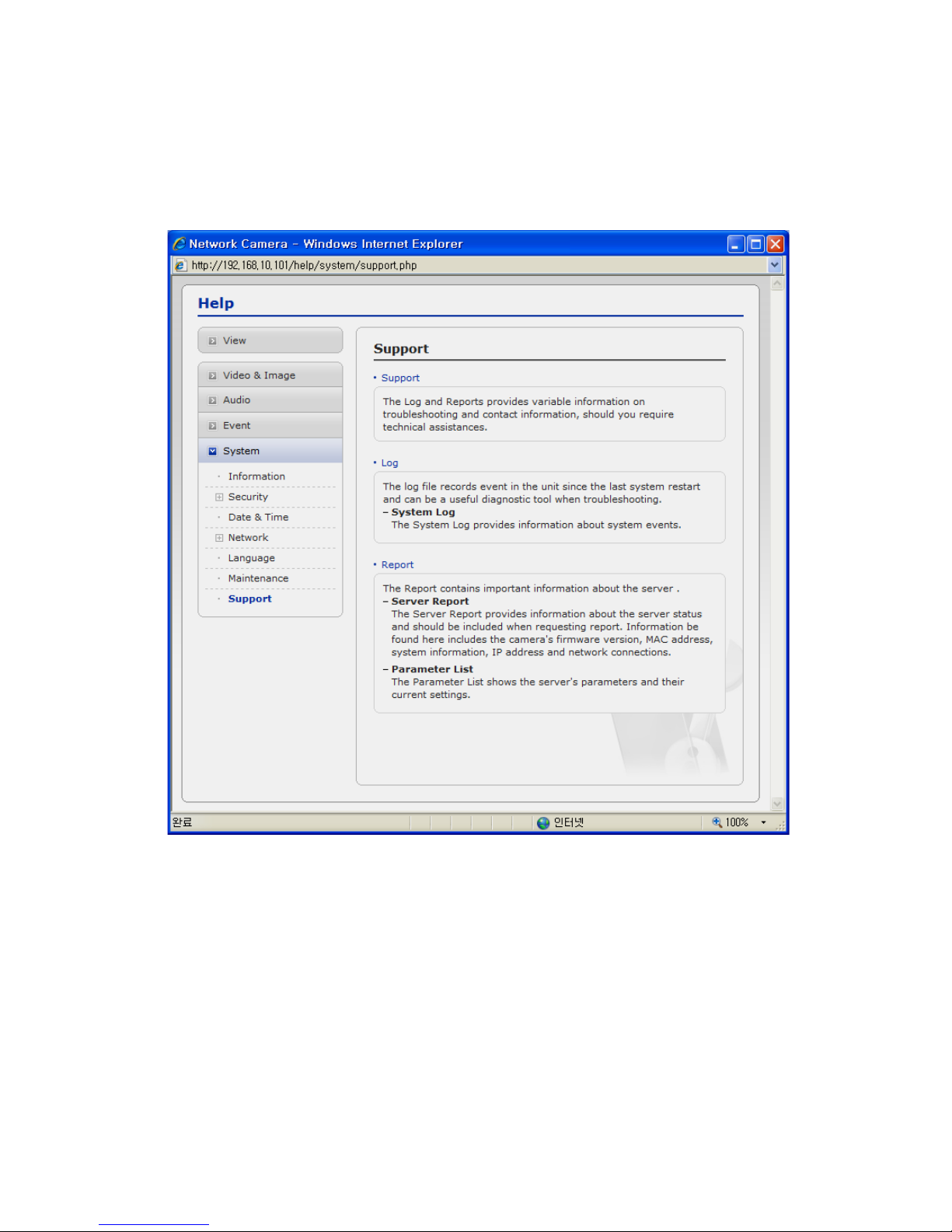

3.7 Help ------------------------------------------------------------------------------------------------------- 70

3.8 Resetting to the factory default settings -------------------------------------------------------------- 71

6

4. Appendix -------------------------------------------------------------------- 72

4.1 Tro ubles hoot ing ------------------------------------------------------------------------------------------- 72

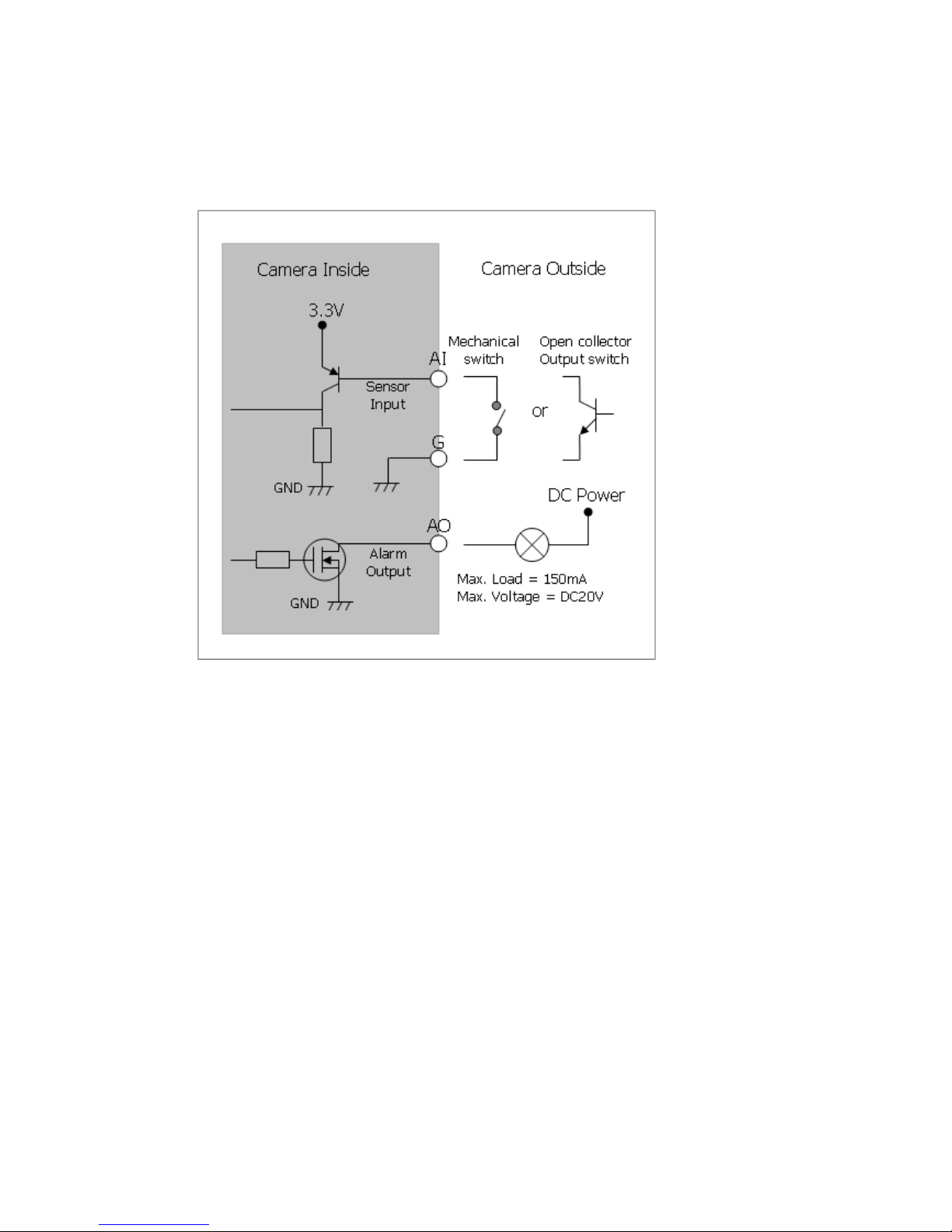

4.2 Alarm Connection ----------------------------------------------------------------------------------------- 73

4.3 Preventive Mainte nance --------------------------------------------------------------------------------- 73

4.4 Product Speci ficati o n ------------------------------------------------------------------------------------ 74

7

1. Description

This manual applies to the CDIH200 network camera.

The Network Camera supports the network service for a sensor image with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to have an access to the Network Camera at once or a single user can
monitor various network cameras at the same time. It also enables users to play, store and retrieve a
monitoring image by using a PC. All the settings and real-tim e monitoring screens are also provided
through an access to the web.

The Network Camera is fully featured for security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices, such as, door
sensors and alarm bells.

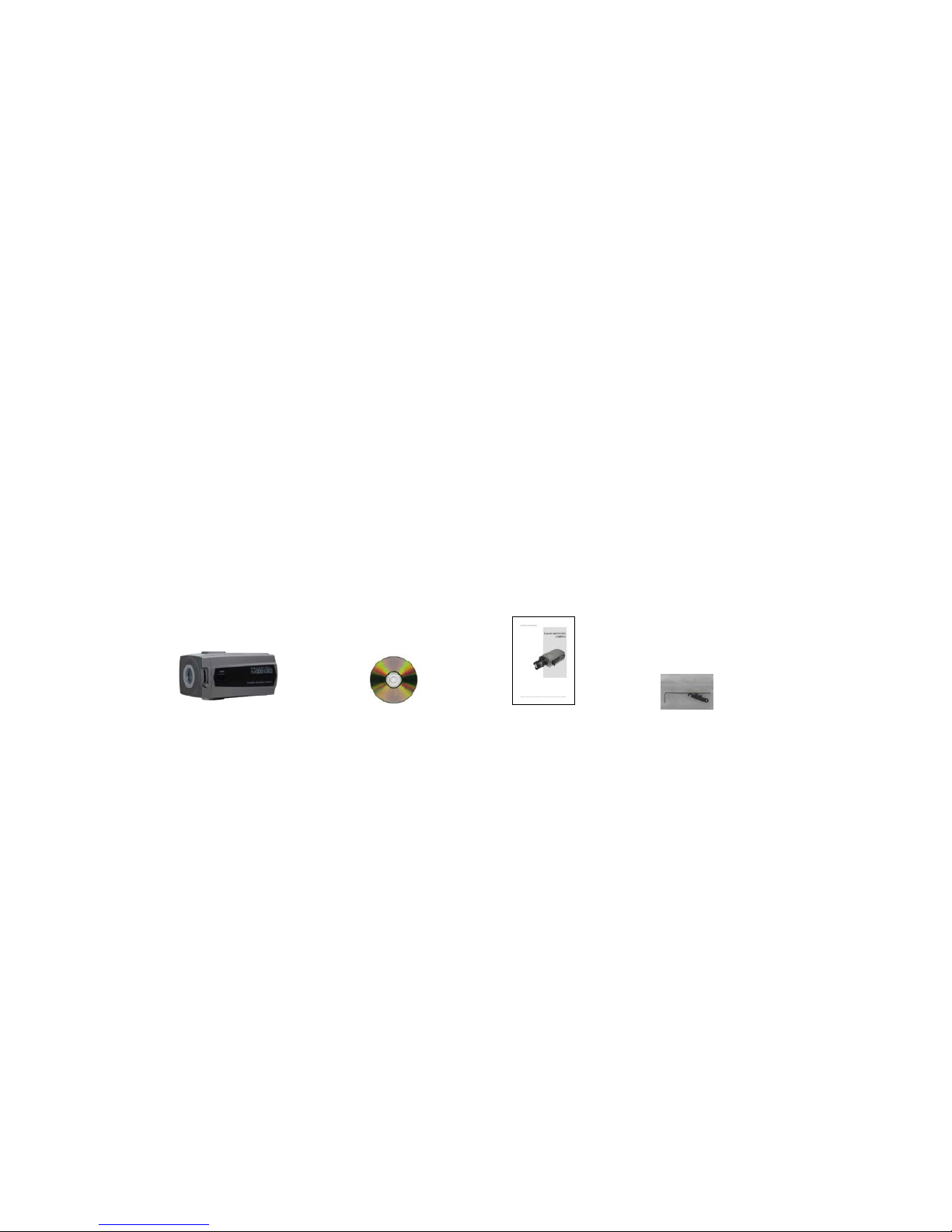

1.1 Components

The system comes with the following components:

Network Camera unit Installation CD Installation Guide Accessory Kit

NOTE: Check your package to make sure that you received the complete system, including all
components shown above.

8

1.2 Key Features

• Brilliant video quality

The Network Camera offers the highly efficient H.264 video compression, which drastically
reduces bandwidth and storage requirements without compromising image qua lity. Motion JPEG
is also supported for increased flexibility.

• Dual or Triple streams

The Network Camera can deliver dual or triple video streams simultaneously at full frame rate in
all resolutions up to Full-HD(1920 x 1080p) using Motion JPEG and H.264 (or MPEG-4). This
means that several video streams can be configured with different compression formats,
resolutions and frame rates for different needs.

• Image setting adjustment

The Network Camera also enables users to adjust image settings such as contrast, brightness
and saturation to improve images before encoding takes place.

• Intelligent video capabilities

The Network Camera includes intelligent capabilities such as enhanced video motion detection.
The network camera’s external inputs and outputs can be connected to devices such as sensors
and relays, enabling the system to react to alarms and activate lights or open/close doors.

• Resolution

CDIH200, 2 Megapixel, 30fps@1920x1080

• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with removable

storage.

• Audio support

The Network Camera also supports two-way audio.

• Improved Security

The Network Camera logs all user access, and lists currently connected users. Also, its full frame
rate video can be provided over HTTPS.

• ONVIF

This is a global interface standard that makes it ea sier for end users, integrators, consultants,
and manufacturers to take advantage of the possibiliti es offered by network video technology.
ONVIF enables interoperability between different vendor products, increased flexibility, reduced
cost, and future-proof systems.

1.3 Overview

9

• Front View

NO

Function

1

Back-focus adjusting locking
screw

2

Auto IRIS lens connector

• Rear View

NO Function Description

1

Power Adaptor Terminal

Main Power, 2pin terminal, DC12V/AC24V 330mA(4.0W)

2

Power Indicator(Green)

Indicates power inp ut.

Status Indicator(Red)

Indicates camera status.

3

Audio Input

Audio Input Stereo Jack

Audio Output

Audio Output Stereo Jack

4

Network Connector
(PoE)

RJ-45 port compatible with 10/100Mbps having PoE functionality.

5

Video Switch Selects Video On/Off.

Set to On to output a video signal.

6 Video Output

Connects the video output. This BNC connector provides a

1.0Vp-p/75 ohms composite video signal.

7 Micro SD Card Slot

Card Slot for Micro SD. Open the protection cover with a
supported tool to insert Micro SD card.

8

3pin Terminal IO

Connects alarm In/Out.

2pin RS485 Terminal

Connects PT device.

9

Reset Button

Executes the factory default.

Note: Video Output is used for an easy zoom and focus control when installing lens. After lens
installation, you must set Video Switch to Off to provide the best performance of the
Network Camera.

10

• LED Indicators

LED

Color

Indication

Network

Green

Steady for connection to a 100 Mbit/s network. Flashes for
network activity.

Amber

Steady for connection to 10 Mbit/s network. Flashes for
network activity.

Unlit

No network connection.

Status Red

Steady red for failed upgrade or booting.

Power

Green

Steady green for normal oper ation or booting.

Flashes green during firmware upgrade.

Note: Steady g reen and red during boot ing. Flash green and red during factory default.

1.4 Camera Adjustment

1) Video auto IRIS installation & adjustment

The camera supports video-type auto iris lenses which adjust to changing light levels.
Perform the following steps to install and adjust a video-type auto iris lens.

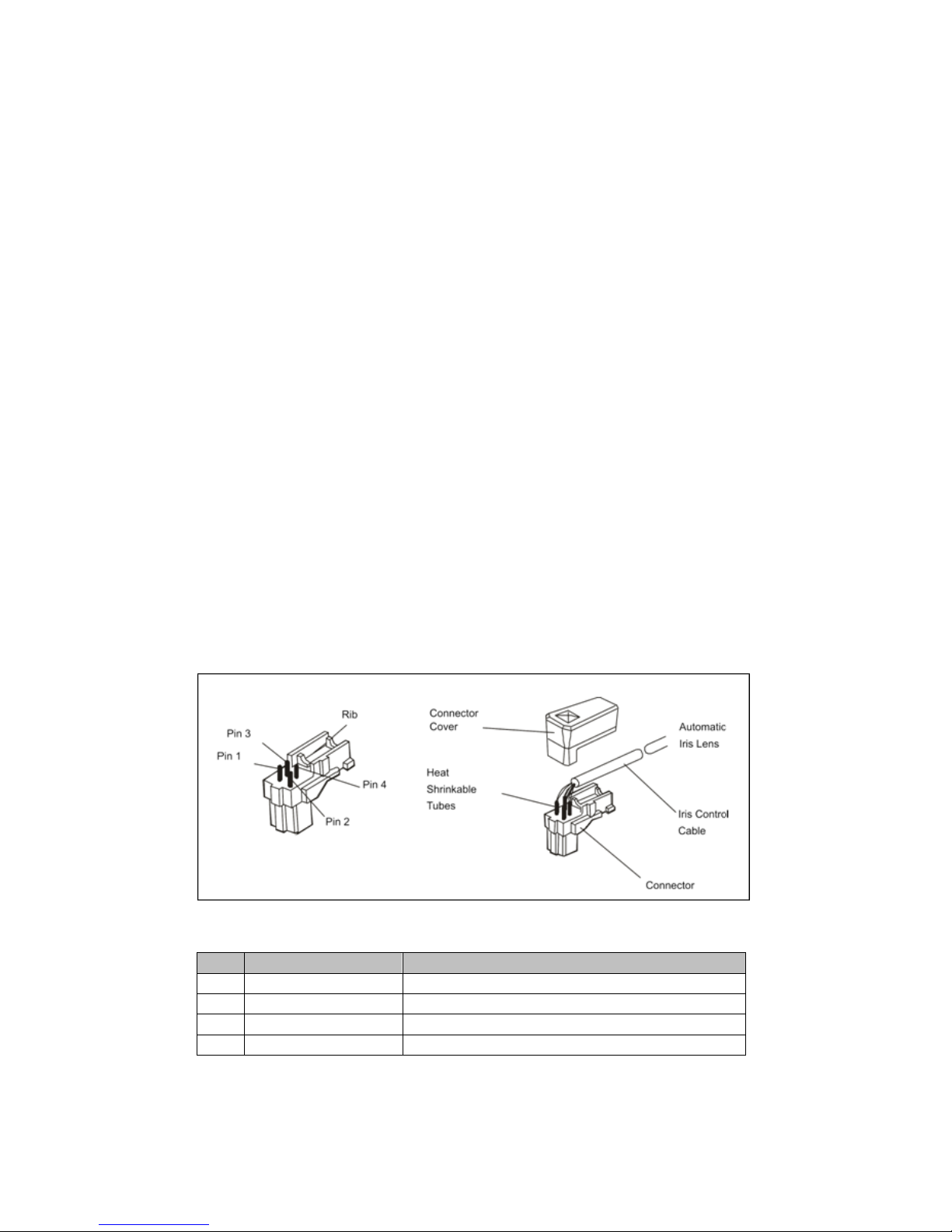

If necessary, solder the lens control wires to the connector supplied with the camera.

1. Attach the video-type auto iris lens to the lens mount on the front of the camera.

Pin Name Wire Color

1 Voltage + Red
2 Open ­3 Video White

4

Ground

Black

2. IMPORTANT: The minimum Plug the connector from the lens into the auto iris jack on the
back of the camera. The connector is polarized and can only be inserted into the jack one
way.

11

3. Apply power to the camera.

4. The OSD AE menu in the lens select should be in the “VI DEO”.

5. Adjust the focus ring on the lens for an optimum picture. If a picture is not visible, set the

lens for proper exposure by adjusting the ALC (Automatic Level Control) and the level on the
lens. The ALC setting can range between AVG (average) or PK (peak). A midrange setting is
appropriate for most applications.

For ALC adjustments: AVG To slow the reaction of the lens to changing light, set the
range to the AVG setting to average the video level from the camera. Use when there are
bright spots in the picture such as lights or glare from the sun.
PK To increase the speed of the lens reaction to the changing light, set the lens adjustment
to PK so the lens will adjust to the brightest or peak object in the video. Use this setting if
you want to see the brightest object and not the background objects.

For Level adjustments: Adjust the level control for the best picture during the day. A
night adjustment ma y not provide the proper setting for controlling the light during the day.

6. Set the back focus of the camera before the final adjustment of the video level.

7. If the auto iris has a gain adjustment and the picture oscillates between open and closed

under bright lights, slowly turn the gain adjustment counter clockwise until the oscillating
stops. Increase the light getting to the camera by adjusting the level control and r e­adjusting the gain control.

2) DC auto IRIS lens installation & adjustment

1. Solder the lens cont rol wires to the connector supplied with the camera.

Pin Name Wire Color

1 Damp Coil - Blue

2

Damp Coil +

Red

3 Drive Coil + White
4 Drive Coil - Green

2. Attach the DC-type auto iris lens to the lens mount on the front of the camera.

12

3. Plug the connector into the auto iris jack on the side of the camera. The connector is
polarized and can only insert into the jack one way.

4. Apply power to the camera.

3) Manual IRIS lens adjustment

When using a manual iris lens, turn the iris ring on the le ns to the O PEN position and adjust the
manual iris for the appropriate range. Adjust during the brightest conditions, opening the lens to
the minimum f-stop yielding a good picture under the brightest scene conditions. Do not saturate
the picture.
The manual iris is used in indoor applications where lighting from window s can considerably
affect the light level of the room.

4) Back Focus adjustment

For best results, perform back focus adjustments at night or while using a #6 or #8 welder's
glass in front of the lens. The focus of the camera will change slightly if the camera iris was
adjusted on a light scene, then changes to a dark scene. However, the camera will remain in
focus if the iris was focused on a dark scene and the scene lightens.

1. The lens should be mounted on the camera before applying power.

2. If a picture is visible, focus on the picture. If the picture is not visible, open the iris on the

lens. Open the lens as wide as possible by placing the welder's glass in front of the lens and
forcing the lens to automatically open.

3. When the iris is open to the widest point, re-adjust the focus for clear picture. If a clear

picture is not possible, set the focus ring to midrange.

4. Loosen the b ack focus lock screw.

5. Adjust the back focus ring for a clear picture.

6. Tighten the back focus lock screw.

7. Fine tune the focus with the focus ring on the lens.

13

8. Remove the welder's glass from in front of the lens.

9. Adjust the iris of the lens for the best picture quality.

5) Zoom lens back focus adjustment

The objective of back focusing a zoom lens is similar to that of a fixed focal length camera except
the back focus is also adjusted to maintain the focus when "zooming" the lens in and out on a
scene.

1. Choose an object at the farthest range set for viewing with a zoom lens.

2. Make sure the iris of the lens is wide open. Do this by adjusting the camera at night or use

a welders glass in front of the lens.

3. Adjust the focus to the stop on the far range.

4. Adjust the zoom on the lens to obtain the widest picture.

5. Loosen the back focus lock screw.

6. Adjust the back focus ring for the clearest picture.

7. Tighten the back focus lock screw.

8. Adjust the zoom on the lens to the far telephoto position.

9. Adjust the back focus ring for the clearest picture.

10. Adjust the zoom on the lens back to the widest picture.

11. Loosen the back focus screw.

12. Re-adjust the back focus for the clearest picture.

13. Tighten the back focus lock screw.

14. Repeat the previous steps as necessary to maintain a clear picture throughout the entire

zoom range.

2. Installation

14

2.1 Connection

• Connecting to the RJ-45

Connect a stand ard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection
to a hub.

• Connecting Alarms

AI(Alarm In) :
You can use external devices to signal the network camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) con necto rs .

G(Ground) :
Connect the ground side of the alarm input and/or alar m output to the G ( Ground) connector.
Alarm Out :

The network camera can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

• Connecting Video Ou tput

Video Output is used for an easy zoom and focus control when installing lens. Set Vi deo Switch to
On position to output the video signal. Video Output is restricted to VGA(640x480) resolution.

Caution: After lens installation, you must set Video Switch to Off position to provide the best
performance of the Network Camera.

• Connecting the Power

Connect the power of DC12V or AC24V 330mA for the network camera. Connect the positive(+)

pole to the ‘+’ position and the negative(-) po le to the ‘-‘ position for the DC power.

2.2 Network Connection and IP assignment

The Network Camera supports the operation through the network. When a camera is first connected
to the network it has no IP address. So, it is necessary t o allocate an IP address to the device with the
“Smart Manager” utility on the CD.

1. Connect the Network Camera / device to the network and power up.

2. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main

window will be displayed, after a short while any network devices connected to the network will
be displayed in the list.

15

3. Select the camera on the list and click right button of the mous e. You can see the pop-up menu

below.

4. Select Assign IP. You cam see a Assign IP window.

Enter the required IP address.

Note: For more information, refer to the Smart Manger User’s Manual.

3. Operation

16

The Network Camera can be used with Windows operating system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.

NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX
controls.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. E nter the IP address or host name of the Network Camera in the Location/Address field of your

browser.

3. You can see a starting page. Click Live View or Setup to enter web page.

4. The network camera’s Live View page appears in your browser.

3.2. Access from the internet

17

Access from the internet once connected, the Network Camera is accessible on your local network
(LAN). To access the network camera from the Internet you must co nfigure your broadb and router to
allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which
will attempt to automatically configure the router to a llow access to the network camera. This is
enabled from Setup > System > Network > NAT.

For more information, please see “3.5.6 System>Network>NAT” of User’s Manual.

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for the default administrator user must be set. This is
done in the “Admin Password” dialog, which is displayed w hen the network camera is accessed for the
setup at the first time. Enter your admin name and password, set by the administrator.

NOTE: The default administrator username and password is “admin”. If the password is lost, the
Network Camera must be reset to the factory default settings. See “3.8 Resetting to the Factory
Default Settings” for more details.

To prevent network eavesdropping when setting the admin p assword, this can be done via an
encrypted HTTPS connection, which requires an HTTPS certificate (see note below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown below.
To set the password via an encrypted HTTPS connection, see “3.5.6 System >Security>H TTP S”.

Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between
web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.

3.4 Live View Page

18

The live view page comes in eight screen modes: 1920x1080, 1280x1024, 1280x720, 720x480(576),
640x480, 352x240(288), and 320x240. Users are allowed to select the most suitable one out of those
modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.

1) General controls

Live View Page Search & Playback Page Setup Page Help Page

The video drop-down list allows you to select a customized or pre-programmed
video stream on the live view page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >
Video & Image” of User’s Manual.

The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on live view page.

The protocol drop-down list allows you to select which combination of
protocols and methods to use depends on your viewing requirements, and on the properties of
your network.

2) Control toolbar

19

The live viewer toolbar is available in the we b br owser page only. It displays the following
buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the
start and stop. The Start button connects to the network camera or start playing a
video stream.
The Pause button pause the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The digital zoom activates a zoom-in or zoom-out func tion for video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the event.

The PTZ button activates a pop-up window for Pan, Tilt and Zoom control.

Use this scale to control the volume of the speakers.
Use this scale to control the volume of the microphone.
Use this scale to control the volume of the speakers and microphones.

3) Video and Audio Streams

The network camera provides several images and video stream formats. Your requirements and
the properties of your network will determine the type you use.

The Live View page in network camera provides access to H.264, MPEG-4 and Motion JPEG video
streams, and to the list of available video streams. Other applications and clients can also access
these video streams/images directly, without going via the Live View page.

3.5 Network Camera Setup

20

This section describes how to configure the network camera, and is intended for product
Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access
to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.

You can configure the network camera by clicking Se tup in the top right-hand corner of the Live View
page. Click on this page to access the online help that explains the setup tools

When accessing the Network Camera for the first
time, the “Admin Password” dialog appears.
Enter your admin name and password, set by the
administrator.

Note: If the password is lost, the Network
Camera must be reset to the factory default
settings. See “3.8 Resetting to the Factory
Default Settings”.

3.5.1 Basic Configuration

You can see the device information in this information page.

1) Users

21

User access control is enabled by default. An administrator can set up other users, by giving these
user names and passwords. It is also possible to allow anonymous viewer login, which means that
anybody may access the Live View page, as described below:

The user list displays the authorized users and user groups (levels):

User Group

Authority

Guest

Provides the lowest level of access, which only allows access to the

Live View page.

Operator

An operator can view the Live View page, create and modify

events, and adjust certain other settings. Operators have no access

to System Options.

Administrator

An administrator has unrestricted access to the Setup tools and can

determine the registration of all other users.

• Enable anonymous viewer login: Check the box to use the webcasting features. Refer to

“3.5.2 Video & Image” for more details.

2) Network

22

The network camera supports both IP version 4 and IP version 6. Both versions may be enabled
simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for
the network camera can be set automatically via DHCP, or a static IP address can be set manually.
If IPv6 is enabled, the network camera receive an IP address according to the configuration in the
network router. There is also the op tion of using the Internet Dynamic DNS Service. For more
information on setting the Network, please see Setup> System>Security>Network.

• Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol
that lets net work administrators centrally manage and automate the assignment of IP
addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly
used to set an IP ad d r ess dynamically, it is also possible to use it to set a static, known IP
address for a pa r ticular MAC address.

• Use the following IP address - To use a static IP address for the Network Camera,
check the radio button and then make the following settings:

- IP address - Specify a unique I P address for your Network Camera.

- Subnet mask - Specify the mask for the subnet the Network Camera is located on.

- Default router - Specify the IP address of the default router (gateway) used for
connecting devices attached to different networks and network segments.

Notes:

1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP server can

update a DNS server, which then allows you to access the Network Camera by name (host name).
If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory
default settings and then perform the installation again.

2. The ARP/Ping service is automatically disabled two m inutes after the unit is started, or
as soon as an IP ad d r ess is set.

3. Pinging the unit is still possible when this service is disabled.

3) Video & Image

23

• Stream1 Setting

- Codec:
The codec settings are separated into MPEG4 and H.264.

H.264 is a

lso known as MPEG-4 Part 10. This is the new generation compression standard for digital
video. This function offers higher v ide o res oluti on tha n Mot ion JPEG or MPEG-4 at the same bit rate and
bandwidth, or the same quality video at a lower bit rate.

There are 4 pre-programmed stream profiles available for quick set-up. Choose the form of
video encoding you wish to use from the drop-down list:

* H.264 HP(High Profile): The primary profile for broadca st and disc storage applications,

particularly for high-definition television applications (for example, this is the profile adopted
by the Blu-ray Dis c storage format and the DVB HDTV broa dcast service).

* H.264 MP(Main Profile):

Primarily for low-cost applications that requires additional e r r or robustness, this profile is
used rarely in videoconferencing and mobile applications, it does add additional error
resilience tools to the Constrained Baseline Profile. The importance of this profile is fading
after the Constrained Baseline Profile has been defined.

* H.264 BP(Baseline Profile):

Originally intended as the mainstream consumer profile for broadcast and storage
applications, the importance of this profile faded when the High profile was developed for
those applications.

* MPEG4 SP(Simple Profile):

24

Mostly aimed for use in situations where low bit rate and low resolution are mandated by
other conditions of the applications, like network bandwidth, device size etc.

- Resolution:

It enables users to determine a basic screen size when having an access through the Web
Browser or PC program. The screen size control comes in seven modes like 1920x1080,
1280x1024, 1280x720, 704x480(576), 640x480, 352x240(288), and 320x240. Users can
reset the selected screen size anytime while monitoring the screen on a real-time basis.

- Bitrate control:

The bit rate can be set as Variable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts
the bit rate according to the image complexity, using up bandwidth for increased activity in
the image, and less for lower activity in the monitored area.

CBR allows you to set a fixed target bitrate t ha t consumes a predictable amount of
bandwidth. As the bit rate would usually need to increase for increased image activity, but in
this case cannot, the frame rate and image quality are affected negatively. To partly
compensate for this, it is possible to prioritize either the frame rate or the image quality
whenever the bit rate needs to be increased. Not setting a priority means the frame rate and
image quality are equally affected.

- Bitrate:

When it is necessary to adjust a smooth transmission status according to network situat ions,

users can increase the compressibility to carry out the network transmission stably. On the
other hand, when it is necessary to maintain a detailed monitoring screen by en hancing the
image quality, users can do so by decreasing the compressibility. In ease case, please adjust
this function according to the network status and monitoring purposes. The default is
2000(Kbps).

- Frame rate:

Upon the real-time play, users should select a frame refresh rate per second. If the rate is
high, the image will become smooth. On the other hand, if the rate is low, the image will not
be natural but it can reduce a network load.

- GOP size:

Select the GOP(Group of Picture) size. If users want to have a high quality of fast image one
by one, please decrease the value. For the purpose of general monitoring, please do not
change a basic value. Such act may cause a problem to the system performance. For the
details of GOP setting, please contact the service center.

• Stream2 Setting

Sometimes the image size is large due to low light or complex scenery. Adjusting the frame rate
and quality helps to control the bandwidth and storage used by the Motion JPEG vid eo stream in
these situations. Limiting the frame rate and quality optimizes bandwidth and storage usage, but
may give poor image quality. To prevent increased bandwidth and storage usage, the Resolution,
Frame rate, and Frame Quality should be set to an optimal value.

- JPEG resolution: Same as the Stream1 Setting.

- JPEG frame rate: Same as the Stream1 Setting.

- JPEG quality:

25

Select the picture quality. If users want to have a high quality of fast image one by one,
please decrease the value. For the purpose of general monitoring, please do not change a
basic value. Such act may cause a problem to the system performance.

• Stream3 Setting

Same as the Stream1 Setting. Click the checkbox to activate the 3

rd

stream.

When satisfied with the settings, click Save, or cli ck Reset to revert to previously saved settings.

4) Audio

The Network Camera can transmit audio to other clients using an external microphone and can play
audio received from other clients by attaching a speaker. The Setup page has an additional menu item
called Audio, which allows different audio configurations, such as, full duplex, and simplex.

• Audio Setting

- Enable audio:
Check the box to enable audio in the video stream.

- Compression type:
Select the desired audio Compression format, G711.

- Sample rate:

Select the required Sample rate (number of times per second the sound is sampled). The
higher the sample rate, the better the audio quality and the greater the bandwidth required.

- Sound bitrate:

26

Depending on the selected encoding, set the desired audio quality (bitrate). The settings
affect the available bandwidth and the required audio quality.

• Audio Input

Audio from an external line source can be connected to the terminal I/O of the network camera.

- Input volume:
If there are problems with the sound input being too low or high, it is possible to adjust the
input gain for the microphone attached to the network camera.

• Audio Output

- Enable full duplex:
Check the box to enable Full Duplex mode. I t means that you can transmit and receive audio
(talk and listen) at the same time, without having to use any of the controls. This is just like
having a telephone conversation.

This mode requires that the client PC has a so und card with suppo rt for full-duplex aud io.

Uncheck the box enable Simplex mode. The simplex mode only transmits audio from the
network camera to any web client. It does not receive audio from other web clients.

- Output volume:
If the sound from the speaker is too low or high it is possible to a d just the output gain for
the active speaker attached to the network camera.

When satisfied with the settings, click Save, or click Reset to revert to previously saved settings.

5) Date & Time

27

• Current Server Time

It displays the current date and time (24h clock). The time can be displayed in 12h clock format
in the overlay (see below).

• New Server Time

Select your time zone from the drop-down list. If you want the server clock to automatically
adjust for daylight savings time, select the “Automa tically adjustment for daylight saving time
changes”.

From the Time Mode section, select the preferred method to use for setting the time:

- Synchronize with computer time: sets the time from the clock on your computer.

- Synchronize with NTP Server: the network camera will obtain the time from an NTP

server every 60 minutes.

- Set manually: this option allows you to manually set the time and date.

3.5.2 Video & Image

28



Basic

Refer to “3.5.1 Basic Configuration > Video & Image” for more details.



Appearance

29

• Image Appearance

This page provides access to the advanced image settings for the network camera.

- Brightness: The image brightness can be adjusted in the range 1-10, where a higher value

produces a brighter image.

- Color level: Select an appropriate level by entering a value in the range 1-10. Lower values

mea n less color saturation.

- Saturation: Adjust the image' s contrast by raising or lowering the value in this field.

- Sharpness: Controls the amount of sharpening applied to the ima ge. A sharper image

might increase image noise especially in low light conditions. A lower setting reduces image
noise, but the im age would be less sharp.

- Enable flip image: Check this box to flip the image.

- Enable mirror image: Check this box to mirror the image.

 AE & AWB

30

This page provides access to set the exposure and white balance of the network camera.

• Exposure Control

Configure the exposure settings to suit the image quality requirements in relation to lighting
consideration.

- Mode: Supports exposure modes to control the amount of light detected by the camera

sensor based on settings for light conditions. The default setting is Auto with DC-IRIS.
* Automatic: Automatically sets the amount of light detected by the DC-IRIS and AGC.
* Hold Curren t: Fixes the exposure at its current state.

- Value: Select a value in the dro p-down list to tune the exposure. The default setting is 3.

- Enable automatic IRIS adjustment: This checkbox should always be set to be checked,

except during focusing, or when using a fixed iris lens.

- Flicker Mode - Provides the options for flicker.

* 50Hz: Select at 50 Hz environments.
* 60Hz: Select at 60 Hz environments.

• White Balance Control

31

This adjusts the relat ive amount of red, green and blue p rimary colors in the imag e so that the
neutral colors are reproduced correctly. The camera can be set to automatically adjust for the
type of light and compensate for its color. Alternatively, the type of light source can be set
manually.

From the drop-down list , select the white balance setting s uitable for the lighting used for your
camera. The available options are:

- Automatic: Automat ic identifi cation and compensation for the light source color. This can be
used in most situations and is the recommended setting.

- Fixed Incan desc ent: Fixed color adjustment, ideal for a room with incandescent (a glow)
lighting and good for a normal color temperature around 2600K.

- Fixed Fluorescent: Fixed color a djustment; good for fluorescent lighting with a color
temperature around 4000K to 5000K.

- Fixed Outdoor: Fixed color adjustment for sunny, with a color temperature around 6500K to
7500K.

 Day & Night

Select the day/night mode from among three modes.

- Automatic: Normally works in day mode. It switches automatically to night mode in a da r k pla ce .

- Day: Always works in day mode.

- Night: Always works in night mode.

 Privacy Masking

32

The privacy masking function allows you to mask parts of the video image to be transmitted. You can
set up to eight privacy masks and the color of privacy masks is black.

The privacy masks are configured by Mask windows. Each window can be selected by clicking with the
mouse. It is also possible to resize or delete, or move the window, by selecting the appropriate
window at the mouse menu on the video screen.

To create a mask window, follow steps:

1. Click the right button of mouse to see the mouse menu.

2. Select New Privacy Mask in the mouse menu.

3. Click and drag mouse to designate a mask window area.

You can also modify or delete a mask window index. Select an index and then, modify items or delete
button. Select “Enable” to act ivate the privacy masking function.



Webcasting

33

The network camera can stream live video to a website. Copy the HTML code generated on the screen
and pastes it in page code of the website you want to display live video.

Note: To use webcasting service, the Enable Anonymous viewer login option must be checked. Refer
to “3.5.1 Basic Configuration > Users” for more details.

3.5.3 Audio

34

Refer to “3.5.1 Basic Configuration > Audio” for more details.

3.5.4 Event

35

1) Event-In



On Boot

This is used to trigger the event every time the Network Camera is started. Select “Enable” to activate
the motion event.

 Alarm In

36

Select “Enable” to activate the alarm event. The network camera supports 1 alarm input port.

- Type: Choose the type of alarm you wish to use from the drop-down list.

- Dwell Time: Set the dwell time of an event lasts for the specified dwell time from the point of
detection of an alarm input.

 Manual Trigger

37

This option makes use of the manual trigger button provided on the live view page, which are used to
start or stop the event type manually. Alternatively the event can be triggered via the product's API
(Application Programming Interface).

 Motion

38

Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video
image. A total of 8 Motion and/or Mask windows can be created and configured.

Motion is detected in defined Motion windows, which are placed in the video image to target specific
areas. Movement in the areas outside the motion windows will be ignored. If part of a motion window
needs to be masked, this can be configured in a Mask window.

• Pre-Viewer

Motion detection windows are configured by Motion or Mask windows. Each window can be
selected by clicking with the mouse. It is also possible to resize or delet e, or move the window,
by selecting the appropriate window at the mouse menu on the video screen.

To create a motion or mask window, follow steps:

1. Click the right button of mouse to see the mouse menu.

2. Select New Motion (or Mask) Window i n the mouse menu.

3. Click and drag mouse to designate a motion area.

• Motion Detection Setting

39

The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described
below.

A motion index is a set of parameters describing Window Name, Type, Threshold, Sensitivity, and
Dwell Time. Window Types is one of Motion and Mask windows.

- Threshold: Sets up the threshold for the motion detection.

- Sensitivity: Sets up the sensitivity for the motion detection.

- Dwell Time: Set the hold time an event lasts for the specified hold time from the point of
detection of a motion.

You can also modify or delete a m otion index. Select an index and then, click the Modify or Delete
button.

Select “Enable” to activate the motion window.

 Network Loss

This is used to trigger the event every time the network connection is failed. Select “Enable” to
activate the Network Loss event.

2) Event-Out

40

 SMTP(E-Mail)

The Network Camera can be configured to send event and error email messages via SMTP (Simple
Mail Transfer Protocol).

• SMTP(E-Mail) Setting
Select “Enable” to activate the SMTP operation.

- Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your
mail server in the fields provided, to enable the sending of notifications and image email
messages from the camera to predefined addresses via SMTP.

- Sender: Enter the email add ress to be used as the sender for all messages sent by the
Network Camera.

- Interval: Represents the frequency o f the email notification when an event occur s.

- Aggregate events: Shows the maximum number of emails sent within each interval.

If your mail server requires authentication, check the box for Use authentication to log in to this
server and enter the necessary information.

- User Name/P a ss w ord: Enter the User Name and Password as provided by your network
administrator or ISP (Internet Service Provider).

To ensure that the login procedure is performed as securely as possible when using SMTP
authentication, you must define the weakest authentication method allowed.

41

- Login Method: Set the Weakest method allowed to the highest/safest method supported
by the mail server. The most secure method is listed in the drop-down list:
Login / Plain

• SMTP(E-Mail) Receiver

- Receiver: Enter an email address. You can also register the e-mail address of recipients up

to 8.

• SMTP(E-Mail) Test

- Receiver: Enter an email address and click the Test button to test that the mail servers are
functioning and that the email address is valid.

 FTP & JPEG

When the network camera detects an event, it can record and save images to an FTP server. Images
can be sent as e-mail attachments. Check the box to enable the service.

• FTP Setting

- Server: Enter the server's IP address or host name. Note that a DNS server must be
specified in the TCP/IP network settings if using a host name.

- Port: Enter the port number used by the FTP server. The default is 21.

- Use passive mode: Under normal circumstances the Network Camera simply requests the

target FTP server to open the data connection. Checking this box issues a PASV command to
the FTP server and establishes a passive FTP connection; whereby the Network Camera
actively initiates both the FTP control and data connec tions to the target server. This is
normally desirable if there is a firewall between the camera and the target FTP server.

- Remote directory: Specify the path to the directory where the uploaded images will be
stored. If this directory does not already exist on the FTP server, there will be an error
message when uploading.

- User name/Passw ord: Provide your log-in information.

42

• JPEG Setting

- Pre-event: A pre-event buffer contains images from the time immediately preceding the
event trigger. These are stored internally in the server. This buffer can be very useful when
checking to see wha t happened to cause the event trigger.
Check the box to enable the pre-trigger buffer, enter the desired total length in seconds,
minutes or hours, and specify the required image frequency.

- Post-event: This function is the counterpart to the pre-trigger buffer described above and
contains images from the time immediately after the trigger. Configure as for pre-event.

- Prefix file name: This name will be used for all the image files saved. If suffixes are also
used, the file name will take the form <prefix>.<suffix>.<extension>

- Additional suffix: Add either a date/time suffix or, a sequence number - with or without a
maximum value



HTTP Server

When the network camera detects an event, HTTP Server is used to receive uploaded image files
and/or notification messages. Check the box to enable the service.

• HTTP Server Setting

- Name: The name of the HTTP event server. Use a descriptive name.

- URL: The network address to the server and the script that will handle the request.

For example: http://192.168.12.244/cgi-bin/upload.cgi

- User name/Pass w ord: Provide your log-in information.

• HTTP Server Test

When the setup is complete, the connection can be tested by clicking the Test button.

43

 Alarm Out

When the network camera detects an event, it can control external equipment connected to its alarm
output port. Check the box to enable and the n select either:

- Enable: When you select “Enable alarm out”, the output will be activated for as long as the

event is active.

44

▼ Audio Alert

When the network camera detects an event, it can output a predefined audio data to external speaker.
Check the box to enable the service.

• Audio Alert Setting

To use the audio alert with the network camera, an audio data file made by user must be
uploaded from your PC. Provide the path to the file directly, or use the Browse button to locate it.
Then click the Upload button.

An audio file for Audio Alert can be made by Audio Recorder tool in the NC Titani u m software.

• Audio Alert Test

When t he setup is complete, the audio output can be tested by clicking the Test button.
To remove an audio file, select index and click the Remove button.

Note: For a proper operation of Audio Alert, you must enable “full duplex” in Audio setting page.

45

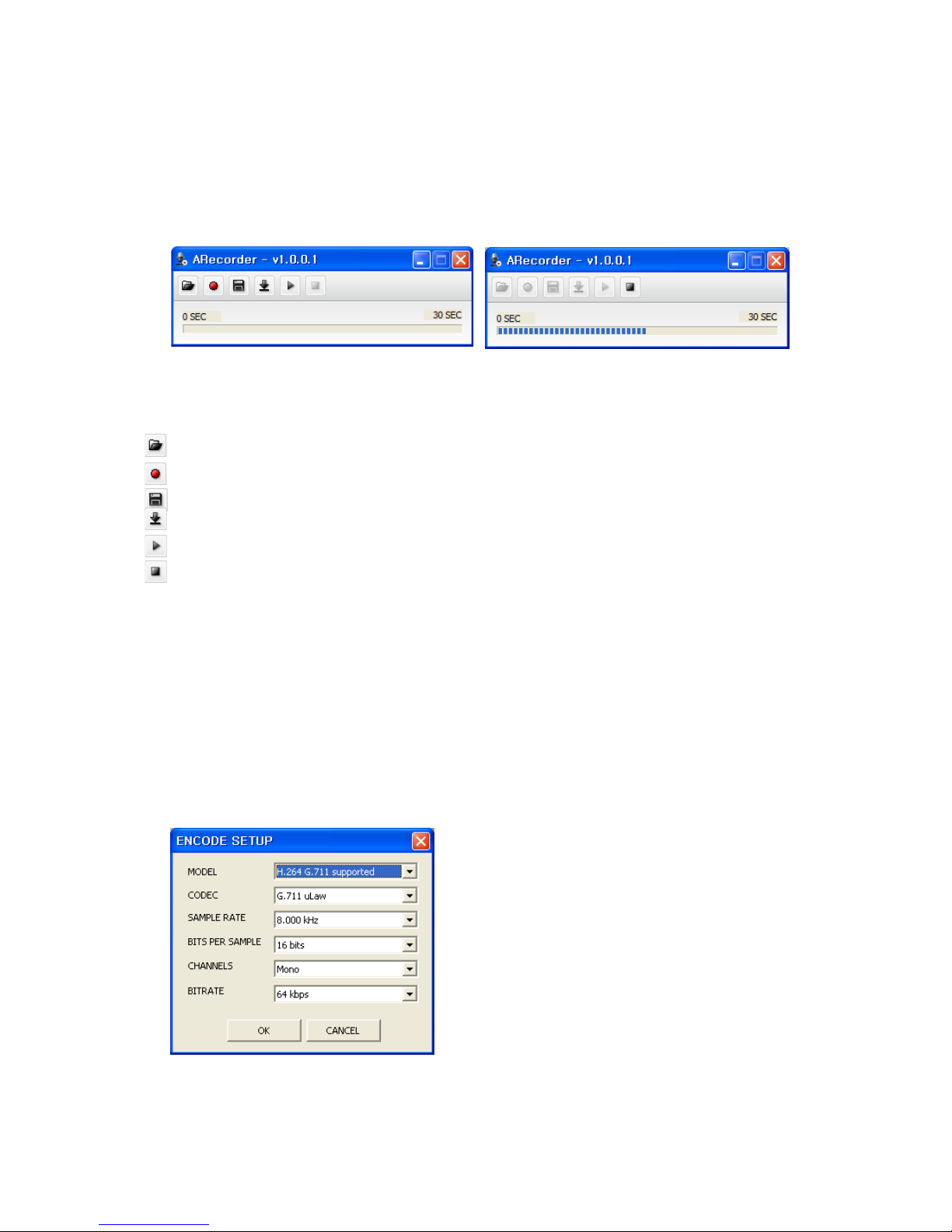

Audio Recorder

To use Audio Recorder tool to make an audio file for Audio Alert function , you must install the NC
Titanium on the installation CD at first.

The NC Titanium program (Start>All Programs>NC Titanium>Tools>ARecorder) in your PC, the
ARecorder window will be displayed as below.

The description of each button in the ARecorder window follows.

Open: Open an audio file.
Capture: Capture audio from the microphone in your PC.
Save: Save a captured file to your PC. (PCM format)
Encode: Encode a current capture file or opened PCM file to G.711 file for Audio Alert.
Play: Play a current audio file.
Stop: Stop playing audio.

Procedures to make an audio file in G.711 format for Audio Alert.

1. Connect the microphone in your PC.

2. Click the Capture button and talk to the microphone to record the audio or voice.

You can record up to 30 seconds. Click the Stop button to stop on capturing.

3. Click the Save butto n and then set the file name to save a current capture file with PCM format.

If you don’t need to make any PCM file, skip this step and then go to the step 5 directly.

4. Click the Open button and then select the file name to open an audio file in PCM format.

5. Click the Encode button to encode a current audio file to G.711 format for Audio Alert.

Set the file name and encode parameters.

Caution: All paramet ers must be synchronized with ones in audio setting page of network devices for
a proper operation.

46

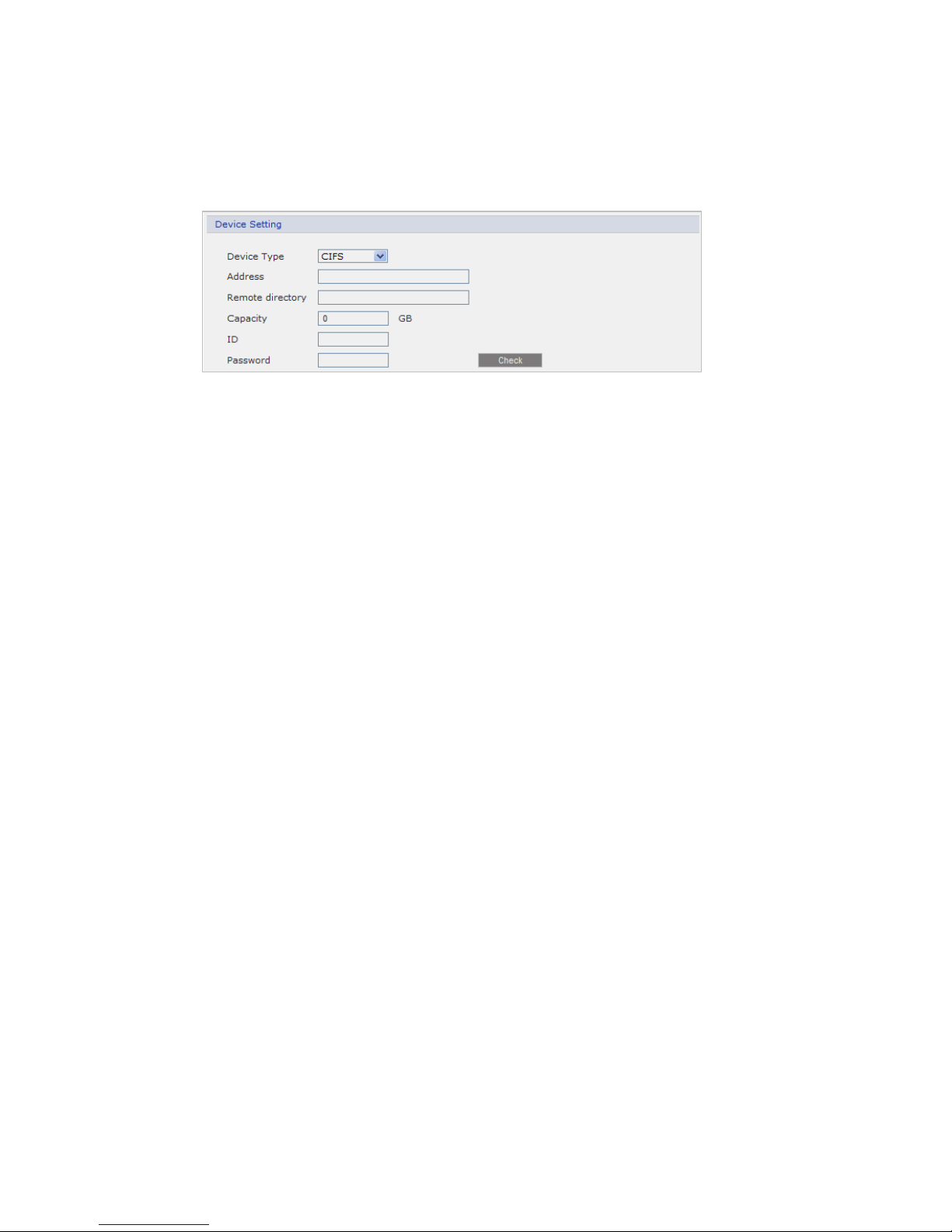

 Record

When the network camera detects an event, it can record video stream in the Micro SD Memory (not
supplied) or NAS (Network Attached Device) as a storage device. Check the Enable record checkbox to
enable the service.

• Record Setting

- Overwrite: Click checkbox to overwrite the storage device.

- Stream Type: You can select Stream1, Stream2, or Stream3.
* Stream1: H.264 or MPEG-4 data
* Stream2: MJPEG data
* Stream3: H.264 or MPEG-4 data

- Pre-event: Enter pre-event time value for the storage device pre-recording.

- Post-event: Enter post-event time value for the storage device pre-recording.

• Device Setting

Select Device Type to be recorded in the drop-down list.

- SD: built-in SD card

- CIFS: A file format for a NAS device.

- NFS: A file format for a NAS device.

Note1: Common Internet File System (CIFS) is a remote file access protocol that forms the
basis for Windows file sharing, network printing, and various other network services. CIFS
requires a large number of request/response transactions and its performance degrades
significantly over high-latency WAN links such as the Internet.

47

Note2: Network File System (NFS) is a network file system protocol, allowing a user on a

client computer to access files over a network in a manner similar to how local storage is
accessed. NFS, like many other protocols, builds on the Open Network Computing Remote
Procedure Call (ONC RPC) system.

* Address: Enter IP addre ss for NAS device.
* Remote Directory: Enter directory or folder location to be recorded in the NAS device.

* Capacity: Enter the capacity of storage to be used. It must be less than the total storage

capacity.

* IP/Password: Enter ID and Password. The network camera will ask them whenever you

access NAS device.

* Check: Press the Check button to check the validity of Device Setting data.

• Format

Click the Format button to format storage device.

• Device Information

Show current storage device information.

48

3) Event Map

The event map allows you to change the settings and establish a schedule for each event trigger from
the Network Camera. You c a n register the event map up to max. 15.

Click Add button to make a new event map and you can see a popup window as below.

49

• General

Enter the name for a new event map.

• Event In
Select an event type in the drop down list.

• Event Out

- E-mail: Select email addresses you want to send via email that an event has occurred.

- FTP: Select checkbox beside FTP to record and saves images to an FTP server when an
event has occurred.

- HTTP Server: It sends notification messages to an HTTP server that listens for these.
The destination server must first be configured on the Event In page. Enter a message
you want to send.

- Audio Alert: Select a Audio alert file the Network Camera output when audio alert
event triggered. The Audio alert file must first be configured on the Event In page.

3.5.5 Device

1) PTZ

The Network Camera supports several PTZ devices. Using an appropriate cable, connect the device to
your RS-485 port. These ports are available via the I/O terminal connector.

• PTZ setting

-. Enable -

Check the box to enable the PTZ function.

-. Protocol - Select the PTZ camera you wish to configure.

-. Device ID - Setting PTZ Camera Address (ID)

50

2) RS-485

• RS485 setting

-. Baud rate - Select a Baud Rate in the drop-down list. (Default 9600 bps )

-. Data bits - Select Data Bits in the drop-down list. (Default None)

-. Parity bits - Select Parity Bits in the drop-down list. (Default 8 bits)

-. Stop bits - Select Stop Bits in the drop-down list. (Default 1 bit)

51

3.5.6 System

1) Information

You can enter the system information. This page is very useful when you refer device information
after installation.

• Device Name Configuration

Enter the device name.

• Location Configuration

Enter the location information. You can enter that by four.

52

2) Security



Users

User access control is enabled by default, when the administrator sets the root password on first
access. New users are authorized with user names and passwords, or the administrator can choose to
allow anonymous viewer login to the Live View page, as described below:

• User Setting

Check the box to enable anonymous viewer login to the Network Camera without the user
account. When using t he user account, u sers have to try log-in at every access.

• User List Setting

This section shows a registered user account. Enter a user name and password to be added, and
register them by pressing the Add button. You can see the pop-up window as below.

53

 HTTPS

For greater security, the Network Camera can be configured to use HTTPS (Hypertext Transfer
Protocol over SSL (Secure Socket Layer)). That is, all comm unication that would otherwise go via
HTTP will instead go via an encrypted HTTPS connection.

• HTTPS Connection Policy

Choose the form of connection you wish to use from the drop-down list for the administrator,
Operator and Viewer to enable HTTPS connection (set to HTTP by default).

- HTTP

- HTTPS

- HTTP & HTTPS

• Upload Certificate

To use HTTPS for communication with t he Network Camera, An official certificate

issued by a CA (Certificate Authority) must be uploaded from your PC. Provide the path to the
certificate directly, or use the Browse button to locate it. Then click the Upload button.

Please refer to the home page of your preferred CA for information on where to send the request. For
more information, please see the online help.

54

 IP Filtering

Checking the Enable IP address filtering box enables the IP addre ss filtering function. Up to 256 IP
address entries may be specified (a single entry can contain multiple IP addresses). Click the Add
button to add new filtered addresses.
When the IP address filter is enabled, addresses added to the list are set as allowed or denied
addresses. All other IP addresses not in this list will then be allowed or denied access accordingly, that
is, if the addresses in the list are allowed, then all others are denied access, and vice versa. See also
the online help for more information.

Note that users from IP addresses that will be allowe d must also be registered with the appropriate
access rights (Guest, Operator or Administrator). This is done from Setup> System>Security>Users.

55

3) Date & Time

• Current Server Time

It displays the current date and time (24h clock). The time can be displayed in 12h clock format
in the overlay (see below).

• New Server Time

Select your time zone from the drop-down list. If you want the server clock to automatically
adjust for daylight savings time, select “Automatically adjustment for daylight saving time
changes”.

From the Time Mode section, select the preferred method to use for setting the time:

- Synchronize with computer time: sets the time from the clock on your computer.

- Synchronize with NTP Server: the network camera will obtain the time from an NTP
server every 60 minutes.

- Set manually: this option allows you to manually set the time and date.

Note: Note that if using a host name for t he NTP server, a DNS server must be configured under
TCP/IP settings.

56

4) Network

Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping
can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig, and Bonjour.

57



Basic

• IP Address Configuration:

- Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol
that lets network administrators centrally manage and automate the assignment of IP
addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly
used to set an IP address dynamically, it is also possible to use it to set a static, known
IP address for a particular MAC address.

- Use the following IP address: To use a static IP address for the Network Camera,
check the radio button and then make the following settings:
* IP address: Specify a unique IP address for your Network Camera.
* Subnet mask: Specify t he mask for the subnet the Network Camera is located on.
* Default router: Specify the IP address of the default router (gateway) used for connecting
devices attached to different networks and network segments.

• IPv6 Address Configuration

Check this box to enab le IPv6. Other settings for IPv6 are co nfigured in the network router.

• DNS Configuration

DNS (Domain Name Service) provides the translation of host names to IP addresses on your
network.

- Obtain DNS Server via DHCP: Automat ically use the DNS server se ttings provided by
the DHCP server. Click the View button to see the current settings.

- Use the following DNS server address to enter the desired DNS server by specifying the
following:
* Domain name: enter the domain(s) to search for the host name used by the Network
Camera. Multiple domains can be separated by semicolons (;). The host name is always the
first part of a Fully Qualified Domain Name, for example, myserver is the host name in the
Fully Qualified D omain Name myserver.mycompany.com where mycompany.com is the
Domain name.
* DNS servers: enter the IP addresses of the primary and secondary DNS servers.

• Host Name Configuration

- Host Name: enter the host name to be used as device information in the client software or
SmartManager.

• Services

- HTTP port: Enter a port to receive a service through the HTTP. Default Port Number is

‘80’.

- HTTPS port: Enter a port to receive a service through the HTTPS. Default Port Number is

‘443’.

- RTSP port: Enter a port to receive a service through the RTSP. Default Port Number is

‘554’.

• ARP/Ping Setting

- Enable ARP/Ping setting of IP address - The IP address can be set using the ARP/Ping

method, which associates the unit's MAC address with an IP address. Check this box to
enable the service.
Leave disabled to prevent unintentional resetting of the IP address.

58

 DDNS

• Internet DDNS(Dynamic Domain Name Service)

When using the high-speed Internet with the telephone or cable network, users can operate the
Network Camera even on the floating IP environment in which IPs are changed at every access.
Users should receive an account and password by visiting a DD NS service
like http://www.dyndns.com/

, or http://www.cctv-network.co.kr/.

- Enable DDNS: Check to get DDNS service to be available.

* DDNS Server: Select the DDNS server.
* Registered host: Enter an address of the DDNS server.
* Username: Enter an ID to access to the DDNS server.
* Password: Enter a password to be used for accessing the DDNS server.
* Confirm: Enter a password again to confirm it.
* Maximum time interval: Set a time interval to synchronize with the DDNS server.
Select an item in the interval drop-down list.
* Register local network IP address: Register a Network Video Server IP address to the
DDNS server

59

 RTP

Have a setting for sending and receiving an audio or video on a real-time basis. These settings are the
IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264
format. Only certain IP addresses and port numbers should be used for multicast streams. For more
information, please see the online help.

• Port Range

- Start port: Enter a value between 1024 and 65532

• Multicast(Stream1/Stream2/Stream3)

This function is for sending Video and Audio to Multicast group.

- Enable Multicas t : Check the checkbox to ena b le multicast operation.

- Mul ti c a s t de stination IP: Enter an IP between 224.0.0.0 and 239.255.255.255. Although

it is empty, an IP will be entered automatically.

- RTP port: Enter a value between 1024 and 65532.

- RTP TTL: Enter a value between 1 and 255. If a network status is smooth, enter a lower

value. On the other hand, if a network status is poor, e nter a higher value. When there are
many Network Cameras or users, a higher value may cause a heavy load to the network.
For a detailed setting, please consult with a net work manager.

60

 UPnP

The Network Camera includes support for UPnP™. UPnP™ is enabled by default, and the Network
Camera then is automatically detected by opera ting systems and clients that support this protocol.

Note: UPnP™ must be installed on your workstation if runni ng Windows XP. To do this, open the
Control Panel from the Start Menu and select Add/Remove Programs. Select Add/Remove Windows
Components and open the Networking Services section. Click Details and then select UPnP™ as the
service to add.

61

 QoS

Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to
selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency,
and no packet losses.

The main benefits of a QoS-aware network are:

- The ability to prioritize traf fic and thus allow critical flows to be served before flow s with lesser

priority.

- Greater reliability in the network, thanks to the control of the amount of bandwidth an application

may use, and thus control over bandwidth r aces between applications.

• DSCP Settings

For each type of network traffic supporte d by your network video product, enter a DSCP
(Differentiated Services Code Point) value. This value is used to mark the traffic’s IP header.
When the marked traffic reaches a network router or switch, the DSCP value in the IP header te ll
the router or switch which type of treatment to apply to this type of traffic, for example, how
much bandwidth to reserve for it. Note that DSCP values can be entered in decimal or hex form,
but saved values are always shown in decimal.

The following types of traffic are marked:

- Live Stream DSCP:

- Event/Alarm DSCP:

- Management DSCP:

62

• Auto Traffic Control

Set a limitation on user network resources by designating the m aximum bandwidth.

- Maximum bandwidth: In case of sharing other network programs or equipment, it is

possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s.

- Auto frame rate: Selected if not influenced by a network-related program or equipment

without a limitation on the network bandwidth.

 NAT Traversal
A broadband router allows devices on a private network (LAN) to share a single connection to the
Internet. This is done by forwarding network traffic from the private network to the “outside”, that is,
the Internet. Security on the private network (LAN) is increased since most broadband routers are
pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.

Use NAT traversal when your network cameras are located on an intranet (LAN) and you wish to
make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured,
all HTTP traffic to an external HTTP port in the NAT router is forwarde d to the network camera.

Notes:

- For NAT traversal to work, this must be supported by the broadband router.

- The broadband router has many different names:

“NAT router”, “Network route r“, Internet Gateway”, “Broadband sharing device” or “Home
firewall” but the essential purpose of the device is the same.

63

• NAT traversal Settings

- Enable: when enabled, the network camera attempt to configure port mapping in a

NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the
Network Camera (see System>Network>UPnP).
* automatic setting: The Network Camera automatically search for NAT routers on your
network.
* manual setting: Select this option to manually select a NAT router and enter the external
port number for the router in the field provided.

Notes:

- If you attempt to manually enter a port that is already in use, an alert message will be displayed.

- When the port is selected automatically it is displayed in this field. To change this enter a new

port number and click Save.

64

 Zeroconfig

Zeroconfig allows the network camera to create and assign IP address for network cameras and
connect to a network automatically.

Zero configuration networking (zeroconf), is a set of techniques that automatically creates a
usable Internet Protocol (IP) network without manual operato r intervention or spe cial configuration
servers.

Zero configuration networking allows devices such as computers and printers to connect to a network
automatically. Without zeroconf, a network administrator must set up services, such as Dynamic Host
Configuration Protocol (DHCP) and Domain Name System (DNS), or configure each computer's
network settings m anually, which may be difficult and time-consuming.

Zeroconf is built on three core technologies:

• Assignment of numeric network addresses for networked devices (link-local address auto

configuration)

• Automatic resolution and distribution of computer hostnames (multicast DN S)

• Automatic locati on of network services, such as printing devices through D NS service discovery.

65

 Bonjour

The network camera includes support for Bonjour. When ena bled, the network camera is
automatically detected by operating systems and clients that support this protocol.

Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to
automatically di scover each other on a network, without having to enter IP addresses or configure
DNS servers. Bonjour is a trademark of Apple Computer, Inc.

5) Language

It will be able to select a user language. The type of language it will be able to select is the English,
the French, the German, the Spanish and the Italian.

66

6) Maintenance

• Maintenance Server

- Restart: The unit is restarted without changing any of t he settings. Use this method if the

unit is not behaving as expected.

- Restore: The unit is restarted and most current settings are reset to factory d efault values.

The settings that are not affected are:
* the boot protocol (DHCP or static)
* the static IP address
* the default router
* the subnet mask
* the system time

- Default: The de fault button should be used with caution. Pressing this will return all of the

Network Camera's settings to the factory default values (including the IP address).

• Update Server

Carry out the upgrade by importing an upgrade file and pressing the Upgrade button. During the
upgrade, do not turn off the power of the Network Camera. And try an access again after waiting
five minutes or longer.

• Backup

Save a setting value that users enter to the Network Camera, to a user PC.

• Restore

Import and apply a setting value saved to a user PC.

67

Note: Backup and Rest ore can only be used on the same unit running the same firmware. This
feature is not intended for multi-configurations or for firmware upgrades.

7) Support

The support page provides valuable information on troubleshooting and contact information, should
you require technical assistance.

• Logs

The network Camera support system log information. Click the System Log button to get the log
data.

• Update Server

- Server Report: Click the Server Report button to get the important information about the

server’s status and should always be included when requesting support.

- Parameter List: Click the Parameter List button to see the unit’s parameters and their

current settings.

3.5.7 About

The following website will provide the support information for the Network Camera information and
operation.

68

3.6 Playback

The Playback w in dow contains a l ist of recordings m ade to the memor y card. It show s each recordin g' s st ar t time,
length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed
or not.

The description of playback window follows.

(1) Video Screen

You can see the video screen when playing the video clip in the Micro SD memory

(2) Playback Buttons

To view a recording data in the SD local storage, select it from the list and click the Playback buttons.

Go to the first: go to the beginning of the video clip.
Fast backward play:
Backward play: play backward of the video clip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the video clip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the video clip.
Fast forward play: play fast forward of the video clip.

69

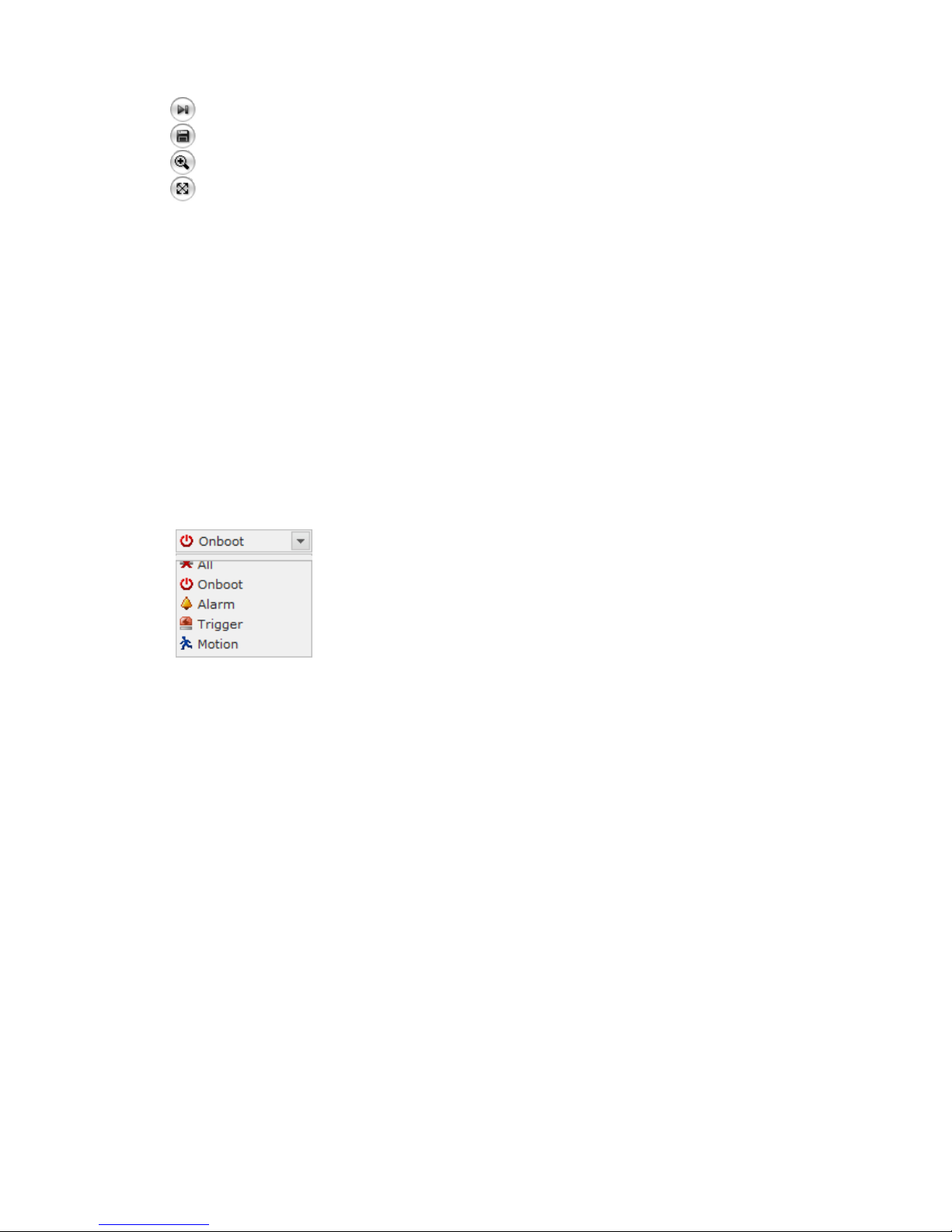

Step forward play: go forward one frame of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip
Full Screen: display full screen of the video.

(3) Time Chart

Display an hour-based search screen for the chosen date. If there is recording data, a blue section will
be displayed on a 24-hour basis.

(4) Speaker Control Bar

Use this scale to control the volume of the speakers.

(5) Search Calendar

Search results from the SD loca l storage in the network camera connected are displayed monthly. If
there is a recorded data for a particular date, a blue square on the date will be displayed.

(6) Play Time
Displays time of the video playing.

(7) Event Search Window

Select a search option in the dro p-down list and click GO button. You can also enter the time period
for searching. If you click Star t Date or End Date zone, displays Search Calendar.

(8) Event List Window

Event List displays the event(s) that were recorded in the SD local storage. Select a list and click the
play button. The video clip will be played.

70

3.7 Help

The Help information window will be provided as a popup window so that users can open and read it
without a need for log-in. It will offer a description on setting and Help page by which users can
manipulate the Network Camera without a reference to the manual.

71

3.8 Resetting to the factory default settings

To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance
web page (described in “3.5.6 System > Maintenance”) or use the Reset Button on the network
camera, as described below:

• Using the Reset Button

Follow the instructions below to reset the Network Camera to the factory default settings using
the Reset Button.

1. Switch off the Network Camera by disconnecting the power adapter.

2. Press and hold the Reset Button with a strai ghtened papercl ip while reconnecting the power.

3. Keep the Reset Button pressed unti l the Status indicator blink.

4. Release the Reset Button.

5. When the Power Indicator changes to Green (may take up to 40 seconds), the process

is complete and the network video camera has been reset.

6. The network camera resets to factory defaults and restarts after completing the factory reset.

CAUTION: When performing a Factory Reset, you will lose any settings you have save d.

72

4. Appendix

4.1 Troubleshooting

Troubleshooting if prob lems occur, verify the installation of the Network Came ra with the instructions
in this manual and with other operating equipment. Isolate the problem to the specific piece of
equipment in the system and refer to the equipment manual for further information.

Problems/Symptoms

Possible Causes or Corrective Actions

The camera cannot be accessed
by some clients.

If using a proxy server, try disabling the proxy setting in your
browser. Check all cabling and connectors.

The camera wor ks locally, but
not externally.

Check if there are firewall settings that need to be adjusted.
Check if there are router settings that need to be configured.

Poor or intermittent network
connection.

If using a network switch, check that the port on that device

uses the same setting for the network connection type

(speed/duplex).

The camera cannot be accessed
via a host name.

Check that the host name and DNS server settings are correct.

Not possible to log in.

When HTTPS is enabled, ensure that the correct protocol (HTTP

or HTTPS) is used. W hen attempting to log in, you may need to

manually type in http or https in the browser's address bar.

No image using Refresh and/or

slow updating of images.

If images are very complex, try limiting the number of clients

accessing the camera.

Images only shown in black &
white.

Check the Video & Image setting.

Blurred images.

Refocus the camera.

Poor image quality.

Increased lighting can often improve image quality. Check that

there is sufficient lighting at the monitored location. Check all

image and lighting settings.

Rolling dark bands or flickering
in image.

Try adjusting the Exposure Control setting under AE and AWB
part.

H.264 not displayed in the
client.

Check that the correct network interface is selected in the Video
& Image/Stream.

Multicast H.264 not displayed in
the client.

Check with your netwo rk administrato r that the multicast

addresses used by the camera are valid for your network. Check
that the Enable multicast checkbox are enabled in the
System/Network/RTP tab. Checks with your network
administrator to see if there is a firewall preve nti ng vi ew ing.

Multicast H.264 only a c c essible
by local clients.

Check if your router supports multicasting, or if the router

settings between the client and the server need to be configured.

The TTL value may need to be increased.

Color saturation is different in
H.264 and Motion JPEG.

Modify the settings for your graphics adapter. Plea se see the
adapter's documentation for more information.

Poor audio quality.

Too many users/clients connected to the camera may affect the

sound quality adversely. Try limiting the number of clients

allowed to connect.

Distorted audio.

Check that the correct Audio Input sour ce is selected. Select

Microphone for a connected external microphone. Select Line for

a connected line in source.

Video cannot be recorded.

Check that the SD Ca rd is inserted properly.
Check that the SD Card is formatted properly.

73

4.2 Alarm Connection

The following connection diagram gives an example of how to connect a network camera.

4.3 Preventive Maintenance

Preventive maintenance allows detection and correction of minor that faults before they become
serious and cause equipment failure.

Every three-month, perform the following maintenance.

1. Inspect all connection cables for deterioration or other damage .

2. Clean components with a clean damp clo th.

3. Verify that all the mounting hardware is secure.

74

4.4 Product Specification

Main Item

Specification

C

A

M

E
R

A

Image sensor

1/2.7” Progressive scan RGB CMOS

Active Array

1920(H) x 1080(V)

F-Number

F1.2 ~ F3.4

Min. illumination

Color: 0.9Lux, B/W: 0.2Lux ( F 1.2, 50IRE)

Shutter Speed 1/20,000 ~ 1/30

N

E
T

W

O

R
K

Video Compression

Motion JPEG

MPEG-4 Part2
H.264 (MPEG-4 Part 10)

Profiles: H.264 HP, MP, and BP, MPEG-4 ASP and SP

Video Resolutions

HDB-T300: 320x240 ~ 1280x720

HDB-T310: 320x240 ~ 1280x1024

HDB-T320: 320x240 ~ 1920x1080

Frame Rate

30fps @ all resolutions

Video Streaming

Simultaneously H.264(or MPEG-4) and MJPEG

Controllable Frame Rate and Bandwidth VBR/CBR H.264 and

MPEG-4

Audio Compression

G.711 ADPCM 40kbps~16kbps

Audio Streaming

2 Way

Protocol

TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP,
RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour

Security

Multi-user authority, HTTPS, IP Filtering, Privacy Zone

Max. Connection

10

API Programming Interface

API Supported,
Open Platform Compatible: ONVIF

Alarm Triggers

Motion Detection, Externa l Inp ut, Man ual Trigger

Alarm Events

File upload via FTP and HTTP

Notification via E-mail, HTTP and TCP
External Output activation

Audio alert activation

Video Buffering

Pre and Post Alarm

Motion Detection

Yes, max. 8 programmable zone

Network Time Synchronization

Yes

SD Recording

Yes, Continuous/Schedule/Event

Software Reset

Yes

Factory Reset

Yes, Button/Web browser

Auto Recovery

Yes

Installation Tool

SmartManager

Upgrade

Web browser, SmartManager

G

E

N

E
R
A
L

Alarm Input

Terminal, 1 TTL input

Alarm Output

Terminal, 1 open collector

Ethernet

RJ-45 10BASE-T/100BASE-TX

Video Output

BNC, 1.0 Vp-p (75ohm, composite)

Audio In/Out

Terminal, 1 line input /1 line output

Auxiliary

Terminal, RS485 Tx+/Tx-

Starting Temperature

0°C ~ 50°C

Operating Temperature

-10°C ~ 50°C

Operation Humidity

0~90% (non-condensing)

Power Consumption

DC12V/AC24V/PoE 330mA
Power over Ethernet IEEE 802.3af Class0

Dimensions (W x H x D)

81.6mm x 68mm x 123.1mm

Unit Weight

335g

Approval

FCC, CE, UL, MIC

75

System Requirement for Web Browser

Operating System: Microsoft Windows 98, Microsoft Windows ME, Microsoft Windows 2000, Microsoft
Windows XP, or Microsoft Windows Vista
CPU: Intel Core 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher
VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher)

76

Printed in Korea

HD NETWORK BOX CAMERA
