Cosmos 2000 User Manual

R

COIN

COSMOS ALCOHOL TESTER

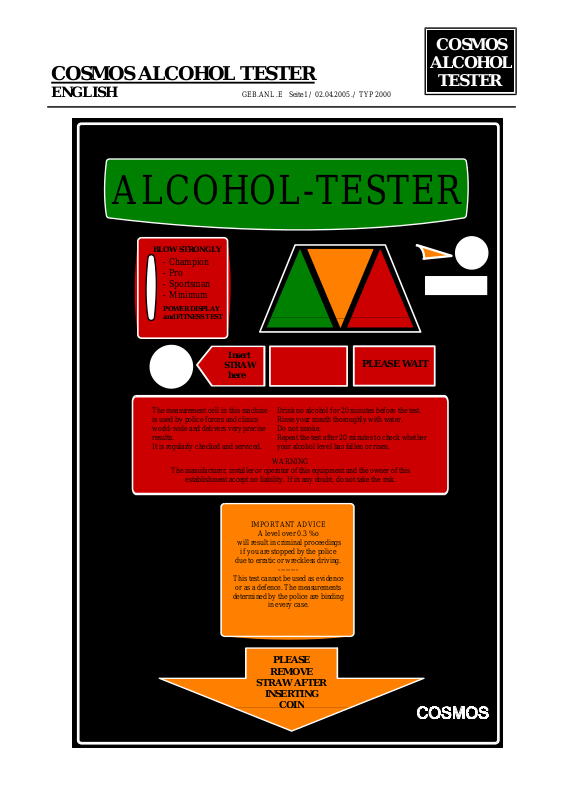

ENGLISH GEB.ANL .E Seite1 / 02.04.2005 ./ TYP 2000

COSMOS

ALCOHOL

TESTER

ALCOHOL-TESTE

BLOW STRONGLY

- Champion

- Pro

- Sportsman

- Minimu m

POWER DISPLAY
and FITNESS TEST

Insert
STRAW
here

The measurement cell in this m
is used by police forces and clinics
world-wide and delivers very precise
results.
It is regularly checked and serviced.

The manufacturer, installer or operator of this equipm

establishment accept no liability. If in any doubt, do not take the risk.

achine

Drink no alcohol for 20 minutes before the test.
Rinse your mouth thoroughly with water.
Do not smoke.
Repeat the test after 20 minutes to check whether

our alcohol level has fallen or risen.

y

WARNING

PLEASE WAIT

ent and the owner of this

IMPORTANT ADVICE

A level over 0.3 %o

will result in criminal proceedings

if you are stopped by the police

due to erratic or wreckless driving.

--------

This test cannot be used as evidence

or as a defence. The measurements

determined by the police are binding

in every case.

PLEASE

REMOVE

STRAW AFTER

INSERTING

COSMOS

R

COSMOS ALCOHOL TESTER TYPE 2000
CONTENTS INSTRUCTIONS PAGE 2 / 2005-04-02 / TYPE 2000

Page Page
2 Contents and operating conditions 9a+b+c Calibrating with a gas simulator
3 Congratulations 10 Self-diagnosis system –
troubleshooting
4 Installation and maintenance 11 Mother board
5 Cable connections 12 Display board
6 Fixings 13 Sound & additional board
7 Functions 14 The apparatus isn't nuts!
8 Software details 15 EC Declaration of Conformity

OPERATING CONDITIONS

The COSMOS ALCOHOL TESTER calculates blood alcohol levels rapidly and reliably by
measuring the level of alcohol in the breath. The machine is designed for use in warm/heated rooms
with an ambient temperature of 18-25° C. For correct results, the user should
drink no alcohol for 20 minutes and
not smoke for at least 5 minutes before the test.
If these instructions are not observed, the results can be severely affected by traces of alcohol
remaining in the mouth. If any alcohol in liquid form is blown in, this can lead to temporary

breakdown of the equipment. The machine should be left switched on and you should blow into
the machine strongly about 10 times TO SPEED UP REMOVAL OF THE LIQUID FROM
THE TESTING CYLINDER. The heating bulb will then evaporate the rest of the alcohol
(liqueur gums up the pump!!)
FOR YOUR SAFETY

Familiarise yourself with these operating instructions before using this equipment.
The equipment should only be used as described.
Only use "ORIGINAL COSMOS PARTS" for any repairs.

LIABILITY FOR OPERATION AND DAMAGE

If the equipment has been incorrectly maintained or repaired, liability for its operation falls on the
owner or operator in every case.
Maintenance and repairs should be conducted only by COSMOS SERVICE or in the strictest accordance
with instructions for use.
Cosmos Automaten GmbH accepts no liability for any damage caused through non-observance of
these instructions or through inappropriate use.
These instructions do not modify the conditions of guarantee and liability detailed in Cosmos
Automaten GmbH’s General Conditions of Sale 92.

RESALE

The COSMOS ALCOHOL TESTER must not be exported to the USA without the express written
permission of Cosmos Automaten GmbH.

SPECIFICATIONS

POWER SUPPLY Input: 200/ 240V AC & 100 / 120V AC
Output: 24 Volts; 0.5 – 5 A ; 108 Watts
Fuses: 5 x 20mm – F 3.15 A
CONSUMPTION: approx. 60 Watts per hour – depending on the light programmes
EXT DIMENSIONS: W x L x H; 50 x 75 x 19cm
WEIGHT: approx. 20 kg
GUARANTEE: 6 months

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG

ALCOHOL

TESTE

Tel: [phone] Fax: [phone]

R

COSMOS ALCOHOL TESTER TYPE 2000
Congratulations

INSTRUCTIONS PAGE 03 / 2005-04-02 / TYPE 2000

COSMOS

ALCOHOL

TESTE

We congratulate you on the acquisition of your

COSMOS ALCOHOL TESTER,

the latest, state of the art, breath alcohol analyser

A machine that provides not just security but also some fun for your customers and
turns their fun into money for you.

This remarkable machine is the result of many years of experience in the marketing and servicing
of alcohol testers..

It is safe to operate, easy to maintain, vandal-proof and produces high returns.

From our own extensive experience, an ideal location for the machine is beside or on the way to
the toilets. Almost every customer will pass the machine at some point during the evening and the
first couple of hours in the pub provide a customer with ample opportunity to try it out.
At this time, most of them will not keep to the delay required between their “last drink” and the
test so there is usually a lot of fun when the results show levels of , say 5.5‰.

The important point for responsible drivers, however, is that they can rely on the results when
they use the equipment properly.
So, as a rule, when they go to the toilet again before leaving the pub, they will remember to
"BLOW" again, just to be on the safe side.

If, based on the reading, they then decide to get a lift home or take a taxi, they will just
remember the good time they have had, so our machine helps to encourage all your
customers to come back again (with their car!).

Once a COSMOS ALCOHOL TESTER has been installed, customers are more careful about
when they should drive but are not discouraged from drinking – whether they are drinking beer,
wine or shorts.
On the contrary, they can have fun trying out this new machine again and again just to see how
inebriated they actually are.

In Germany, because it is not games or entertainment equipment:
OUR ALCOHOL TESTER IS ONLY SUBJECT TO VAT (currently 16 %). THERE ARE
NO OTHER DUTIES OR CHARGES AND NO TIME RESTRICTIONS.

The police also use the same electro-chemical measurement cell, among other things.

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

R

COSMOS ALCOHOL TESTER TYPE 2000

Installation & Maintenance

INSTRUCTIONS PAGE 04 / 2005-04-02 / TYPE 2000

COSMOS

ALCOHOL

TESTE

COMMISSIONING

Your newly delivered machine is already calibrated and ready for use

Check that all the connectors are correctly plugged in (see the cable connections sheet).
Connect the equipment to the mains – the hardware is tested automatically; the numerical display
shows " - - - " and the "Please Wait" panel lights.
According to the room temperature, the rest of the lights will illuminate after approximately 30
seconds and the "Please Wait" light will go out. The equipment is now ready for use.
However, the normal operating temperature of about 34° must be reached before precise readings
can be obtained: this takes about one hour. A 25 Watt electric light bulb provides the heat.

Incidentally

We recommend that, when your COSMOS ALCOHOL TESTER is delivered, your staff place
the machine on a table and run through the functions following the operating instructions. If they
are still unclear about anything, they can always phone us; we are there to help.

Location

The machine's location is crucial to its "success".
Always install it on the way to or near the toilets (but not actually in the facilities)
This ensures that every customer will pass it several times during the evening.

Fixing

The machine is installed using an installation frame. - No special tools are required.
To hang up the machine, unscrew the screws on the back approximately 1 cm, then tighten the
flat nut onto the wooden rear panel. Uncouple the cable connections to the boards (in the door)
and then remove the door so that the casing is easier to install. Then reconnect the cable
connections.

(For connections to the power supply, loudspeaker and coin mechanism see the instructions
on page 5.)

Lastly, don’t forget to screw in the central screw (to prevent theft!!)

Socket

Install a socket above the machine about 2.2 m above the floor or just above the skirting board
(to ensure that the plug cannot be pulled out easily as a joke). We recommend that you use a
switched socket.

Maintenance

This is simple and involves, at most, regularly refilling the machine with straws and recalibrating
it after a certain number of tests (every 6-8 weeks).
Calibration only takes 2-3 minutes and can easily be carried out by any employee – without any
technical knowledge required (see the operating instructions "Calibrating with the gas
calibrator").

Disposal

Because of the COSMOS ALCOHOL TESTER’s durability, this will not be required for several
years, but when it does become necessary, do not throw the battery and the sensor away with the
general rubbish: instead return them to Cosmos and we will dispose of them for you.

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

COSMOS

R

m

COSMOS ALCOHOL TESTER TYPE 2000
Cable connections – display & computer

INSTRUCTIONS PAGE 05 / 2005-04-02 / TYPE 2000

Note the cut-out section!

COSMOS AUTOMATEN GMBH AM IHLSEE 18 D 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

24 V

Loudspeaker

Straw motor

Connection to the
additional board
(note the cut-out section)

Pump Motor

Connection to
the display

Connection to
the coin
mechanis

1 brown
2 blue

1 green
2 spare
3 green

1
2
3
4

Connection to the
mother board
(note the cut-out
section)

2 pin socket
power supply

3pin socket /
loudspeaker

4 pin socket with link
between channels 3 & 4

{

{

{

20-core cable connection to the
mother & display boards

20-core cable connection to the
display & additional boards

10-core cable connection to the
coin mechanism board

ALCOHOL

TESTE

R

COSMOS ALCOHOL TESTER TYPE 2000

r

Fixings INSTRUCTIONS Page 6 / 2005-04-02 TYPE 2000

Machine dimensions WxHxD 50x75x18

Geräte-Außenmaße BxHxT 50x75x18

All dimensions in cm

Alle Angaben in cm

Blow hole max. 1.63 high

Ein chblasöffnung maximal 1,63 ho

COSMOS

ALCOHOL

TESTE

6-8 cm leeway on

Freiraum li nke Seite

the left-hand side

6cmlieber8cm

to allow for the

für Tür

door

15 cm leeway on

F1reiraumrechte Seite

the right-hand side

5 cm für Geldeinwurf

to allow for the

und Schlösser

coin mechanism

and the door locks

Einblasöffnung

Blow hole

M reuz

itte vom K

Centre of
template

16.5 -

16,5-

17,0

17.0

Aufhängung

Fixings for

Abfallkorb

hanging the

wastebin

F en

ußbod

Floo

COSMOS

R

COSMOS ALCOHOL TESTER TYPE 2000
Functions INSTRUCTIONS Page 07 / 2005-04-02 TYPE 2000

OPERATION

When a coin (or coins – depending on the setting) is inserted, the left-hand triangle flashes.
You can now take a straw, insert it into the opening and blow into it strongly.
The red lamps on the power display start to light up from the bottom upwards.
Blow until at least 5 red lamps light ("Minimum" level).Your breath is then analysed.
The other ratings – "Sportsman", "Pro" and "Champion" – serve as a fitness test and provide an
even more precise blood alcohol value – the highest level being when both green lamps are lit.
During analysis, the "PLEASE WAIT" panel lights up until the precise results are displayed.
The green, yellow or red triangles also light up according to the test results.
The "Please Wait" panel lights while the measurement cell regenerates (this takes from 20-60
seconds, depending on the level of alcohol in the breath).
Another coin cannot be inserted while the machine is "recovering". As soon as the testing cell is
ready, the "Please Wait" sign goes out and the three stripes on the display light up. The alcohol
tester is then ready for use again.

MEASUREMENT

The measurements are taken by an electro-chemical cell with long-time-stability.
A micro-processor carries out the actual analysis and converts the breath alcohol level
into a blood alcohol reading..

MEASUREMENT PRECISION

Range 0 - 1.0 ‰ ± 5 % of the measured value. Our newly developed measurement system
provides a level of precision close to that previously only achievable with very expensive
technology (e.g. infrared systems).

VERY SHORT MEASUREMENT INTERVALS

Completely new developments in the rapid regeneration of electro-chemical cells enable the
intervals between tests to be reduced, as a rule, to only 10-20 seconds.

THE RESULTS CANNOT BE MANIPULATED

Measuring the alveolar breath.(breath from deep in the lungs) provides the closest correlation
between the breath alcohol and blood alcohol levels. The microprocessor must therefore measure
the breath’s pressure, volume and duration. The actual analysis only takes place when all these
three elements have been measured and the alveolar breath is available. If the test person’s
exhalation is too weak, interrupted or too short, the test is abandoned.

The test can be repeated without more money being inserted.
Drink no alcohol for 20 minutes before the test and do not smoke!

Traces of alcohol remaining in the mouth cause erroneous readings!
Repeat the test again after 20 minutes to check that your blood alcohol level has not increased!

VERY EASY TO MAINTAIN

All the functions are automatically checked by a self-diagnostic program, thanks to
microprocessor technology. The lamps can be tested simply by pressing a button. Calibration is
fully automatic.

Safe to operate – easy to maintain – vandal-proof

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

ALCOHOL

TESTE

COSMOS

R

COSMOS ALCOHOL TESTER TYPE 2000
Software details

INSTRUCTIONS Page 08 / 2005-04-02 / TYPE 2000

The COSMOS ALCOHOL TESTER has 6 programs you can operate and adjust.

BLI Blink program 1 or 2 TON Music on or off
CAL See page 9 for Calibration LA Lamps light in 4 sectors
COU No. of tests SEN Sensitivity + seconds before display

Calling up and modifying programs

The mother board has 4 keys. + - O K and Test

You can switch from program to program using the O K, + and - keys.
The "TEST" key is only for checking measurements after calibration.

SWITCHING Key Code Program
SEQUENCE used displayed setting

ALCOHOL

TESTE

Ready status - - -

1st setting O K END

2nd setting + BLI Press OK to switch to L 1 or L 2

3rd setting + CAL See "Calibration" on page 9
Press O K and key in, for instance, 0.58.
Then use + or – to modify the value and
press O K. The triangle will flash and the
machine is ready to be calibrated. Now
blow gas from the gas calibrator into the
machine. CAL is displayed automatically
when everything is ready.

4th setting + COU Press OK to call up the number of tests –
first the thousands, then the hundreds

5th setting + Ton Press OK for music off or on

6th setting + LA Press OK to check the lamps.

7th setting + SEN 1st No. = sensor sensitivity
2

th

8

setting + END

9th setting O K - - - The machine is ready for use

nd

No. = seconds before display.

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

R

COSMOS ALCOHOL TESTER TYPE 2000
Calibrating with the gas simulator

INSTRUCTIONS Page 09 - mg / l - / 2005-04-02 / TYPE 2000 J

COSMOS

ALCOHOL

TESTE

Your newly delivered alcohol tester is already calibrated and ready
for use.

It should be recalibrated every 6-8 weeks after initial commissioning (to obtain precise values, the
equipment must have been switched on for at least 60 minutes). - The gas simulator has to be
filled with an alcohol testing solution (140 ml) from COSMOS AUTOMATEN.
( Solution 1.00 0/00 // 0.10 % // 0.50 mg/l )
The fluid’s temperature should be 18-30 °. – Now prepare the machine:
Press: “OK” then “+” twice; “CAL” is displayed
Press “OK” again; a number is displayed
Use “+” or “–” to set the correct value ( see below )
Press “OK” again; the arrow flashes and the equipment is ready for calibration.
Insert the end of the test mouthpiece into the blow hole and blow into it strongly; the first red
lamp lights. Now blow gas from the test bottle into this opening for about 5 seconds without
interruption until the green lamp on the power display lights.

• The new value is set automatically by the fully automatic calibration procedure.

• Foam should never be allowed to reach the outlet hole while blowing.

• Blowing in fluid interrupts the operation of the chemical cell for about one hour (E 01 is displayed)

Should this occur, leave the COSMOS ALCOHOL TESTER switched on and blow into it
strongly ten times using a straw. Any remaining liquid will be evaporated by the electric
light bulb. The equipment resets itself automatically every 10 minutes. When the three
strips light up the tester is again ready for use. The machine sustains no significant damage.

CALIBRATION SETTINGS mg/l

Temperature Setting Temperature Setting Temperature Setting Temperature Setting

16,0 0.15 23,0 0.24 27,0 0.31 31,0 0.42
18,0 0.18 24,0 0.26 28,0 0.33 32,,0 0.43
20,0 0.20 25,0 0.28 29,0 0.36 33,0 0.46
22,0 0.23 26,0 0.29 30,0 0.38 34,0 0.50

We recommend that you increase all the values to exclude technical tolerance to the disadvantage of the users.
You should therefore increase the values for
(e.g. 20° would then = 0.22 )
To avoid inaccurate measurements, do not use at temperatures below 16° C

CHECKING THE CALIBRATION (MEASUREMENT CHECKS)

When the machine is in Ready status, i.e. display shows: " - - - " ,
Now press the “TEST” button and introduce gas from the test bottle: As with calibration .
Deviation from the calibration values by max ± 10%. – Otherwise repeat calibration.

To ensure that it operates correctly, the machine should be calibrated every 6 months. If the ALCOHOL TESTER is
usually left unsupervised, we recommend calibration every 2 months. Once you have completed a calibration, always
seal the gas simulator carefully on both sides (to avoid the danger of evaporation).

WARNING

Store the filled simulator in a refrigerator- to avoid evaporation.

The police also use the same electro-chemical measurement cell, among other things

Please do not use the same fluid for longer than one month or more than 30 times for calibration.

(according to the temperature of the fluid in the bottle)

the fluid temperatures in the above table by 0.02

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

COSMOS - ALCOHOL - TESTER

COSMOS

ALCOHOL

GAS SIMULATOR

GEB-ANL. E Seite 09 b / 2005-04-02 / TYP 2000 E

3 1 2

Blow here

TESTER

Place the tipp in the
n

on-return valve of the

device

When blowing, the foam

ust not reach the outlet

m
hole!

Inlet with bubbler

Gas simulator

Fill each time with 130 ml (maximum!!)
(With thermometer + bubbler = 140 ml)

1. Insert the thermometer into the

free hole (attach rubber bushing
first)

low-hole with protective cap

2. B

against evaporation (small tube

nd

mouthpiece).

as 2

tlet with three-chamber

3. Ou

system to hold back fluid.

IMPORTANT

Blowing in fluid interrupts the

ration of the chemical cell for on

ope
to three hours.
Leave the COSMOS ALCOHOL
TESTER switch
“burned off”.

ed on. Moisture is

Bubbler

Individual parts of the gas simulator

Bottle 250 ml
Screw top with insert and seal 217
Inlet PVC tube 05/07 14 cm
Outlet PVC tube 05/07 11 cm
Passage to
Bubbler PVC tube 07/10 3 cm
3 closures PVC tube 07/10 4 cm
against evaporation
2 droplet separators
1 thermometer + rubber bushing
1 bubbler
1 mouthpiece 07/10 4 cm

The Cosmos Gas Simulator serves to simulate a human breath sample and therefore provides a low­cost calibration procedure.

The gas simulator provides a controlled alcohol reference gas for the calibration of breath alcohol
measuring devices. Air is passed through an ethanol-in-water solution of a precisely known
concentration and temperature. The air absorbs ethanol and water vapour in a defined concentration
for the calibration of breath alcohol measuring devices.

The police also use the same electro-chemical measurement cell, among other things.

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG

Tel: [phone] Fax: [phone]

e-mail: [e-mail] www.

cosmos-alcoholtester.de

Calibration

COSMOS

ALCOHOL

in small steps TYP 2000

GEB-ANL E 09 c Kal. in kl. Schritten / Typ 2000 E

Calibration must take place every 6 month in order to ensure accurate measurement.
However, Cosmos recommends calibration every 6 – 8 weeks, i.e. at the same intervals as service staff
arrive to refill straws, to remove money and to calibrate.

The individual steps:

1. Prepare the gas simulator

a. Fill the gas simulator bottle (Instructions, page 9b) with test fluid up to 140 ml.
b. Read off the temperature on the thermometer, then determine the corresponding calibration

settings in the table (Instructions, page 9a – Calibration settings).

2. Prepare COSMOS Alcohol Tester

(Wiring instructions, page 8)
Switch using the buttons on the motherboard (page 11 with + and – and OK and Test)

a. On the motherboard, switch to CAL

(1x “OK” // and 2x “+” = CAL)

b. Now “OK” = old value
c. Set to new value with “+” or “-”

(see table page 9a)

d. 1x “OK” – now the small triangle flashes

3. Calibration

Place the tip of the gas simulator (Instructions page 9b / No. 3) at the device blow hole on the
Cosmos Alcohol Tester.
Blow once strongly to start the LED column, then continue to blow evenly until the green LEDs at
the top are reached.

Foam should never be allowed to reach the outlet hole while blowing.

CAL appears again to indicate that automatic calibration is completed.
Now press “+” 5x until “END” appears.
Now press “OK” 1x so that
3 dashes then appear and the device is ready to use again.

4. Test whether calibration was successful

Press the test button – a small triangle starts to flash.
Attach the gas simulator and blow.

The value displayed must correspond to the previously set value (2c).
(Maximum deviation ± 10% - otherwise repeat calibration)

If a guest should complain that

”the machine is nuts – the readings are completely wrong”

you can quickly determine with the gas simulator

and the test described above

whether the machine or the guest is “nuts”.

TESTER

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG

Tel: [phone] Fax: [phone]

e-mail: [e-mail] www.

cosmos-alcoholtester.de

R

COSMOS ALCOHOL TESTER TYPE 2000
Calibrating with the gas simulator

INSTRUCTIONS Page 09 a / 2005-04-02 / TYPE 2000

COSMOS

ALCOHOL

TESTE

Your newly delivered alcohol tester is already calibrated and ready
for use.

It should be recalibrated every 6-8 weeks after initial commissioning (to obtain precise values, the
equipment must have been switched on for at least 60 minutes). - The gas simulator has to be
filled with an alcohol testing solution (140 ml) from COSMOS AUTOMATEN
The fluid’s temperature should be 18-30 °. – Now prepare the machine:
Press: “OK” then “+” twice; “CAL” is displayed
Press “OK” again; a number is displayed
Use “+” or “–” to set the correct value ( see below )
Press “OK” again; the arrow flashes and the equipment is ready for calibration.
Insert the end of the test mouthpiece into the blow hole and blow into it strongly; the first red
lamp lights. Now blow gas from the test bottle into this opening for about 5 seconds without
interruption until the green lamp on the power display lights.

• The new value is set automatically by the fully automatic calibration procedure.

• Foam should never be allowed to reach the outlet hole while blowing.

• Blowing in fluid interrupts the operation of the chemical cell for about one hour (E 01 is displayed)

Should this occur, leave the COSMOS ALCOHOL TESTER switched on and blow into it
strongly ten times using a straw. Any remaining liquid will be evaporated by the electric
light bulb. The equipment resets itself automatically every 10 minutes. When the three
stripes light up the tester is again ready for use. The machine sustains no significant
damage.

CALIBRATION SETTINGS (according to the temperature of the fluid in the bottle)

Temperature Setting Temperature Setting Temperature Setting Temperature Setting

4.0 0.13 15.0 0.28 24.0 0.51 29.5 0.74

5.0 0.14 16.0 0.30 24.5 0.53 30.0 0.76

6.0 0.15 17.0 0.33 25.0 0.55 30.5 0.79

7.0 0.16 18.0 0.35 25.5 0.57 31.0 0.81

8.0 0.17 19.0 0.37 26.0 0.58 31.5 0.84

9.0 0.18 20.0 0.40 26.5 0.60 32.0 0.86

10.0 0.19 21.0 0.43 27.0 0.62 32.5 0.89

11.0 0.21 22.0 0.46 27.5 0.64 33.0 0.92

12.0 0.22 22.5 0.47 28.0 0.66 33.5 0.95

13.0 0.24 23.0 0.48 28.5 0.69 34.0 0.98

14.0 0.26 23.5 0.50 29.0 0.72 34.5 1.00

We recommend that you increase all the values to exclude technical tolerance to the disadvantage of the users.
You should therefore increase the values for the fluid temperatures in the above table by 0.10 (e.g. 18° would
then = 0.45 )

CHECKING THE CALIBRATION (MEASUREMENT CHECKS)

When the machine is in Ready status, i.e. display shows: " - - - " ,
Now press the “TEST” button and introduce gas from the test bottle: As with calibration .
Deviation from the calibration values by max ± 10%. – Otherwise repeat calibration.

To ensure that it operates correctly, the machine should be calibrated every 6 months. If the ALCOHOL TESTER is
usually left unsupervised, we recommend calibration every 2 months. Once you have completed a calibration, always
seal the gas simulator carefully on both sides (to avoid the danger of evaporation).

WARNING

The police also use the same electro-chemical measurement cell, among other things

To avoid imprecise measurements, do not use at temperatures below 15°.

Please do not use the same fluid for longer than one month or more than 30 times for calibration.

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG

Tel: [phone] Fax: [phone]

e-mail: [e-mail] www.cosmos-alcoholtester.de

COSMOS

R

COSMOS ALCOHOL TESTER TYPE 2000
Self-diagnosis system INSTRUCTIONS Page 10 / 2005-04-02 / TYPE 2000

All error messages are automatically reset after approximately 10 minutes.
The equipment then carries out a self-check, particularly with regard to E O 1 (which is generally
caused by alcoholic fluid being blown into the machine), to determine whether its operating status
has been restored by “warming up” (evaporating the fluid, etc.).

Warning!! Error messages can be caused not only by faults within the COSMOS machine itself, but also by
electromagnetic interference from other unshielded equipment in the vicinity.
Whenever a fault appears, switch the equipment off and then back on again.
If this does not eliminate the fault, follow the procedures described below.
Before attempting any of the troubleshooting measures described, always remove a fuse (from the power supply
circuit).

Display Cause Troubleshooting measures
None No current Check the cable, plug and socket,

the fuses on the cover and possibly
the F 3.15A 5x20mm power supply fuses

E 01 Alcohol in the sensor Leave the equipment switched on so that the heating system
(light bulb) can evaporate the alcohol more rapidly.

Clear the system by blowing strongly into the blow hole using a
straw (10 times or more), even if initially there is no display at
all. This removes residual alcohol from the testing cylinder.

E 04 Pump breakdown Switch the equipment off and then on again - pump OK now?.
If not, carefully use a small screwdriver to turn one of the gear
wheels in the motor, provided the slack point has not been
passed. If there is still no change, replace the board.
The pump is then probably gummed up with residue from some
fluid blown in (e.g cola or liqueur).

E 05 Defective pressure sensor Replace the mother board.

E 12 Defective or empty This only applies if there is a built-in straw dispenser.

Refill the straw dispenser. Alternatively, the bridging plug
( between pins 3&4 may be faulty.

If the fault remains, call Cosmos Service.

Other faults may have been caused by strong electrical interference from another piece of equipment
damaging an IC and replacement is required (call Cosmos Service).

On the mother board On the display board

Coin mechanism IC 4 Buzzer and sound card
Sensor motor U 2 Lam
RS 232 interface IC 10 Power display
Clock IC

The police also use the same electro-chemical measurement cell, among other things

6 Alcohol level display IC 9+11+13

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

ps IC 1 + 2 + 17

ALCOHOL

TESTE

IC 6

IC 4+5

R

Type 2000 mother board

Plugs and sockets

INSTRUCTIONS Page 11 / 2005-04-02 / TYPE 2000

COSMOS

ALCOHOL

TESTE

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

O K

Test

R

TYPE 2000 display board

Plugs and sockets

INSTRUCTIONS Page 12 / 2005-04-02 / TYPE 2000

COSMOS

ALCOHOL

TESTE

("Hupe" = buzzer)

R

COSMOS-ALCOHOL-TESTER TYP 2000

COSMOS

SOUND & ADDITIONAL BOARD

This expansions module is not standard equipment

INSTRUCTIONS Page 13 / 02.04.05 / TYP 2000

Sound board

front

1

2

3

back

P

1

P

2

P

3

1 Recording button
2 Internal check
3 Microphone

P1 Sound fast - slow

(sliding right increases the speed )

c
o
n
n
e
c
t
o
r

P2 Loudspeaker volume control

(sliding left increases the volume)

P3 Loudspeaker speech control

( sliding right increases the volume )

ALCOHOL

TESTE

Additional board

R 4

from 5.0 %

0

R 5

from 3.0 %

R 6

0

from 1.5 %

0

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

R

COSMOS

COSMOS ALCOHOL TESTER TYPE 2000

Instructions Page 14 / 02/04/05 / Type2000

ALCOHOL

TESTE

The apparatus is NOT NUTS !

A little bit of mouth alcohol The di

And what
"
because I'

At 3 o'clock in the morning The di
after a boozy party And what

"
because i'

BUT THE APPARATUS IS NOT NUTS !
y
rent
and t
At
At

Therefore : NEVER RUN ANY RISK IF IN DOUBT

THE EFFECT OF ALCOHOL ON THE HUMAN BODY

Absorption of alcohol about
by the body fluids about
t
Ab

Time of alcohol reduction for a m
per hour for a wom

Accurate display If properly used ( without mouth alcohol ) the

v
To be on the safe side, repeat each test after
20 m
bei
m

The police also use the same electro-chemical measurement cell, among other things

COSMOS AUTOMATEN GMBH AM IHLSEE 18 23795 BAD SEGEBERG
Tel: [phone] Fax: [phone]

splay says 5,5 mg/100 ml.

you say is :

THE APPARATUS MUST BE NUTS "

m stone-cold sober.

splay says 0,75 mg/ml.

you say is again:

THE APPARATUS MUST BE NUTS "

m dead drunk.

At a real blood alcohol level of 0,7 mg/ml

our personal impression may be quite diffe-

depending on your physical condition

he time of day.
9 o'clock at night : I'm stone-cold sober
5 o'clock in the morming : I'm dead drunk

40 - 50 per cent within 15 min
65 per cent within 30 min

he rest within 60 - 70 min

sorption will be delayed by substantial meals

an : about 0.10 - 0.15 mg/ml

an : about 0.08 - 0.10 mg/ml

alue displayed will be reliable ( +/- 6 per cent )

inutes to ensure that blood alcohol is

ng reduced. At the second test the display

ust indicate a lower value.

R

COSMOS-ALCOHOL-TESTER

COSMOS

TYP 2000
KONFORMITÄTSERKLÄRUNG

Geb.-ANL. Seite 15 KONFORMITÄTSERKLÄRUNG / 02.04.2005 / Typ 2000 D Geb. Anl

ALCOHOL

TESTE

EG - KONFORMITÄTSERKLÄRUNG
EC - DECLARATION OF CONFORMITY

Für das folgende Gerät:
Bezeichnung : COSMOS-ALCOHOL-TESTER
Typ: 2000
Serien Nr. 1000 - 1999

Wir bestätigen hiermit, dass die Bauart des obigen Gerätes den einschlägigen EG
Richtlinien entspricht.
Durch mit uns nicht abgestimmte Änderungen,verliert diese Erklärung ihre Gültigkeit.

Einschlägige EG Richtlinien:

Niederspannungsrichtlinie: EN 60335-1
Fachgrundnorm Störfestigkeit EN 50 082-1
Fachgrundnorm Störaussendung EN 50 081-1

Baumusterprüfung:

Die Übereinstimmung unseres Baumusters m
Richtlinien wurde bestätigt von der:

Fachhochschule Kiel – Fachbereich Elektrotechnik – EMV Labor
Prof. Dr.K.Scheibe und Dipl. Ing E. Lehmenn.

Prüfbericht EMV: B 9913 COS.005 und
Prüfbericht Niederspannung: B 9921 COS.006 / 007
Das Gerät wurde in einer Reihe von typischen Situationen getestet.

Bad Segeberg 01.09.1999

COSMOS-AUTOMATEN
Gm
Onno Lüttmer

bH

it den Bestimmungen der obigen EG

COSMOS AUTOMATEN GMBH - AM IHLSEE 18 - D 23795 BAD SEGEBERG

Tel: [phone] / 83838 Fax: [phone] / 87171

e-mail: [e-mail]
