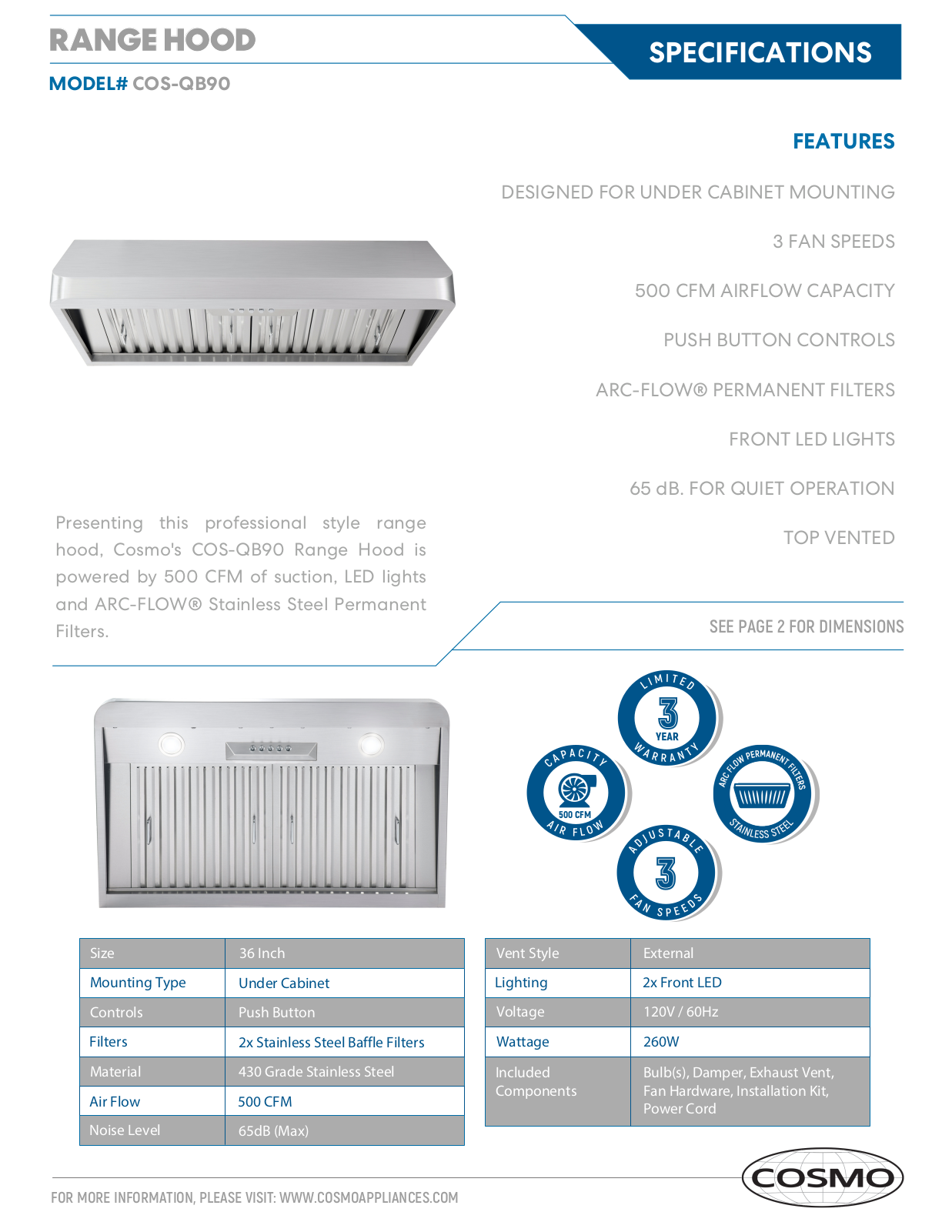

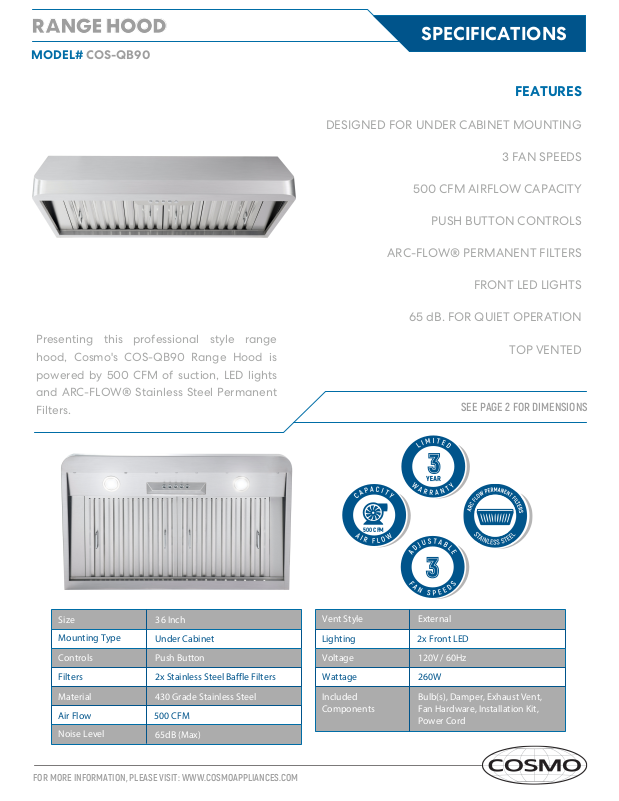

Cosmo W007298131 Specifications

RANGE HOOD

MODEL# COS-QB90

SPECIFICATIONS

FEATURES

DESIGNED FOR UNDER CABINET MOUNTING

3 FAN SPEEDS

500 CFM AIRFLOW CAPACITY

Presenting this professional style range

hood, Cosmo's COS-QB90 Range Hood is
powered by 500 CFM of suction, LED lights

PUSH BUTTON CONTROLS

ARC-FLOW® PERMANENT FILTERS

FRONT LED LIGHTS

65 dB. FOR QUIET OPERATION

TOP VENTED

and ARC-FLOW® Stainless Steel Permanent

Filters.

SEE PAGE 2 FOR DIMENSIONS

500 CFM

Size 36 Inch

Mounting Type

Controls

Filters

Material

Air Flow

Noise Level

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

Under Cabinet

Push Button

2x Stainless Steel Baffle Filters

430 Grade Stainless Steel

500 CFM

65dB (Max)

Vent Style

Lighting 2x Front LED

Voltage

Wattage

Included
Components

External

120V / 60Hz

260W

Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord

RANGE HOOD

MODEL# COS-QB90

12"

7-3/4"

1-1/2"

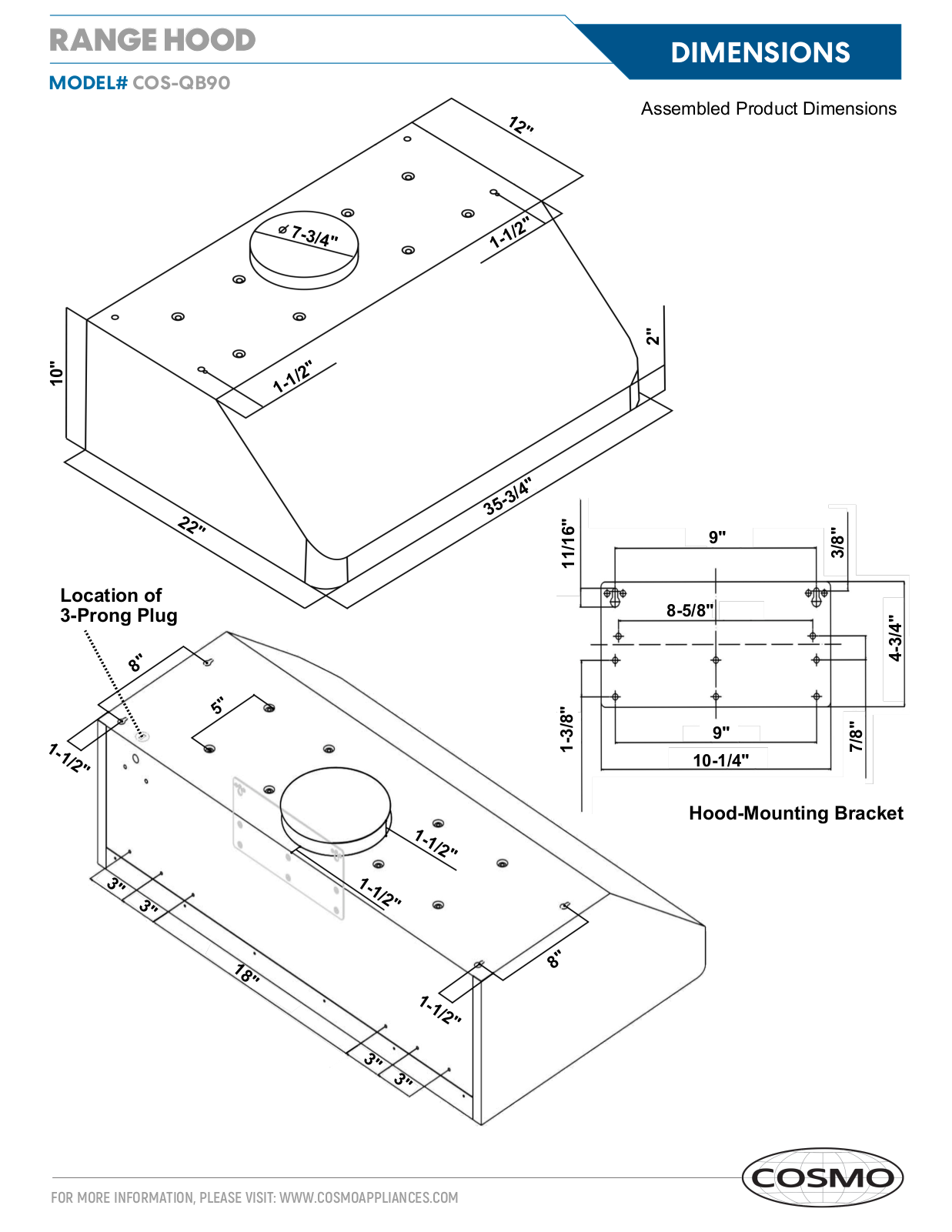

DIMENSIONS

Assembled Product Dimensions

10"

Location of
3-Prong Plug

2"

1-1/2"

35-3/4"

22"

9"

3/8"

11/16"

8-5/8"

1-1/2"

3"

8"

3"

5"

1-1/2"

1-1/2"

1-3/8"

4-3/4"

9"

7/8"

10-1/4"

Hood-Mounting Bracket

18"

1-1/2"

3"

3"

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

8"
