RANGE HOOD
MODEL# COS-63190S
DESIGNED FOR WALL MOUNTING

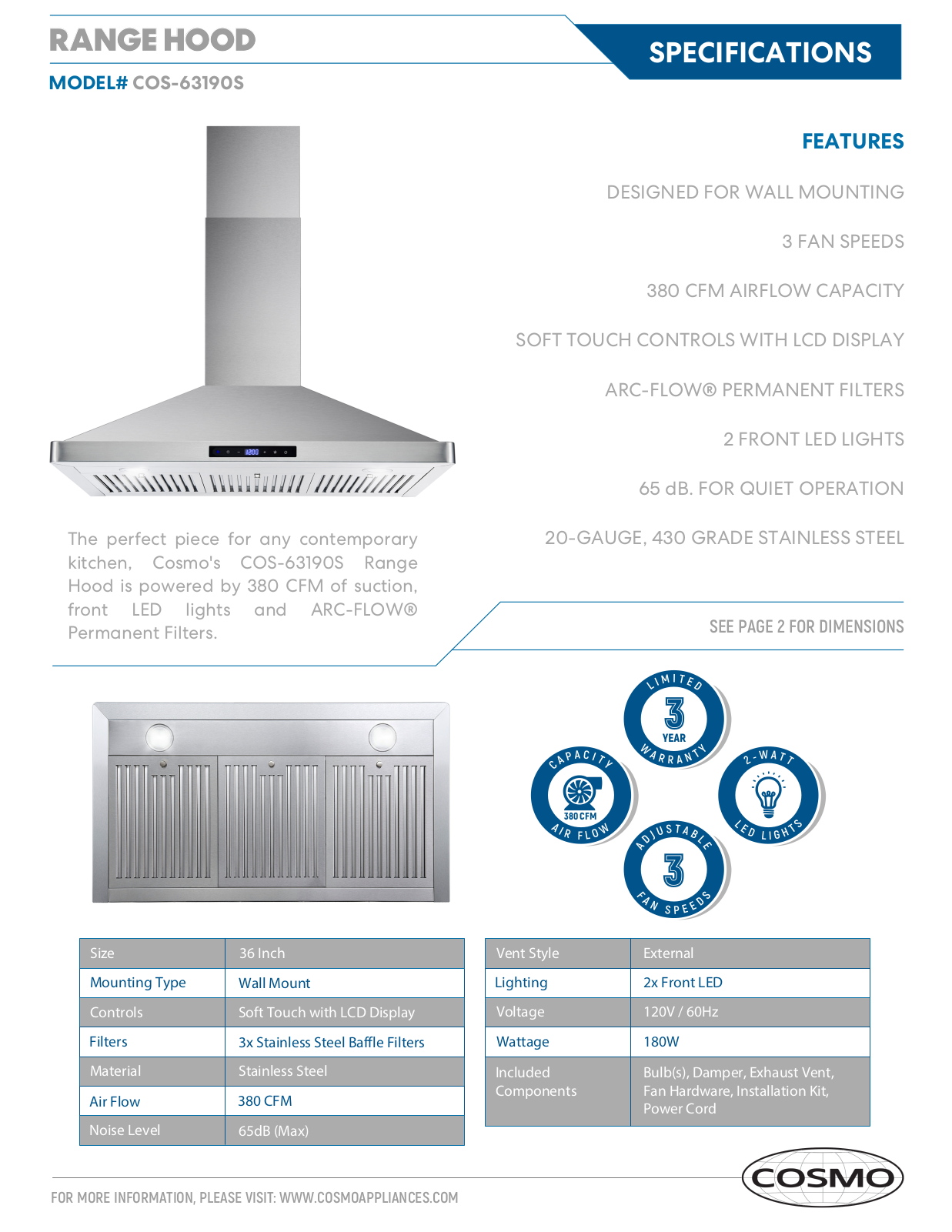

SPECIFICATIONS
FEATURES
3 FAN SPEEDS
380 CFM AIRFLOW CAPACITY
The perfect piece for any contemporary
kitchen, Cosmo's COS-63190S Range
Hood is powered by 380 CFM of suction,
SOFT TOUCH CONTROLS WITH LCD DISPLAY
ARC-FLOW® PERMANENT FILTERS
2 FRONT LED LIGHTS
65 dB. FOR QUIET OPERATION
20-GAUGE, 430 GRADE STAINLESS STEEL
front LED lights and ARC-FLOW®
Permanent Filters.
SEE PAGE 2 FOR DIMENSIONS
380 CFM
Size 36 Inch
Mounting Type
Controls
Filters
Material
Air Flow
Noise Level
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
Wall Mount
Soft Touch with LCD Display
3x Stainless Steel Baffle Filters
Stainless Steel
380 CFM
65dB (Max)
Vent Style
Lighting 2x Front LED
Voltage
Wattage
Included
Components
External
120V / 60Hz
180W
Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord
RANGE HOOD
MODEL# COS-63190S

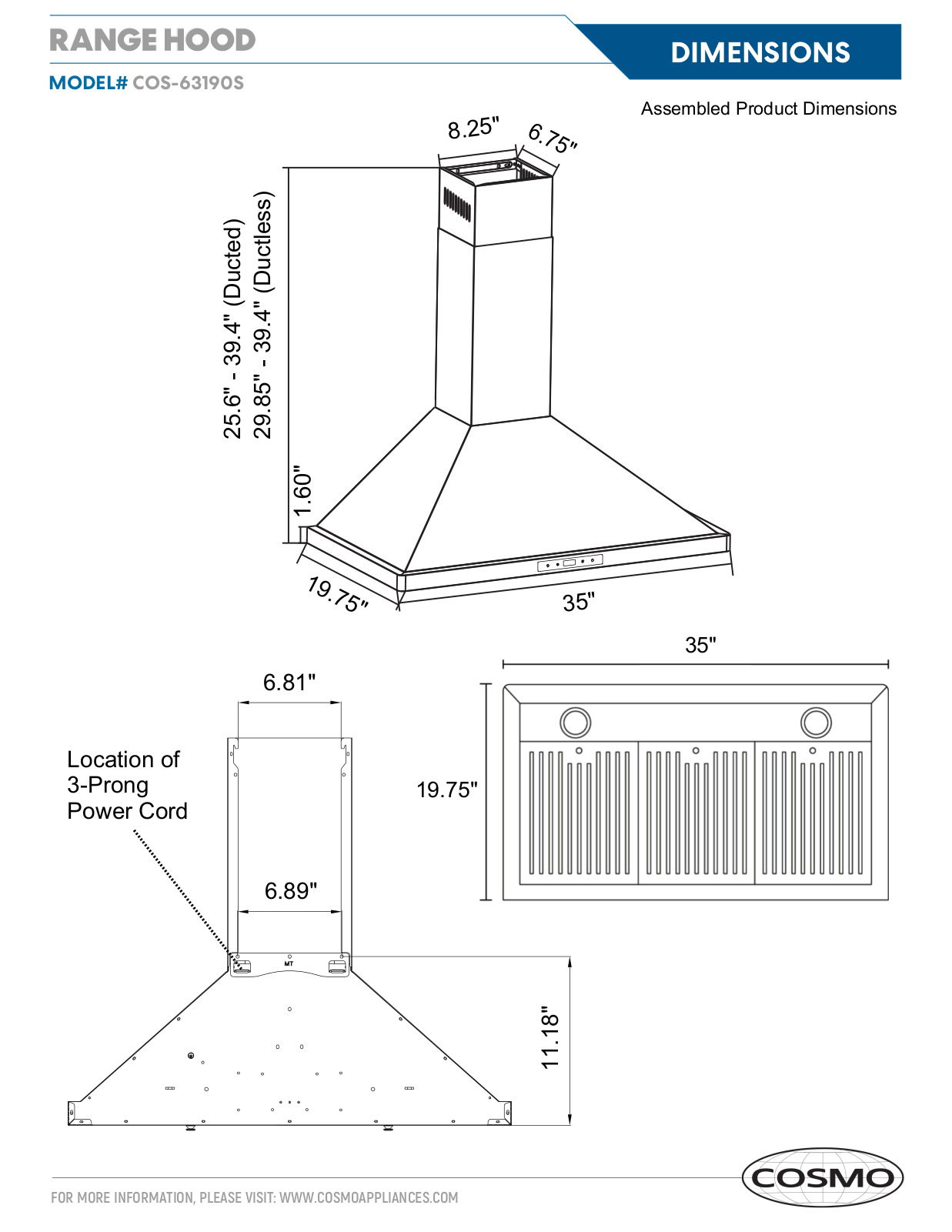

DIMENSIONS
Assembled Product Dimensions
8.25"
6.75"
25.6" - 39.4" (Ducted)
29.85" - 39.4" (Ductless)
19.75"
6.81"
35"
35"
Location of
3-Prong
Power Cord
19.75"
6.89"
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
11.18"
