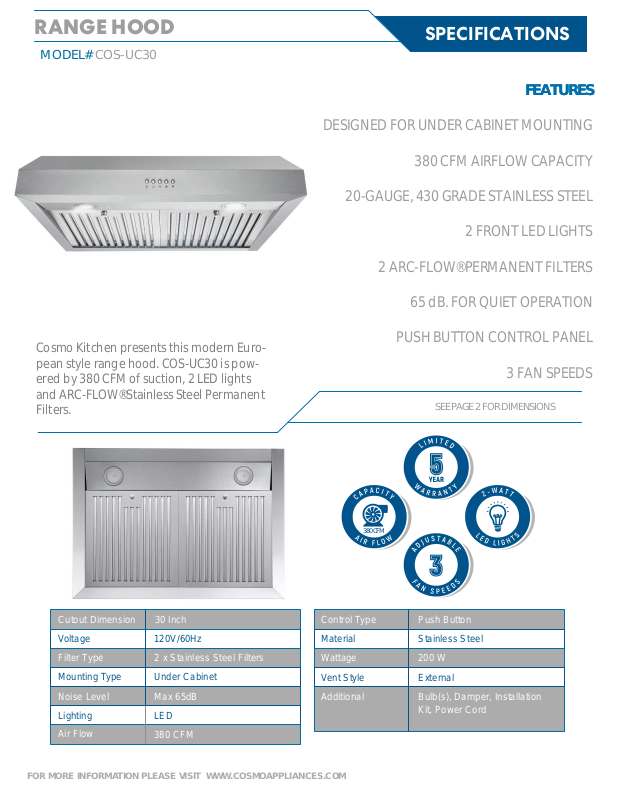

RANGE HOOD
MODEL# COS-UC30
SPECIFICATIONS
FEATURES
FEATURES
DESIGNED FOR UNDER CABINET MOUNTING
380 CFM AIRFLOW CAPACITY
20-GAUGE, 430 GRADE STAINLESS STEEL
Cosmo Kitchen presents this modern European style range hood. COS-UC30 is powered by 380 CFM of suction, 2 LED lights
and ARC-FLOW® Stainless Steel Permanent
2 FRONT LED LIGHTS
2 ARC-FLOW® PERMANENT FILTERS
65 dB. FOR QUIET OPERATION
PUSH BUTTON CONTROL PANEL
3 FAN SPEEDS
Filters.
SEE PAGE 2 FOR DIMENSIONS
380 CFM
Cutout Dimension 30 Inch
Voltage
Filter T ype
Mounting T ype
Lighting
Air Flow
FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM
120V/60Hz
2 x Stainless Steel Filters
Under Cabinet
Max 65dBNoise Level
LED
380 CFM
Control T ype
Wattage 200 W
Vent Style External
Additional
Push Button
Stainless SteelMaterial
Bulb(s), Damper, Installation
Kit, Power Cord
RANGE HOOD
MODEL# COS-UC30
DIMENSIONS
29 - 1/2”
9 - 3/4”
HOOD
FRONT VIEW
27 - 1/2”
1”
1”
MOUNTING
SCREWS
20 - 1/2”
12”
BACK
CABINET FRONT
6”
1 - 1/4”
10 - 3/4”
TOP VIEW
ELECTRICAL
ACCESS HOLE
(IN CABINET BOTTOM)
FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM
3 1/2”
9 - 1/8”
1 - 1/2”
1”
