Cosmo DVRD2285 Specifications

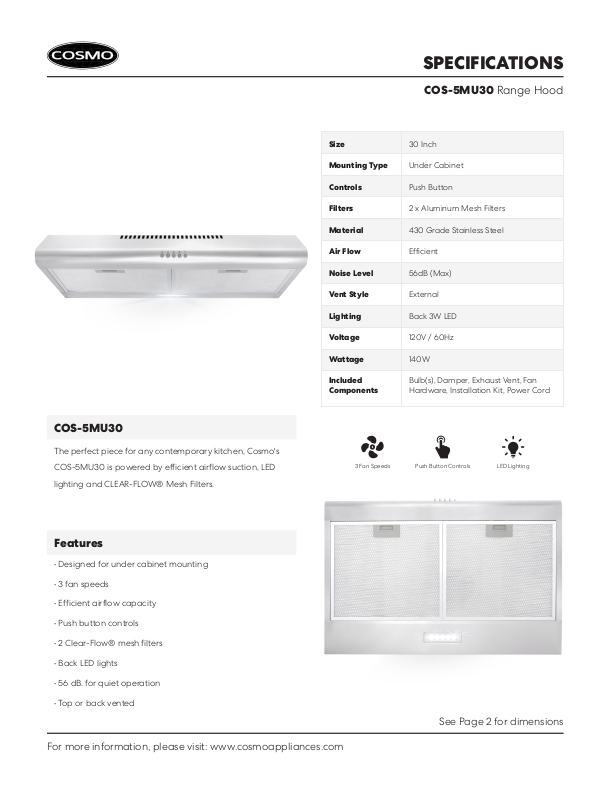

SPECIFICATIONS

COS-5MU30 Range Hood

Size

Mounting Type

Controls

Filters

Material

Air Flow

Noise Level

Vent Style

30 Inch

Under Cabinet

Push Button

2 x Aluminum Mesh Filters

430 Grade Stainless Steel

Efficient

56dB (Max)

External

COS-5MU30

The perfect piece for any contemporary kitchen, Cosmo's

COS-5MU30 is powered by efficient airflow suction, LED

lighting and CLEAR-FLOW® Mesh Filters.

Lighting

Voltage

Wattage

Included
Components

3 Fan Speeds Push Button Controls LED Lighting

Back 3W LED

120V / 60Hz

140W

Bulb(s), Damper, Exhaust Vent, Fan
Hardware, Installation Kit, Power Cord

Features

• Designed for under cabinet mounting

• 3 fan speeds

• Efficient airflow capacity

• Push button controls

• 2 Clear-Flow® mesh filters

• Back LED lights

• 56 dB. for quiet operation

• Top or back vented

For more information, please visit: www.cosmoappliances.com

See Page 2 for dimensions

DIMENSIONS

FRONT VIEW

VIEW FROM UNDER

4 - 1/2"

5/8"

26 - 1/2"

19 - 3/4"

5 - 1/2"

13 - 3/8"

29 - 3/4"

19 - 3/4"

29 - 3/4"

BACK VIEW

NOTE: Ventilation outlet is 4 - 1/2"

in diameter. A 5" duct is

recommended for installation.

TOP or REAR Vent Options

COS-5MU30

Assembled Product Dimensions

COS-5MU30 Range Hood

Location of
3-Prong Plug

Dimensions (WxDxH): 29.75” x 19.75” x 5.5”
