Cosmo DVRD1271 Specifications

RANGEHOOD

MODEL# COS-63190S

SPECIFICATIONS

FEATURES

DESIGNED FOR WALL MOUNTING

760 CFM AIRFLOW CAPACITY

20-GAUGE, 430 GRADE STAINLESS STEEL

2 FRONT LED LIGHTS

The perfect piece for any contemporary kitchen.
COS-63190s is powered by 760 CFM of
suction, 2 front LED lights and ARC FLOW®

3 X STAINLESS STEEL FILTERS

65 dB. FOR QUIET OPERATION

TOUCH WITH LCD CONTROL PANEL

3 FAN SPEEDS

SEE PAGE 2 FOR DIMENSIONS

Permanent lters.

760 CFM

Cutout Dimension 30 Inch

Voltage

Filter Type

Mounting Type

Lighting

Air Flow

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

120V/60Hz

3 x Stainless Steel Filters

Wall Mount

Max 65dBNoise Level

LED

760 CFM

Control Type

Vent Style External

Additional

LCD Touch Control Panel

Stainless SteelMaterial

180 WWattage

Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord

RANGEHOOD

MODEL# COS-63190S

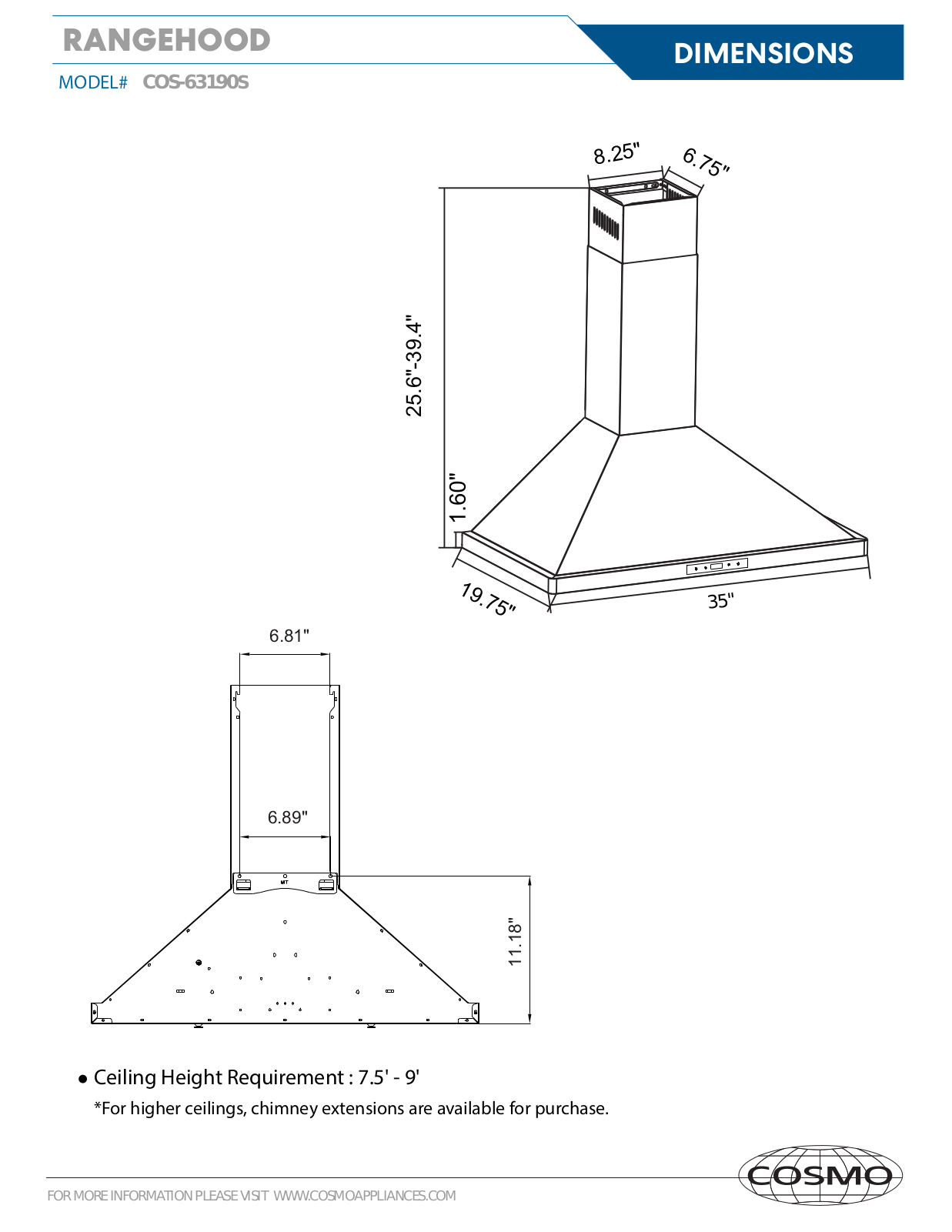

DIMENSIONS

25.6"-39.4"

8.2

5

"

6.

75

"

6.81"

6.89"

19.75"

35"

Ceiling Height Requirement : 7.5' - 9'

*For higher ceilings, chimney extensions are available for purchase.

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

11.18"
