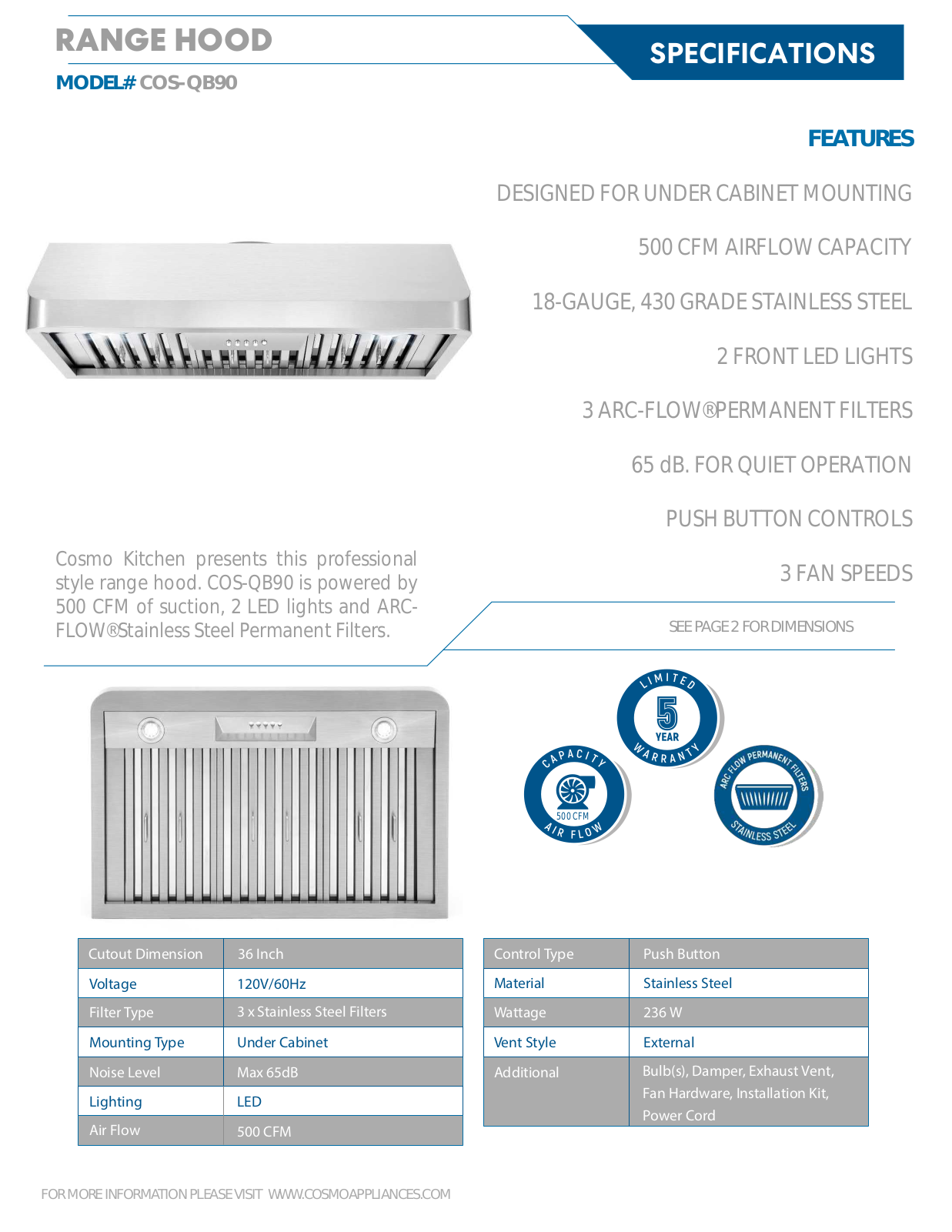

Cosmo DVRD1201 Specifications

RANGE HOOD

MODEL# COS-QB90

DESIGNED FOR UNDER CABINET MOUNTING

500 CFM AIRFLOW CAPACITY

18-GAUGE, 430 GRADE STAINLESS STEEL

SPECIFICATIONS

FEATURES

Cosmo Kitchen presents this professional
style range hood. COS-QB90 is powered by
500 CFM of suction, 2 LED lights and ARC-

2 FRONT LED LIGHTS

3 ARC-FLOW® PERMANENT FILTERS

65 dB. FOR QUIET OPERATION

PUSH BUTTON CONTROLS

3 FAN SPEEDS

FLOW® Stainless Steel Permanent Filters.

SEE PAGE 2 FOR DIMENSIONS

500 CFM

Cutout Dimension 36 Inch

Voltage 120V/60Hz

Filter Type

Mounting Type

Noise Level Max 65dB

Lighting

Air Flow

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

3 x Stainless Steel Filters

Under Cabinet

LED

500 CFM

Control Type

Wattage 236 W

Vent Style External

Additional

Push Button

Stainless SteelMaterial

Bulb(s), Damper, Exhaust Vent,

Fan Hardware, Installation Kit,

Power Cord

RANGE HOOD

MODEL# COS-QB90

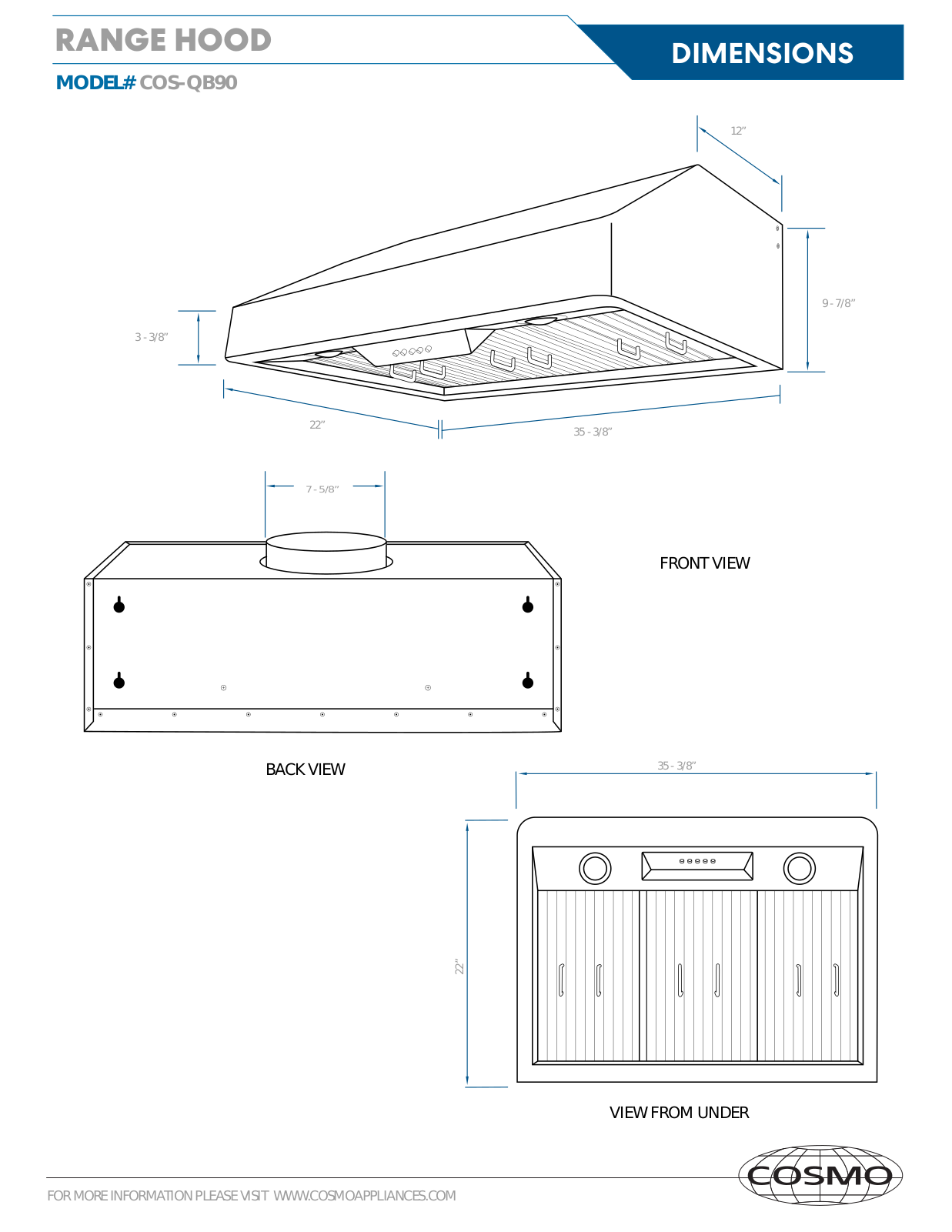

DIMENSIONS

12”

9 - 7/8”

3 - 3/8”

22”

7 - 5/8”

35 - 3/8”

FRONT VIEW

BACK VIEW

35 - 3/8”

22”

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

VIEW FROM UNDER
