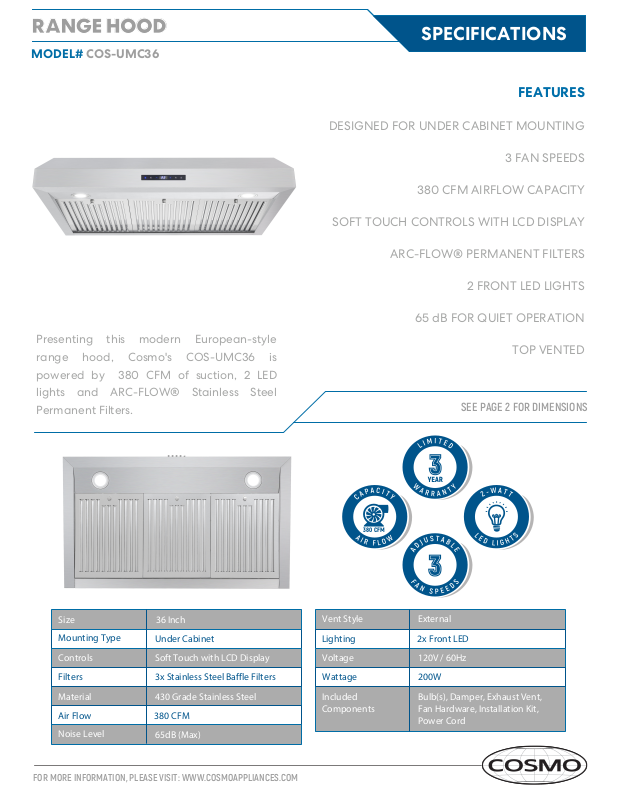

Cosmo DVRD1149 Specifications

RANGE HOOD

RANGE HOOD

MODEL# COS-UMC36

DESIGNED FOR UNDER CABINET MOUNTING

SPECIFICATIONS

SPECIFICATIONS

FEATURES

3 FAN SPEEDS

380 CFM AIRFLOW CAPACITY

Presenting this modern European-style

range hood, Cosmo's COS-UMC36 is

powered by 380 CFM of suction, 2 LED

lights and ARC-FLOW® Stainless Steel

SOFT TOUCH CONTROLS WITH LCD DISPLAY

ARC-FLOW® PERMANENT FILTERS

2 FRONT LED LIGHTS

65 dB FOR QUIET OPERATION

TOP VENTED

Permanent Filters.

SEE PAGE 2 FOR DIMENSIONS

380 CFM

Size 36 Inch

Mounting Type

Controls

Filters

Material

Air Flow

Noise Level

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

Under Cabinet

Soft Touch with LCD Display

3x Stainless Steel Baffle Filters

430 Grade Stainless Steel

380 CFM

65dB (Max)

Vent Style

Lighting 2x Front LED

Voltage

Wattage

Included
Components

External

120V / 60Hz

200W

Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord

RANGE HOOD

MODEL# COS-UMC36

12"

6"

DIMENSIONS

Assembled Product Dimensions

9 - 3/4"

8 - 3/4"

33 - 2/5"

35 - 2/5"

1"

1"

HOOD
MOUNTING
SCREWS

20 - 1/2"

BACK VIEW

CABINET FRONT

6"

12"

1 - 1/4"

13"

TOP VIEW

LOCATION OF 3-PRONG PLUG

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

3 - 1/3"

9 - 1/4"

1 - 1/2"

1"
