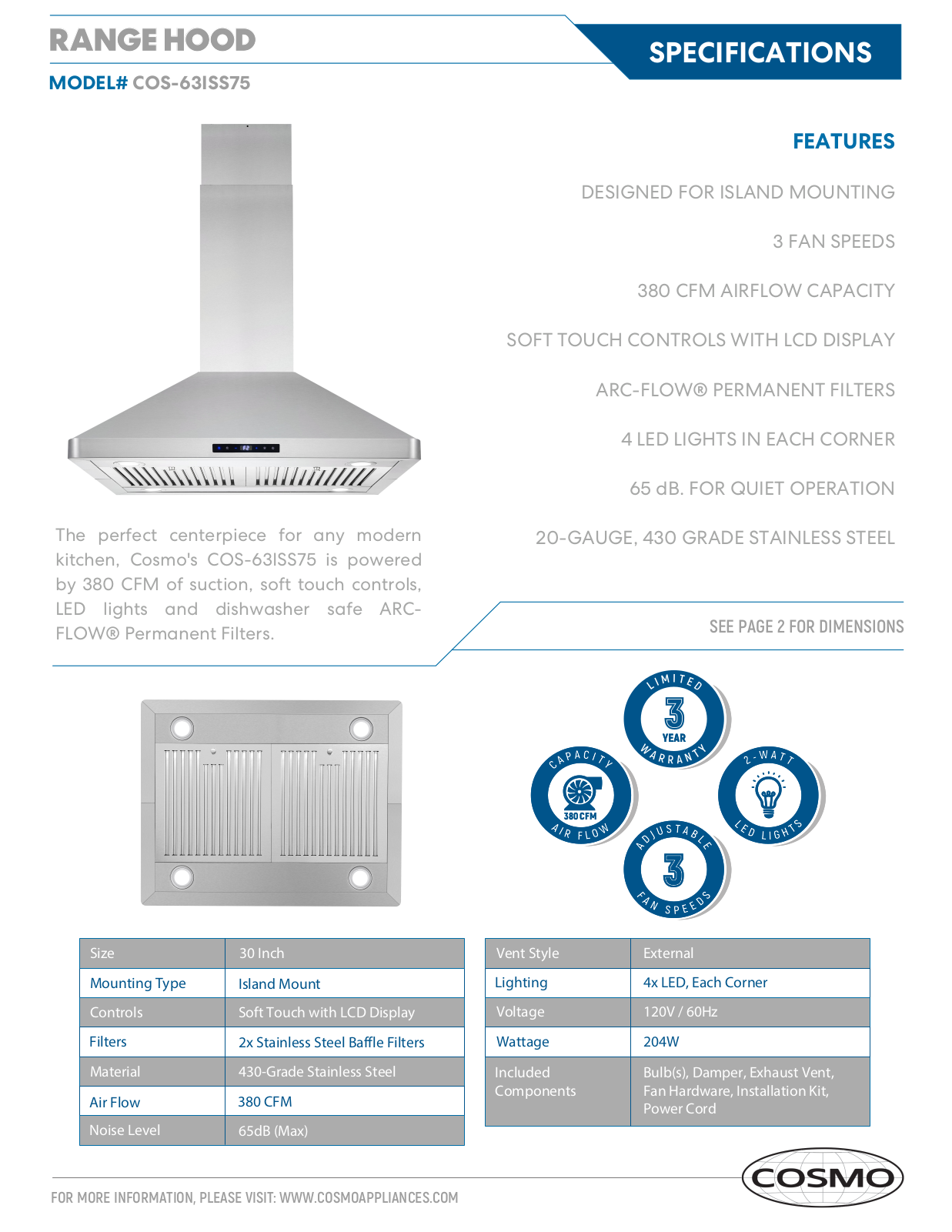

Page 1
RANGE HOOD
MODEL# COS-63ISS75
DESIGNED FOR ISLAND MOUNTING
SPECIFICATIONS
FEATURES
3 FAN SPEEDS
380 CFM AIRFLOW CAPACITY
The perfect centerpiece for any modern
kitchen, Cosmo's COS-63ISS75 is powered
by 380 CFM of suction, soft touch controls,
SOFT TOUCH CONTROLS WITH LCD DISPLAY
ARC-FLOW® PERMANENT FILTERS
4 LED LIGHTS IN EACH CORNER
65 dB. FOR QUIET OPERATION
20-GAUGE, 430 GRADE STAINLESS STEEL
LED lights and dishwasher safe ARCFLOW® Permanent Filters.
380 CFM
380 CFM
SEE PAGE 2 FOR DIMENSIONS
Size 30 Inch
Mounting Type
Controls
Filters
Material
Air Flow
Noise Level
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
Island Mount
Soft Touch with LCD Display
2x Stainless Steel Baffle Filters
430-Grade Stainless Steel
380 CFM
65dB (Max)
Vent Style
Lighting 4x LED, Each Corner
Voltage
Wattage
Included
Components
External
120V / 60Hz
204W
Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord
Page 2
RANGE HOOD
MODEL# COS-63ISS75

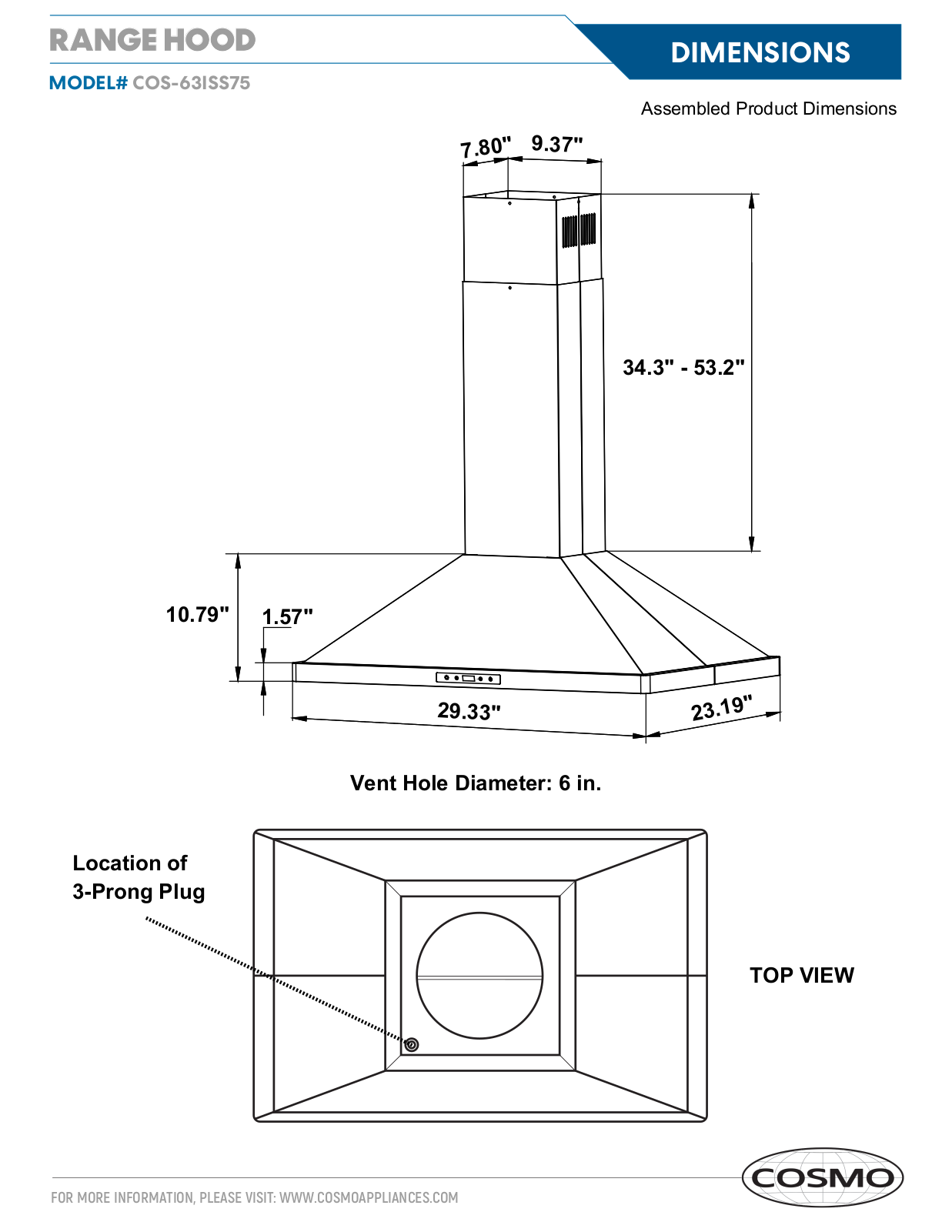

DIMENSIONS
Assembled Product Dimensions
7.80"
9.37"
34.3" - 53.2"
10.79"
Location of
1.57"
29.33"
Vent Hole Diameter: 6 in.
23.19"
3-Prong Plug
TOP VIEW
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
