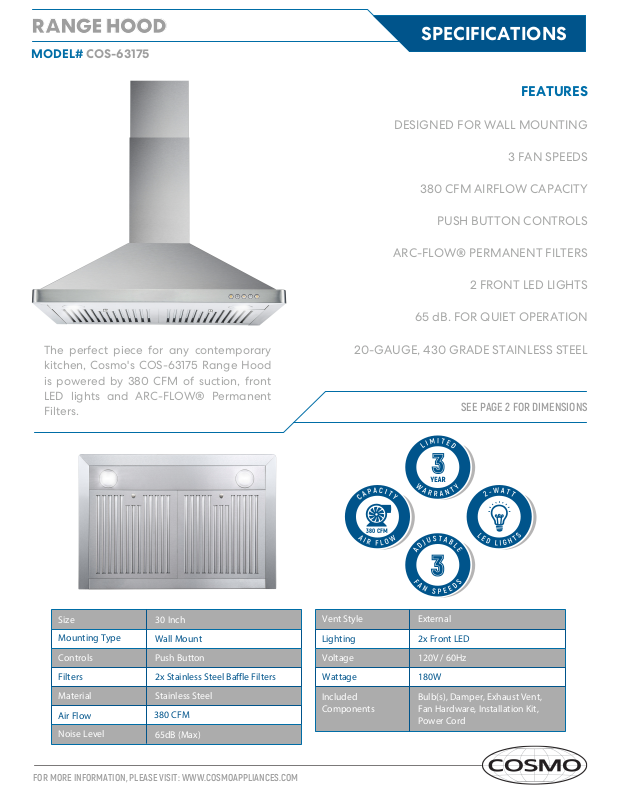

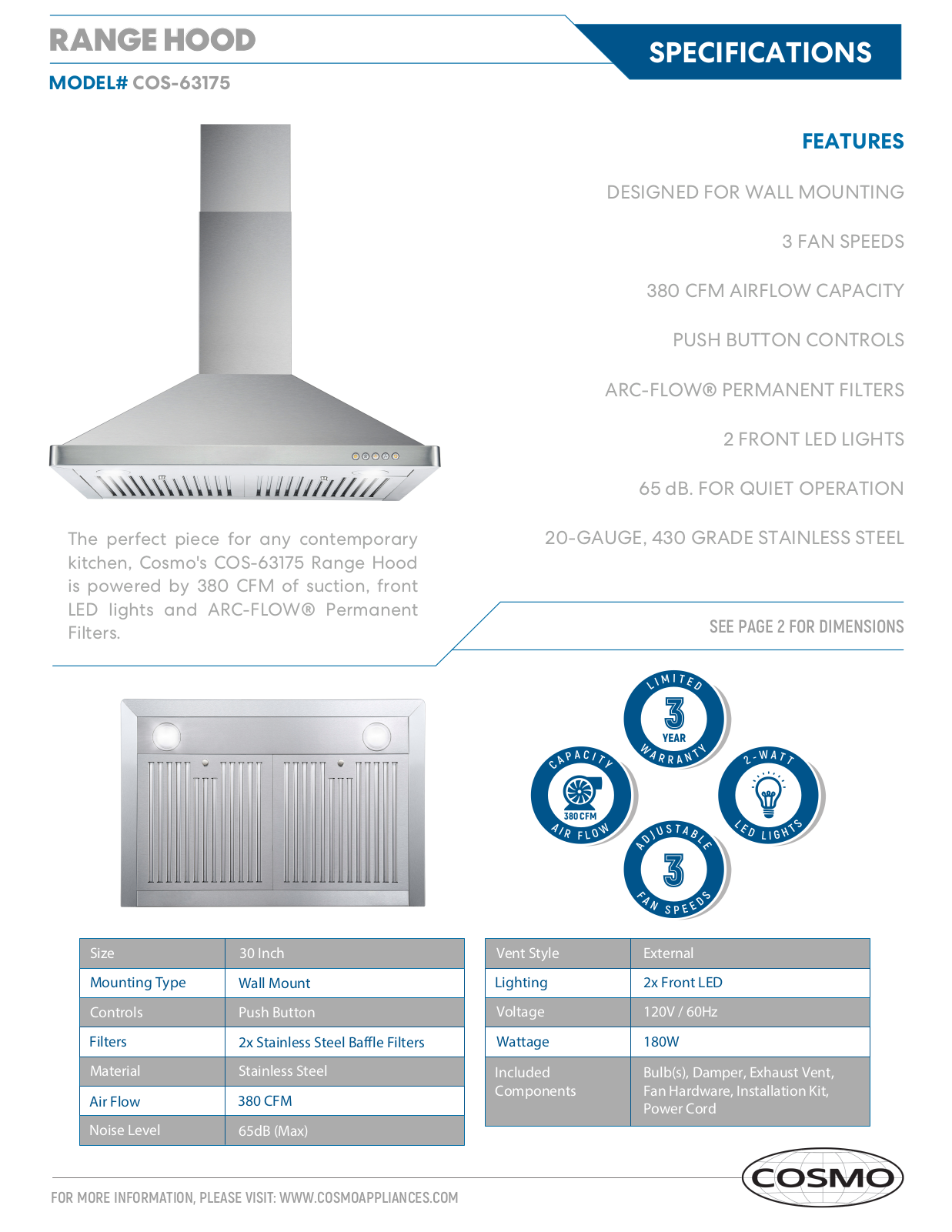

Cosmo CSMO1122 Specifications

RANGE HOOD

MODEL# COS-63175

DESIGNED FOR WALL MOUNTING

SPECIFICATIONS

FEATURES

3 FAN SPEEDS

380 CFM AIRFLOW CAPACITY

The perfect piece for any contemporary
kitchen, Cosmo's COS-63175 Range Hood
is powered by 380 CFM of suction, front

PUSH BUTTON CONTROLS

ARC-FLOW® PERMANENT FILTERS

2 FRONT LED LIGHTS

65 dB. FOR QUIET OPERATION

20-GAUGE, 430 GRADE STAINLESS STEEL

LED lights and ARC-FLOW® Permanent
Filters.

SEE PAGE 2 FOR DIMENSIONS

380 CFM

Size 30 Inch

Mounting Type

Controls

Filters

Material

Air Flow

Noise Level

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

Wall Mount

Push Button

2x Stainless Steel Baffle Filters

Stainless Steel

380 CFM

65dB (Max)

Vent Style

Lighting 2x Front LED

Voltage

Wattage

Included
Components

External

120V / 60Hz

180W

Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord

RANGE HOOD

MODEL# COS-63175

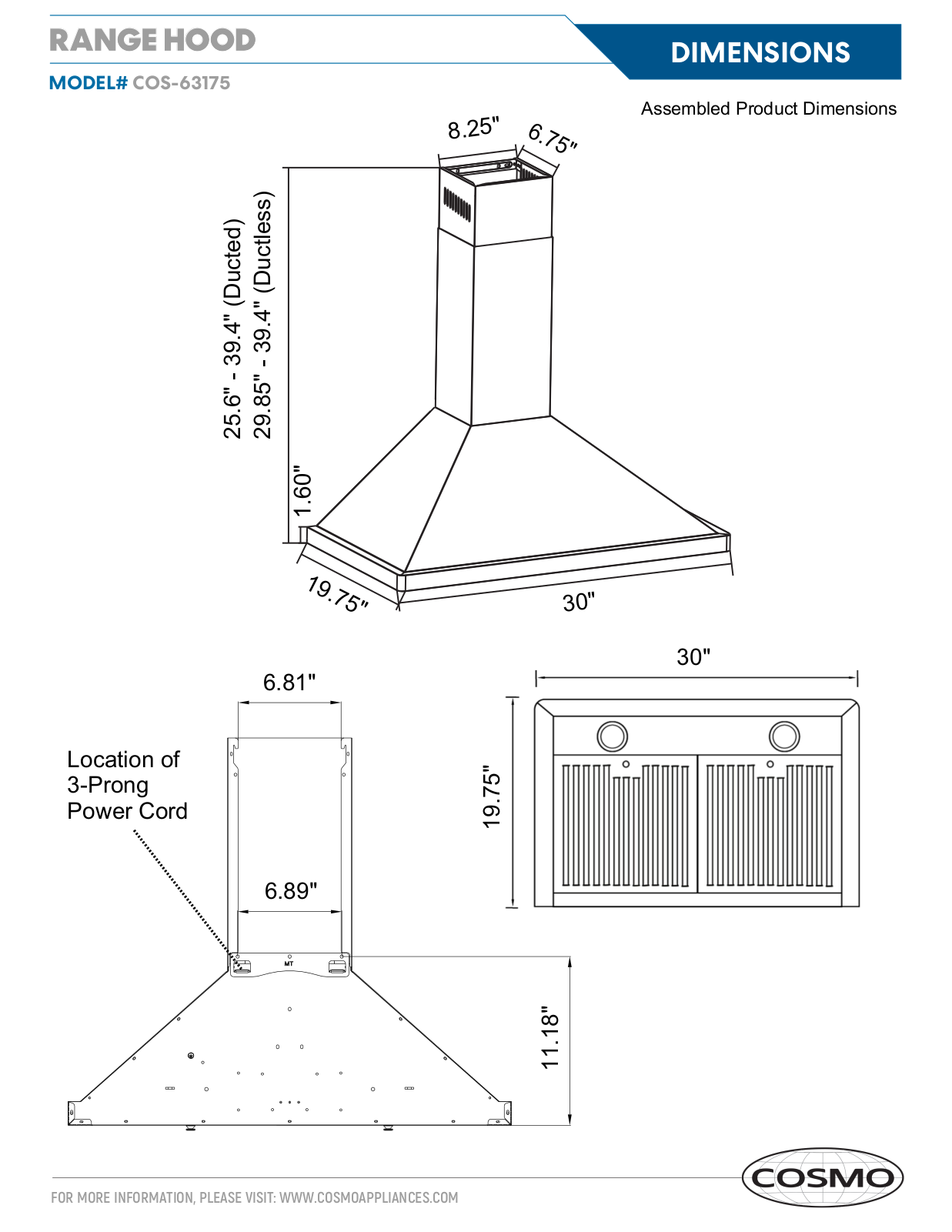

DIMENSIONS

Assembled Product Dimensions

8.25"

6.75"

25.6" - 39.4" (Ducted)

29.85" - 39.4" (Ductless)

19.75"

6.81"

30"

30"

Location of
3-Prong
Power Cord

19.75"

6.89"

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM

11.18"
