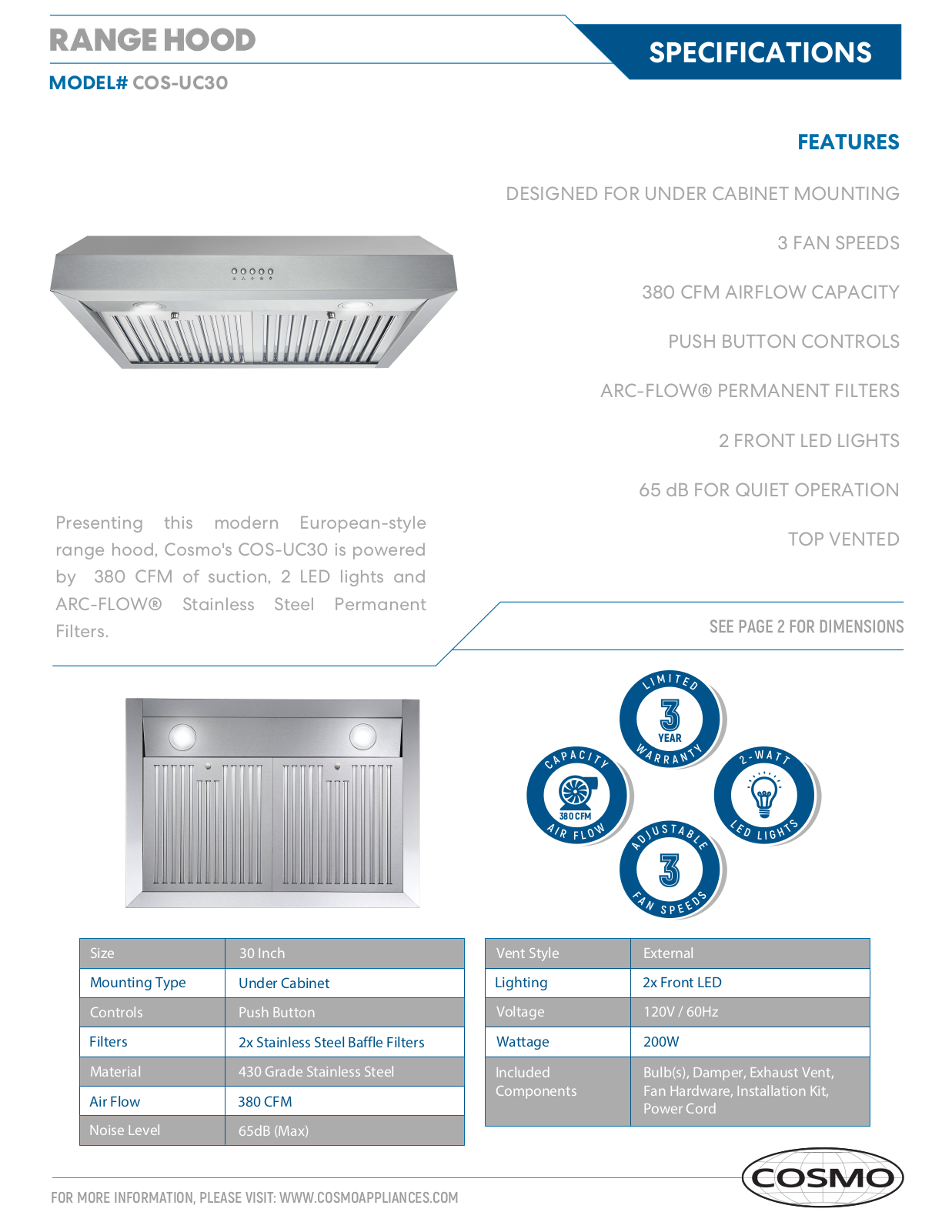

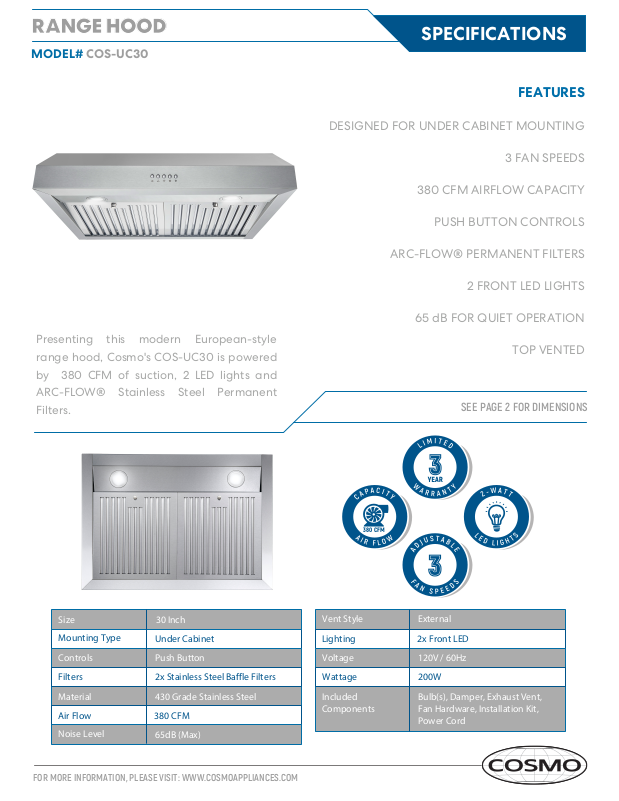

RANGE HOOD
MODEL# COS-UC30
DESIGNED FOR UNDER CABINET MOUNTING
SPECIFICATIONS
FEATURES
3 FAN SPEEDS
380 CFM AIRFLOW CAPACITY
Presenting this modern European-style
range hood, Cosmo's COS-UC30 is powered
by 380 CFM of suction, 2 LED lights and
ARC-FLOW® Stainless Steel Permanent
PUSH BUTTON CONTROLS
ARC-FLOW® PERMANENT FILTERS
2 FRONT LED LIGHTS
65 dB FOR QUIET OPERATION
TOP VENTED
Filters.
SEE PAGE 2 FOR DIMENSIONS
380 CFM
Size 30 Inch
Mounting Type
Controls
Filters
Material
Air Flow
Noise Level
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
Under Cabinet
Push Button
2x Stainless Steel Baffle Filters
430 Grade Stainless Steel
380 CFM
65dB (Max)
Vent Style
Lighting 2x Front LED
Voltage
Wattage
Included
Components
External
120V / 60Hz
200W
Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord
RANGE HOOD
MODEL# COS-UC30
12"
6"

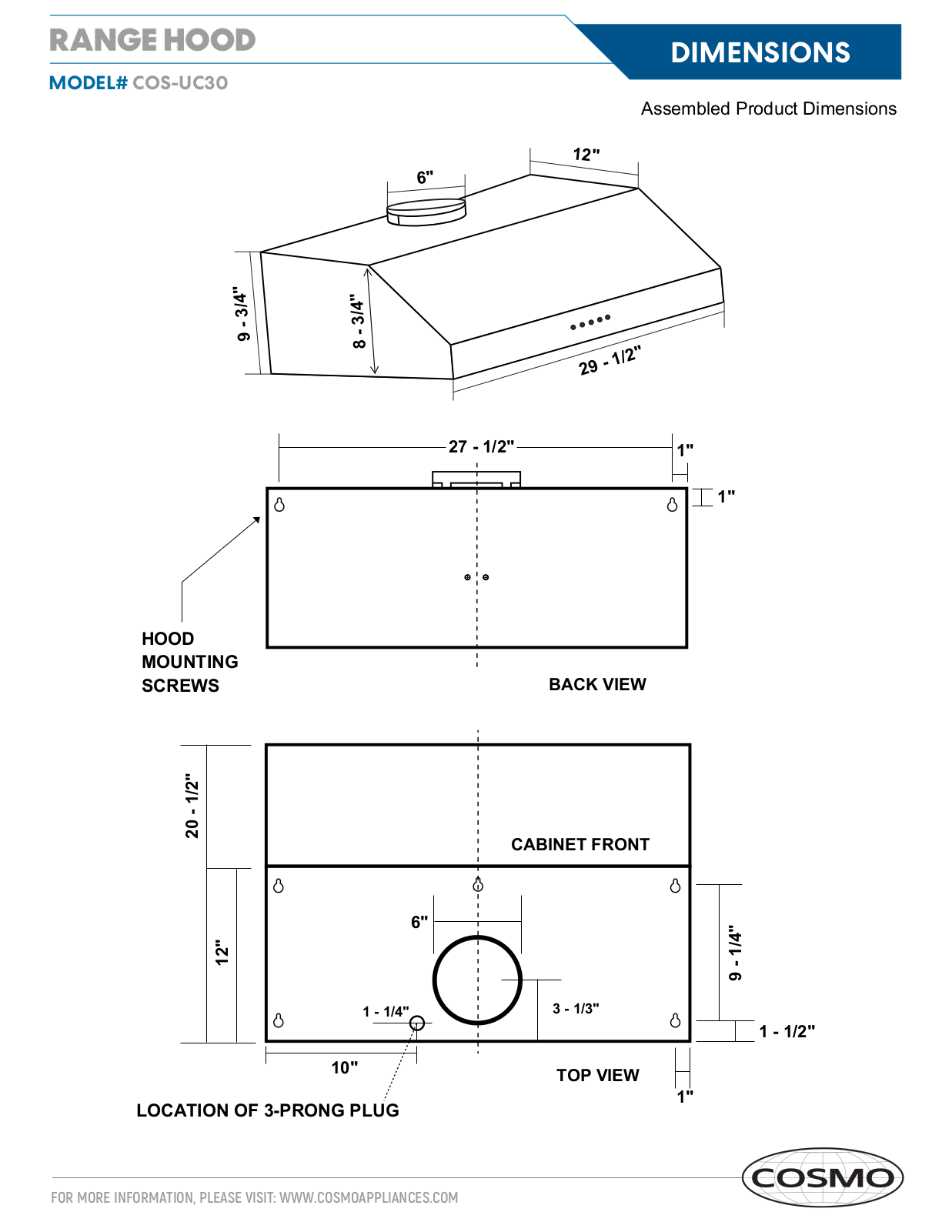

DIMENSIONS
Assembled Product Dimensions
9 - 3/4"
8 - 3/4"
27 - 1/2"
29 - 1/2"
1"
1"
HOOD
MOUNTING
SCREWS
20 - 1/2"
BACK VIEW
CABINET FRONT
12"
1 - 1/4"
10"
LOCATION OF 3-PRONG PLUG
6"
9 - 1/4"
3 - 1/3"
1 - 1/2"
TOP VIEW
1"
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
