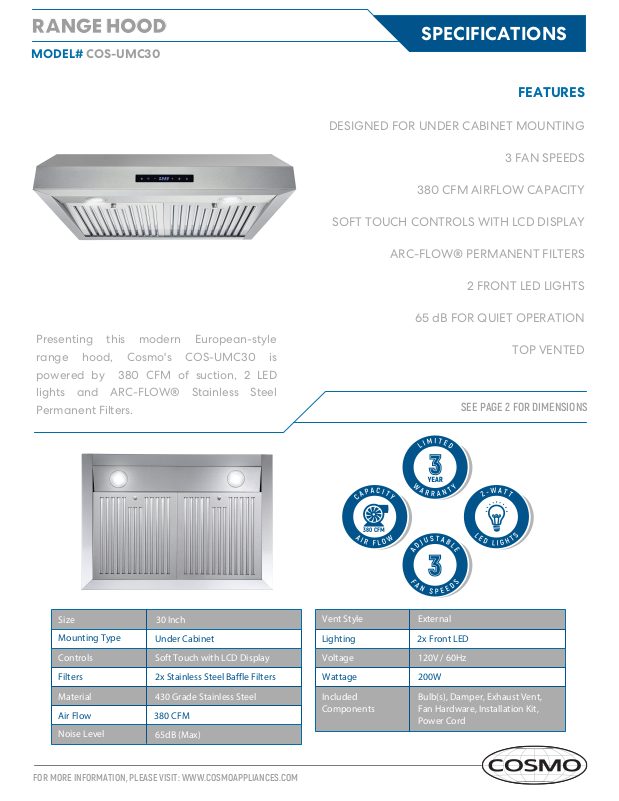

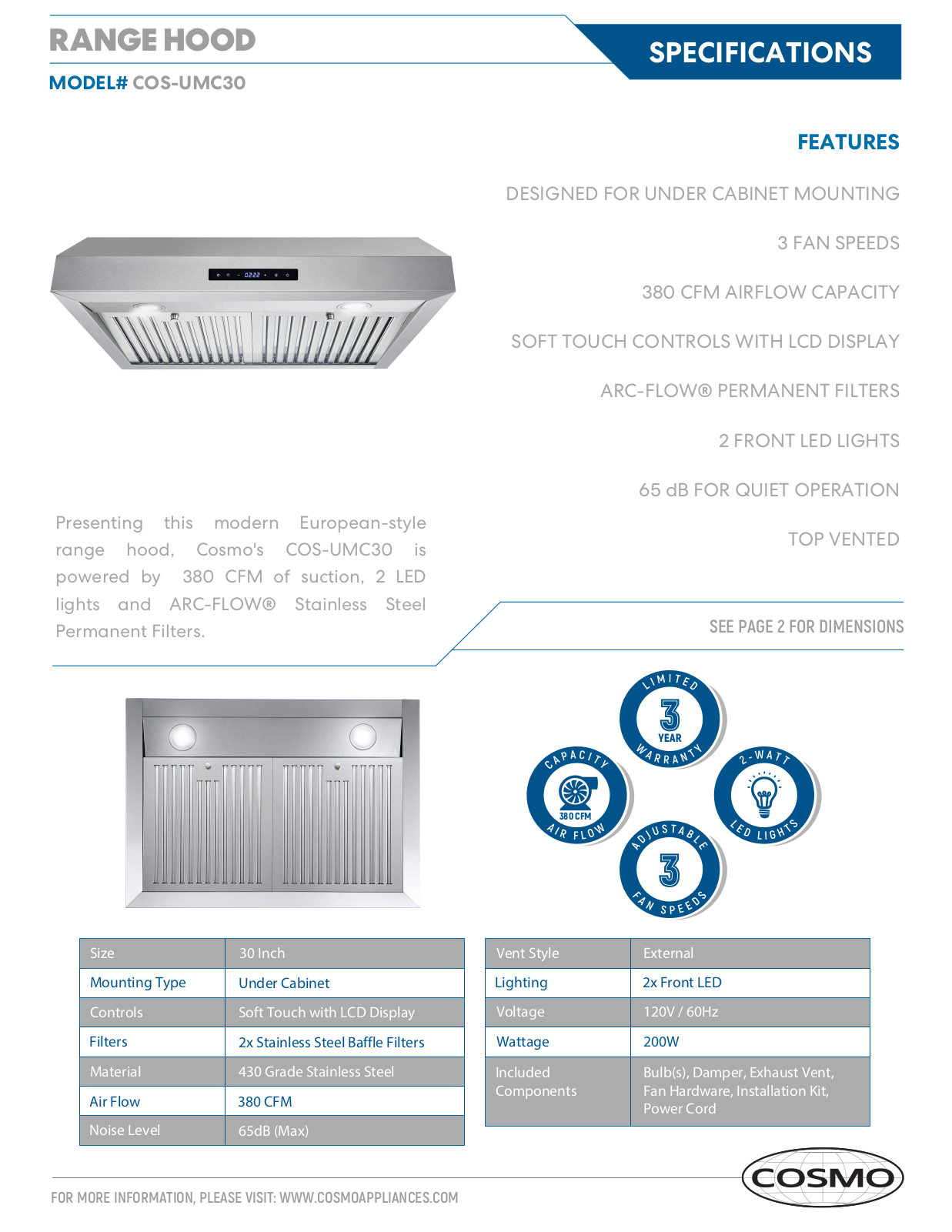

RANGE HOOD
MODEL# COS-UMC30
DESIGNED FOR UNDER CABINET MOUNTING
SPECIFICATIONS
FEATURES
3 FAN SPEEDS
380 CFM AIRFLOW CAPACITY
Presenting this modern European-style
range hood, Cosmo's COS-UMC30 is
powered by 380 CFM of suction, 2 LED
lights and ARC-FLOW® Stainless Steel
SOFT TOUCH CONTROLS WITH LCD DISPLAY
ARC-FLOW® PERMANENT FILTERS
2 FRONT LED LIGHTS
65 dB FOR QUIET OPERATION
TOP VENTED
Permanent Filters.
SEE PAGE 2 FOR DIMENSIONS
380 CFM
Size 30 Inch
Mounting Type
Controls
Filters
Material
Air Flow
Noise Level
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
Under Cabinet
Soft Touch with LCD Display
2x Stainless Steel Baffle Filters
430 Grade Stainless Steel
380 CFM
65dB (Max)
Vent Style
Lighting 2x Front LED
Voltage
Wattage
Included
Components
External
120V / 60Hz
200W
Bulb(s), Damper, Exhaust Vent,
Fan Hardware, Installation Kit,
Power Cord
RANGE HOOD
MODEL# COS-UMC30
12"
6"

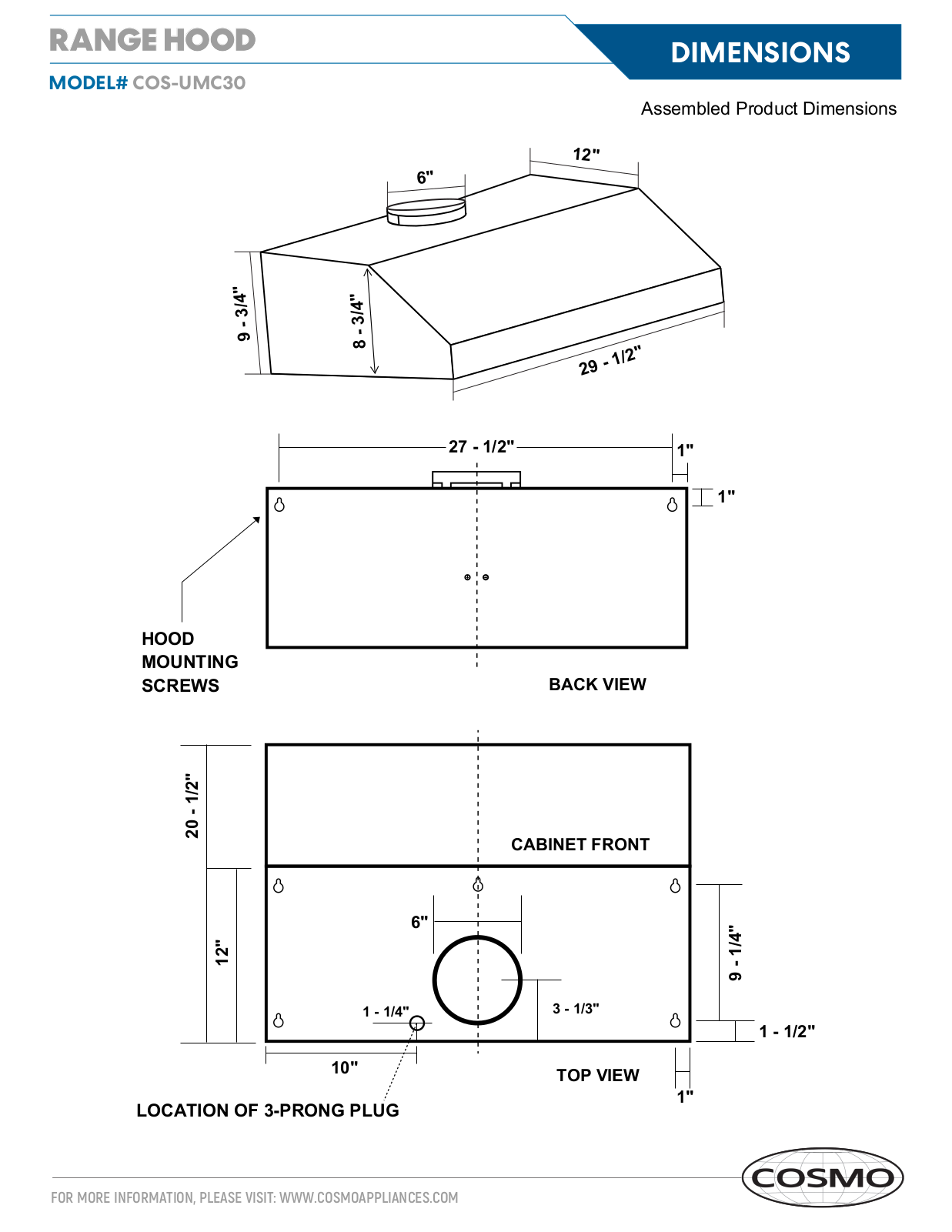

DIMENSIONS
Assembled Product Dimensions
9 - 3/4"
8 - 3/4"
27 - 1/2"
29 - 1/2"
1"
1"
HOOD
MOUNTING
SCREWS
20 - 1/2"
BACK VIEW
CABINET FRONT
12"
1 - 1/4"
10"
LOCATION OF 3-PRONG PLUG
6"
9 - 1/4"
3 - 1/3"
1 - 1/2"
TOP VIEW
1"
FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
