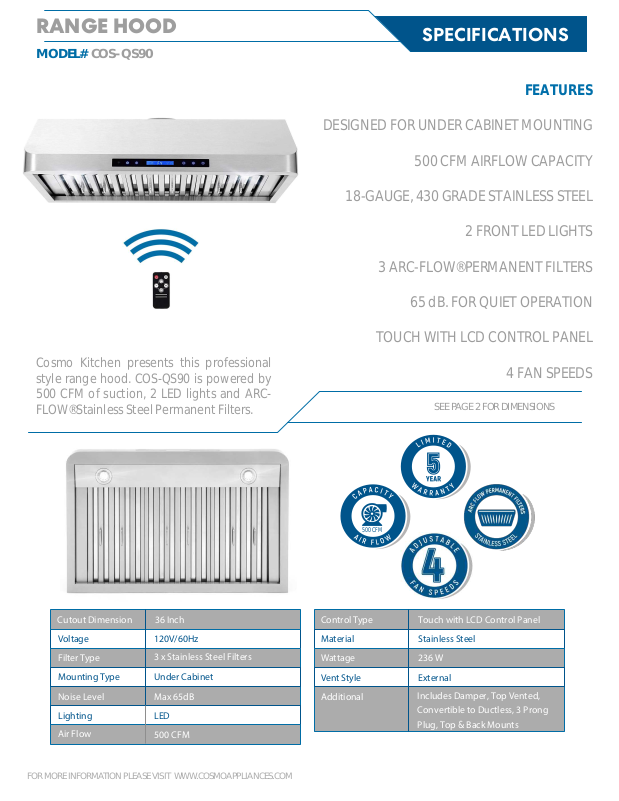

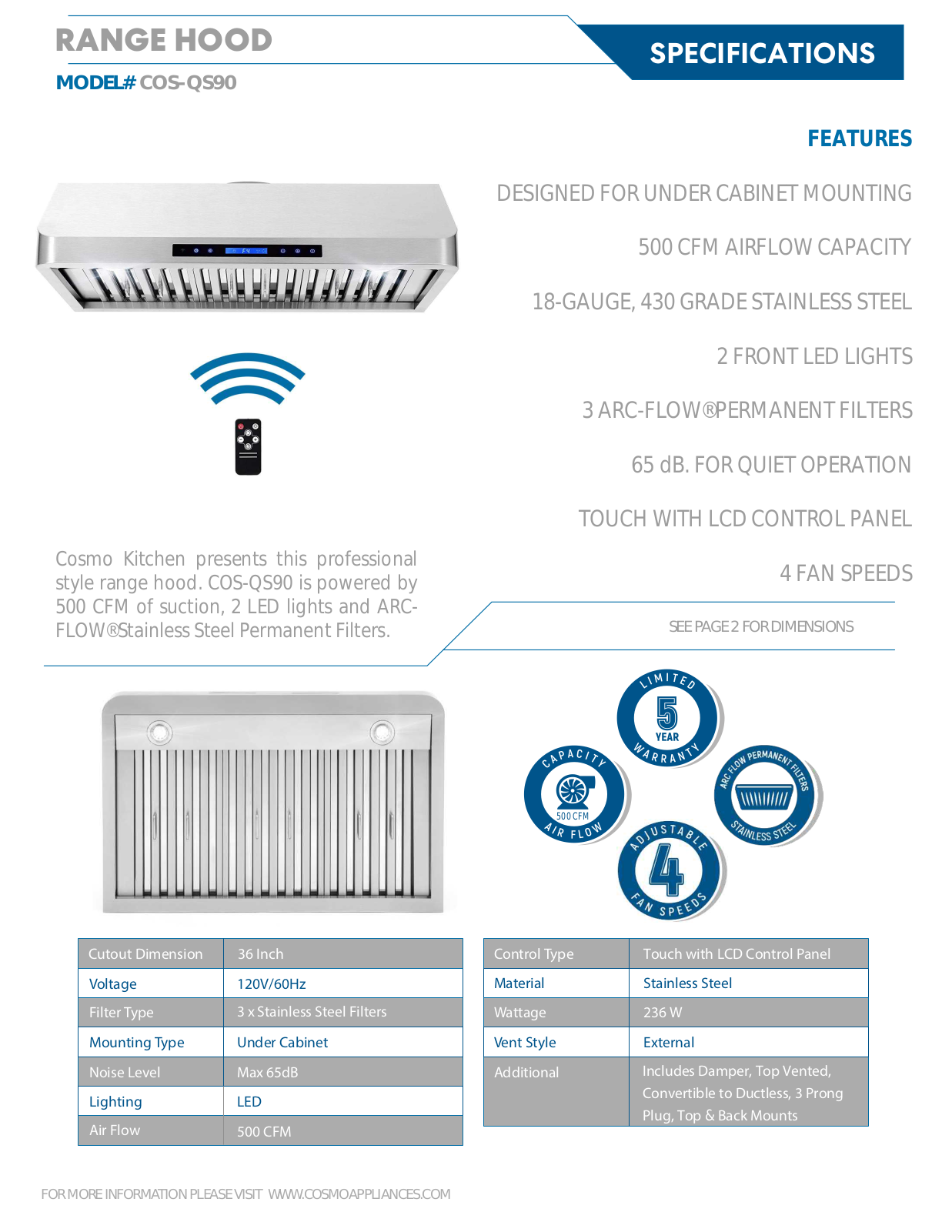

Cosmo COSQS90 Specifications

RANGE HOOD

MODEL# COS-QS90

DESIGNED FOR UNDER CABINET MOUNTING

500 CFM AIRFLOW CAPACITY

18-GAUGE, 430 GRADE STAINLESS STEEL

SPECIFICATIONS

FEATURES

Cosmo Kitchen presents this professional
style range hood. COS-QS90 is powered by
500 CFM of suction, 2 LED lights and ARC-

2 FRONT LED LIGHTS

3 ARC-FLOW® PERMANENT FILTERS

65 dB. FOR QUIET OPERATION

TOUCH WITH LCD CONTROL PANEL

4 FAN SPEEDS

FLOW® Stainless Steel Permanent Filters.

SEE PAGE 2 FOR DIMENSIONS

500 CFM

Cutout Dimension 36 Inch

Voltage 120V/60Hz

Filter Type

Mounting Type

Noise Level Max 65dB

Lighting

Air Flow

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

3 x Stainless Steel Filters

Under Cabinet

LED

500 CFM

Control Type

Wattage 236 W

Vent Style External

Additional

Touch with LCD Control Panel

Stainless SteelMaterial

Includes Damper, Top Vented,

Convertible to Ductless, 3 Prong

Plug, Top & Back Mounts

RANGE HOOD

2”/57mm

12”/304mm

12”/304mm

10”/254mm

MODEL# COS-QS90

30.3”/769mm

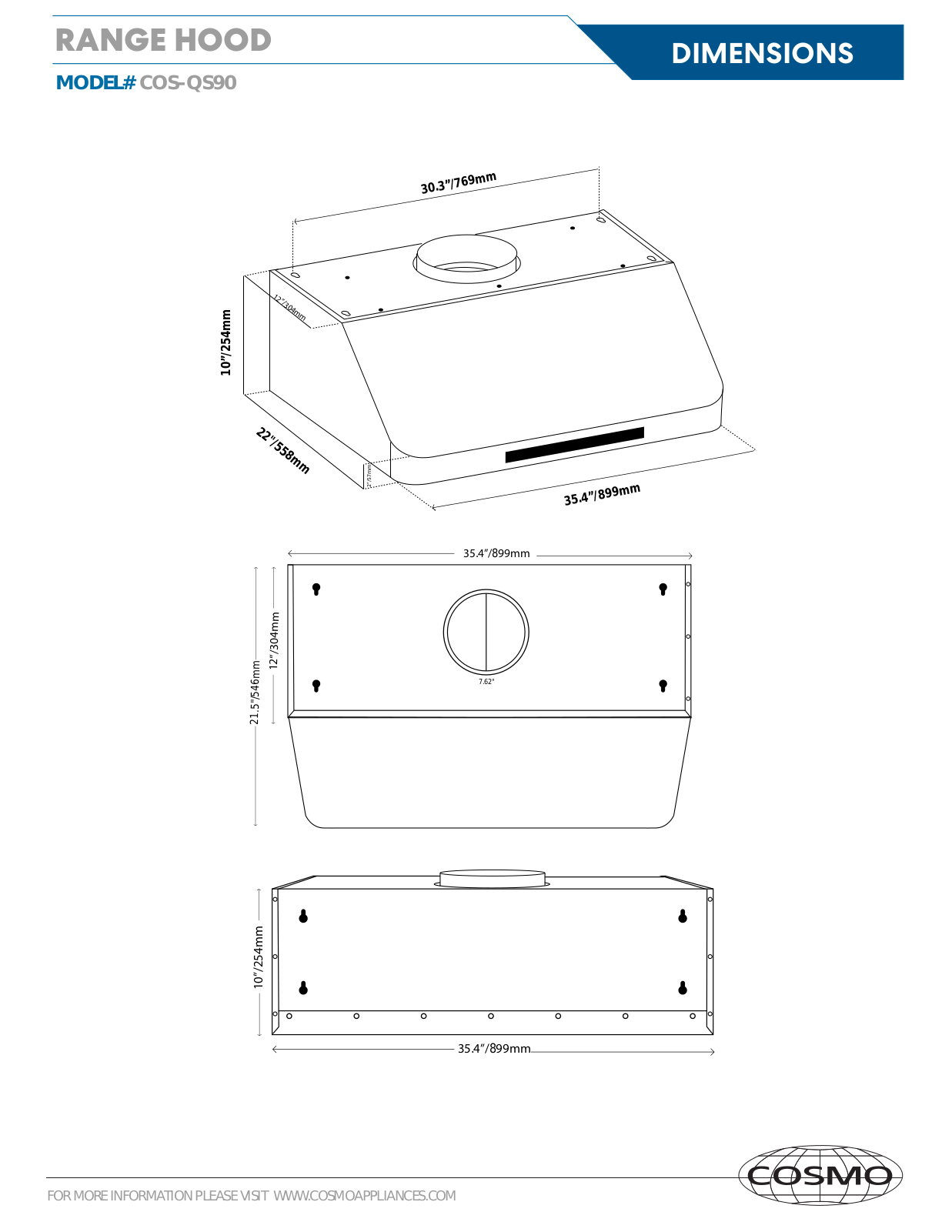

DIMENSIONS

10”/254mm

22"/558mm

35.4”/899mm

35.4”/899mm

21.5"/546mm

7.62"

FOR MORE INFORMATION PLEASE VISIT WWW.COSMOAPPLIANCES.COM

35.4”/899mm
