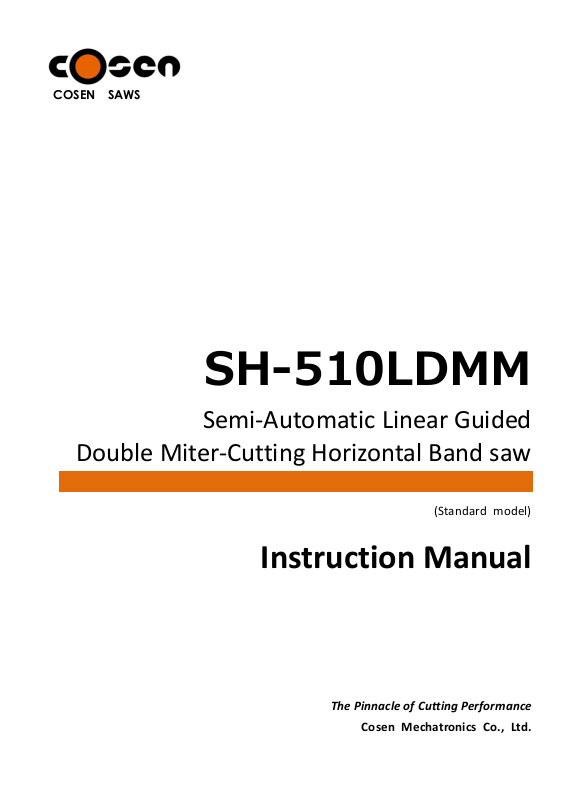

COSEN SAWS
SH-510LDMM
Semi-Automatic Linear Guided
Double Miter-Cutting Horizontal Band saw
(Standard model)
Instruction Manual
The Pinnacle of Cutting Performance
Cosen Mechatronics Co., Ltd.
NOTE:
Read this instruction manual carefully to familiarize yourself with the installation,
operation and maintenance of your COSEN bandsaw machine.
Operate the machine following the procedures described in the manual to prevent
personal injuries or machine damage.
Keep this manual handy and refer to it whenever you are uncertain of how to
perform any of the procedures.
For technical support or parts purchase, please contact your nearest COSEN
representative or our service center:
For Europe:
email: europe@cosensaws.com
phone: +31-77-7600280
fax: +31-77-7600288
web: www.cosensaws.eu
For Taiwan and other countries:
email: info@cosen.com
phone: +886-3-5332143
fax: +886-3-5348324
web: www.cosen.com.tw
For US, Mexico, and Canada:
email: info@cosensaws.com.
phone: +1-704-943-1030
toll free: +1-877-SAWING1
fax: +1-704-943-1031
web: www.cosensaws.com
For China:
email: service@cosensaws.cn
phone: +86-152-50127815
web: www.cosensaws.cn
FROM THE MANUFACTURER
Thank you for your purchase of COSEN’s bandsaw machine and your trust in the COSEN
brand.
We are excited to have you as our valued customer and look forward as much as you do to
the accelerated productivity, long-lasting endurance and superb cost-effectiveness this
machine is about to bring to you.
To ensure you are fully utilizing our machine and being advantaged in every possible way,
please do take your time and read through this instruction manual.
Any comment or suggestion in making our service better, please do not hesitate to let us
know. Thank you again!
Instruction Manual: SH-510LDM Semi-Automatic Linear Guided
© 2018 by COSEN MECHATRONICS CO., LTD.
No part of this publication may be photocopied or otherwise reproduced without the prior written
permission of COSEN.
Printed in Taiwan
Double Miter-Cutting Horizontal Band saw (Standard model)
Ver.1 2018/01/30
Safety rules
Never touch the running saw blade with gloves or not. It is dangerous if
Make sure any use of fire is prohibited in the shop and install a fire
Never cut carbon or any other material that may produce and disperse
Make sure your work area is cleared of uninvited people and obstacles
every time before you start operating the machine.
Never step or stand on the roller table. Your foot may slip or trip on t he
rollers and you will fall.
Nev er wear gloves or loose clothing when ope rating the machine. It may
lead to serious injury if they are caught in the running machine. Wrap or
cover long hair.
your hands, clothing or gloves are caught by the running blade.
extinguisher or other fire control device near the machine when cutting
titanium, magnesium, or any other material that produces flammable chips.
Never leave the machine unattended when cutting flammable materials.
Use a water-soluble cutting fluid on this machine. Oil-based cutting fluids
may emit smoke or catch fire, depending on how they are used.
explosive dust. It is possible that sparks from motors and other machine
parts will ignite and explode the air-borne dust.
Safety rules
Never adjust the wire brush or remove chips while the saw blade is still
Stop the saw blade before you clean the machine. It is dangerous if hands or
Never start th e saw b lade unl ess the workp iece h as been cl amped firmly. If
will be forced out of the vise
Use roller tables at the front and rear sides of the machine when cutting
running. It is extremely dangerous if hands or clothing are caught by the
running blade.
clothing are caught by the running blade.
the workpiece is not securely clamped, it
during cutting.
Take preventive measures when cutting thin or short pieces from the work
to keep them from falling. It is dangerous if the cut pieces fall.
long work. It is dangerous if the work piece falls off the machine.
Turn off the shop circ uit breaker switch before performi ng maintenan ce on
the machine. Post a sign indicating the machine is under maintenance.
