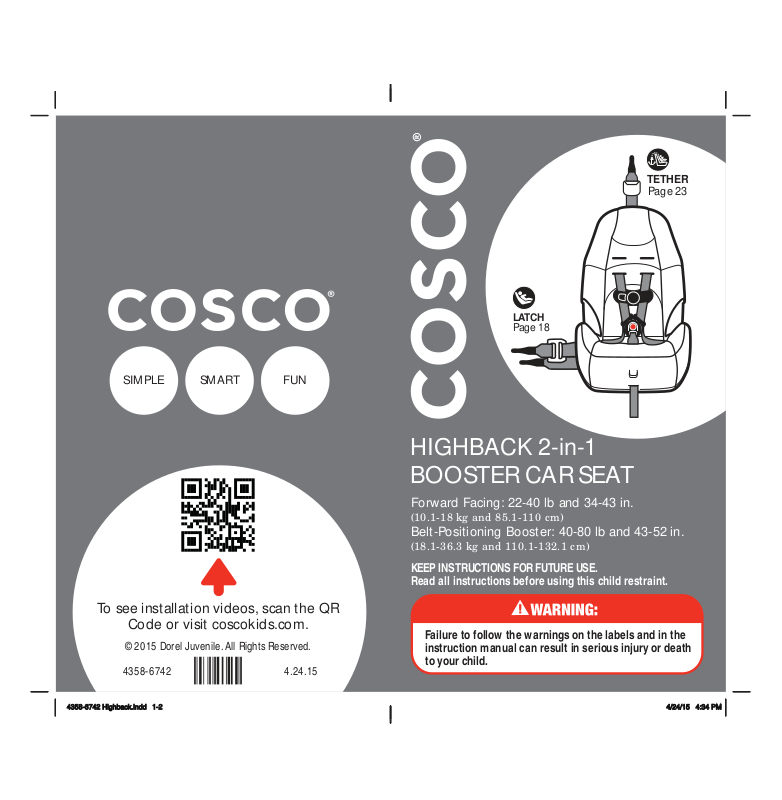

Cosco HIGHBACK 2-in-1 User Instruction User guide

Download

Page 1

Forward Facing: 22-40 lb and 34-43 in.

(10.1-18 kg and 85.1 -110 c m)

Belt-Positioning Booster: 40-80 lb and 43-52 in.

(18.1-36.3 kg and 110.1 -132.1 cm)

KEEP INSTRUCTIONS FOR FUTURE USE. Read all instructions before using this child restraint.

HIGHBACK 2-in-1 BOOSTER CAR SEAT

Failure to follow the warnings on the labels and in the instruction manual can result in serious injury or death to your child.

LATCH

Pag e 18

TETHER

Page 23

To see installation videos, scan the QR

Code or visit coscokids.com.

FUNSMARTSIMPLE

4358-6742 4.24.15

4358-6742 Highback.indd 1-24358-6742 Highback.indd 1-2 4/24/15 4:34 PM4/24/15 4:34 PM

Page 2

Import ant Symbols

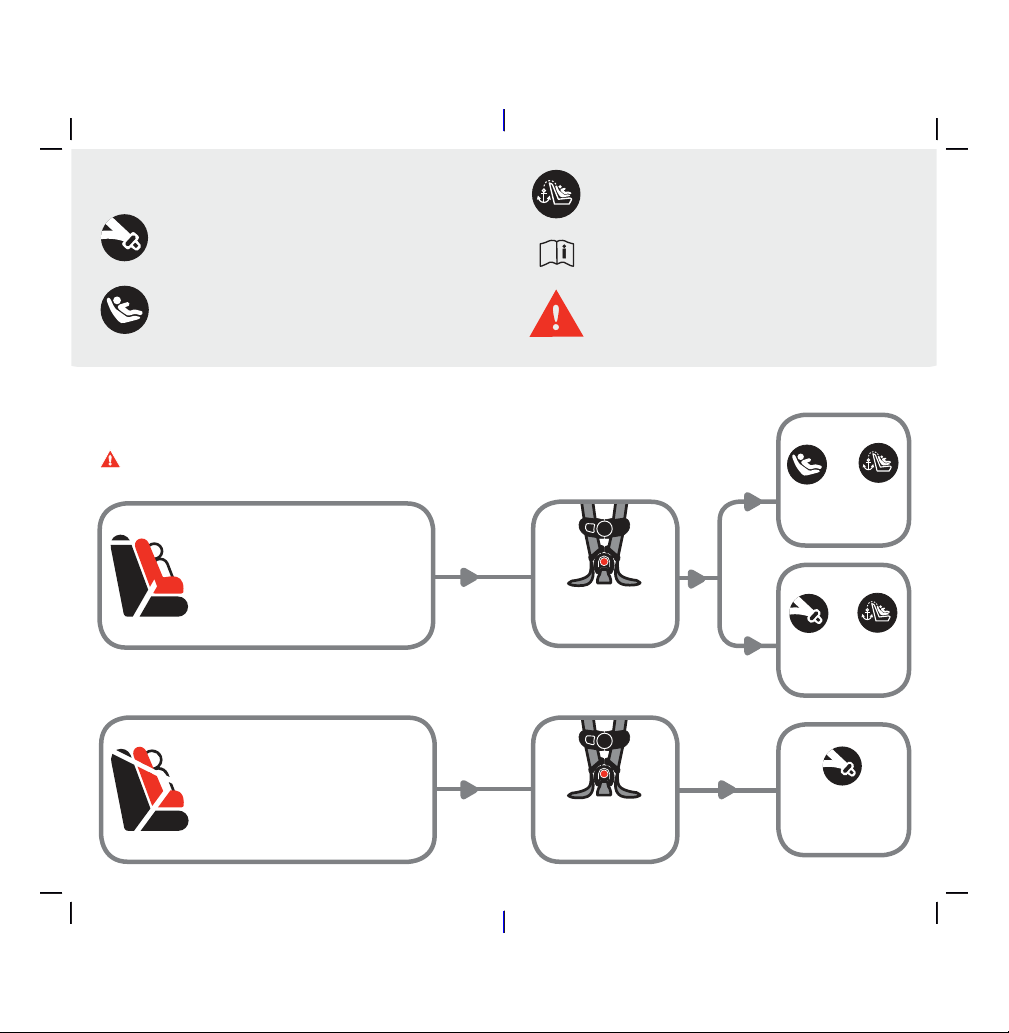

Choosing Forward Facing or Booster Seat

Your child’s height, weight, and age determine how your child restraint should be placed in the vehicle.

WARNING: Verify your child’s w eight and height (do

not guess) before choosing the child restraint’s position.

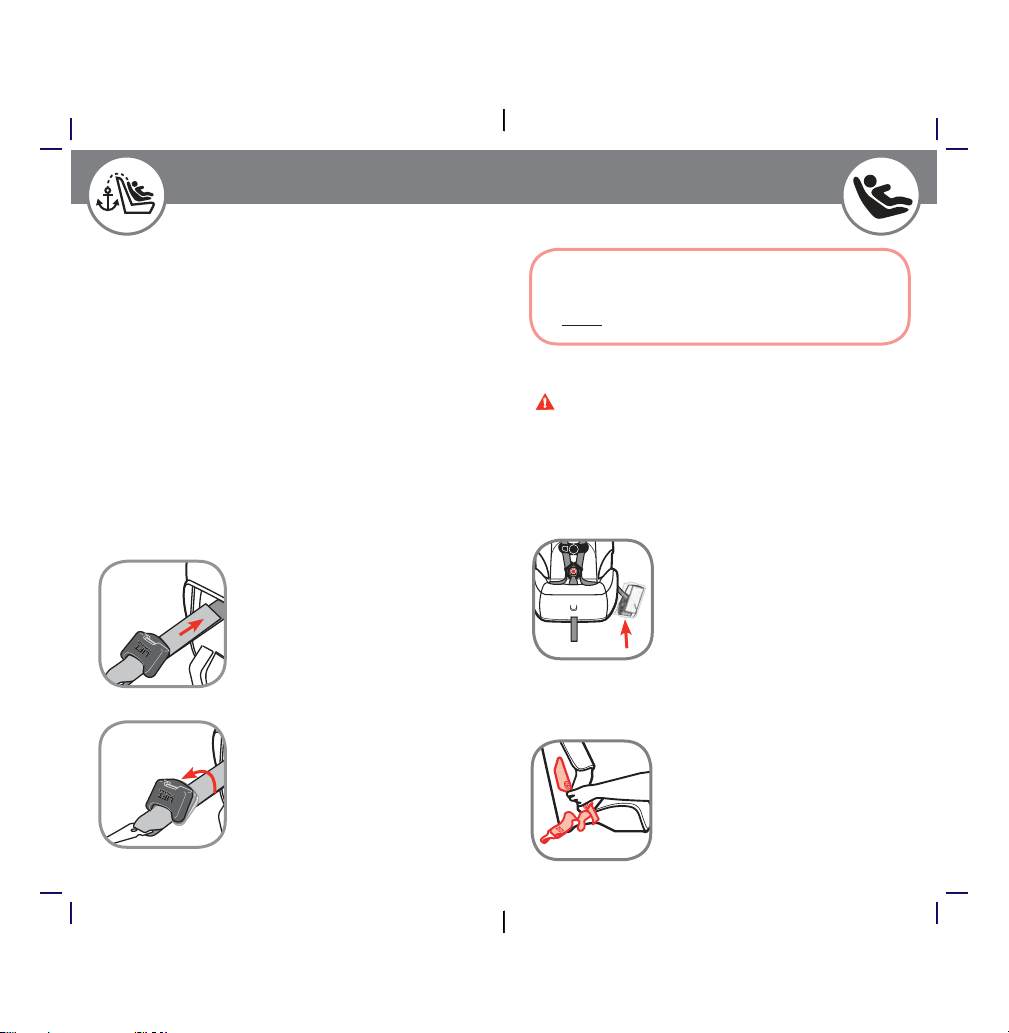

LATCH

See page 18 for LATCH information and storage location.

Vehicle Belts

See pages 19 -20 for vehicle belt information.

Tether

See page 23 for Tether inform ation.

Instruction M anual Storage

See page 2 for storage location.

To help you recognize instructions which are most critical to your child’s safety, we use this sym bol.

Failure to follow these w arnings can result in the serious injury or death of your child.

Vehicle Belt Install

Page 27

Lap and Shoulder

Belt Inst all

Page 30

FORWARD FACING with internal harness

22- 40 lb (10 .1-18 kg) 34- 43 in. (85.1 -110 cm) At least 2 years old

BOOSTER SEAT

40- 80 lb (18 .1-36.3 kg) 43- 52 in. (110.1- 132 .1 cm) At least 3 years old

See page 3 to

adjust internal

harness system

See page 9 to remove internal harness system

LATCH Install

Page 24

4358-6742 Highback.indd 3-44358-6742 Highback.indd 3-4 4/24/15 4:34 PM4/24/15 4:34 PM

Page 3

Table of Contents

Getting Started ................................... 1

Parts of the Child Restraint .................................1

Prepare Child Restraint to Fit Your Child ..............3

How Does Your Child Fit? ...................................4

Changing Position of Shoulder Harness Strap ........5

Securing Child in Child Restraint .........................7

General Use ........................................ 9

Removing Harness System .................................9

Removing Seat Pad for Cleaning .........................11

Installing Harness System ..................................12

Access ories .. .... ..... ..... .... ..... ..... .... ..... ..... .... ..... .14

Safet y Information .............................. 15

Child Restraint Use ............................................15

Installation in Vehicle .........................................15

Vehicle Seating Position .....................................16

Vehicle Informat ion ............................. 17

Understanding Your Vehicle ................................17

Choosing LATCH or Vehicle Belts ........................18

Knowing Your Vehicle Belts .................................19

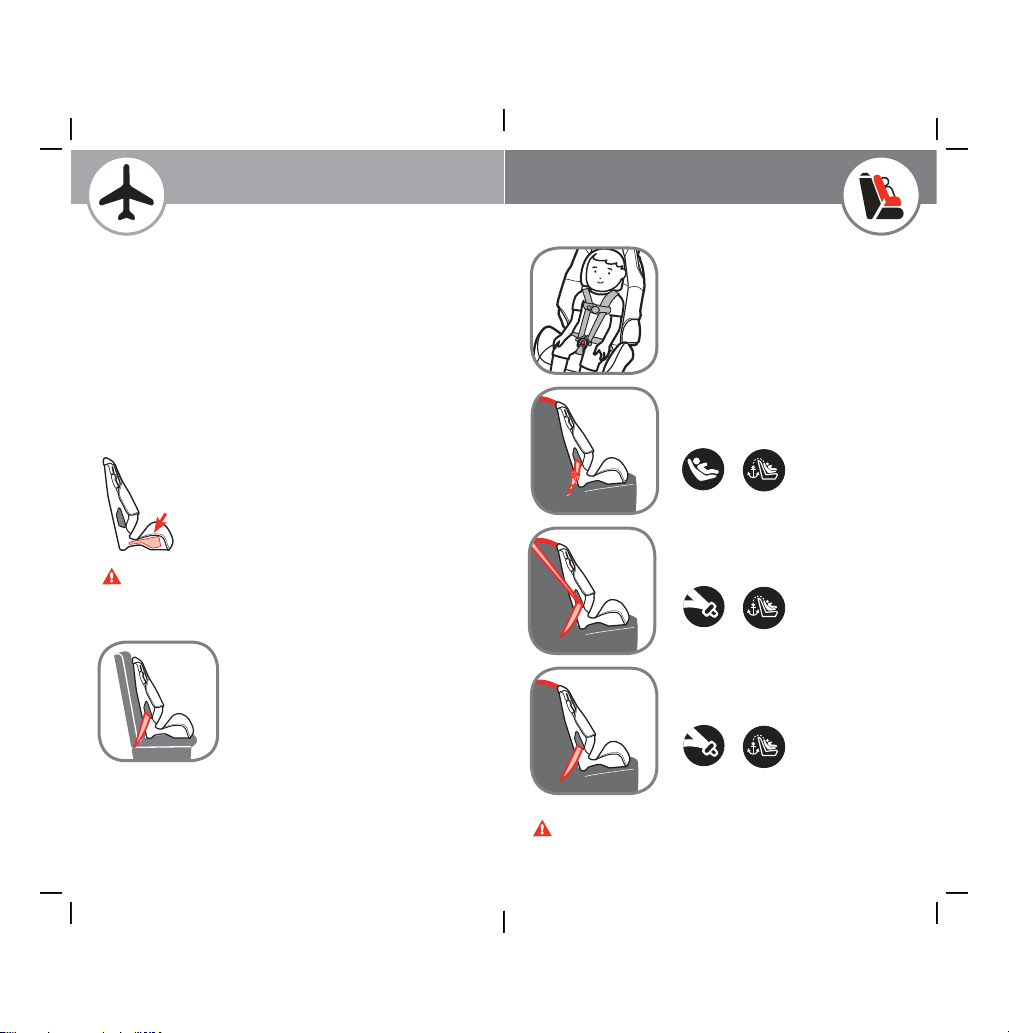

Aircraft Information ...........................................21

Forward Facing ................................... 22

Tether Use ..................................................2 3

LATCH Installation .......................................24

Vehicle Belt Installation ................................27

Booster Seat ....................................... 29

Lap and Shoulder Belt Installation .................30

Import ant Information ........................ 31

Using a Locking Clip ..........................................31

Dorel Juvenile Group Information... .....................33

Registration and Safety Notices ..........................34

Troubleshooting .................................................35

Replacement Parts Order Form ...........................36

Warranty ...........................................................38

4358-6742 Highback.indd 5-64358-6742 Highback.indd 5-6 4/24/15 4:34 PM4/24/15 4:34 PM

Page 4

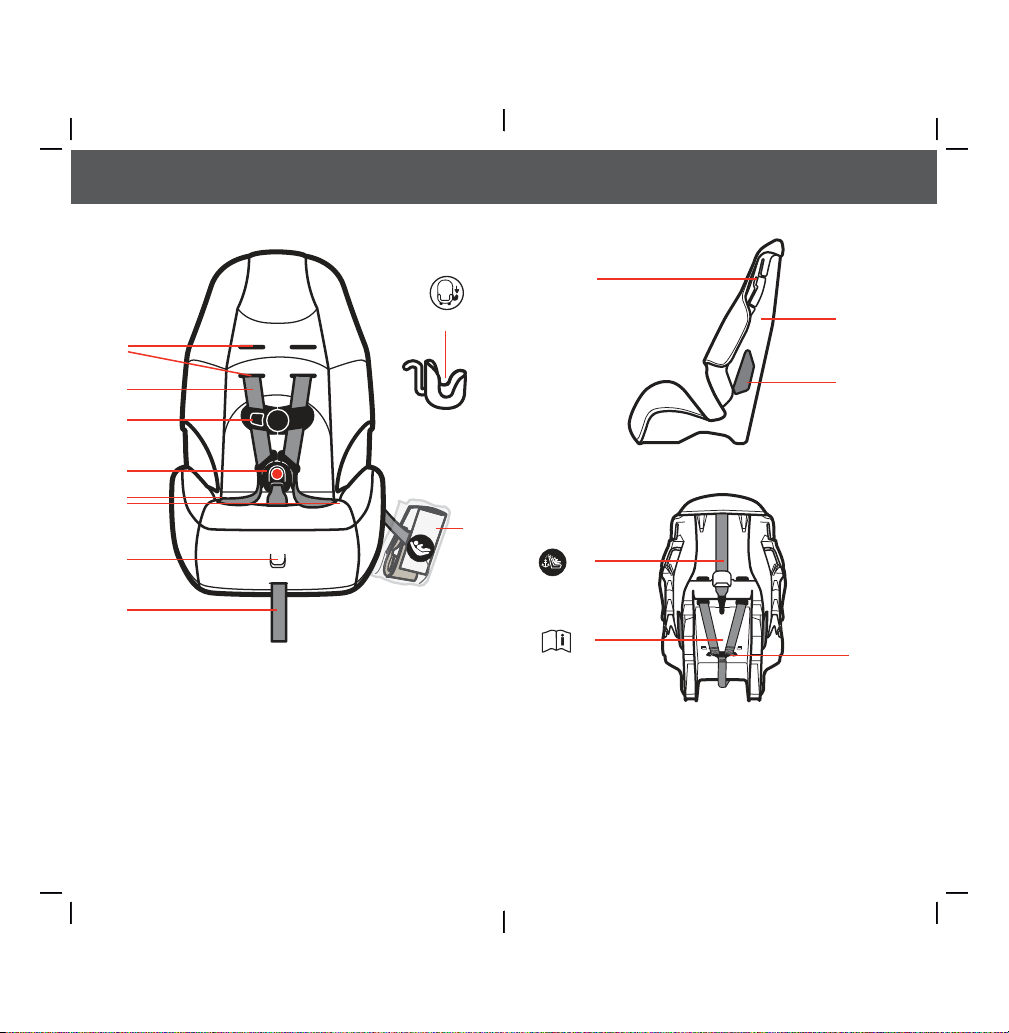

Parts of the Child Rest raint

1 2

Sid e View

Fro nt Vie w

Back Vie w

J. Belt-Positioning

Guide

K. Shell (child restraint)

L. Forward-Facing

Belt Path

M. Tether (see page 23)

N. Instruction Manual

Storage

O. Splitt er Plate

A. Shoulder Harness

Slots

B. Harness Strap

C. Chest Clip

D. Buckle

E. Hip Harness Slots

F. Harness Release

Lever (under ﬂ ap)

G. Harness

Adjustment Strap

H. Cup Holder

(see page 14)

I. LATCH

(see page 18)

4358-6742 Highback.indd 7-84358-6742 Highback.indd 7-8 4/24/15 4:34 PM4/24/15 4:34 PM

Page 5

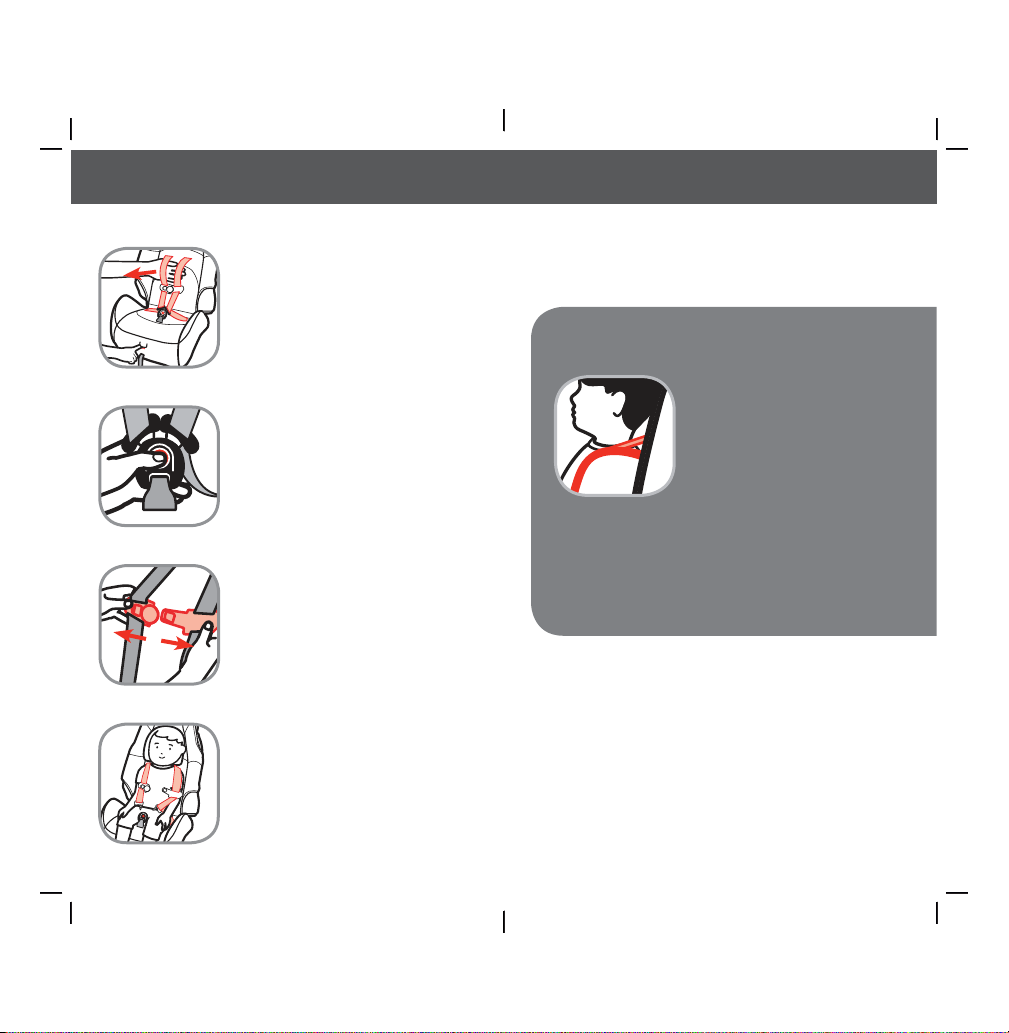

Prepare Child Restraint t o Fit Your Child How Does Your Child Fit?

3 4

1. Fully Loosen Harness

Strap

Push down on harness release lever (under ﬂ ap on front of seat pad) while pulling out on harness straps as shown.

3. Release Chest Clip

Press on chest clip release button and pull apart.

Place harness straps out of the way.

2. Unbuckle Harness

Press in towards the top of the red button.

Pull buckle tongues out.

4. Place Child in Child

Restraint t o Determine Proper Harness Fit

The child’s bottom and back should be ﬂ at against the child restraint.

See page 4 for ﬁ t guidelines.

FORWARD FACING

with Internal Harness

Use the guidelines below to determ ine if the harness strap is in the right place for your child.

Always choose the shoulder harness slot that is closest to your child’s shoulder height.

Harness strap MUST be at or

slightly above shoulders. To make changes to the harness strap, see

pages 5- 6.

If the highest shoulder harness slots are below the child’s shoulders, and the child weighs at least 40 lb (18 kg) and is at least 3 years old, you must convert the child restraint to a booster seat.

To prepare seat as a booster, see pages 9 -10.

4358-6742 Highback.indd 9-104358-6742 Highback.indd 9-10 4/24/15 4:34 PM4/24/15 4:34 PM

Page 6

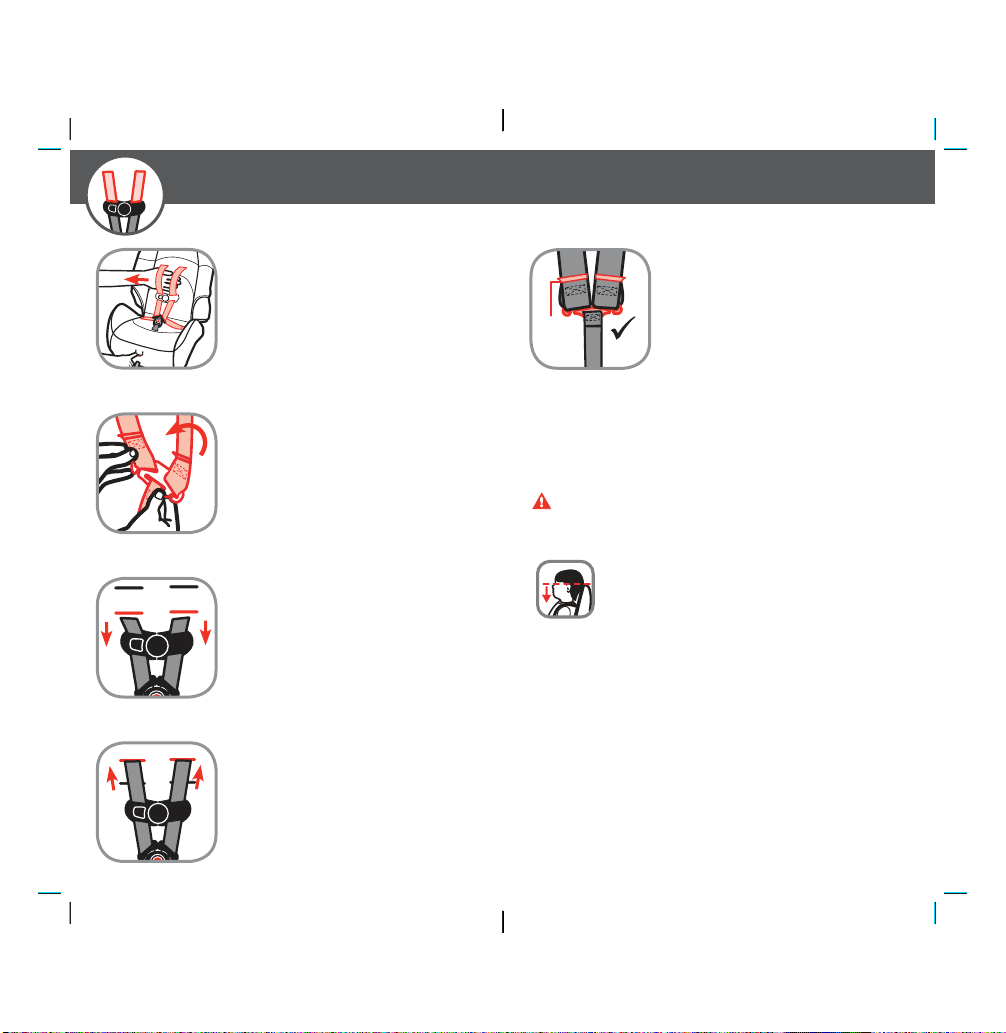

Changing Position of Shoulder Harness Strap

5 6

1. Fully Loosen Harness

Strap

Push down on harness release lever (under ﬂ ap on front of seat pad) while pulling out on harness straps as shown.

2. From Back, Remove

Harness Strap Loops From Splitter Plate

3. Pull Harness Strap Out of

Shoulder Harness Slots

4. Rethread Harness St rap

into Correct Shoulder Harness Slots For Your

Child

See page 4 for ﬁ t guidelines.

5. Attach Harness Strap

Loops to Splitter Plate As Shown

Sewn ends of the harness strap loops

MUST face towards you.

DO NOT twist harness strap or

harness adjustment strap.

Make sure the loops are fitted

COMPLETELY ON both sides of

the splitter plate.

sewn end

WARNINGS: Verify frequently t hat the harness height

is correct for your child’s size. It is very important to read, understand and follow all instructions and warnings.

Do not use this child rest raint f orw ard facing if the tops of your child’s ears are above the top of the child restraint.

Failure to follow these steps can result in serious injury or death.

4358-6742 Highback.indd 11-124358-6742 Highback.indd 11-12 4/24/15 4:34 PM4/24/15 4:34 PM

Page 7

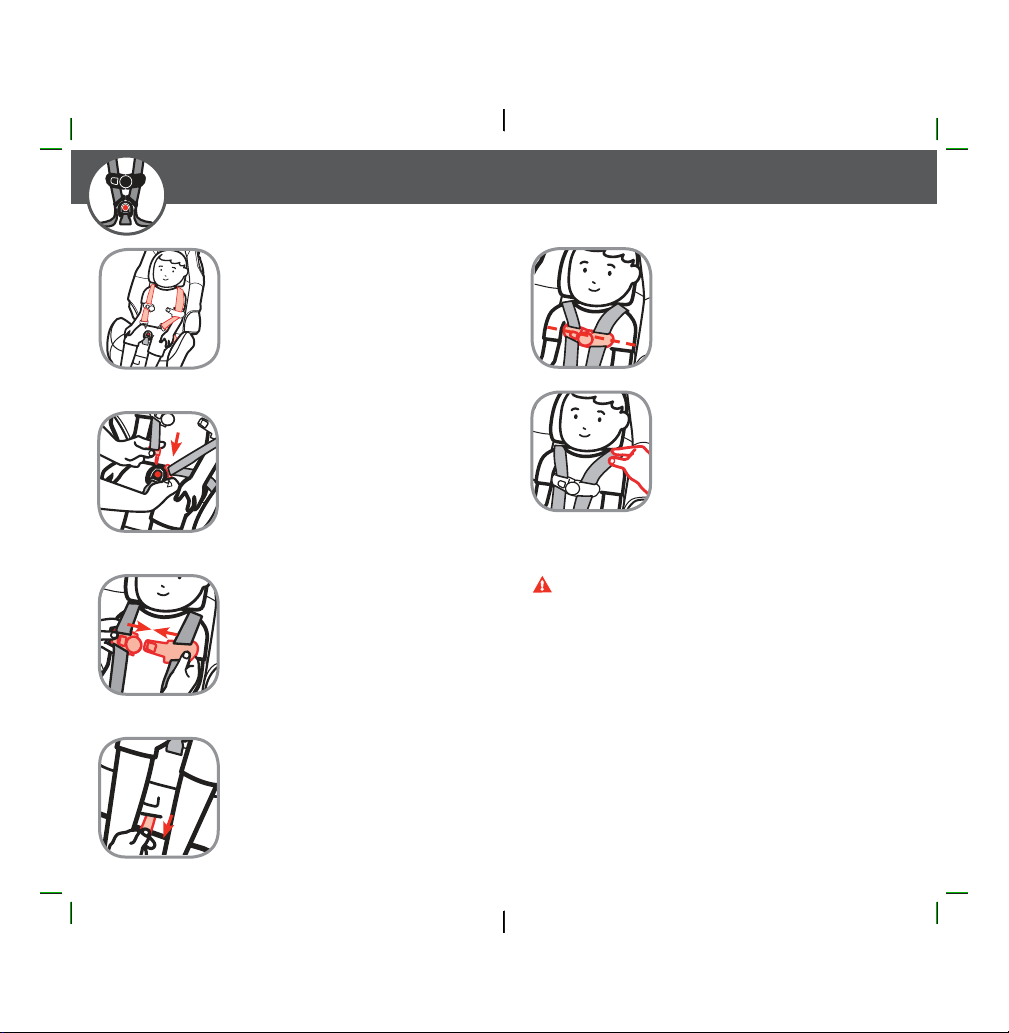

Securing Child in Child Rest raint

1. Place Child in Child

Restraint

The child’s bottom and back should be flat against the child restraint.

Position harness strap over child’s shoulders and thighs.

3. Close Chest Clip

Insert right half of chest clip into left half and snap together.

2. Buckle Harness

Push buckle tongues into buckle until you hear them “click.”

Pull up on harness strap to m ake sure buckle is locked.

4. Tighten Harness

Pull on harness adjustment strap to tighten harness snugly.

6. Check Harness Tightness

Try to pinch the harness at the shoulders vertically between index finger and thumb as shown.

If your fingers slip of f, the harness is

tight enough.

If you can pinch the harness st rap, tighten more. The harness

strap should be snug throughout their length.

5. Position Chest Clip

The chest clip m ust be placed at mid-chest (even with arm pits) and away from the child’s neck.

WARNINGS:

Failure to fasten and tighten the harness system correctly may allow the child to be ejected from the child restraint in a crash or sudden stop causing serious injury or death.

Do not mistake comfort for safety. Harness system must be snugly adjusted.

A snug harness strap should not allow any slack. It lies in a relatively straight line without sagging. They do not press on the child’s ﬂ esh or push the child’s body into an unnatural position.

To Remove Child From Child Restraint

1. Loosen Harness Strap

2. Unbuckle Harness

3. Release Chest Clip

4. Remove Child

4358-6742 Highback.indd 13-144358-6742 Highback.indd 13-14 4/24/15 4:34 PM4/24/15 4:34 PM

Page 8

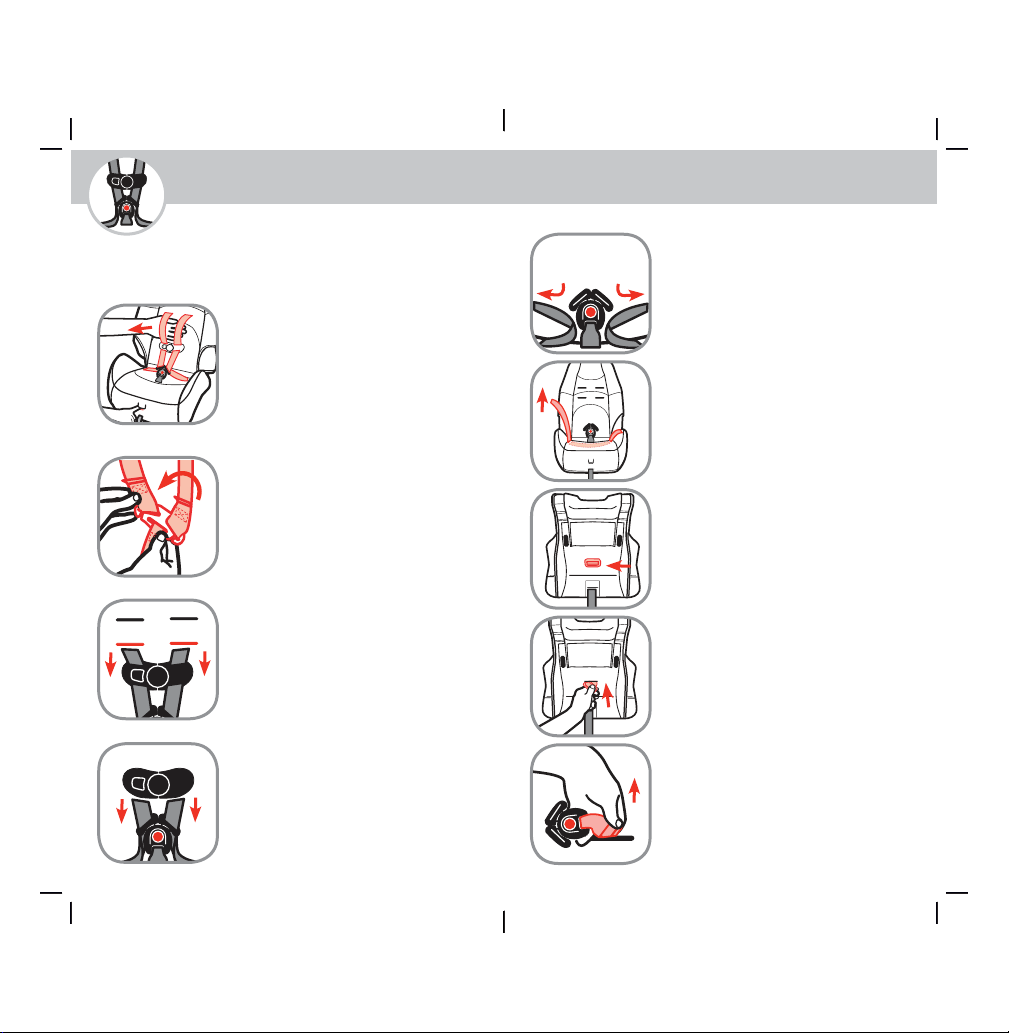

Removing Harness System

109

Only remove the harness system to clean seat pad or when changing child restraint to a booster seat .

1. Fully Loosen Harness

Straps

Push down on harness release lever (under ﬂ ap on front of seat pad) while pulling out on harness straps as shown.

2. From Back, Remove

Harness Strap Loops From Splitter Plate

3. Pull Harness Strap Out of

Shoulder Harness Slots

4. Unthread Chest Clip

8. Rotate Metal Retainer

and Push It Up Through Shell and Pad

9. From Top of Seat,

Pull Buckle Out of Shell

Store the buckle and harness strap in a safe place for future use.

7. Turn Seat Over

Locate buckle’s metal retainer on bottom of shell.

6. Pull Harness Strap Out of

Seat

5. Unthread Buckle

Do not unbuckle the buckle.

4358-6742 Highback.indd 15-164358-6742 Highback.indd 15-16 4/24/15 4:34 PM4/24/15 4:34 PM

Page 9

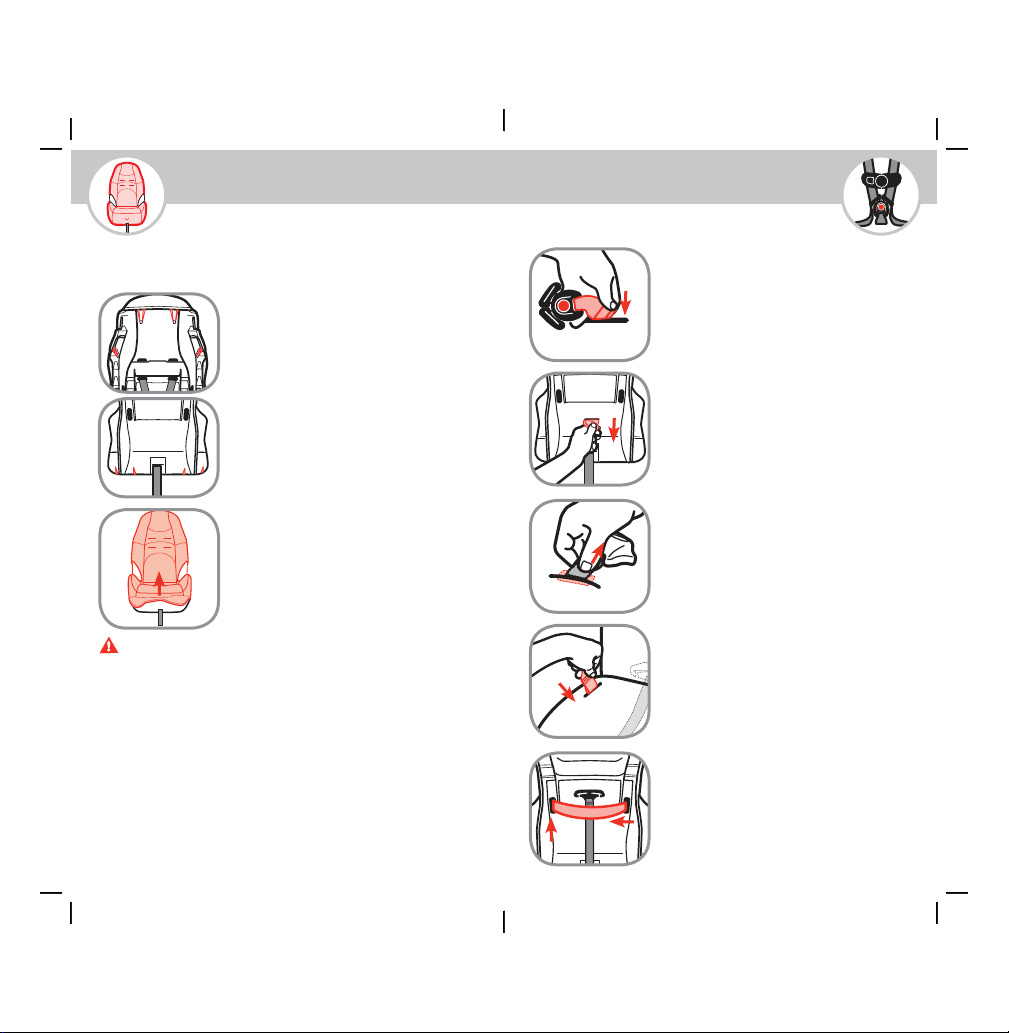

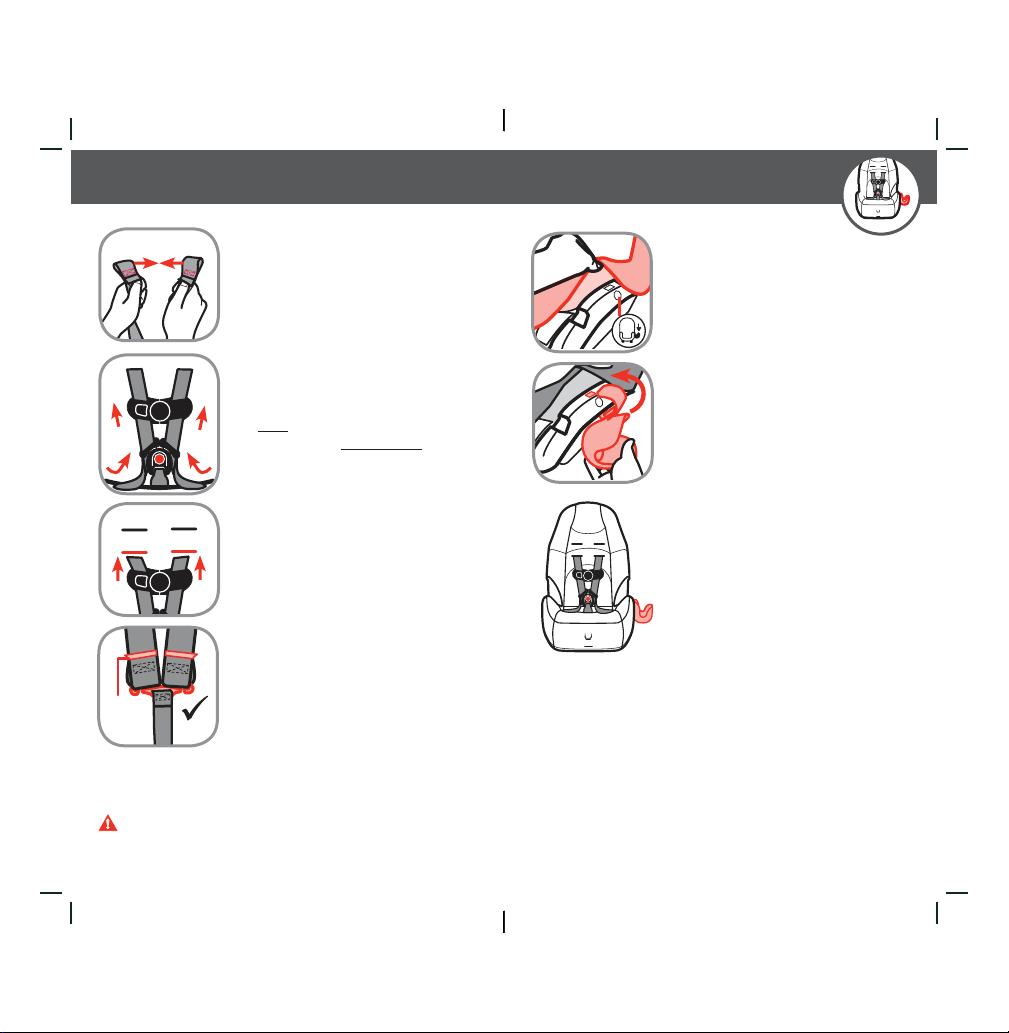

Removing Seat Pad for Cleaning Inst alling Harness System

1. Release Elastic Straps on

Back and Bottom of the Shell

2. Remove Pad

Pull pad off the bottom of child restraint and remove pad.

You must remove the harness system t o rem ove the pad from the shell. See pages 9-10.

WARNINGS: Do not use child rest raint w ithout the seat

pad. Failure to do this can result in serious injury or death.

Cleaning Pad

Machine wash separately with cold water on a gentle cycle. Do not use bleach. Tumble dry separately for 10 -1 2 minutes on low heat. Remove imm ediately.

Cleaning Harness Straps

Spot clean using warm sudsy water and dam p cloth.

Replace Pad

Starting from bottom of child restraint, slip pad on shell. Pull harness adjustment strap through pad. Wrap pad around the top of shell. Attac h all of the elastic straps. Install harness system, see pages 12-1 3.

1. Insert Buckle’s M etal

Retainer into Slot

Buckle

MUST face out.

3. Check Buckle

Pull up on buckle to make sure it is secured.

The buckle

MUST not pull out.

4. Rethread Harness Strap

With sew n end of harness strap loop facing the buckle, thread

harness strap dow n through hip harness slot.

2. Pull M et al Retainer

Completely Through Pad and Shell

5. Pull Harness Strap Across

Bottom of Shell

Harness strap

MUST lay in front

harness adjustment strap as shown. Push harness strap up through other

hip harness slot.

4358-6742 Highback.indd 17-184358-6742 Highback.indd 17-18 4/24/15 4:34 PM4/24/15 4:34 PM

Page 10

Accessories

WARNINGS: Harness system must be installed

correctly. Failure to follow these steps can result in serious injury or death.

7. Attach Harness Strap

Loops to Splitter Plate As Shown

Sewn ends of the harness strap loops

MUST face towards you.

DO NOT tw ist harness strap or

harness adjustment strap.

Make sure the loops are fitted COMPLETELY ON both sides of the splitter plate.

sewn end

Cup Holder

The cup holder can be attached to either side of the shell.

Pull pad off corner of shell.

Align symbol on cup holder with symbol on shell.

Hook bottom of cup holder under edge of shell.

Snap top of cup holder over edge of shell.

Replace pad.

6. Make Harness Strap Even

Sewn ends of harness strap loops

MUST face each other.

7. Thread Buckle and Chest

Clip

Harness strap ends go through the

back of buckle tongues and through

the chest clip front t o back as shown.

8. Thread Harness Strap

Into Correct Shoulder Harness Slots For Your Child

See page 4 for ﬁ t guidelines.

4358-6742 Highback.indd 19-204358-6742 Highback.indd 19-20 4/24/15 4:34 PM4/24/15 4:34 PM

Page 11

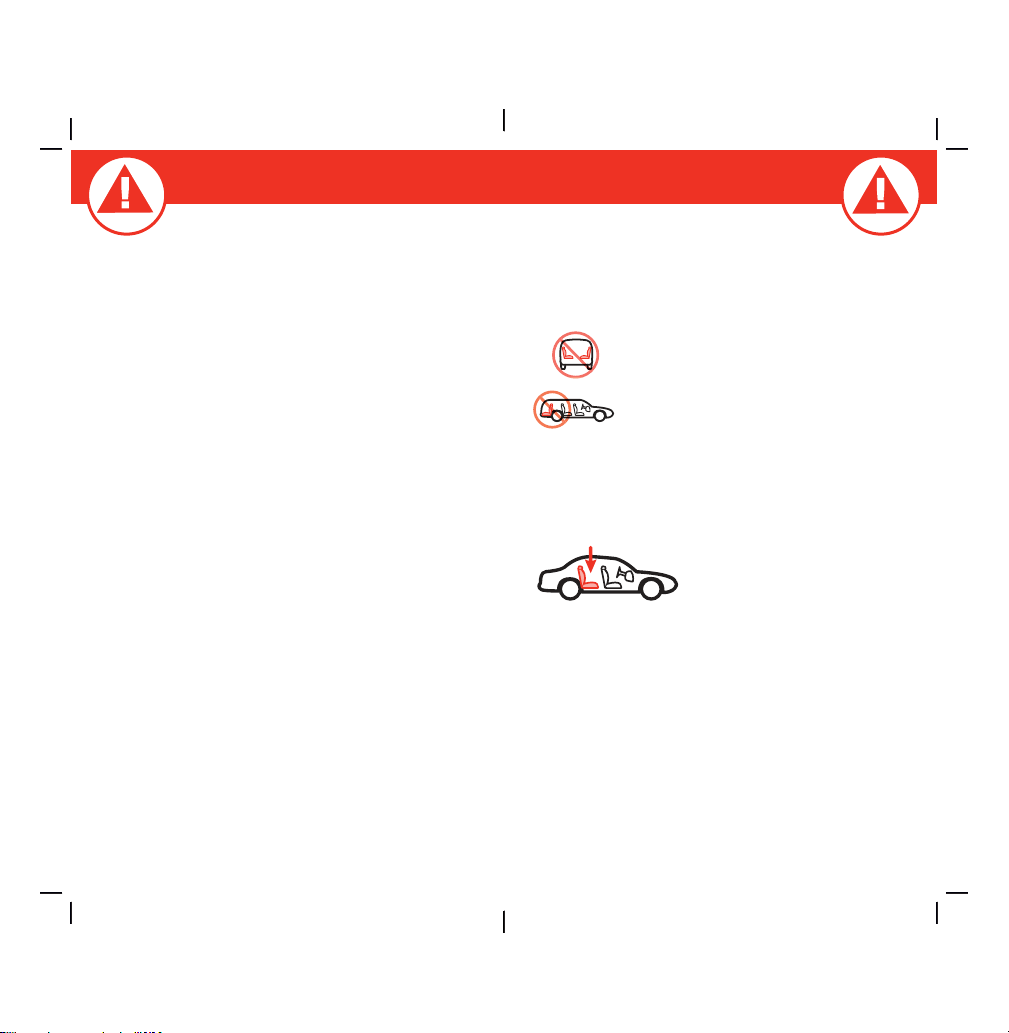

Child Rest raint Use Vehicle Seating Position

Do not use this child restraint unless the child is 22-80 lb (10.1- 36.3 kg) and 34-52 in. (85.1- 132.1 cm ).

Never take your child out of the child restraint w hile the vehicle is moving.

Never leave child unattended. Placing your child in a hot child restraint may result in

burns. Do not use a child restraint w ith dam aged or missing parts. Do not use cut, frayed or damaged harnesses. Do not substitute parts or try t o modify the child restraint in

any w ay. Do not lubricate buckles and fasteners. Do not use any child restraint accessory except those ap-

proved by Dorel Juvenile Group. Never allow any child to play with this child restraint; it is

not a toy. Do not remove or cover up any of the warning labels or

other labels on the child restraint. Read all instructions for additional warnings. On the side of the child restraint there is a date of manufac-

ture label. Do not use t his child restraint more than 10 years after the date of manufact ure.

Installation in Vehicle

Check the vehicle belt or LATCH belt before each use. Use only if the belt is tight ened properly and locked securely in place.

This child restraint should be securely belt ed in the vehicle even w hen not in use. In a crash or sudden stop, an unsecured child restraint could injure occupants.

Do not use a child restraint that has been in a crash. You must get a new child restraint.

Check the vehicle owner’s manual for more infor mat ion about air bag/ child restraint use.

Use the child restraint only on vehicle seats that face forward.

Do not use on seats that face the sides or rear of the vehicle.

Use the center seating posit ion if possible.

For vehicles without a back seat, refer to your vehicle ow ner’s m anual.

If you are not sure where to place the child restraint in your vehicle, consult your vehicle owner’s manual, contact Dorel Juvenile Group Consumer Relations Department, or visit your local Child Passenger Inspection Station. Go to http:// www.safercar.gov/cpsApp/cps/ index. htm to f ind your closest station.

Children are safer when properly restrained in rear seating positions than in the front seating posit ions.

According to National Highw ay Trafﬁ c Safety Administrat ion in-

formation, children in rear seating positions are statistically safer, whet her you have air bags, advanced air bags, or no air bags at all.

To avoid your child being seriously burned, take the following precautions:

1. Park in the shade or where sun does not directly hit the child

restraint.

2. Cover the child restraint with a sheet or blanket when not in use.

3. Check for hot seat and buckles before placing child in child

restraint. To help protect your vehicle seat’s upholstery from damage, use a

single layer towel underneath and behind child restraint.

4358-6742 Highback.indd 21-224358-6742 Highback.indd 21-22 4/24/15 4:34 PM4/24/15 4:34 PM

Page 12

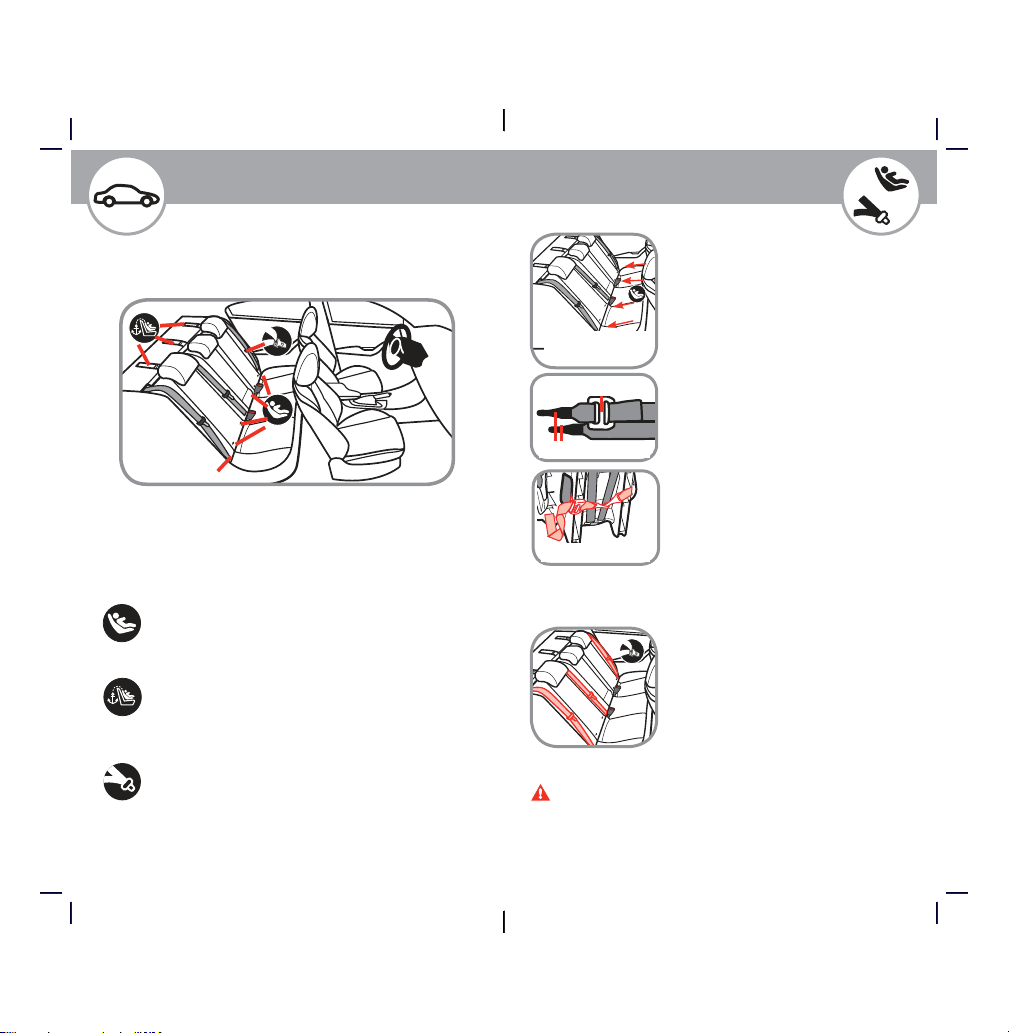

Understanding Your Vehicle Choosing LATCH or Vehicle Belts

LATCH Anchors

Located in the seat bight. (Forward Facing with Internal Harness Only)

Tether Anchors

For Tether Strap (Forward Facing with Internal Harness Only)

Vehicle Seat Belts

Your vehicle’s features may be considerably different than those pictured here.

Seat Bight

Consult your vehicle owner’s manual to help identify your vehicle’s speciﬁ c features and locations.

The LATCH System

LATCH (Lower Anchors and Tethers for CHildren) is a universal system for installing child restraints without using vehicle seat belts.

The LATCH system can ONLY be used in vehicles that have the LATCH anchor bars

installed and designated LATCH seating positions. Most vehicles m anufactured after September 2 00 2 are equipped w ith LATCH. Check your vehicle owner’s m anual to see whic h seating positions may be equipped with the LATCH system.

When installing this child restraint with vehicle belts or when using as a booster seat, the LATCH hooks and belt M UST be properly stored.

To store

LATCH on this child restraint: Thread

LATCH belt through forward facing belt path and fasten LATCH hooks t ogether behind the child restraint as show n. Gently pull free end of belt to remove slack.

Vehicle Belts

If LATCH is not an option, you must use the vehicle seat belt system to install the child restraint.

There are some vehicle belts that will not work with a child restraint or will require special attention.

Check your vehicle owner’s m anual for specif ic instructions.

LATCH Anchor

Bars

LATCH Hooks

Adjuster

LATCH Storage

WARNINGS: When used correctly the LATCH or Vehicle

Belts are equally safe. Do not use both the UAS belt and vehicle belt at the same

time.

4358-6742 Highback.indd 23-244358-6742 Highback.indd 23-24 4/24/15 4:34 PM4/24/15 4:34 PM

Page 13

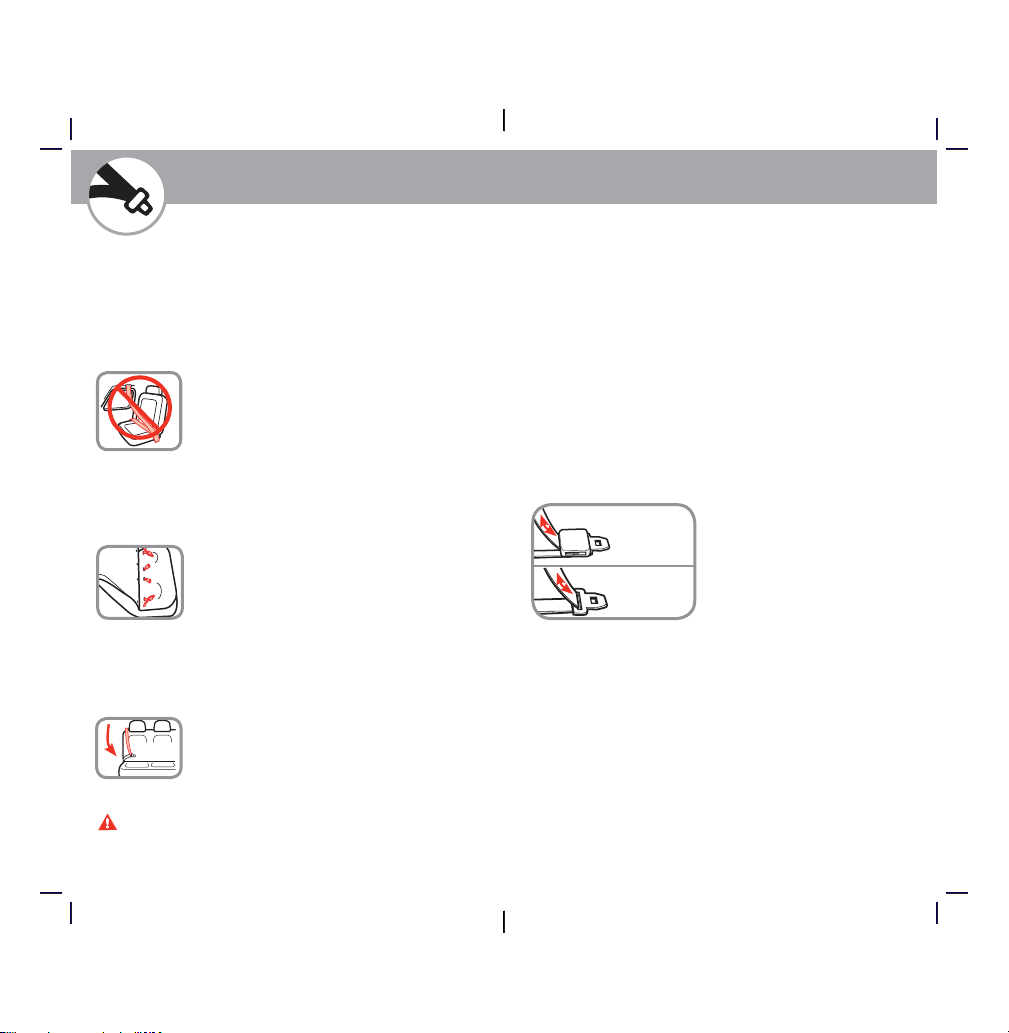

Knowing Your Vehicle Belts

Review your vehicle owner’s manual for vehic le seat belt use with child restraints. This is your best source for inform ation concerning your vehicle.

Not all vehicle belts will work with this child restraint. This child restraint must be tightly locked in place at all tim es. You m ust determ ine if your vehicle’s belts are compatible with this child restraint.

Vehicle Belts

• Automatic/ Passive vehicle seat belts

You

MUST have a lap belt to install any child

restraint. An automatic (passive) shoulder belt may or m ay not have a separate lap belt.

• Do not use with inflatable seat belts

You may need to move the child restraint to another seating location or use LATCH belts only.

• Vehicle belts in center of the door or side panel

You must move the child restraint t o another seating location.

• Vehicle belts that are in front of the seat

bight

You may need to move the child restraint to another seating location.

• ELR (Emergency Locking Retractor) vehicle belts

These belts only lock in a sudden stop or crash, and do not properly secure a child restraint alone.

To determine if you have this type of belt, gently pull the belt all the

way out of the retractor (spool), let it return several inches, then pull

on it again. If it moves freely, it is an ELR belt. If it is locked and will not allow any more belt to com e out, it is a switchable retractor.

If you have an ELR lap and shoulder belt, review the “Vehicle Latc h Plate” section on page 20 to see if

you need a locking clip.

WARNING: ELR lap-only belts MUST NOT be used w ith this

child restraint.

• Switchable Retractor

These belts switch from ELR to ALR (Automatic Locking Retractor). You

MUST have t he vehicle belts in the locking mode to use them .

With a switchable retractor, pull the shoulder belt all the way out to switch the retractor into the ALR mode before tightening.

Feed the slack back into the retractor while tightening.

• ALR (Automatic Locking Retractor)

These belts lock after pulling the webbing out and letting the belt go back into the retractor an inch or tw o.

With an ALR belt, pull the belt all the way out before threading through the child restraint.

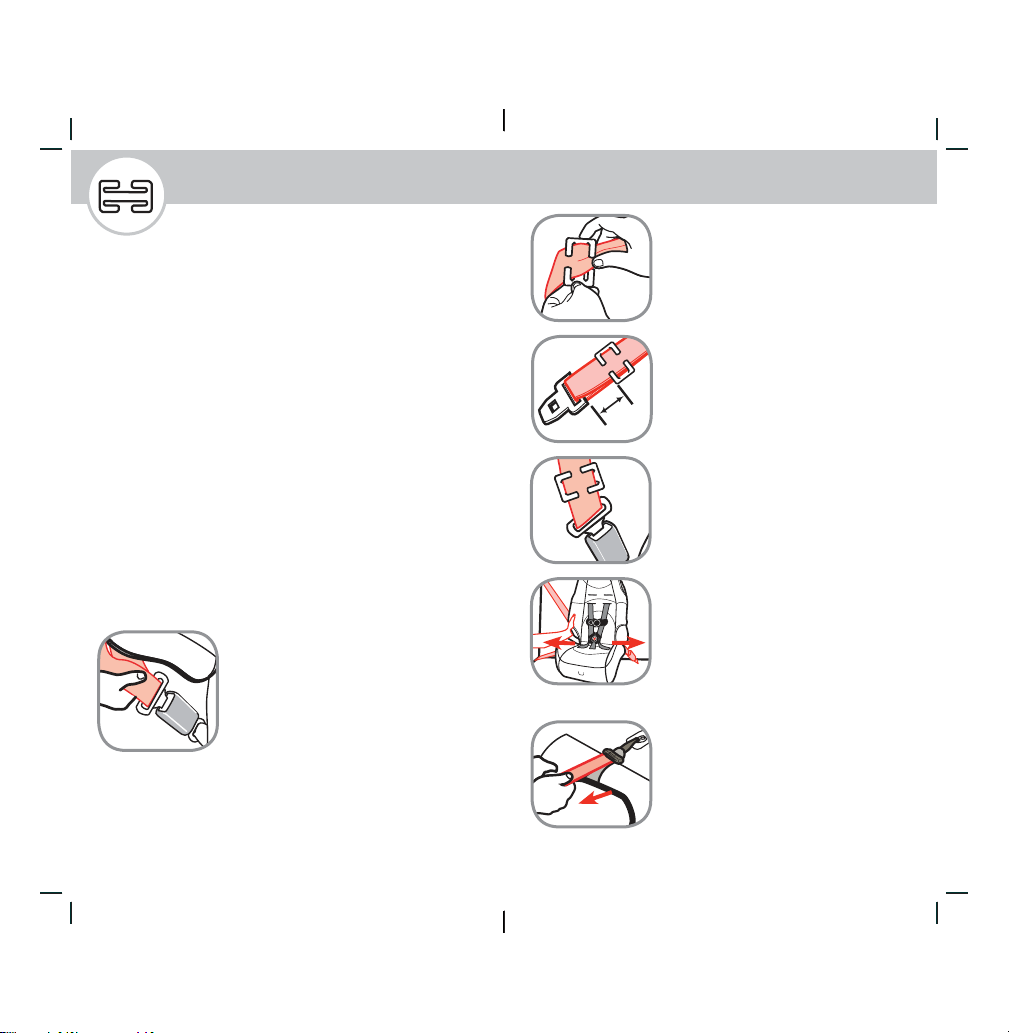

Vehicle Latch Plates

• Check Latch Plates

Grasp the tongue port ion of the latch plate (the part that goes inside the buckle) and pull st raight out, in line with the lap belt.

If the latch plate does not slide up and down the vehicle belt, you have a lock ing latch plate. You should not need to use a locking clip.

Check your vehicle owner’s m anual to determ ine the best way to lock a child restraint in place and wether the latch plate or retractor w ill accom plish this. If the latch plate slides up and dow n on the belt, and you have an ELR retractor, you

MUST use a locking clip to install the

child restraint. See pages 3 1-3 2.

You may not need to use the locking clip with a switchable or ALR retractor.

Locking Latch Plate

Sliding Latch Plate

4358-6742 Highback.indd 25-264358-6742 Highback.indd 25-26 4/24/15 4:34 PM4/24/15 4:34 PM

Page 14

Aircraft Information Forward Facing

This restraint is certiﬁ ed for aircraft use when used with the internal harness.

This child restraint is not certiﬁ ed f or use in aircraft w hen used as a booster seat because aircraft seat s do not have shoulder belts.

Install the child restraint in a window seat to avoid blocking the aisle. If the aircraft lap belt is too short, ask the flight attendant for a belt extender.

Use only on forw ard facing aircraft seats.

Contact the airline for their specific policies.

Some airlines may ask to see a label stating that this child restraint is certified for aircraft use.

There is an airplane certification label located on the side of this child restraint as shown.

WARNING: Store LATCH belts and tether strap when

using the aircraft belts.

22-40 lb (10.1-18 kg) 34-43 in. (85.1-110 cm)

At least 2 years old

LATCH Belt with Te ther

Lap / Sho ulder Belt with Te ther

Lap Be lt with Tether

WARNING: Child MUST be at least 2 years old t o use

this child restraint.

Forward Facing Aircraft Inst allation

For forward facing installation follow pages 27-2 8.

4358-6742 Highback.indd 27-284358-6742 Highback.indd 27-28 4/24/15 4:34 PM4/24/15 4:34 PM

Page 15

Tet her Use LATCH Installation

23 24

Always attach, adjust, and secure the top anc ho rage (tether) strap whe n installing the child restraint fo rward facing . Te thers improve the installation and stab ility o f child restraints and red uce the risk o f injury.

Attach the tethe r ho o k to the te ther ancho r d esignated by your vehicle manufacturer for that seating po sitio n. Che ck yo ur vehicle o wner’s manual fo r more information.

If the se ating p o sitio n does not have a te ther ancho r, use a different se ating p o sitio n o r see yo ur de aler or a qualiﬁ e d me chanic and have o ne installe d. The te ther can g re atly impro ve the pe rformance of this child restraint.

To loosen: Lift up o n tethe r lo ck

adjuster and push it toward s tethe r hoo k.

To tighten: After the c hild

restraint is lo cke d into place with LATCH o r vehicle be lt, p ush do wn on child restraint and g ently pull on fre e e nd of tether.

Pull fre e end to tighten

To Adjust Tet her Strap:

Lift up to loo sen

1. Remove LATCH from

Packaging

Pull LATCH belt packaging out of forward- facing belt path.

Remove LATCH from packaging.

Discard the packaging.

Review your vehicle owner’s manual f or LATCH belt use and designated LATCH locations.

WARNINGS: Do not use LATCH belt along w ith the

vehicle lap or lap/ shoulder belt. Check LATCH belt bef ore each use. Use only if the belt can

be tight ened properly and locked securely in place. Failure to follow these warnings can result in serious

injury or death.

Safet y Tip

Make sure the harness strap fits your child correctly

before installing the child restraint. See pages 3 -4.

continued on next page

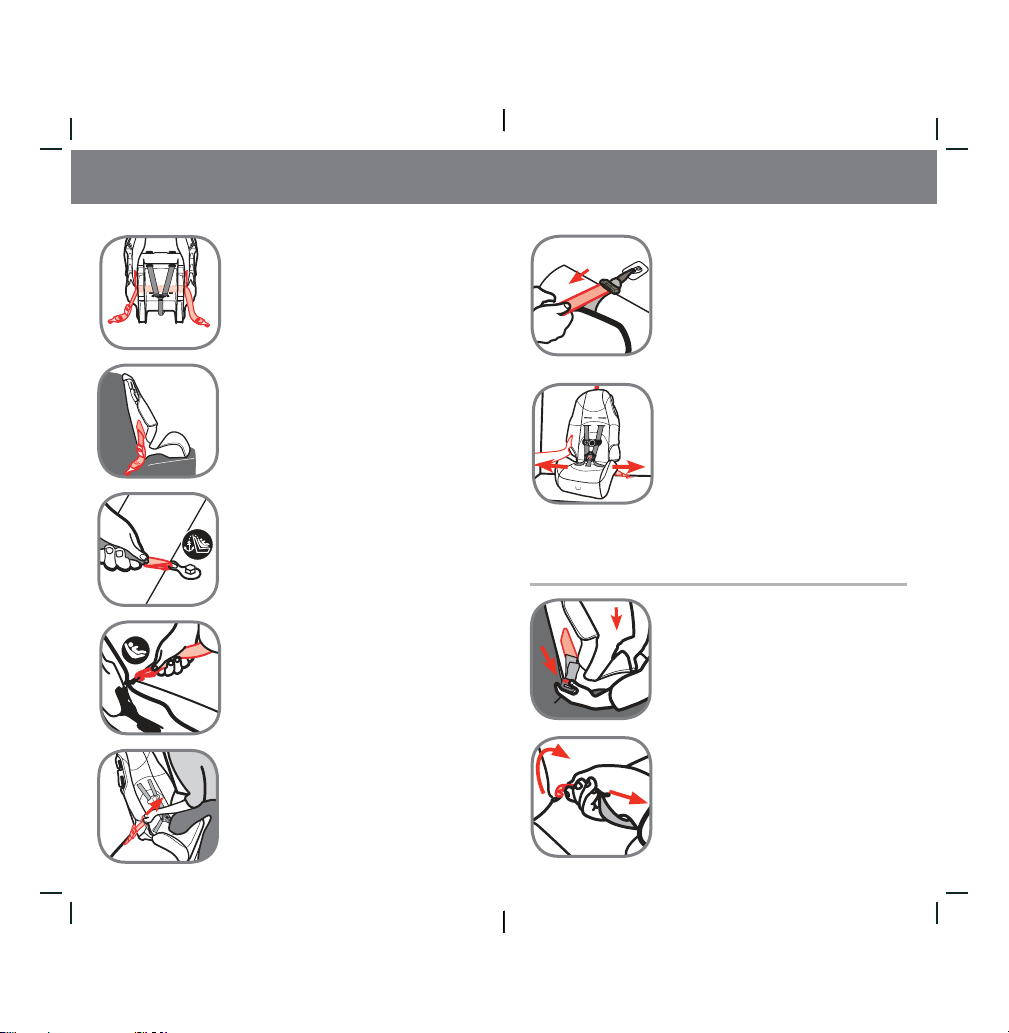

2. Route LATCH Belt

Through Forward-Facing Belt Path

Do not twist belt.

LATCH adjuster can be on either side.

4358-6742 Highback.indd 29-304358-6742 Highback.indd 29-30 4/24/15 4:34 PM4/24/15 4:34 PM

Page 16

25 26

4. Place Child Restraint

Forward Facing Flush Against Vehicle Seat Back

3. Finished LATCH Routing

5. Loosely Attach Tether

Hook

Check vehicle owner’s manual for specific location.

6. Hook LATCH to Vehicle

Anchor

7. Tighten Belt

Place knee in child restraint.

Firmly push down while pulling shoulder belt or free end of lap belt to tighten.

8. Tighten Tether

With knee still in child restraint, push firm ly on the back of the seat and tighten tether strap.

9. Check Belt Tightness

Hold child restraint at the belt path with your weakest hand.

Push and pull from side to side.

If it moves more than 1 in. (2.5 cm), try pulling the belt tighter, try reinstalling the child restraint, try another seating location, or try using the vehicle belts.

To Release LATCH

Remove child from child restraint.

Remove tension from LATCH belt by pushing down on side of child restraint with LATCH adjuster. Then press adjuster button to loosen belt.

Unhook LATCH from bar by squeezing spring lever, pushing hook back into the seat bight and twisting. Then pull it out of the vehicle seat.

Store LATCH when not in use. See page 18.

4358-6742 Highback.indd 31-324358-6742 Highback.indd 31-32 4/24/15 4:34 PM4/24/15 4:34 PM

Page 17

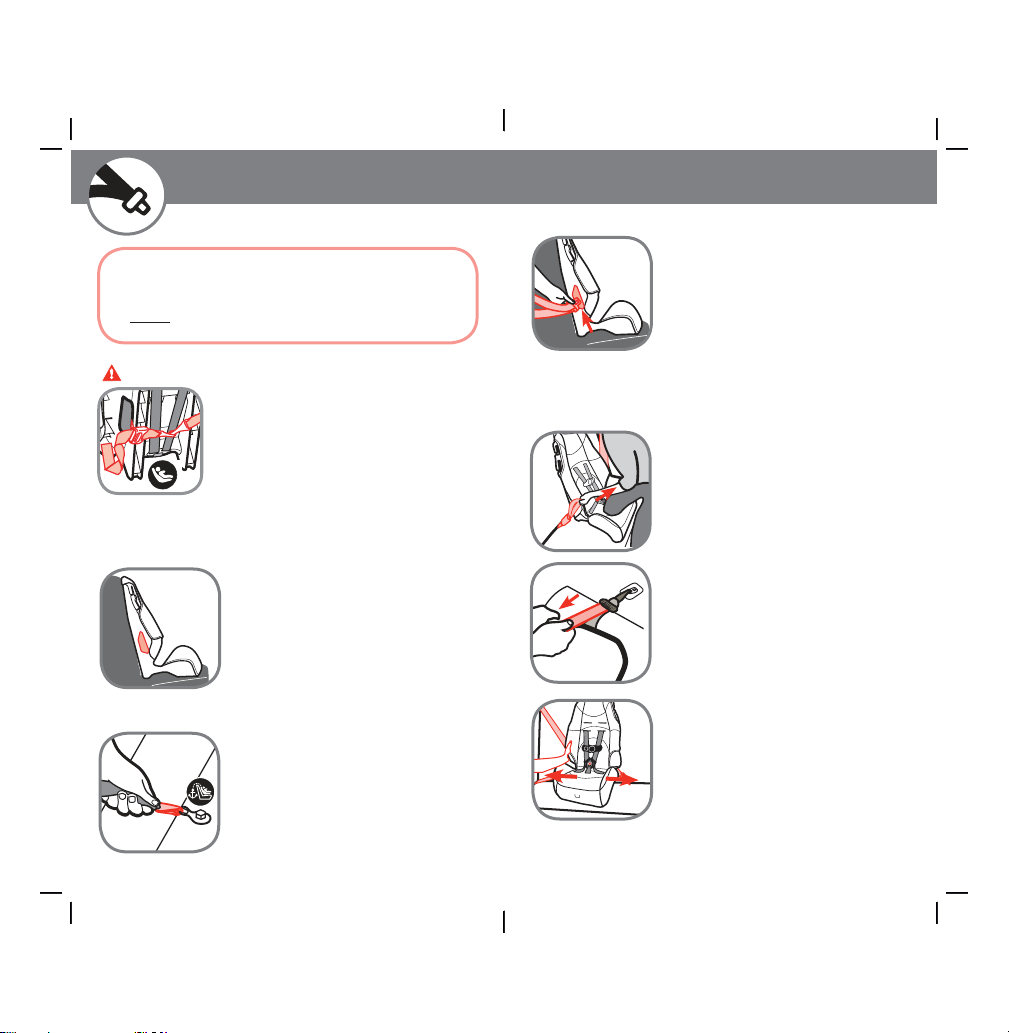

Vehicle Belt Inst allation

WARNINGS: Do not use LATCH along w ith the vehicle

lap or lap/shoulder belt. Store LATCH hook and belt s w hen install-

ing with vehicle belts. Check vehicle belt bef ore each use. Use

only if the belt can be tightened properly and locked securely in place.

Failure to follow these warnings can result in serious injury or death.

1. Place Child Restraint

Forward Facing Flush Against Vehicle Seat Back

2. Loosely Attach Tether

Hook

Check vehicle owner’s manual for specific location.

Safet y Tip

Make sure the harness strap fits your child correctly

before installing the child restraint. See pages 3 -4.

3. Route Vehicle Lap or

Lap/ Shoulder Belt Through Forward-Facing

Belt Path

Review pages 19- 20 and your

vehicle owner’s manual to determine what kind of vehicle belts you have and how to lock a child restraint in place.

Do not twist belt. Buckle vehicle belt.

5. Tighten Tether

With knee still in child restraint, push firm ly on the back of the seat and tighten tether strap.

4. Tighten Belt

Place knee in child restraint.

Firmly push down while pulling

shoulder belt or free end of lap belt

to tighten.

6. Check Belt Tightness

Hold child restraint at the belt path

with your weakest hand.

Push and pull from side to side.

If it moves more than 1 in. (2.5 cm),

try pulling the belt tighter, try

reinstalling the child restraint, try another seating location, or switch to using the LATCH belt.

4358-6742 Highback.indd 33-344358-6742 Highback.indd 33-34 4/24/15 4:34 PM4/24/15 4:34 PM

Page 18

29 30

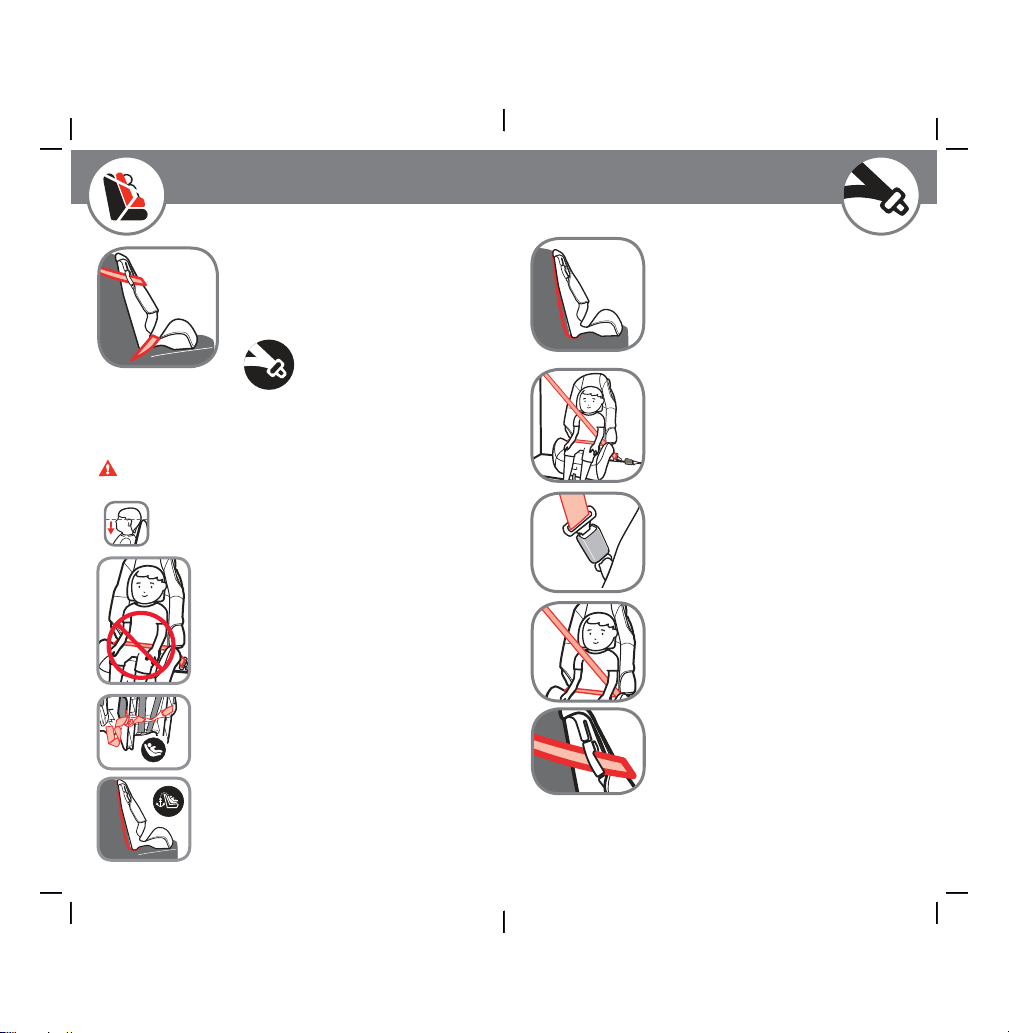

Booster Seat Lap and Shoulder Belt Installation

Lap/Shoulder Belt

You MUST remove the harness system to use as a booster seat. See pages 9- 10.

WARNINGS: Do not use the harness system w hen

using as a booster seat.

Do not use this booster seat if the tops of your child’s ears are above the top of the booster seat.

Use only the vehicle’s lap and shoulder belt syst em when restraining the child in this booster seat.

Do not use only the lap belt when using this seat as a booster seat.

The shoulder belt must always be adjust ed snugly across the child’s chest. NEVER place the shoulder belt under the child’s arms.

Do not use the LATCH belts or tether strap when using as a booster seat.

Store both LATCH and tet her strap as show n.

Failure to follow these warnings can result in serious injury or death.

1. Place Booster Seat

Forward Facing Flush Against Vehicle Seat

Back

Tuck the tether hook and strap under

the booster seat.

2. Position Lap Belt on Child

The lap belt should lay snugly across

the child’s upper thighs and not on

the stomach.

3. Buckle Vehicle Belt

4. Position Shoulder Belt

on Child

Pull up on shoulder belt to tighten.

The shoulder belt should lay snugly

across the center of the child’s

shoulders and across the chest and not

on the face or neck.

To help position the shoulder belt, you

may need to secure the shoulder belt

in one of t he notches in the shoulder

belt- positioning guides.

NOTE: Use the shoulder belt positioning guide only if necessary to

correctly position the shoulder belt on the child. Check periodically to ensure your child has not moved out of position and loosened the shoulder belt.

40-80 lb (18.1-36.3 kg) 43-52 in. (110.1-132.1 cm)

At least 3 years old

4358-6742 Highback.indd 35-364358-6742 Highback.indd 35-36 4/24/15 4:34 PM4/24/15 4:34 PM

Page 19

Using a Locking Clip

3. Position Locking Clip

It should be about 1 in. (2.5 cm) from

vehicle belt’s latch plate.

4. Rebuckle Vehicle Belt

6. Tighten Tether

With knee in child restraint, push firm ly on the back of the seat and tighten tether strap.

1 in.

(2.5 cm)

5. Check Belt Tightness

Hold child restraint at the belt path

with your weakest hand.

Push and pull from side to side.

If it moves more than 1 in. (2.5 cm),

try reinstalling the child restraint or try

another seating location.

You will rarely need to use a locking clip except in some older vehicles.

Built-in child restraint locking systems have been required in vehicles since 19 96, and m any vehicles had these features even earlier. Review pages 19- 20 and your vehicle owner’s manual to determine if your vehicle belts require a locking clip.

If you need a locking clip im mediately, they are likely available at an auto dealership, an auto store, or where you purchased this child restraint. You can also email us at [email protected] or call us at 1 -800- 544-1 108 for one.

A locking clip will not fix all types of seat belt problems. You

MUST have a lap and shoulder belt to use a locking clip. Do not use the locking clip w hen using this seat as a

booster seat.

For Forward Facing installation, follow Pages 27- 28

Warnings and Steps 1- 4 before starting locking clip installation.

1. Determine Locking Clip Position

Grasp both vehicle belts together just behind the latch plate to mark the position for locking clip.

Unbuckle the belt.

NOTE: If the latch plate ends up just

at the belt path opening so you cannot grasp the vehicle belt at the latch plate, grasp the vehicle belts on the opposite side of the child restraint, as close to the latch plate as possible.

2. Attach Locking Clip

Thread both portions of the vehicle

belt onto the locking clip, as close to

the latch plate as possible.

Remove the locking clip when the seat belt is not being used with a child restraint .

4358-6742 Highback.indd 37-384358-6742 Highback.indd 37-38 4/24/15 4:34 PM4/24/15 4:34 PM

Page 20

Dorel Juvenile Group Information Registration and Safety Notices

AB123CDE COSCO HIGHBACK 2-in-1

If you don’t have the card or if your address changes, you will find the model num ber, manufacture date, and line code on the label located on side of shell.

Example of model number, manufacture date, and line code.

Please complete the postage-paid registration card that came with your child restraint, and send it to us. Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, email address if available, and the restraint’s model number and manufacturing date to:

Dorel Juvenile Group, Inc. Consumer Relations Department

PO Box 26 09 Columbus, IN 47202-2609

or call 1-8 00- 54 4-1 10 8 or register online at www.djgusa.com / registration/carseat/ us.

For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1 –888– 32 7– 423 6 (TTY: 1–8 00 –424– 9153), or go to http:// www.NHTSA.gov.

Model

Number

Line

Code

Manufactur e

Date

Thank you for choosing this child restraint. The DJG family is committed to creating child restraints with the most com fort and convenience available today.

Remember, parents are a child’s first teachers and examples. If you always buckle your seat belt, your child will think it is the natural thing to do.

Make it a firm rule that the vehicle does not go until everyone is buckled up. Make no exceptions.

No one can predict if use of a child restraint will prevent injury or death in a particular crash. However, when com bined with careful driving, proper use of a child restraint can lower a child’s risk of injury or death in most crashes.

Your child’s safety is worth the time it will take to read and follow these instructions. After reading, if you still have questions or have any concerns with this child restraint, please contact our Consumer Relations Department at:

Website: www.coscokids.com

Email: [email protected]

Telephone: 1-8 00 -54 4- 1108

M- TH from 8 A.M. to 6 P.M. EST FRI from 8 A.M. to 4:30 P.M. EST

Mailing Address:

Dorel Juvenile Group, Inc. Consumer Relations Department P.O. Box 2 609 Columbus, IN 47202-2609

Fax: 1-8 00 -207- 8182

4358-6742 Highback.indd 39-404358-6742 Highback.indd 39-40 4/24/15 4:34 PM4/24/15 4:34 PM

Page 21

Troubleshooting Replacement Parts Order Form

Complete the form . Your model number with color code and manufacturer date code

MUST be included on the form to ensure

proper replacement parts. The codes can be found on a label on side of child restraint. Payment in U.S. dollars must accom pany your order. Choose parts needed from the list on the next page. Return the form with payment to:

Dorel Juvenile Group, Inc. Consumer Relations Department

P.O. Box 2609 Columbus, IN 47202-2 60 9

Fax orders to: 1 -800-207- 8182 Please make m oney orders payable to Dorel Juvenile Group, Inc. Fill

in the area on the next page t o charge credit card. (Visa or MasterCard

only

). We do not accept cash, personal checks, or other credit

cards. All outside of U.S. and Canada

MUST use credit card.

Ship To:

(Please Print)

Name:_______________________________________

Address:_____________________________________

City:_____________ __ __ __ __ __ __ __ __ __ __ __ __ __ __

State/Province:_______________Zip_______________

Telephone: ___________________________________

Email Address: _____________________ __ __ __ __ __ _

We MUST have this inform ation:

Model Number (8 to 9 characters):_________________

Manufacture Date (mm/ dd/yyyy):__________________

1. Locate a Child Safety Seat Inspection Station for hands

on training on how to use your child restraint:

Visit your local Child Passenger Inspection Station or go to http://www.safercar.gov/cpsApp/cps/index.htm to ﬁ nd your closest station.

2. If the child restraint buckle or harness release lever

sticks or you cannot get the straps tight enough around child:

DO NOT LUBRICATE. Check around lever and retractor for dropped food, sticky spilled drinks, dirt, leaves, etc. Clean with warm water and/or remove object with tweezers. If you cannot get the harness to adjust and remain tight with the buckle securely locked, do not use the child restraint.

3. If you cannot insert the buckle tongues into buckle,

switch sides and try again.

4. If your harness twists:

Straighten the harness each time you put your child in the child restraint to help prevent twisting. Lock the buckle and tighten harness and it w ill be ready for next use.

4358-6742 Highback.indd 41-424358-6742 Highback.indd 41-42 4/24/15 4:34 PM4/24/15 4:34 PM

Page 22

Replacement Parts List Warranty

3837

CUT ON DO TTED LINE

NOTE: If request ed color is not available, similar color will be

substituted. Prices are subject to change.

Part Cost Qty Total Cost

Buckl e Assembly ....... ......... ........ ...... $ 7.9 9 .... _ _ _ . ... .... $ _ _ _ _ __ _

Harness Strap ............................. $2.99 .... ___ ........ $_____ __

Seat Pad ................................... $18.00 ....___ ........ $__ _____

Chest Clip ................................... $1.50 .... ___ ........ $_____ __

Tether .... ..... ..... ..... ..... ..... .... ..... ... $ 6.0 0 .... _ _ _ ... .... . $_ _ __ _ __

LATCH. ...... ....... ....... ....... ...... ..... $1 7.99 .... _ __ ........ $ ___ __ __

Instru ctions ....... .............. ............ $0.00 . ...___ ...... ..$__ _____

Locking Clip ................................ $2.50 .... ___ ........ $____ ___

Merchandise Total: .............................................. $__ _____

Shipping and handling: ........................................ $_____ __

Fill Out For Credit Card

q Visa q M asterCard

Card Exp. Date: __________________ _________________________ Cardholder’s Name: __________________ _________________________ Card Number: __________________ _________________________ Signature: _________________________ __ __ __ __ __ ________

Sales Tax . ...... ...... ..... ...... ..... ...... ..... ...... ...... ..... ...... $ __ __ __ _

(Arizona, Californ ia, Georgia, Indiana, Missouri, South Carolina, and Texas resident s add applic able sales tax.)

Grand Total ........ ....... ....... ....... ............................ ...$__ __ ___

No shippi ng and handli ng on instr uctions for quantiti es under 6. Add $. 50 for each instr uction over 6 , then add app licable ship ping and hand ling.

Up to $25 .00 .......... ........... $ 5.95

$25. 01 to $5 0.00 ......... ..... $6.9 5

$50. 01 to $7 5.00 ......... ..... $8.9 5

$75. 01 to $1 00.00 ....... ..... $9.95

$100 .01 to $ 150.00 ... ....... $10 .95

$150 .01 to $ 200.00 ... ....... $11 .95

$200 .01 and up ............ ..... $13.9 5

Outside Continen tal USA.....$ 10.00

Dorel Juvenile Group, Inc. (DJG) warrants this product to the original retail purchaser as follows:

This product is w arranted against defective materials or workmanship for

one year

from the date of original purchase.

An origi-

nal receipt is required to validate your warranty.

DJG will, at its option, provide replacement parts or replace this product. DJG reserves the right to substitute if the part or m odel has been discontinued.

To make a claim under this warranty you may email us at [email protected]; fax us at 1- 800-2 07 -8182 24 hours a day; w rite to DJG, Consumer Relations Departm ent, P. O. Box 2 609, Columbus, IN 47202-2 60 9; or call 1-8 00- 54 4-1 10 8 from 8:00 a.m. to 6 :00 p.m. EST Monday through Thursday and from 8:00 a.m. to 4 :30 p.m. on Friday.

Proof of purchase is required and shipping charges are the responsibility of the consumer.

Warranty Limitations:

This w arranty does not include dam ages

which arise from m isuse or abuse of this product.

Limitation of Damages:

The warranty and remedies as set forth are exclusive and in lieu of all others, oral or written, expressed or implied. In no event will DJG or the dealer selling this product be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitation of warranties and other warranty terms and state law rights:

Any im plied warranties, including implied warranties of the merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations as to how long an implied w arranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither DJG nor the dealer selling this product authorized any person to create for it any other warranty, obligation, or liability in connection with this product.

4358-6742 Highback.indd 43-444358-6742 Highback.indd 43-44 4/24/15 4:34 PM4/24/15 4:34 PM
