This quick installation guide was designed to help with the basic configuration for the Captor M. More
detailed information can be found in the installation guide.

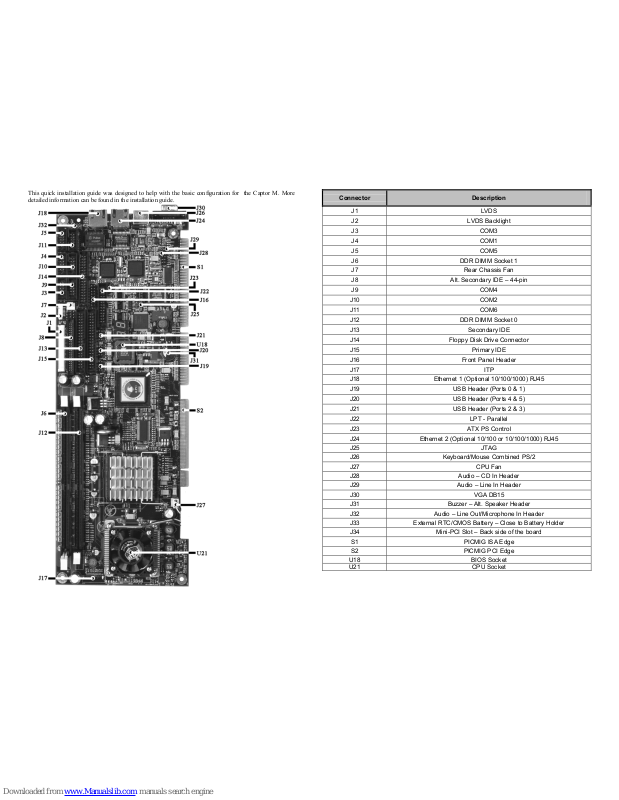

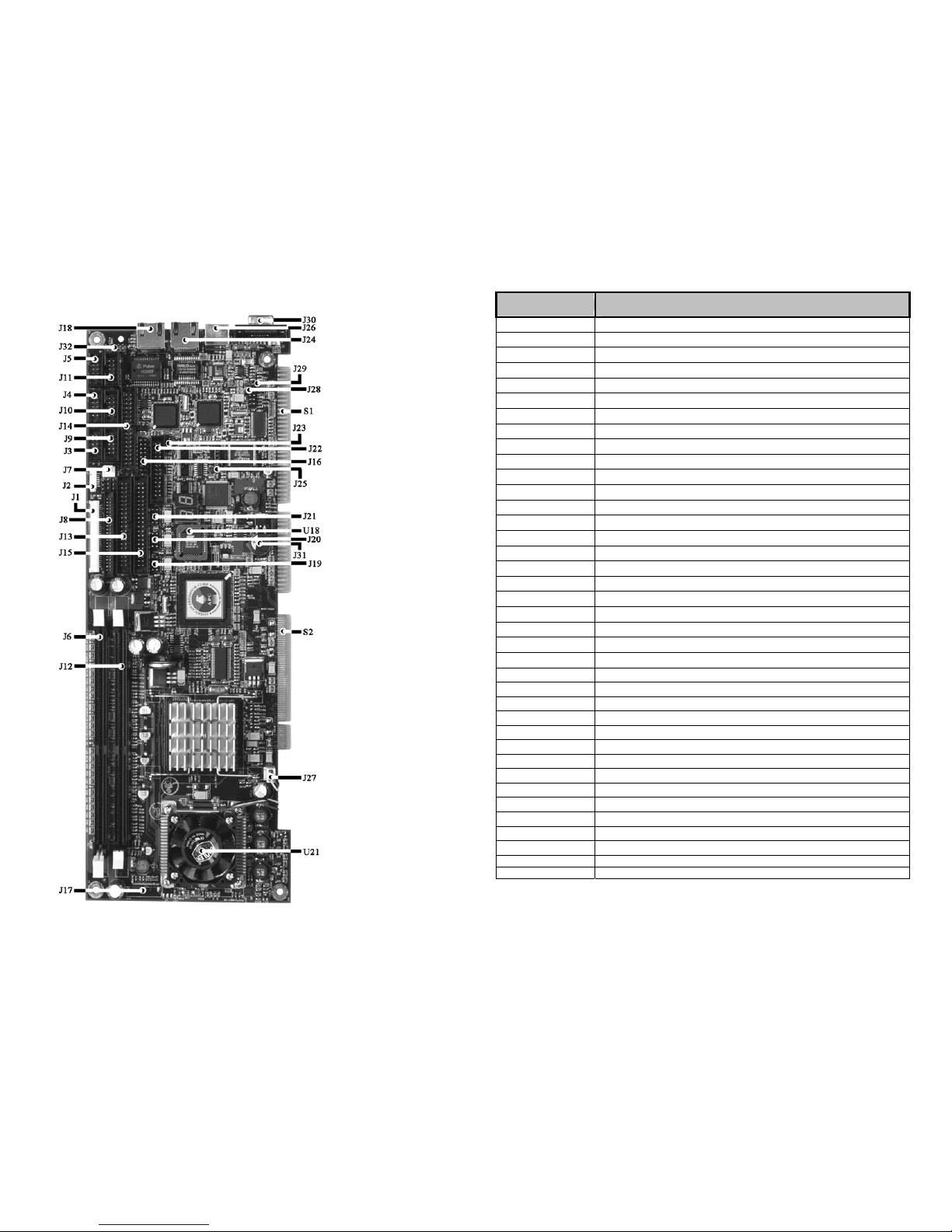

Connector Description
J1 LVDS
J2 LVDS Backlight
J3 COM3
J4 COM1
J5 COM5
J6 DDR DIMM Socket 1
J7 Rear Chassis Fan
J8 Alt. Secondary IDE – 44-pin
J9 COM4
J10 COM2
J11 COM6
J12 DDR DIMM Socket 0
J13 Secondary IDE
J14 Floppy Disk Drive Connector
J15 Primary IDE
J16 Front Panel Header
J17 ITP
J18 Ethernet 1 (Optional 10/100/1000) RJ45
J19 USB Header (Ports 0 & 1)
J20 USB Header (Ports 4 & 5)
J21 USB Header (Ports 2 & 3)
J22 LPT - Parallel
J23 ATX PS Control
J24 Ethernet 2 (Optional 10/100 or 10/100/1000) RJ45
J25 JTAG
J26 Keyboard/Mouse Combined PS/2
J27 CPU Fan
J28 Audio – CD In Header
J29 Audio – Line In Header
J30 VGA DB15
J31 Buzzer – Alt. Speaker Header
J32 Audio – Line Out/Microphone In Header
J33 External RTC/CMOS Battery – Close to Battery Holder
J34 Mini-PCI Slot – Back side of the board
S1 PICMIG ISA Edge
S2 PICMIG PCI Edge
U18 BIOS Socket
U21 CPU Socket
Page 2
System Memory Features:
The Captor M allows an upgrade of the system memory with up to 2GB unbuffered
SDRAM DDR DIMM modules in two memory slots. ECC and non-ECC DDR
SDRAM modules are supported, PC1600 (DDR 200MHz), PC2100 (DDR 266MHz)
and PC2700 (DDR 333MHz). It is very important that the quality of the DIMMs is
good. Unreliable operation of the system may result if poor quality DIMMs are used.
Always purchase your memory from a reliable source.
System Memory Features:
• 2.5 V (only) 184-pin DDR SDRAM DIMMs with gold-plated contacts.
• Unbuffered, unregistered single-sided or double-sided DIMMs.
• Maximum total system memory: 2 GB; minimum total system memory: 32
MB .
• DDR333 MHz (PC2700) and DDR266 MHz (PC2100) DDR SDRAM
DIMMs only.
• Serial Presence Detect (SPD).
• You can use ECC and non-ECC DIMMs.
• Do not use Registered DIMMs.
• Double sided x16 DIMMs are not supported.
The following table lists the supported DDR DIMM Configurations:
Front Side Population Back Side Population DIMM
Capacity
# of
Dev./
DIMM
# of
Sides
DRAM
Tech.
Count Config Count Config
64 MB 4 SS 128 Mbit
4
8 M x 16
128 MB 8 SS 128 Mbit
8
16 M x 8
128 MB 4 SS 256 Mbit
4
16 M x 16
256 MB 16 DS 128 Mbit
8
16 M x 8
8 16 M x 8
256 MB 8 SS 256 Mbit
8
32 M x 8
256 MB 4 SS 512 Mbit
4
32 M x 16
512 MB 16 DS 256 Mbit
8
32 M x 8
8 32 M x 8
512 MB 8 SS 512 Mbit
8
64 M x 8
1024 MB 16 DS 512 Mbit
8
64 M x 8
8 64 M x 8
PROCESSOR:
The latest revision of the Captor M currently supports full series of Intel Pentium M,
Intel Pentium M on 90nm process with 2MB L2 cache and Celeron M 400MHz PSB
processors featuring next-generation Intel SpeedStep® technology on the µFC-PGA
478 package
MN-GMESB-Q1
CCaappttoorr MM -- QQuuiicckk sIInnsttaallllaattiioonn GGuuiiddee

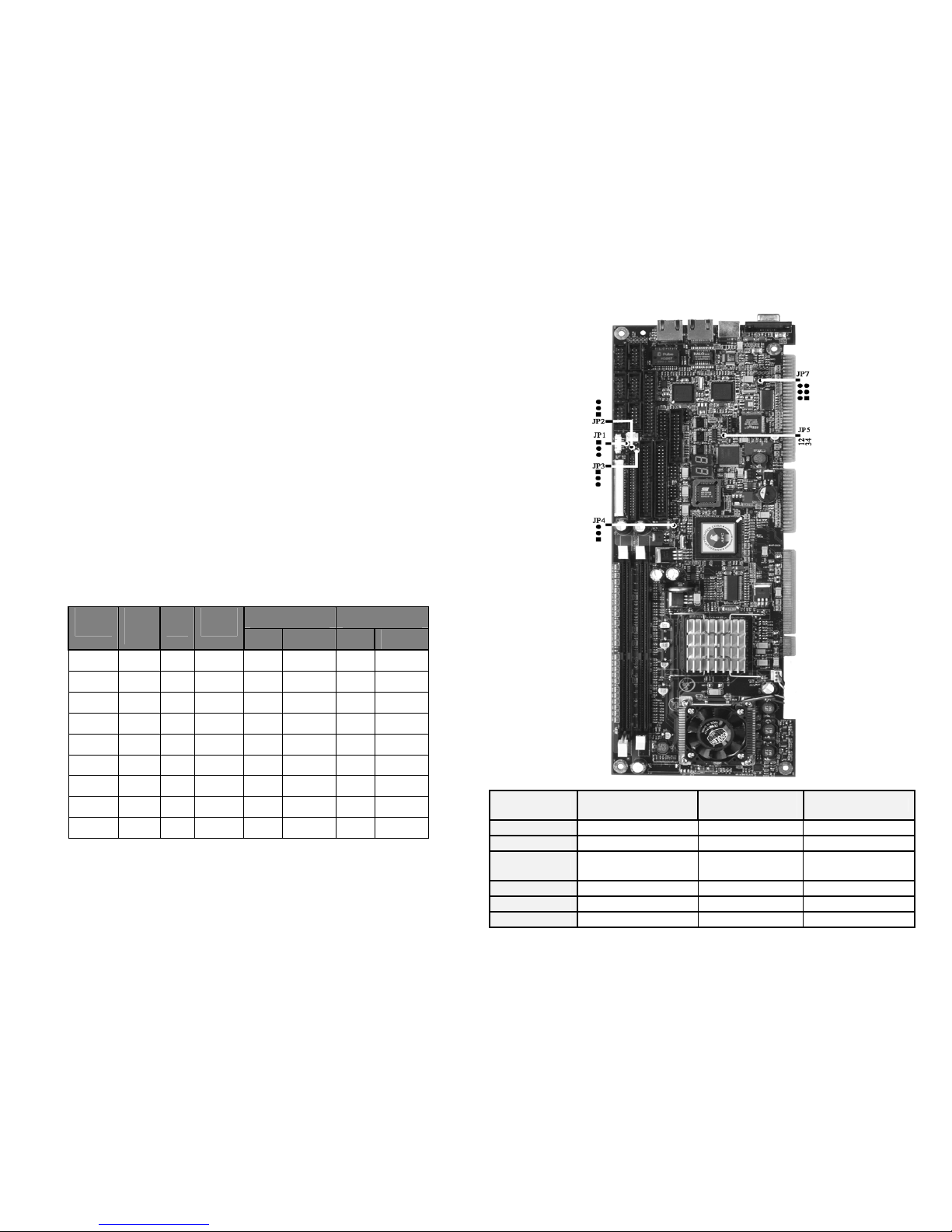

Jumper Description
Manufacturer’s
Settings
Jumper Position
JP7
Audio Output Mode Line Out 3-5, 4-6
JP3
ATA disk voltage 5V 1-2
JP4
CMOS
Reset
Normal 1-2
JP5
RS422/485 Term. Open none
JP1
Backlight Voltage 3.3V 2-3
JP2
Inverter Voltage 5V 2-3
