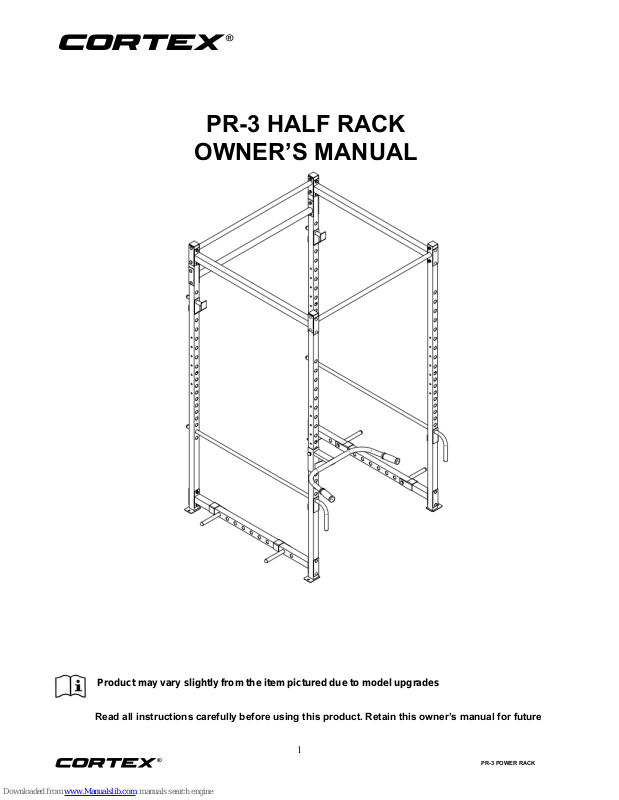

Page 1
1
PR-3 POWER RACK
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for future
PR-3 HALF RACK
OWNER’S MANUAL
Page 2
2
PR-3 POWER RACK
reference.
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. PARTS LIST 4
3. ASSEMBLY INSTRUCTIONS 5
4. WARRANTY 9
Page 3
3
PR-3 POWER RACK
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this machine.
Install the product on a flat level surface
Place your unit on a solid, level surface when in use
Never allow children on or near the machine.
Keep hands away from all moving parts.
Never drop or insert any object into any openings.
Care must be taken when lifting or moving the equipment so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
Keep children and pets away from the machine at all times. DO NOT leave children unattended in the
same room with the machine.
Only 1 person at a time should use the machine.
If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the
workout at once. CONSULT A PHYSICIAN IMMEDIATELY
Do not use the machine near water or outdoors.
Keep hands away from all moving parts.
Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that
could become caught in the machine. Running or aerobic shoes are also required when using the
machine.
Use the machine only for its intended use as described in this manual. DO NOT use attachments not
recommended by the manufacturer.
Do not place any sharp objects around the machine.
Disabled person should not use the machine without a qualified person or physician in attendance.
Never operate the machine if the machine is not functioning properly.
A spotter is recommended during exercise.
Page 4
4
PR-3 POWER RACK
2. PARTS LIST
NO.
Name
Model
Quantity
1
Vertical Tube A
2
2
Connection Tube
2
3
Connection Tube
2
4
Pulling Up Bar
Φ32 Upper welding
1
5
Pulling Up Bar
Φ32 Center welding
1
6
Dip Frame
1
7
Plate Rest
4
8
Bar Support
2
9
Bar Rest 2
10
Pin 1
11
Strengthen Board
110mm
16
12
Pulling Up Bar
Φ42
2
13
Carriage Bolts
M10x70mm
20
14
Washer
Φ10
20
15
Nuts
M10
20
16
Vertical Tube B
2
Page 5
5
PR-3 POWER RACK
3. ASSEMBLY INSTRUCTIONS

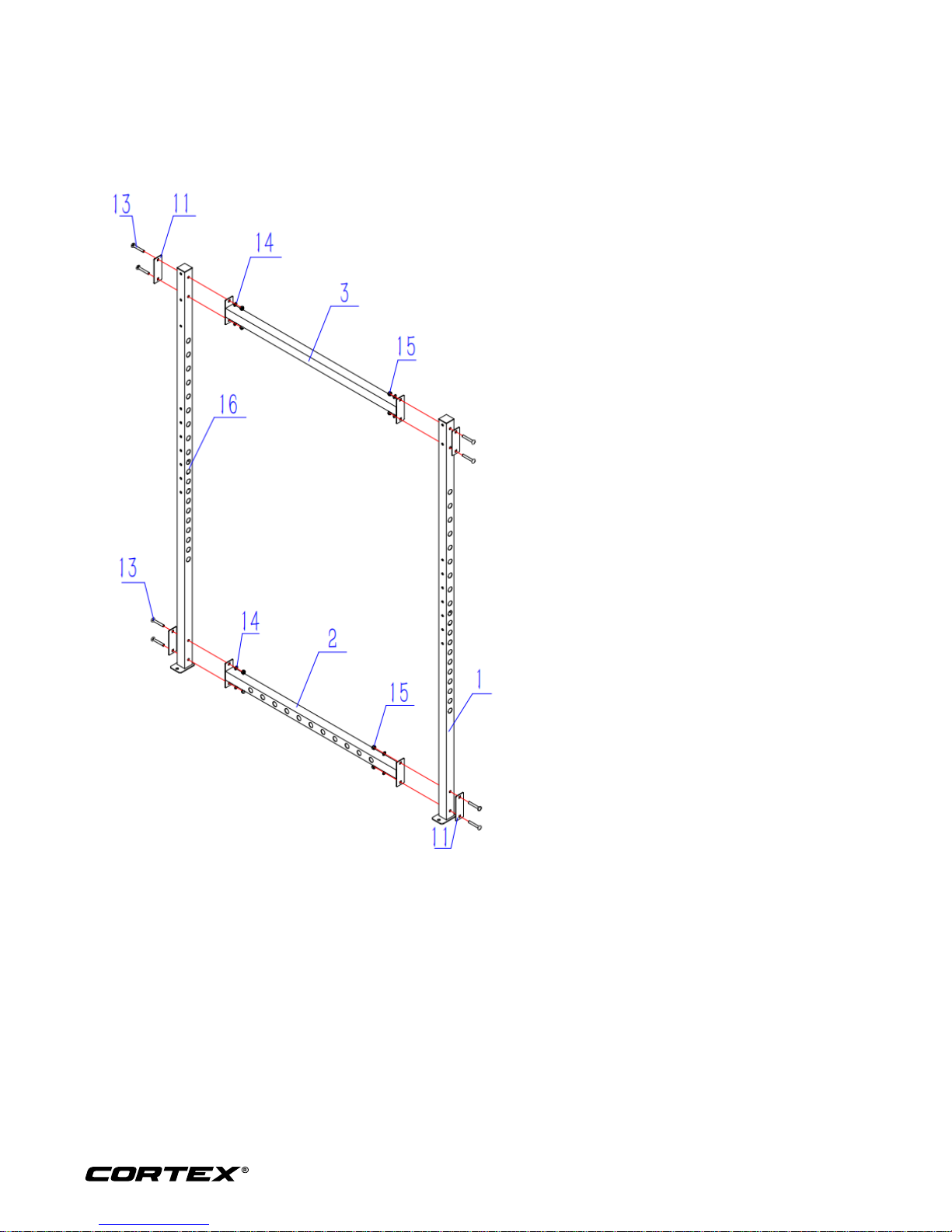

STEP 1
1. Attach the Vertical Tube A (#1) and Vertical
Tube B (#16) to the Connection Tube (#2) and
(#3).
Secure it with:
- 8 Carriage Bolts M10x70mm (#13)
- 8 Washers Φ10 (#14)
- 8 Nuts M10 (#15)
- 4 Strengthen Board (#11)
2. Install the other side the same way.
Page 6
6
PR-3 POWER RACK

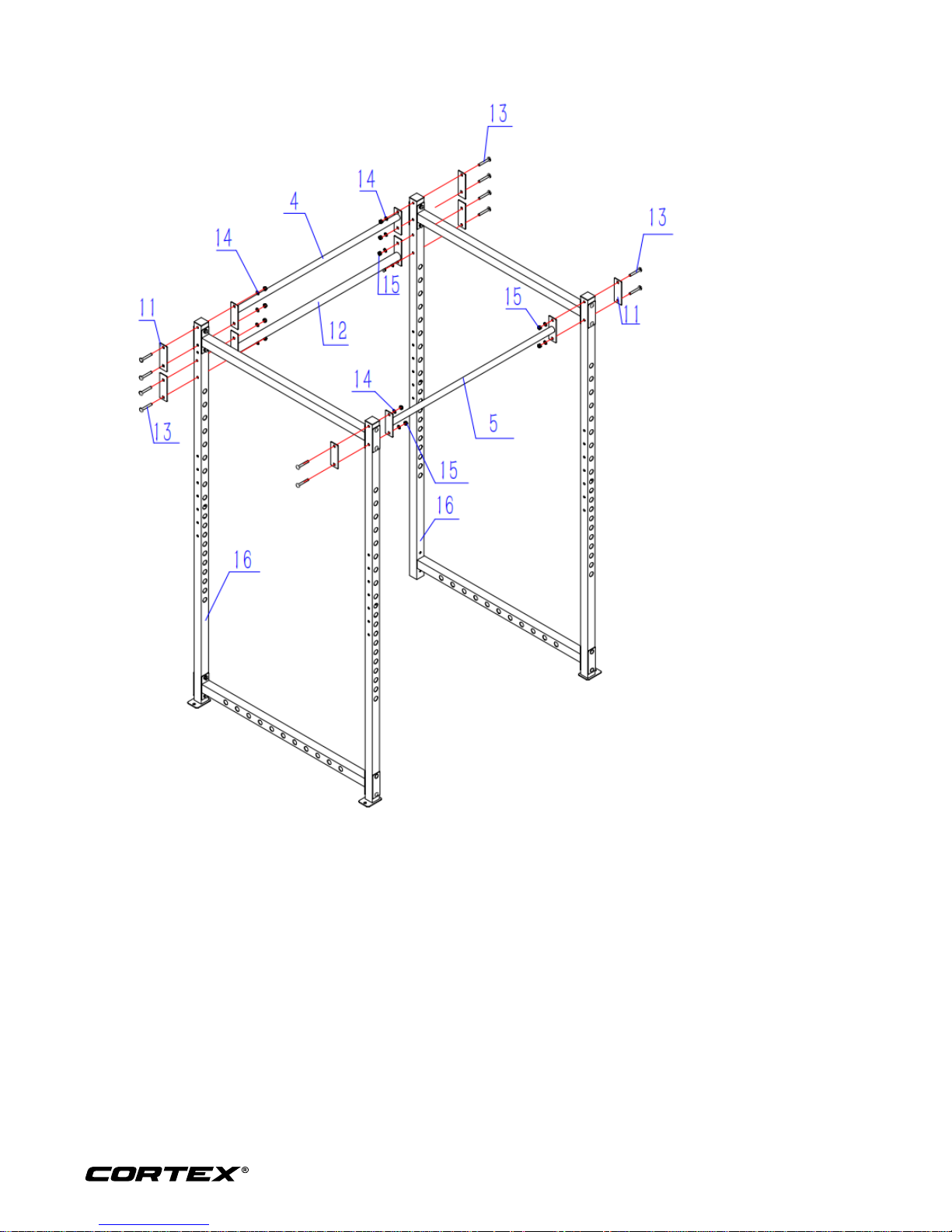

STEP 2
1. Follow the chart, Attach the two sides with Pulling Up BarΦ32 Upper welding (#4), Pulling Up
BarΦ32 Center welding and (#5) and Pulling Up Bar Φ42(#12).
Secure it with:
- 12 Carriage Bolts M10x70mm (#13)
- 12 Washers Φ10 (#14)
- 12 Nuts M10 (#15)
- 6 Strengthen Board (#11)
Page 7
7
PR-3 POWER RACK

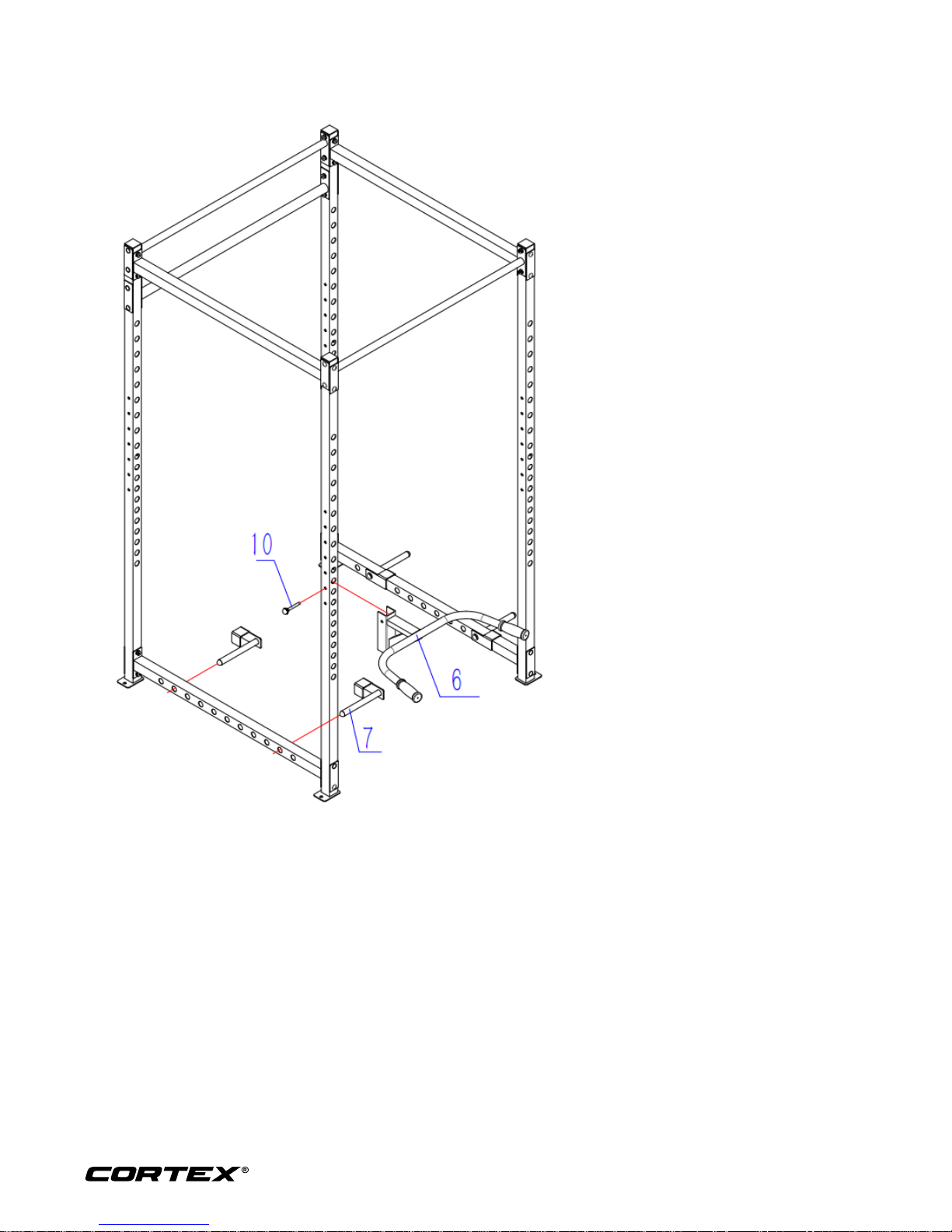

STEP 3
1. Plug the Dip Frame (#6) into the
Vertical Tube, locked with Pin (#10).
2. Plug the 4xPlate Rest (#7) into the
Vertical Frame.
Page 8
8
PR-3 POWER RACK

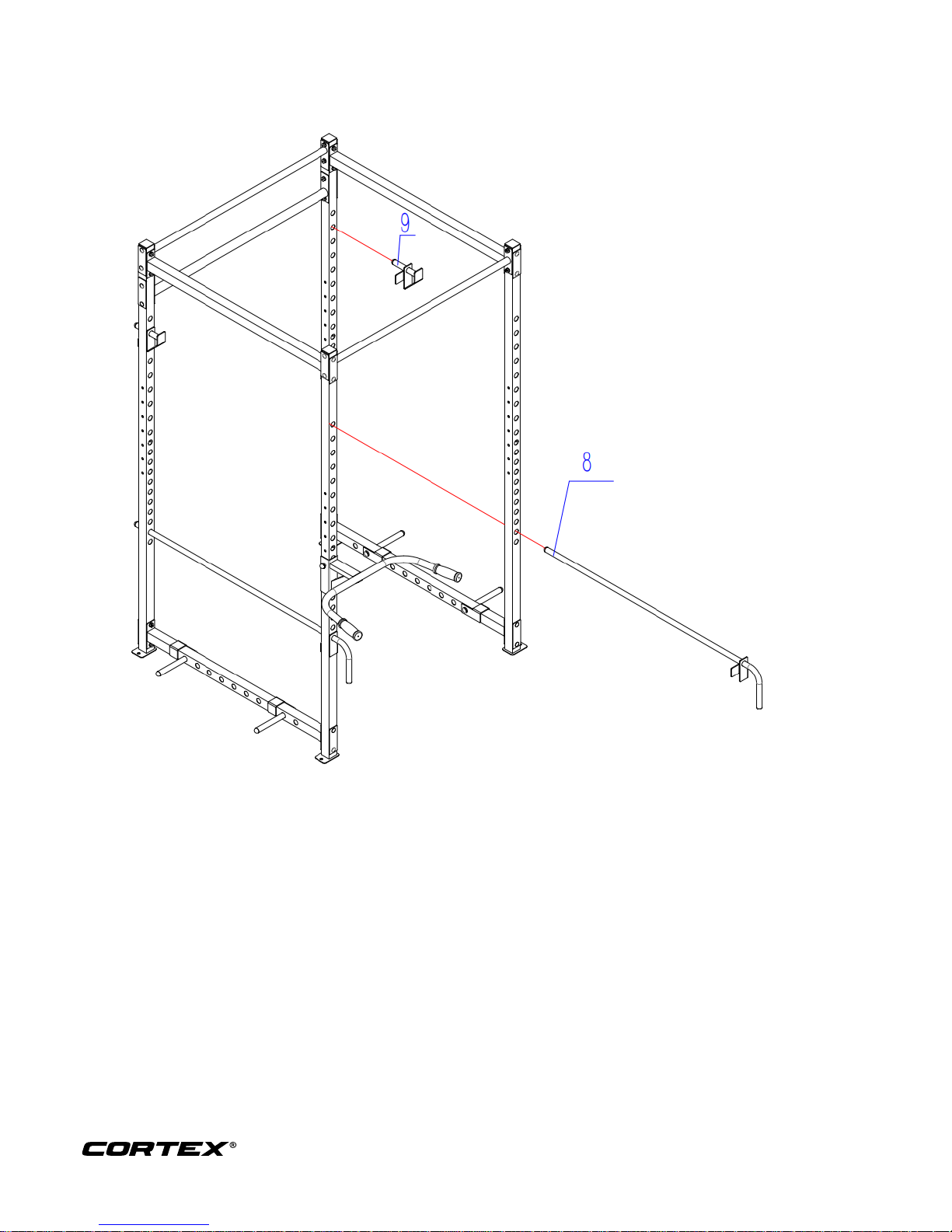

STEP 4
1. Plug the 2xBar Rest (#9) into the Vertical Frame.
2. Plug the 2xBar Support (#8) into the Vertical Frame.
Page 9
9
PR-3 POWER RACK
4. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
Warranty and Support:
Please email us at [email protected] for all warranty or support issues.
For all warranty or support related enquiries an email must be sent to lodge a support case in our system.
Head Office and Customer Service:
Global Fitness and Leisure Pty Ltd
17 Fordson Rd
Campbellfield
VIC, 3061
Australia
PH: 03 9357 2166
