8782 Line Powered Caller ID
Speaker Phone
INSTRUCTION MANUAL
1
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS .................................. 3
TELEPHONE PART IDENTIFICATION ................................... 4
INSTALLATION ................................................................. 6
MESSAGE WAITING SETUP ................................................ 7
FUNCTION SETUP ............................................................. 7
OPERATION ..................................................................... 9
CALLER ID ..................................................................... 10
PHONE BOOK ................................................................ 11
MAINTENANCE INFORMATION ........................................ 12
TELEPHONE SERVICE PROBLEMS .................................... 13
TROUBLESHOOTING ....................................................... 13
TELEPHONE REPAIR ....................................................... 14
FCC INFORMATION ........................................................ 15
LIMITED WARRANTY ...................................................... 16
2
IMPORTANT SAFETY INSTRUCTIONS
Always follow basic safety precautions when using your telephone
equipment to reduce the risk of fire, electrical shock, and injury.
1. Read and understand all instructions in the Owner’s Instruction Manual.
2. Read all warnings and follow all instructions marked on the product.
3. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.
4. Do not use the telephone near water. For example, do not use near a
bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet
basement.
5. Do not place this product on an unstable cart or stand. The product may
fall causing serious damage to the product.
6. Do not place any objects on the telephone line cord. Do not locate the
telephone where the line cord will be walked on.
7. Do not block or cover ventilation slots and openings in the bottom of the
telephone. The openings should never be blocked by placing the
telephone on a bed, sofa, rug, or other similar surfaces. The telephone
should never be placed near or over a radiator or heat register. The
telephone should never be placed in a built-in installation unless proper
ventilation is provided.
8. Never spill liquid on the telephone or push objects of any kind through
ventilation slots. Liquid or objects may touch dangerous voltage points or
short out parts that could result in a risk of fire or electrical shock.
9. Do not disassemble this product. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly
can cause electrical shock when the product is subsequently used.
10. Avoid using a telephone during a local thunderstorm. There may be a
remote risk of electrical shock from lightning.
11. Do not use a telephone to report a gas leak in the vicinity of the leak.
12. Use only the batteries indicated in this manual. Do not dispose of
batteries in a fire. They may explode. Check your local codes for
possible special disposal instructions for batteries.
13. Unplug the telephone from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
• When the line cord is frayed or plugs damaged.
• If liquid has been spilled into the telephone.
• If the telephone has been exposed to rain or water.
• If the telephone does not operate properly by following the operating
instructions. (Adjust only those controls covered by the operating
instructions. Improper adjustment of other controls may result in
damage and will often require extensive work by a qualified
technician to restore the product to normal operation.)
• If the telephone has been dropped or the housing damaged.
• If the telephone exhibits distinct change in performance.
CAUTION-Always disconnect all telephone lines from the wall outlet before
servicing or disassembling this equipment.
3

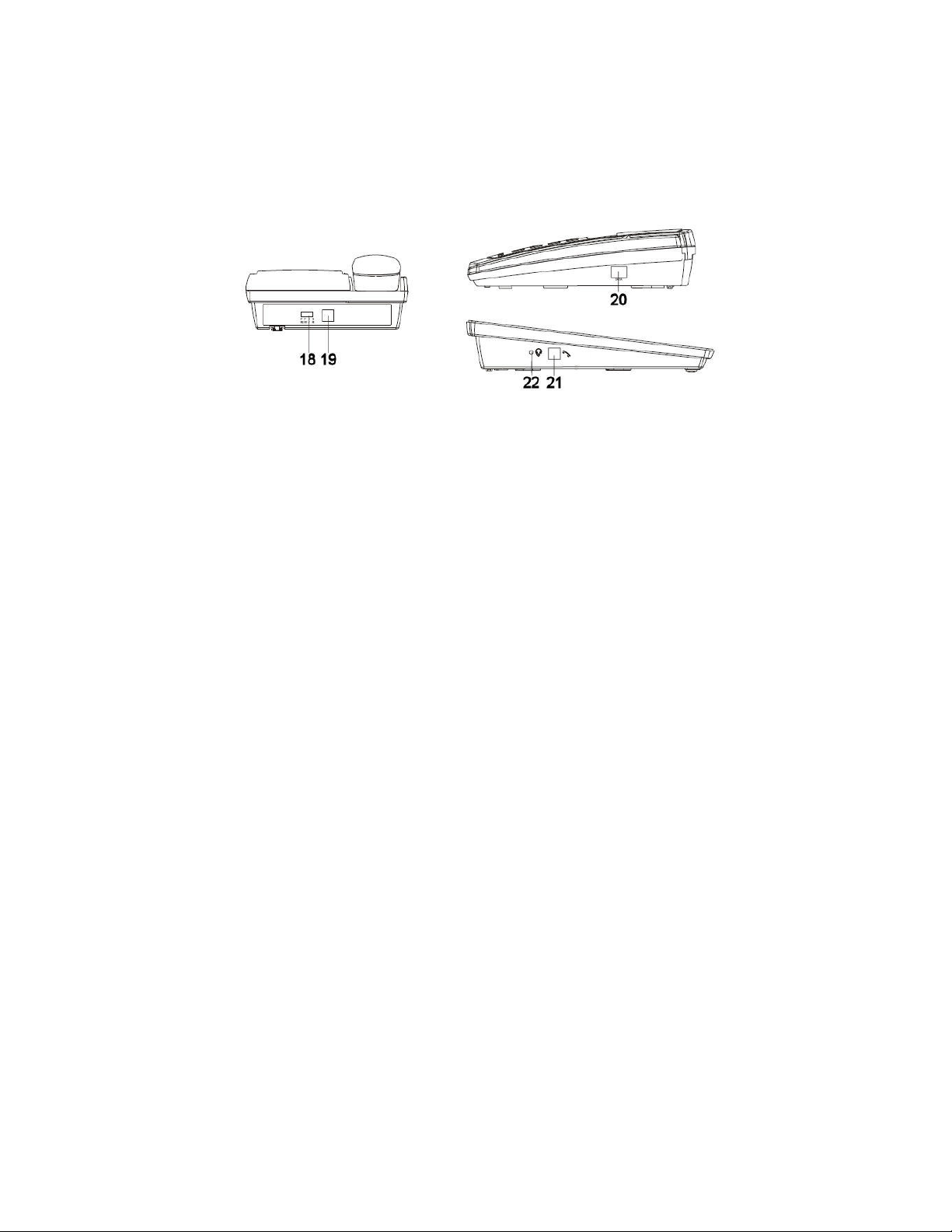

TELEPHONE PART IDENTIFICATION
1. Liquid Crystal Display - Displays the phone number, date and
time and other information.
2. One-Touch Memories - Phone numbers can be stored for
speed dialing.
3. Call Back
a.When reviewing Caller ID or phone book records, press to
dial the saved number.
b.Press and hold to set alarm.
4. Store - Press to save numbers in one-touch memory.
5.
6. Del/Set
7. VOL
- Press to enter the phone book.
a. Press and hold for 3 seconds while on-hook to display set-
up menu.
b. Press to delete letters or digits while editing the phone
book.
c. Press and hold for 3 seconds while viewing phone book to
delete entries.
a. Press and hold while on-hook to adjust ringer volume.
b. Press while off-hook to adjust handset volume.
c. Press while on speakerphone to adjust speaker volume.
4
8. AUTO RD (Auto Redial/Change Ring Tone)
a. Press to auto redial the last dialed number continuously
until the phone is answered.
b. Press and hold for 3 seconds to change ring tone.
9. Redial/Pause
a. Press repeatedly while on hook to review dialed numbers.
b. Press while off hook to dial the last dialed number.
c. Press while programming memory dial to store a pause.
10. Flash - Press to provide a line break signal for accessing PBX
services or Call Waiting from your local telephone company.
11.
a. Press for handsfree dialing and speak without lifting the
b. Plug in headset to change to headset mode. Press to
c. Will light when the unit is in use
d. Will flash when the unit has a new call.
e. Will flash when the unit is on hold.
f. Will flash when the unit has a message waiting.
12. Hold - Press to hold the line.
13. Dialing Keys (0-9,*,#)
14. CLID
a.Press to review Caller ID Records
b.While in menu, use to select telephone settings.
15. Speaker
16. Wall Mounting Hook - Turn 180 degrees to hang up the
handset when the unit is mounted on the wall.
17. Hookswitch - Press to end a call.
/In Use/New/Message Waiting
handset.
talk or to end the call.
- Review Up and Review Down Buttons
5
